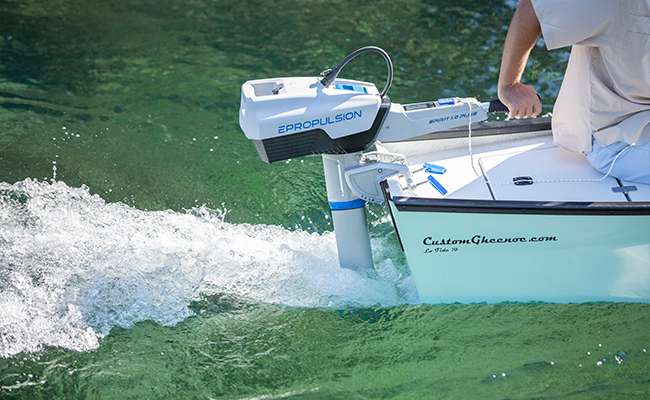

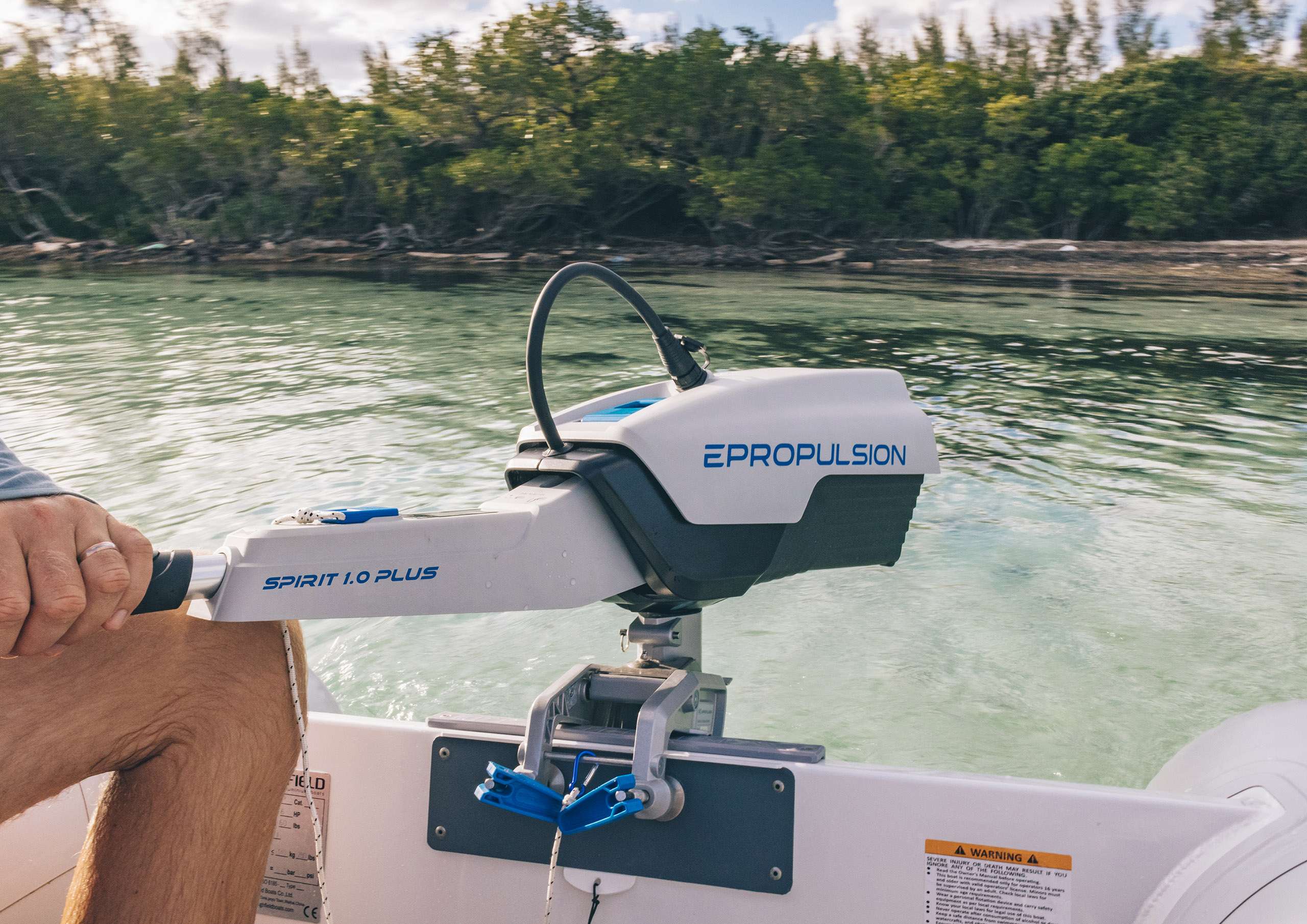

Introducing Spirit 1.0 Plus

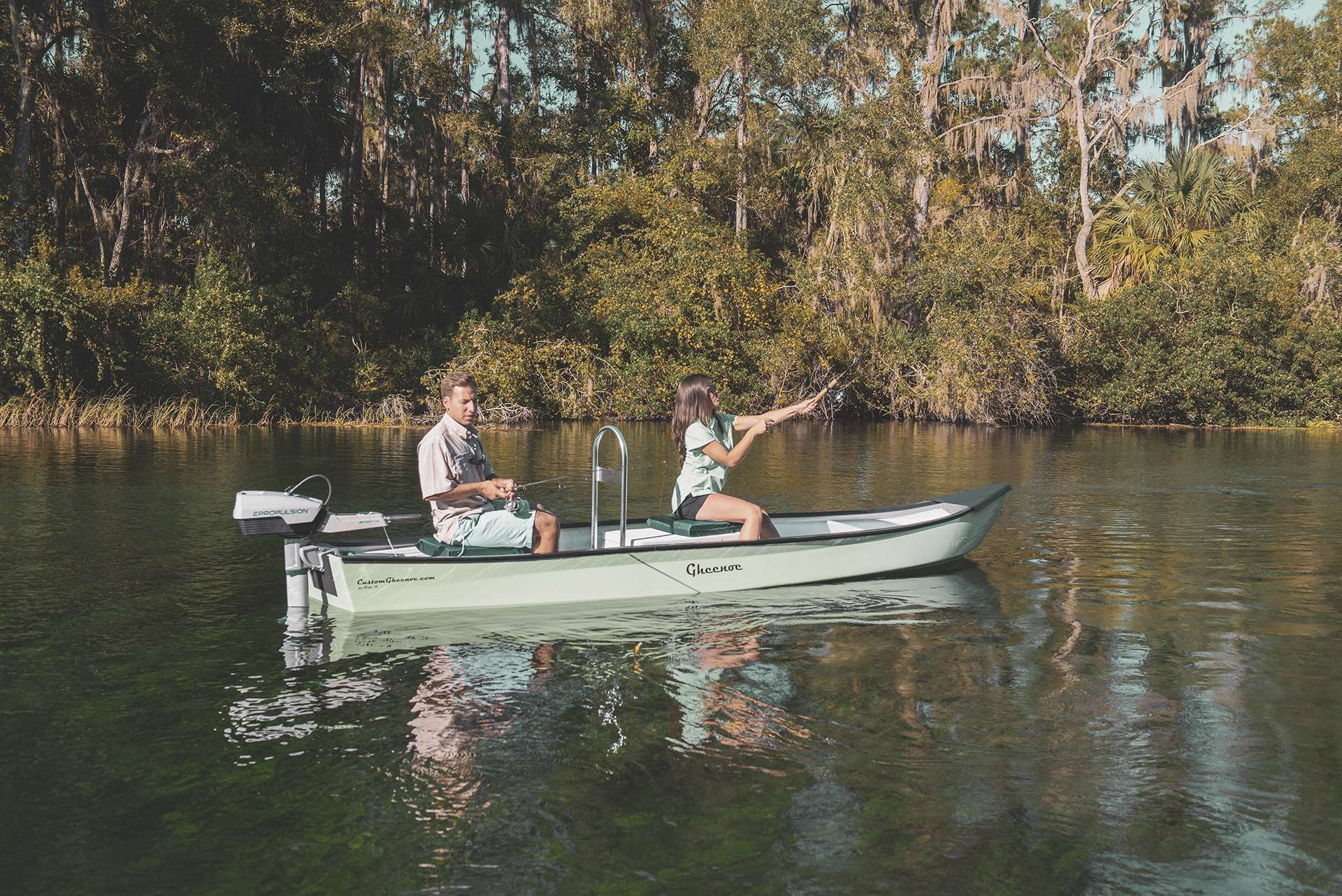

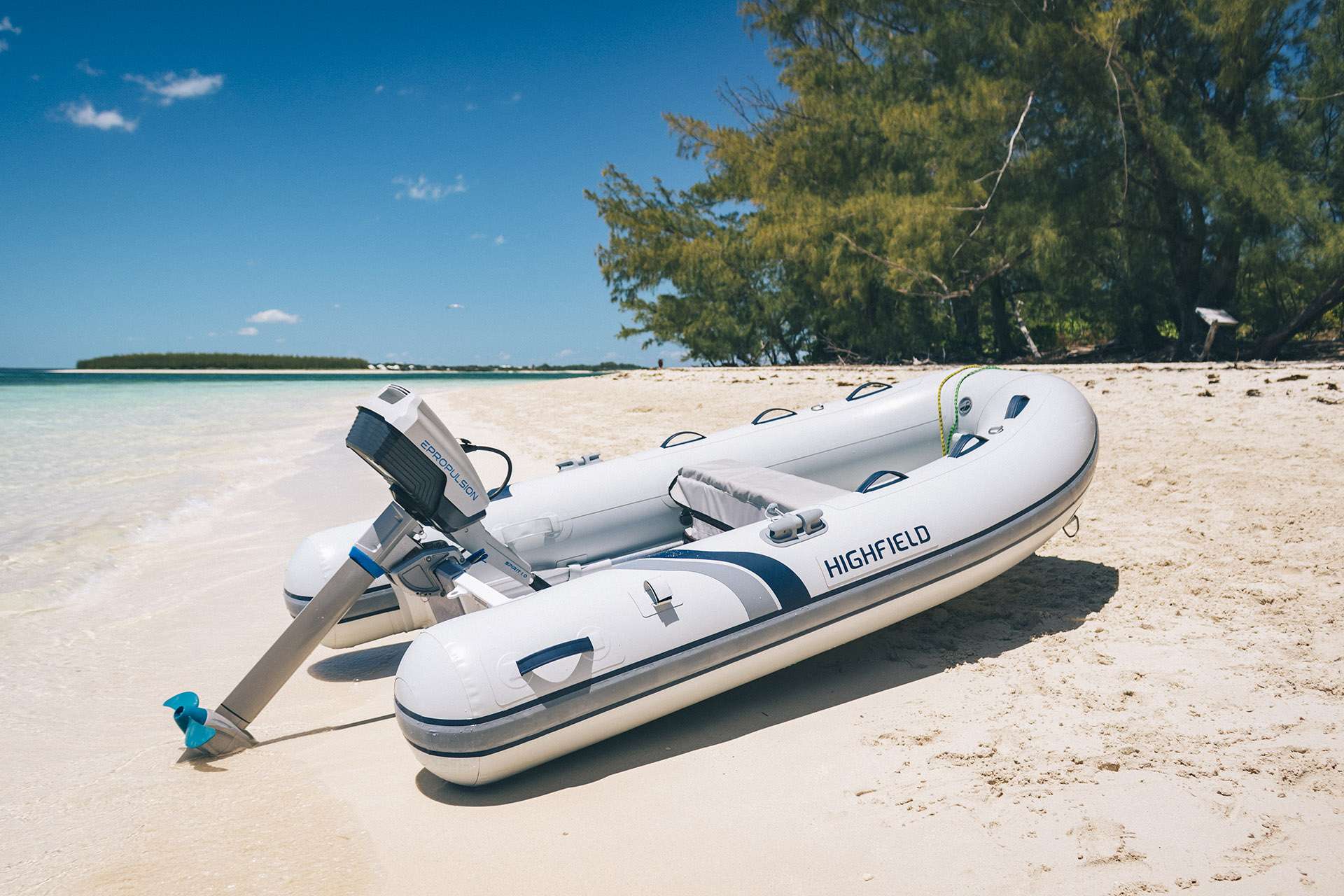

Spirit 1.0 Plus is a portable 3HP electric outboard made for dinghies, fishing boats, sailboats and tenders. It features a 1276Wh large integrated lithium battery for long range. It’s nimble, lightweight, and clean power.
At the core of Spirit 1.0 Plus electric outboard motor, it’s a 1kW BLDC motor, equivalent to 3HP.
|Power (W)||Speed (mph / kph)||Runtime (hh:mm)||Range (mile / km)|
|35||2.2 / 3.5||36:25||80 / 129|
|65||2.7 / 4.3||19:35||53 / 85.3|
|125||3.5 / 5.6||10:00||35 / 56|
|250||4.4 / 7.1||5:00||22 / 35.5|
|500||5.3 / 8.5||2:30||13.3 / 21.3|
|750||5.7 / 9.2||1:40||9.5 / 15.3|
|1000||6.2 / 10||1:15||7.8 / 12.5|
* The performance data is based on a 12-foot aluminum boat with one person and one Spirit battery Plus in calm lake water. The actual speed, range and running time may vary because of different boats, load, weather, etc.
With one charge, you can go 22 miles at 4.5 mph, or go fishing all day long at trolling speed.

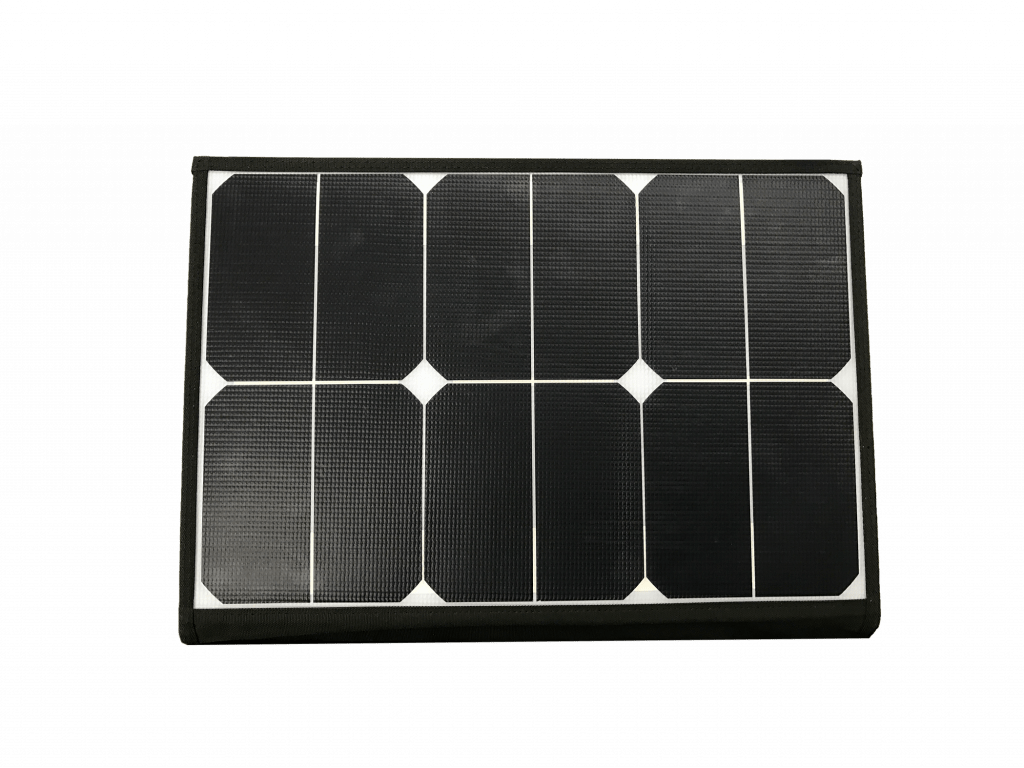

180W Solar Charging
Extend the runtime to an entire day by replacing the integrated Spirit battery.

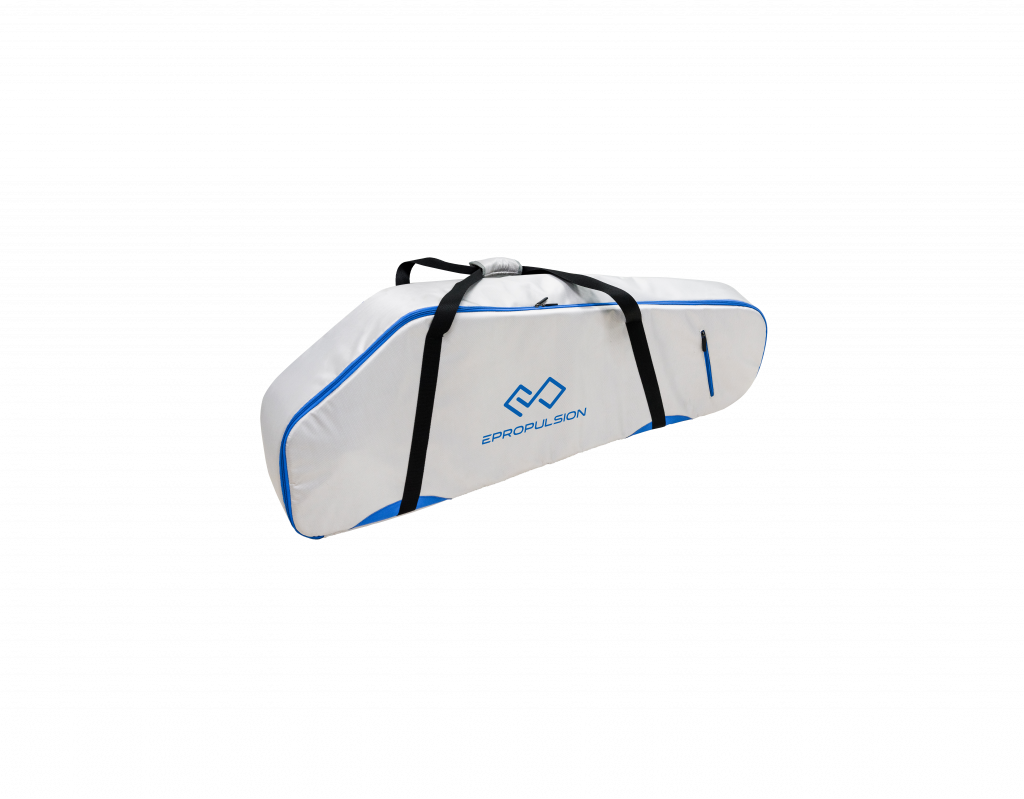

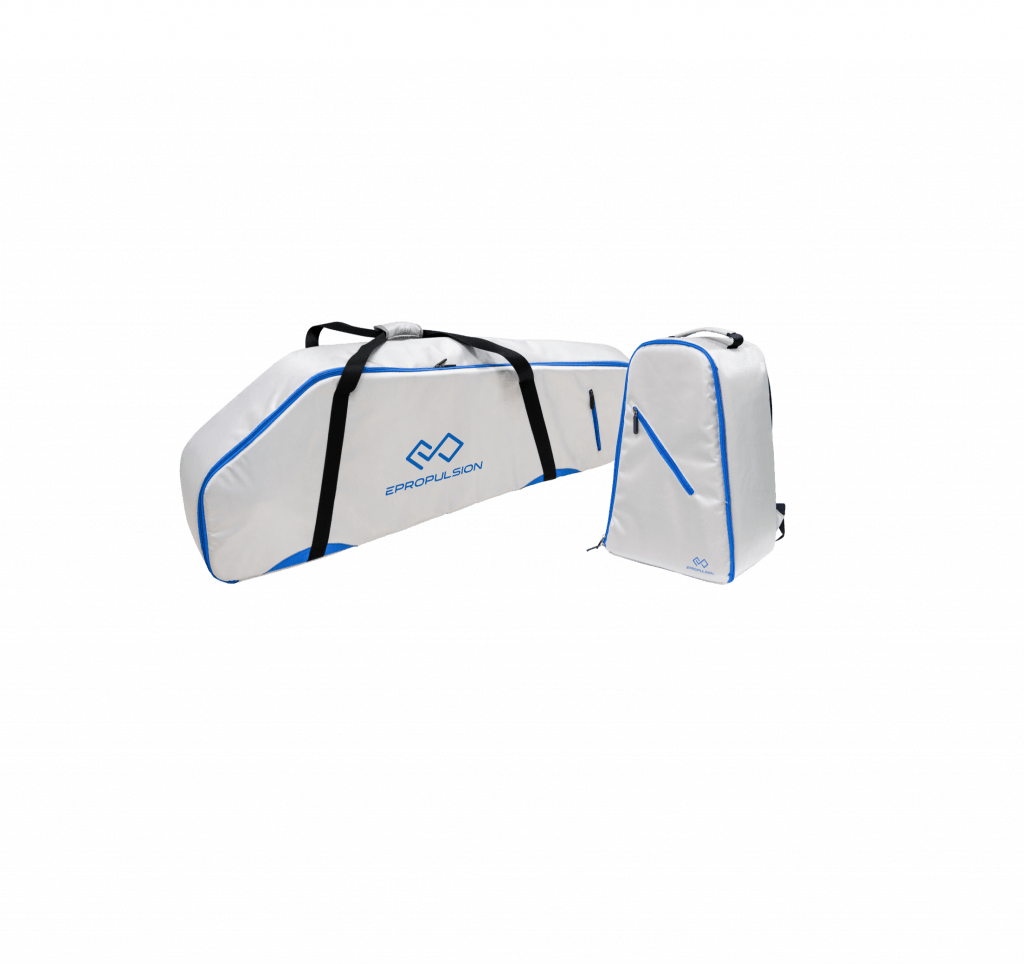

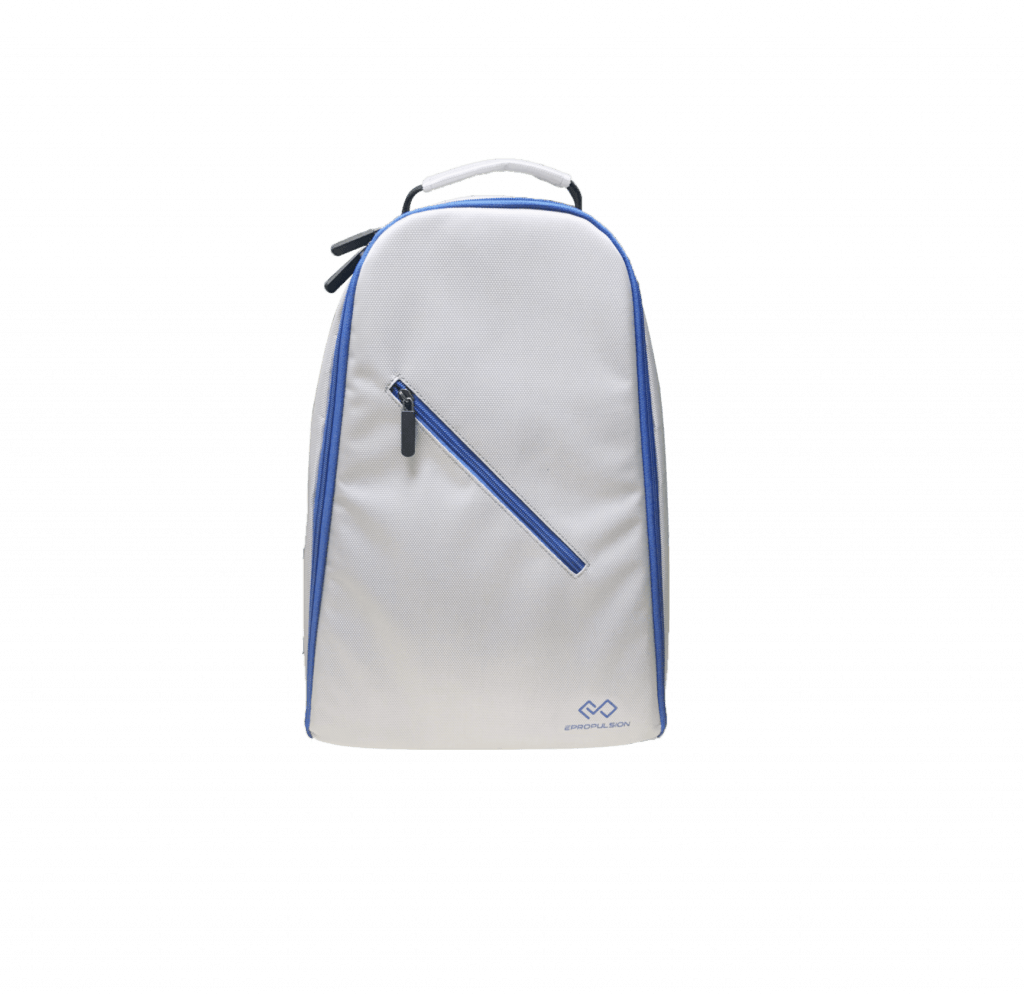

Designed for Portability
Spirit 1.0 Evo
Spirit 1.0 Evo Remote
Spirit 1.0 Evo
Two More Spirit 1.0 Models
Spirit 1.0 Evo is the high-end Spirit model with more innovative features. Spirit 1.0 Evo Remote is the remote control variant. Both models feature hydro generation function.
|Spirit 1.0 Plus|
|Power||1 kW (3HP equivalent)|
|Input Voltage||39V – 60V|

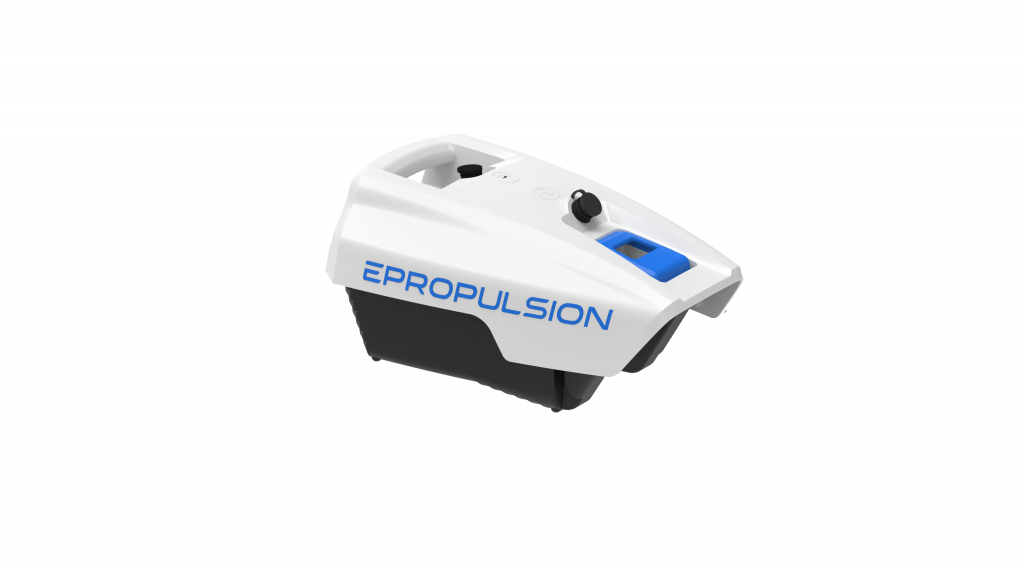

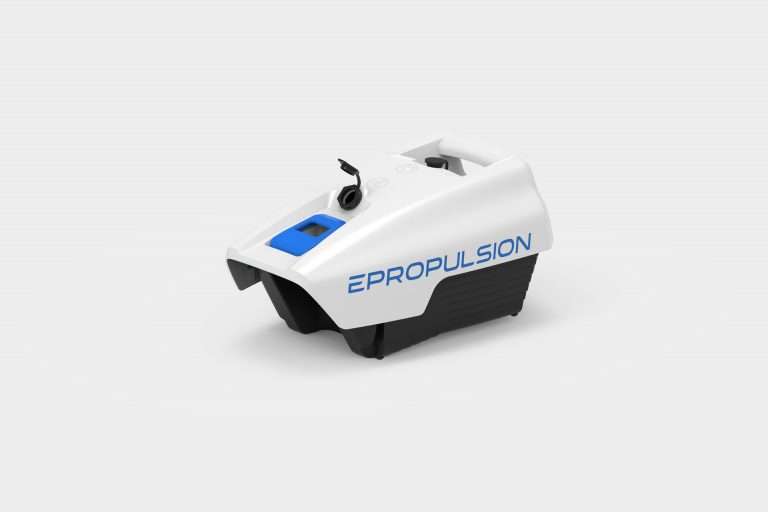

|Standard Battery||Spirit Battery Plus, 1276 Wh li-ion polymer|
|Motor Weight*||10.6 kg / 23.4 lbs|
|Battery Weight||8.7 kg / 19.2 lbs|

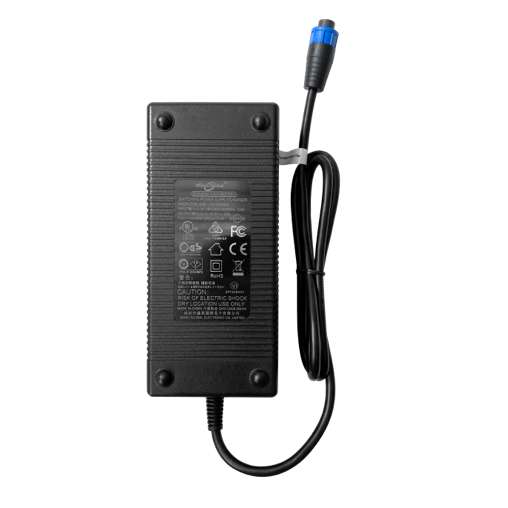

|Charing Time||Standard charger: 8.5 Hrs; Fast charger: 3.5 Hrs|
|External Battery||Yes, and E-Series Battery recommended|

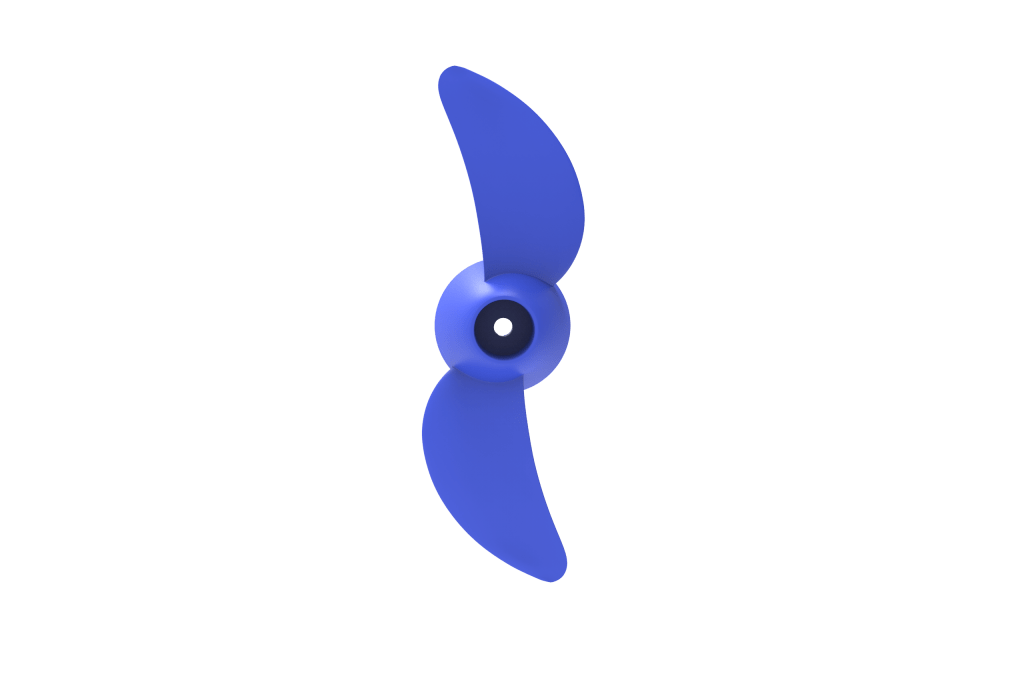

|Propeller||11″ × 5.8″ 2-blade composite propeller|
|Trim / Tilt Angle||0°, 7°, 14°, 21° / 70°|
|Shaft Length||Extra Short, Short, Long|
|Motor||Brushless DC motor|
* The weight is measured with the short shaft version.
