POD Drive Series

POD Drive Series

Quiet and space-saving marine motors

Electric POD Drives 1-6kW 3-9.9HP**

Popular with sailboats and small watercraft

HydrogenerationLow Maintenance Direct-Drive

ePropulsion’s POD Drives are direct-drive, low-maintenance electric motors designed for sailboats and small craft. Compact and space-efficient, they maximise cabin area while delivering a quiet, vibration-free onboard experience. Filling the gap left by sub-10 HP** diesel saildrives, POD Drives provide a powerful and sustainable alternative to traditional outboard motors.

  • Pod Drive 1.0 Evo

    1kW / 3HP**

  • Pod Drive 3.0 Evo

    3kW / 6HP**

  • Pod Drive 6.0 Evo

    6kW / 9.9HP**

Silent, Sustainable Power Below Deck

ePropulsion’s POD Drives set a new benchmark for electric inboard motors. Lightweight, efficient, and maintenance-free, they are perfectly suited for sailing yachts as well as motor and powerboats.

Delivering whisper-quiet, vibration-free operation, POD Drives free up valuable cabin space while providing dependable, eco-friendly propulsion. With no need for fuel tanks, exhaust systems, or complex cooling, and paired with compact batteries far smaller than a typical diesel engine, they offer a cleaner, smarter solution for modern boating.

Key Features:

  • Compact, space-efficient design
  • Silent operation with zero vibrations
  • Hydrogeneration for recharging under sail
  • Maintenance-free direct-drive system
  • Eco-friendly with no onboard fuel storage

  • Space-Saving

  • Easy to Install

  • Quiet

  • Minimum Maintenance

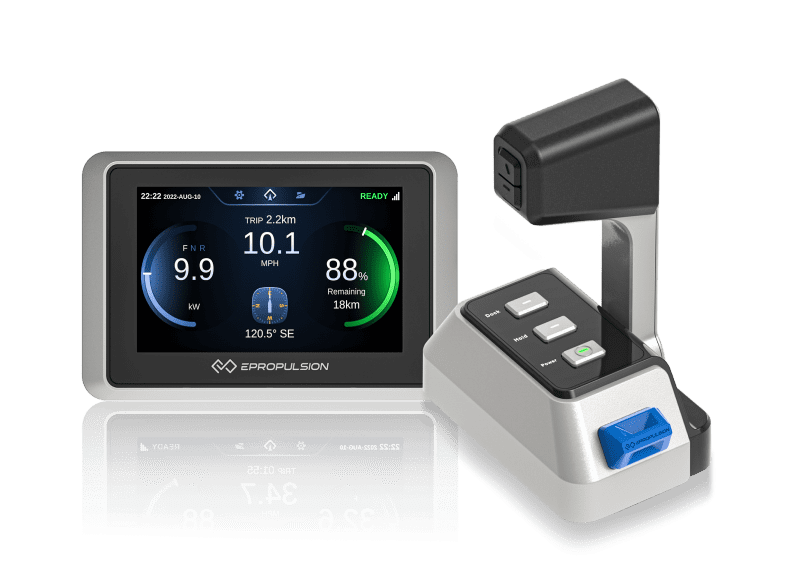

Digital Operation

The POD Series provides versatile control and display options, ensuring compatibility with various setups.

  • Digital Display

    Provides real-time monitoring of key metrics including power output, remaining runtime, battery level, and voltage.

  • Electric Start

    Get underway instantly at the press of a button, eliminating the hassle of pull starts.

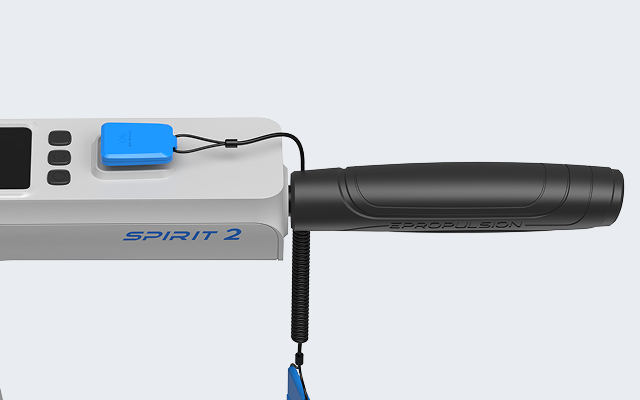

  • Magnetic Kill Switch

    Acts as an emergency stop key for ePropulsion outboards, ensuring safety and peace of mind on the water.

  • Smooth Throttle Changing

    Delivers precise throttle response with a clear, comfortable feel.

  • Adjustable Max Power Output

    Allows you to set a maximum throttle limit, making the motor suitable for children or rental applications.

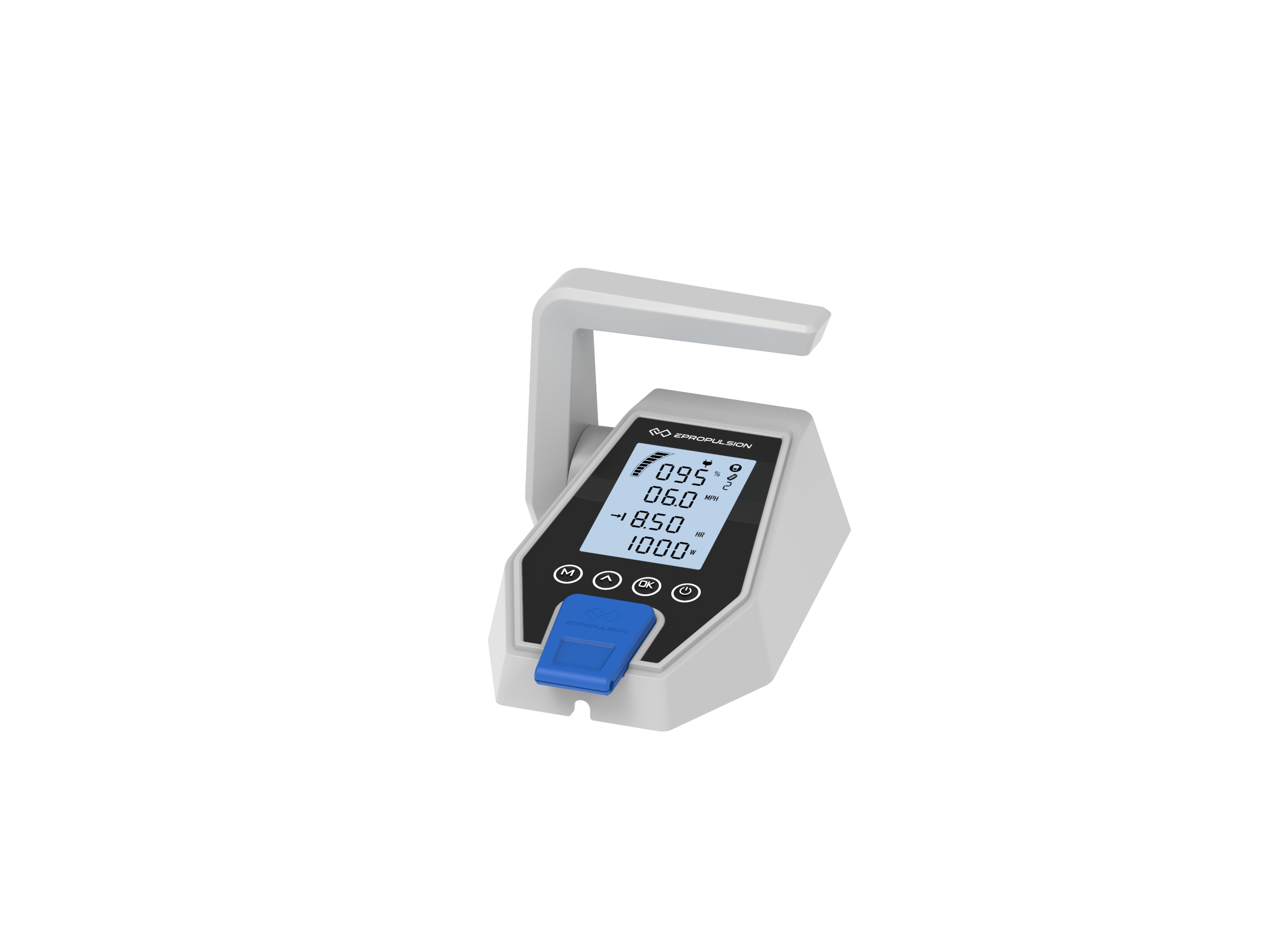

  • Evo Top Mount Control
    Wireless remote control with integrated display monitoring real-time motor / battery status, for Spirit 1.0R Evo, Navy Evo models and Pod Evo models.

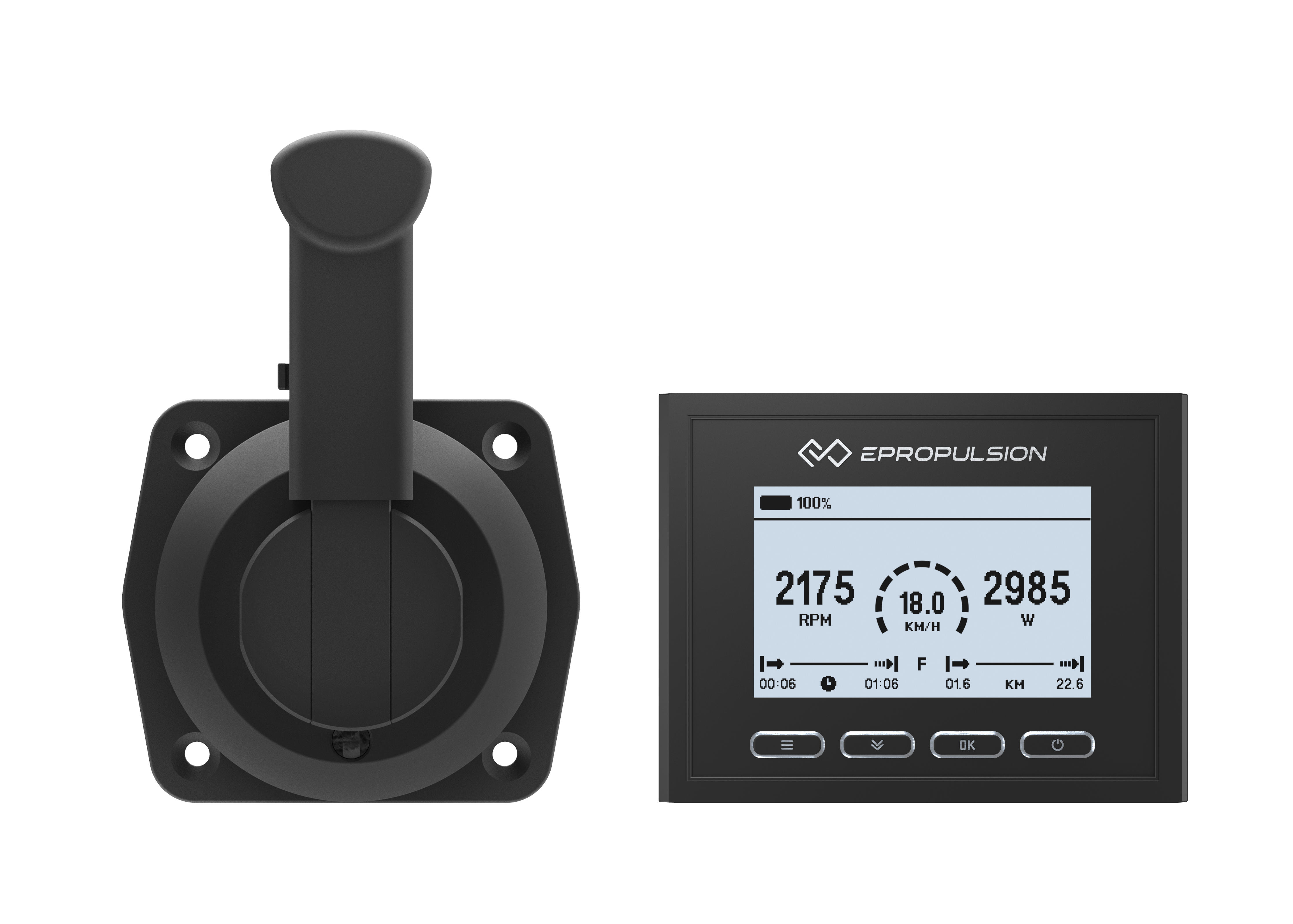

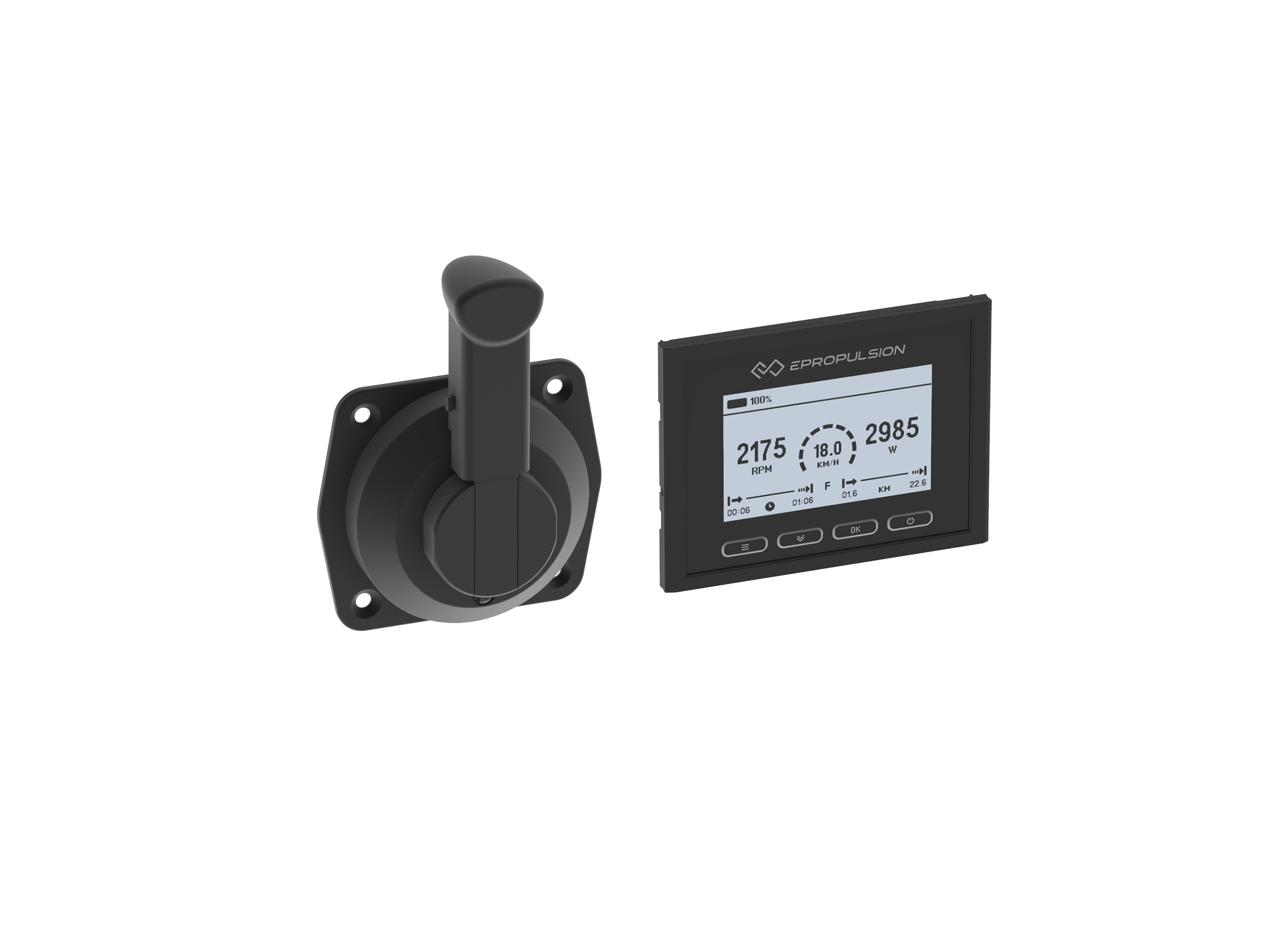

  • Evo Side Mount Control
    Smart side mount control with independent display monitoring real-time motor / battery status, for Spirit / Navy / Pod Evo models.
  • Evo Dual Control
    Remote control for twin installation of Spirit / Navy Evo motors. Independent display monitors real-time status of power and each motor.

Harness the Power of Hydrogeneration

All POD Drive Evo models are equipped with advanced hydrogeneration technology, allowing the batteries to recharge through the natural flow of water while the vessel is under sail. By converting kinetic energy back into stored electrical power, this system significantly improves overall energy efficiency, extends cruising range, and reduces reliance on shore-based charging infrastructure.

  • POD Drive 1.0, 3.0, and 6.0 Evo models support hydrogeneration, enabling battery charging via propeller rotation under defined operating conditions. Refer to the user manual in the download centre for detailed parameters.

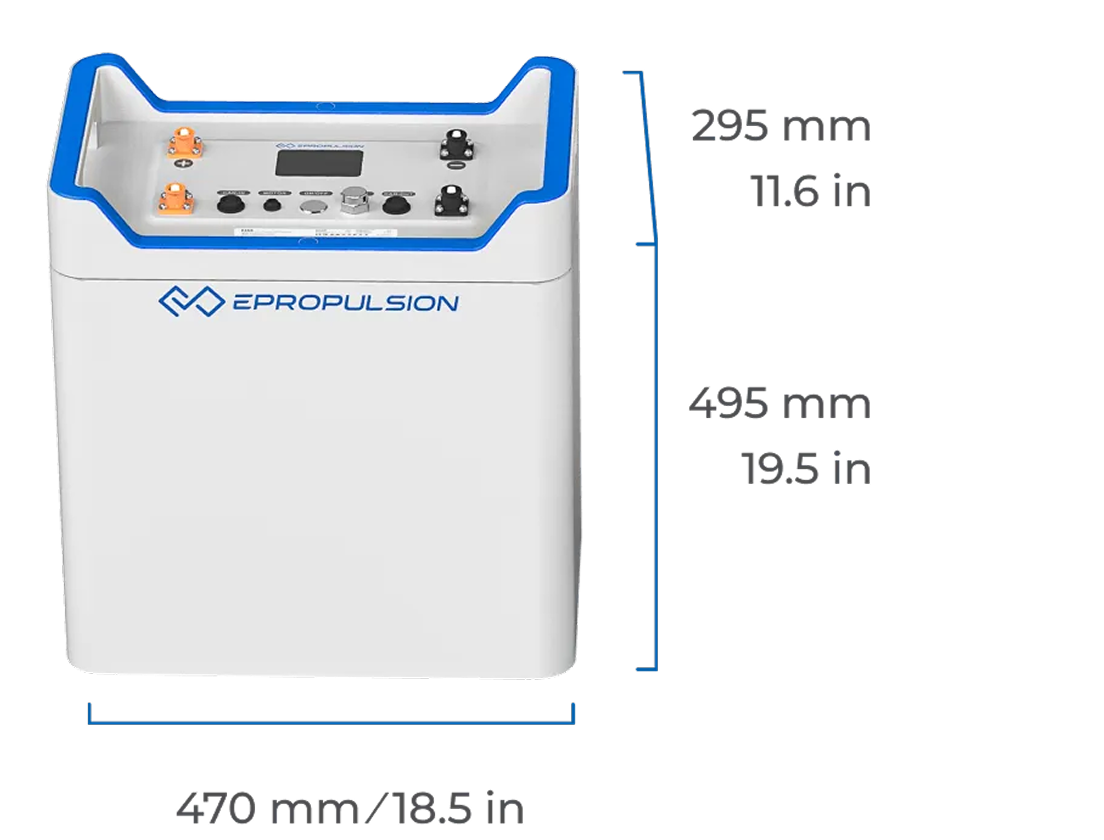

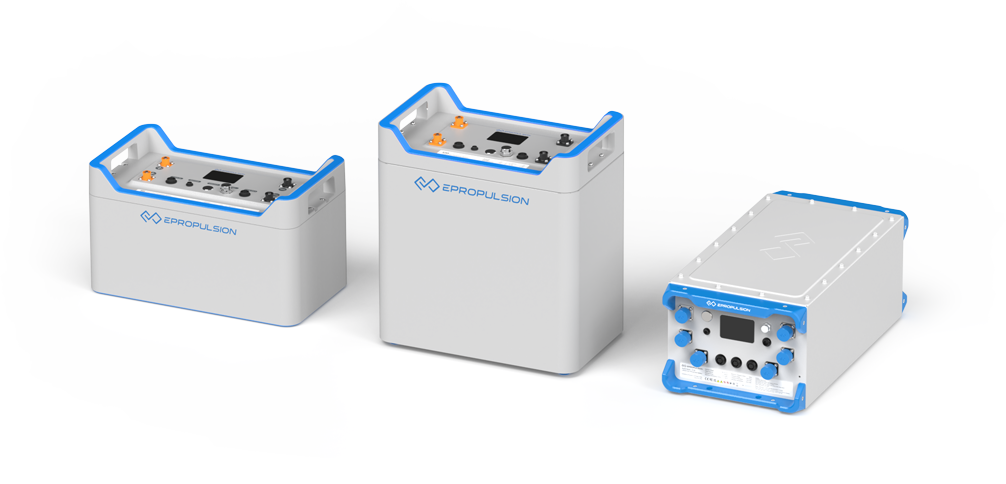

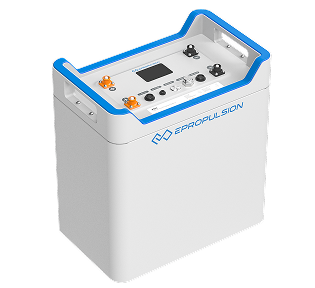

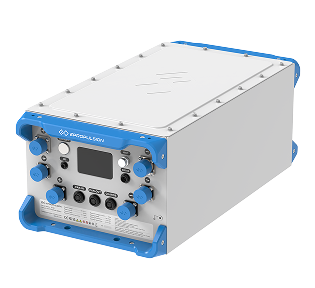

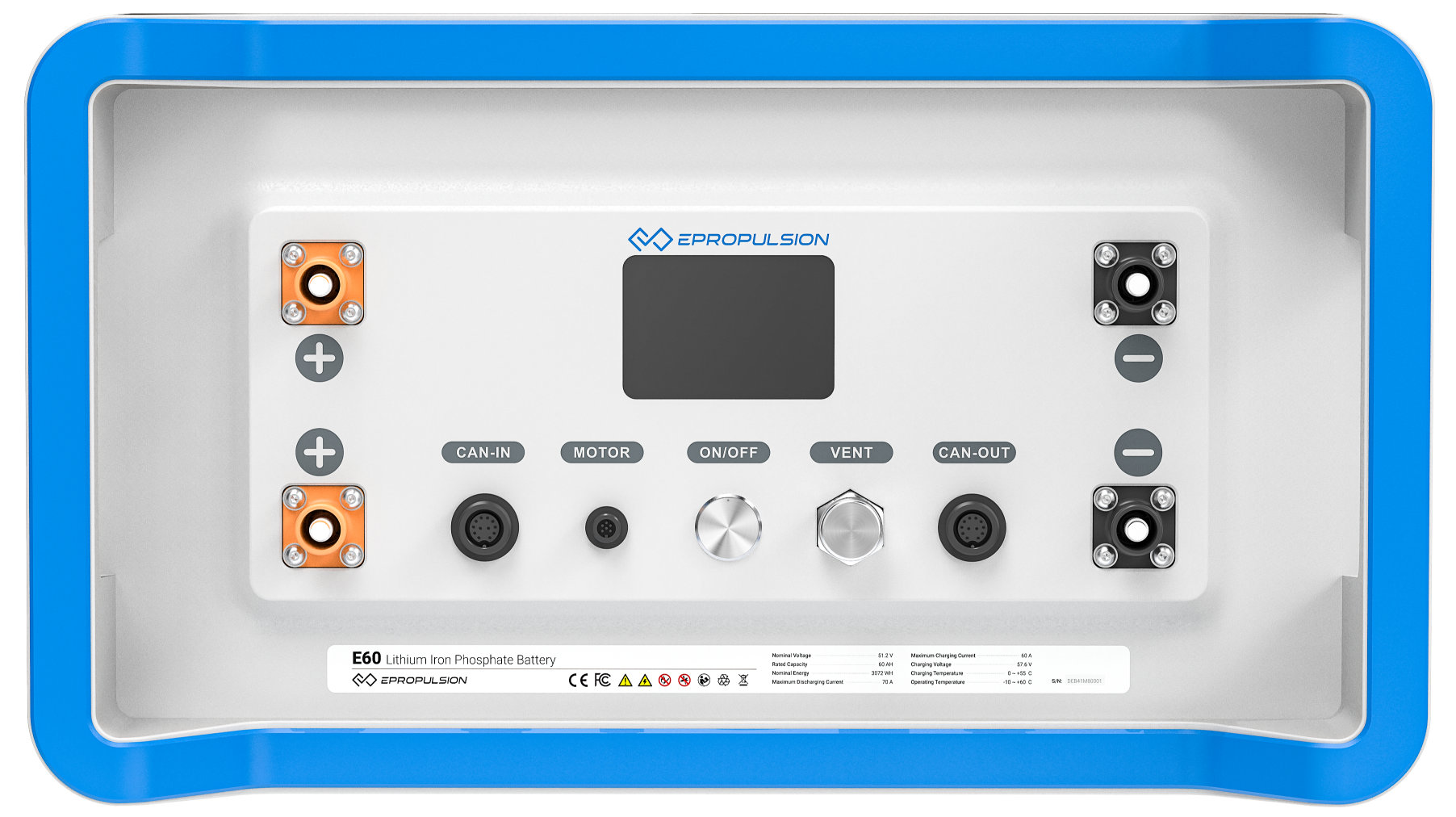

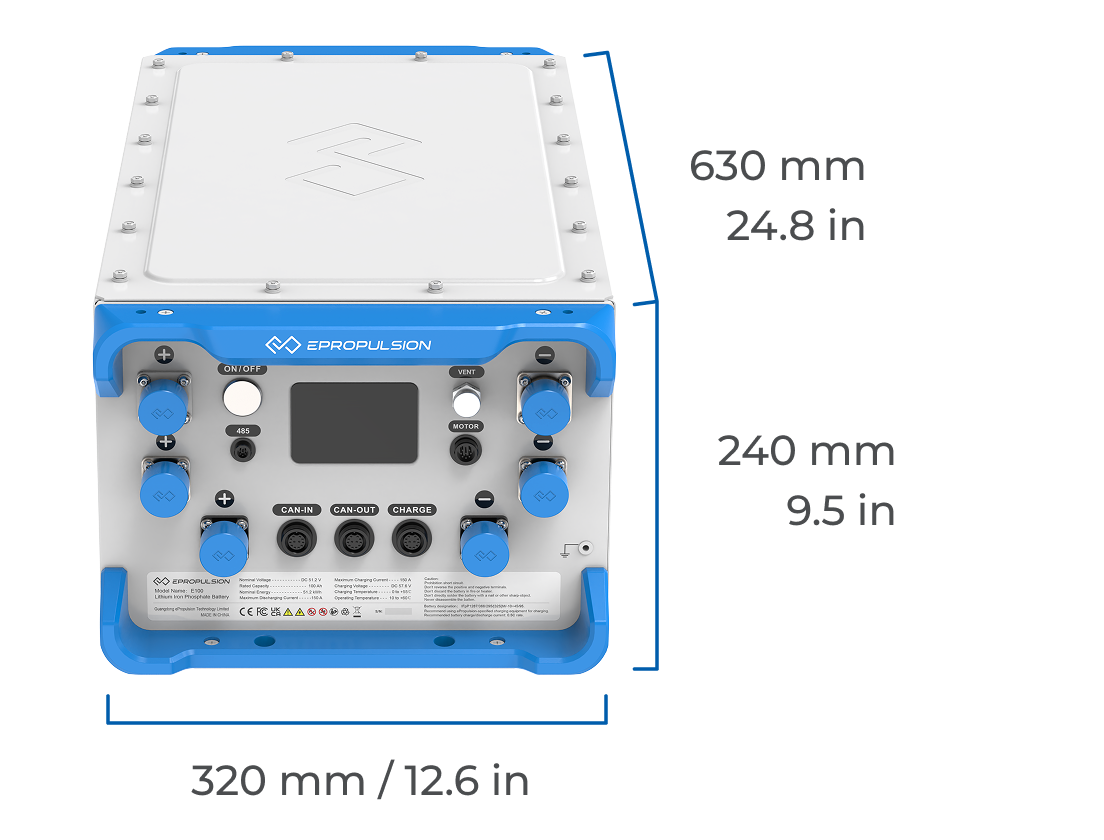

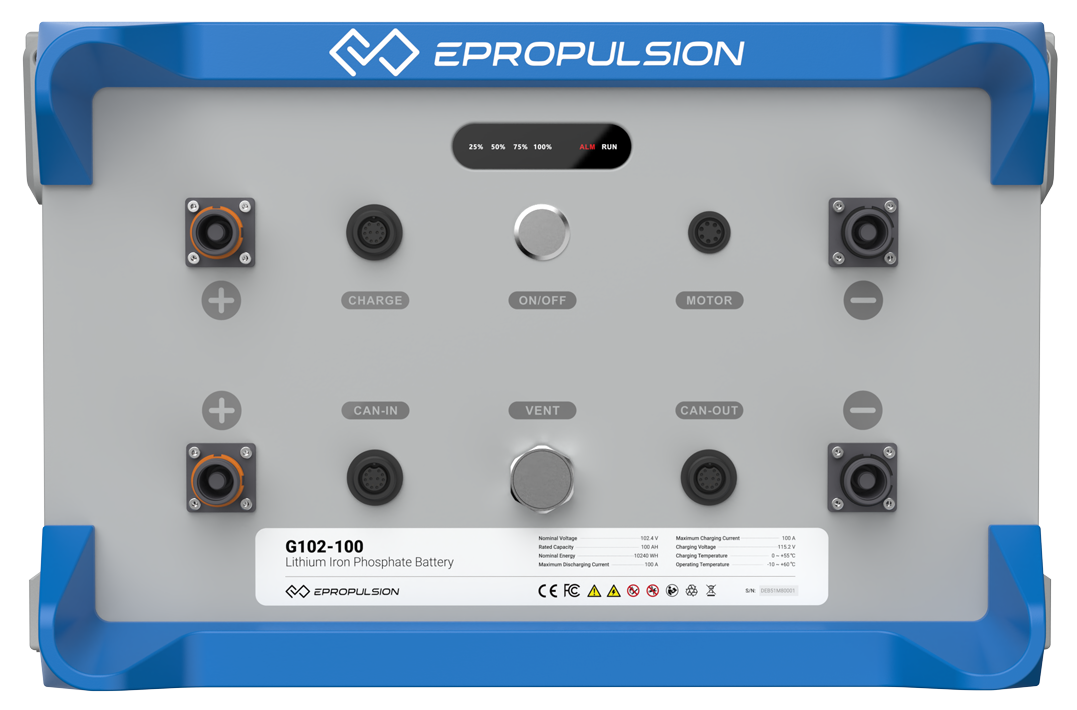

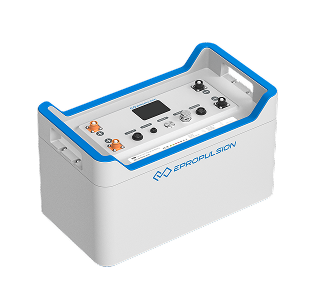

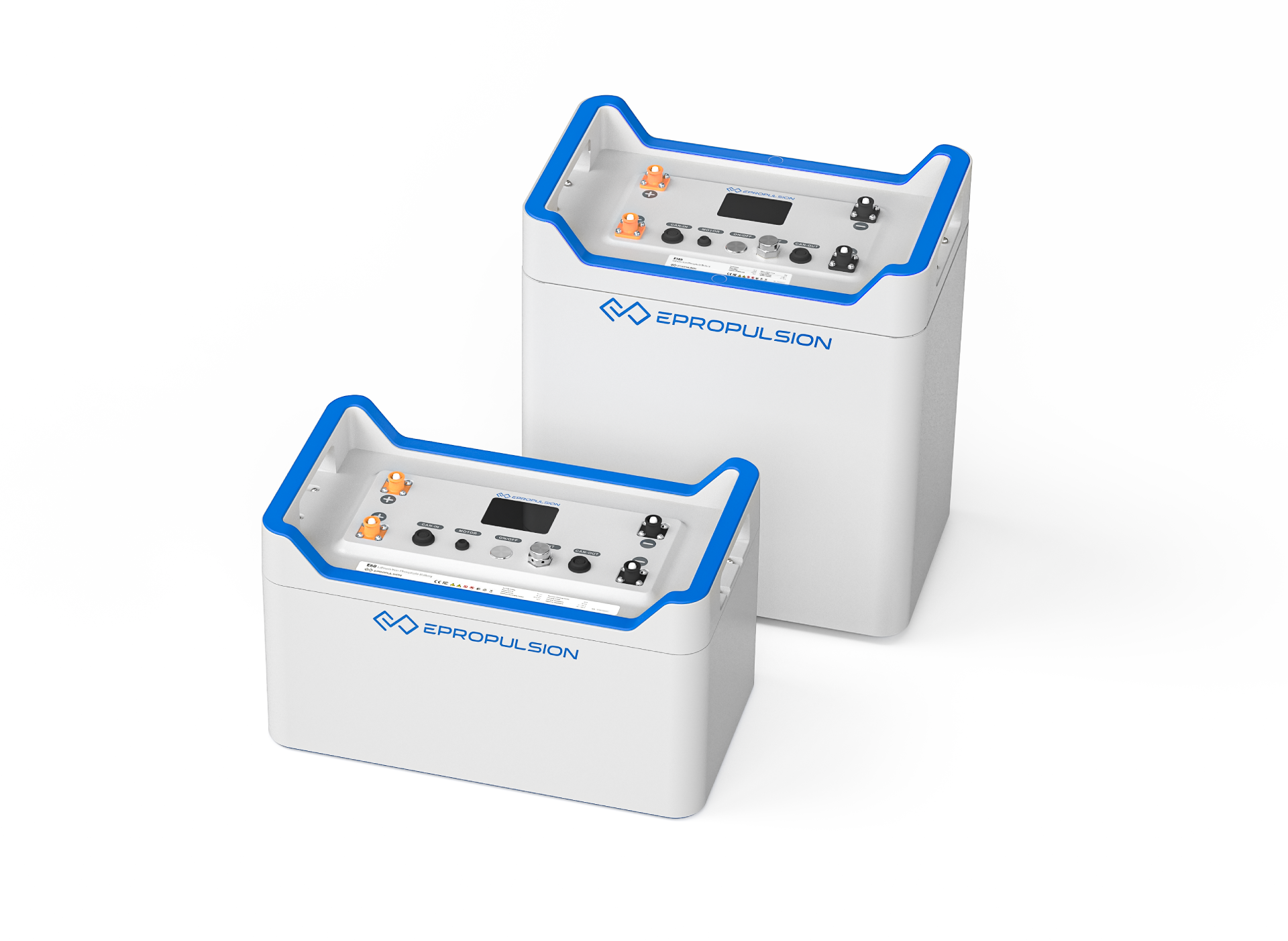

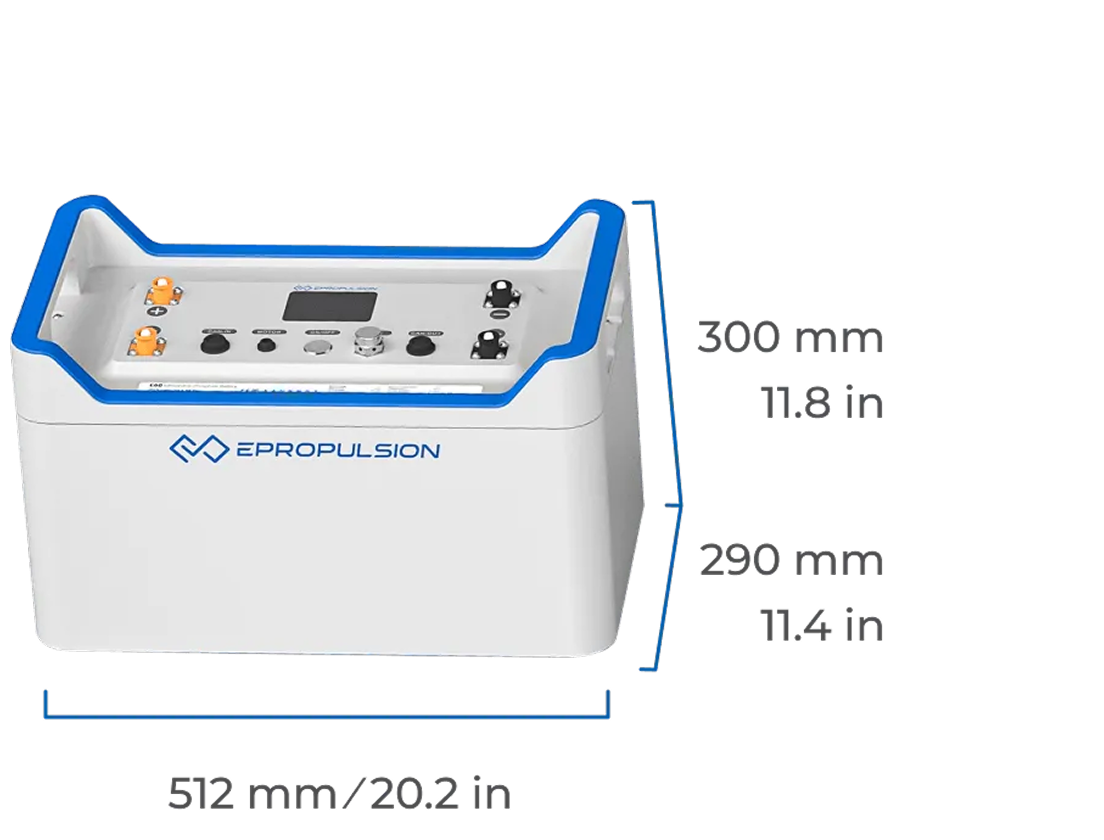

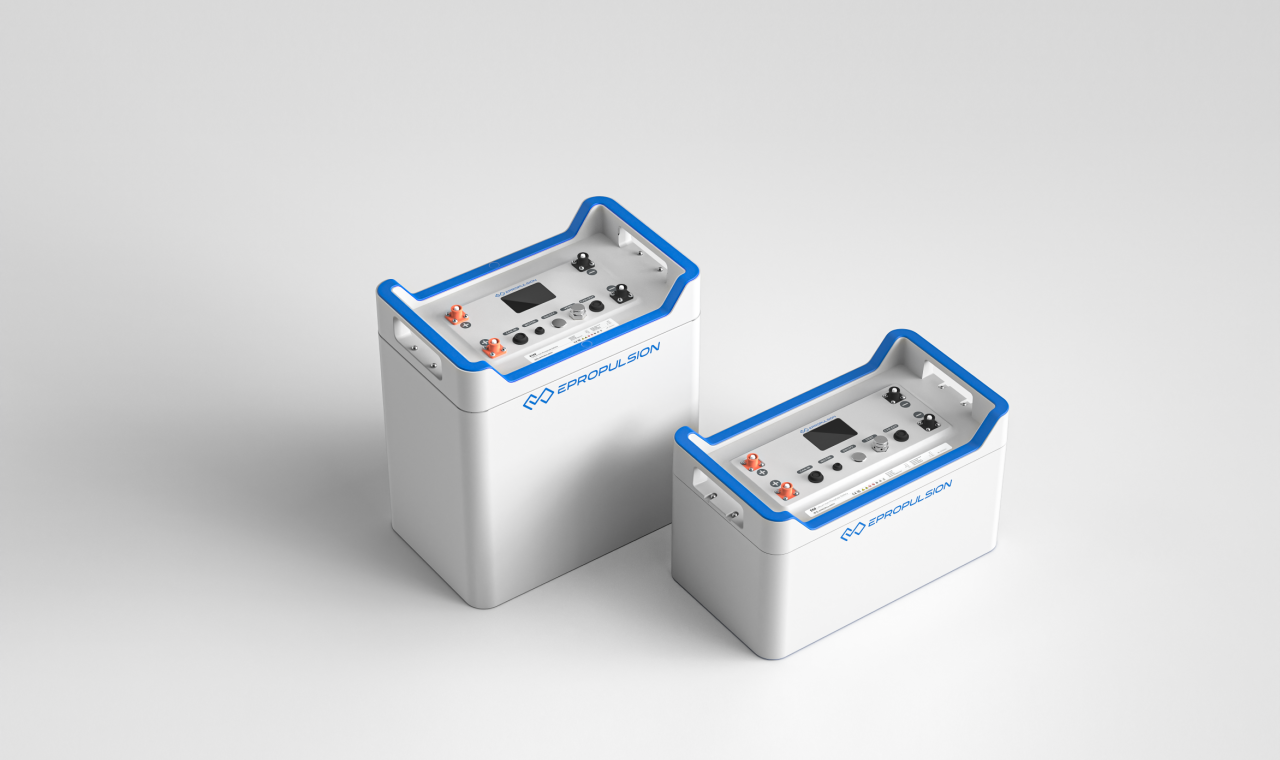

E-Series Lithium Battery

Unlock the full potential of your POD Drive with ePropulsion’s 48V E-Series lithium iron phosphate battery, delivering the ideal balance of clean, efficient, and reliable performance.

  • Competitive pricing

    Unit price is as low as £0.46 per watt-hour.

  • High energy density

    70% less weight and space than standard lead-acid batteries.

  • Longer life cycles

    Boasting an impressive 3,000 cycles at 80% Depth of Discharge (SoH).

  • Made for ePropulsion Motors

    With an integrated BMS, the batteries optimise motor performance, efficiency, and safety.

Learn more about the E-Series

Specs

POD Drive Series
POD 1.0 Evo POD 3.0 Evo POD 6.0 Evo
Input Power1 kW3 kW6 kW
Equivalent Power3 HP**6 HP**9.9 HP**
Input Voltage39 V – 60 V39 V – 60 V39 V – 60 V
Recommended BatteryePropulsion E-Series BatteryePropulsion E-Series BatteryePropulsion E-Series Battery
Weight6.2 kg / 13.7 lbs15.3 kg / 33.7 lbs31kg / 68.3lbs
Propeller11″ × 5.8″ 2-blade composite propeller10.2″ × 6.7″ 2-blade composite propeller12.6″ × 8.7″ 3-blade aluminum propeller
HydrogenerationYesYesYes
MotorBrushless DC motorBrushless DC motorBrushless DC motor
Direct DriveYesYesYes
Maintenance-FreeYesYesYes

** Any reference to horsepower (HP) for electric motors is a theoretical equivalent based on thrust and performance characteristics, and not a direct measure of power. This comparison is intended for illustrative purposes only and may not reflect exact power equivalency.

What's in the Box

Accessories

Downloads

Find all the downloads for your ePropulsion POD Drive electric motor, from Manuals to Technical Drawings.

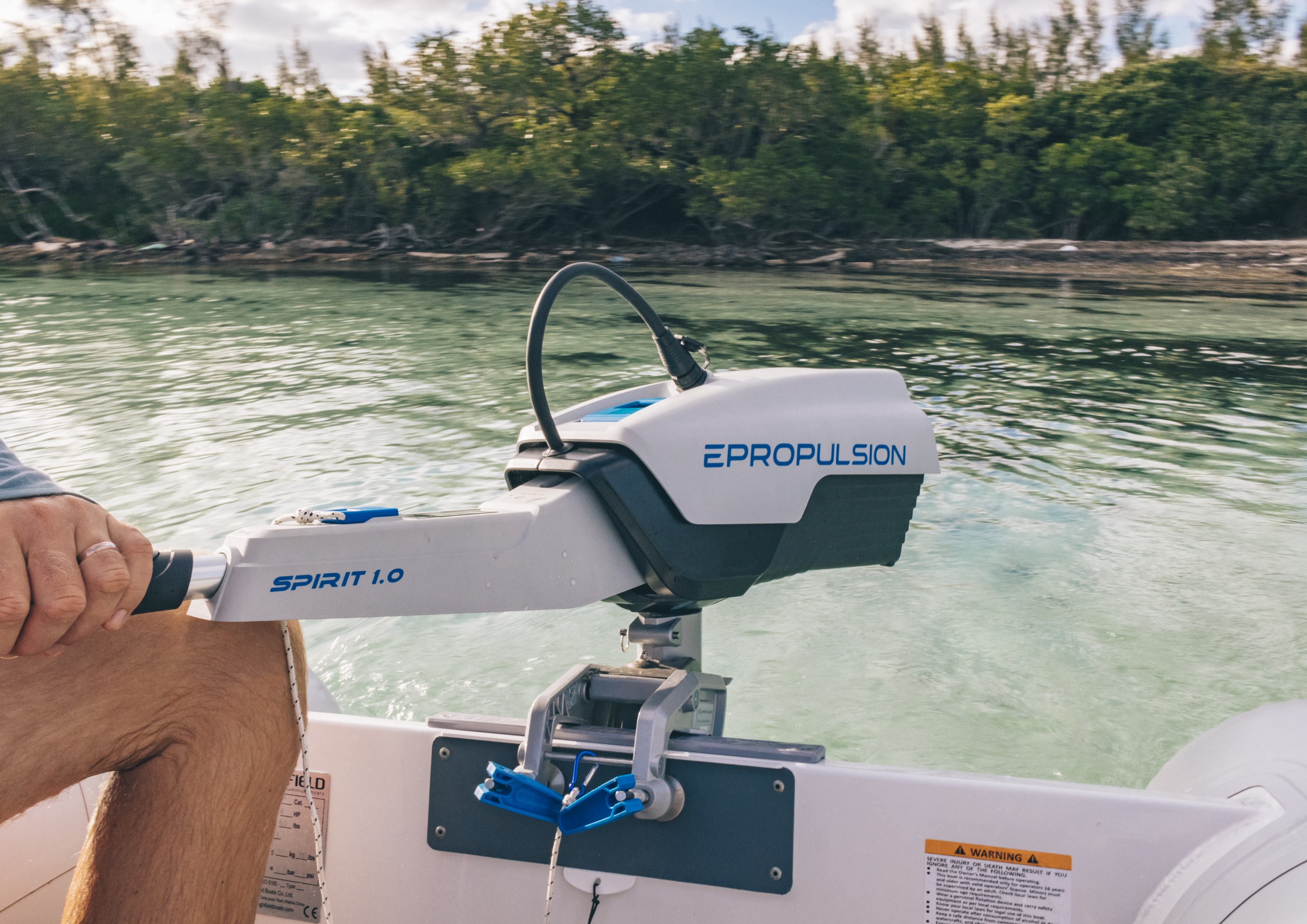

Spirit 1.0 Series

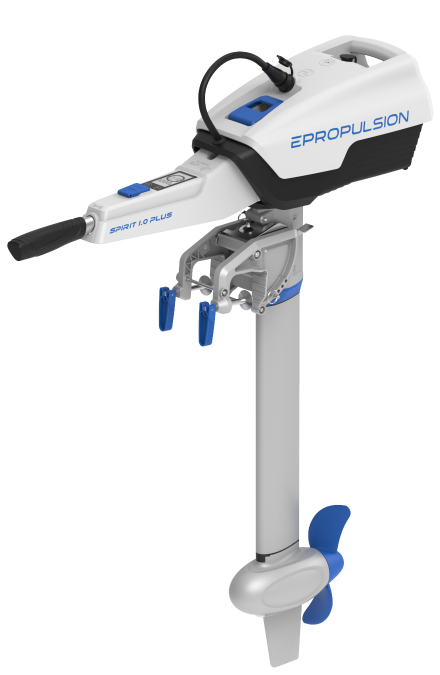

Spirit 1.0 Plus/Evo

Portable Outboard Motors

Spirit 1.0 1kW 3HP**
Electric Outboards

Portable and long-range outboard motor

1276 Wh 22 Mile Range Direct-Drive Hydrogeneration*

The Spirit 1.0 Plus is a versatile 1kW electric outboard engineered for a wide range of vessels, from dinghies and tenders to fishing boats and small sailboats. Compact yet powerful, it is equipped with a high-capacity 1,276 Wh integrated lithium battery, delivering extended range and reliable performance on the water. Combining lightweight construction, responsive handling, and clean energy, the Spirit 1.0 Plus sets a benchmark in portable electric propulsion.

The EVO model enhances this capability with a hydrogeneration function, allowing the battery to recharge while under sail.

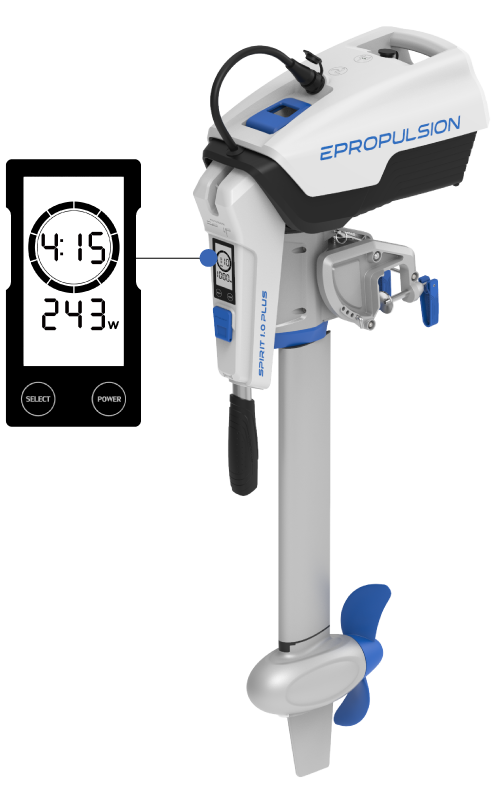

  • Spirit 1.0 Plus

    Entry-level

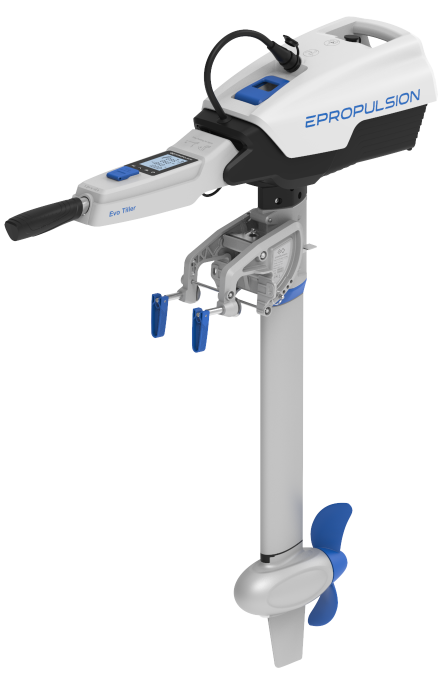

  • Spirit 1.0 Evo

    Made for Sailing

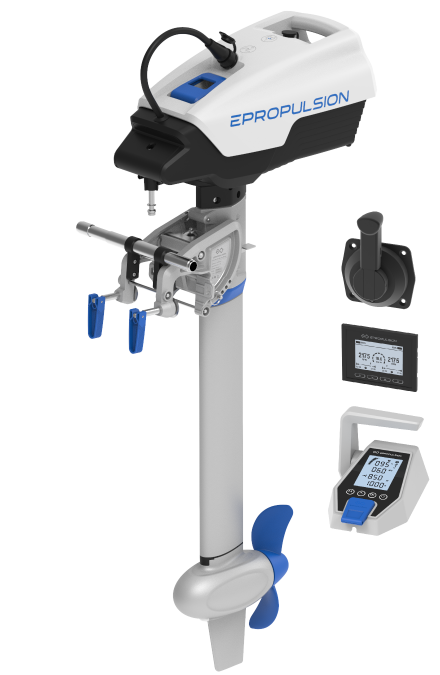

  • Spirit 1.0 Evo Remote

    Made for Remote Steering

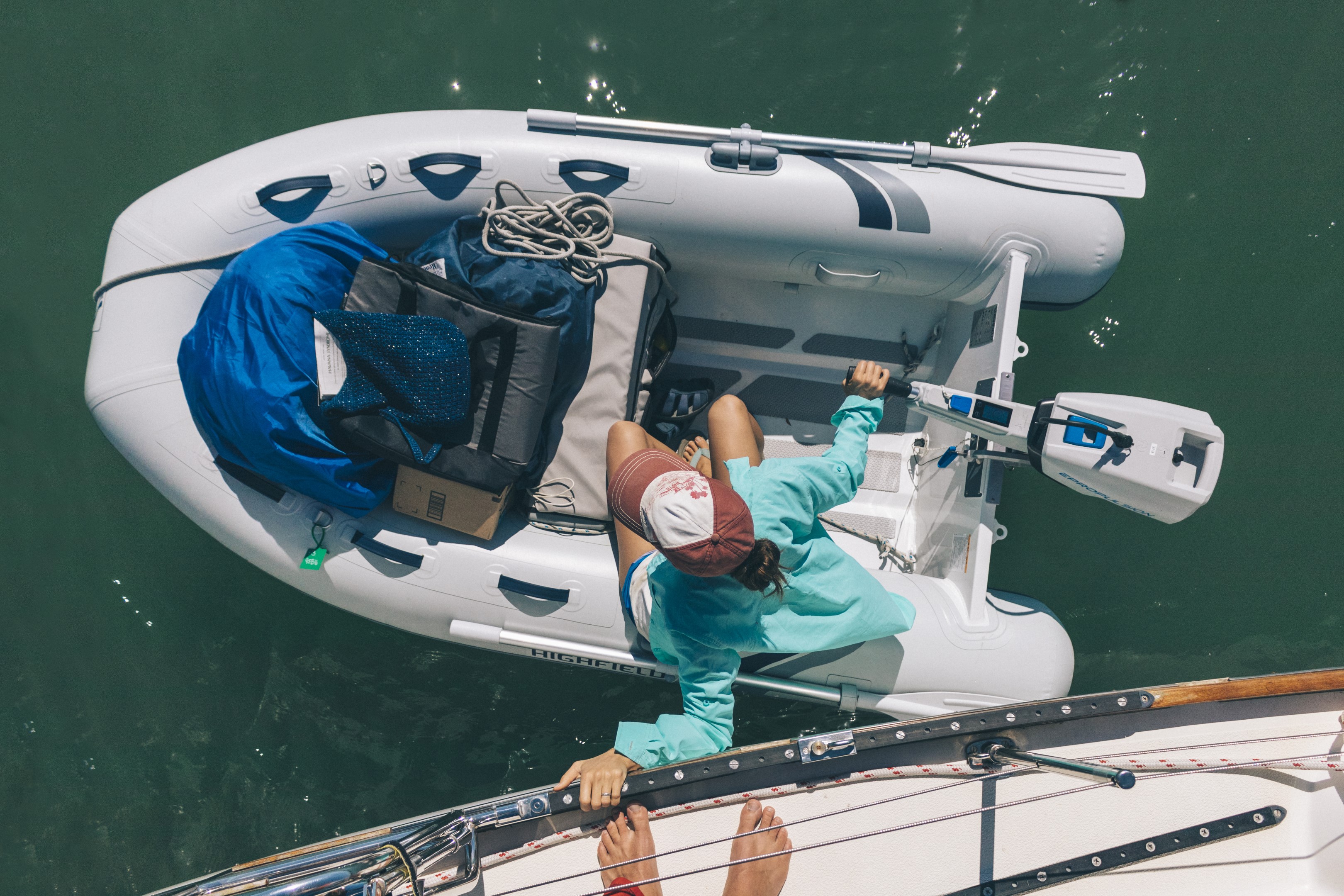

  • Soulianis 1

  • Soulianis 3

  • Soulianis 4

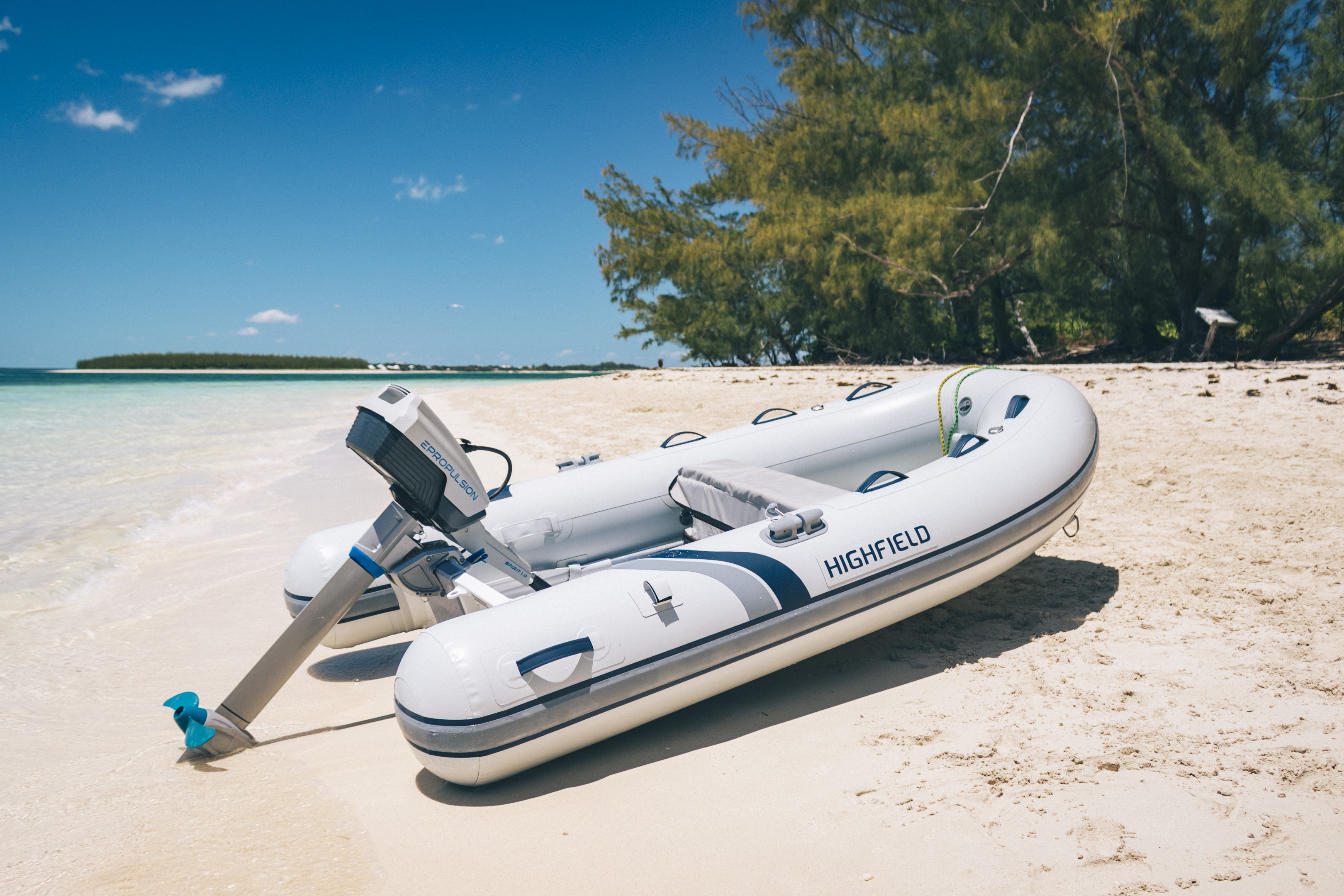

  • Soulianis 5

  • Soulianis 6

  • Soulianis 7

  • Soulianis 8

  • Soulianis 9

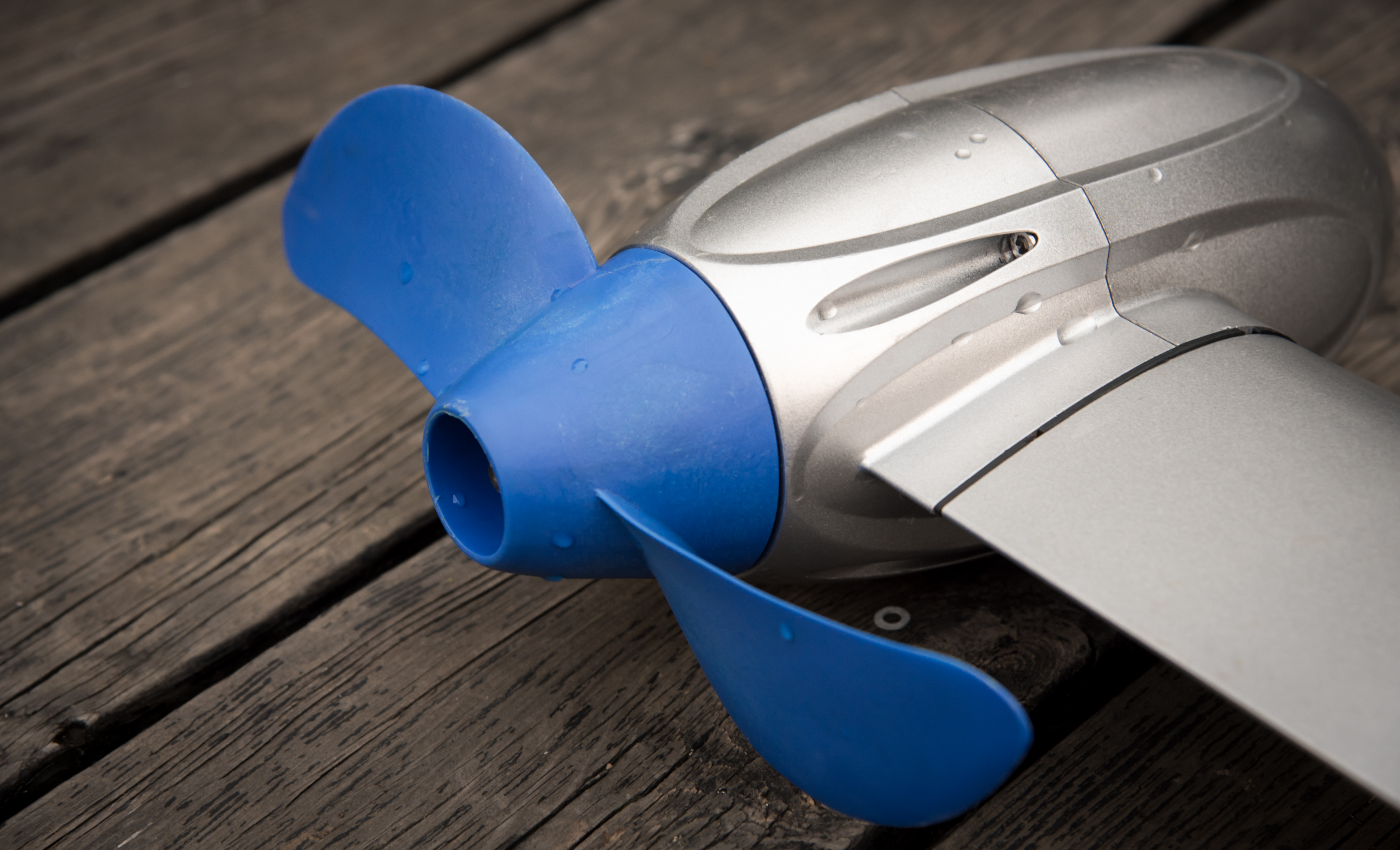

  • Spirit 1 0 Details 1

  • Spirit 1 0 Remote Control

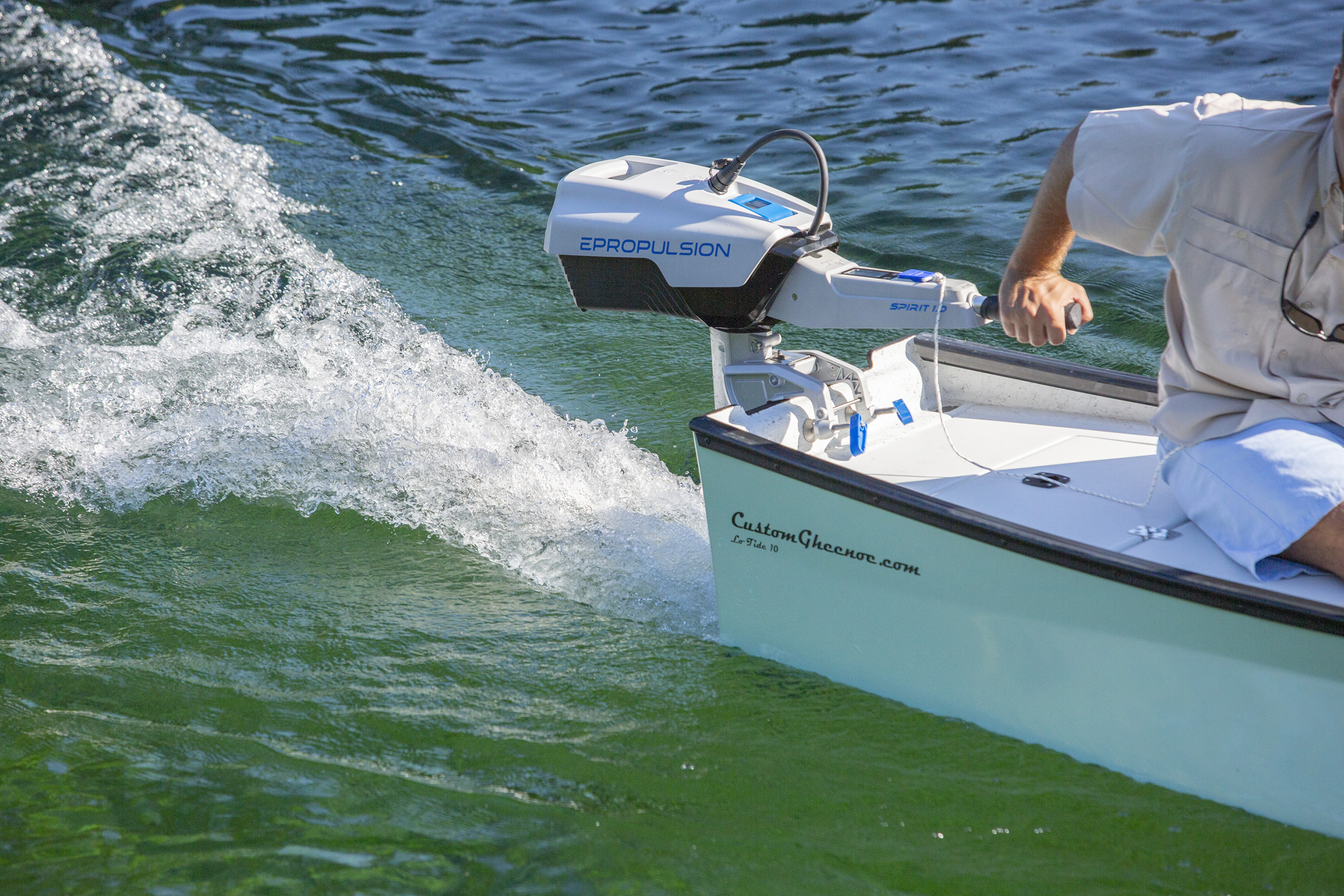

  • Spirit 1 0 Wake 1

  • Spirit 1 0 Still 2

Digital Operation

Our electric outboards deliver smooth, effortless handling while keeping you updated with key operating information.

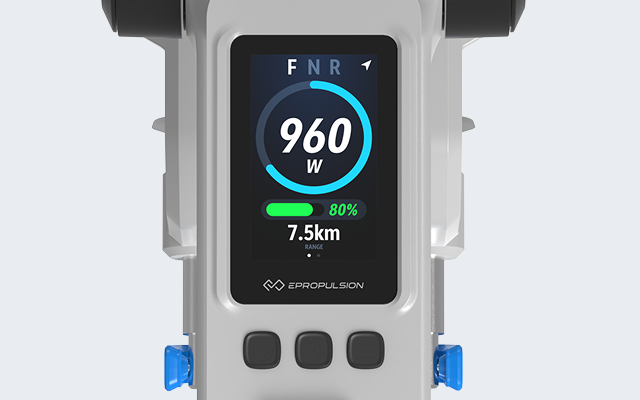

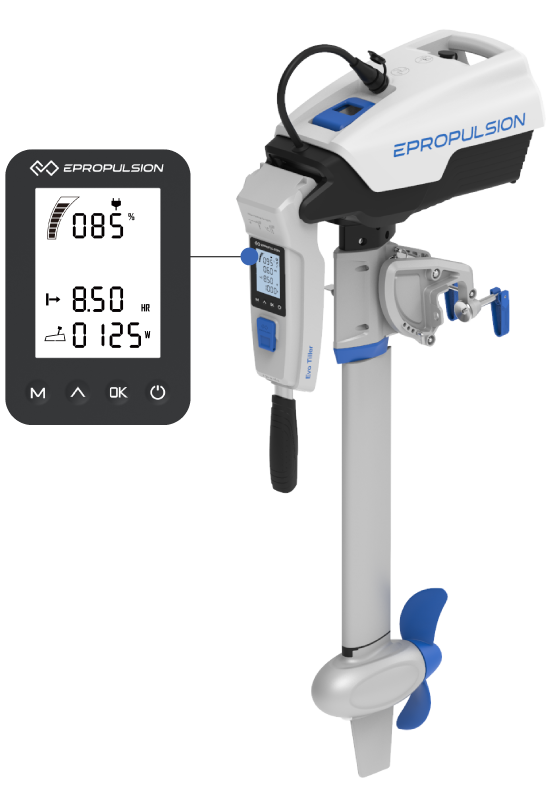

  • Digital Display

    Stay in control with real-time data on power output, remaining runtime, battery level, operating voltage, and more.

  • Electric Start

    Get underway at the press of a button, eliminating the hassle of pull starts on cold mornings.

  • Magnetic Kill Switch

    Enhances safety by instantly shutting down the motor in case of emergency.

  • Stepless throttle changing

    Enjoy precise and seamless throttle response in both forward and reverse.

  • Max Power Output Adjustment

    Set maximum throttle limits for added safety, making it ideal for children or rental use.

  • Ambidextrous Operation

    Designed for comfort, the throttle can be operated easily with either the left hand or the right hand.

  • Spirit 1.0 Plus

  • Spirit 1.0 Evo

Crafted for Convenience

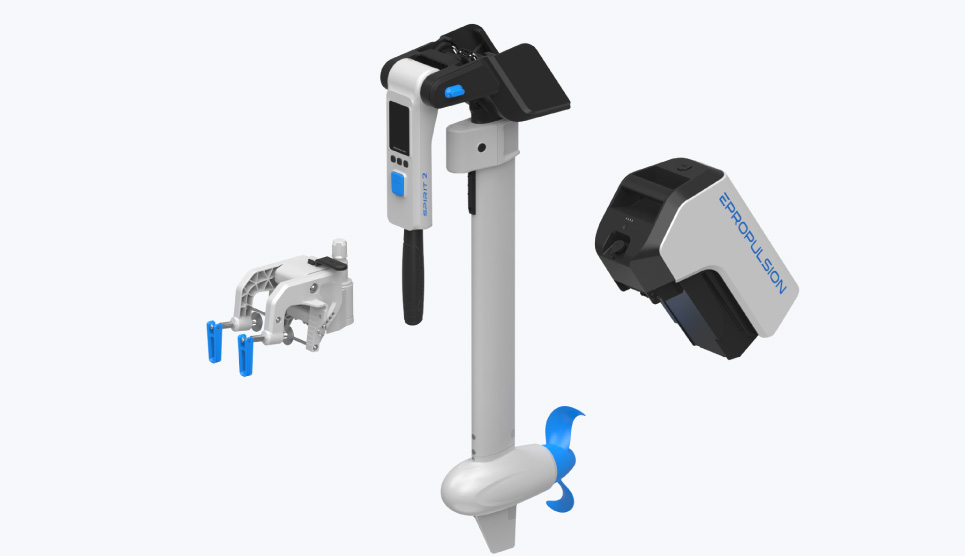

The Spirit 1.0 is designed to make life on the water simpler. Lightweight yet powerful, it’s easy to carry, transport and store, giving you the freedom to take it wherever your adventures lead. Its compact design makes it a versatile solution for a wide range of marine adventures, ideal for boaters who value convenience without compromising performance.

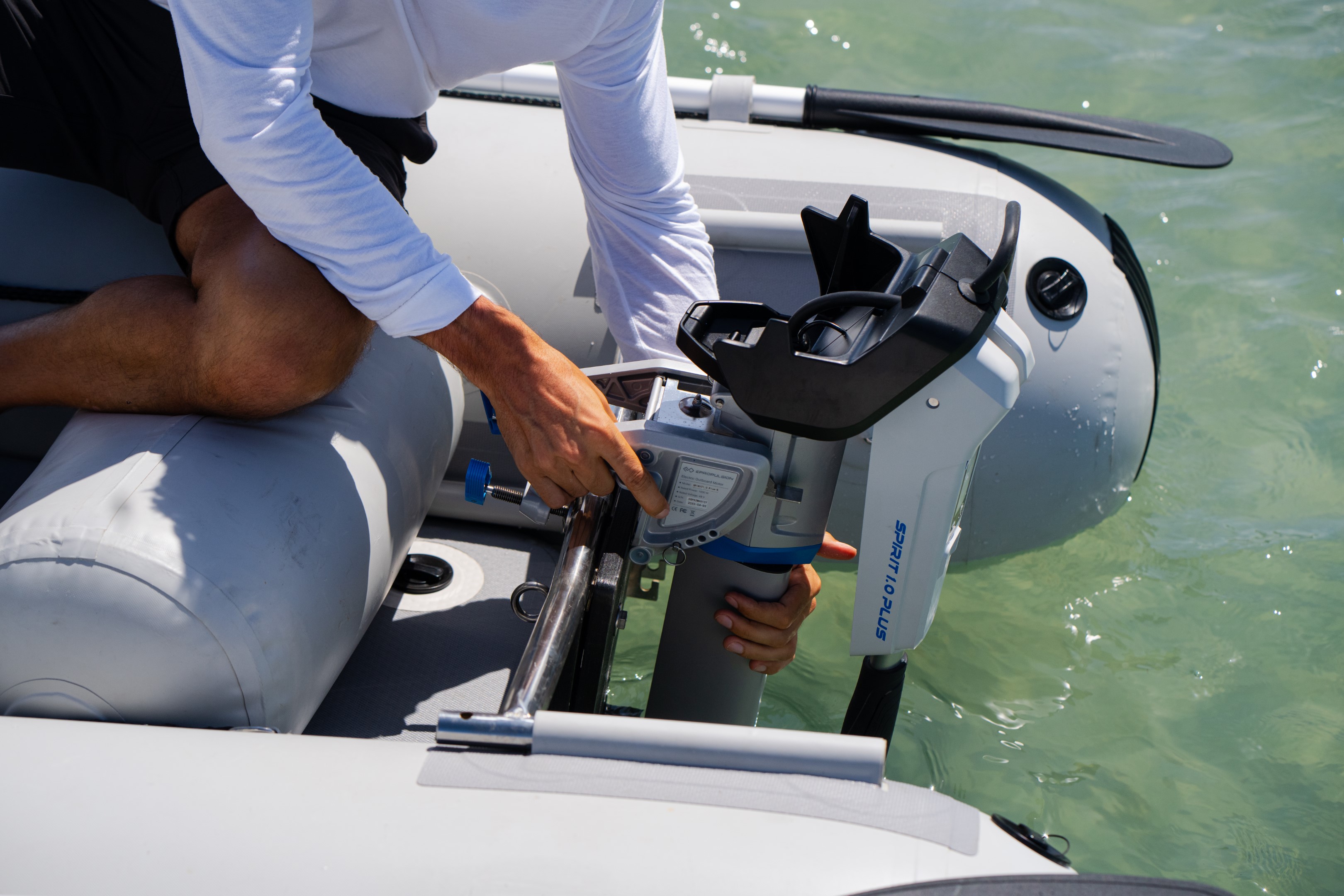

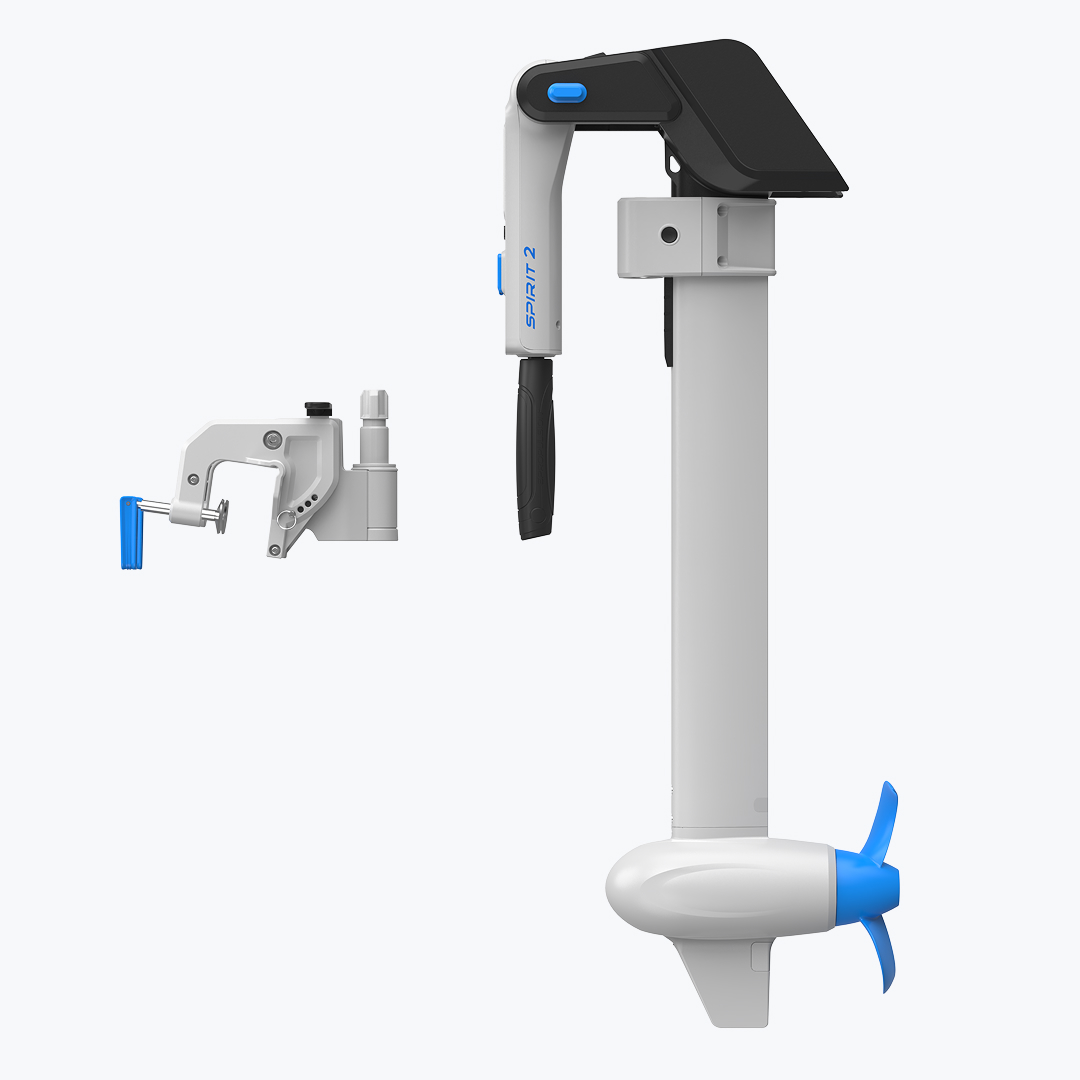

  • Quick to install

    Installing the Spirit motor on your boat is a breeze.

  • Lightweight

    The weight is only 11.3kg / 24.9lbs excluding the battery.

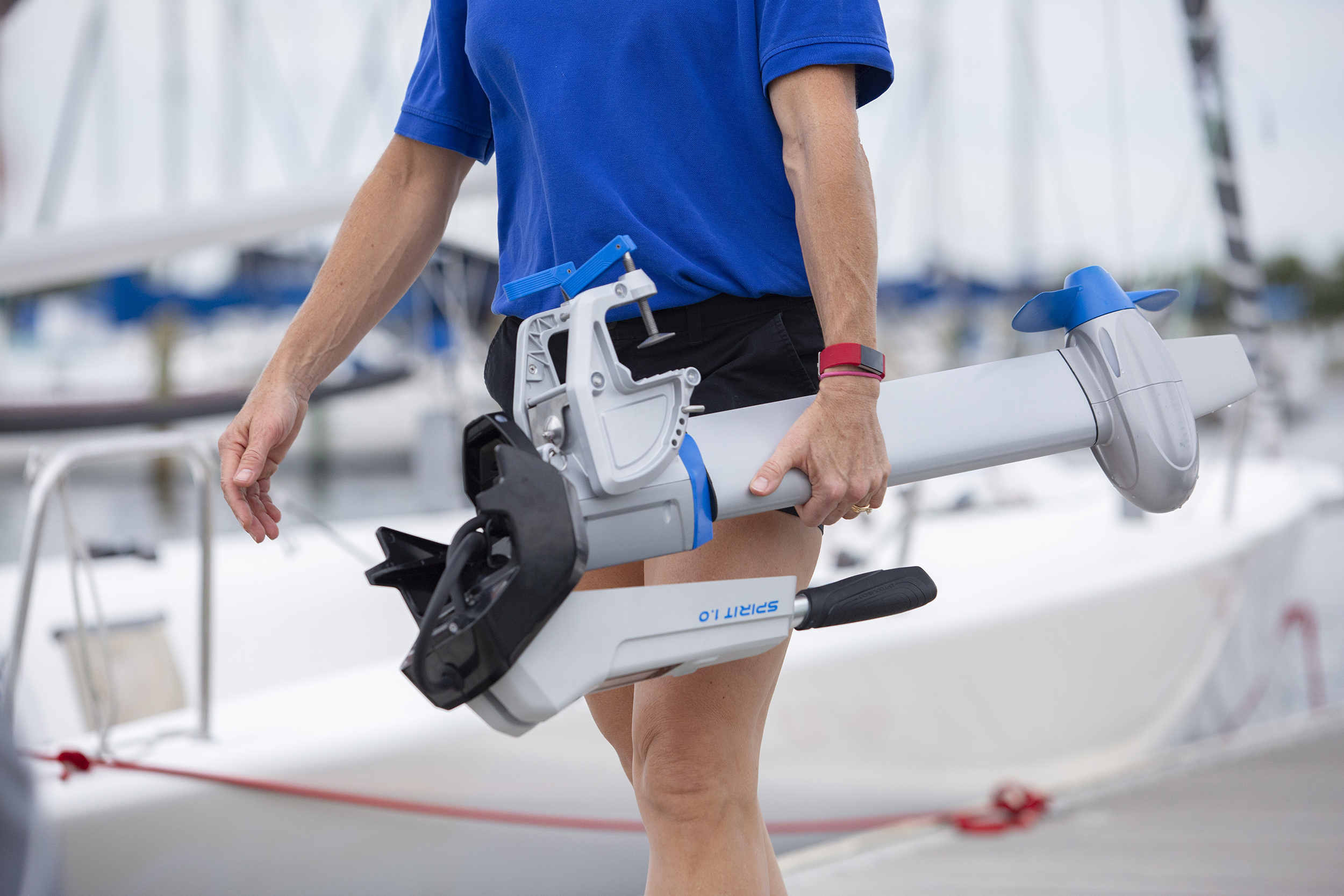

  • Portable

    Total weight is only 20kg / 44lbs including the battery.

  • Travel Bag Set

    Makes storing, travelling with, and protecting your motor simple and hassle-free.

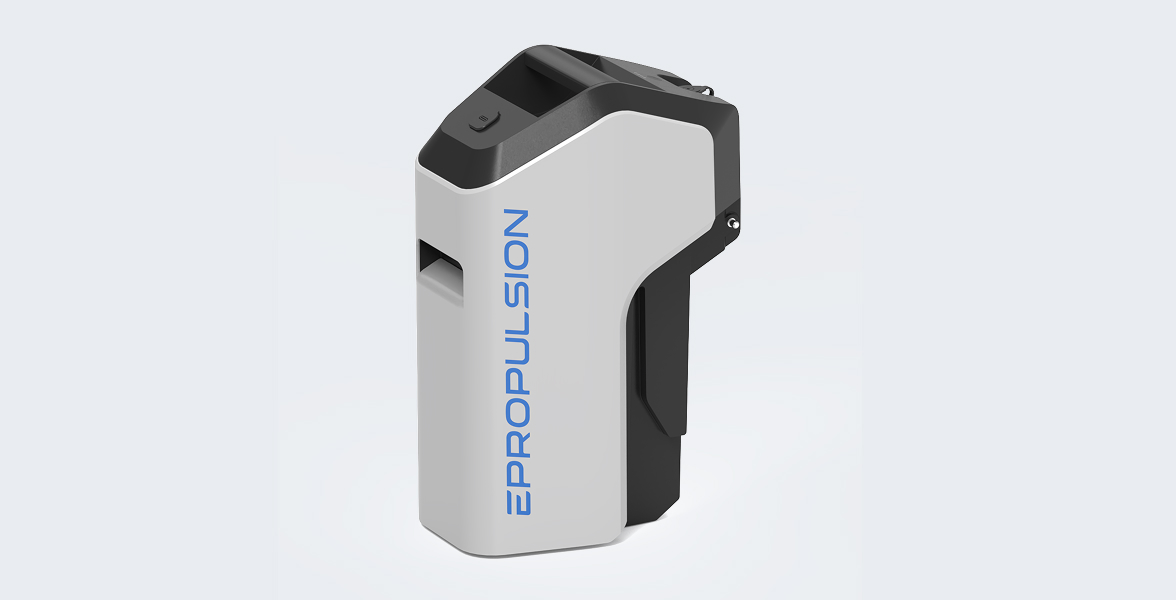

Innovative Battery Technology

Powered by a lightweight 8.7 kg lithium-ion battery with a 1,276 Wh capacity, the Spirit 1.0 is built to perform in all conditions. Engineered for durability, the buoyant battery even floats, giving you peace of mind on the water. With enough energy for a full day’s adventure, you can easily swap the integrated battery for extended range, or recharge on the go with solar power while you cruise.

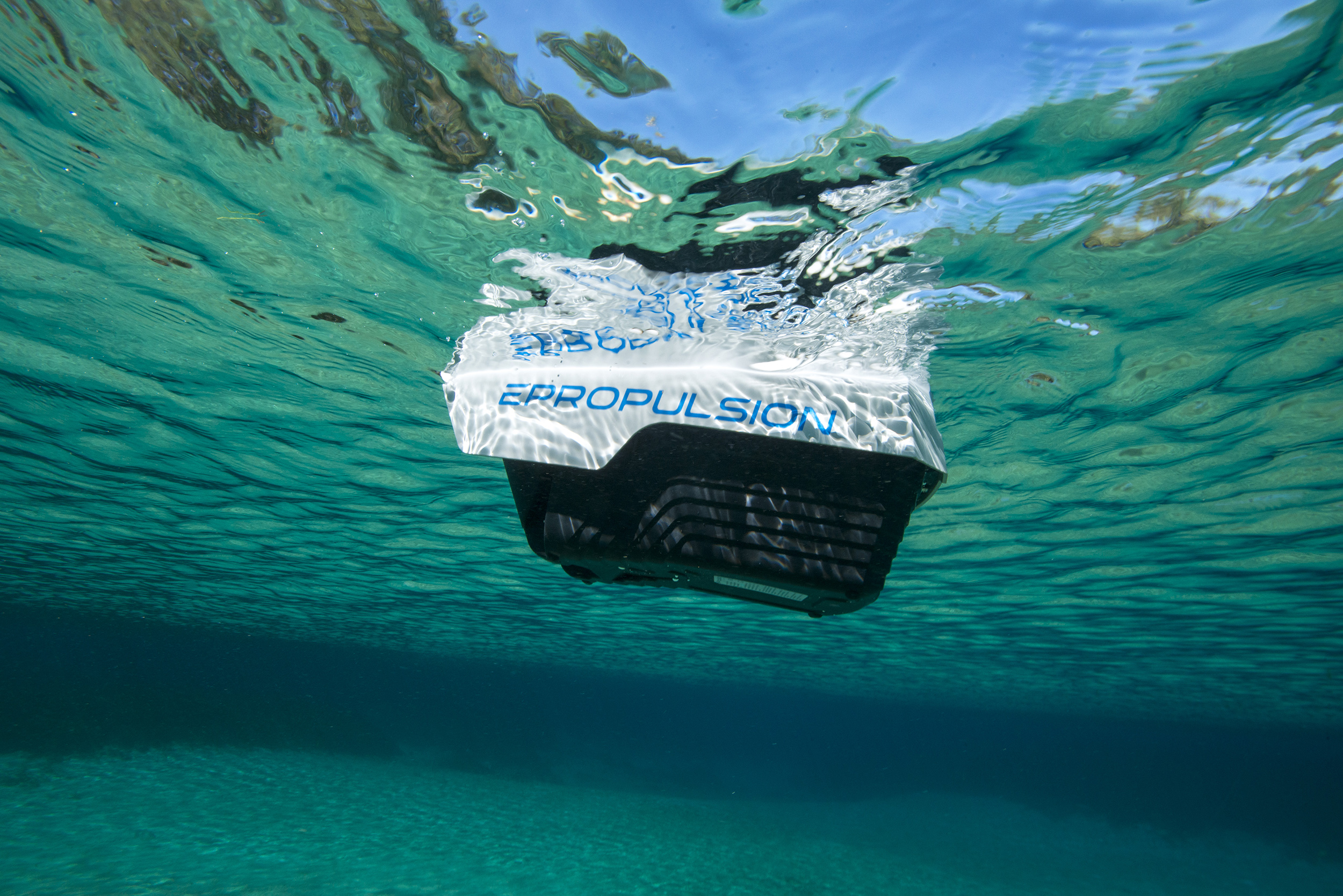

  • floating lithium battery

    Positive Buoyancy

    Never worry about dropping the battery into the water.

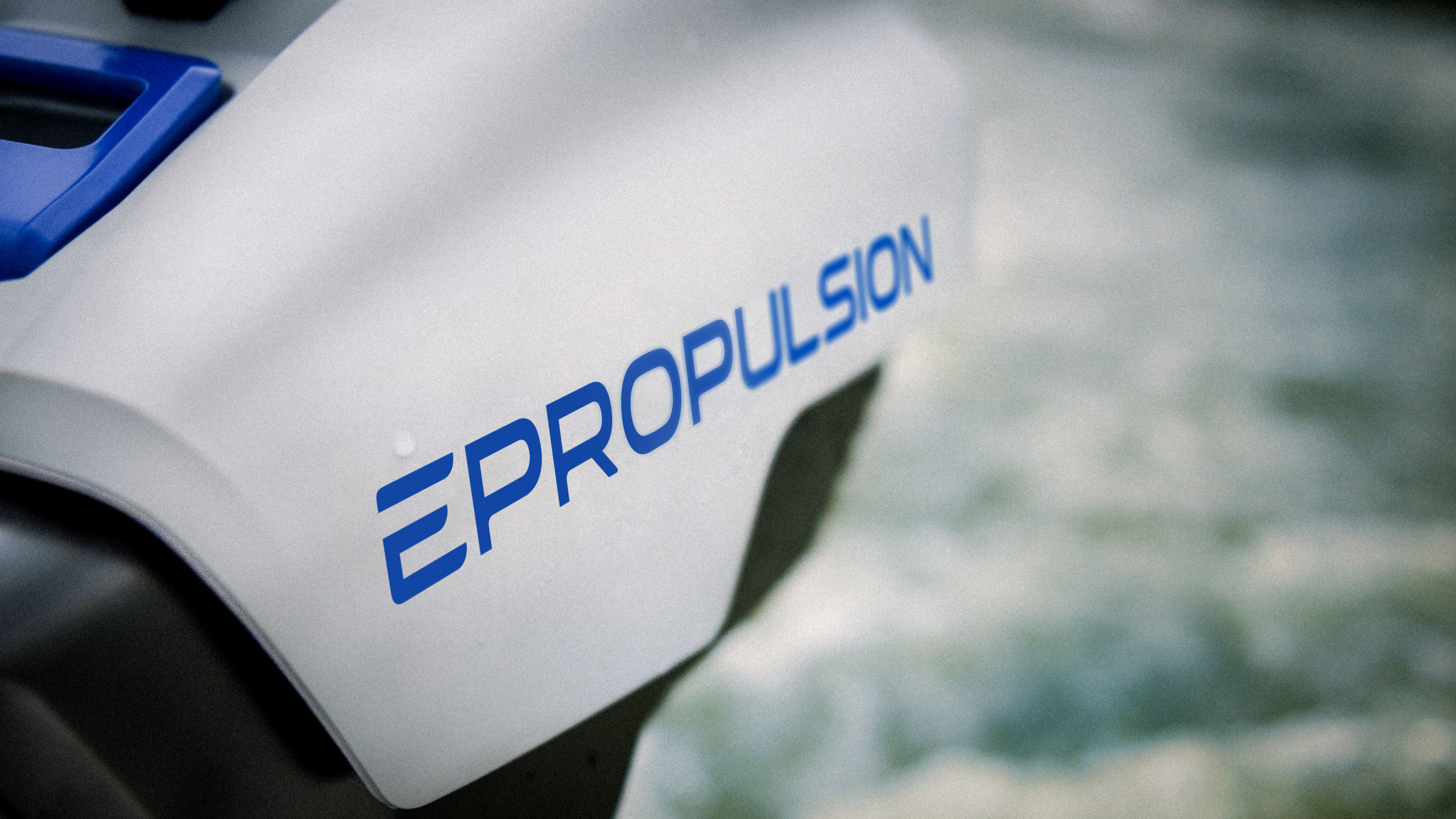

  • spirit 1.0 plus electric outboard motor

    1276 Wh Capacity

    High energy density in a compact size allows all day sailing.

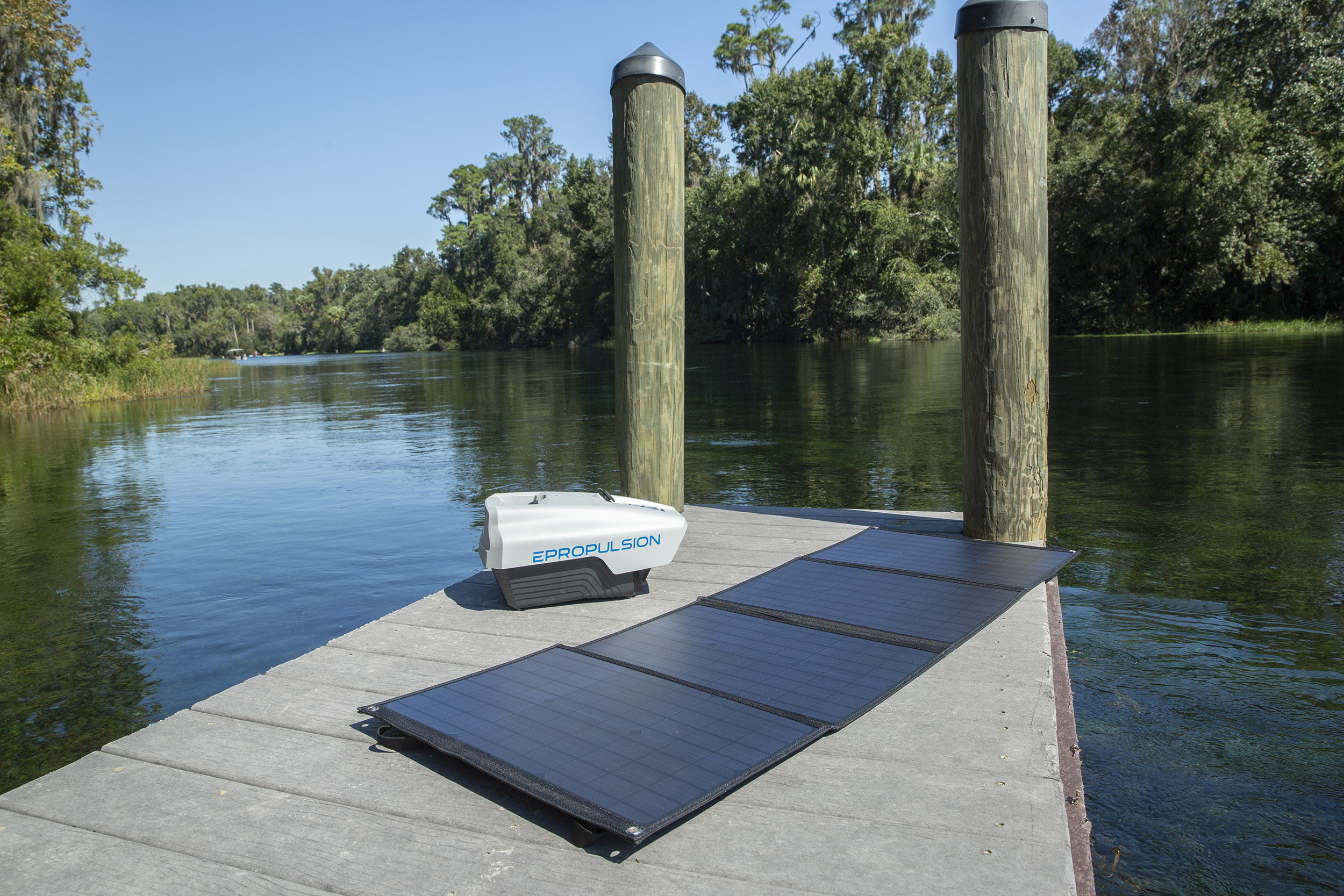

  • 180W Solar Charging

    With an additional Solar Charger and Panel, you can charge your battery on the go.

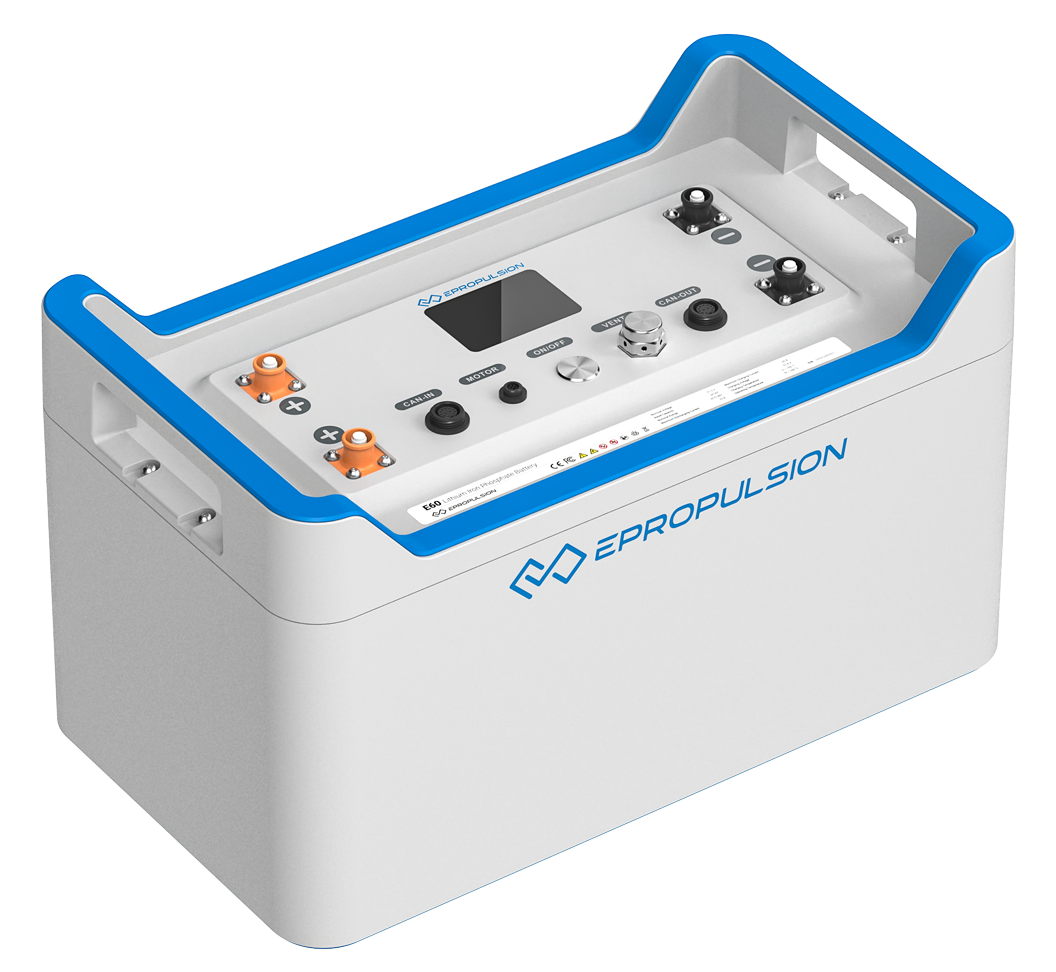

  • E-Series Lithium Battery

    E-Series Batteries

    Extend the runtime by using optional external batteries

Remote Control Capability

Spirit 1.0 Evo Remote is the only sub-5HP** electric outboard on the market offering remote helm steering, with a choice of Evo top-mount or side-mount controls.

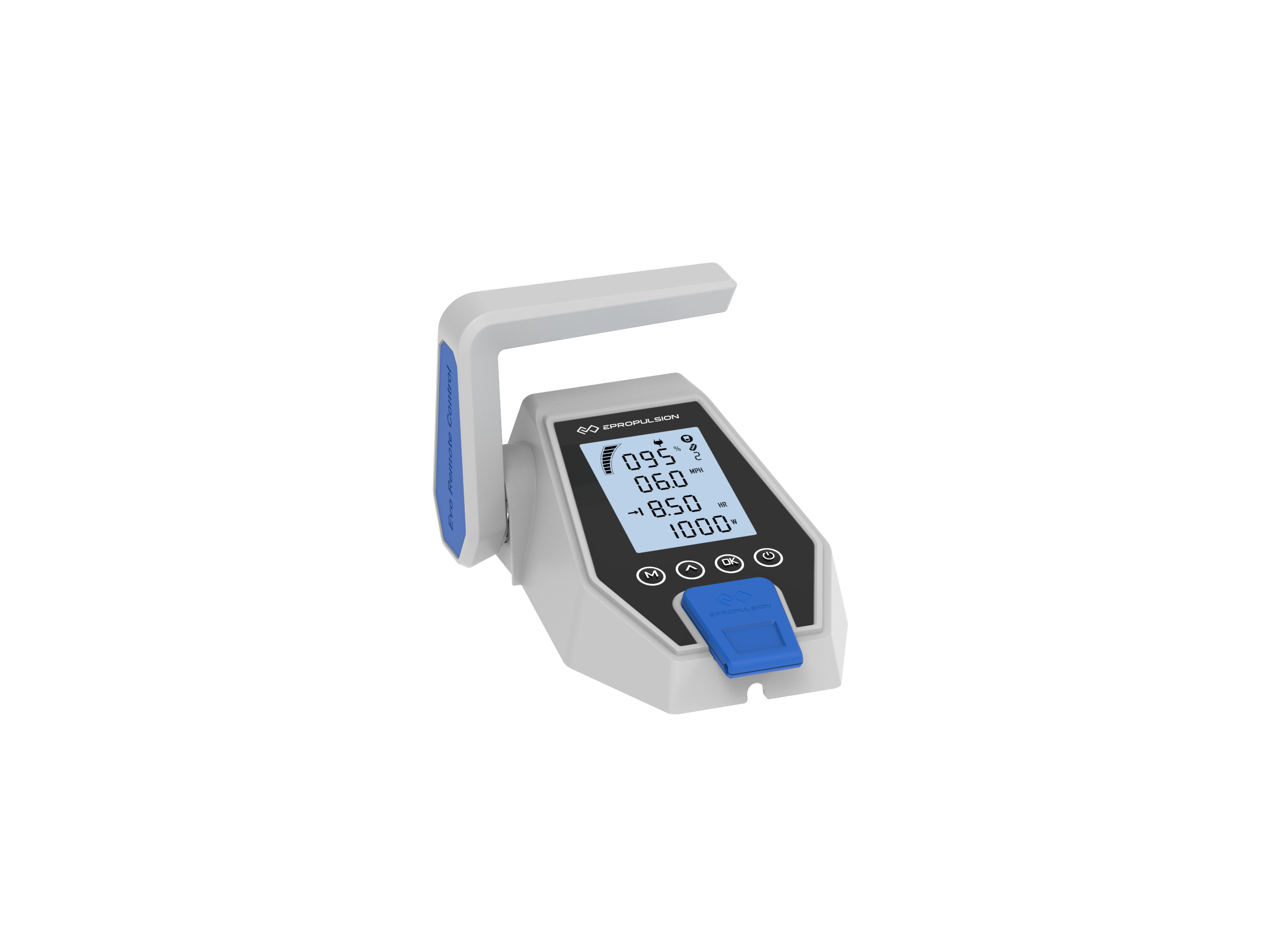

Evo Top Mount Control
Evo Side Mount Control

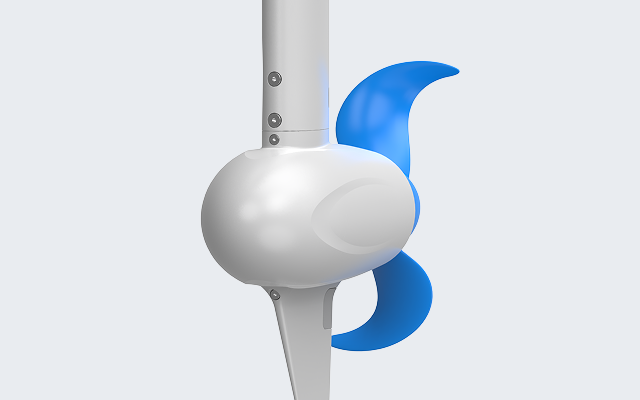

Hydrogeneration

The Spirit 1.0 Evo is the industry’s first electric outboard to feature hydrogeneration technology, allowing the battery to recharge while the vessel is under sail. This breakthrough maximises energy efficiency and extends range without dependence on shore power. It represents a major advancement in marine technology, uniting high-performance propulsion with sustainable energy management.

ePropulsion Spirit 1.0 Evo Hydrogeneration
  • The Spirit 1.0 Evo outboard is capable of driving the propeller to recharge the ePropulsion battery through water flow when specific operating conditions are met (see the user manual in the download centre for detailed requirements).
  • The hydrogeneration data is based on real tests with the anti-ventilation plate installed.

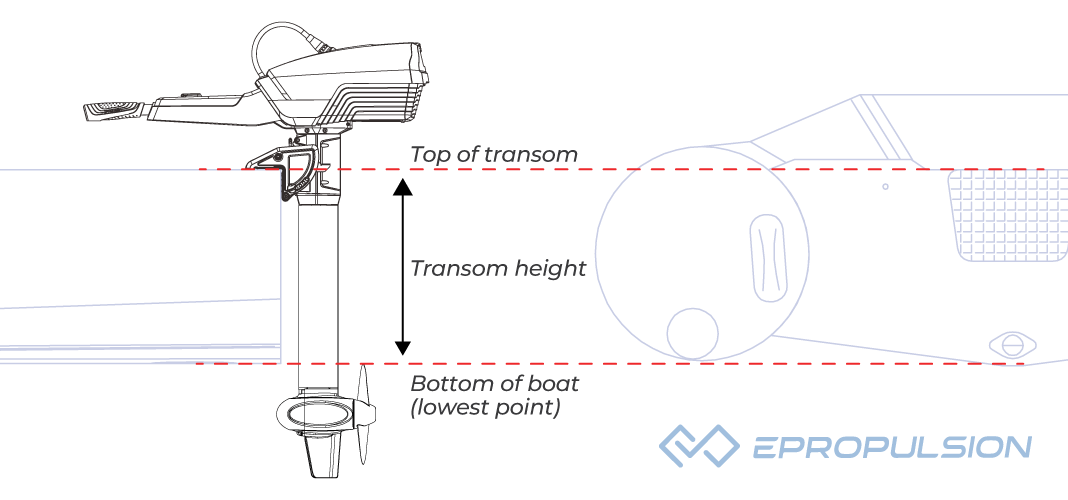

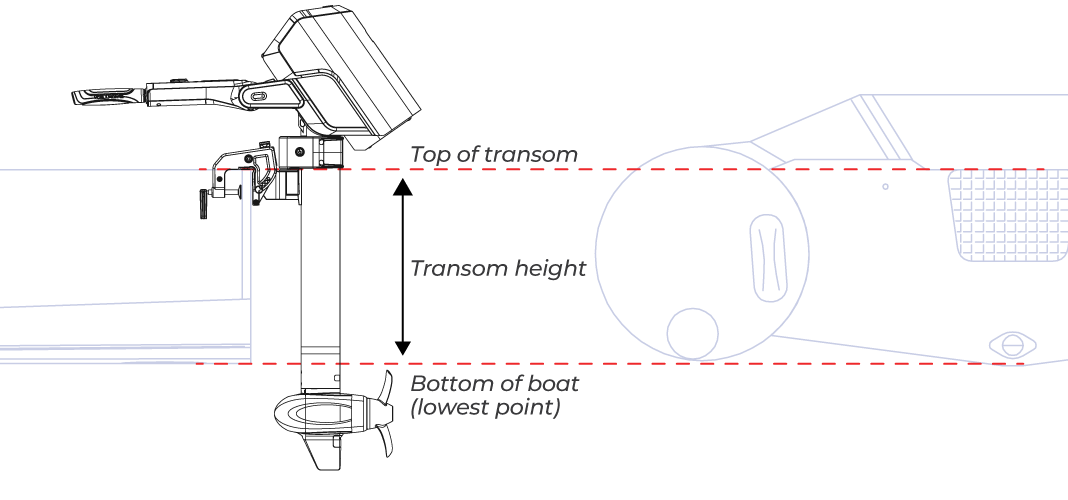

Shaft Length Recommendation

Transom HeightShaft Length
30-40cm / 11.8-15.7 inchesExtra Short*
40-50cm / 15.7-19.7 inchesShort
Higher than 50 cm / 19.7 inchesLong

* Extra Short only available on Plus model.
** This shaft length chart is for your reference only. For full information on picking the correct motor, please see this page.

Performance

At the core of Spirit 1.0 electric outboard motor is a 1kW BLDC motor, equivalent to 3HP**.

Power (W) Speed (mph/kph) Runtime (hh:mm) Range (mile/km)
35 2.2 / 3.5 36:25 80 / 129
65 2.7 / 4.3 19:35 53 / 85.3
125 3.5 / 5.6 10:00 35 / 56
250 4.4 / 7.1 5:00 22 / 35.5
500 5.3 / 8.5 2:30 13.3 / 21.3
750 5.7 / 9.2 1:40 9.5 / 15.3
1,000 6.2 / 10 1:15 7.8 / 12.5

* Performance data is based on testing with a 12-foot aluminium boat, one operator, and a single Spirit Battery Plus in calm lake conditions. Actual speed, range, and running time may vary depending on vessel type, load, weather, and operating conditions.

With a single charge, the Spirit 1.0 gives you the freedom to travel up to 22 miles at a steady cruising speed of 4.5 mph, or to spend an entire day out on the water at trolling speed, enjoying uninterrupted fishing, exploring, or simply relaxing without worrying about running out of power.

Introducing the Spirit 1.0 Plus

The Spirit 1.0 Plus Experience

Introducing the Spirit 1.0 Evo

Silent Power: The Spirit Evo Series Journey

Specifications

Spirit 1.0 Series
Plus Evo Evo Remote
Power 1 kW (3HP equivalent**) 1 kW (3HP equivalent**) 1 kW (3HP equivalent**)
Standard Battery Spirit Battery Plus, 1276 Wh li-ion polymer Spirit Battery Plus, 1276 Wh li-ion polymer Spirit Battery Plus, 1276 Wh li-ion polymer
Input Voltage 39V – 60V 39V – 60V 39V – 60V
Motor Weight* 10.6 kg / 23.4 lbs 11.3 kg / 24.9 lbs 10.6 kg / 23.4 lbs
Battery Weight 8.7 kg / 19.2 lbs 8.7 kg / 19.2 lbs 8.7 kg / 19.2 lbs
Standard Charging 8.5 Hrs 8.5 Hrs 8.5 Hrs
Fast Charging 3.5 Hrs 3.5 Hrs 3.5 Hrs
External Battery Yes, and E-Series Battery recommended Yes, and E-Series Battery recommended Yes, and E-Series Battery recommended
Propeller 11″ × 5.8″ 2-blade composite propeller 11″ × 5.8″ 2-blade composite propeller 11″ × 5.8″ 2-blade composite propeller

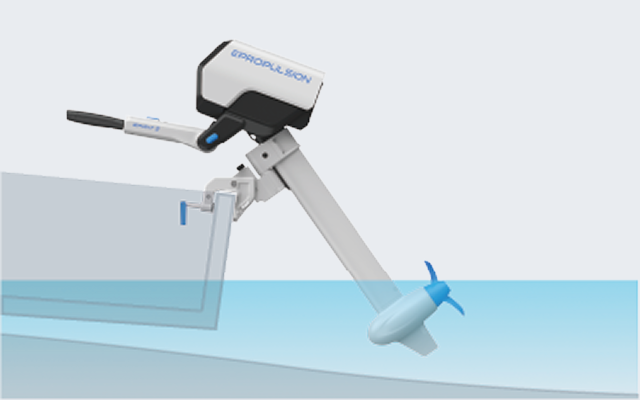

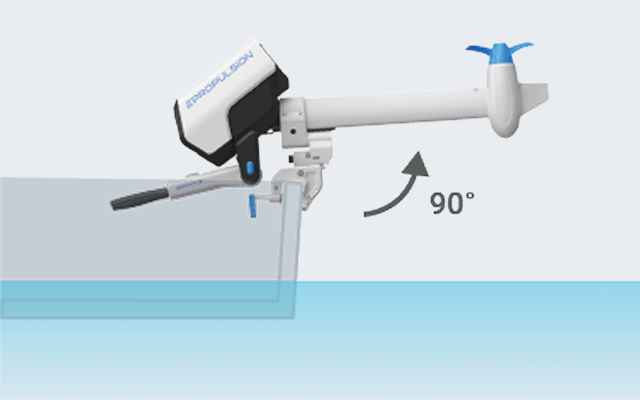

Trim / Tilt Angle 0°, 7°, 14°, 21° / 70° 0°, 7°, 14°, 21° / 85° 0°, 7°, 14°, 21° / 85°
Shaft Length Extra Short, Short, Long Short, Long Short, Long
Control Tiller Evo Tiller Evo Top Mount Control /
Evo Side Mount Control /
Evo Dual Remote Control
Hydrogeneration No Yes Yes
Motor Brushless DC motor Brushless DC motor Brushless DC motor
Direct Drive Yes Yes Yes

* The weight is measured with the short shaft version.
** Any reference to horsepower (HP) for electric motors is a theoretical equivalent based on thrust and performance characteristics, and not a direct measure of power. This comparison is intended for illustrative purposes only and may not reflect exact power equivalency.

What's in the Box

Accessories

Downloads

Find all the downloads for your ePropulsion Spirit Outboard motor, from Manuals to Technical and 3D CAD Drawings.

Navy Series

Navy Series

Your premium electric boating experience

Navy Evo 3-6kW 6-9.9HP**
Electric Outboards

Efficient long-range outboard motors

HydrogenerationLow Maintenance Direct-Drive

The Navy Series delivers powerful, efficient, and reliable electric propulsion with outputs from 3 to 6 kW (equivalent to 6–9.9 HP). Its direct-drive system ensures quiet operation and minimal maintenance, while integrated hydrogeneration technology allows the battery to recharge under sail. Combining performance with sustainability, the Navy Series is the ideal choice for boaters who demand both power and eco-friendly innovation.

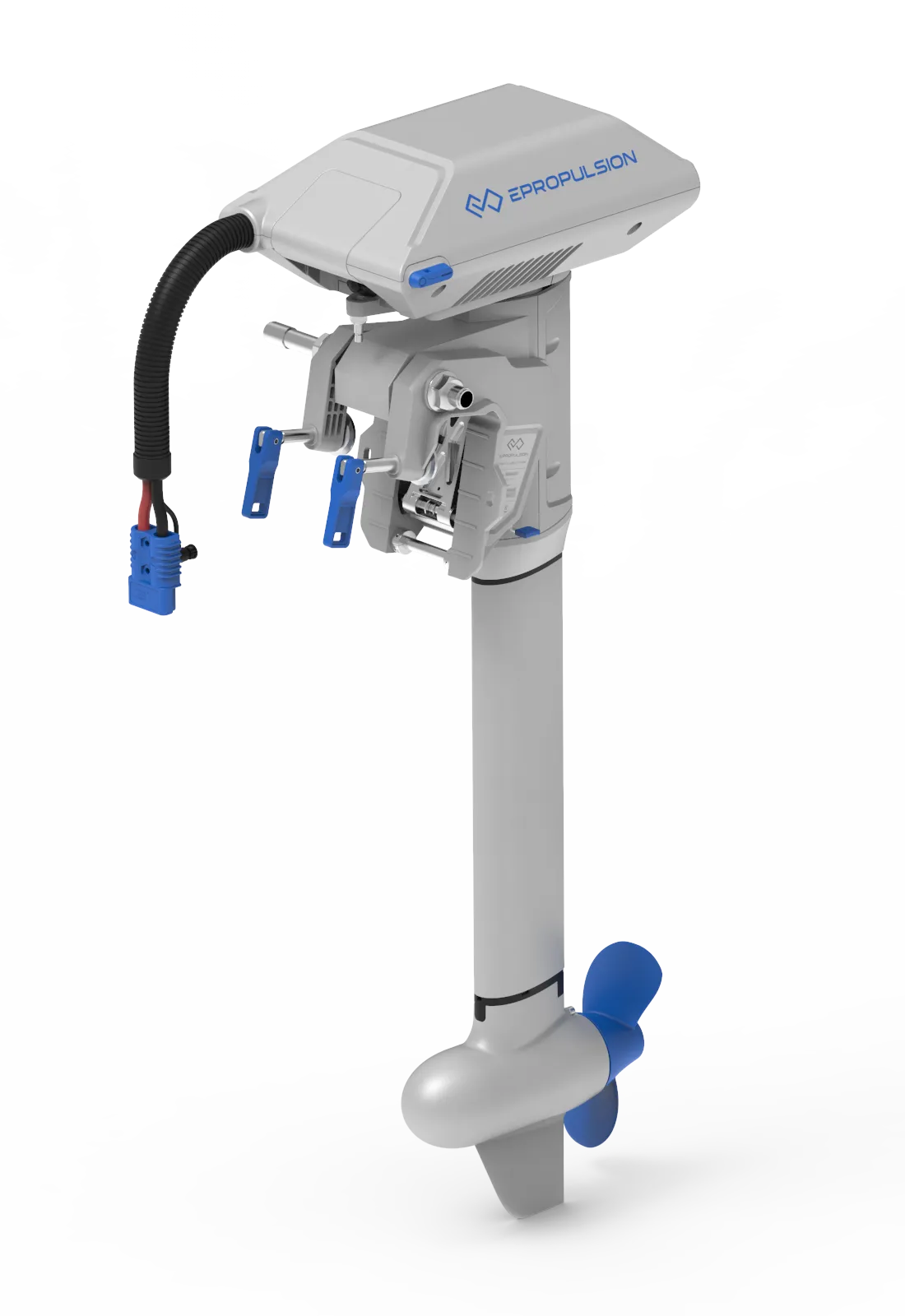

  • Navy 3.0 Evo electric motor
    Navy 3.0 Evo

    3kW / 6HP**

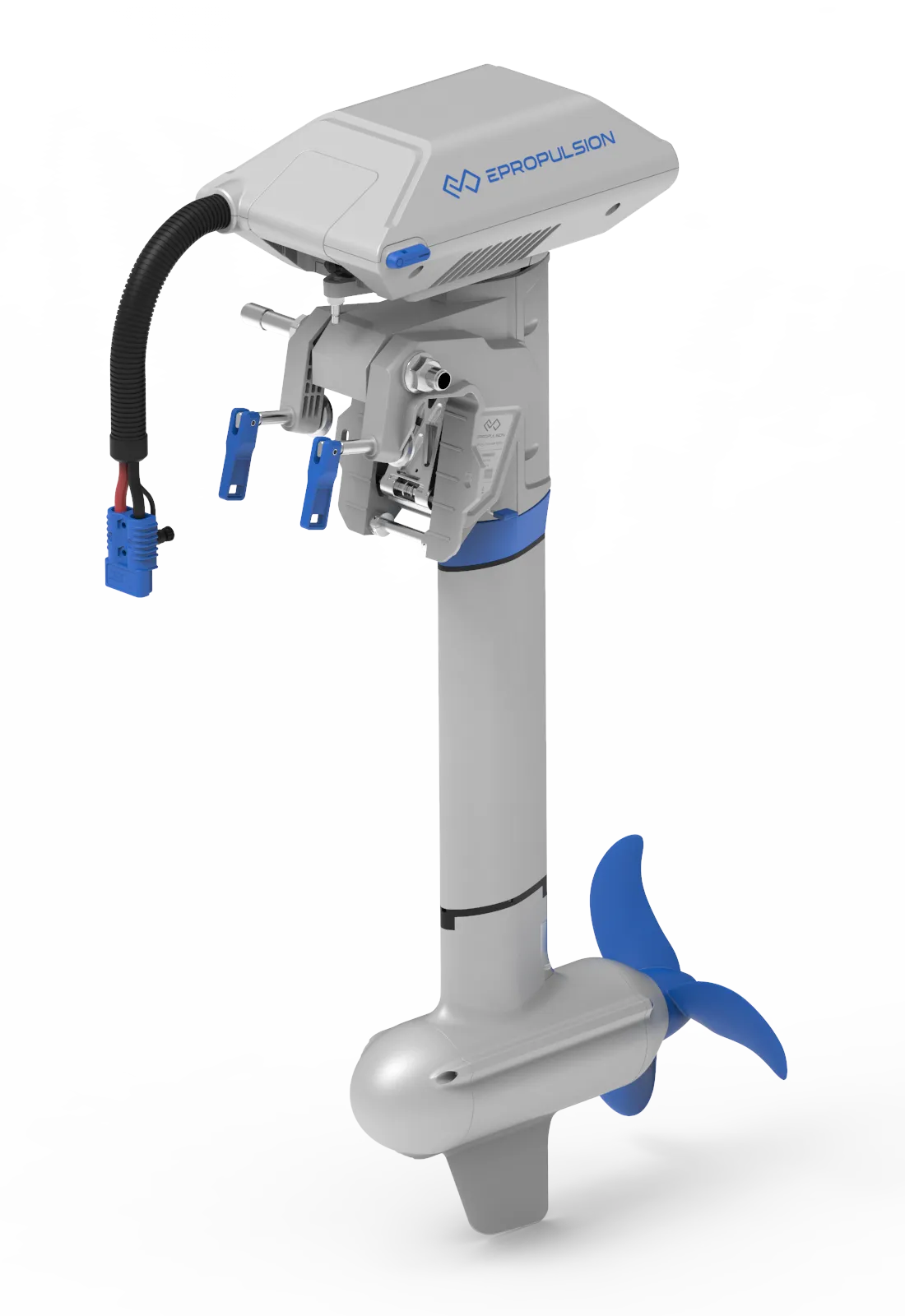

  • Navy 6.0 Evo electric motor
    Navy 6.0 Evo

    6kW / 9.9HP**

  • 0 P 7 A 5478

  • 0 P 7 A 5669

  • 0 P 7 A 5840

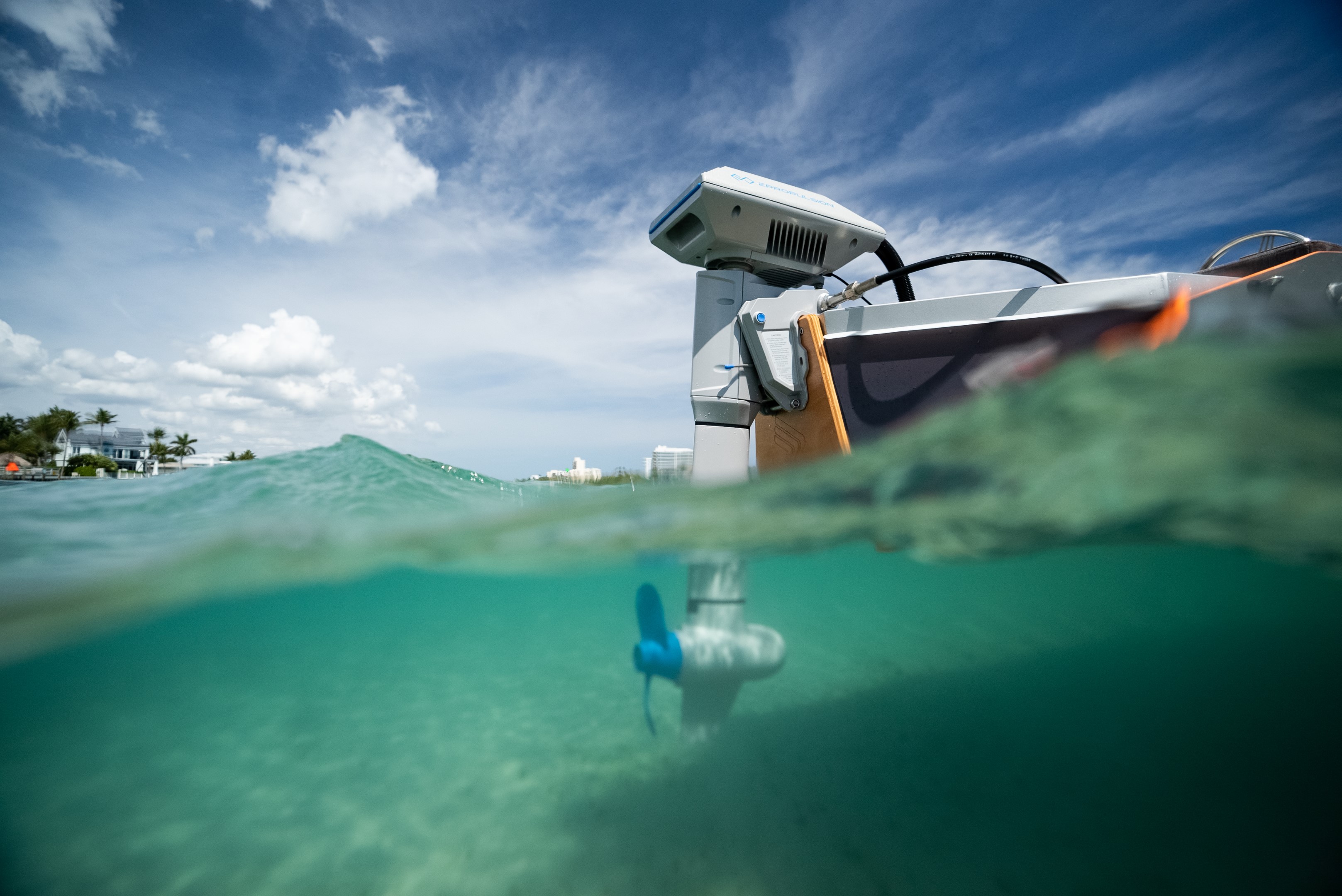

  • DSC 01336

  • 0 P 7 A 6254

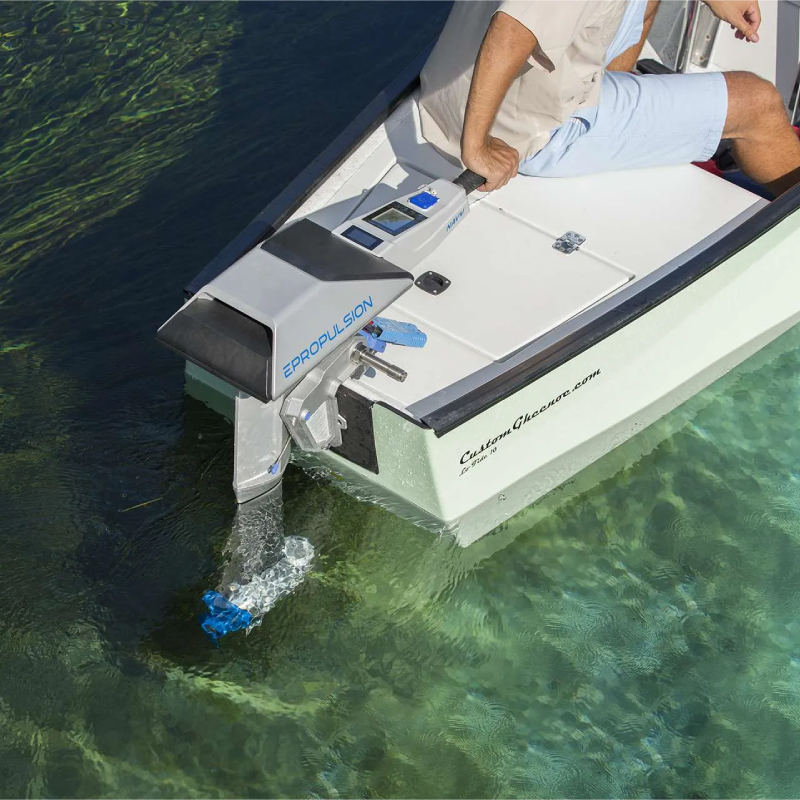

  • EPROP NAVY

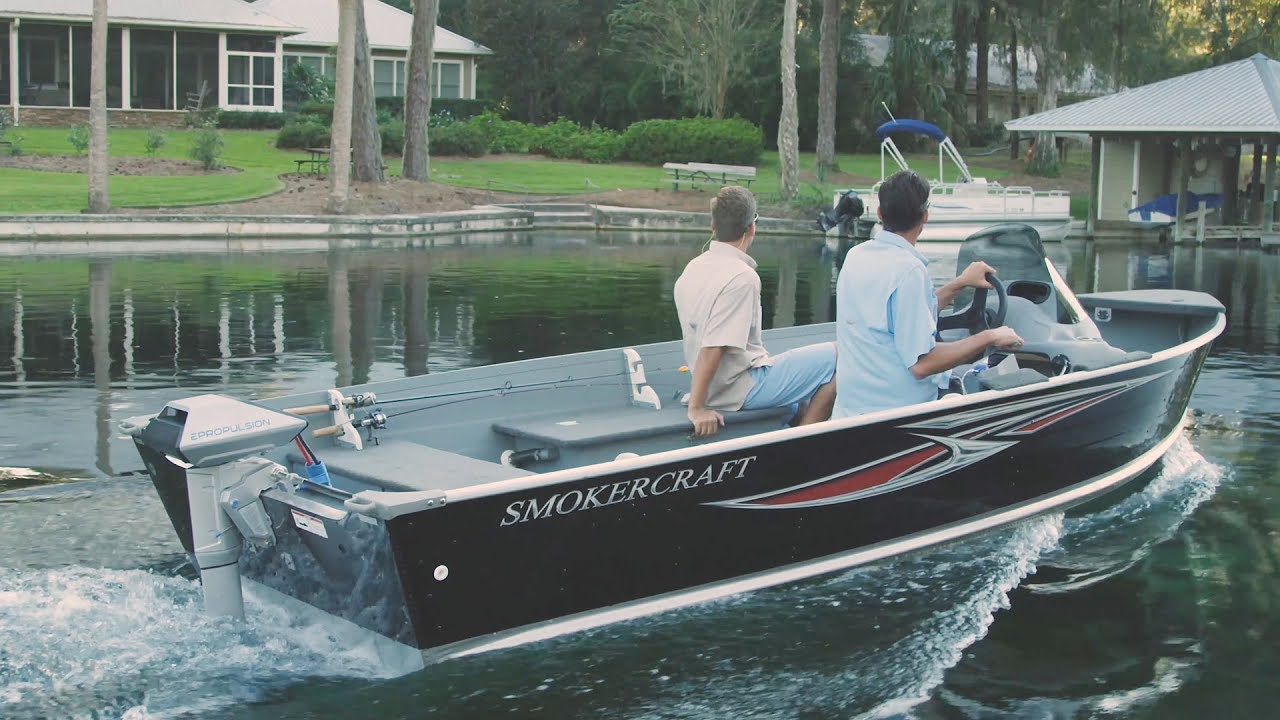

  • Navy Smokecraft

  • Hq 720

Electric outboards for larger boats

Powered by a choice of separate rechargeable batteries, these electric outboards deliver clean, quiet, and environmentally friendly propulsion.

Designed for convenience, the lightweight and compact motors are easy to lift, transport, and stow whether on board or ashore. The external waterproof batteries are far lighter and more compact than traditional fuel tanks, while eliminating engine noise, oily bilges, and unpleasant fumes.

Thanks to an efficient direct-drive system, the motors contain fewer moving parts, reducing wear and removing the need for regular servicing or maintenance.

Highly versatile and offering impressive range, these electric outboards can be paired with different vessels, including:

  • Yacht tenders and dinghies
  • Aluminium fishing boats
  • SIBs (small inflatable boats)
  • RIBs (rigid inflatable boats)
  • Motor boats
  • Day sailers
  • Yachts up to 5 tons

Digital Operation

Tailored Control and Display Solutions to Suit Every Boater

  • Digital Display

    Provides real-time monitoring of key information including power output, remaining runtime, battery level, voltage, and more.

  • Electric Start

    Start instantly at the push of a button, eliminating the effort of pull starts.

  • Magnetic Kill Switch

    Enhances safety by instantly shutting down the motor in case of emergency.

  • Smooth Throttle Changing

    Delivers precise throttle response with a clear, comfortable feel in both forward and reverse.

  • Adjustable Max Power Output

    Allows you to set a maximum throttle limit, making the motor suitable for children or rental applications.

  • Ambidextrous Operation

    Throttle can be operated comfortably from either the left or right hand for flexible control.

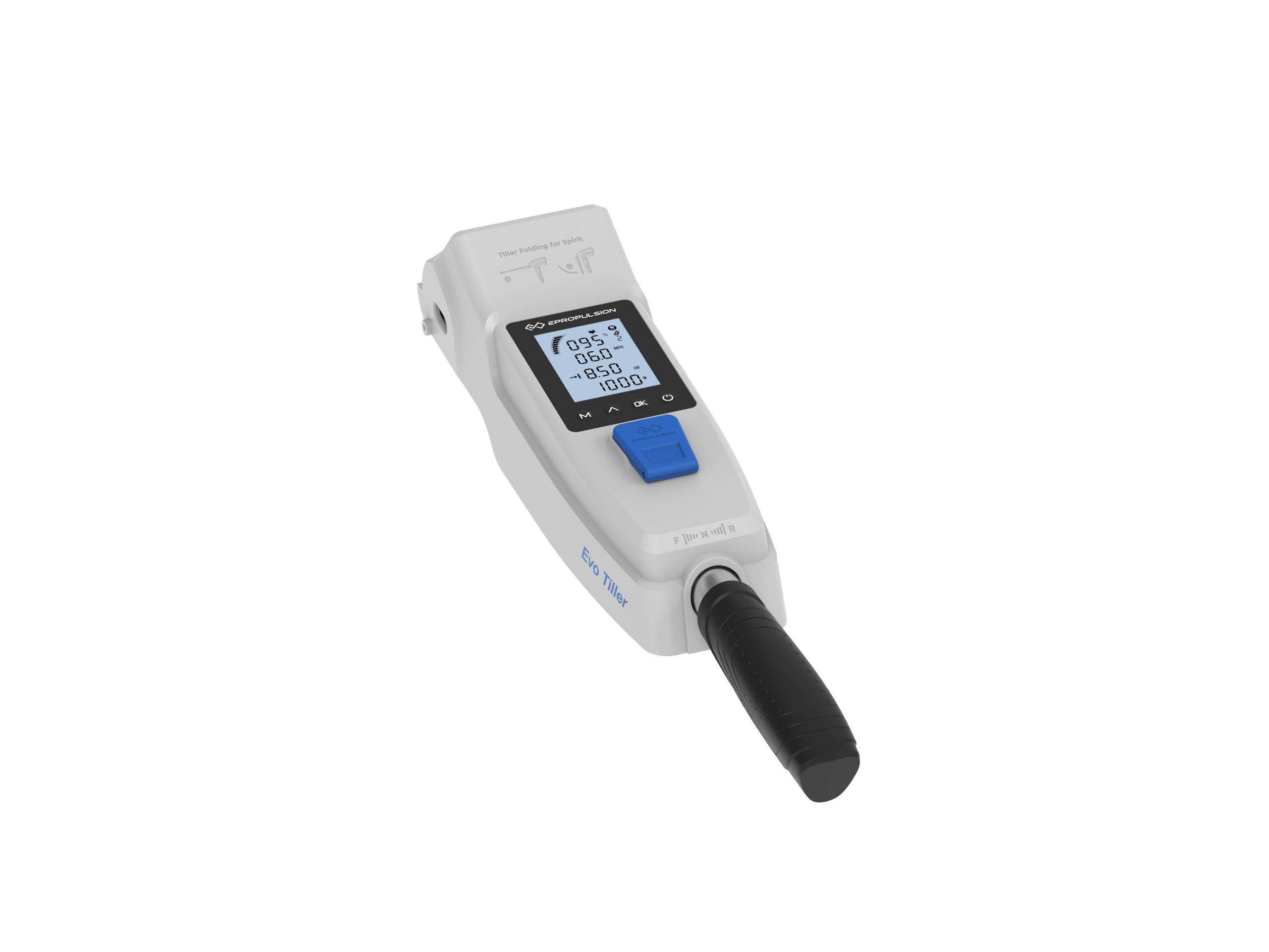

  • Evo Tiller
    Detachable tiller with integrated display monitoring real-time motor / battery status, for Spirit Evo models and Navy Evo models.
  • Evo Top Mount Control
    Wireless remote control with integrated display monitoring real-time motor / battery status, for Spirit 1.0R Evo, Navy Evo models and Pod Evo models.
  • Evo Side Mount Control
    Smart side mount control with independent display monitoring real-time motor / battery status, for Spirit / Navy / Pod Evo models.
  • Evo Dual Control
    Remote control for twin installation of Spirit / Navy Evo motors. Independent display monitors real-time status of power and each motor.

Hydrogeneration Empowers Sailors

The Navy 3.0 / 6.0 Evo models are equipped with hydrogeneration technology, enabling the battery to recharge from water flow while sailing. This system enhances energy efficiency, extends range, and reduces reliance on shore power, marking a significant advancement in electric propulsion engineering.

  • The Navy 3.0 and 6.0 Evo outboards are equipped with hydrogeneration, enabling ePropulsion batteries to recharge by harnessing water flow to drive the propeller, provided specific operating conditions are met.
  • Hydrogeneration data is based on real-world testing with the anti-ventilation plate installed.
  • The Navy 6.0 Evo has been tested extensively with a 12.6" × 8.7" three-blade aluminium propeller, available as an optional accessory.

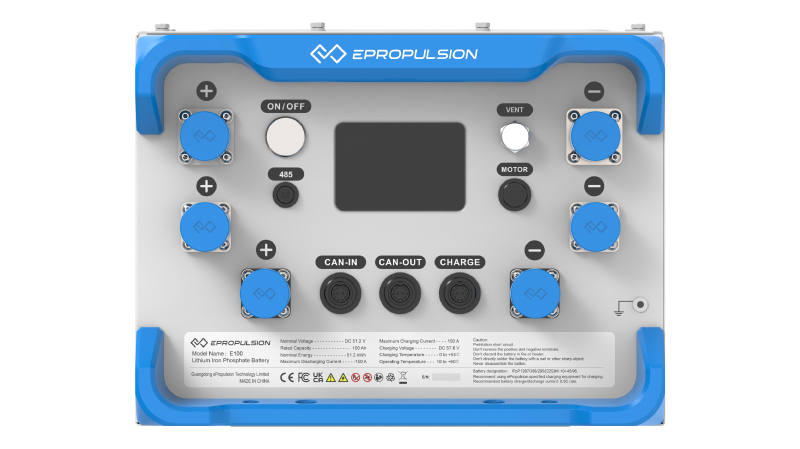

E-Series Lithium Battery

Unlock the full potential of your Navy electric outboard with ePropulsion’s 48V E-Series lithium iron phosphate battery, the perfect match for clean and powerful performance.

  • Competitive pricing

    Unit price is as low as £0.46 per watt-hour.

  • High energy density

    70% less weight and space than standard lead-acid batteries.

  • Longer life cycles

    Boasting an impressive 3,000 cycles at 80% Depth of Discharge (SoH).

  • Made for ePropulsion Motors

    With an integrated BMS, the batteries optimise motor performance, efficiency, and safety.

Learn more about the E-Series

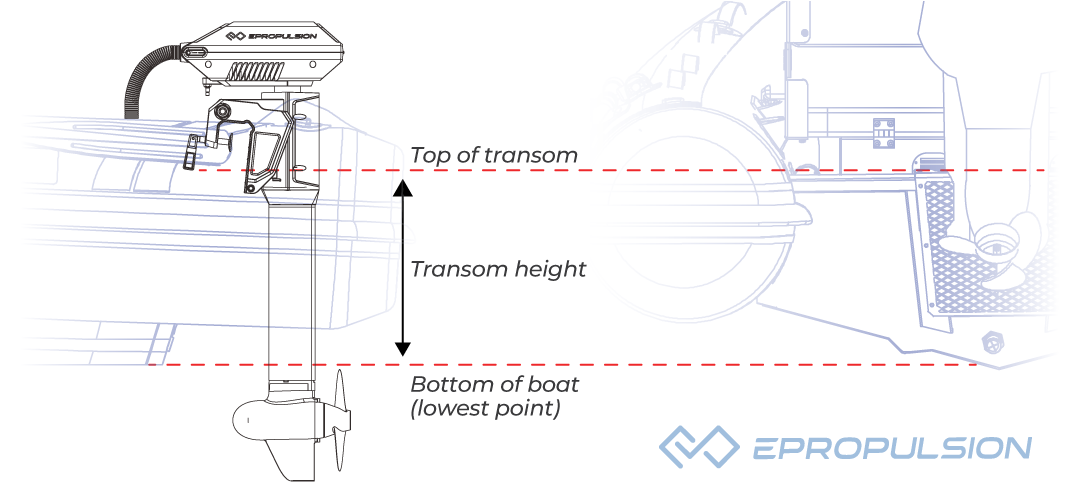

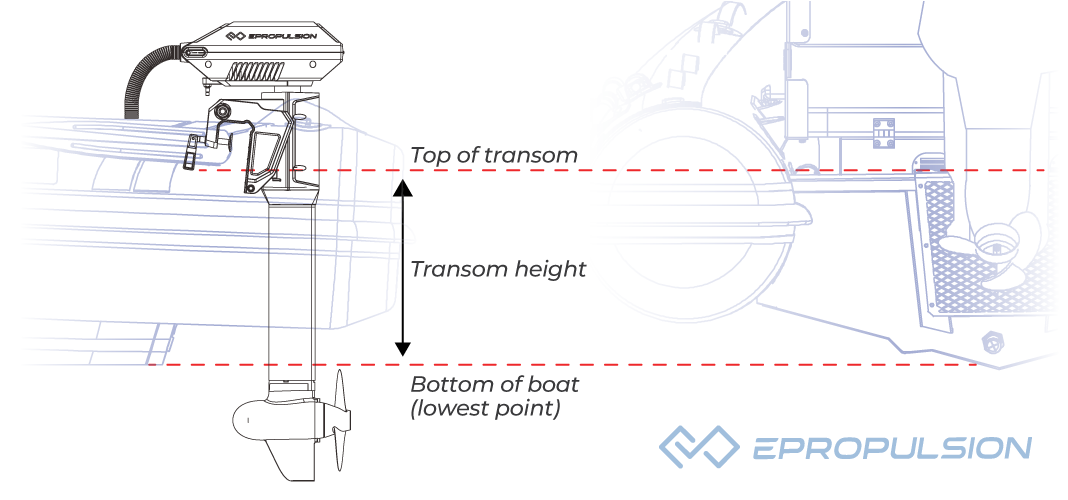

Shaft Length Recommendation

The Navy Series motors are available in two shaft lengths: short and long.

Transom HeightShaft Length
40-50cm / 15.7-19.7 inchesShort
Higher than 50 cm / 19.7 inchesLong

* This shaft length chart is for your reference only.

Performance

The Navy Series electric outboards deliver outstanding efficiency, providing greater speed and extended range.

Navy 3.0 Evo
Power (Watts) Speed (mph/kph) Runtime (hh:mm) Range (mile/km)
300 3.7 / 6 13:20 49.3 / 79.3
550 4.7 / 7.5 7:25 35 / 56.3
1000 5.3 / 8.6 4:00 21.2 / 34.1
1500 6 / 9.7 2:40 16 / 25.7
2000 6.3 / 10.2 2:00 12.6 / 20.4
2500 8 / 12.8 1:35 12.7 / 20.5
3000 10.2 / 16.4 1:20 13.6 / 21.9
Navy 6.0 Evo
Power (Watts) Speed (mph/kph) Runtime (hh:mm) Range (mile/km)
500 4 / 6.5 18:00 72 / 116
1000 5 / 8 9:00 45 / 72
2000 6.7 / 10.8 4:30 30.2 / 48.6
3000 8 / 13 3:00 24 / 39
4000 11.5 / 18.5 2:15 25.9 / 41.7
5000 13.5 / 21.8 1:50 24.7 / 39.8
6000 15 / 24.3 1:30 22.5 / 36.5

*Performance data is based on testing with a 12-foot aluminium boat carrying one operator, using a Navy 3.0 Evo with an E80 battery and a Navy 6.0 Evo with an E175 battery, under calm lake conditions.

Specs

Navy 3.0 Evo Navy 6.0 Evo
Power 3 kW (6HP equivalent**) 6 kW (9.9HP equivalent**)
Input voltage 39V – 60V 39 V – 60 V
Recommended Battery ePropulsion E-Series Battery ePropulsion E-Series Battery
Motor Weight Short: 24.3 kg / 53.6 lbs
Long: 27.5 kg / 60.63 lbs		 Short: 28.5 kg / 62.8 lbs
Long: 29.5 kg / 65 lbs
Propeller 10.2″ × 6.7″ 2-blade composite propeller 12.6″ × 10.8″ 3-blade composite propeller
13.4″ × 8.5″ 3-blade composite propeller
12.6″ × 8.7″ 3-blade aluminum propeller (optional)
Trim / Tilt Angle 0°, 5°, 10°, 15°, 20°, 35°, 50°, 65 and 80° 0°, 5°, 10°, 15°, 20°, 35°, 50°, 65 and 80°
Shaft Length Short, Long Short, Long
Control Evo Tiller
Evo Top Mount Control
Evo Side Mount Control
Evo Dual Remote Control		 Evo Tiller
Evo Top Mount Control
Evo Side Mount Control
Evo Dual Remote Control
Hydrogeneration Yes Yes
Motor Brushless DC motor Brushless DC motor
Direct Drive Yes Yes

** Any reference to horsepower (HP) for electric motors is a theoretical equivalent based on thrust and performance characteristics, and not a direct measure of power. This comparison is intended for illustrative purposes only and may not reflect exact power equivalency.

What's in the Box

Accessories

Downloads

Find all the downloads for your ePropulsion NAVY Outboard motor, from Manuals to Technical and 3D CAD Drawings.

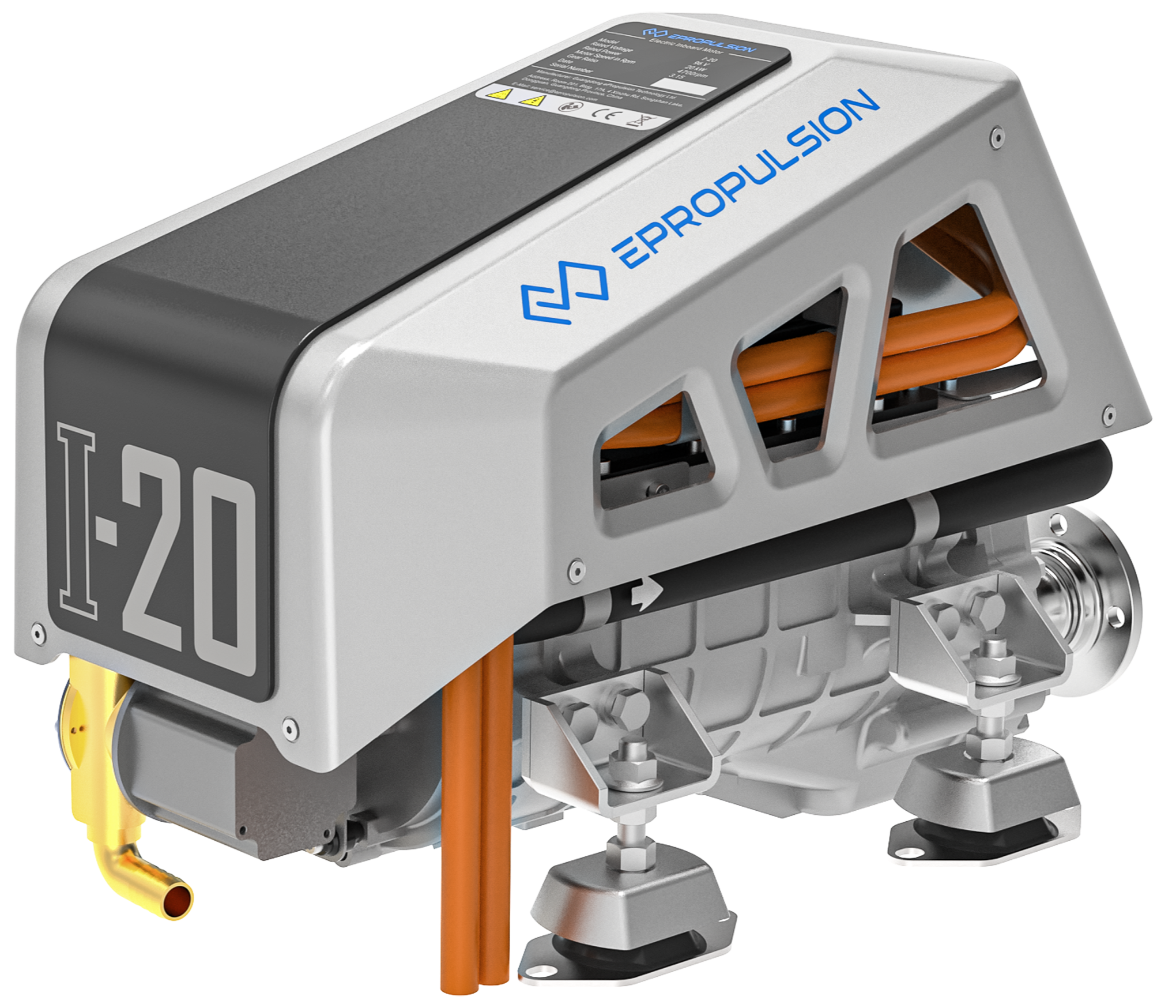

I-Series

I-Series

Redefining the Electric Inboard Experience

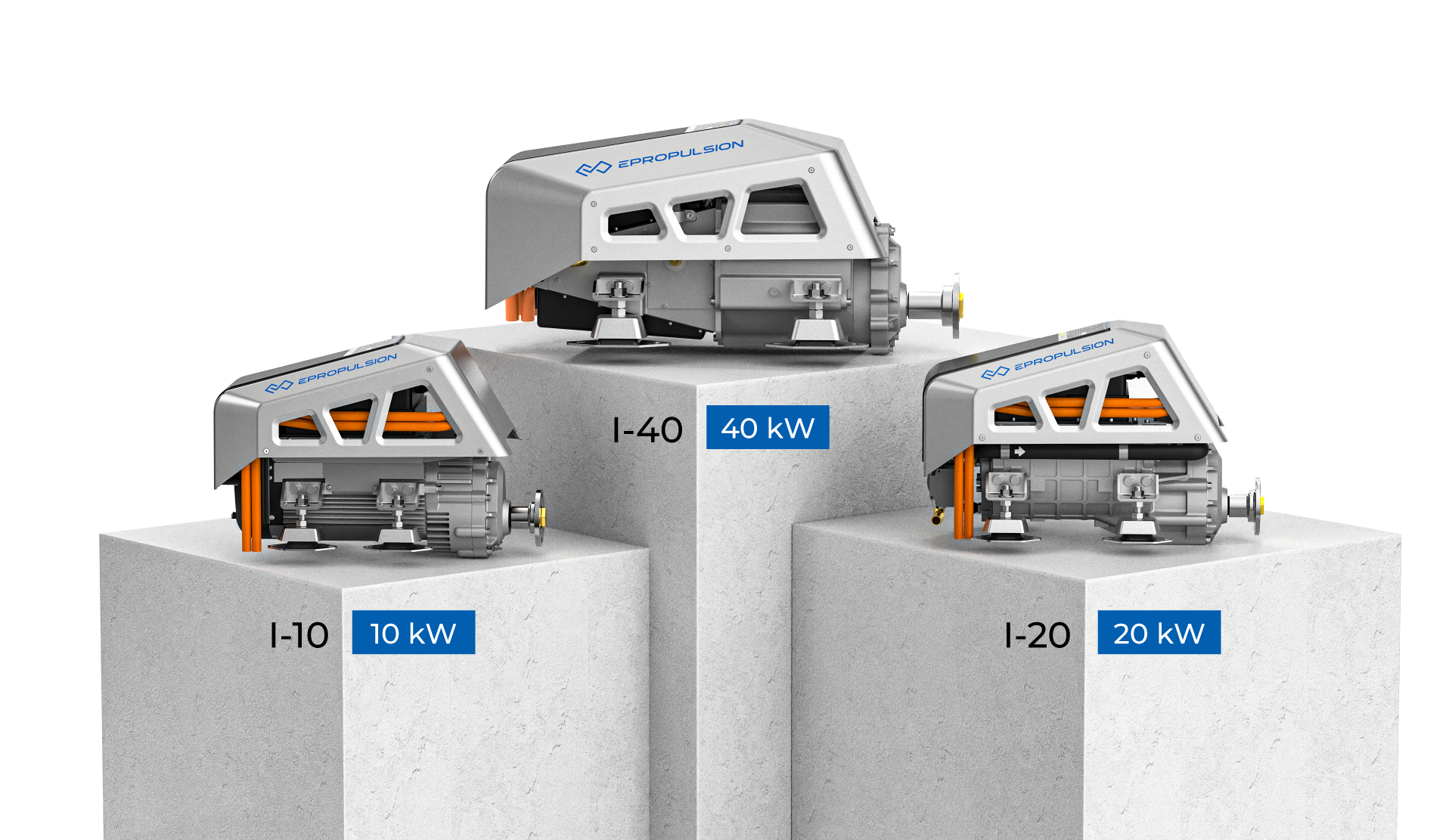

I-Series Inboard Motors 10-40kW

Popular with sailboats and small watercraft

Hydrogeneration Highly-integrated Compact Smart Connected

The I-Series delivers eco-friendly electric inboard motors enhanced with advanced technology, intelligent features, and a user-focused design. Powered by our highly modular ePropulsion Smart System Architecture (eSSA) and supported by IoT connectivity services, it provides an unmatched boating experience defined by simplicity, intelligence, safety, and reliability.



Powerful Electric Inboards for Larger Vessels

Compact yet robust, the I-Series electric inboard motors deliver clean, efficient, and whisper-quiet propulsion for a wide range of applications. Designed with OEMs and boat builders in mind, they simplify both new installations and the conversion of existing vessels to electric power. Equally suited to leisure cruising or commercial operations, the I-Series is an ideal solution for:

  • Small to medium-sized boats
  • Sailing yachts
  • Multihull vessels
  • Narrowboats
  • Leisure powerboats
  • Workboats, water buses, and ferry boats

  • Efficient

  • Clean

  • Quiet

  • Hydrogeneration

Features

Compact and Integrated

The I-Series motors feature a streamlined design that consolidates five essential components into one compact unit: the motor, gearbox, motor controller, system control unit, and cooling system. This integration saves valuable onboard space, reduces wiring and system complexity, and makes installation faster and more efficient.

Designed for both boat builders and end users, the I-Series delivers a quiet, reliable, and space-efficient propulsion solution. Its versatility makes it an ideal choice for leisure craft, sailing vessels, multihulls, powerboats, and commercial applications where performance and efficiency are paramount.

  • Space-saving

    With a design that requires 60% less space than traditional combustion engines, the I-Series motors maximise installation flexibility and free up valuable onboard space for passengers and equipment.

  • Lighter weight

    Up to 65% lighter than combustion engines and 30% lighter than comparable electric inboards, the I-Series delivers significant weight savings that improve efficiency and handling.

  • Hydrogeneration

    All I-Series models include integrated hydrogeneration, enabling the batteries to recharge from water flow while sailing for greater range and sustainability.

  • Easy to install

    Pre-connected internal wiring creates a true plug-and-play setup, making installation straightforward and allowing immediate use upon delivery.

  • Easy to maintain

    With advanced technology and simplified design, the I-Series requires far less maintenance than conventional engines, reducing downtime and operating costs.

  • Easy to operate

    A unified throttle and display panel provide a seamless, user-friendly driving experience. The smart control system actively interprets operational input, making navigation effortless and precise.

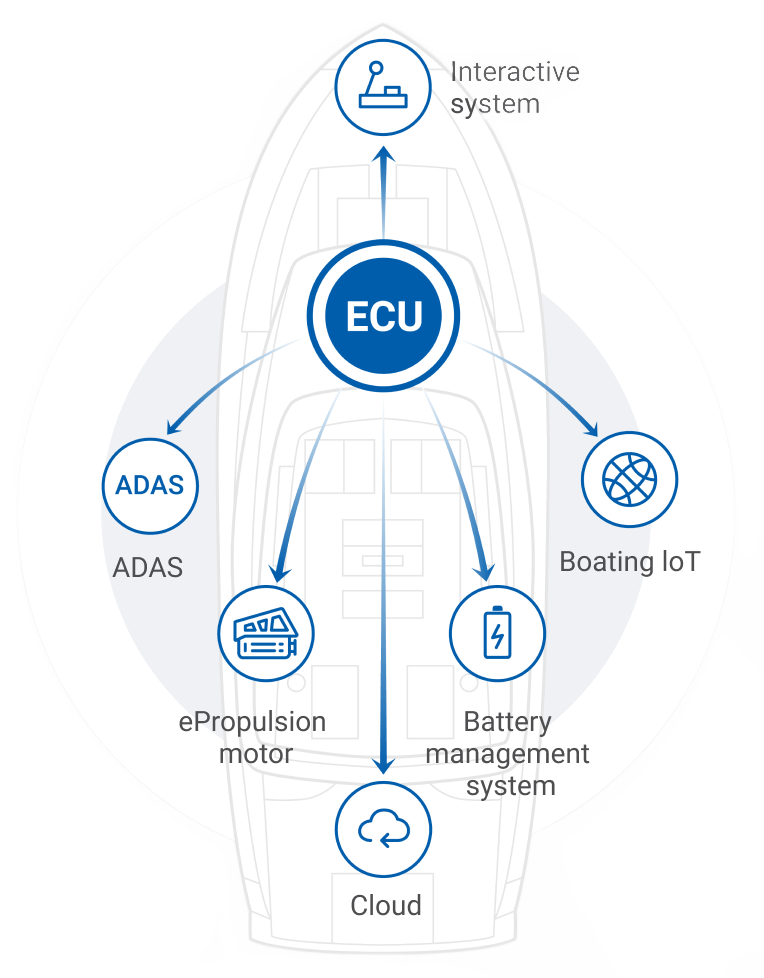

eSSA: The Core of I-Series

ePropulsion's Smart System Architecture

Built on ePropulsion’s Smart System Architecture (eSSA), the I-Series inboard motors deliver a next-generation propulsion solution. Their intelligent, modular design enhances safety and reliability while enabling seamless integration with ePropulsion Connectivity Services and Advanced Driver Assistance Systems (ADAS) for a smarter, more connected boating experience.

  • Smart

  • Modular

  • Safe

Next-Gen Controls Powered by eSSA

Our Smart Throttle and 5-inch Smart Display deliver an exceptional user experience, combining intuitive control with real-time system monitoring. With three versatile mounting options, the Smart Throttle adapts seamlessly to different vessel layouts, ensuring the perfect fit for every application.

  • Top or Side
  • Single or Dual
  • Port or Starboard

* Additional control options coming soon...

Seamlessly Connected through Boating IoT

Our ePropulsion Connectivity Service strengthens the link between boat owners, fleet managers, and their vessels. This value-added service enables secure, reliable data exchange and delivers cloud-based connectivity without requiring additional hardware.

  • Remote Data Access

    Monitor real-time metrics including location, speed, battery level, and remaining charging time at a glance.

  • Remote Monitoring

    Receive instant alerts if your vessel crosses geofences, exceeds speed limits, or shows unusual movement.

  • Trip Tracking

    Automatically record your journeys with detailed logs and route playback for every trip.

  • Shared Accounts

    Provide others with shared access to real-time status, past activity, and detailed reports

  • Guest Authorisation

    Allow guests to power up and operate the ePropulsion system with configurable permission settings.

  • Report Generation

    Automatically generate comprehensive reports and fleet summaries covering all boating activity.

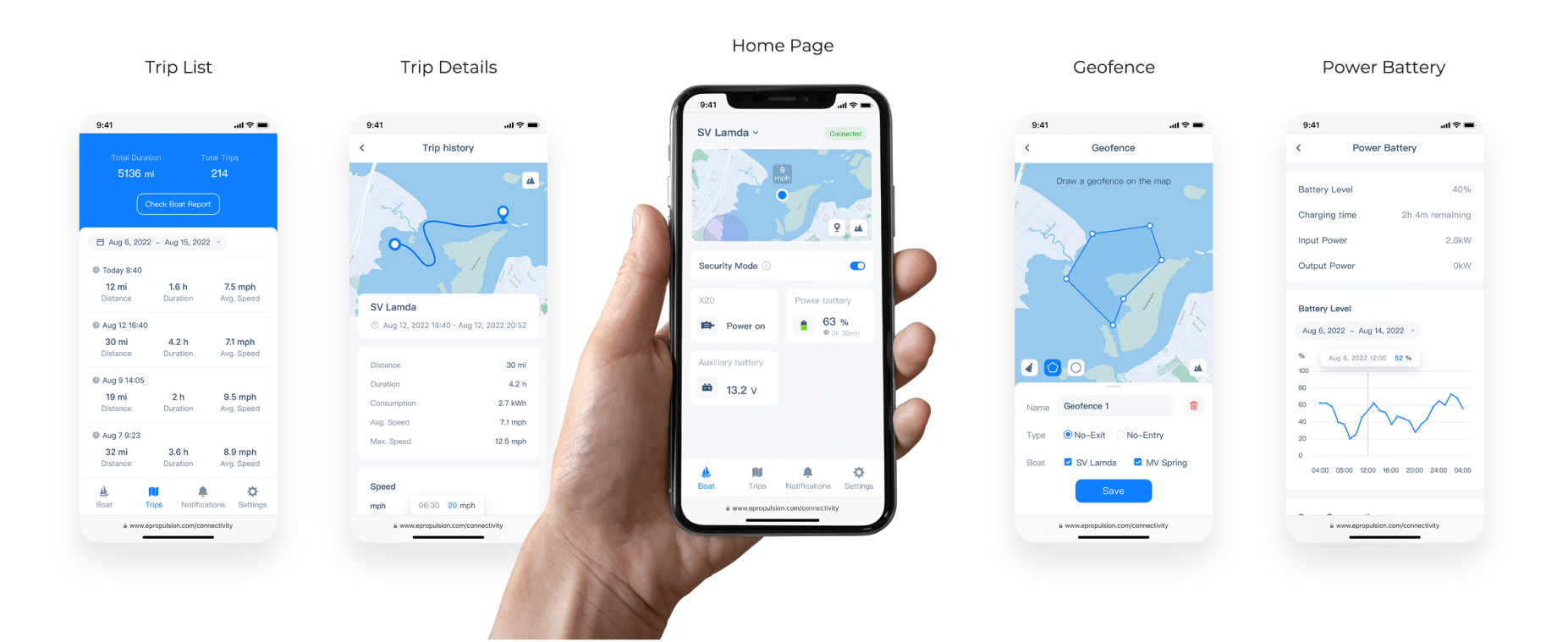

ePropulsion IoT Connectivity Service

G-Series Lithium Battery

The G102-100 is a high-performance Lithium Iron Phosphate (LiFePO4) battery engineered specifically for use with the I-Series inboards.

  • Competitive pricing

    Unit price is as low as £0.50 per watt-hour.

  • High energy density

    70% less weight and space than standard lead-acid batteries.

  • Longer life cycles

    Boasting an impressive 3,000 cycles at 80% Depth of Discharge (SoH).

  • Made for ePropulsion Motors

    The batteries share data with our motors, optimising performance and efficiency.

Learn more about the G-Series

Harness the Power of Hydrogeneration

All I-Series motors feature integrated hydrogeneration technology, enabling battery recharging via propeller-driven water flow under defined sailing conditions. This system improves overall energy efficiency, extends cruising range, and reduces reliance on shore-based charging infrastructure, underscoring ePropulsion’s leadership in advanced electric propulsion engineering.

  • The I-10, I-20, and I-40 motors support hydrogeneration, recharging ePropulsion batteries through propeller-driven water flow under defined operating conditions.
  • All hydrogeneration data is based on results from real-world testing.

Specs

I-Series
I-10 I-20 I-40
Input power10 kW20 kW40 kW
Input voltage86 to 115 VDC86 to 115 VDC86 to 115 VDC
Weight45kg49.5kg85kg
Dimensions (L x W x H)565 x 295 x 380 mm580 x 330 x 380 mm790 x 450 x 410 mm
Cooling methodAir coolingWater cooling (air cooling optional)Water cooling (air cooling optional)
Rated rotational speed1500 rpm1500 rpm1000 rpm
Operation and interactionThrottle & display (standard)Throttle & display (standard)Throttle & display (standard)
Connectivity serviceSupportedSupportedSupported

What's in the Box

Accessories

Downloads

Find all the downloads for the ePropulsion I-Series electric inboard motor.

H-Series

H-Series

Redefining the Electric Inboard Experience

H-Series Inboard Motors 60-250kW

Popular with larger vessels and commercial applications

Highly-integrated Modular Design OEM Capability

The H-Series is our 60–250 kW inboard range, purpose-built for large sailing yachts and motor vessels from 60 to 100 feet (18–30 metres) with full displacements of up to 200 tons. Delivering powerful performance with minimal noise, reduced vibration, and zero exhaust emissions, the H-Series sets a new standard for clean, efficient propulsion in larger craft.

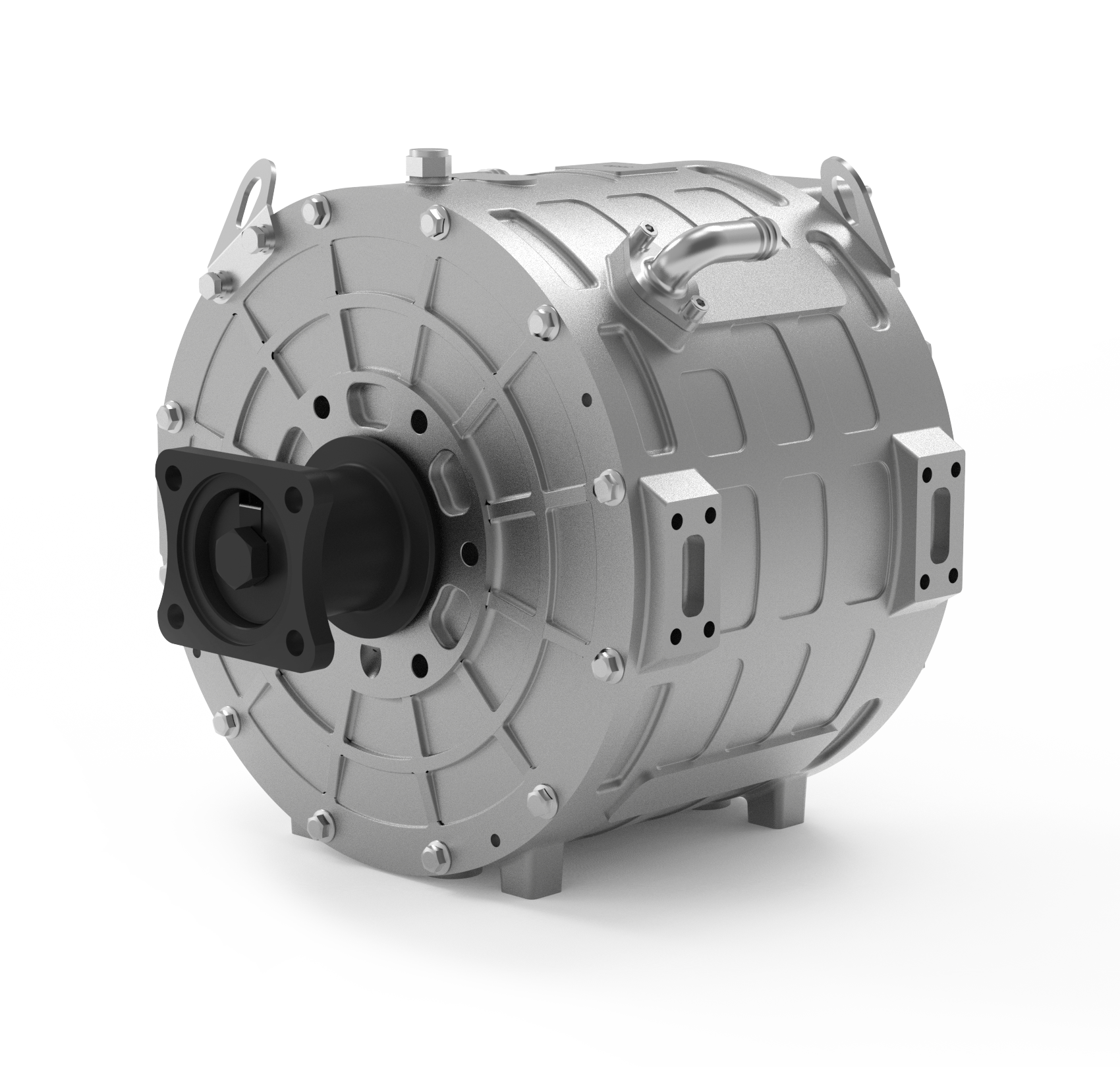

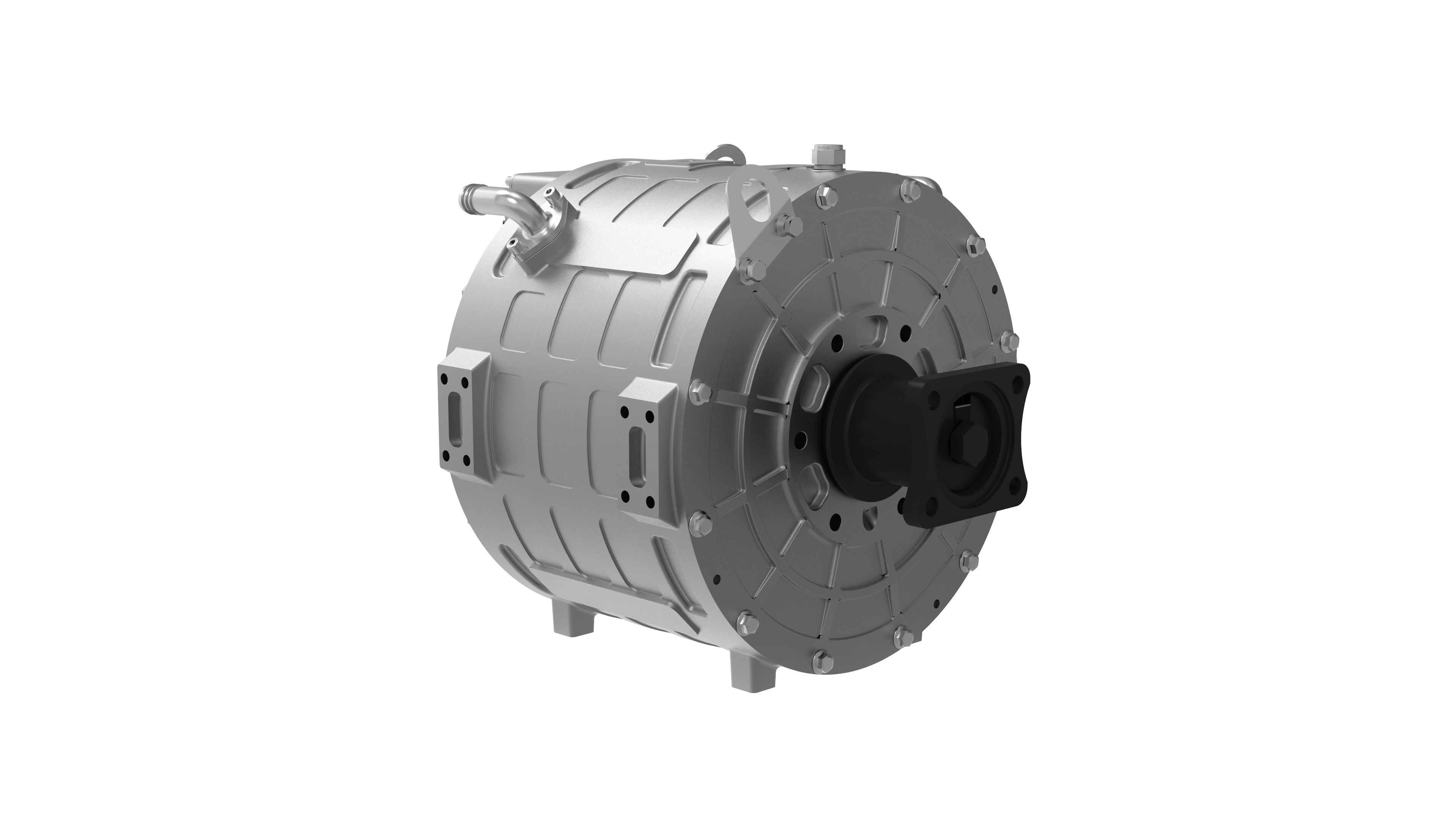

H-100 Electric Motor 100kW

The H-100 is around two-thirds lighter and 50% more compact than an equivalent diesel engine, providing greater installation flexibility while maximising payload and passenger space. Its advanced flat-wire motor design increases slot fill by 25%, significantly boosting power density and overall efficiency.

  • Modular Design

    The H-Series motors are built on a modular architecture, giving manufacturers the flexibility to extend both power and range by adding motors, controllers, and batteries. This adaptability allows tailored power configurations to meet specific vessel requirements, making the system highly scalable and future-ready.

  • Boating IoT System: Smart and Customisable

    The ePropulsion Boating IoT platform delivers smart, customisable solutions for remote monitoring and integrated management. Key metrics such as speed, power, mileage, tracking, and safety alerts can be configured to suit different operational needs. Through the web portal, boat owners gain real-time insights and full oversight of their vessels for improved safety and efficiency.

  • Optimum Performance Through Pioneering Technology

    Equipped with advanced permanent magnet motor technology, the H-100 redefines performance, surpassing diesel equivalents. Delivering a maximum torque of 2,000 Nm and an exceptional 96% efficiency, it outperforms traditional 100 kW AC asynchronous motors, setting a new benchmark in marine propulsion.

  • Safety and Reliability

    • IP67 Waterproofing
    • Anti-Corrosion Measures
    • High-Accuracy Position Feedback
    • High Torque Density
    • Closed-Loop Cooling System

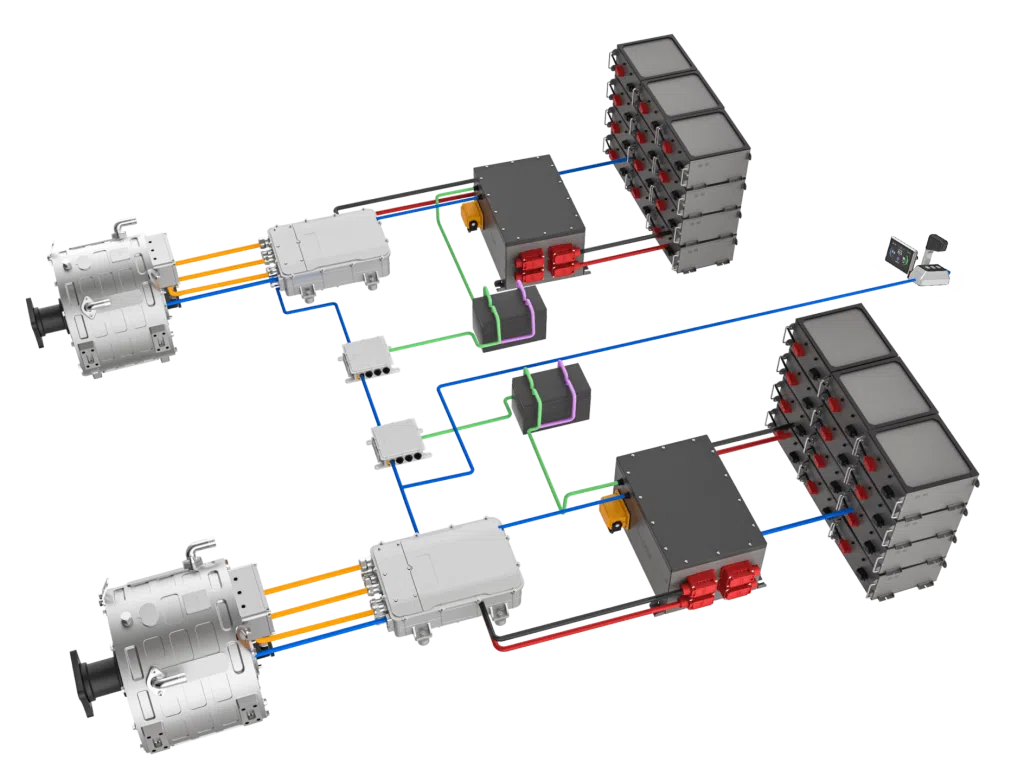

  • H-100 Motor

    100kW

  • Controller

    540 VDC

  • BDU

    Battery Distribution Unit

  • Battery

    12v Logic Power Supply

  • Battery Bank

    540 VDC

  • HMI Controls

    Display and Throttle

Controller

Logic Power Supply Range9~16 V
Rated Input Voltage540 VDC
Input Voltage Range400 ~ 720 VDC
Rated Power160 kVA
Rated Output Current270 A
Maximum Efficiency98%
IP RatingIP67

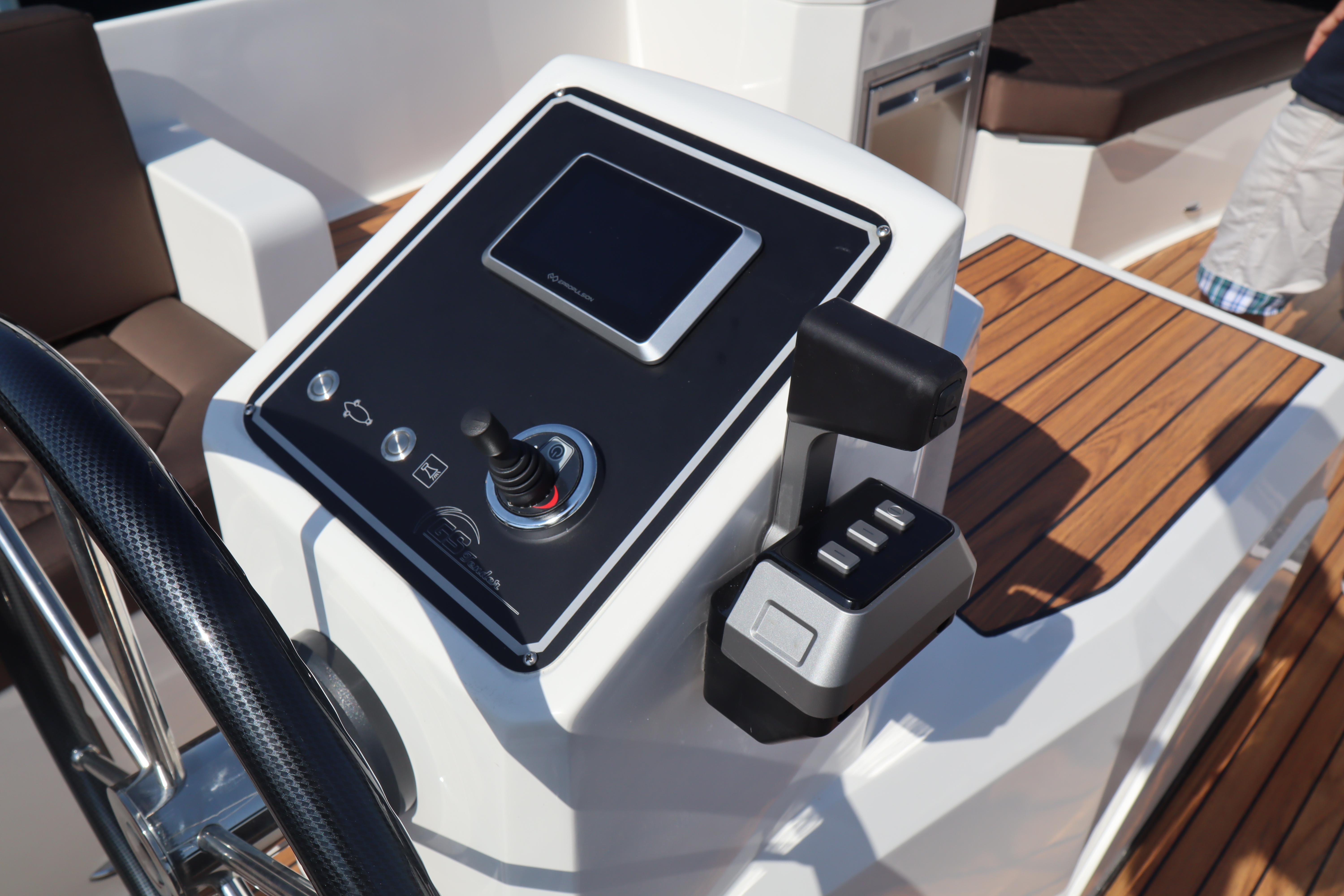

Intelligent and Intuitive Control System

The Human-Machine Interface (HMI), paired with the Smart Throttle and 5-inch Smart Display, delivers an intuitive and seamless user experience, combining precise control with real-time monitoring.

Batteries

Custom-Built to Your Specifications

H-Series batteries are designed around your needs, with flexible configurations tailored to your desired range and power. Whether for leisure or commercial use, the system scales seamlessly. For example, a 100 kW motor running at full power for five hours would be supported by a 500 kWh battery built to your specifications.

System Rated Output Voltage 540 VDC
System Output Voltage Range 487 ~ 604 VDC
Battery Capacity * /
Total System Energy * /
Discharge Temperature -30℃ ~ 60℃
25℃ Cycle Life (80% SoH) ＞3500 times
25℃ Storage Life ＞8 years
Charging Temperature  0℃ ~ 60℃

*Capacity and total energy are fully adaptable, ensuring the system aligns with each customer’s needs.

  • Competitive pricing

    Unit price is as low as £0.50 per watt-hour.

  • High energy density

    70% less weight and space than standard lead-acid batteries.

  • Longer life cycles

    Boasting an impressive 3,500 cycles at 80% Depth of Discharge (SoH).

  • Made for ePropulsion Motors

    The batteries share data with our motors, optimising performance and efficiency.

Specs

H-Series
H-100
Rated Voltage540 VDC
Rated Power100 kW
Rated Torque797 Nm
Rated Speed1150 rpm
Rated Efficiency96%
IP RatingIP67
Insulation LevelH
Cooling MethodsWater Cooling
Operating Temperature-25℃ ~ +55℃
Dimensions443 x 315 mm (17.4 x 12.4 in)

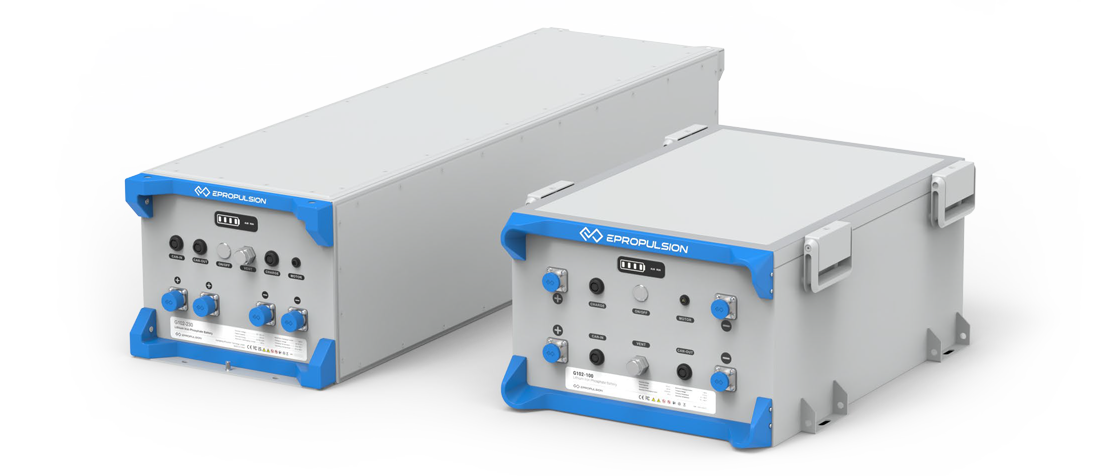

G-Series Batteries

G-Series

Marine Power. Redefined.

G102-230
23.5kWh / 96v

G102-100
10.2kWh / 96v

G-Series Batteries 96V

High-Performance and Durable LiFePO₄ Batteries for 96-Volt Systems

High Capacity Long Lifespan eSSA Connected

The G-Series batteries are engineered for seamless integration with ePropulsion’s eSSA range of products, delivering efficient, high-capacity energy for larger marine applications. Built on advanced lithium iron phosphate technology, they provide stable voltage, exceptional energy density and an extended cycle life, ensuring consistent performance under demanding conditions. With a robust all-metal housing and integrated battery management system, the G-Series offers enhanced safety, durability and reliability, setting a new standard for electric marine propulsion.

  • Made for ePropulsion Motors

    Power the 96V 10-40kW ePropulsion motors
    including the X-Series outboards, I-Series inboards and the eSSA POD Drive series.*

  • Maximum Safety

    Constructed with Lithium Iron Phosphate (LFP), the integrated smart Battery Management System (BMS) ensures maximum user safety.

  • High energy density

    3 times higher energy density and 70% less weight than lead-acid batteries.**

  • Extended Lifespan

    Boasting an impressive 3,000 cycles at 80% SoH, the G-Series LiFePO4 batteries outlast traditional lead-acid options.*

  • Simple Installation

    The G-Series connectors can be fitted single-handedly, eliminating the need for any extra tools.

  • 1C Fast Charging Rate

    Enjoy quicker recharges with the 1C fast charging rate, designed for minimal downtime and more time on the water.

  • Waterproof to IP67

    The G-Series batteries are waterproof to IP67 standards, offering peace of mind for all-weather maritime use.

  • Certified

    The G-Series batteries hold CE, UKCA, FCC and UN38.3 Certifications

* G-Series batteries can be connected in parallel to power different ePropulsion motors.
** Under equal capacity.

Design

ePropulsion E60 Battery Features

  • Positive Terminals

  • Display

  • Charging Port

  • CAN Communication Port

  • Motor Communication Port

  • Power Button

  • Vent Valve

  • CAN Communication Port

  • Negative Terminals

Specifications

G102-100 G102-230
Chemistry Lithium Iron Phosphate (LiFePO4) Lithium Iron Phosphate (LiFePO4)
Rated Voltage 102.4 V 102.4 V
Capacity 10240 Wh / 100 Ah 23552 Wh / 230 Ah
Battery Life 3,000 cycles at 80% SoH 3,500 cycles at 80% SoH
Weight 100 kg (220.5 lbs) 180 kg (396.8 lbs)

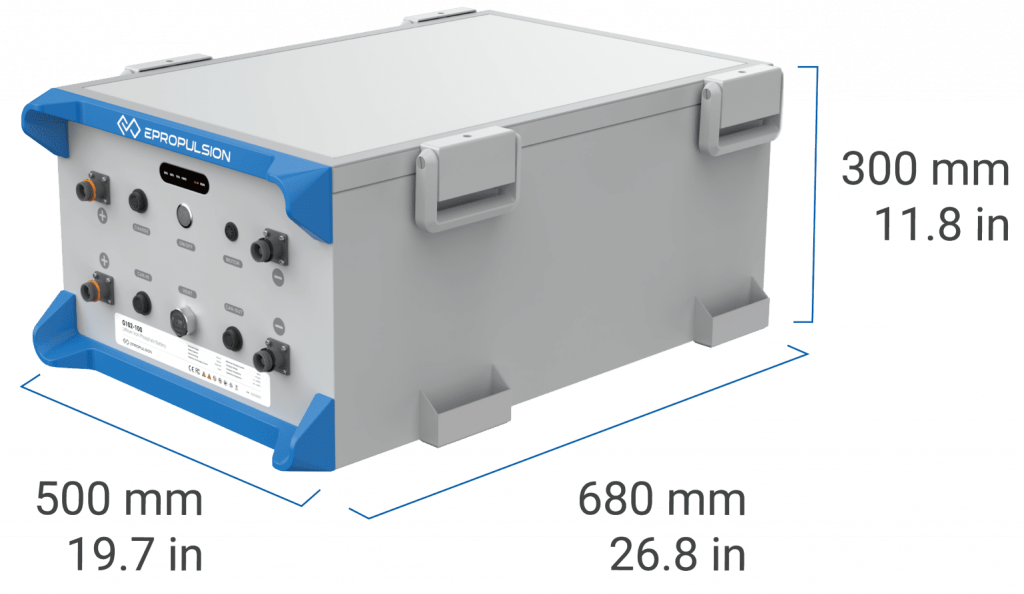

Dimensions 680 x 500 x 300 mm (26.8 x 19.7 x 11.8 in) 1287 x 366 x 295 mm (50.7 x 14.4 x 11.6 in)
Cut-off Voltage 83.2 V 83.2 V
Final Charging Voltage 115.2 V 115.2 V
Max Continuous Discharging Current 100 A 230 A
Serial Connection N/A N/A
Parallel Connection Up to 8 in 1 cluster. Multiple clusters are possible in the system Up to 8 in 1 cluster. Multiple clusters are possible in the system
Cell Configuration 32S1P 32S1P
Charging Temperature 0°C to 55°C 0°C to 55°C
Discharging Temperature -10°C to 60°C -10°C to 60°C
Communication One CAN for ePropulsion motors / One CAN (Two ports) for parallel batteries / One CAN for charger One CAN for ePropulsion motors / One CAN (Two ports) for parallel batteries / One CAN for charger
Shipping Classification UN3480, Class 9, UN38.3 Certified UN3480, Class 9, UN38.3 Certified
Approvals CE, UKCA, FCC CE, UKCA, FCC
Warranty (Non-Commercial Use) 2 years 2 years

FAQ

  • Why choose G-Series battery over 3rd-party option?

    • Fully Compatible with ePropulsion Motors, G-Series battery 96V 10kW to 40kW ePropulsion motors including the I-Series inboards. Through the internal communication protocol, the G-Series battery can present battery status information and high precision data (eg: SOC). Working in synergy with the outboard/inboard motor and energy system, the battery provides the customer with a better power experience.
    • The G-Series battery is a lithium iron phosphate battery (LiFePO4) with a single pack of 102V, a built-in BMS, a full metal housing and IP67 protection design for greater safety and reliability.

  • Can I use a third-party charger for my G-Series battery?

    No. Third-party chargers are not allowed for warranty reasons. Please consult with your dealer or ePropulsion after-sales service team on Facebook if you have any special needs.

  • What is the function of terminal resistance?

    Terminal resistance is used to ensure the quality of communication and reliability when the batteries are connected in parallel.

  • How do I turn on and turn off the G102-100 battery?

    The G-Series battery has a power button that can be pressed to turn the battery on and off.

    When the G-Series battery is working in connection with the ePropulsion motor, users can turn the motor on or off directly. The motor will automatically turn the battery on and off.

  • Can the G-Series batteries be used in series?

    No. The G-Series battery operates at 102V and can only be connected in parallel, not in series.

E-Series Batteries

E-Series

Lithium Iron Phosphate Batteries (LiFePO4)

E-Series Batteries 48V

High-performance and durable LiFePO4 batteries

Spirit NAVY Series POD Series Compact Smart Connected

Experience unparalleled boating with our E-Series batteries, expertly designed for compatibility with ePropulsion's Spirit, Navy, and POD motors. Offering consistent, high-quality power and sustainable technology, these batteries redefine marine propulsion for today's mariner.

  • Designed for ePropulsion Motors

    Powers 48V motors (1-6 kW) , including Spirit, Navy, and Pod Drive, with single or parallel links up to 16 batteries.

  • Real-Time Battery Monitoring

    The display shows SoC, voltage, current, and alarms for easy monitoring of battery status.

  • Strong Reliability

    The all-metal housing is reliable, weather-resistant, impact-resistant, and drop-proof.

  • Maximum Safety

    The built-in intelligent Battery Management System (BMS) continuously monitors and regulates operation, ensures reliable protection and maximum user safety.

  • Third-Party Gateway Integration

    Integrates with third-party gateways for enhanced connectivity.

  • Long Life Cycle

    Engineered for durability, the E-Series LiFePO4 batteries provide up to 3,000 cycles at 80% SoH outlasts lead-acid batteries.*

*Under equal capacity.

Key Features of E-Series LiFePO₄ Batteries

ePropulsion E60 battery Dimensions

E60

3072 Wh / 60 Ah

  • High Performance
    A single E60 can support the Navy 3.0 Evo (6HP) at full output power.
  • Flexible Installation

    The height of E60 battery is only 300 mm, allowing flexible installation under the boat seat or other available spaces.

  • Lightweight

    Features a new innovative double-layer plastic housing design weighing only 33 kg and can be easily lifted by two persons.

ePropulsion E163 battery Dimensions

E163

8345 Wh / 163 Ah

  • High Performance

    A single E163 provides sufficient capacity to support the Navy 6.0 Evo (9.9 HP) at full output power.

  • Flexible Installation

    The all-metal casing ensures reliability and offers weather, impact, and drop resistance.

  • High Reliability

    An all-metal casing enhances durability while providing resistance to weather, impact and drops, ensuring dependable performance in demanding marine environments.

ePropulsion E100 battery Dimensions

E100

5120 Wh / 100 Ah

  • High Performance

    A single E100 can extend battery range to support Navy 6.0 Evo at full output power.

  • Upgrade to 96V System

    New Feature

    Designed to support an upgrade to a 96V eSSA system by using two batteries in a series connection. Suitable for the X12, P12, and I-10 motors.

  • Compact Size for Easy Storage

    New Feature

    The E100 battery offers two-sided installation options. With a height of just 240mm, it enables flexible placement under seats or in other available spaces across various boat types, maximizing storage and ensuring easy access.

Design

ePropulsion E60 Battery Features

  • Positive Terminals

  • HD Screen

    The new E-Series batteries feature a HD screen which provides important information about the battery status, charge status, runtime etc.

  • CAN Communication Port

  • Motor Communication Port

  • Power Button

  • Vent Valve

  • CAN Communication Port

  • Negative Terminals

  • Carry Handles

ePropulsion E100 Battery Features

  • 48V Positive Terminals

  • 48V Negative Terminals

  • 96V Negative Terminal

  • 96V Positive Terminal

  • HD Screen

    The new E-Series batteries feature a HD screen which provides important information about the battery status, charge status, runtime etc.

  • RS485 for 48V motors

  • Motor Communication Port

  • Vent Valve

  • Power Button

  • CAN for 48V or 96V charger

  • CAN for parallel or series batteries

  • CAN for ePropulsion 96V motor

FAQ

  • Why choose an E-Series battery over a 3rd-party option?

    ePropulsion batteries are designed for maximum efficiency, performance and safety. Using 3rd-party batteries does not allow for the use of our communication cable which brings data accuracy to the gauge and ensures useful operating strategy for safety and performance.

  • Can I use the third-party chargers (solar chargers) for E-Series Battery?

    No. Third-party chargers are not allowed for warranty reasons. Consult with your dealer or ePropulsion on Facebook before you use a 3rd-party charger.

  • Can I connect different E-Series battery sizes in parallel?

    No. For parallel connection, E40, E60, E80, E163 and E175 can only be connected to the same model of the same age because they have different Battery Management Systems and different cell configurations.

  • What is the communication terminator used for?

    It improves the signal quality. Without the communication terminator, E-Series batteries won't work in a parallel connection. Make sure you purchase this tool before a parallel connection.

  • How do I turn on and turn off the E-Series batteries in parallel connection?

    Always power the master battery on/off first, not the secondary battery. If the secondary battery is powered on/off before the master battery damage or reduced usable capacity may occur.

  • Are all E-Series chargers compatible with any E-Series battery?

    No. The chargers for E40, E80 and E175 are universal. The E60 and E163 chargers are for the new E-Series only.

  • How to store E-Series batteries for a long time?

    When the battery is not in use, make sure that the battery's connectors are covered well with waterproof caps. Protect against moisture, dust, water, shock and heat. Every 3 months of storage, the battery should be recharged to 60%.

  • Can E-Series batteries be connected in series?

    The E-Series batteries E60 and E163 can only be connected in parallel, up to 16.

    The new E100 can be connected with 2 batteries in series, to use as a 96v Battery on the I-10, X12 and P12 motors.

Specs

E60 E163 E100 NEW
Capacity 3072 Wh / 60 Ah 8345 Wh / 163 Ah 5120 Wh / 100 Ah
Rated Voltage 51.2 V 51.2 V 51.2 V
Battery Life 3,000 cycles at 80% SoH 3,000 cycles at 80% SoH 3,000 cycles at 80% SoH
Weight 33 kg 76 kg 48.5 kg / 106.9lbs
Dimensions 512 x 290 x 300 mm
(20.2 x 11.4 x 11.8 in)		 470 x 295 x 495 mm
(18.5 x 11.6 x 19.5 in)		 630 x 320 x 240 mm (24.8 x 12.6 x 9.5 in)
Cut-off Voltage 41.6 V 41.6 V 41.6 V
Final Charging Voltage 57.6 V 57.6 V 57.6 V
Max Continuous Discharging Current 70 A 150 A 150 A
Series Connection N/A N/A 2 (Cannot connect in parallel when used in series)
Parallel Connection Up to 16 Up to 16 Up to 16
Cell Configuration 16S4P 16S1P 16S1P
Charger E-Series battery charger E-Series battery charger E-Series battery charger or G-Series battery charger when upgraded to 96V system
Charging Time (220V) One charger: 2.7 Hrs
Two chargers: 1.3 Hrs		 One charger: 7.2 Hrs
Two chargers: 3.6 Hrs		 One E100 Battery
With one E-Series charger: 5.1 hrs
With two E-Series chargers: 2.6 hrs

Two E100 Batteries are connected in series
With one G-Series charger 16A: 3.5 hrs
With one G-Series charger 32A: 1.8 hrs
Charging Time (110V) One charger: 4 Hrs
Two chargers: 2 Hrs		 One charger: 11 Hrs
Two chargers: 5.4 Hrs		 One E100 Battery
With one E-Series charger: 8.5 hrs
With two E-Series chargers: 4.3 hrs

Two E100 Batteries are connected in series
With one G-Series charger 16A: 7 hrs
With one G-Series charger 32A: 3.5 hrs
Charging Temperature 0 to 55℃ (32 to 131˚F) 0 to 55℃ (32 to 131˚F) 0 to 55℃ (32 to 131˚F)
Discharging Temperature -10 to 60℃ (14 to 140˚F) -10 to 60℃ (14 to 140˚F) -10 to 60℃ (14 to 140˚F)
Communication Available: CAN-Bus for Parallel
RS485 for ePropulsion motors		 Available: CAN-Bus for Parallel
RS485 for ePropulsion motors		 One RS485 for ePropulsion 48V motors
One CAN (twoports) for parallel or series batteries
One CAN for ePropulsion 96V motor
One CAN for 48V or 96V charger
Shipping Classification UN3480, Class 9, UN38.3 Certified UN3480, Class 9, UN38.3 Certified UN3480, Class 9, UN38.3 Certified
Approvals CE, UKCA, FCC CE, UKCA, FCC CE, UKCA, FCC
Warranty (Non-Commercial Use) 2 years 2 years 2 years

Spirit 2

Spirit 2

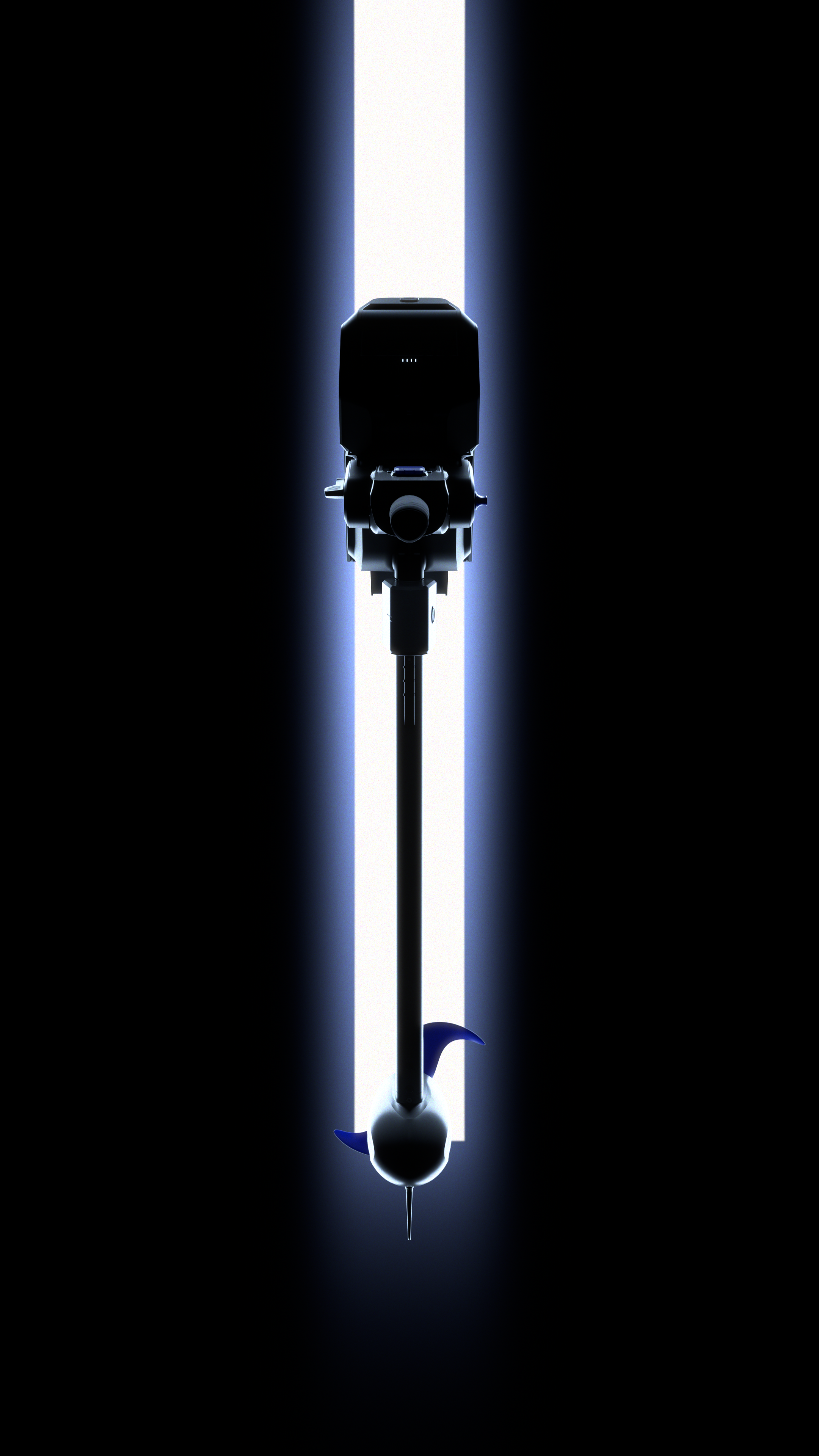

Powerful & Portable Electric Outboard Motors

Spirit 2 2kW

Power Meets Portability

1,539 Wh Portable Quick Connect Battery Hydrogeneration

A decade of evolution has led to its fourth generation, ePropulsion expands the Spirit range to 2kW with the introduction of the new Spirit 2, a powerful battery-integrated electric outboard. This upgraded model delivers enhanced power while maintaining a similar compact size.

Featuring a 1.5kWh battery, it revolutionizes the experience for dinghies and day cruisers, providing silent, eco-friendly power at just 20.6 kg*. Its hydrogeneration function allows the battery to recharge while under sail, maximizing battery value and optimizing space for effortless adventures.

* Combined weight of motor and battery, excluding transom bracket.
Weight varies based on shaft length - Extra Short: 20.6kg, Short: 20.8kg, Long: 21kg.

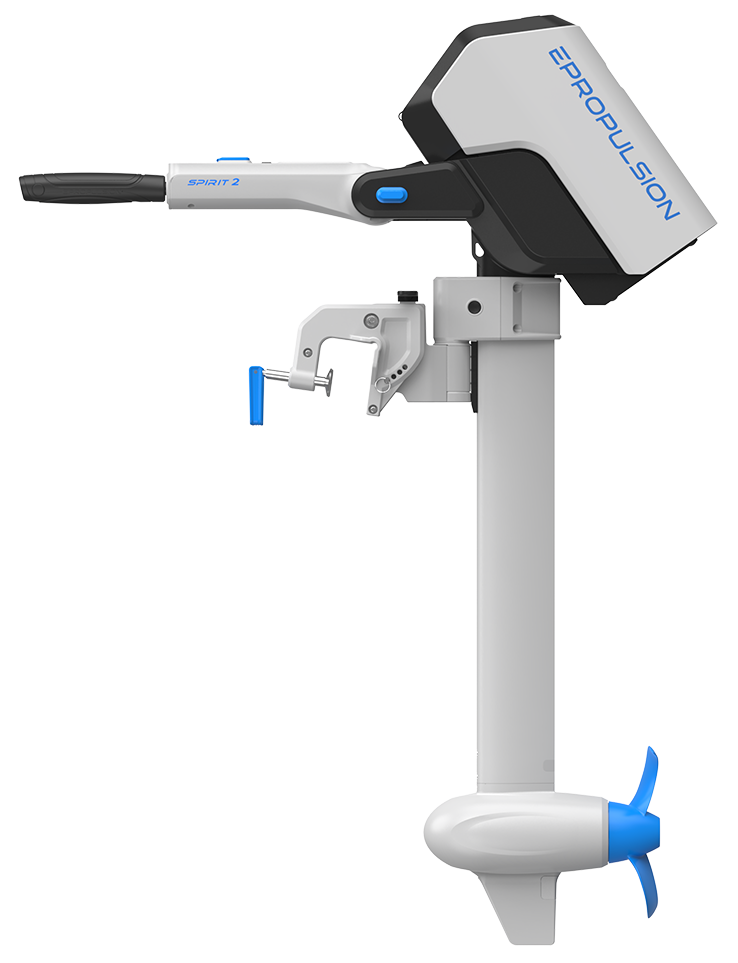

  • Spirit 2

    With Tiller Control

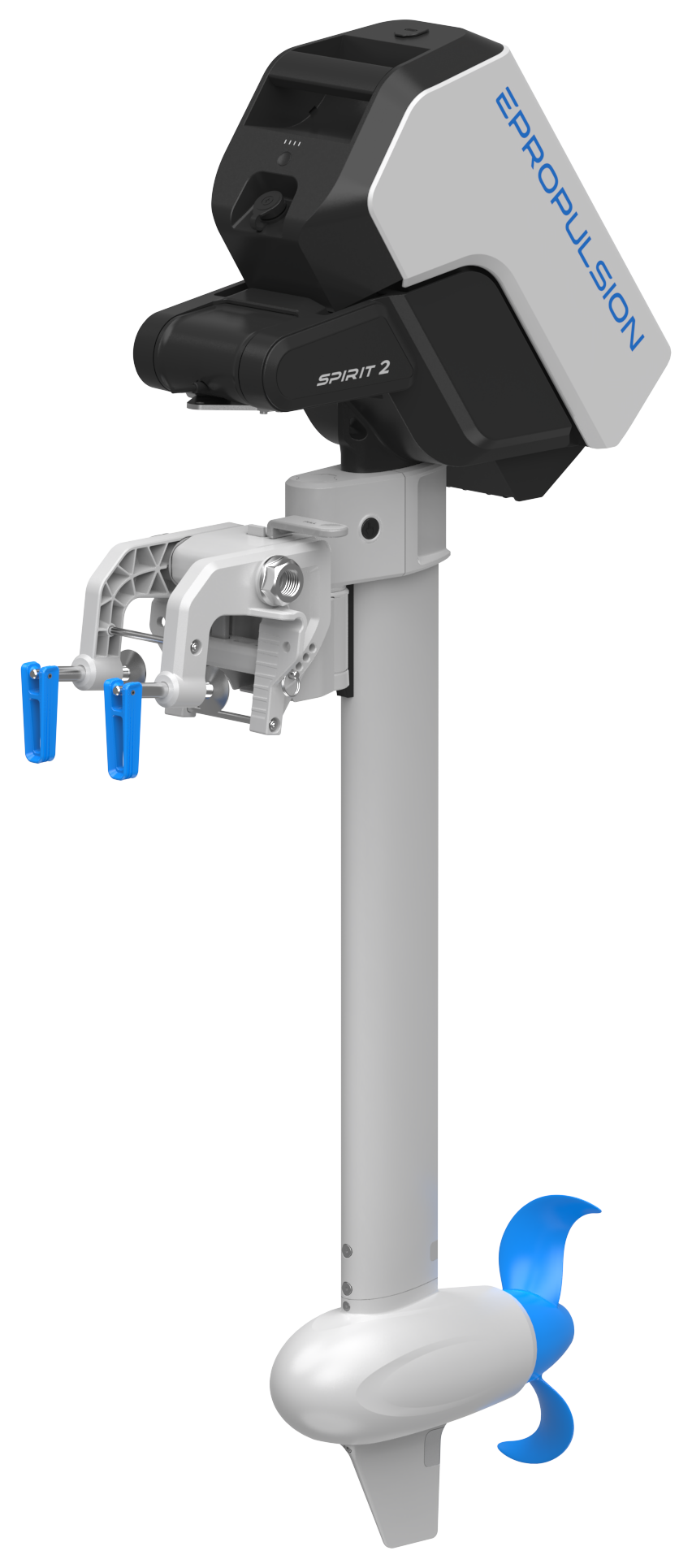

  • Spirit 2 Remote

    With Other Controls

ePropulsion Spirit

10 Years of Electric Propulsion Excellence

Since its debut in 2015, the Spirit has defined innovation in electric propulsion. With over 10 years of industry-leading experience, the Spirit has set the standard for reliable and efficient electric boating solutions.

Our commitment to innovation and sustainability has driven us to continuously enhance our technology, ensuring that every model delivers exceptional performance and reliability.

Pre-Order Your Spirit 2 Today!

Experience our latest innovation and secure your order for the first batch of delivery in Spring/Summer 2026. Don’t miss your chance to be at the forefront of clean energy!

Pre-Order coming shortly..

Lead the Charge in Powering the Future

Made for Your Adventures

  • Day Cruisers

    Hydrogeneration recharges the battery with an updated hydrodynamic design while sailing, extending range sustainably. Its 2 kW output power is ideal for larger boats like the J/80, with a 3 kW boost for enhanced upstream performance. The integrated steering lock secures the motor for reliable control when using the yachts rudder.

  • Anglers

    Experience silent fishing adventures with the Spirit 2’s 2 kW propulsion system. Weighing just 21.2 kg, its portable design and quick-connect 1539Wh battery make transport a breeze. The Type-C power station keeps fish finders and lights powered, perfect for extended trips.

  • Tender Users

    Enjoy all-day cruising with the Spirit 2’s 1539Wh battery, providing an impressive range. The foldable tiller features four locking positions for easy and comfortable steering. Plus, the Type-C power station powers devices, making it perfect for picnic outings on day boats.

Compact, Powerful and Portable Design

Powerful Performance

  • High Power

    The 2 kW battery-integrated electric outboard includes a 3 kW sport mode for enhanced performance. Its updated hydrodynamic design minimizes propeller vibration for a smoother ride.

  • Expanded Battery Capacity

    With a capacity of 1539Wh, the Spirit 2 enables extended operation for longer journeys, perfect for your adventures.

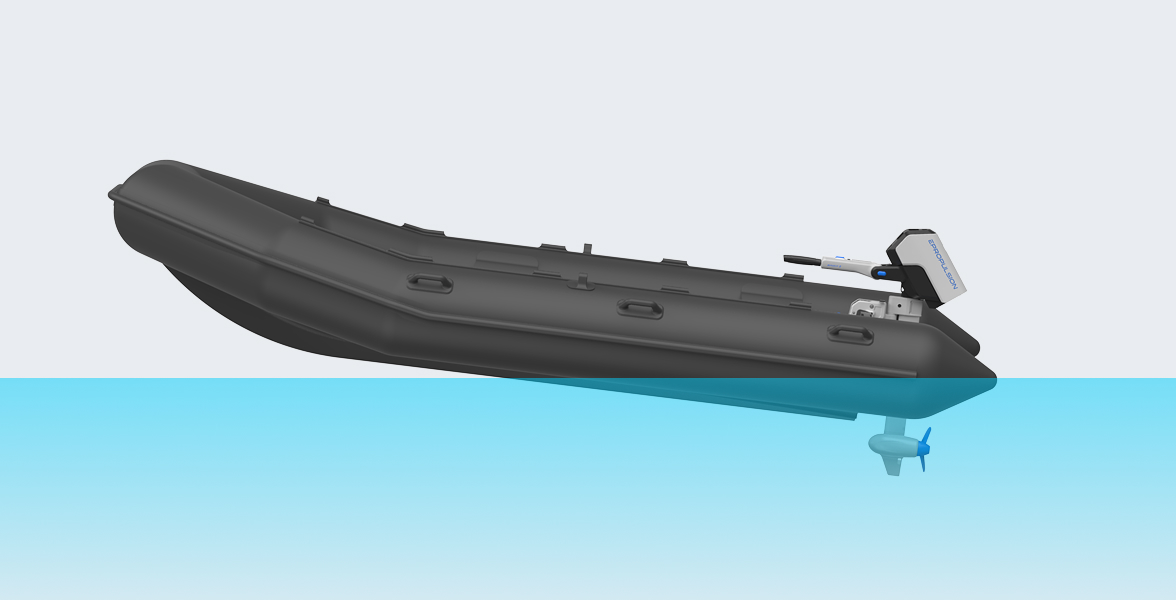

  • Top Speed and Efficiency

    Streamlined propeller design with a 240mm diameter optimized for hydrodynamics, rotating at 2000 RPM.

  • Portable Power Station

    Equipped with a Type-C port for charging devices, the Spirit 2 acts as a portable power station. It can charge your mobile device up to 100 times without the need for a wall plug, making it perfect for extended adventures.

Portability & Ease of Use

  • Compact Design
    Weighing just 10.2-10.7 kg for the motor and 10.4 kg for the battery, the Spirit 2 is easy to handle and transport.

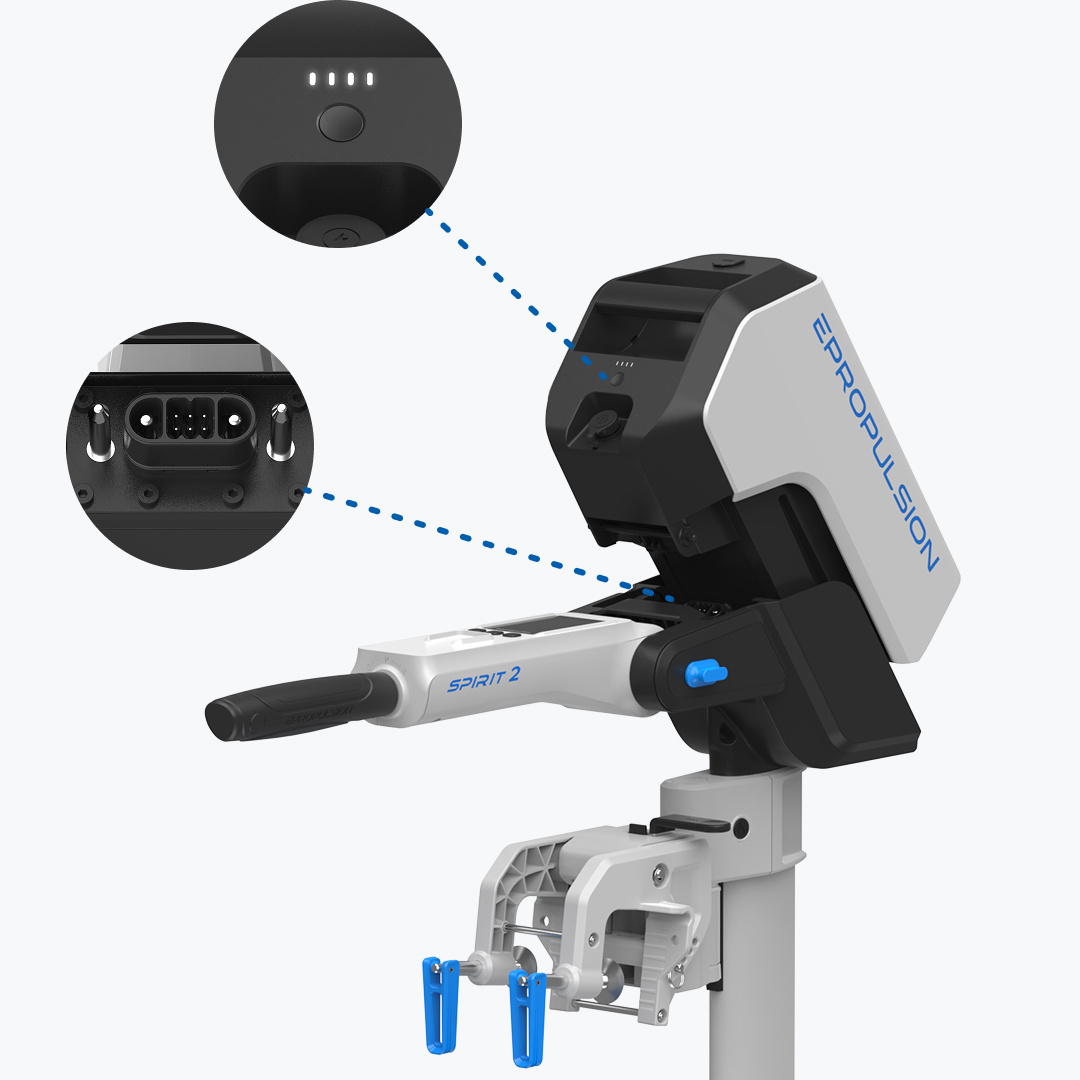

  • Quick-Connect Battery & Indicator
    Experience hassle-free setup with a cable-free battery installation, complemented by an indicator for convenient monitoring. East to check the battery status without connecting it to the outboard.
  • Detachable Clamp
    The detachable clamp makes it easy to fit and remove the motor from the boat, while the 90° foldable tiller can serve as a carrying handle, ensuring transport is simple and efficient.

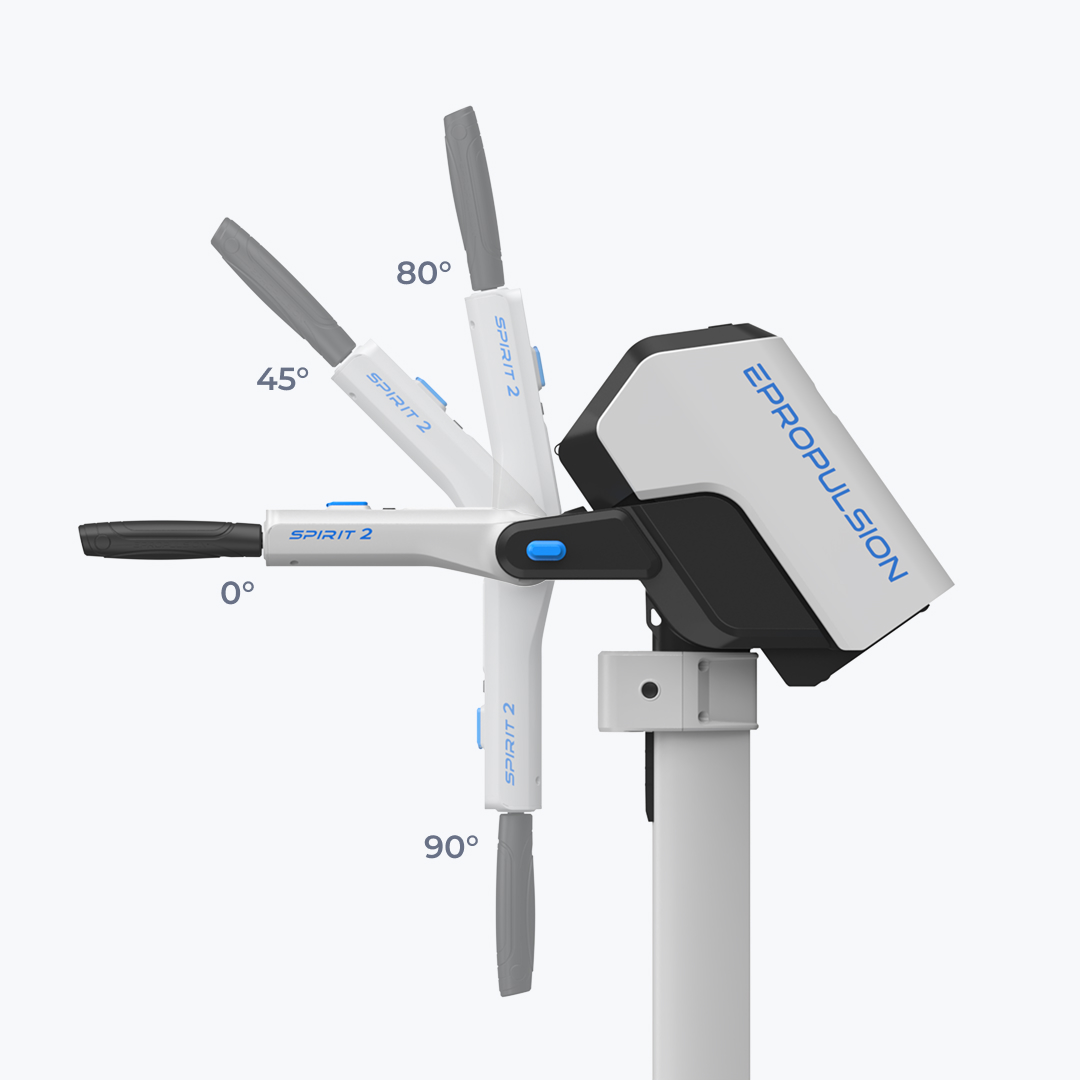

  • Foldable Tiller with Secure Locking
    With 4-locking positions and a 13.5 cm extension, the tiller allows for adjustable handling, enhancing comfort and control during use.

Innovation & Design

  • Seamless Design with Full-Color Display

  • Hydrogeneration Technology

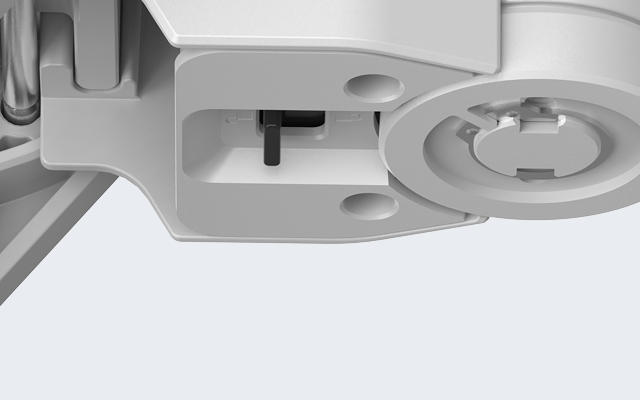

  • Integrated Steering Lock

  • Smart Kill Switch with Cord

  • Shallow Water Trimming Position

  • Increased Tilt Angle

Hydrogeneration

Hydrogeneration operates effectively between 3 knots and 16 knots, generating approximately 380 W of power at 10 knots, up to 1.5kW at 16 knots.

ePropulsion Spirit 1.0 Evo Hydrogeneration

Performance

Power (W) Speed (knots/mph/kph) Runtime** (hh:mm) Range (nm/mi/km)
500 4.0 / 4.6 / 7.4 3:00 11.3 / 13 / 21
1000 5.2 / 6.0 / 9.6 1:48 8.3 / 9.6 / 15.4
2000 9.5 / 10.9 / 17.5 0:54 7 / 8.1 / 13
3000 Sport Mode * 11.3 / 13.0 / 21.0

* This performance data is based on an 11.5-foot aluminum boat weighing 65 kg, with one person and one Spirit battery in calm lake water. Actual speed, range, and running time may vary due to different boat types, loads, weather conditions, and other factors. Sport Mode can last up to 1 minute with a minimum battery state of charge (SOC) of 20%, and the temperature must be within safe limits.

** The runtime is measured from 100% to 5% SoC. Below 5% SoC, the power will be limited to a maximum of 50 W, enabling the Spirit 2 to continue operating at 50 W for for an extended period.

Specifications

Spirit 2
Nominal Power 2 kW
Maximum Power (in Sport Mode) 3 kW
Battery Capacity 1539 Wh
Motor Weight* (excluding bracket) Extra Short: 10.2 kg
Short: 10.4 kg
Long: 10.7 kg
Motor Weight* (including bracket) Extra Short: 12.6 kg
Short: 12.8 kg
Long: 13.1 kg
Battery Weight 10.4 kg
Battery Life 1000 cycles at 80% SoH
Charging Time Standard charger: 8 Hrs / Fast charger: 2 Hrs
External Battery ePropulsion E Series Battery
Charging Temperature -15°C - 60°C
Charging below 0°C requires the use of fast charger
(with battery communication function)
Operating Temperature -10°C - 65°C
Storage Temperature 5°C - 40°C
Rated RPM 1700 to 2100
Trim Angle Adjustment 0°, 7°, 14°, 21°
Tilt Angle 70°, 90°
Shallow Water Mode Tilt Angle 35°
Steering Range ±90°
Dimensions Extra Short: 410 x 190 x 915 mm
Short: 410 x 190 x 1015 mm
Long: 410 x 190 x 1140 mm
Propeller 2-blade composite propeller, diameter 240mm, pitch 167mm

Shaft Length Recommendation

Shaft LengthTransom Height
Extra Short *30-40cm / 11.8-15.7 inches
Short40-50cm / 15.7-19.7 inches
LongHigher than 50 cm / 19.7 inches

* Extra Short not available for the Remote version.

48V External Battery

Use ePropulsion 48V E-Series battery to extend the range.
Runtime (Half-Speed) Runtime (Full-Speed)
E60 / 3072 Wh 3 hrs 1.5 hrs
E100 / 5120 Wh 5 hrs 2.5 hrs
E163 / 8345 Wh 8 hrs 4 hrs
