Navy Series

Name: Navy Series
Brand: ePropulsion
Price: 2949.00 EUR
Availability: InStock

Your premium electric boating experience

Efficient long-range outboard motors

Navy Evo 3-6kW 6-9.9HP**
Electric Outboards

HydrogenerationLow Maintenance Direct-Drive

The Navy Series delivers powerful, efficient, and reliable electric propulsion with outputs from 3 to 6 kW (equivalent to 6–9.9 HP). Its direct-drive system ensures quiet operation and minimal maintenance, while integrated hydrogeneration technology allows the battery to recharge under sail. Combining performance with sustainability, the Navy Series is the ideal choice for boaters who demand both power and eco-friendly innovation.

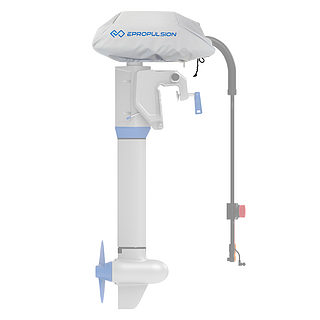

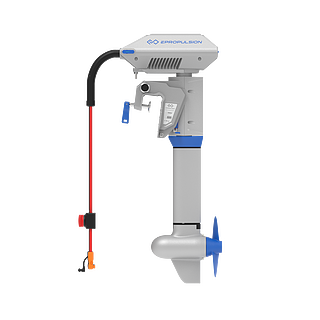

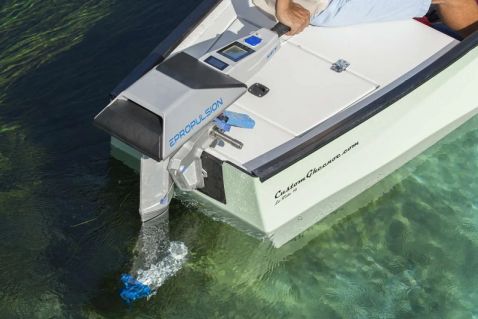

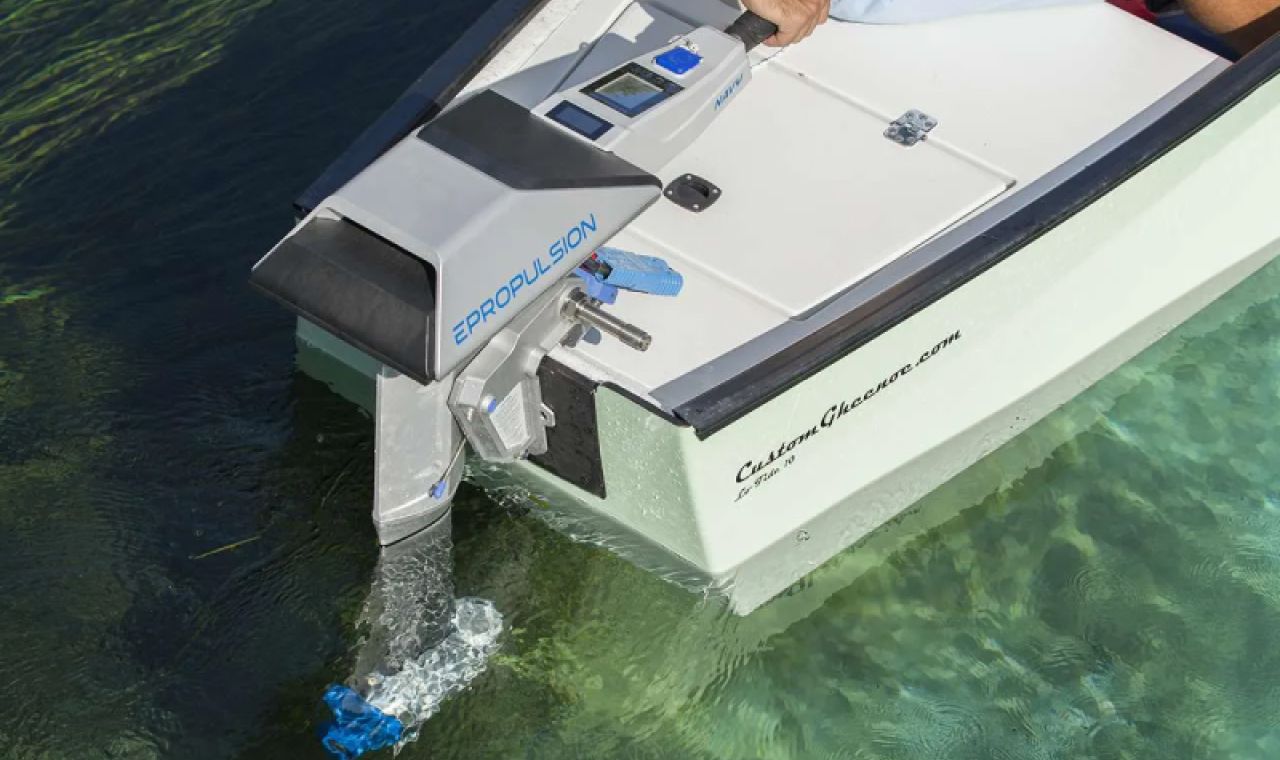

Navy 3.0 Evo

3kW / 6HP**

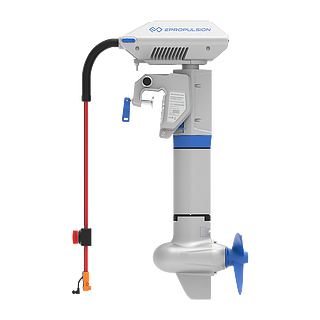

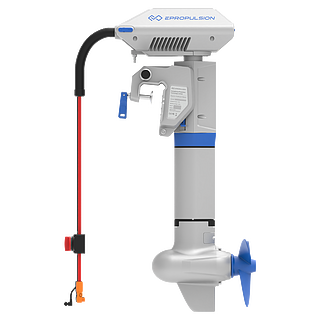

Navy 6.0 Evo

6kW / 9.9HP**

Electric outboards for larger boats

Powered by a choice of separate rechargeable batteries, these electric outboards deliver clean, quiet, and environmentally friendly propulsion.

Designed for convenience, the lightweight and compact motors are easy to lift, transport, and stow whether on board or ashore. The external waterproof batteries are far lighter and more compact than traditional fuel tanks, while eliminating engine noise, oily bilges, and unpleasant fumes.

Thanks to an efficient direct-drive system, the motors contain fewer moving parts, reducing wear and removing the need for regular servicing or maintenance.

Highly versatile and offering impressive range, these electric outboards can be paired with different vessels, including:

Yacht tenders and dinghies

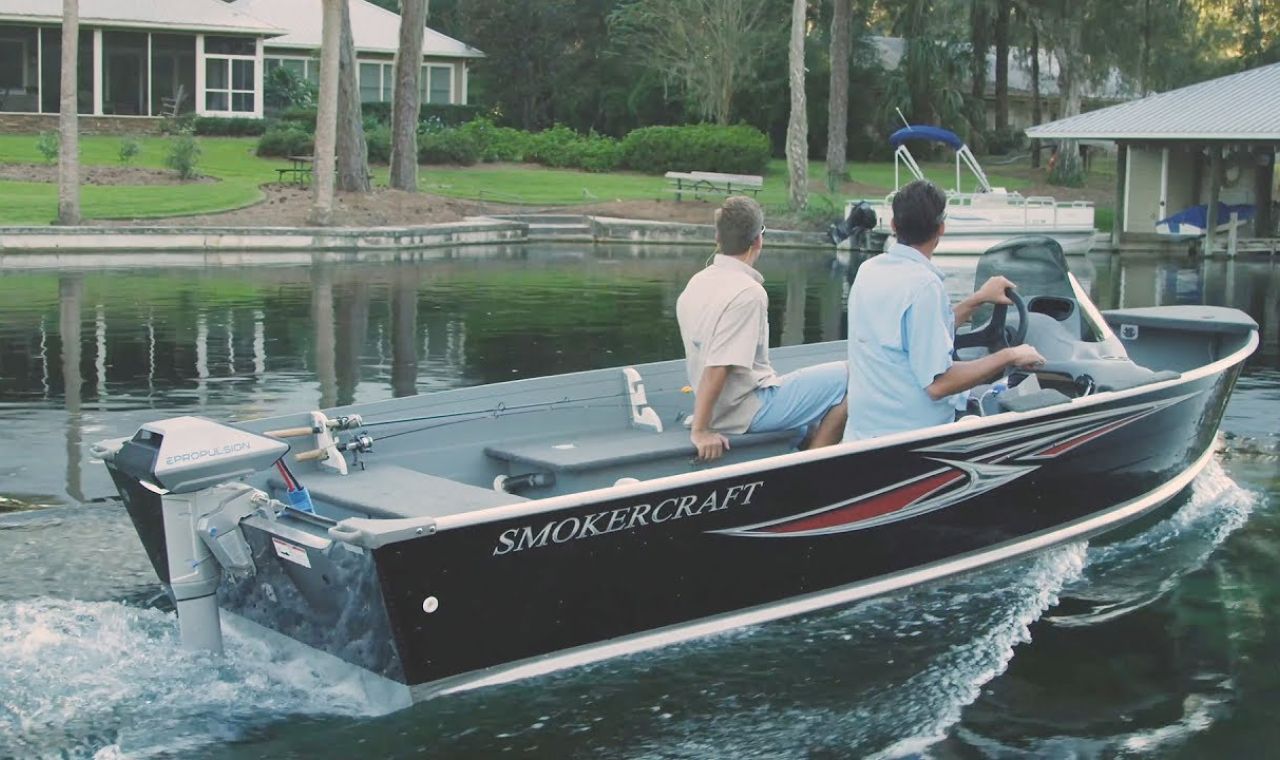

Aluminium fishing boats

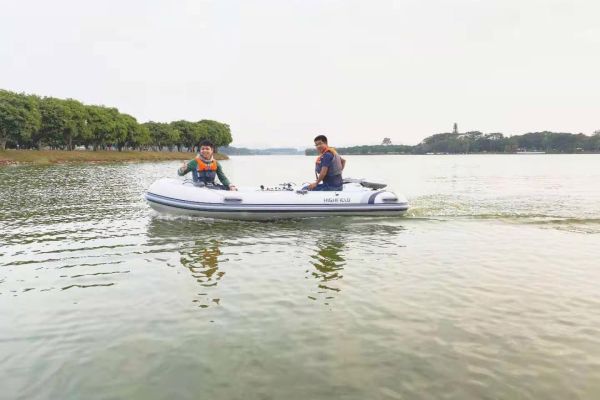

SIBs (small inflatable boats)

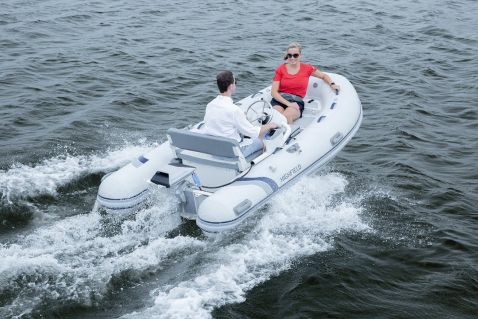

RIBs (rigid inflatable boats)
Motor boats
Day sailers
Yachts up to 5 tons

View more details of this boat in our database

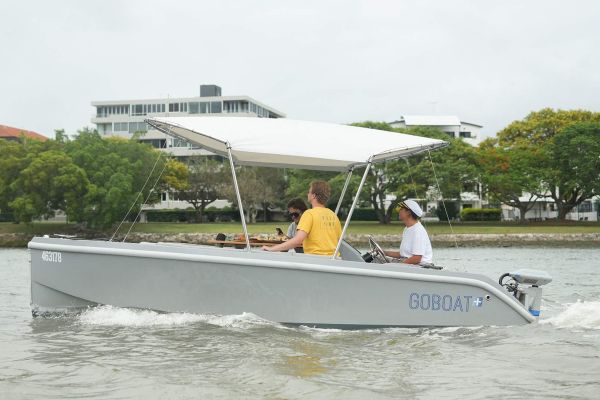

Cruise Craft GoBoat Plus

Digital Operation

Tailored Control and Display Solutions to Suit Every Boater

Digital Display

Provides real-time monitoring of key information including power output, remaining runtime, battery level, voltage, and more.
Electric Start

Start instantly at the push of a button, eliminating the effort of pull starts.

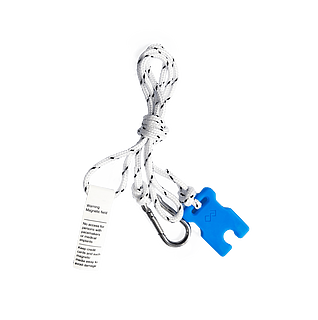

Magnetic Kill Switch

Enhances safety by instantly shutting down the motor in case of emergency.
Smooth Throttle Changing

Delivers precise throttle response with a clear, comfortable feel in both forward and reverse.
Adjustable Max Power Output

Allows you to set a maximum throttle limit, making the motor suitable for children or rental applications.
Ambidextrous Operation

Throttle can be operated comfortably from either the left or right hand for flexible control.

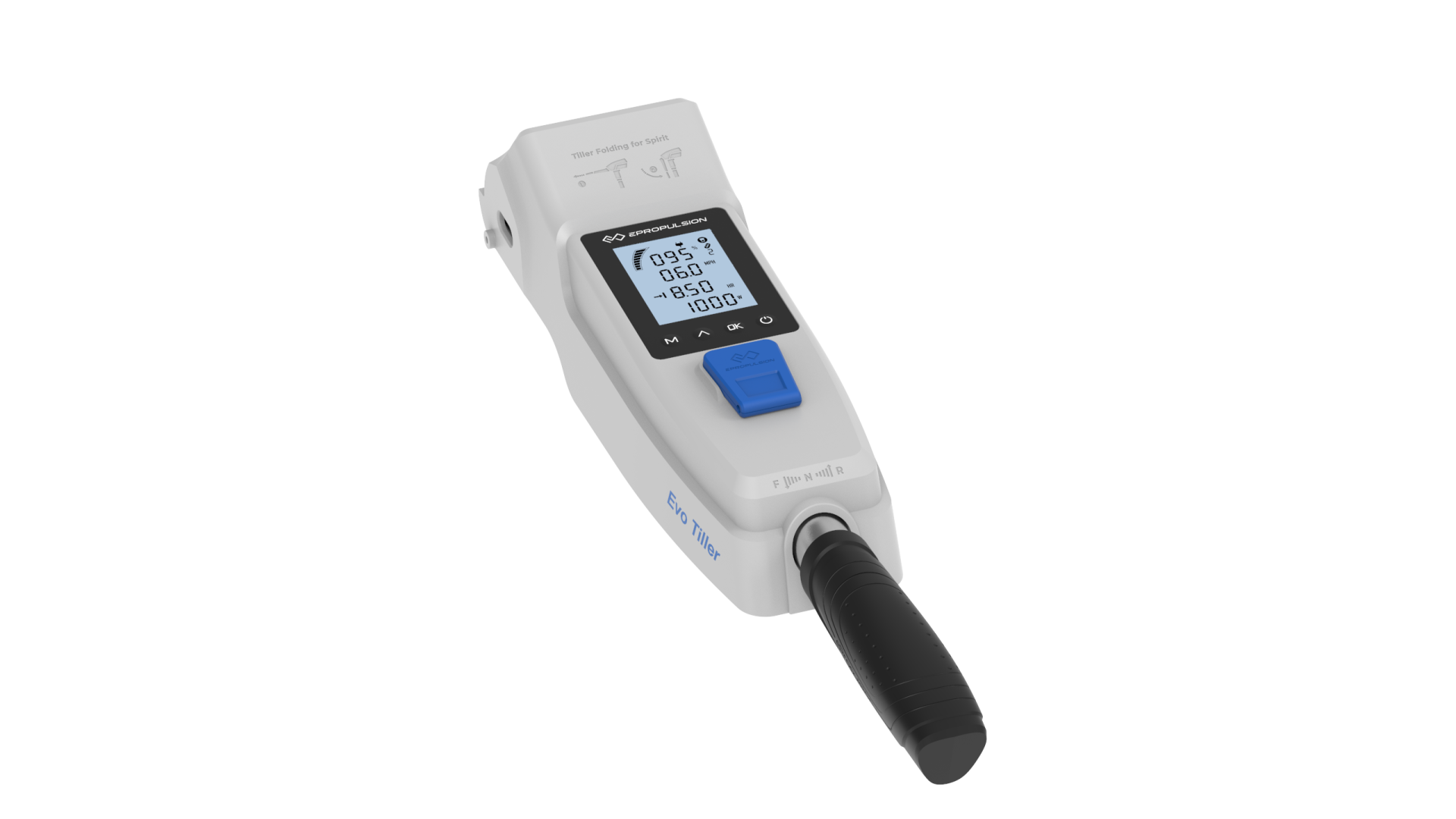

Evo Tiller

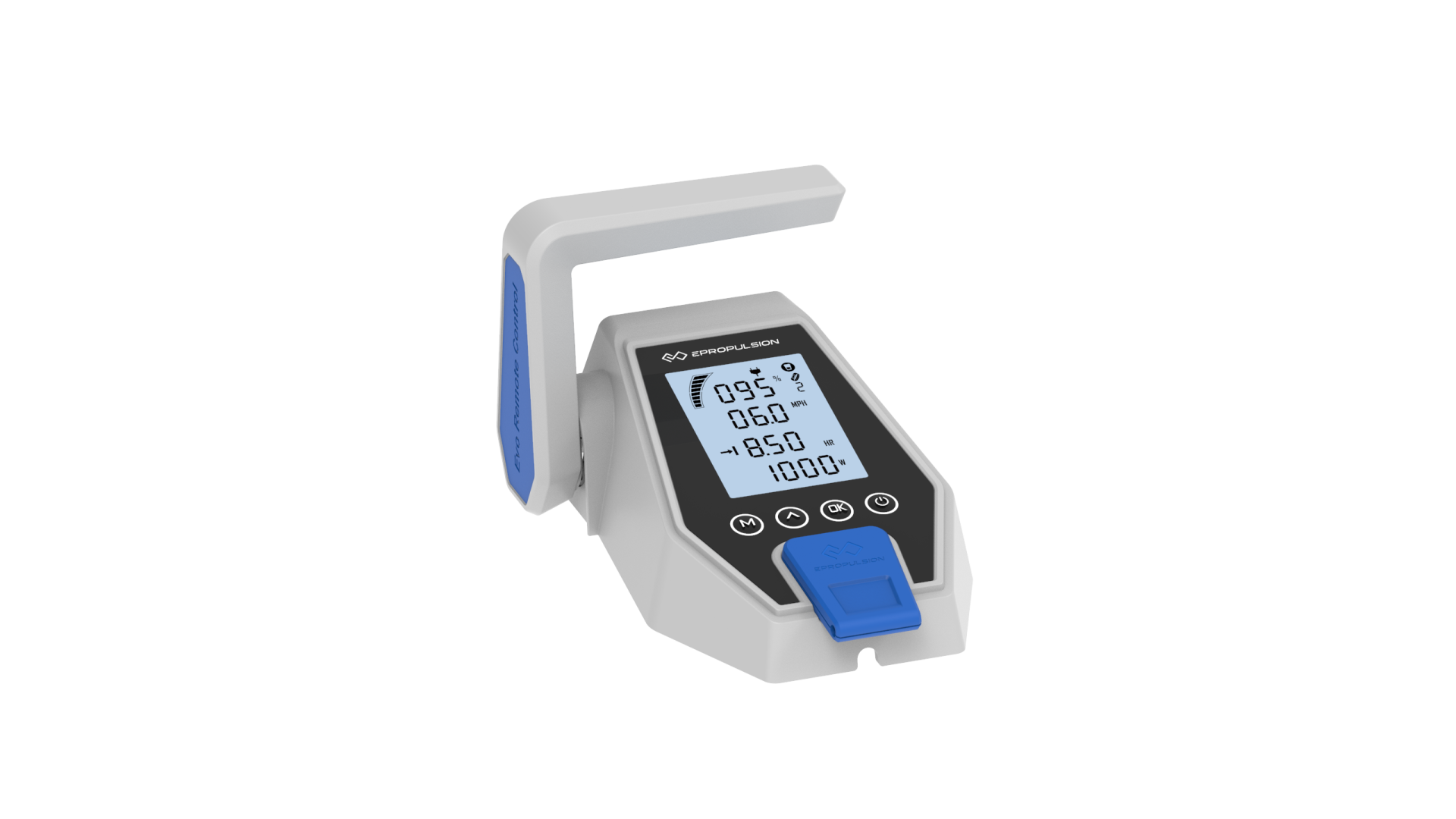

Evo Top Mount Control

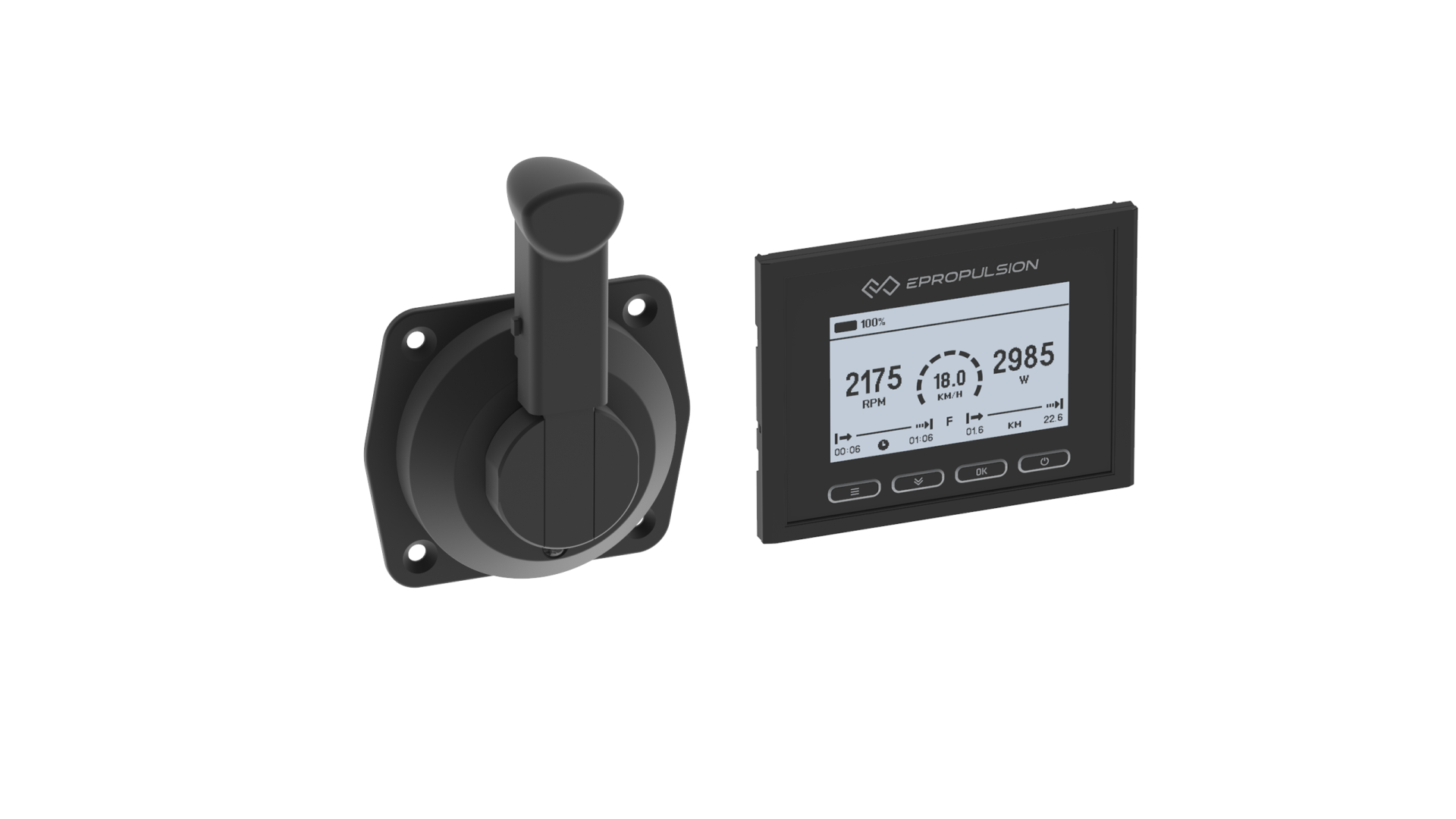

Evo Side Mount Control

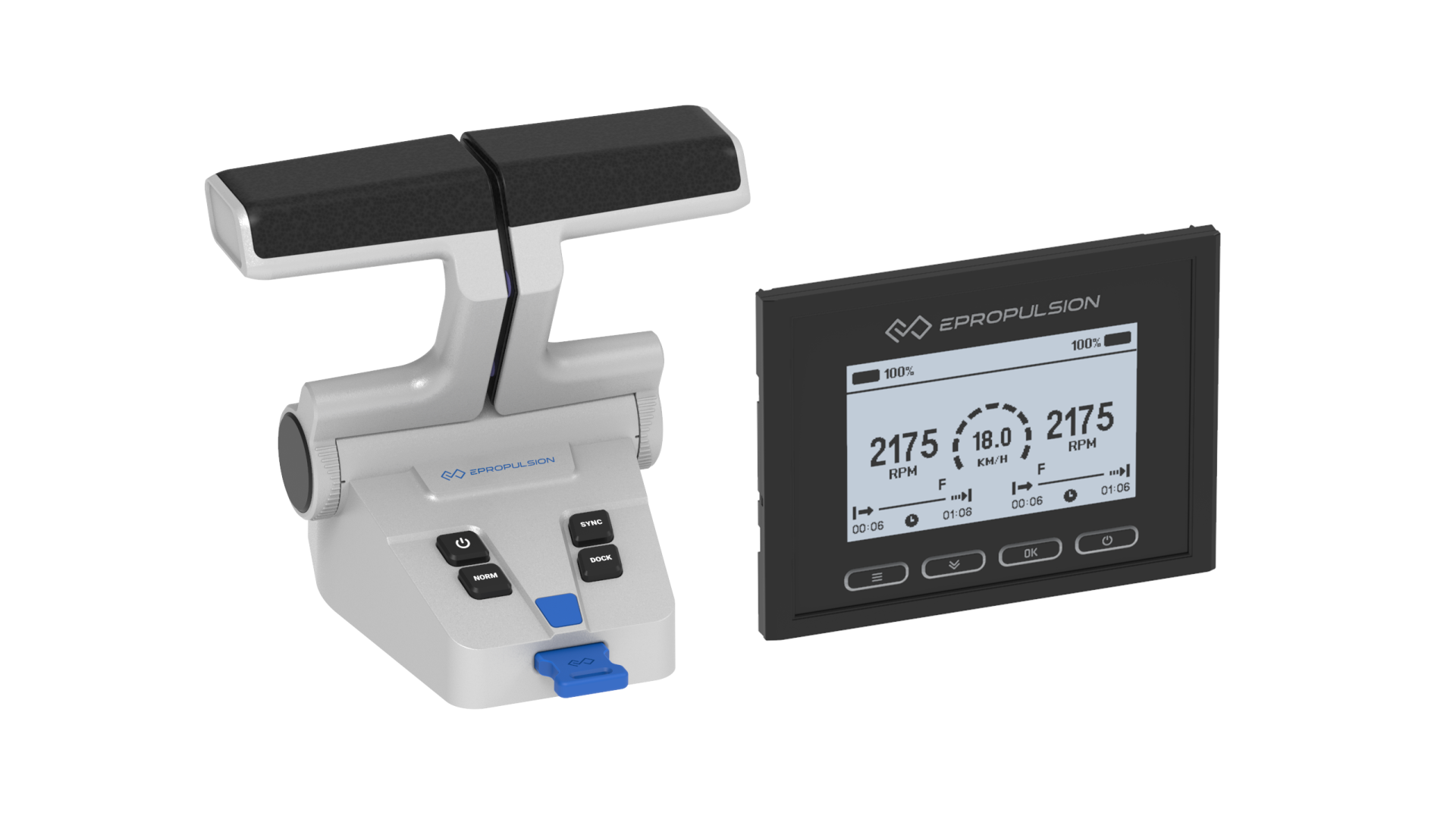

Evo Dual Control

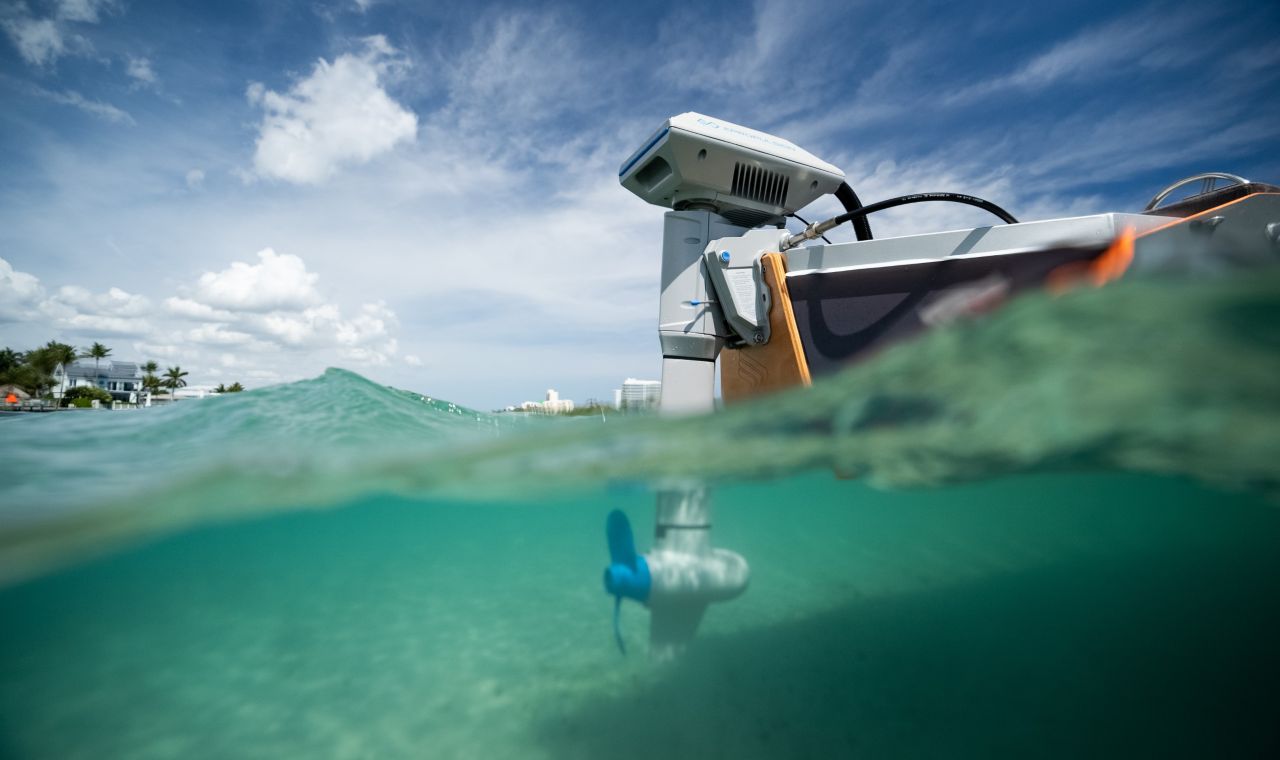

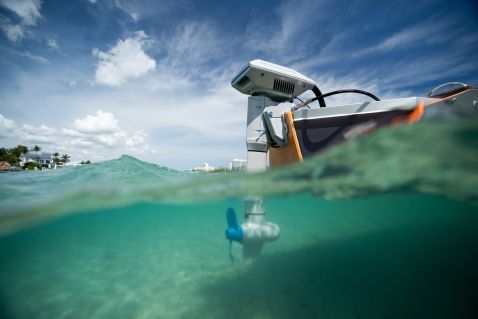

Hydrogeneration Empowers Sailors

The Navy 3.0 / 6.0 Evo models are equipped with hydrogeneration technology, enabling the battery to recharge from water flow while sailing. This system enhances energy efficiency, extends range, and reduces reliance on shore power, marking a significant advancement in electric propulsion engineering.

The Navy 3.0 and 6.0 Evo outboards are equipped with hydrogeneration, enabling ePropulsion batteries to recharge by harnessing water flow to drive the propeller, provided specific operating conditions are met.

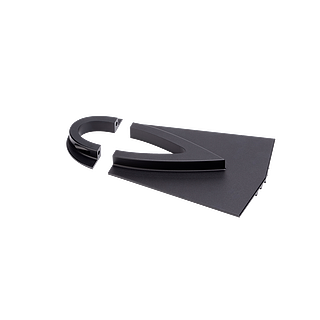

Hydrogeneration data is based on real-world testing with the anti-ventilation plate installed.
The Navy 6.0 Evo has been tested extensively with a 12.6" × 8.7" three-blade aluminium propeller, available as an optional accessory.

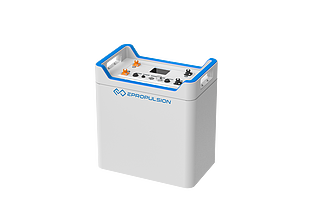

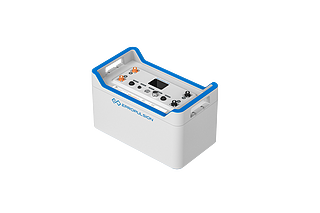

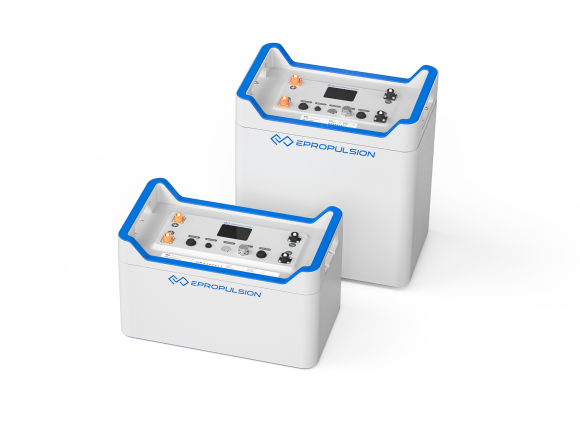

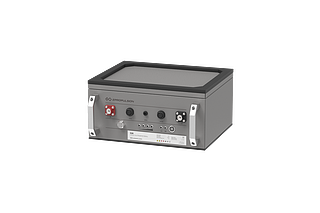

E-Series Lithium Battery

Unlock the full potential of your Navy electric outboard with ePropulsion’s 48V E-Series lithium iron phosphate battery, the perfect match for clean and powerful performance.

Competitive pricing

Unit price is as low as £0.46 per watt-hour.

High energy density

70% less weight and space than standard lead-acid batteries.

Longer life cycles

Boasting an impressive 3,000 cycles at 80% Depth of Discharge (DOD).

Made for ePropulsion Motors

With an integrated BMS, the batteries optimise motor performance, efficiency, and safety.

Learn more about the E-Series

Shaft Length Recommendation

The Navy Series motors are available in two shaft lengths: short and long.

Transom Height	Shaft Length
40-50cm / 15.7-19.7 inches	Short
Higher than 50 cm / 19.7 inches	Long

* This shaft length chart is for your reference only.

Performance

The Navy Series electric outboards deliver outstanding efficiency, providing greater speed and extended range.

Navy 3.0 Evo
Power (Watts)	Speed (mph/kph)	Runtime (hh:mm)	Range (mile/km)
300	3.7 / 6	13:20	49.3 / 79.3
550	4.7 / 7.5	7:25	35 / 56.3
1000	5.3 / 8.6	4:00	21.2 / 34.1
1500	6 / 9.7	2:40	16 / 25.7
2000	6.3 / 10.2	2:00	12.6 / 20.4
2500	8 / 12.8	1:35	12.7 / 20.5
3000	10.2 / 16.4	1:20	13.6 / 21.9

Navy 6.0 Evo
Power (Watts)	Speed (mph/kph)	Runtime (hh:mm)	Range (mile/km)
500	4 / 6.5	18:00	72 / 116
1000	5 / 8	9:00	45 / 72
2000	6.7 / 10.8	4:30	30.2 / 48.6
3000	8 / 13	3:00	24 / 39
4000	11.5 / 18.5	2:15	25.9 / 41.7
5000	13.5 / 21.8	1:50	24.7 / 39.8
6000	15 / 24.3	1:30	22.5 / 36.5

*Performance data is based on testing with a 12-foot aluminium boat carrying one operator, using a Navy 3.0 Evo with an E80 battery and a Navy 6.0 Evo with an E175 battery, under calm lake conditions.

Specs

	Navy 3.0 Evo	Navy 6.0 Evo
Power	3 kW (6HP equivalent**)	6 kW (9.9HP equivalent**)
Input voltage	39V – 60V	39 V – 60 V
Recommended Battery	ePropulsion E-Series Battery	ePropulsion E-Series Battery
Motor Weight*	24.3 kg / 53.6 lbs	36 kg / 79.4 lbs

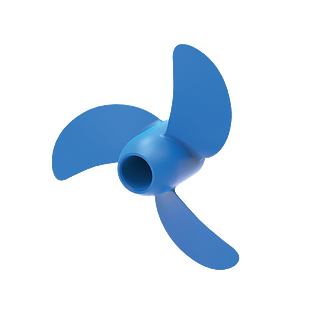

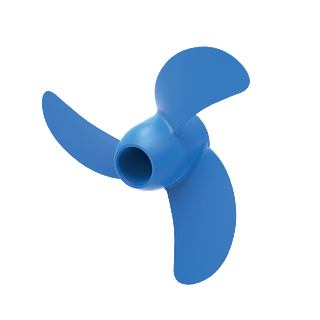

Propeller	10.2″ × 6.7″ 2-blade composite propeller	12.6″ × 10.8″ 3-blade composite propeller 13.4″ × 8.5″ 3-blade composite propeller 12.6″ × 8.7″ 3-blade aluminum propeller (optional)
Trim / Tilt Angle	0°, 5°, 10°, 15° / 60°	0°, 5°, 10°, 15° / 60°
Shaft Length	Short, Long	Short, Long
Control	Evo Tiller Evo Top Mount Control Evo Side Mount Control Evo Dual Remote Control	Evo Tiller Evo Top Mount Control Evo Side Mount Control Evo Dual Remote Control
Hydrogeneration	Yes	Yes
Motor	Brushless DC motor	Brushless DC motor
Direct Drive	Yes	Yes

* The weight is measured with the short shaft version.
** Any reference to horsepower (HP) for electric motors is a theoretical equivalent based on thrust and performance characteristics, and not a direct measure of power. This comparison is intended for illustrative purposes only and may not reflect exact power equivalency.
