kLite 750

Built for Shallow Water
kLite 750 750W
Kayak Electric Outboard

378 Wh Quiet Lightweight Shallow Water Operation

ePropulsion kLite 750 brings the award-winning technology behind the eLite to fishing and recreational kayaks. Weighing just 6.5 kg (14.3 lbs) with an integrated 378 Wh battery, it powers through water as shallow as 7 inches and offers three throttle modes to suit every situation, providing precise low-speed control, confident cruising across open water and extra power when needed. Whisper-quiet operation helps prevent disturbing fish, whether navigating shallow flats or fast-flowing currents.

Order Your kLite 750 Today!

Experience our latest innovation and secure your order.
Don’t miss your chance to be at the forefront of clean energy!

Order Fill Here

Lead the Charge in Powering the Future

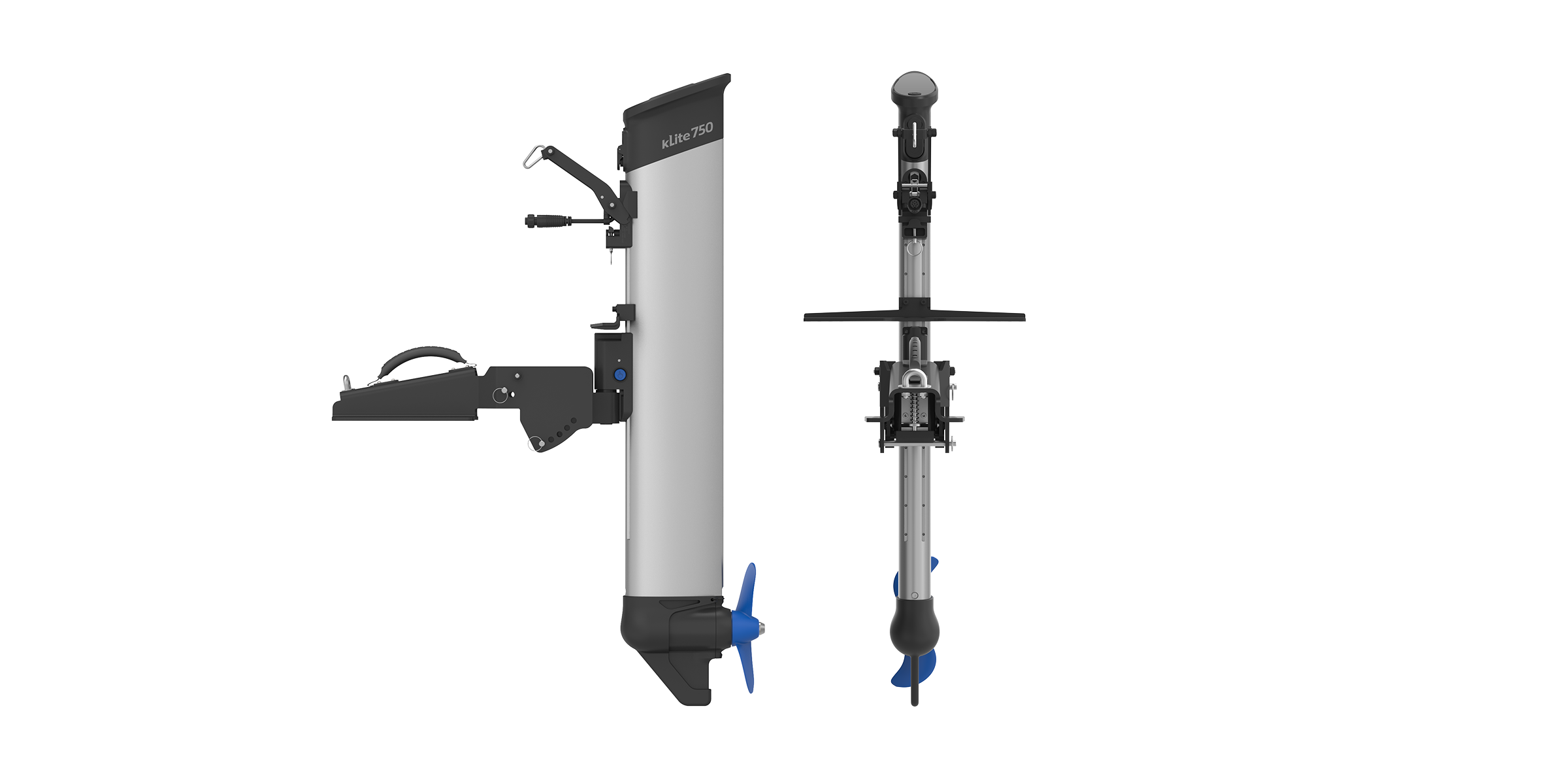

Compact, Integrated Design for Maximum Efficiency

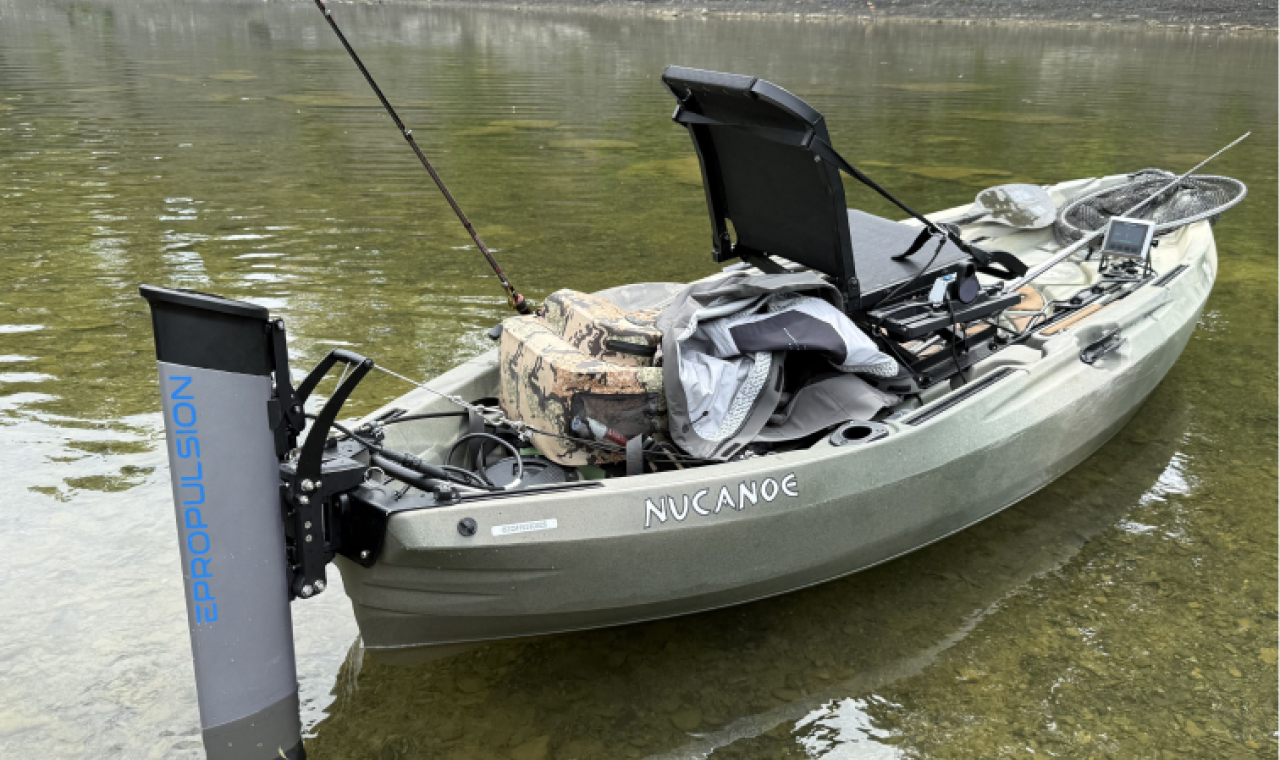

Built for Shallow Water

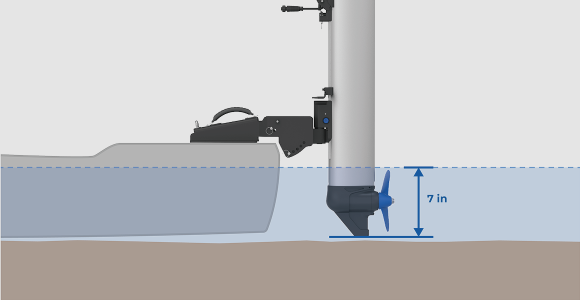

7-Inch Shallow Water Operation

The kLite 750 operates in water as shallow as 7 inches (18 cm), helping you access areas that are out of reach for many traditional motors. Whether navigating shallow waterways, low-tide conditions or narrow backwaters, it delivers reliable performance where it matters most. For deeper water, simply lower the motor to maintain optimum propulsion in choppier conditions. The rudder-shaped integrated motor and battery continue to provide steering control even when the throttle is off.

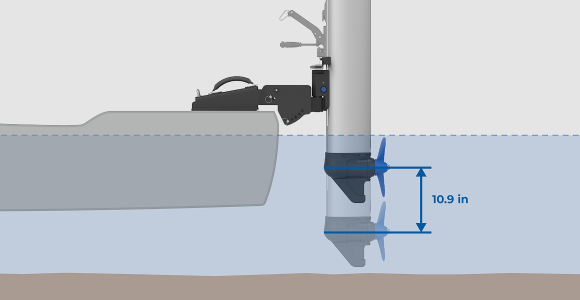

10.9-Inch Shaft Adjustment Range

Set the motor height before launch and fish with confidence wherever the water takes you. The adjustable mounting track provides a 10.9 in (276 mm) shaft adjustment range, allowing you to raise or lower the complete motor and propeller assembly from 7 in (178 mm) to 17.9 in (454 mm) for optimum performance in both shallow and deeper water.

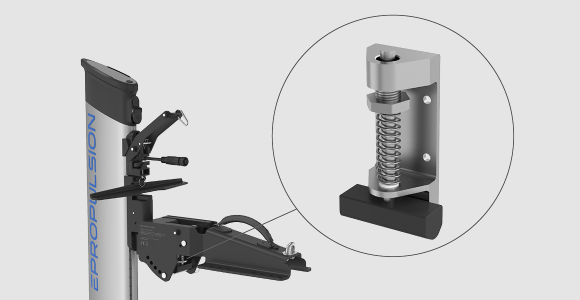

Soft-Lock Reverse

Designed for smooth and quiet reverse operation. The spring-tensioned Soft-Lock mechanism delivers up to 300 watts of reverse power while helping to keep the propeller engaged in the water for controlled maneuvering. This allows you to reverse with confidence while minimizing disturbance to nearby fish.

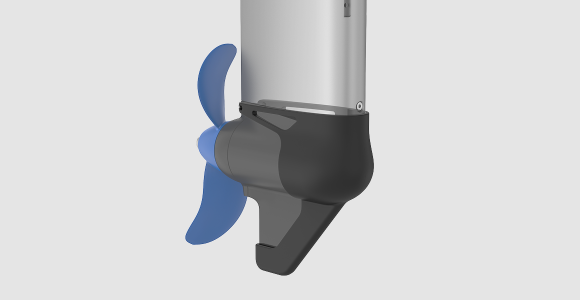

Quiet Collision Rubber Boot

A durable rubber boot on the leading edge helps absorb impacts with rocks, logs and oyster beds, reducing impact noise while helping to protect the motor in challenging environments.

Power & Control

Three Power Modes, One Throttle

Switch effortlessly between three dedicated power modes to suit every journey:

  • Go Mode: Ideal for longer journeys, Go Mode provides 500 watts of continuous power to help you reach your destination efficiently.
  • Fish Mode: Toggle to Fish Mode (0-200W) for refined low-speed control, providing precise throttle response that makes it easy to maintain the ideal speed for accurate maneuvering and positioning while fishing.
  • Boost Mode (750W): Double-tap the power button to unlock an additional 250 watts of power when you need it most. Ideal for tackling fast-flowing water and strong currents. Boost Mode is available when the integrated battery has at least 50% state of charge (SoC) and is operating within its safe temperature range..

Custom Steering Control

Customize your steering response to suit your preferences. Connect the steering lines to the outer mounting points for more powerful steering response, or move them closer to the center for finer control. Compatible with any standard four-bolt mounting pattern using the Foot Control Steering Kit. When it's time to move, simply release the cam cleat to lift the motor smoothly and effortlessly.

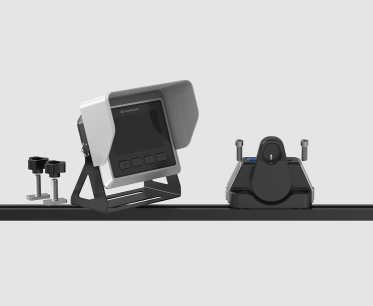

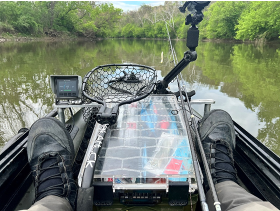

Color Monitor & Low-Profile Throttle

Keep your focus on the water. By separating the display from the throttle, the kLite 750 allows you to view key information without looking down at the controls. The sun-shaded color monitor can be mounted to a console, deck or track, providing wattage, range and battery level at a glance. The low-profile throttle sits neatly beside your seat, helping to prevent clothing from catching as you get in and out of your kayak.

Simple to Set Up & Go

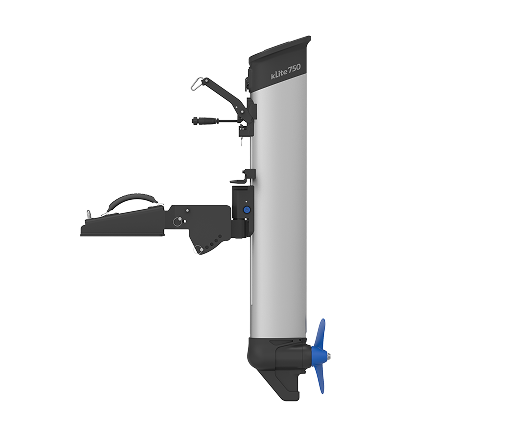

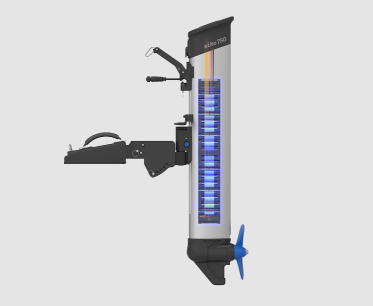

Lightweight Integrated Design

Weighing just 14.3 lbs (6.5 kg), the rudder-shaped integrated motor and battery combine into one slim, portable unit that's easy to carry and quick to install. Ideal for after-work trips and hard-to-reach launch points where portability matters most. Need more range? An optional accessory allows you to connect a third-party battery to recharge the integrated battery while you're on the water.

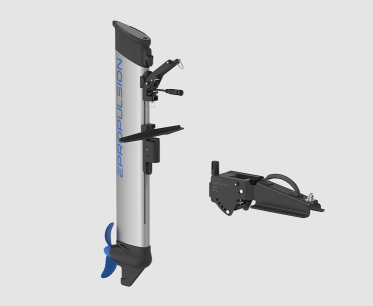

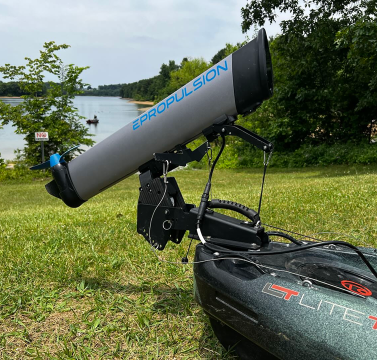

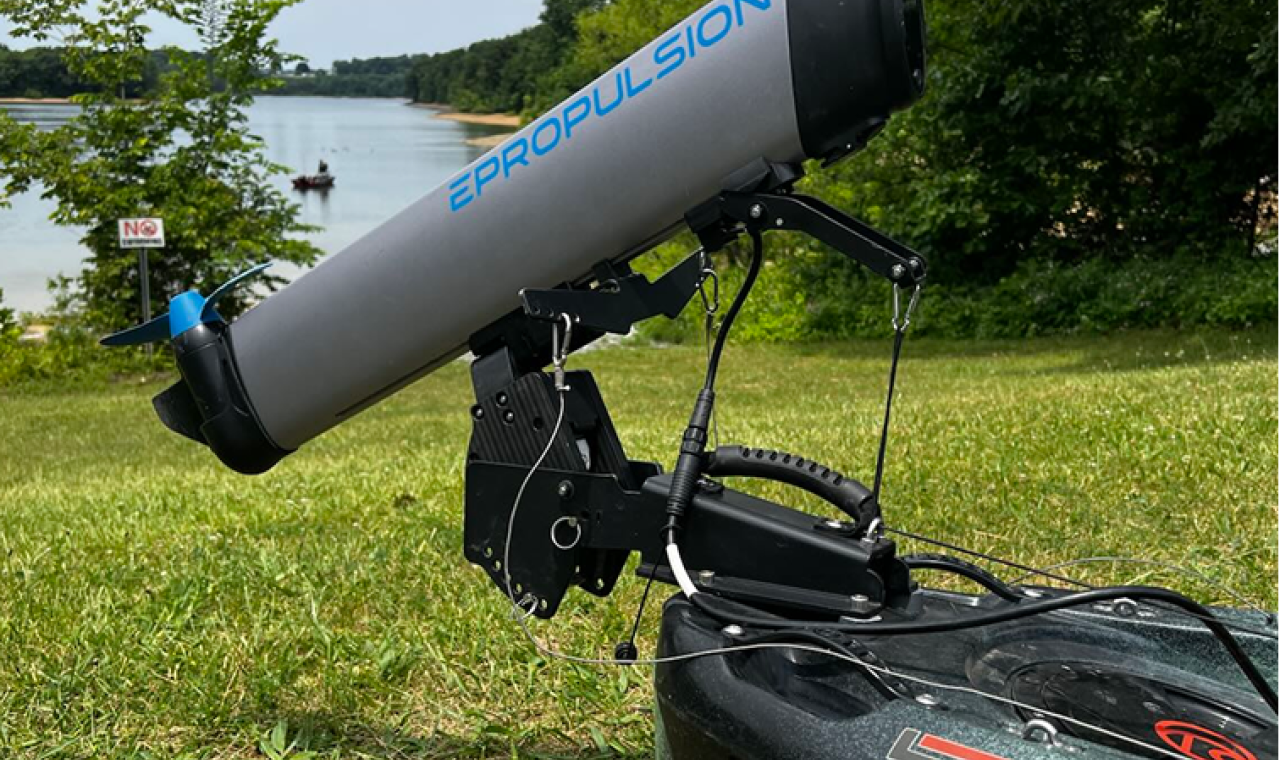

Quick-Install Motor Mount

The robust mounting pin allows the motor and battery to lock securely into place for quick, straightforward installation. Simply connect the steering lines, throttle cable and motor lift cord, and you're ready to get on the water. An integrated carry handle provides an alternative lifting point when the motor mount blocks access to your kayak's existing handle.

Compatible with Standard Kayak Accessory Tracks

ePropulsion kayak accessories are compatible with standard kayak accessory track systems, allowing you to position them exactly where you need them. Secure the color display, throttle mount and other kLite kayak accessories anywhere along the track to create a layout that suits your kayak and your preferred setup.

Specs

Nominal Power 500 W
Maximum Power (in Sport Mode) 750 W
Battery Integrated 378 Wh 25.2 Vdc Lithium-ion
Input Voltage Range 19.3 - 29.4 Vdc
Battery Life 800 cycle at 80% SoH
Charger 100 to 240V AC charger included, 12V charger optional
Cooling Natural cooling
Rated RPM 1450 - 1800
Operating Temperature -5 to 55°C
Storage Temperature 20 to 45°C
Trim Angles 0°, 8°, 16°, 24°, 32°
Tilt Angle 70°
Steering angle range ±70°
Steering Adjustment Foot Steering Control
Dimensions (L x W x H) 12.1 x 11.8 x 35.2 in | 309 x 300 x 895 mm (without bracket clamp)
23.6 x 11.8 x 35.2 in | 600 x 300 x 895 mm (with bracket clamp)
Motor Weight 14.3 lbs | 6,5 kg
Motor Mount Weight 5.1 lbs | 2.3 kg
Shaft length adjustment range 10.9 in (Min. 3.9 in | Max: 14.8 in)
276 mm (Min. 98.6 mm | Max: 375 mm)

Performance and Range

Tested on Crescent Kayaks Lite Tackle 2
Power (W) Speed (mph/kph) With Integrated 378 Wh Battery Extended Range: Integrated 378Wh + Optional
54Ah (691Wh) = 1069Wh Total
19 2 / 3.2 Runtime (HH:RR): 19:54
Range: 40 mi / 64.4 km 		Runtime (HH:RR): 56:00
Range: 113 mi / 181.9 km
133 4 / 6.4 Runtime (HH:RR): 02:48
Range: 11 mi / 17.7 km 		Runtime (HH:RR): 08:00
Range: 32 mi / 51.5 km
500 5.5 / 8.9 Runtime (HH:RR): 00:48
Range: 4 mi / 6.4 km 		Runtime (HH:RR): 02:00
Range: 11 mi / 17.7 km
750 * 6 / 9.7 Runtime (HH:RR): 00:15
Range: 1.5 mi / 2.4 km 		Runtime (HH:RR): 01:24
Range: 8 mi / 12.9 km

* Sport Mode is available when the battery charge is above 50% of the kLite integrated battery and operating within its normal temperature range.

kLite 750 on Bonafide PWR 129
Power (W) Speed (mph/kph) With Integrated 378 Wh Battery Extended Range: Integrated 378Wh + Optional
54Ah (691Wh) = 1069Wh Total
22 2 / 3.2 Runtime (HH:RR): 17:00
Range: 34.4 mi / 55.4 km 		Runtime (HH:RR): 48:36
Range: 97.2 mi / 156.4 km
141 4 / 6.4 Runtime (HH:RR): 10:48
Range: 10.7 mi / 17.22 km 		Runtime (HH:RR): 07:30
Range: 32 mi / 51.5 km
500 5.3 / 8.5 Runtime (HH:RR): 00:48
Range: 4 mi / 6.4 km 		Runtime (HH:RR): 02:00
Range: 30.3 mi / 48.8 km
750 * 5.8 / 9.3 Runtime (HH:RR): 00:15
Range: 1.5 mi / 2.4 km 		Runtime (HH:RR): 01:00
Range: 6.8 mi / 10.9 km

* Sport Mode is available when the battery charge is above 50% of the kLite integrated battery and operating within its normal temperature range.

FAQ

What is included?

The kLite 750 package includes:

  • kLite 750 motor with integrated battery
  • Motor mount with mounting hardware
  • Battery charger
  • Cord cleat and handle for motor lift operation
  • Track-mounted throttle with connecting cables
  • Color display with track-mount hardware
  • Sun shade
  • Magnetic kill switch
  • Spare kill switch magnet

Optional accessories include:

  • Foot control steering kit
  • Throttle mounting plate
  • Spare propeller
  • eLite/kLite Range Extension Kit for compatible third-party batteries
How much does it weigh?
The motor and integrated battery weigh 14.3 lbs (6.5 kg), while the motor mount weighs an additional 5.1 lbs (2.3 kg), bringing the total system weight to 19.4 lbs (8.8 kg).
How many charge cycles is the battery designed for?

Runtime and range depend on kayak type, load, water conditions, wind, current and speed.
Example range data:

Crescent Kayaks Lite Tackle 2

POWER (W) SPEED (MPH/KPH) With Integrated 378 Wh Battery Extended Range: Integrated 378Wh + Optional 54Ah (691Wh) = 1069Wh Total
19 2 / 3.2 Runtime (HH:MM): 19:54
Range: 40 mi / 64.4 km		 Runtime (HH:MM): 56:00
Range: 113 mi / 181.9 km
133 4 / 6.4 Runtime (HH:MM): 02:48
Range: 11 mi / 17.7 km		 Runtime (HH:MM): 08:00
Range: 32 mi / 51.5 km
500 5.5 / 8.9 Runtime (HH:MM): 00:48
Range: 4 mi / 6.4 km		 Runtime (HH:MM): 02:00
Range: 11 mi / 17.7 km
750 * 6 / 9.7 Runtime (HH:MM): 00:15
Range: 1.5 mi / 2.4 km		 Runtime (HH:MM): 01:24
Range: 8 mi / 12.9 km

Bonafide PWR129

POWER (W) SPEED (MPH/KPH) With Integrated 378 Wh Battery Extended Range: Integrated 378Wh + Optional 54Ah (691Wh) = 1069Wh Total
22 2 / 3.2 Runtime (HH:MM): 17:00
Range: 34.4 mi / 55.4 km		 Runtime (HH:MM): 48:36
Range: 97.2 mi / 156.4 km
141 4 / 6.4 Runtime (HH:MM): 10:48
Range: 10.7 mi / 17.22 km		 Runtime (HH:MM): 07:30
Range: 32 mi / 51.5 km
500 5.3 / 8.5 Runtime (HH:MM): 00:48
Range: 4 mi / 6.4 km		 Runtime (HH:MM): 02:00
Range: 30.3 mi / 48.8 km
750 * 5.8 / 9.3 Runtime (HH:MM): 00:15
Range: 1.5 mi / 2.4 km		 Runtime (HH:MM): 01:00
Range: 6.8 mi / 10.9 km
How long does the battery take to recharge?
The battery recharges in approximately four hours from 0% using the standard charger.
Can it be used in saltwater?
Yes. The motor and battery are IP67 rated and suitable for freshwater and saltwater use. After saltwater use, rinse the equipment with fresh water and allow it to dry before storage.

The throttle-to-motor cable includes a protective cap. Use this cap during transport and storage to help prevent moisture, debris and corrosion from affecting the connector.
How durable is the propeller?
The kLite 750 is designed for use in shallow-water environments, where occasional contact with underwater obstacles such as rocks, logs or the riverbed may occur. If the propeller experiences repeated strikes, the system may temporarily reduce or suspend thrust to help protect the motor. Once you are back in sufficiently deep water, return the throttle to neutral, lower the motor and resume operation.

As with any propeller, contact with submerged objects can cause wear or damage. We recommend inspecting the propeller and shear pin regularly, particularly after operating in shallow or rocky conditions.
How hard is it to install, and what kayaks is it compatible with?
The kLite 750 is designed to fit a wide range of compatible kayaks. It uses a standard four-bolt mounting pattern that is commonly used for stern-mounted motors and shallow-water anchor systems.

On some kayaks, the motor can be installed directly using the factory mounting points. Others may require an adapter plate or custom mounting solution. If you're unsure whether your kayak is compatible, your local dealer can help determine the best installation method.

Installation is straightforward on compatible kayaks, although access to the inside of the hull through a stern hatch can make fitting the motor and routing the foot steering lines easier.
Can it run from a separate battery?
No. The kLite 750 is powered by its integrated battery and cannot be operated directly from an external battery.

However, using the optional eLite/kLite Range Extension Kit, you can recharge the integrated battery while on the water using a compatible 12V battery. The kit connects through the charging port and can provide up to 100W of charging input, helping to extend your time on the water.
Which batteries can be used with the range extension kit?
The eLite/kLite Range Extension Kit is compatible with 12V third-party batteries. Please refer to the owner's manual for the recommended battery specifications and connection requirements before use.
What warranty does the kLite 750 come with?
The kLite 750 is backed by a two-year limited warranty from the invoice date of purchase. For full warranty terms, conditions and exclusions, please refer to the owner's manual or visit your local ePropulsion dealer.
Where can I take my kLite 750 for service?
Service support is available through the ePropulsion dealer network. Please contact your local dealer or follow the warranty procedure listed in the owner’s manual.
What routine maintenance should I perform on my kLite 750?
Please refer to Section 9 of the owner’s manual for full maintenance guidance.

As general care, inspect the propeller and shear pin regularly, especially after use in shallow or rocky water. Check that there is no fishing line or debris around the lower unit. Clean the charge port and USB socket with contact cleaner every two months.

For long-term storage, leave the battery at approximately 45–50% charge and check it every three months.
What happens if I forget or lose my kill switch magnet?
If the kill switch magnet is not installed, the kLite 750 can still be operated, but the motor will be limited to half throttle.

In situations where you need full performance, the Kill Switch Override function can be enabled through the display by navigating to Controls > Override. Please refer to the owner's manual for full instructions.
How do I enable Silent Mode?
Silent Mode reduces audible alerts for a quieter fishing experience. It can be enabled or disabled through the display menu. Step-by-step instructions are included in the owner’s manual.
How do I adjust Fish Mode?
Fish Mode is designed to provide precise low-speed control, helping you maintain a consistent trolling speed for different lures, wind conditions and currents.

The kLite 750 is pre-set with a maximum Fish Mode output of 200W. This limit can be increased or decreased through the display menu to suit your fishing style. Step-by-step instructions are provided in the owner's manual.
