System at a Glance

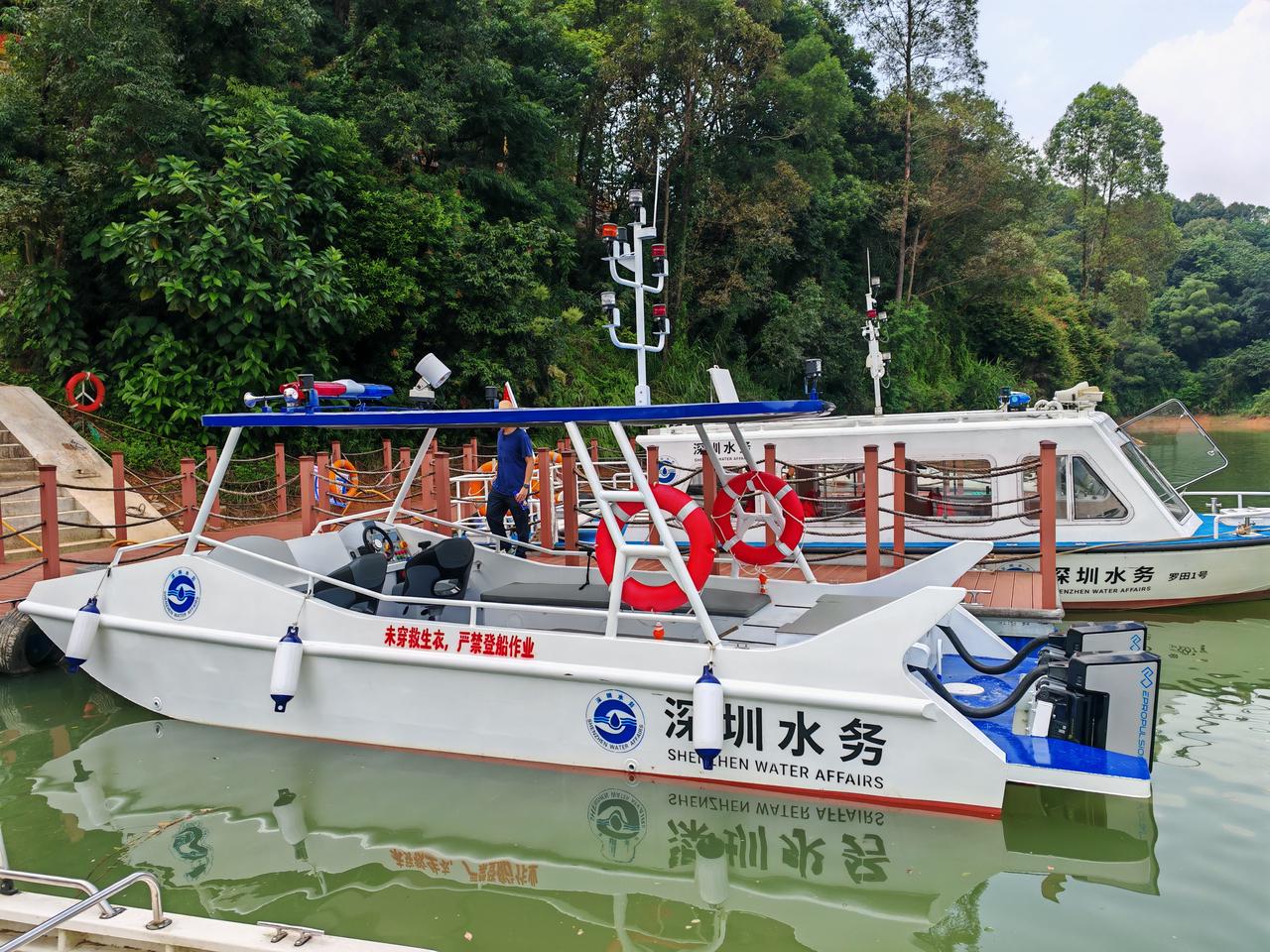

This 2024 Custom is an electric Powerboat (Open / Console) from Shenzhen Water Affairs, powered by a 80 kW ePropulsion motor and a 82 kWh battery pack, offering a quiet and eco-friendly boating experience.
| Length (LOA) | 8.1 m (26.6 ft) |
| Beam (BOA) | 2.5 m (8.2 ft) |
| Hull Draft | 0.3 m (1.0 ft) |
| Hull Config | Monohull |
| Hull Type | Planing |
| Displacement | 4,000 kg (8,818 lbs) |
Boat Specifications
Overview
- Make
- Shenzhen Water Affairs
- Model
- Custom
- Year
- 2024
- Hull type
- Planing
- Configuration
- Monohull
Hull & Dimensions
- Length overall
- 8.10 m
- Beam overall
- 2.50 m
- Draft
- 0.30 m
Weights
- Displacement
- 4,000 kg
- Motor & battery
- 1,000 kg
- Total weight
- 5,000 kg
Electric Propulsion System

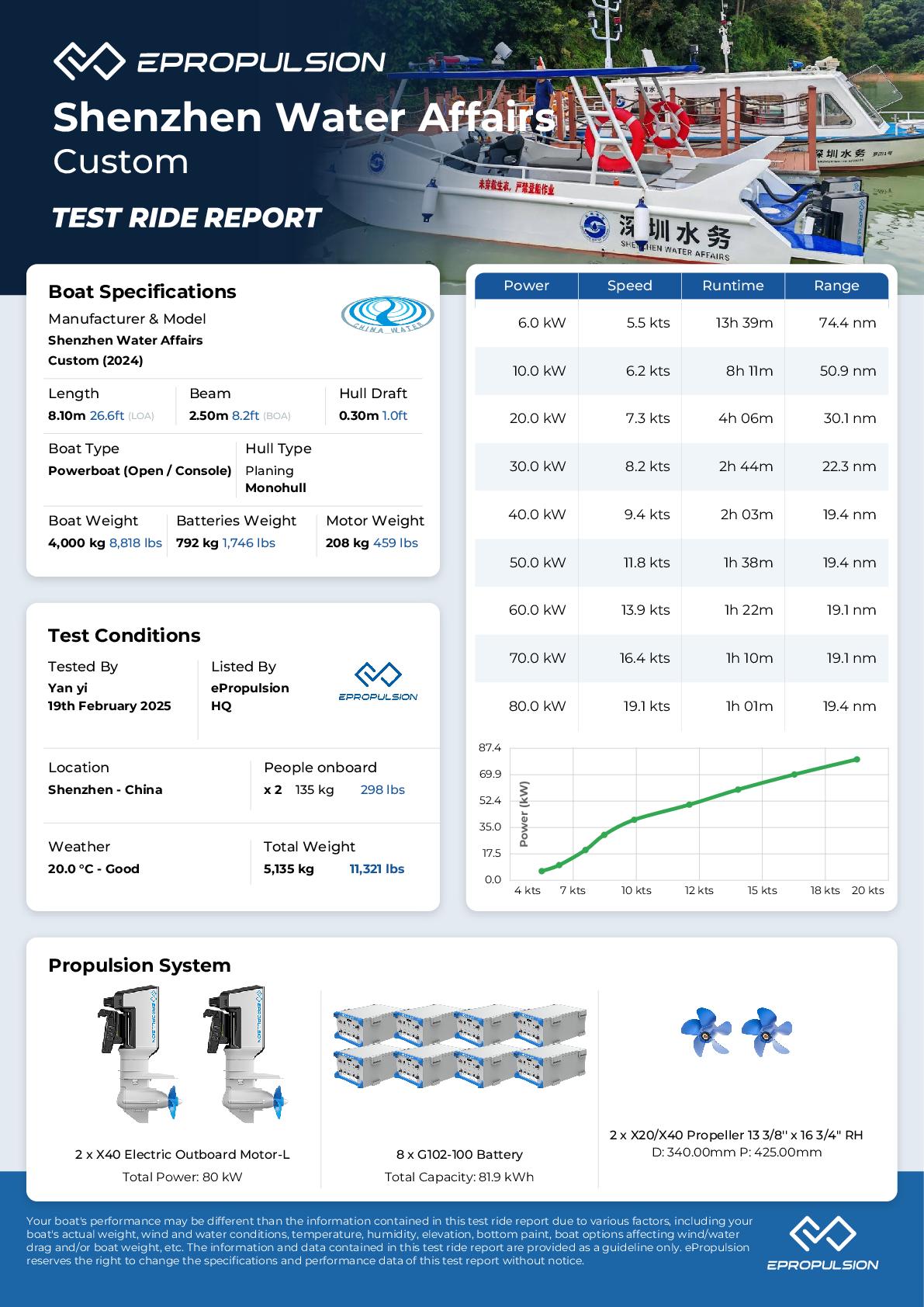

Performance Tests
Test details
- Test date
- 2025-02-19 14:50:00
- Testing personnel
- Yan yi
- Persons onboard
- 2 (total 135 kg)
- Location
- Shenzhen, China
- Temperature
- 20 °C
- Weather
- Good
Recorded speed
Test results
Top Speed19.1 knots
Cruising11.8 knots
Estimated Range19–74 nm
| Power | Actual speed | Runtime* | Range* | Energy use |
|---|---|---|---|---|
| 6 kW | 5.45 knots | 13h 39m | 74.5 nm | 1.1 kWh/nm |
| 10 kW | 6.21 knots | 8h 12m | 50.9 nm | 1.61 kWh/nm |
| 20 kW | 7.34 knots | 4h 06m | 30.1 nm | 2.72 kWh/nm |
| 30 kW | 8.15 knots | 2h 44m | 22.3 nm | 3.68 kWh/nm |
| 40 kW | 9.45 knots | 2h 03m | 19.4 nm | 4.23 kWh/nm |
| 50 kW | 11.83 knots | 1h 38m | 19.4 nm | 4.23 kWh/nm |
| 60 kW | 13.93 knots | 1h 22m | 19 nm | 4.31 kWh/nm |
| 70 kW | 16.36 knots | 1h 10m | 19.1 nm | 4.28 kWh/nm |
| 80 kW | 19.06 knots | 1h 01m | 19.5 nm | 4.2 kWh/nm |
