System at a Glance
This 306 is an electric Sailboat (Monohull) from Hunter Legend, powered by a 10 kW ePropulsion motor and a 10 kWh battery pack, offering a quiet and eco-friendly boating experience.
| Length (LOA) | 9.12 m (29.9 ft) |
| Beam (BOA) | 3.18 m (10.4 ft) |
| Hull Draft | 1.62 m (5.3 ft) |
| Hull Config | Monohull |
| Hull Type | Displacement |
| Displacement | 3,243 kg (7,150 lbs) |
Boat Specifications
Overview
- Make
- Hunter Legend
- Model
- 306
- Year
- 0
- Hull type
- Displacement
- Configuration
- Monohull
Hull & Dimensions
- Length overall
- 9.12 m
- Beam overall
- 3.18 m
- Draft
- 1.62 m
Weights
- Displacement
- 3,243 kg
- Motor & battery
- 144 kg
- Total weight
- 3,387 kg
Electric Propulsion System

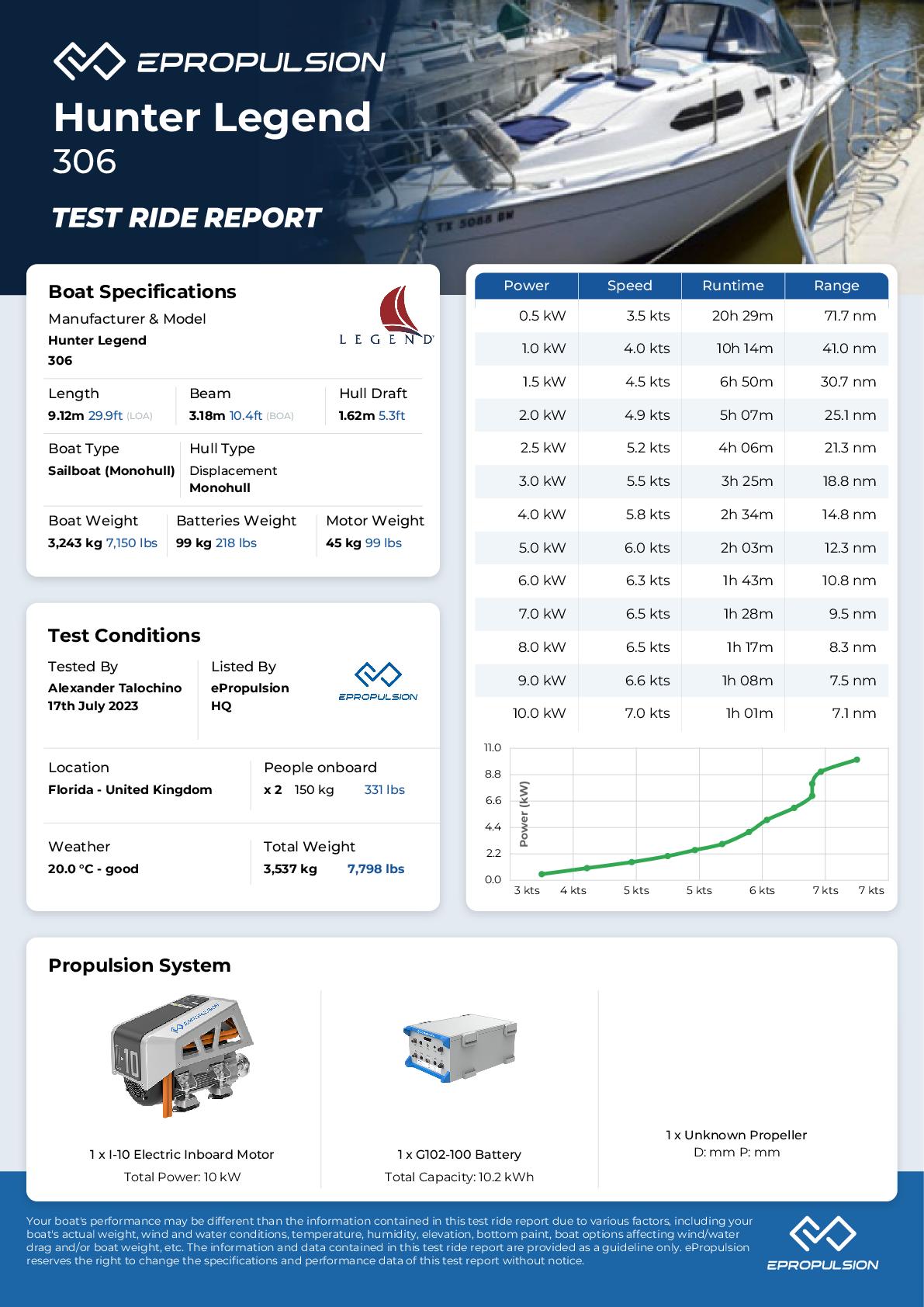

Performance Tests
Test details
- Test date
- 2023-07-17 10:24:00
- Testing personnel
- Alexander Talochino
- Persons onboard
- 2 (total 150 kg)
- Location
- Florida, United Kingdom
- Temperature
- 20 °C
- Weather
- good
Recorded speed
Test results
Top Speed7 knots
Cruising5.8 knots
Estimated Range7–72 nm
| Power | Actual speed | Runtime* | Range* | Energy use |
|---|---|---|---|---|
| 0.5 kW | 3.5 knots | 20h 29m | 71.7 nm | 0.14 kWh/nm |
| 1 kW | 4 knots | 10h 14m | 41 nm | 0.25 kWh/nm |
| 1.5 kW | 4.5 knots | 6h 50m | 30.7 nm | 0.33 kWh/nm |
| 2 kW | 4.9 knots | 5h 07m | 25.1 nm | 0.41 kWh/nm |
| 2.5 kW | 5.2 knots | 4h 06m | 21.3 nm | 0.48 kWh/nm |
| 3 kW | 5.5 knots | 3h 25m | 18.8 nm | 0.55 kWh/nm |
| 4 kW | 5.8 knots | 2h 34m | 14.8 nm | 0.69 kWh/nm |
| 5 kW | 6 knots | 2h 03m | 12.3 nm | 0.83 kWh/nm |
| 6 kW | 6.3 knots | 1h 42m | 10.8 nm | 0.95 kWh/nm |
| 7 kW | 6.5 knots | 1h 28m | 9.5 nm | 1.08 kWh/nm |
| 8 kW | 6.5 knots | 1h 17m | 8.3 nm | 1.23 kWh/nm |
| 9 kW | 6.6 knots | 1h 08m | 7.5 nm | 1.36 kWh/nm |
| 10 kW | 7 knots | 1h 01m | 7.2 nm | 1.43 kWh/nm |
