Medvolt Marine - M7

Medvolt Marine - M7

Spain
Medvolt Marine

System at a Glance

This M7 is an electric Passenger / Commercial from Medvolt Marine, powered by a 10 kW ePropulsion motor and a 20 kWh battery pack, offering a quiet and eco-friendly boating experience.

Length (LOA)7.3 m (24.0 ft)
Beam (BOA)2.6 m (8.5 ft)
Hull Draft0.7 m (2.3 ft)
Hull ConfigMonohull
Hull TypeDisplacement
Displacement1,900 kg (4,189 lbs)
View Photos Talk to a Dealer

Boat Specifications

Overview

Make
Medvolt Marine
Model
M7
Year
0
Hull type
Displacement
Configuration
Monohull

Hull & Dimensions

Length overall
7.30 m
Beam overall
2.60 m
Draft
0.70 m

Weights

Displacement
1,900 kg
Motor & battery
243 kg
Total weight
2,143 kg

Electric Propulsion System

Motor

1 × I-10 Electric Inboard Motor

Total Power: 10 kW
I-10 Electric Inboard Motor

Batteries

2 × G102-100 Battery

Capacity: 20 kWh
G102-100 Battery 1
G102-100 Battery 2

Propeller

Custom Prop

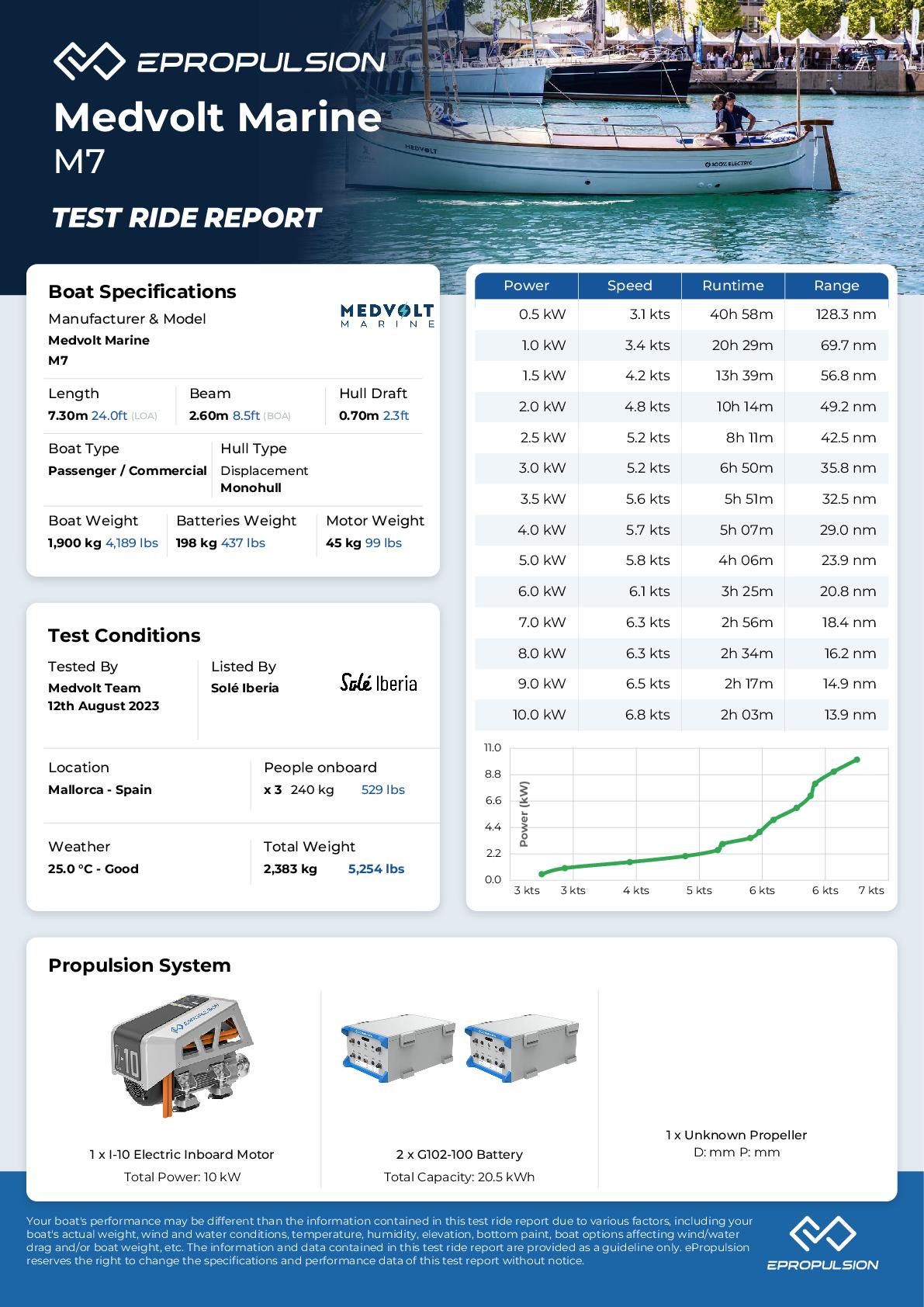

Performance Tests

Test details

Test date
2023-08-12 14:25:00
Testing personnel
Medvolt Team
Persons onboard
3 (total 240 kg)
Location
Mallorca, Spain
Temperature
25 °C
Weather
Good

Recorded speed

Actual speed versus power for test 1 Recorded measurements are listed in the test results table. 0 0 2.5 2 5 4 7.5 6 10 8 Speed (knots) Power (kW)

Test results

Top Speed6.8 knots
Cruising5.7 knots
Estimated Range14–128 nm
PowerActual speedRuntime*Range*Energy use
0.5 kW 3.13 knots 40h 58m 128.3 nm 0.16 kWh/nm
1 kW 3.4 knots 20h 29m 69.7 nm 0.29 kWh/nm
1.5 kW 4.16 knots 13h 39m 56.8 nm 0.36 kWh/nm
2 kW 4.81 knots 10h 14m 49.2 nm 0.42 kWh/nm
2.5 kW 5.18 knots 8h 12m 42.5 nm 0.48 kWh/nm
3 kW 5.24 knots 6h 50m 35.8 nm 0.57 kWh/nm
3.5 kW 5.56 knots 5h 51m 32.5 nm 0.63 kWh/nm
4 kW 5.67 knots 5h 07m 29 nm 0.71 kWh/nm
5 kW 5.83 knots 4h 06m 23.9 nm 0.86 kWh/nm
6 kW 6.1 knots 3h 25m 20.8 nm 0.98 kWh/nm
7 kW 6.26 knots 2h 56m 18.3 nm 1.12 kWh/nm
8 kW 6.32 knots 2h 34m 16.2 nm 1.27 kWh/nm
9 kW 6.53 knots 2h 17m 14.9 nm 1.38 kWh/nm
10 kW 6.8 knots 2h 03m 13.9 nm 1.47 kWh/nm

Actual speed is recorded during the test. Energy use, runtime and range* are calculated from the readings and nominal battery capacity; runtime and range do not account for reserve capacity.
