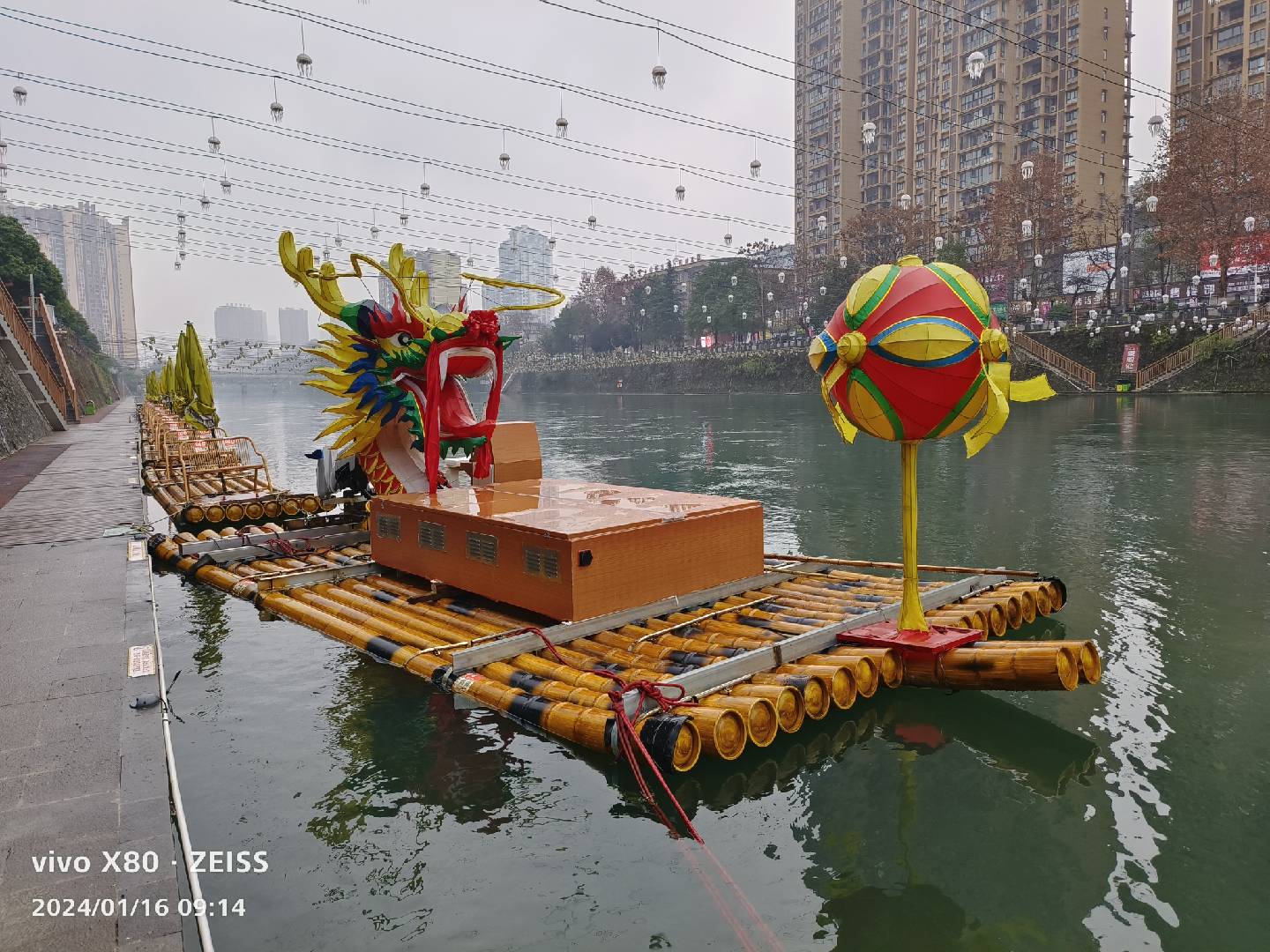

Unknown - Bamboo Dragon Raft

Unknown - Bamboo Dragon Raft

2024
China

System at a Glance

This 2024 Bamboo Dragon Raft is an electric Raft powered by a 40 kW ePropulsion motor and a 72 kWh battery pack, offering a quiet and eco-friendly boating experience.

Length (LOA)6 m (19.7 ft)
Beam (BOA)4 m (13.1 ft)
Hull Draft0.15 m (0.5 ft)
Hull ConfigMonohull
Hull TypeDisplacement
Displacement1,850 kg (4,079 lbs)
View Photos Talk to a Dealer

Electric Propulsion System

Electric Propulsion System

Motor

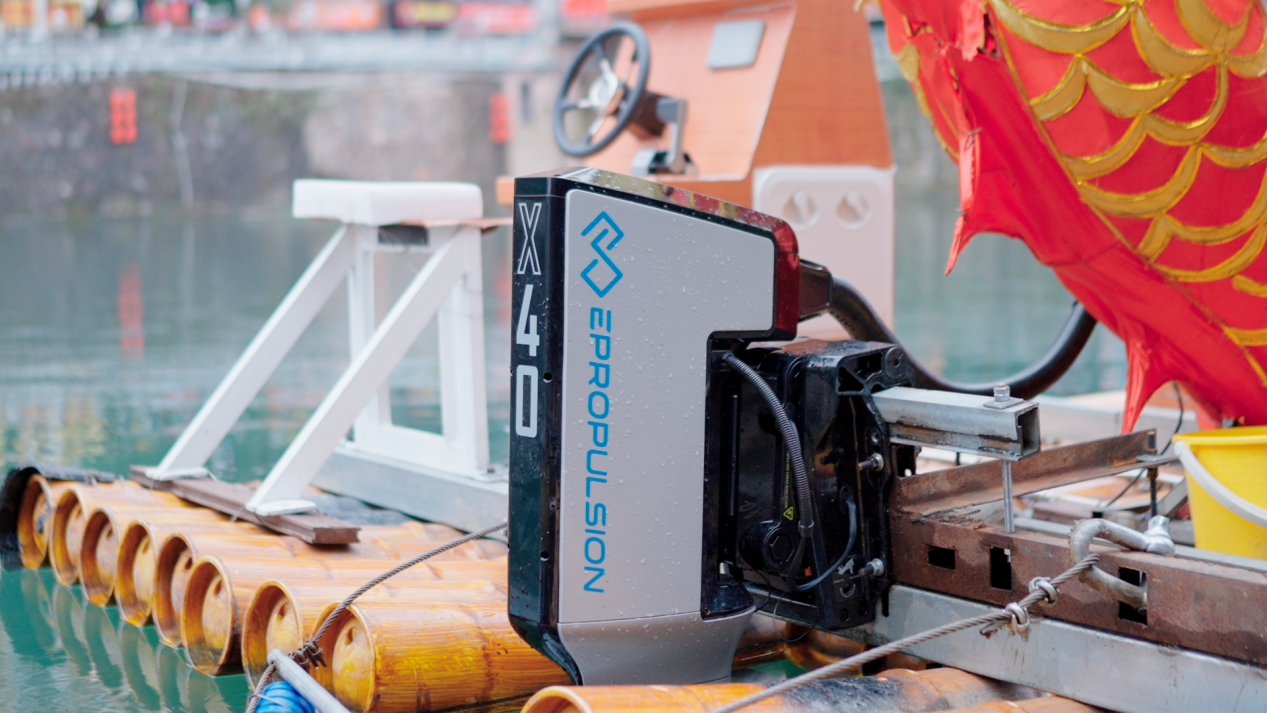

1 × X40 Electric Outboard Motor-L

Total Power: 40 kW
X40 Electric Outboard Motor-L

Batteries

7 × G102-100 Battery

Capacity: 72 kWh
G102-100 Battery 1
G102-100 Battery 2
G102-100 Battery 3
G102-100 Battery 4
G102-100 Battery 5
G102-100 Battery 6
G102-100 Battery 7

Propeller

1 × X20/X40 Propeller 15'' x 10 3/4''

Rated RPM: 1800
Propeller
Top Speed
4.4 kn
Cruising
3.2 kn
Est. Range
8-17 NM

Ready to spec this for your boat?

Our team will match motors, batteries, and cabling to your hull and duty cycle.

Talk to a Dealer
  • Make & Model
    Unknown Bamboo Dragon Raft (2024)
    Hull Type
    Displacement
    Configuration
    Monohull
    Prop Diameter
    380.00 mm
    Prop Pitch
    270.90 mm
    Prop Rated RPM
    1800
  • LOA
    6.00 m
    Beam (BOA)
    4.00 m
    Draft
    0.15 m
  • Displacement
    1,850 kg
    Motor & Battery
    797 kg
    Total Weight
    2,647 kg

Interested in this Boat?

This Unknown Bamboo Dragon Raft was listed by ePropulsion HQ,

Reach out for performance details, configuration advice, or to locate a nearby dealer.
