System at a Glance
This 2024 T300LX is an electric Fishing Boat / Jon Boat from Takacat, powered by a 2 kW ePropulsion motor and a 1,539 Wh battery pack, offering a quiet and eco-friendly boating experience.
| Length (LOA) | 3 m (9.8 ft) |
| Beam (BOA) | 1.55 m (5.1 ft) |
| Hull Draft | 0.3 m (1.0 ft) |
| Hull Config | Catamaran |
| Hull Type | Planing |
| Displacement | 30 kg (66 lbs) |
Gallery
Boat Specifications
Overview
- Make
- Takacat
- Model
- T300LX
- Year
- 2024
- Hull type
- Planing
- Configuration
- Catamaran
Hull & Dimensions
- Length overall
- 3.00 m
- Waterline length
- 3.00 m
- Beam overall
- 1.55 m
- Beam at waterline
- 1.55 m
- Draft
- 0.30 m
Weights
- Displacement
- 30 kg
- Motor & battery
- 21 kg
- Total weight
- 51 kg
Electric Propulsion System

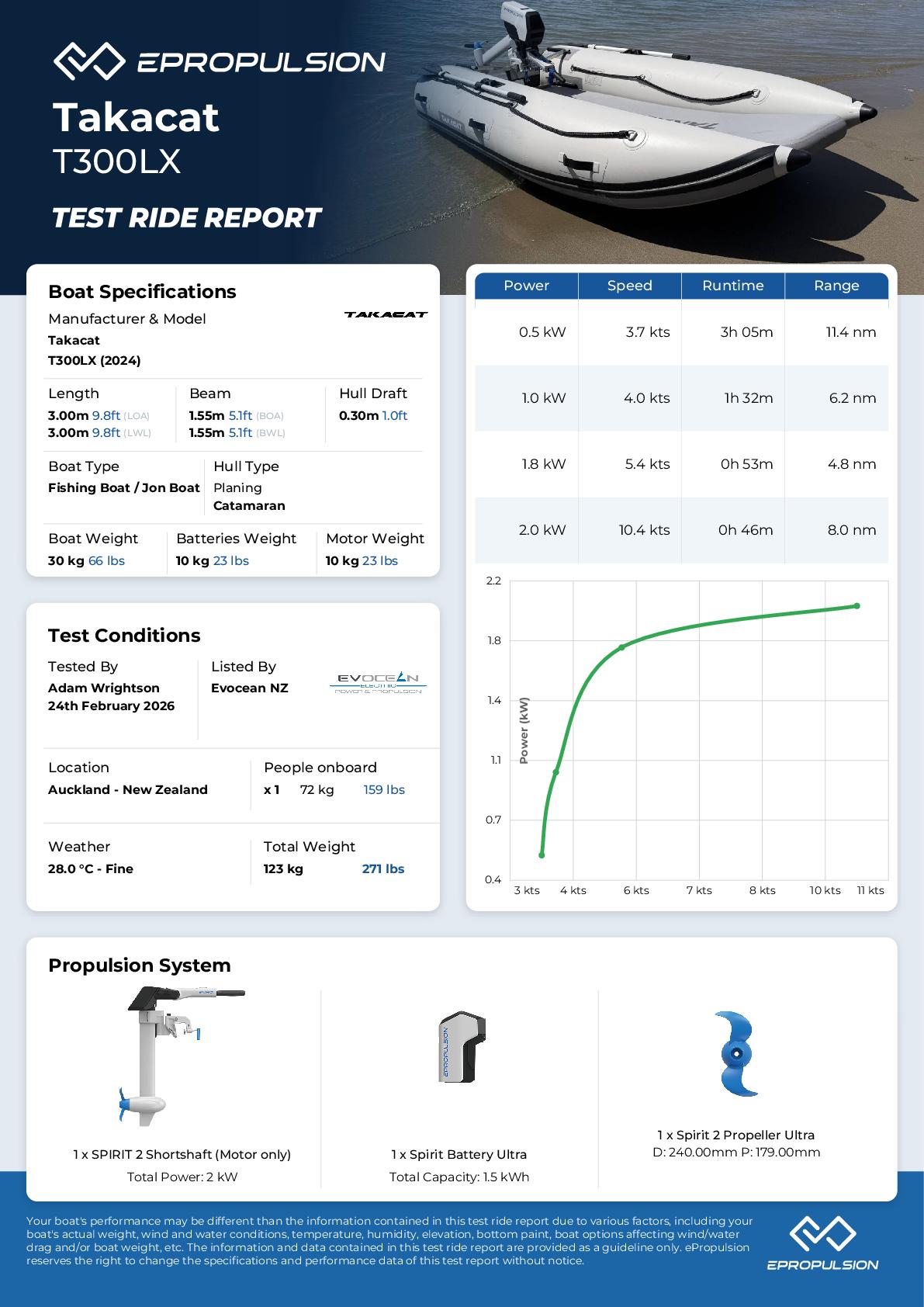

Performance Tests
Test details
- Test date
- 2026-02-24 04:11:00
- Testing personnel
- Adam Wrightson
- Persons onboard
- 1 (total 72 kg)
- Location
- Auckland, New Zealand
- Temperature
- 28 °C
- Weather
- Fine
Recorded speed
Test results
Top Speed10.4 knots
Cruising4 knots
Estimated Range5–11 nm
| Power | Actual speed | Runtime* | Range* | Energy use |
|---|---|---|---|---|
| 0.5 kW | 3.7 knots | 3h 05m | 11.4 nm | 0.14 kWh/nm |
| 1 kW | 4 knots | 1h 32m | 6.2 nm | 0.25 kWh/nm |
| 1.75 kW | 5.4 knots | 0h 53m | 4.7 nm | 0.32 kWh/nm |
| 2 kW | 10.4 knots | 0h 46m | 8 nm | 0.19 kWh/nm |
