3D Tender - FEDERLIGHT

3D Tender - FEDERLIGHT

2023
France
3D Tender

System at a Glance

This 2023 FEDERLIGHT is an electric Fishing Boat / Jon Boat from 3D Tender, powered by a 2 kW ePropulsion motor and a 1,539 Wh battery pack, offering a quiet and eco-friendly boating experience.

Length (LOA)3.35 m (11.0 ft)
Beam (BOA)1.64 m (5.4 ft)
Hull Draft0.15 m (0.5 ft)
Hull ConfigMonohull
Hull TypePlaning
Displacement35 kg (77 lbs)
View Photos Talk to a Dealer

Boat Specifications

Overview

Make
3D Tender
Model
FEDERLIGHT
Year
2023
Hull type
Planing
Configuration
Monohull

Hull & Dimensions

Length overall
3.35 m
Waterline length
2.60 m
Beam overall
1.64 m
Beam at waterline
1.10 m
Draft
0.15 m

Weights

Displacement
35 kg
Motor & battery
21 kg
Total weight
56 kg

Electric Propulsion System

Motor

1 × SPIRIT 2 Longshaft

Total Power: 2 kW
SPIRIT 2 Longshaft

Battery

1 × Spirit Battery Ultra

Capacity: 1,539 Wh
Spirit Battery Ultra

Propeller

1 × Spirit 2 Propeller Ultra

Rated RPM: 1850
Propeller

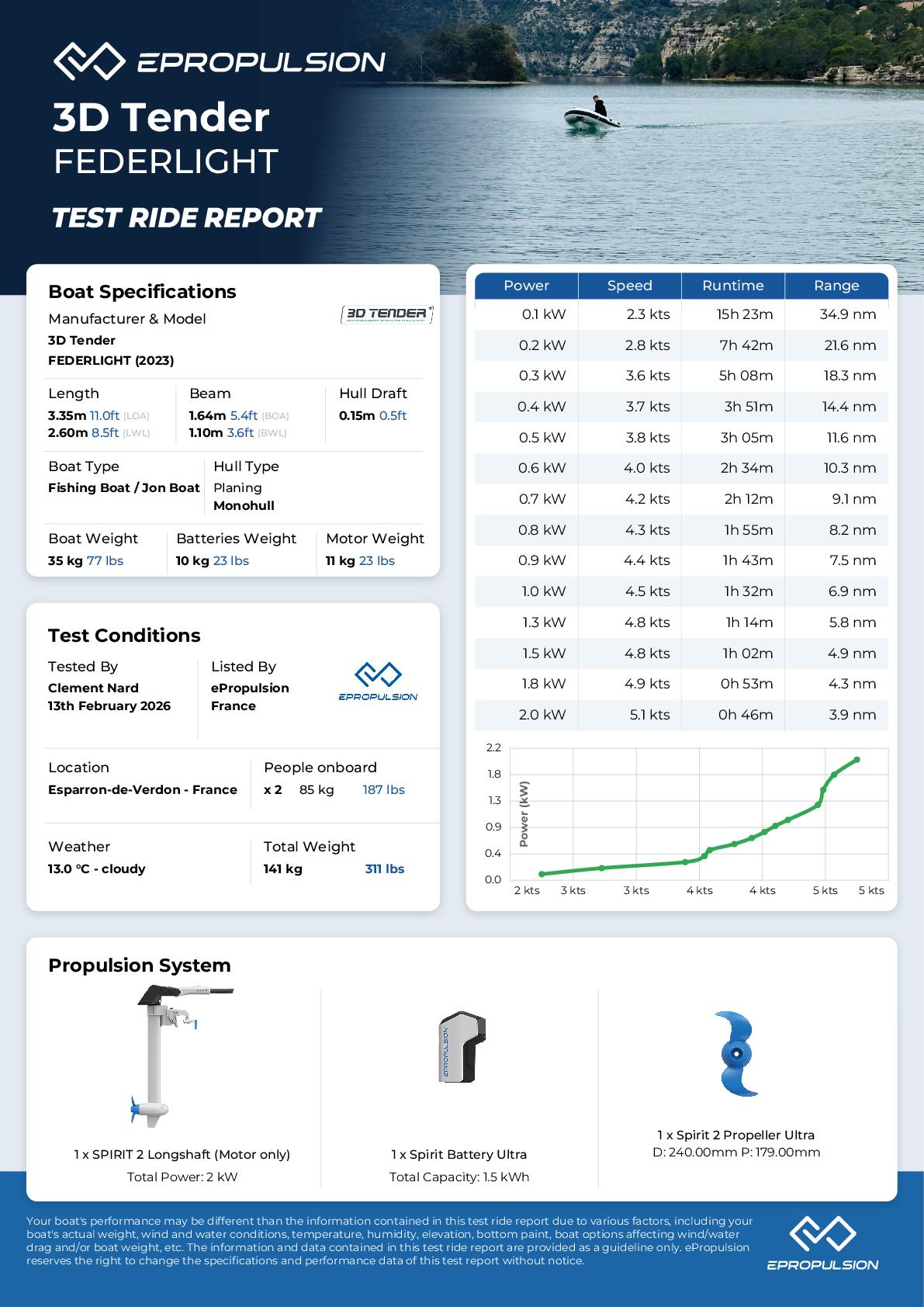

Performance Tests

Test details

Test date
2026-02-13 12:30:00
Testing personnel
Clement Nard
Persons onboard
2 (total 85 kg)
Location
Esparron-de-Verdon, France
Temperature
13 °C
Weather
cloudy

Recorded speed

Actual speed versus power for test 1 Recorded measurements are listed in the test results table. 0 0 1.3 1.5 2.5 3 3.8 4.5 5 6 Speed (knots) Power (kW)

Test results

Top Speed5.1 knots
Cruising4.3 knots
Estimated Range4–35 nm
PowerActual speedRuntime*Range*Energy use
0.1 kW 2.27 knots 15h 23m 34.9 nm 0.04 kWh/nm
0.2 kW 2.81 knots 7h 42m 21.6 nm 0.07 kWh/nm
0.3 kW 3.56 knots 5h 08m 18.3 nm 0.08 kWh/nm
0.4 kW 3.73 knots 3h 51m 14.4 nm 0.11 kWh/nm
0.5 kW 3.78 knots 3h 05m 11.6 nm 0.13 kWh/nm
0.6 kW 4 knots 2h 34m 10.3 nm 0.15 kWh/nm
0.7 kW 4.16 knots 2h 12m 9.1 nm 0.17 kWh/nm
0.8 kW 4.27 knots 1h 55m 8.2 nm 0.19 kWh/nm
0.9 kW 4.37 knots 1h 43m 7.5 nm 0.21 kWh/nm
1 kW 4.48 knots 1h 32m 6.9 nm 0.22 kWh/nm
1.25 kW 4.75 knots 1h 14m 5.9 nm 0.26 kWh/nm
1.5 kW 4.8 knots 1h 02m 4.9 nm 0.31 kWh/nm
1.75 kW 4.9 knots 0h 53m 4.3 nm 0.36 kWh/nm
2 kW 5.1 knots 0h 46m 3.9 nm 0.39 kWh/nm

Actual speed is recorded during the test. Energy use, runtime and range* are calculated from the readings and nominal battery capacity; runtime and range do not account for reserve capacity.
