System at a Glance
This 2020 Classic 380 is an electric RIB / Inflatable from Highfield, powered by a 6 kW ePropulsion motor and a 8 kWh battery pack, offering a quiet and eco-friendly boating experience.
| Length (LOA) | 3.8 m (12.5 ft) |
| Beam (BOA) | 1.7 m (5.6 ft) |
| Hull Draft | 0.5 m (1.6 ft) |
| Hull Config | Monohull |
| Hull Type | Planing |
| Displacement | 83 kg (183 lbs) |
Boat Specifications
Overview
- Make
- Highfield
- Model
- Classic 380
- Year
- 2020
- Hull type
- Planing
- Configuration
- Monohull
Hull & Dimensions
- Length overall
- 3.80 m
- Beam overall
- 1.70 m
- Draft
- 0.50 m
Weights
- Displacement
- 83 kg
- Motor & battery
- 142 kg
- Total weight
- 225 kg
Electric Propulsion System

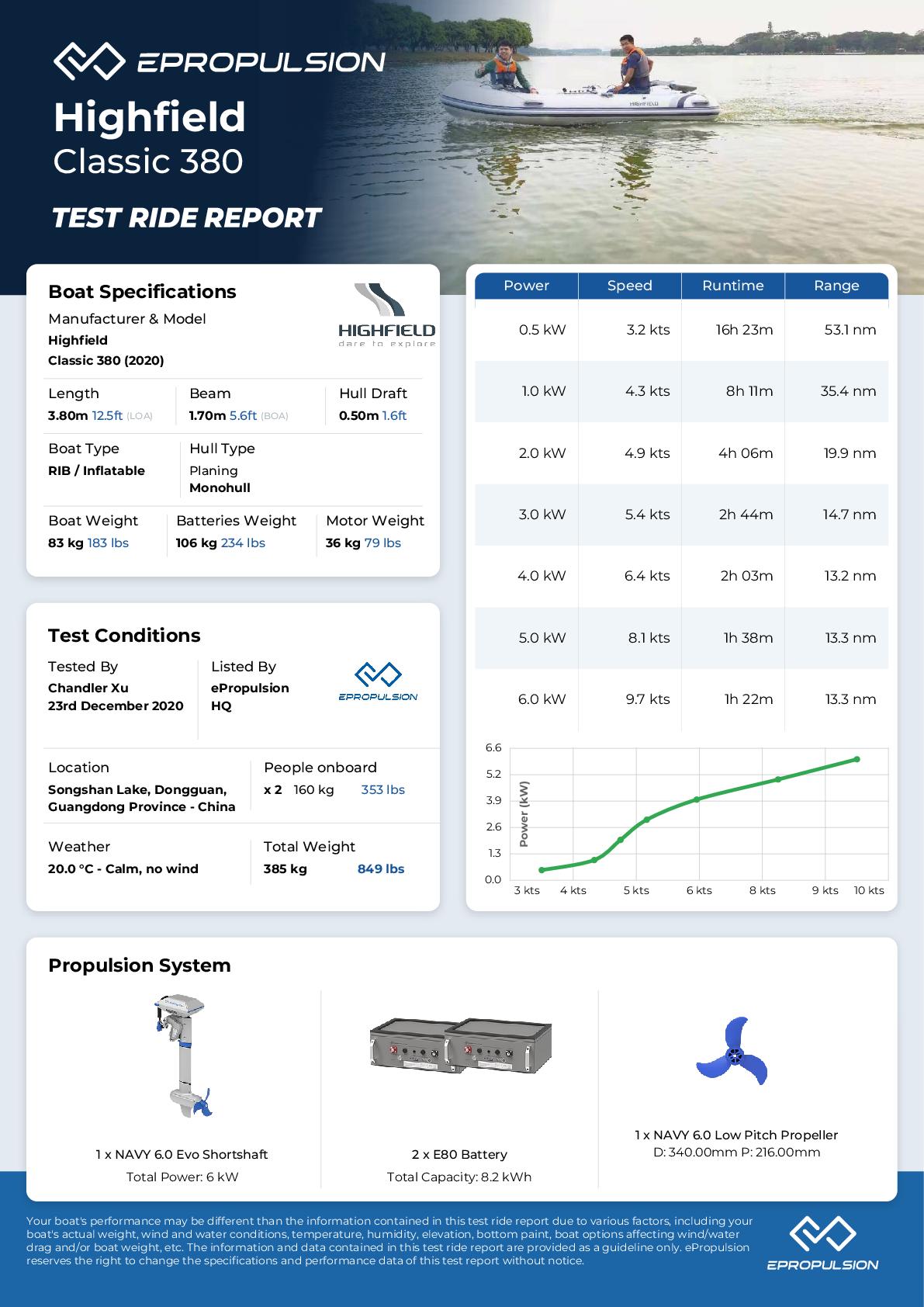

Performance Tests
Test details
- Test date
- 2020-12-23 00:00:00
- Testing personnel
- Chandler Xu
- Persons onboard
- 2 (total 160 kg)
- Location
- Songshan Lake, Dongguan, Guangdong Province, China
- Temperature
- 20 °C
- Weather
- Calm, no wind
Recorded speed
Test results
Top Speed9.7 knots
Cruising5.4 knots
Estimated Range13–53 nm
| Power | Actual speed | Runtime* | Range* | Energy use |
|---|---|---|---|---|
| 0.5 kW | 3.24 knots | 16h 23m | 53.1 nm | 0.15 kWh/nm |
| 1 kW | 4.32 knots | 8h 12m | 35.4 nm | 0.23 kWh/nm |
| 2 kW | 4.86 knots | 4h 06m | 19.9 nm | 0.41 kWh/nm |
| 3 kW | 5.4 knots | 2h 44m | 14.7 nm | 0.56 kWh/nm |
| 4 kW | 6.43 knots | 2h 03m | 13.2 nm | 0.62 kWh/nm |
| 5 kW | 8.1 knots | 1h 38m | 13.3 nm | 0.62 kWh/nm |
| 6 kW | 9.72 knots | 1h 22m | 13.3 nm | 0.62 kWh/nm |
