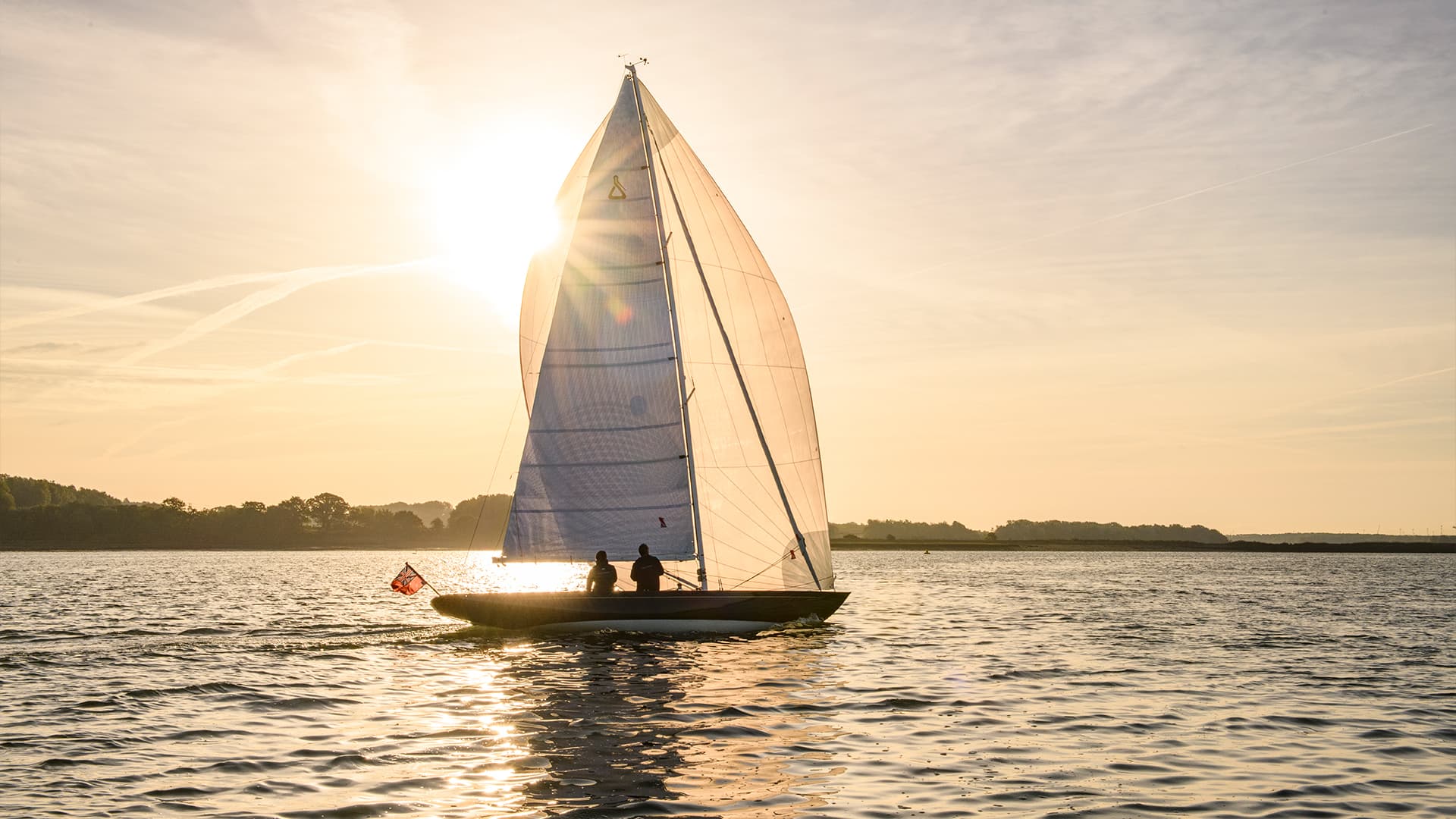

Spirit - R30

Spirit - R30

2023
United Kingdom
Spirit

System at a Glance

This 2023 R30 is an electric Sailboat (Monohull) from Spirit, powered by a 3 kW ePropulsion motor and a 4 kWh battery pack, offering a quiet and eco-friendly boating experience.

Length (LOA)6.35 m (20.8 ft)
Beam (BOA)1.98 m (6.5 ft)
Hull Draft1.35 m (4.4 ft)
Hull ConfigMonohull
Hull TypeSemi Displacement
Displacement1,600 kg (3,527 lbs)
View Photos Talk to a Dealer

Boat Specifications

Overview

Make
Spirit
Model
R30
Year
2023
Hull type
Semi Displacement
Configuration
Monohull

Hull & Dimensions

Length overall
6.35 m
Beam overall
1.98 m
Draft
1.35 m

Weights

Displacement
1,600 kg
Motor & battery
70 kg
Total weight
1,670 kg

Electric Propulsion System

Motor

1 × Pod Drive 3.0 Evo

Total Power: 3 kW
Pod Drive 3.0 Evo

Battery

1 × E80 Battery

Capacity: 4 kWh
E80 Battery

Propeller

1 × Pod 3.0 Evo Folding Propeller

Rated RPM: 1600
Propeller

Performance Tests

Test details

Test date
2023-05-04 12:00:00
Testing personnel
Spirit Yachts
Persons onboard
2 (total 160 kg)
Location
United Kingdom
Temperature
0 °C
Weather
No tide, < 4kn wind

Recorded speed

Actual speed versus power for test 1 Recorded measurements are listed in the test results table. 0 0 1.3 2 2.5 4 3.8 6 5 8 Speed (knots) Power (kW)

Test results

Top Speed6 knots
Cruising5.1 knots
Estimated Range8–50 nm
PowerActual speedRuntime*Range*Energy use
0.1 kW 1.27 knots 40h 58m 52 nm 0.08 kWh/nm
0.2 kW 2.44 knots 20h 29m 49.9 nm 0.08 kWh/nm
0.3 kW 3.22 knots 13h 39m 43.9 nm 0.09 kWh/nm
0.4 kW 3.73 knots 10h 14m 38.2 nm 0.11 kWh/nm
0.5 kW 4.13 knots 8h 12m 33.8 nm 0.12 kWh/nm
0.6 kW 4.34 knots 6h 50m 29.6 nm 0.14 kWh/nm
0.7 kW 4.51 knots 5h 51m 26.4 nm 0.16 kWh/nm
0.8 kW 4.66 knots 5h 07m 23.9 nm 0.17 kWh/nm
0.9 kW 4.79 knots 4h 33m 21.8 nm 0.19 kWh/nm
1 kW 4.92 knots 4h 06m 20.1 nm 0.2 kWh/nm
1.25 kW 5.14 knots 3h 17m 16.8 nm 0.24 kWh/nm
1.5 kW 5.34 knots 2h 44m 14.6 nm 0.28 kWh/nm
1.75 kW 5.52 knots 2h 20m 12.9 nm 0.32 kWh/nm
2 kW 5.66 knots 2h 03m 11.6 nm 0.35 kWh/nm
2.25 kW 5.77 knots 1h 49m 10.5 nm 0.39 kWh/nm
2.5 kW 5.85 knots 1h 38m 9.6 nm 0.43 kWh/nm
2.75 kW 5.93 knots 1h 29m 8.8 nm 0.46 kWh/nm
3 kW 6.01 knots 1h 22m 8.2 nm 0.5 kWh/nm

Actual speed is recorded during the test. Energy use, runtime and range* are calculated from the readings and nominal battery capacity; runtime and range do not account for reserve capacity.
