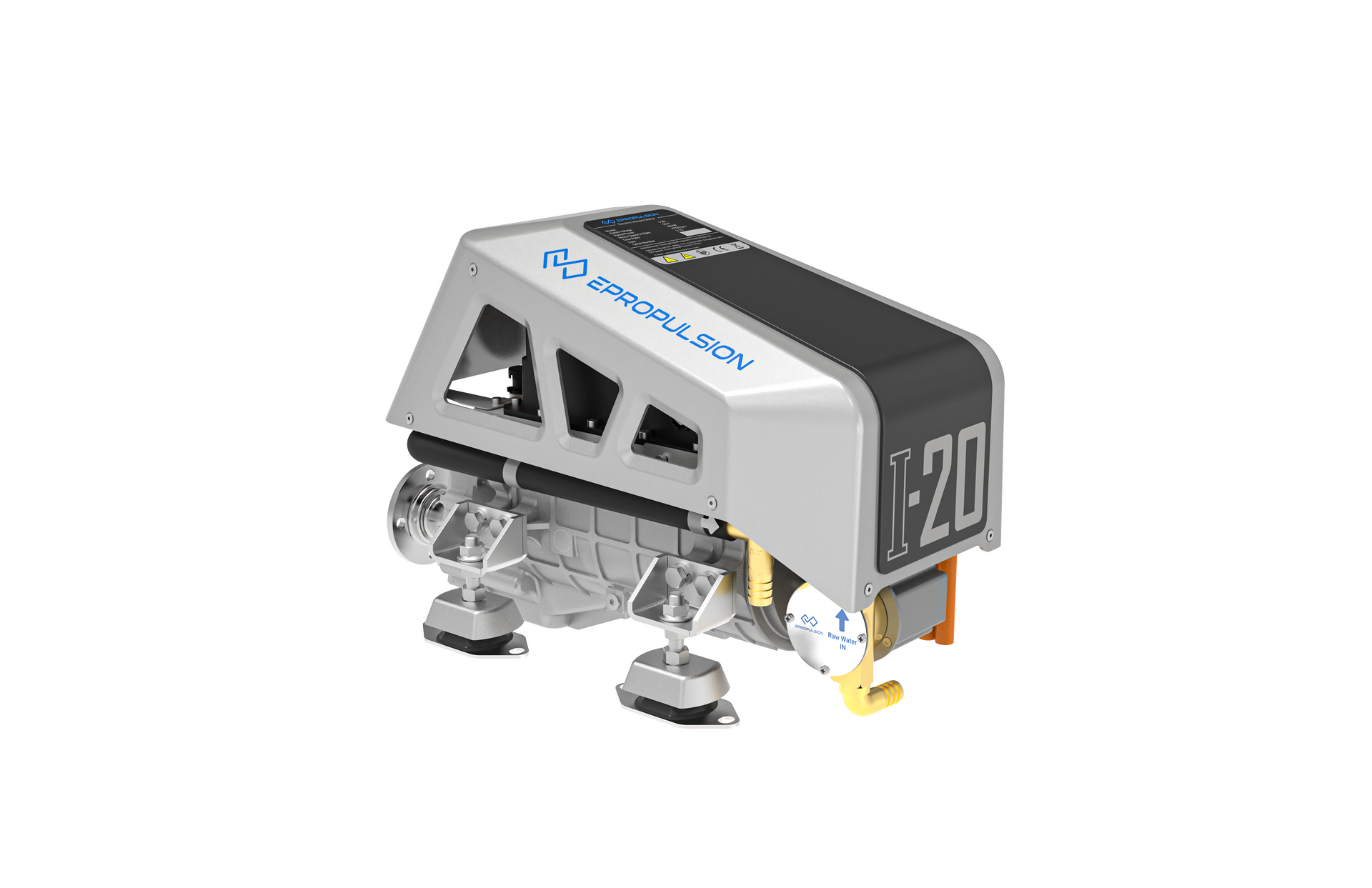

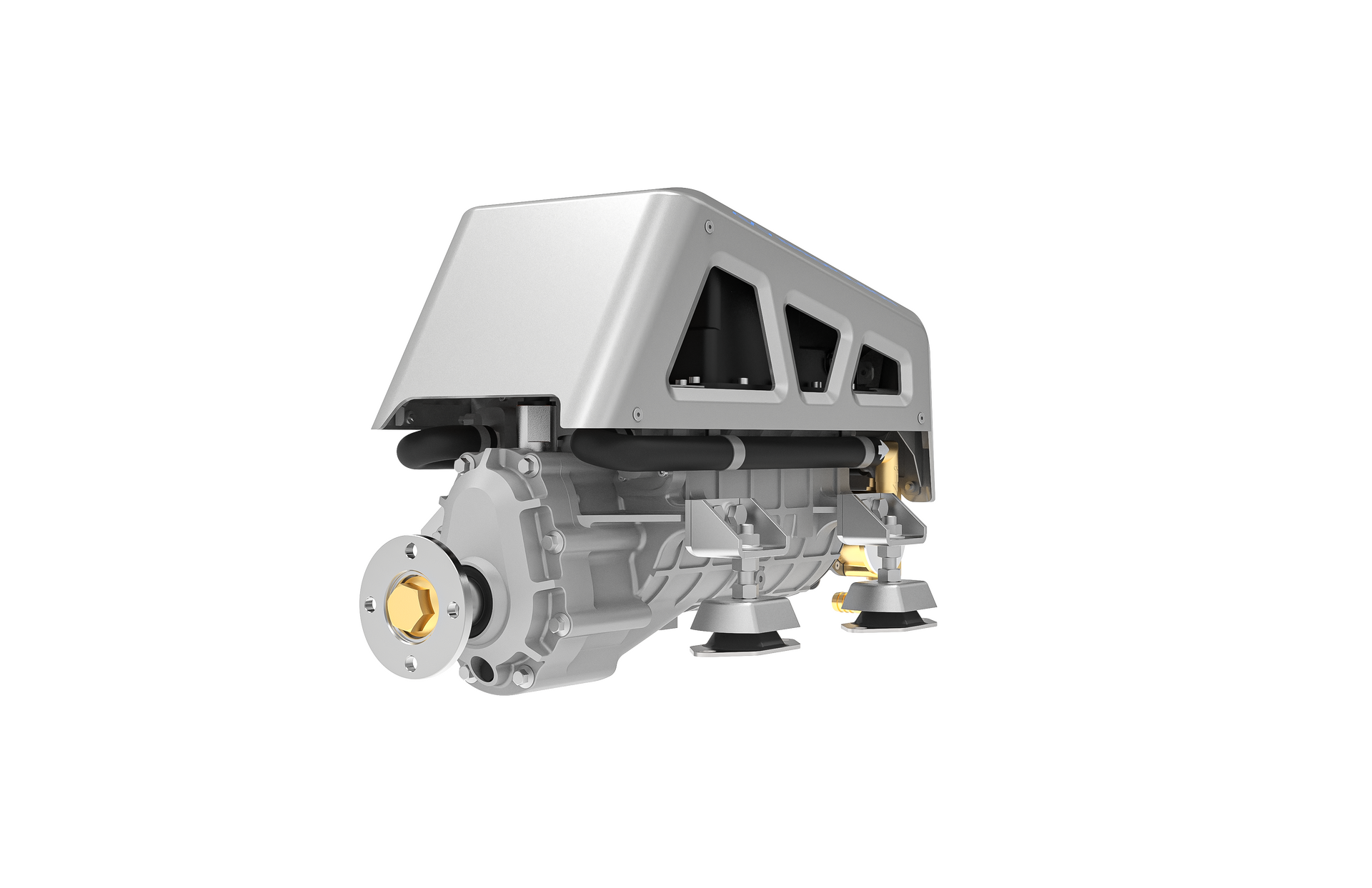

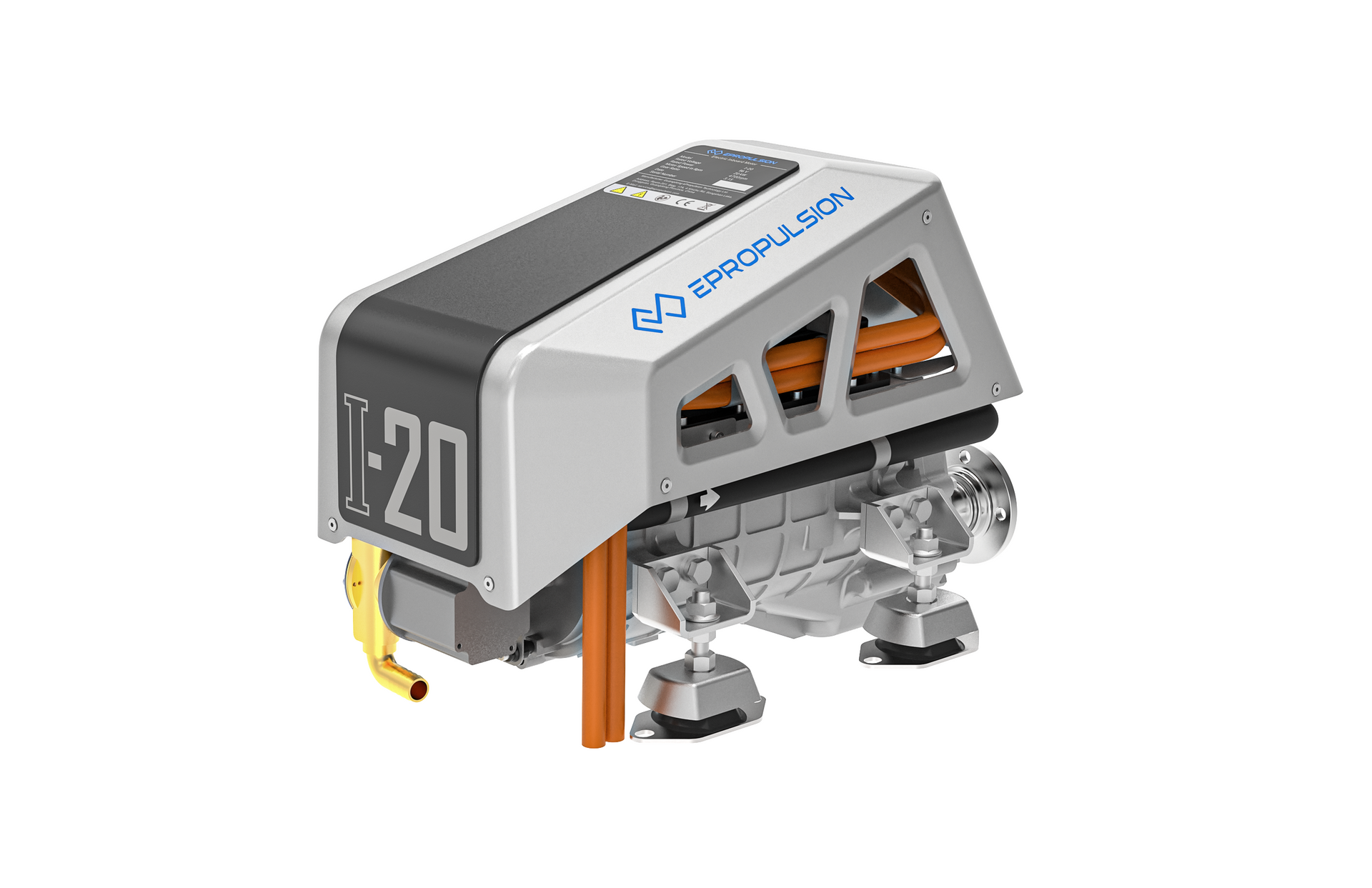

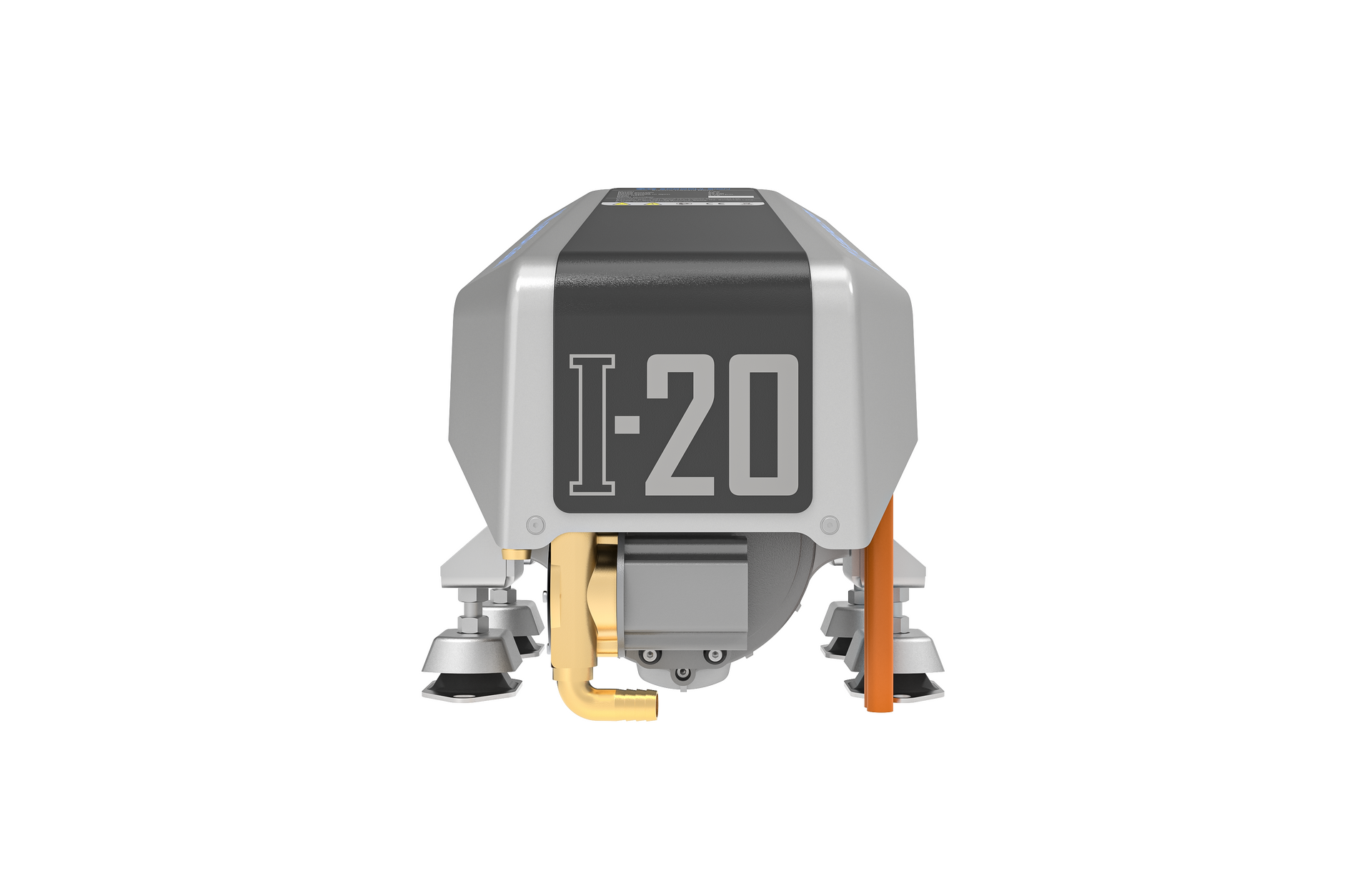

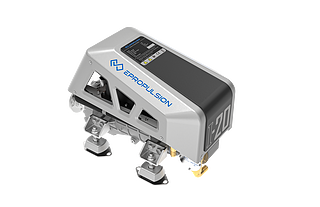

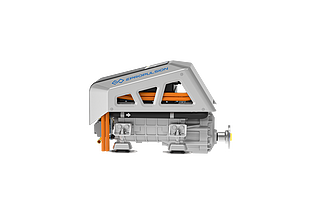

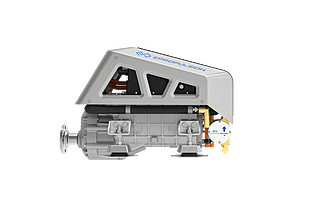

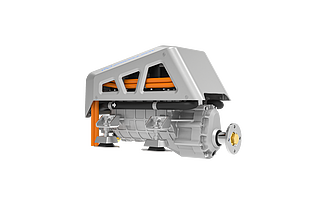

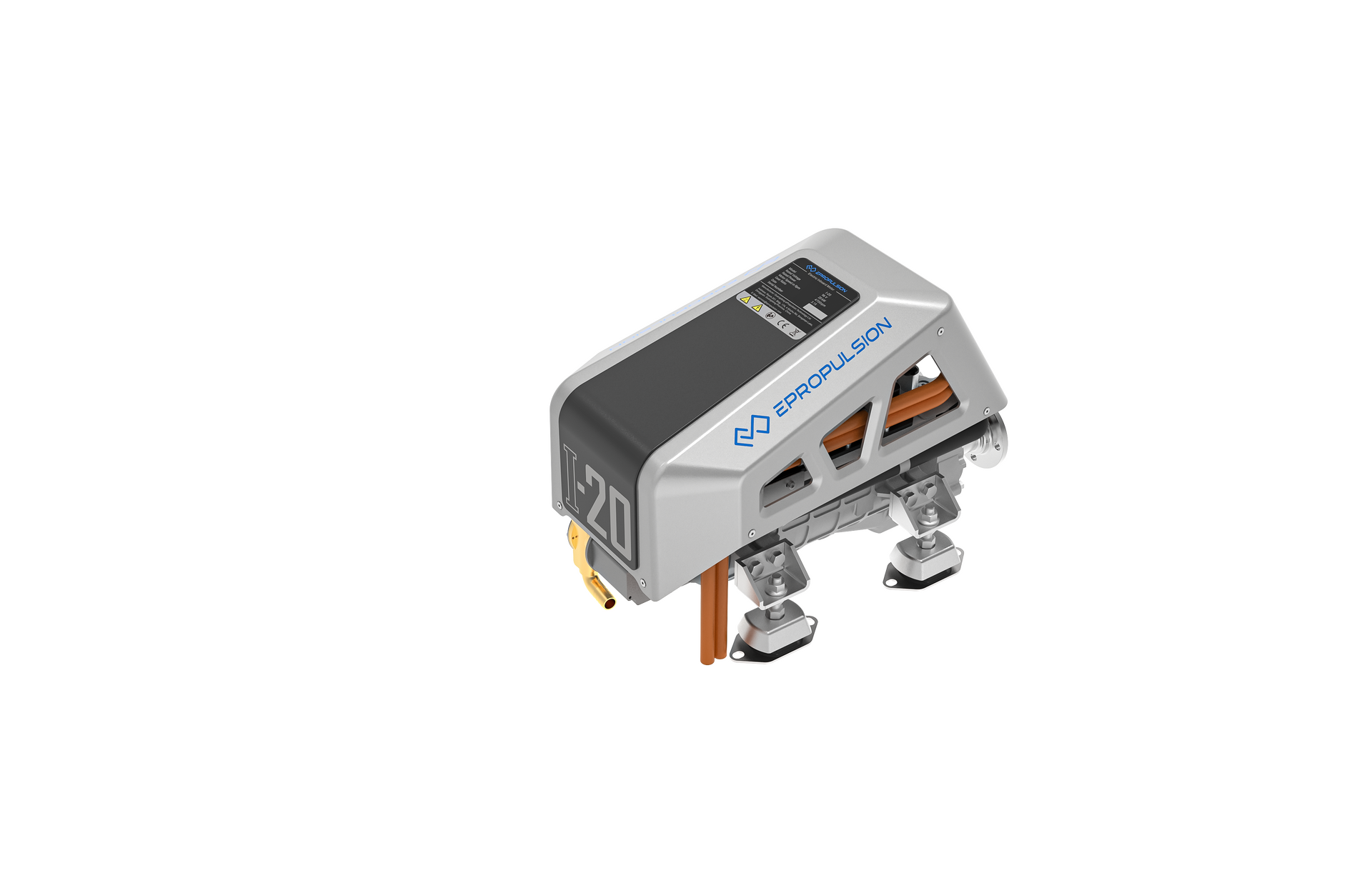

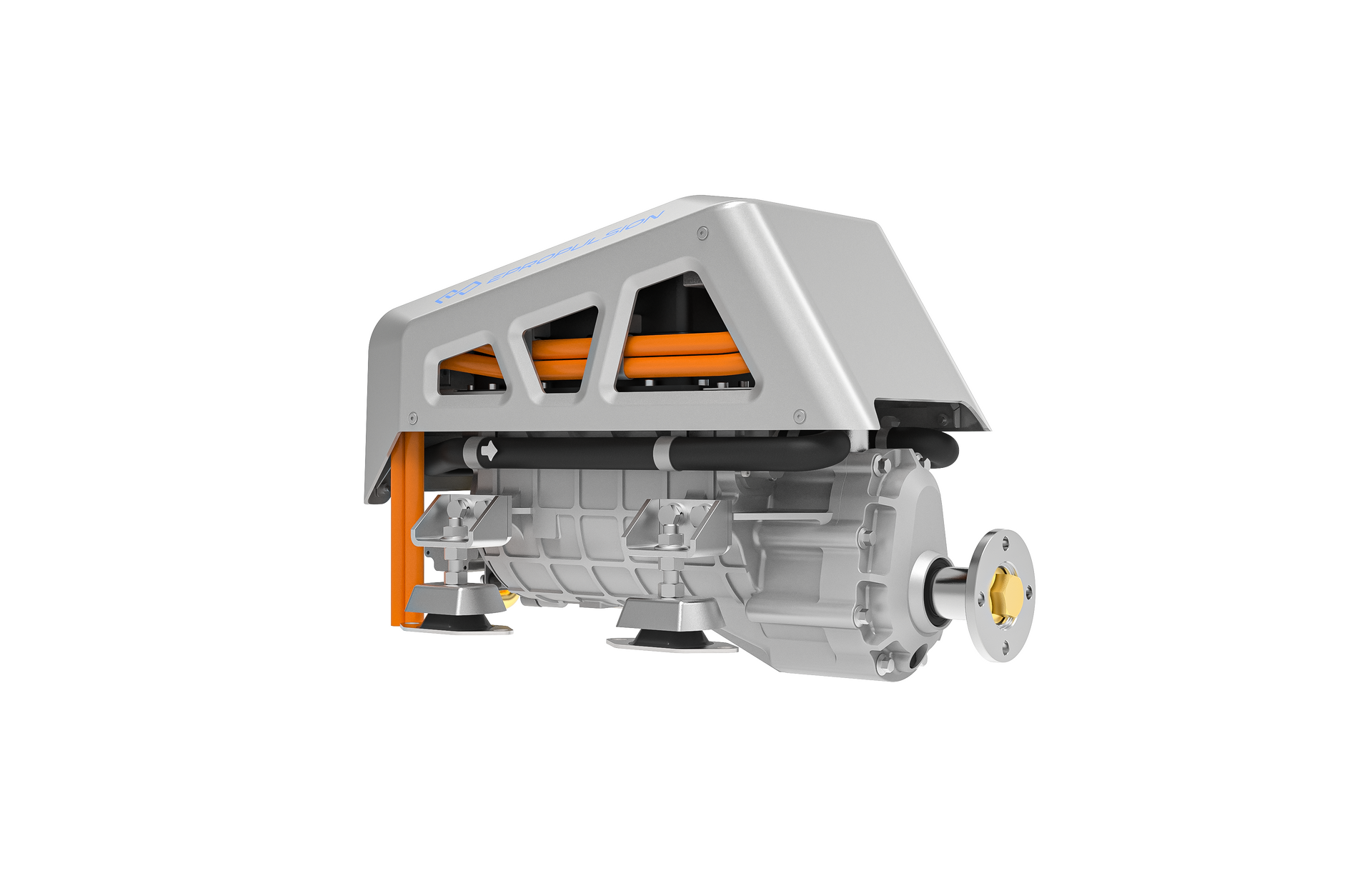

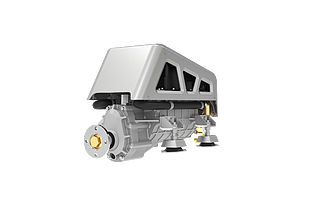

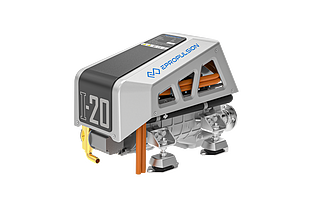

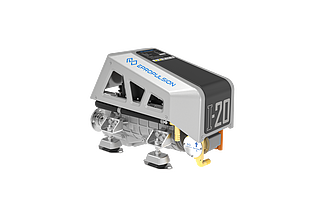

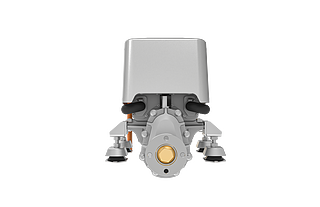

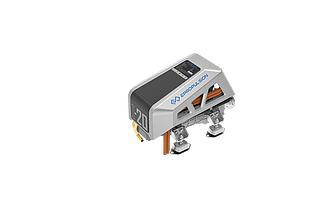

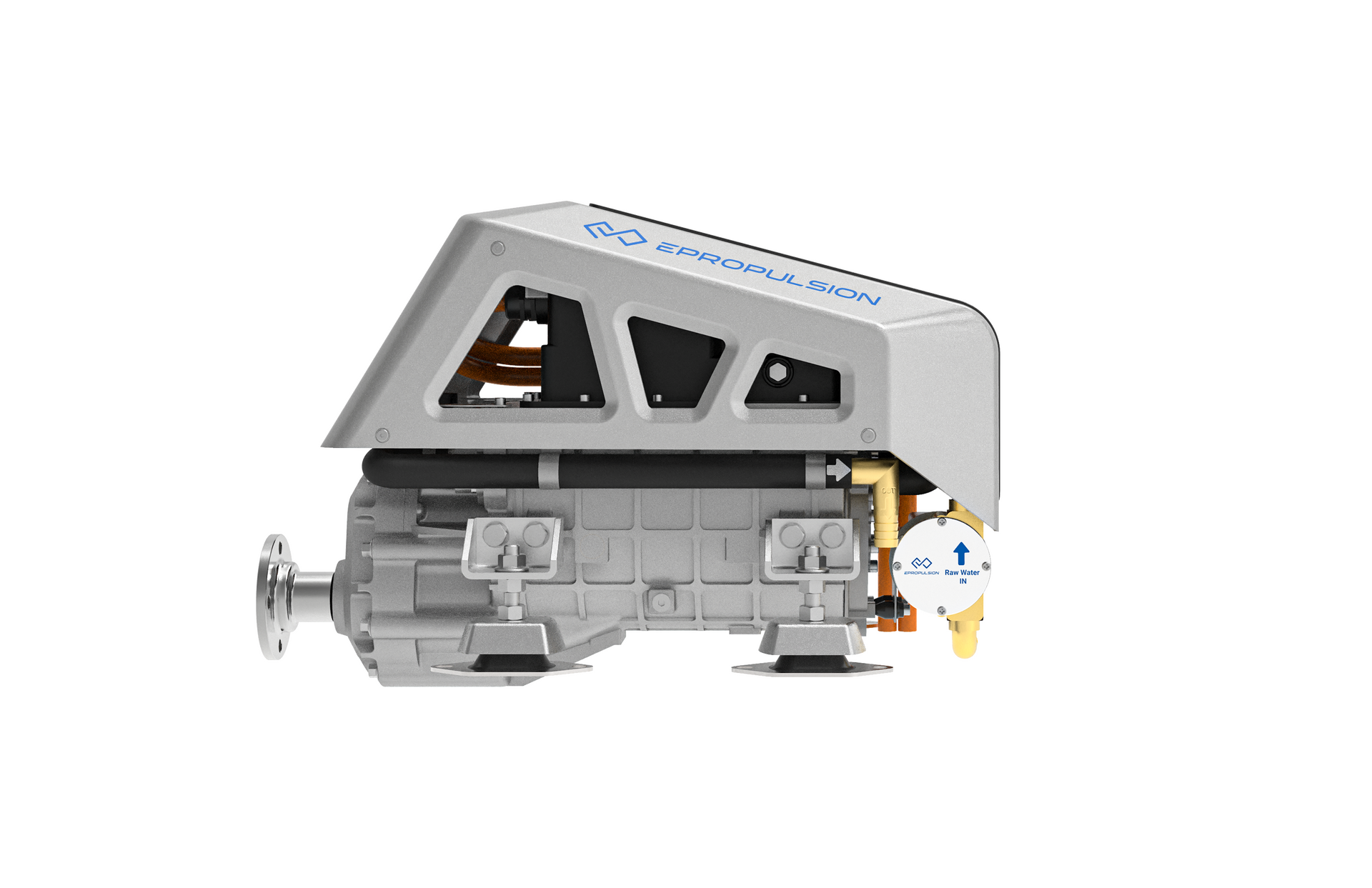

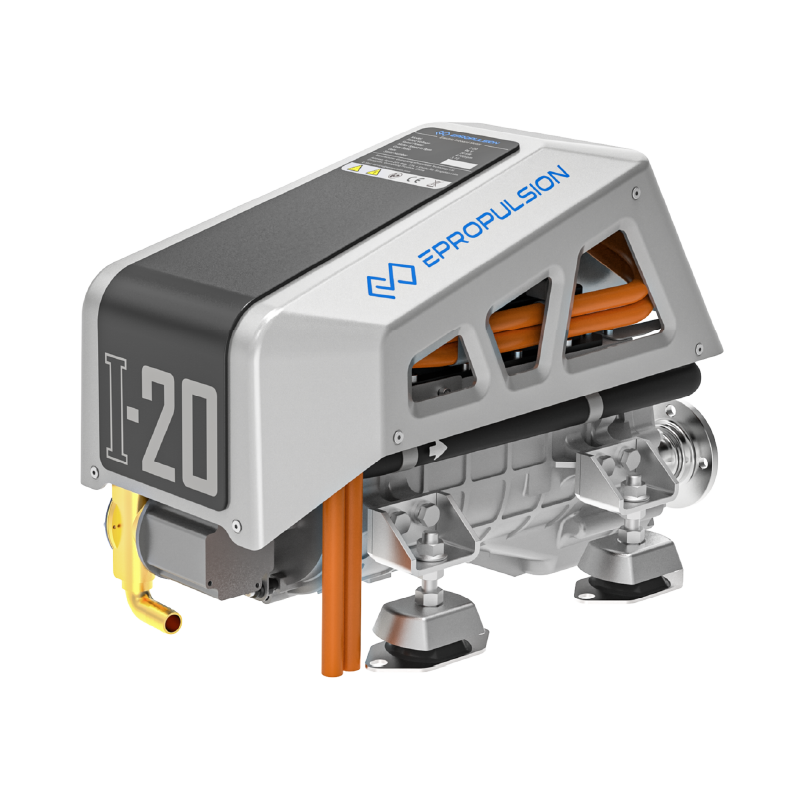

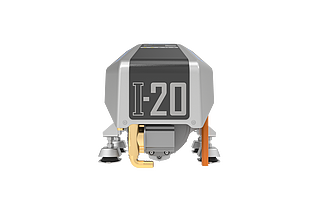

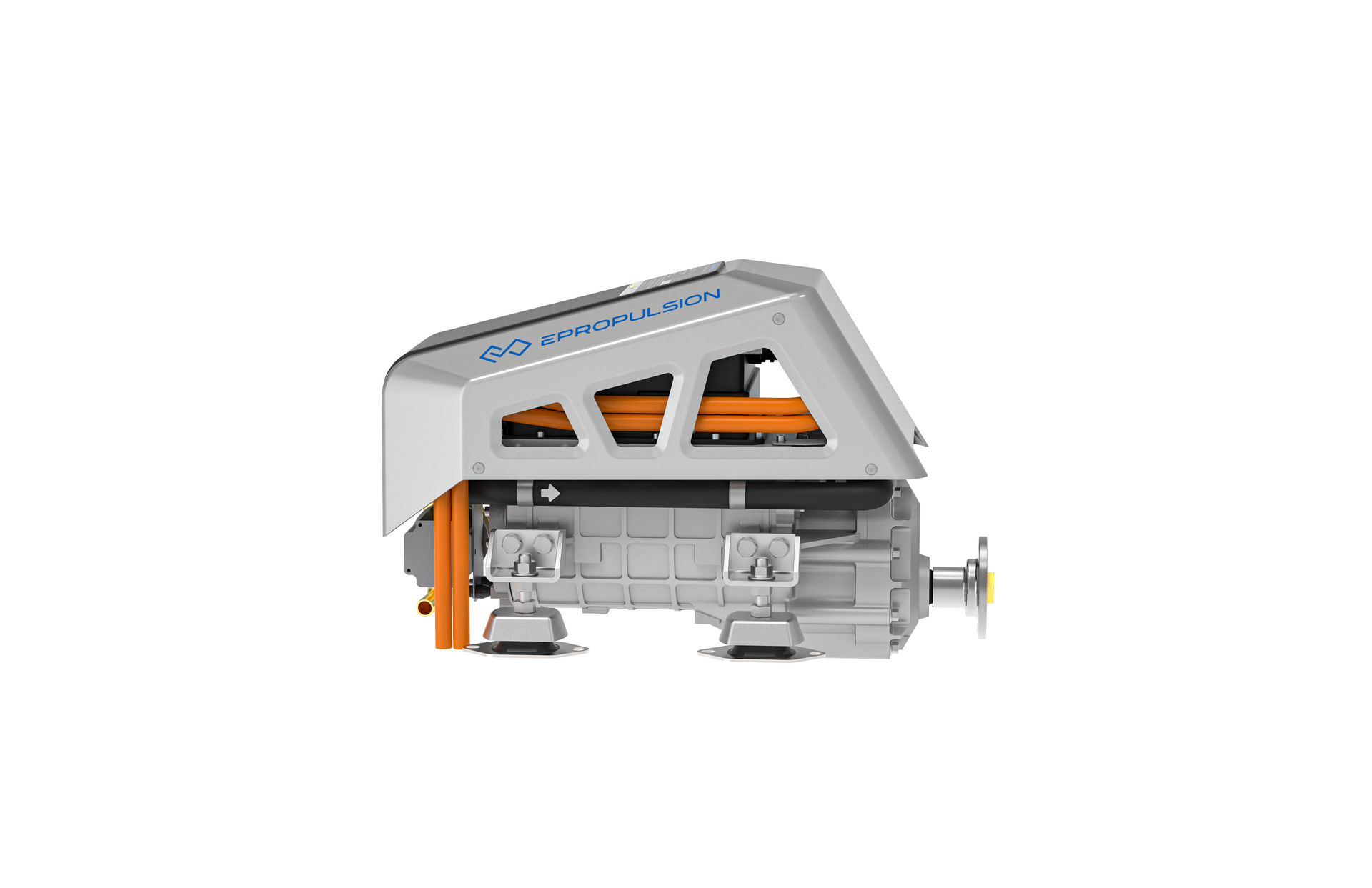

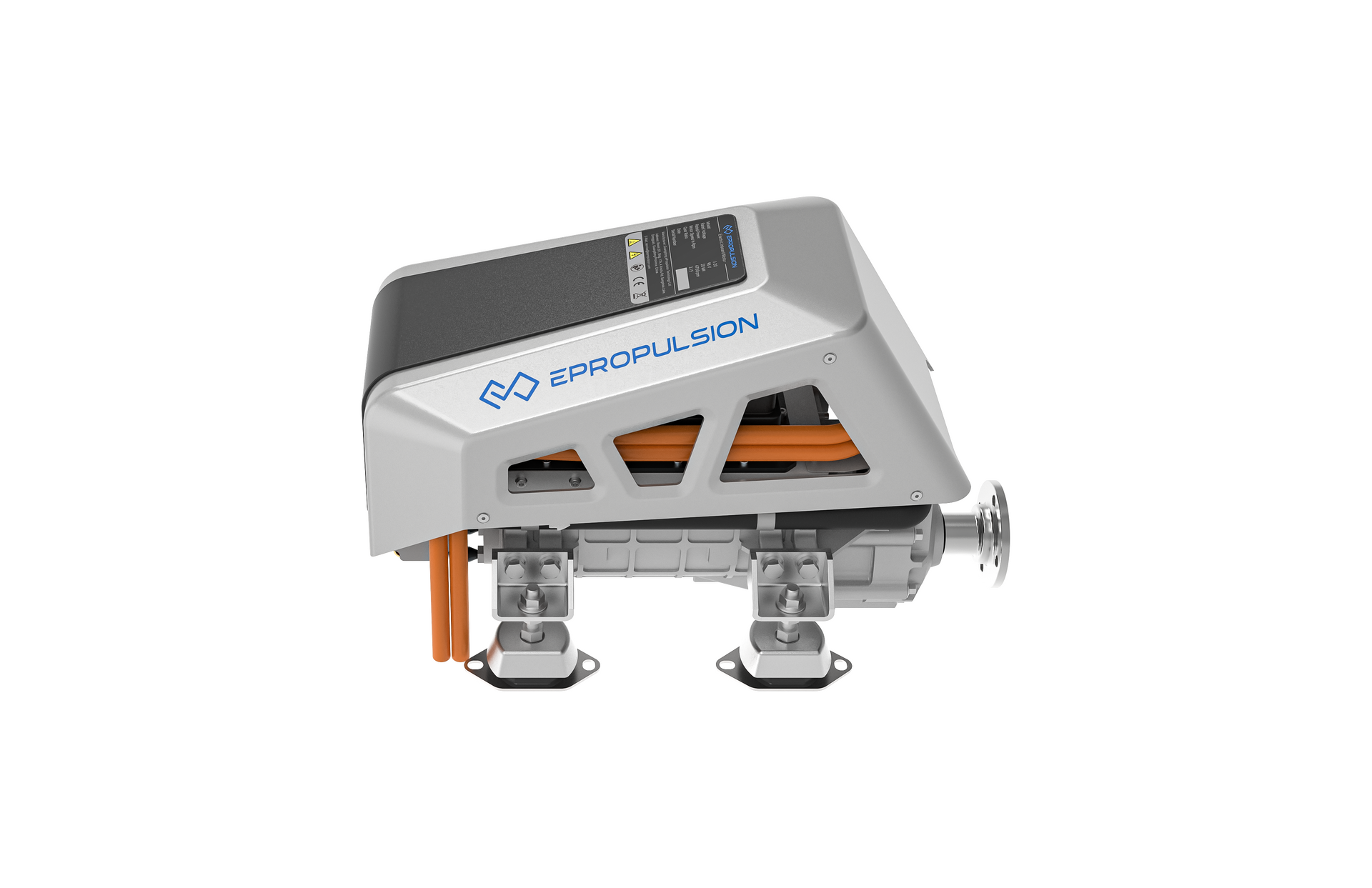

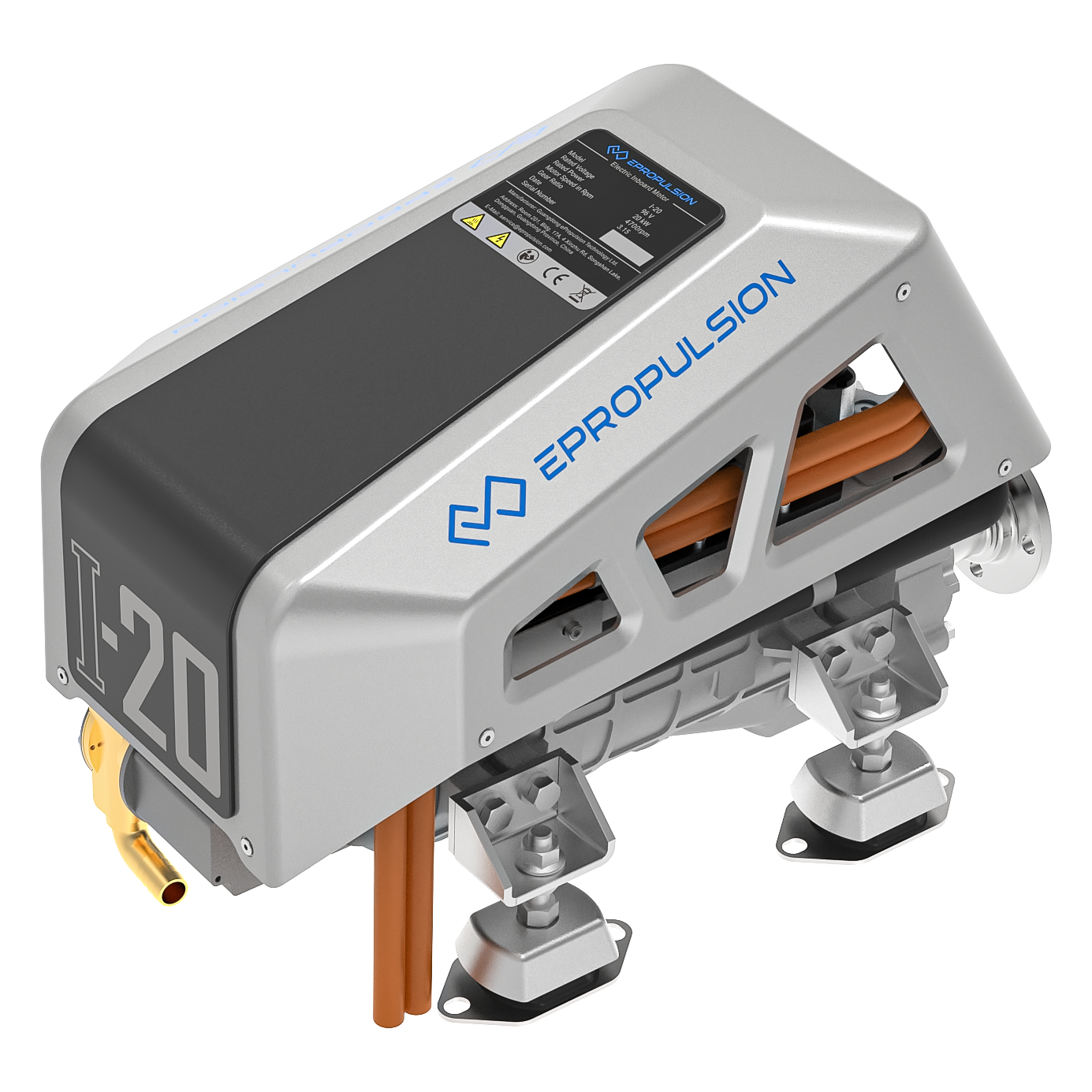

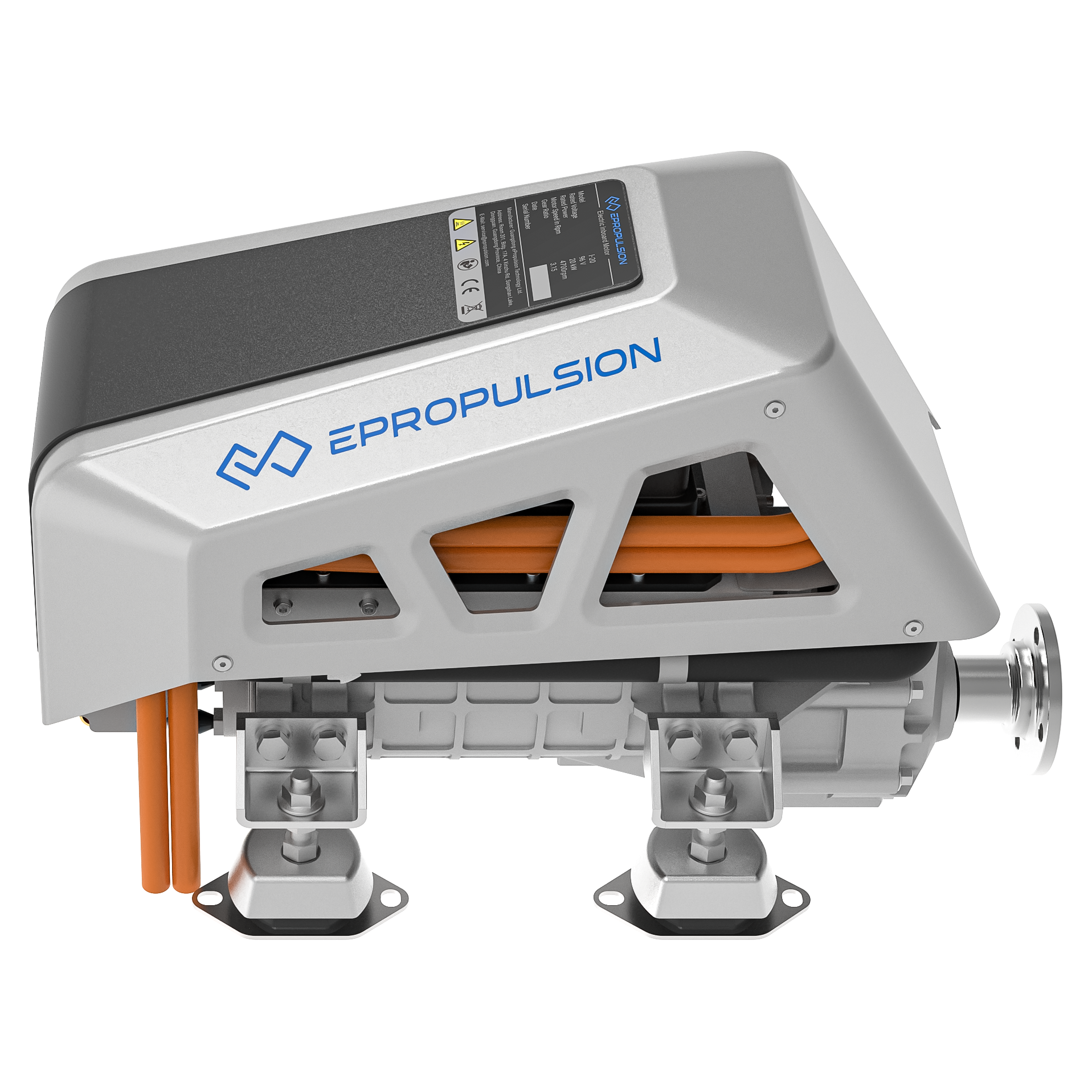

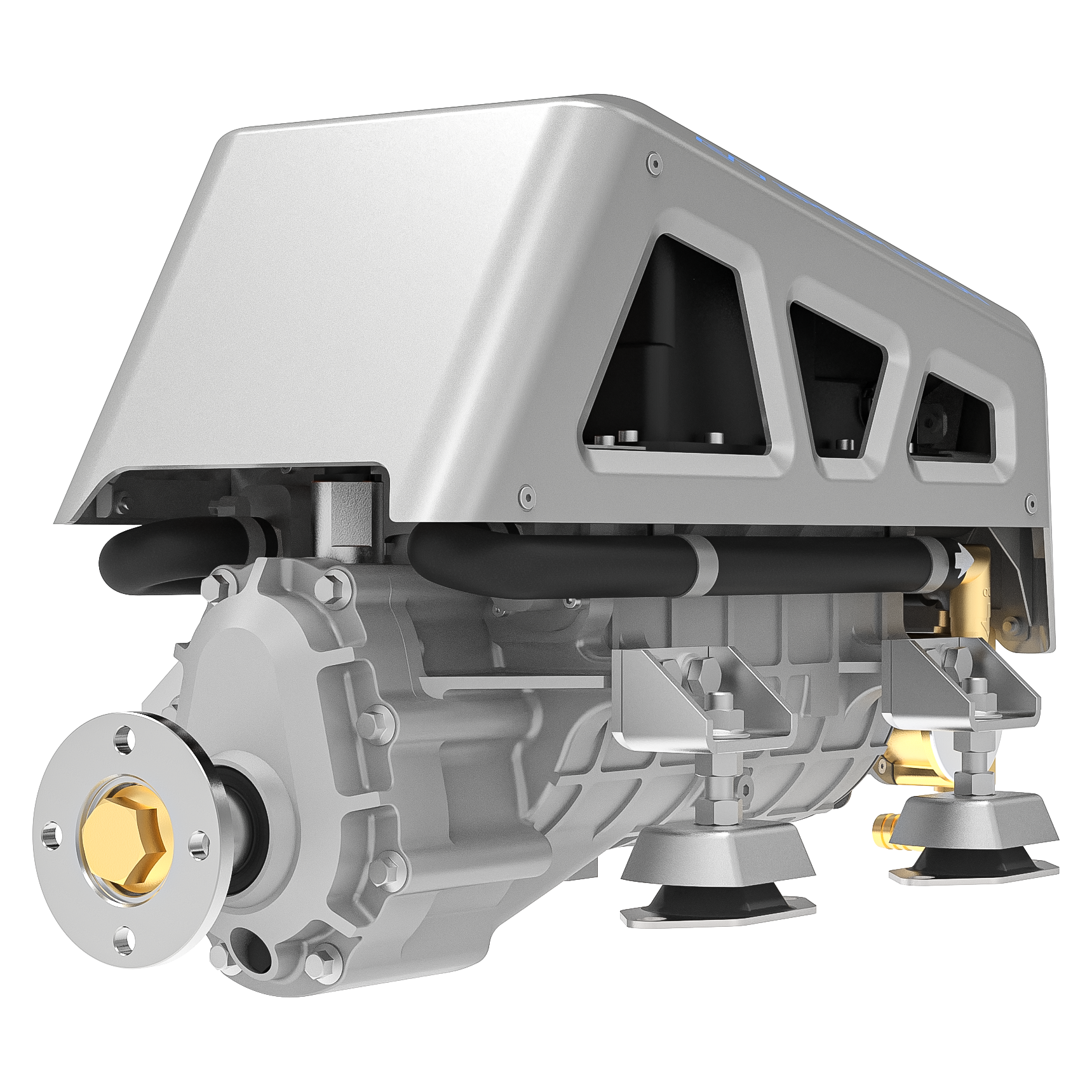

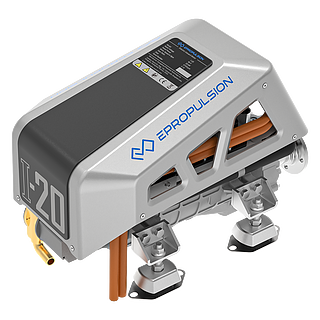

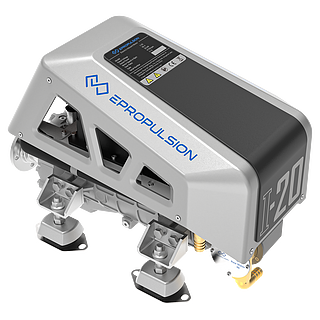

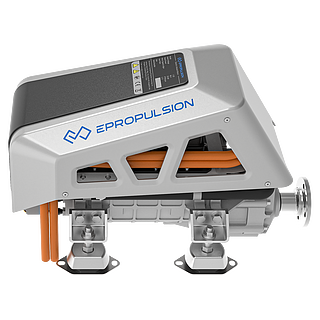

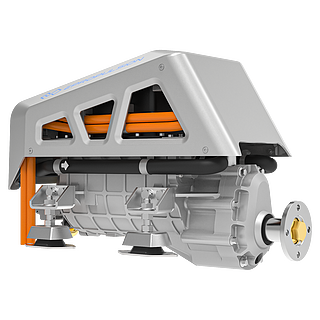

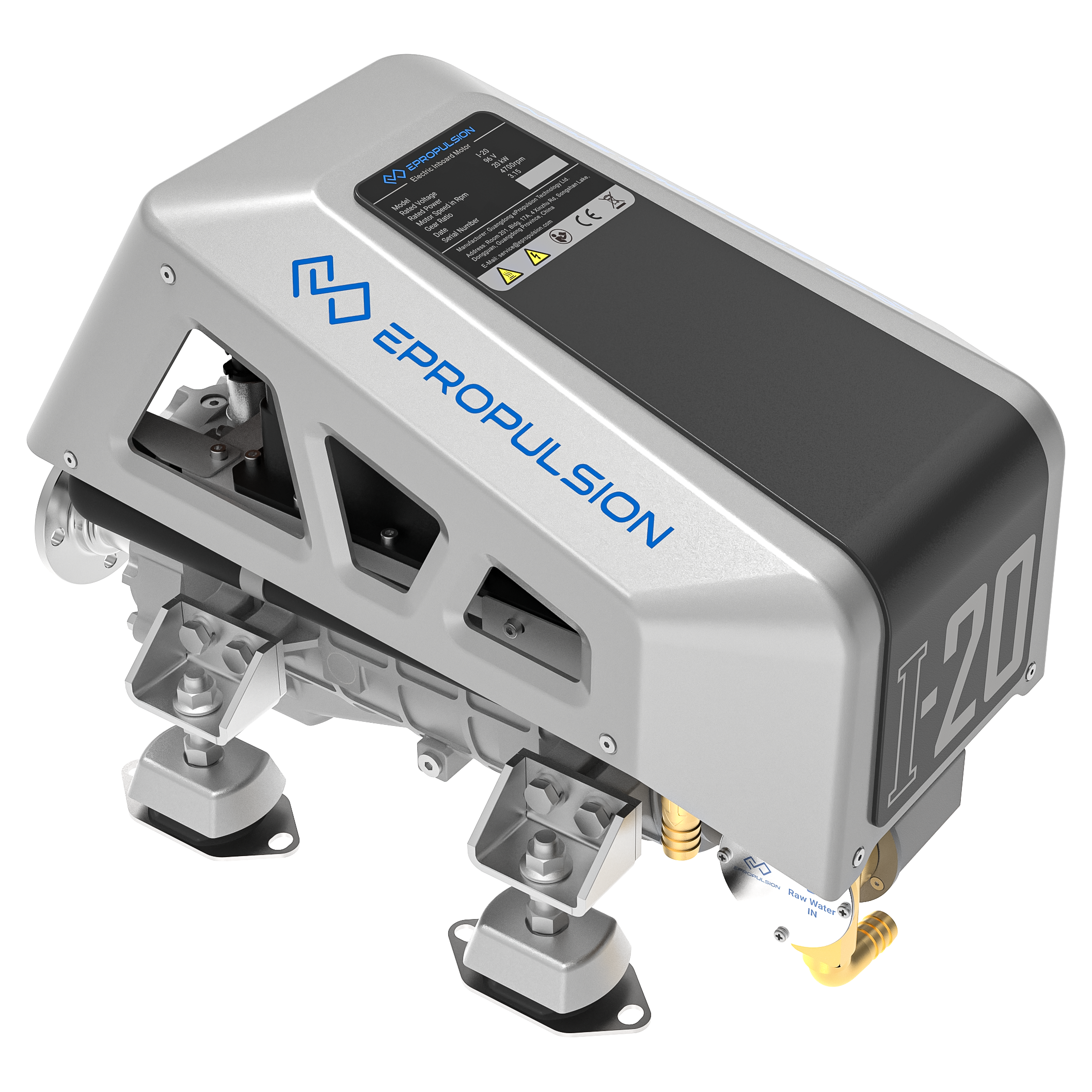

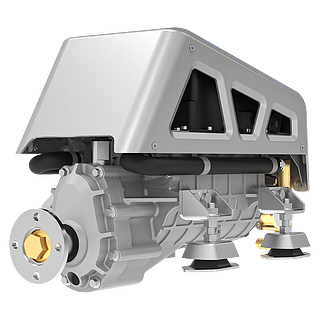

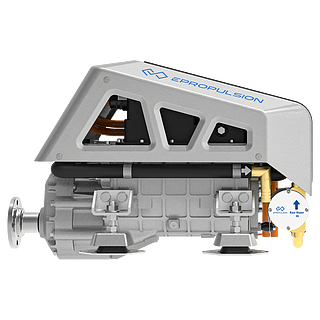

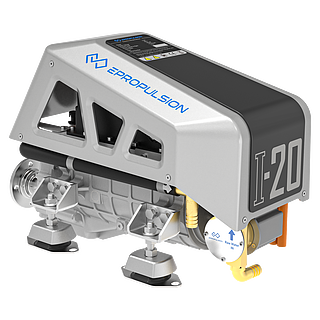

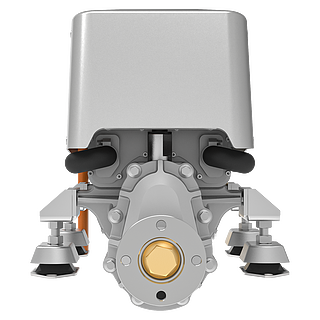

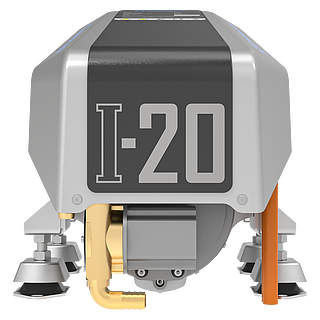

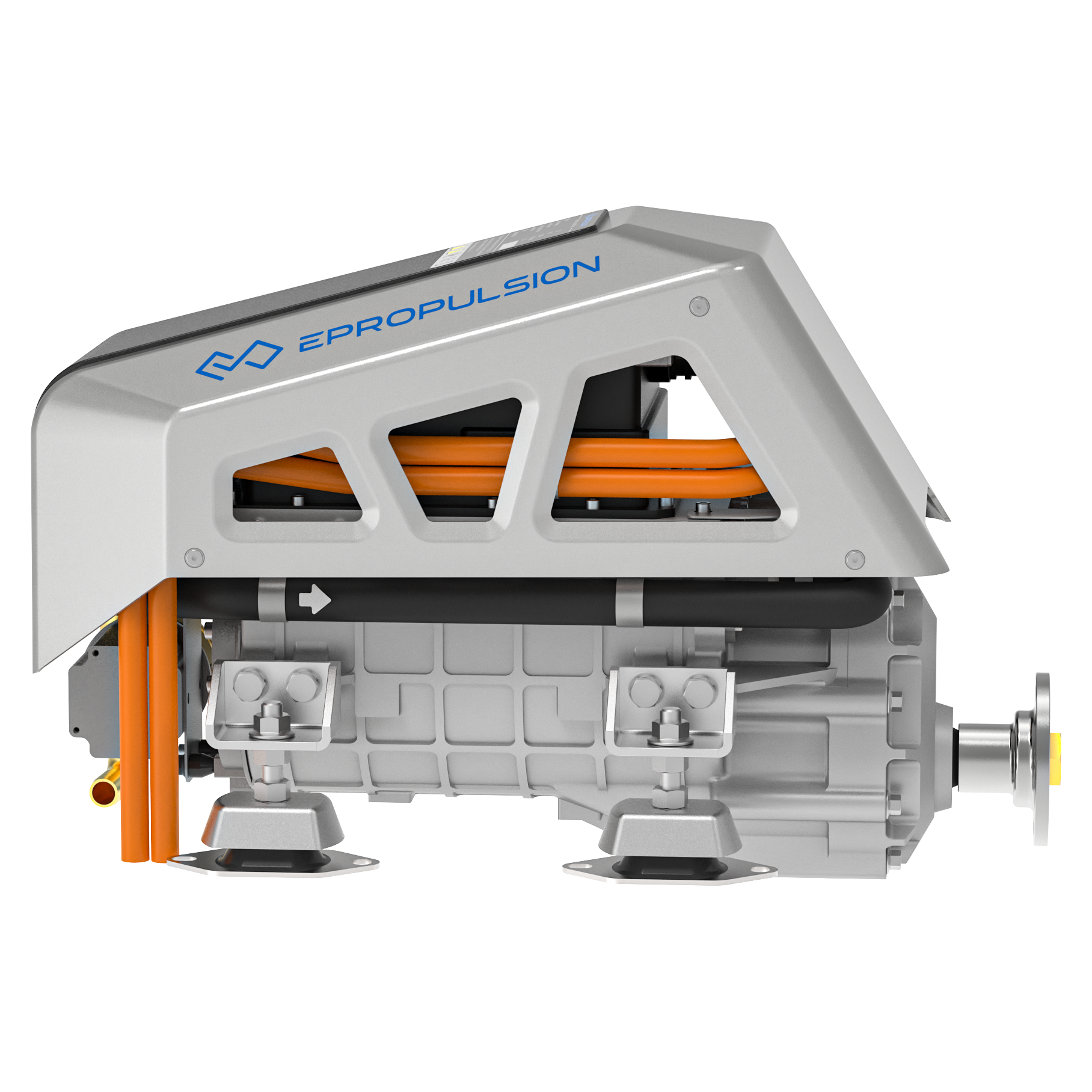

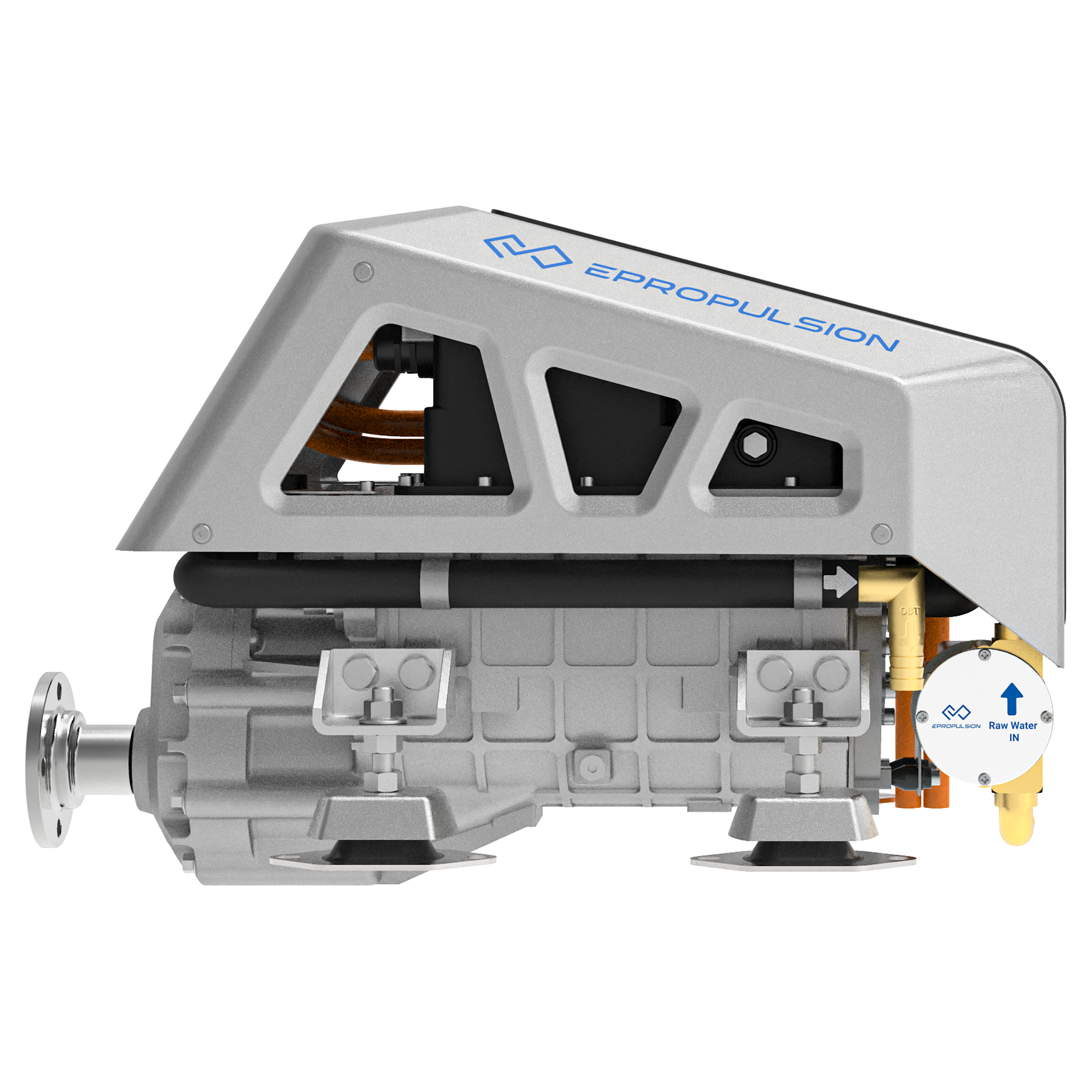

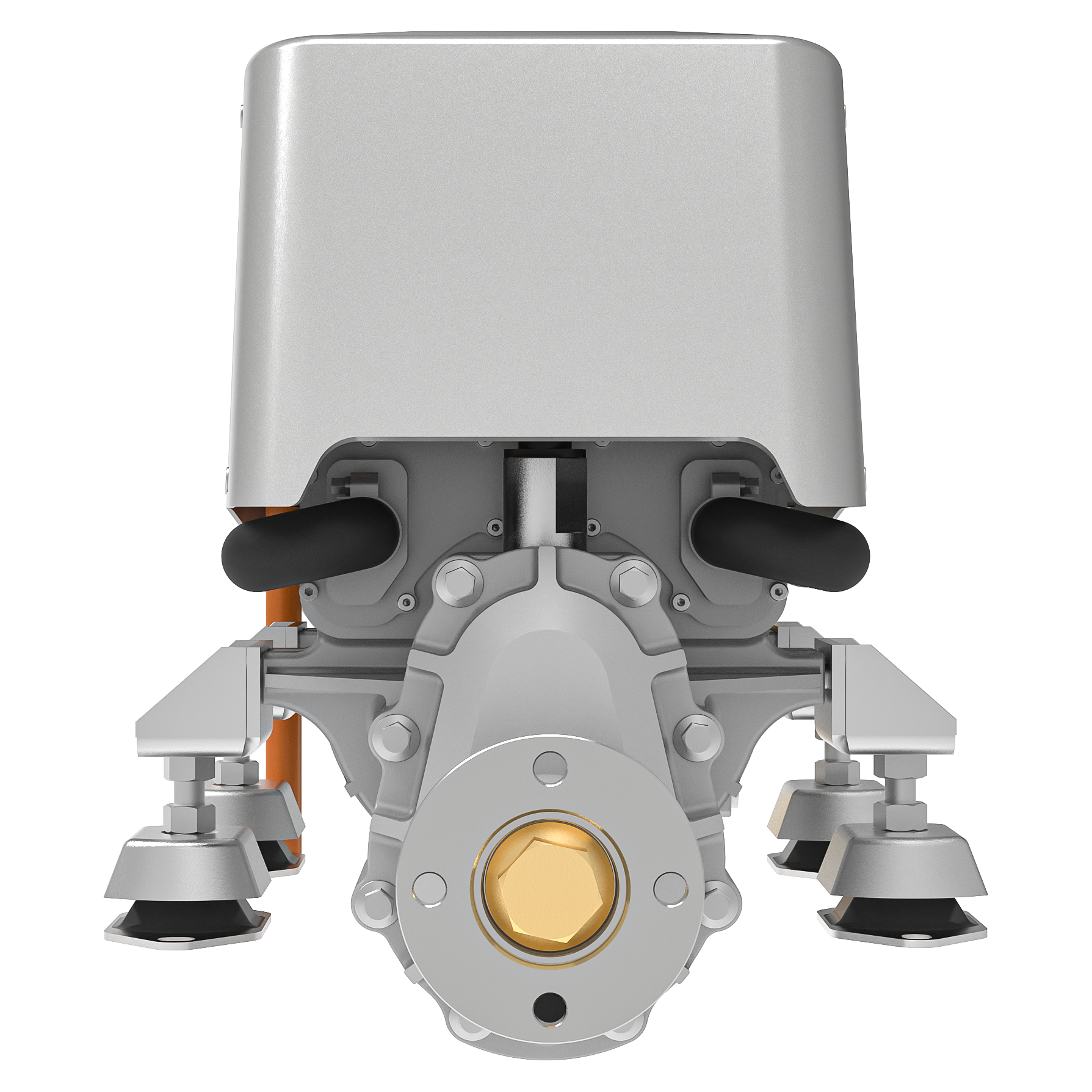

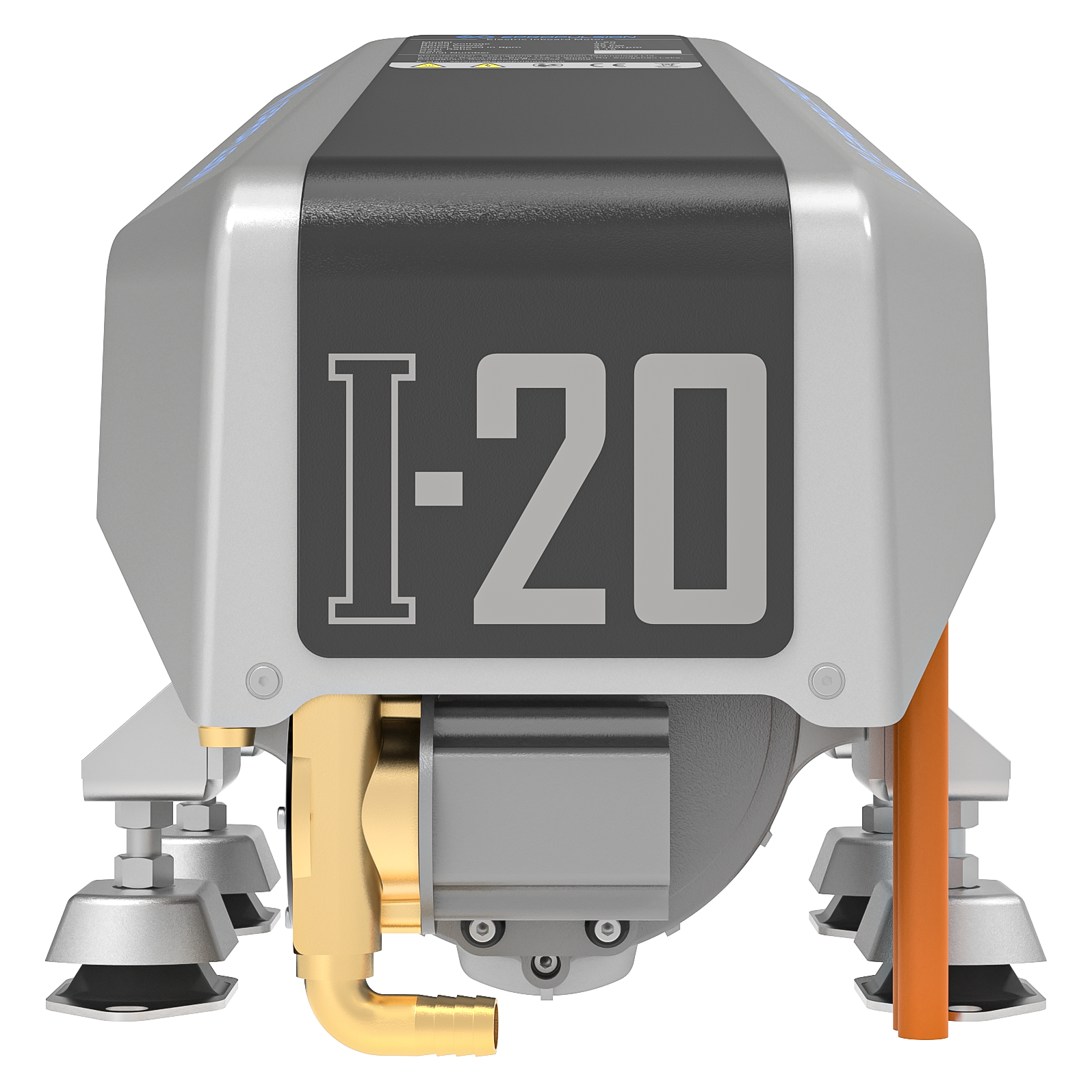

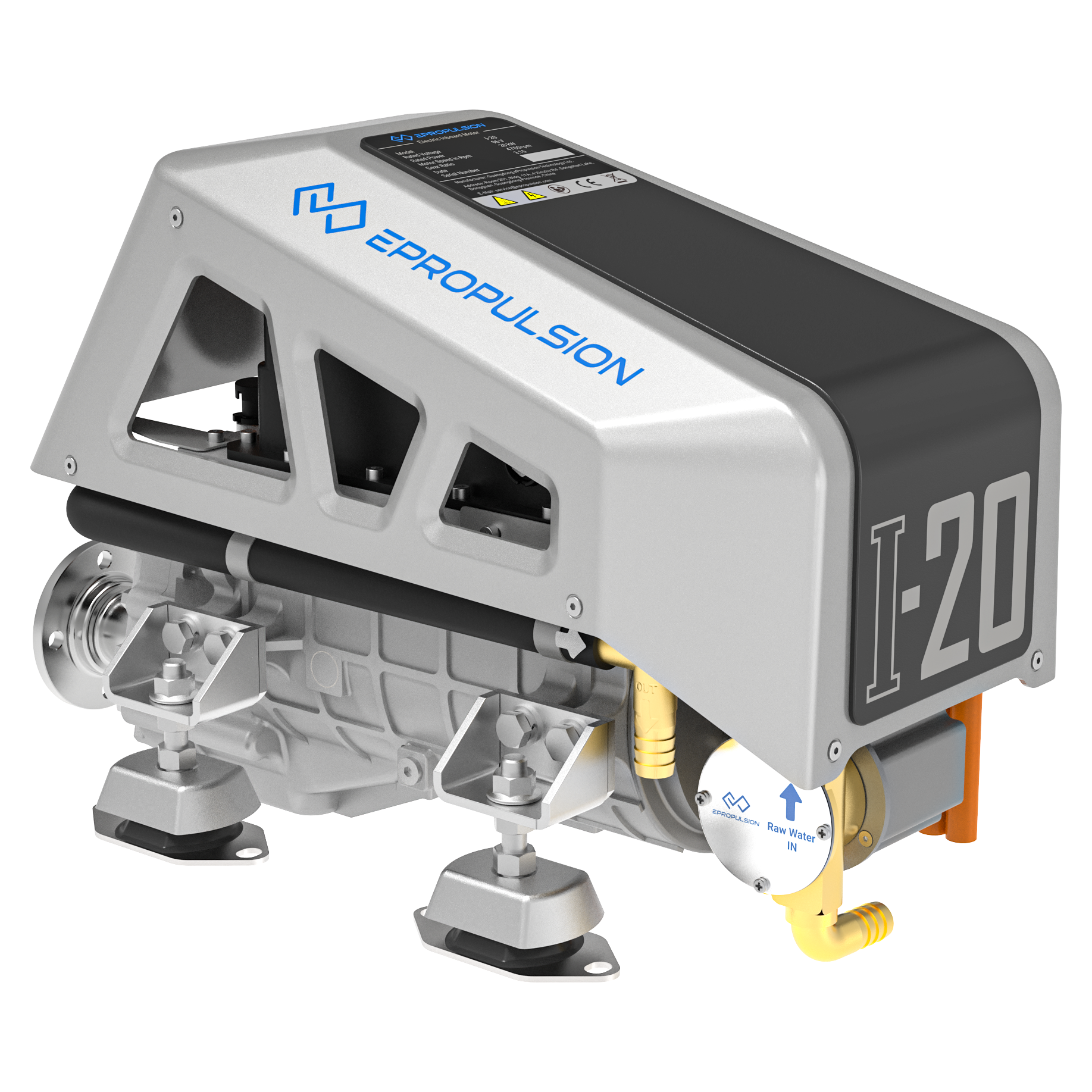

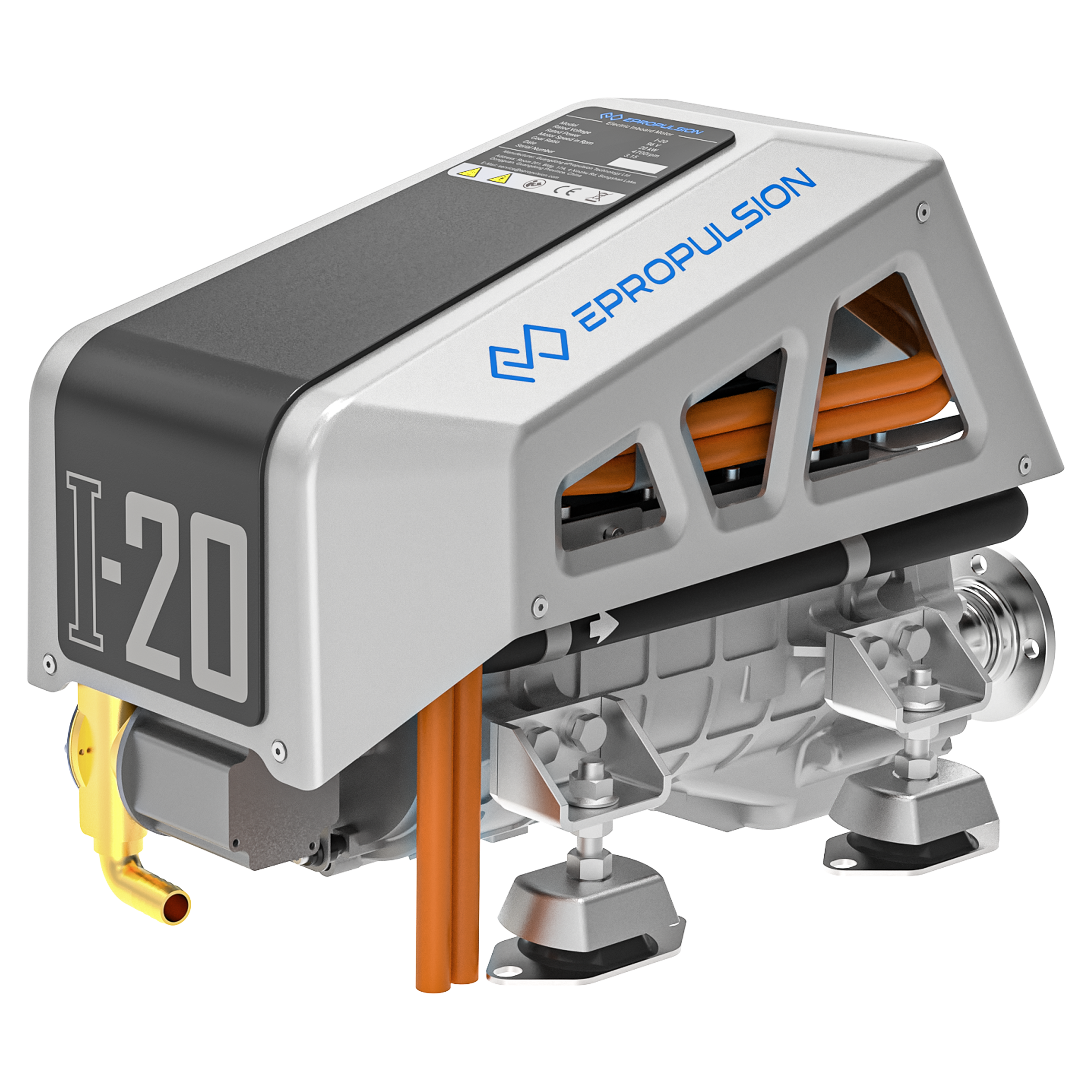

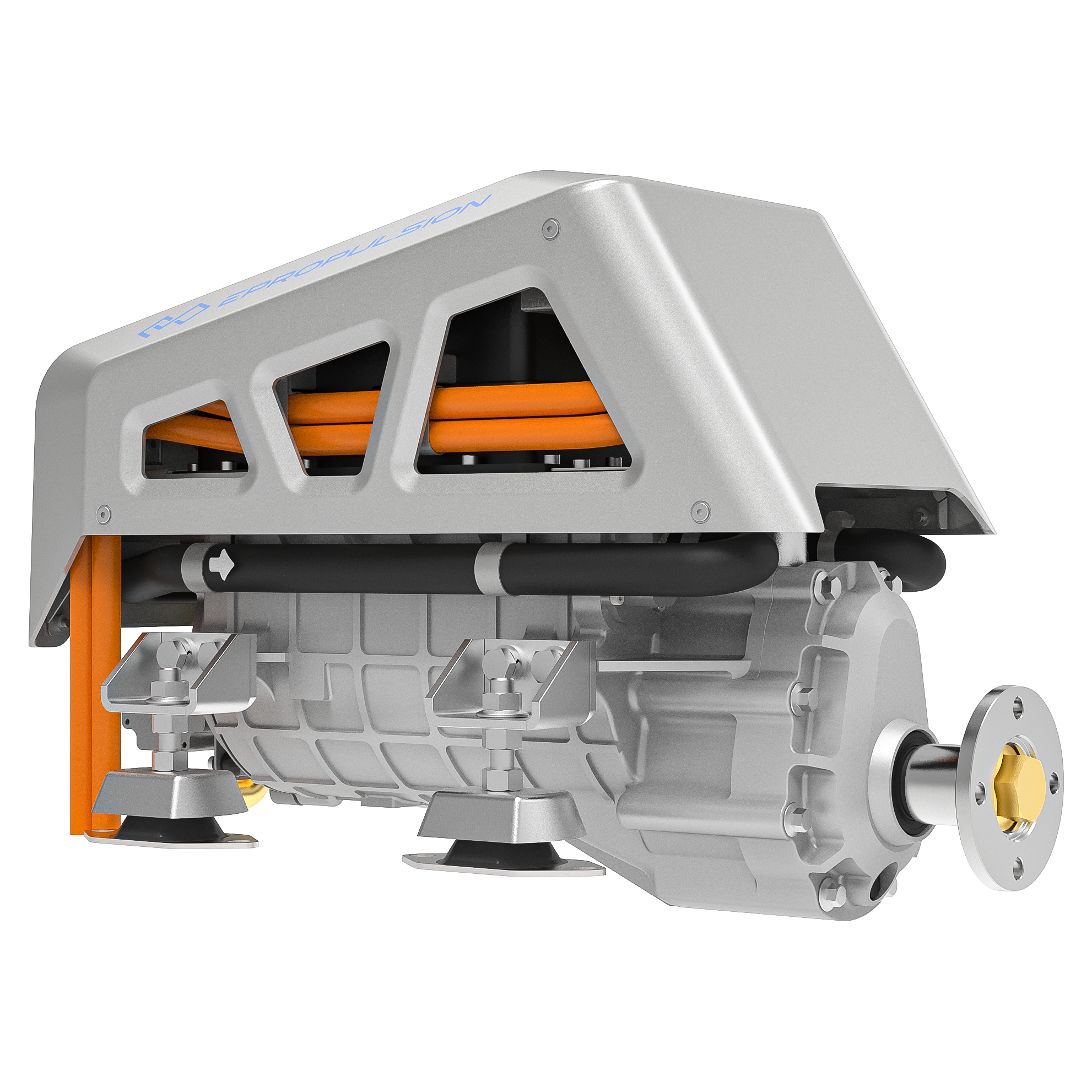

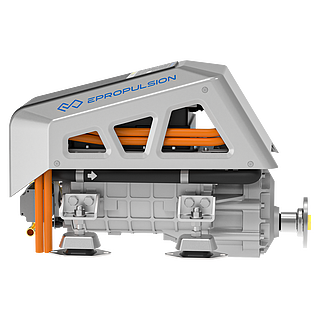

I-20 Electric Inboard Motor

Part Number: A2-0000-01

Series: I-Series

Type: motor

View the main I-Series product page

Description

ePropulsion's I-Series electric inboard motors are friendly to both the environment and their operators, combining zero emissions with innovative and intuitive technology. At the system's core, eSSA (ePropulsion Smart System Architecture) plus IoT (Internet of Things) connectivity provide users with an easy-to-use, intelligent, safe and reliable experience.

They are ideal for leisure marine and commercial applications on small and medium size boats including cruisers, workboats, ferries, water buses, monohull sailboats and catamaran sailboats, etc.

The motor comes fitted with a 2m 96v power cable,  5m 12v cable and 10m comms cable

Technical Specifications

Physical Dimensions

Length: 580.00 mm

Width: 330.00 mm

Height: 380.00 mm

Net Weight: 50.00 kg

Motor Specifications

Voltage: 96.00 V

Min Power: 100 W

Max Power: 20000 W

Cooling: Water Cooling

Efficiency: 88%

Static Thrust: 136 N

Codes & Identifiers

EAN Code: 6971312632859

UPC Code: 770264106168

HS Code (EU): 8503009999

HS Code (US): 8501322000

Downloads

I -20 User Manual

User Manual

I -20 User Manual
Download
I-20 Technical Drawing 20230317

Technical Drawing

I-20 Technical Drawing 20230317
Download
