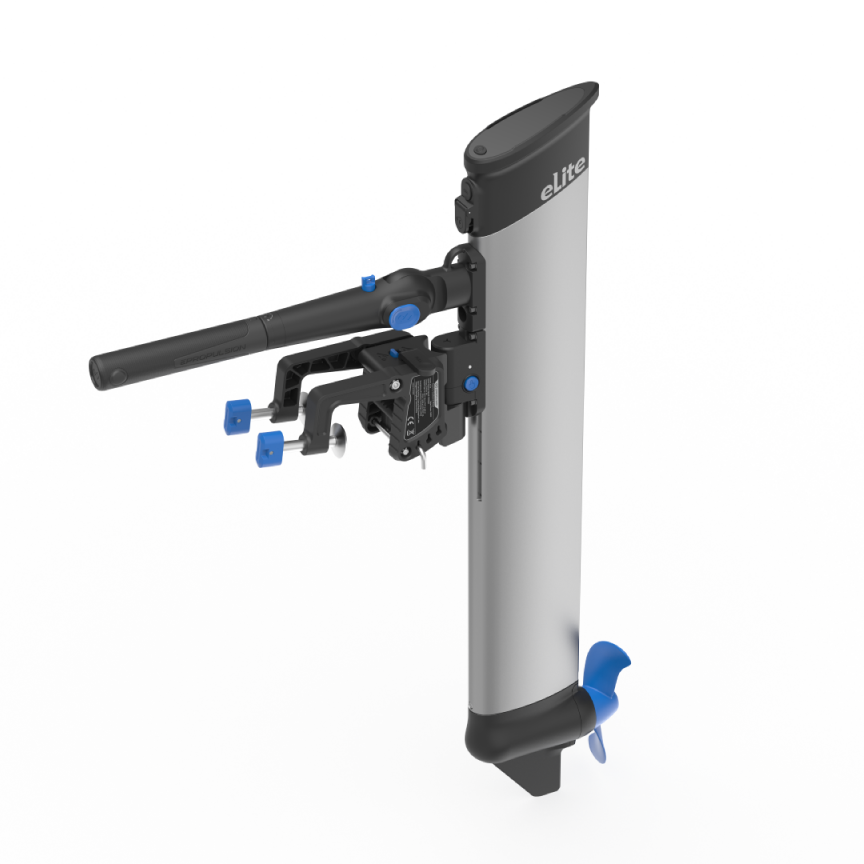

eLite Electric Outboard Motor

Part Number: EL-0500-00

Series: eLite

Type: motor

View the main eLite product page

Description

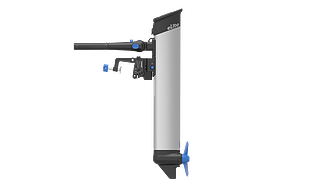

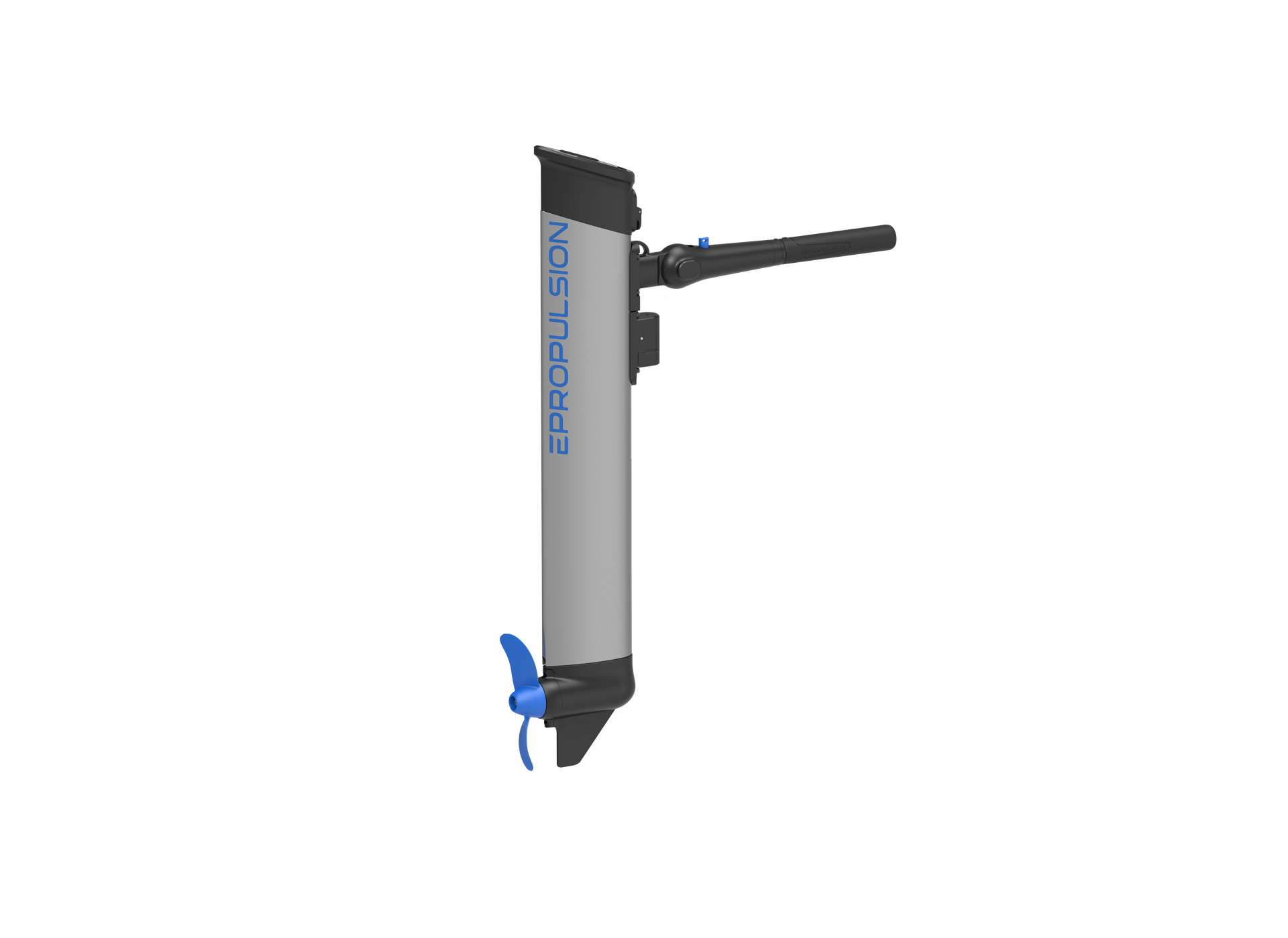

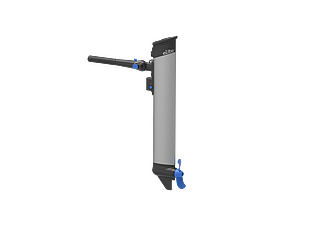

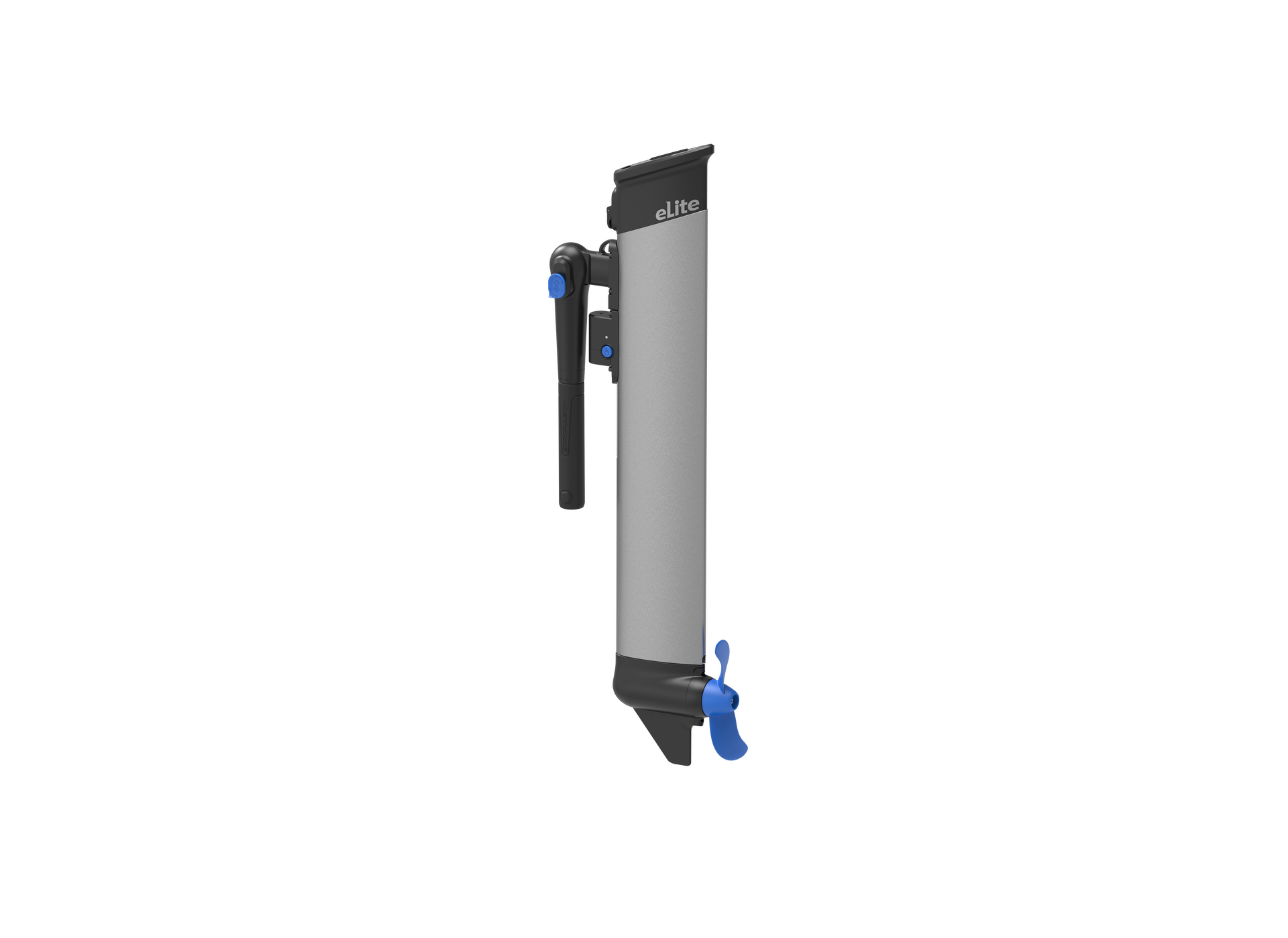

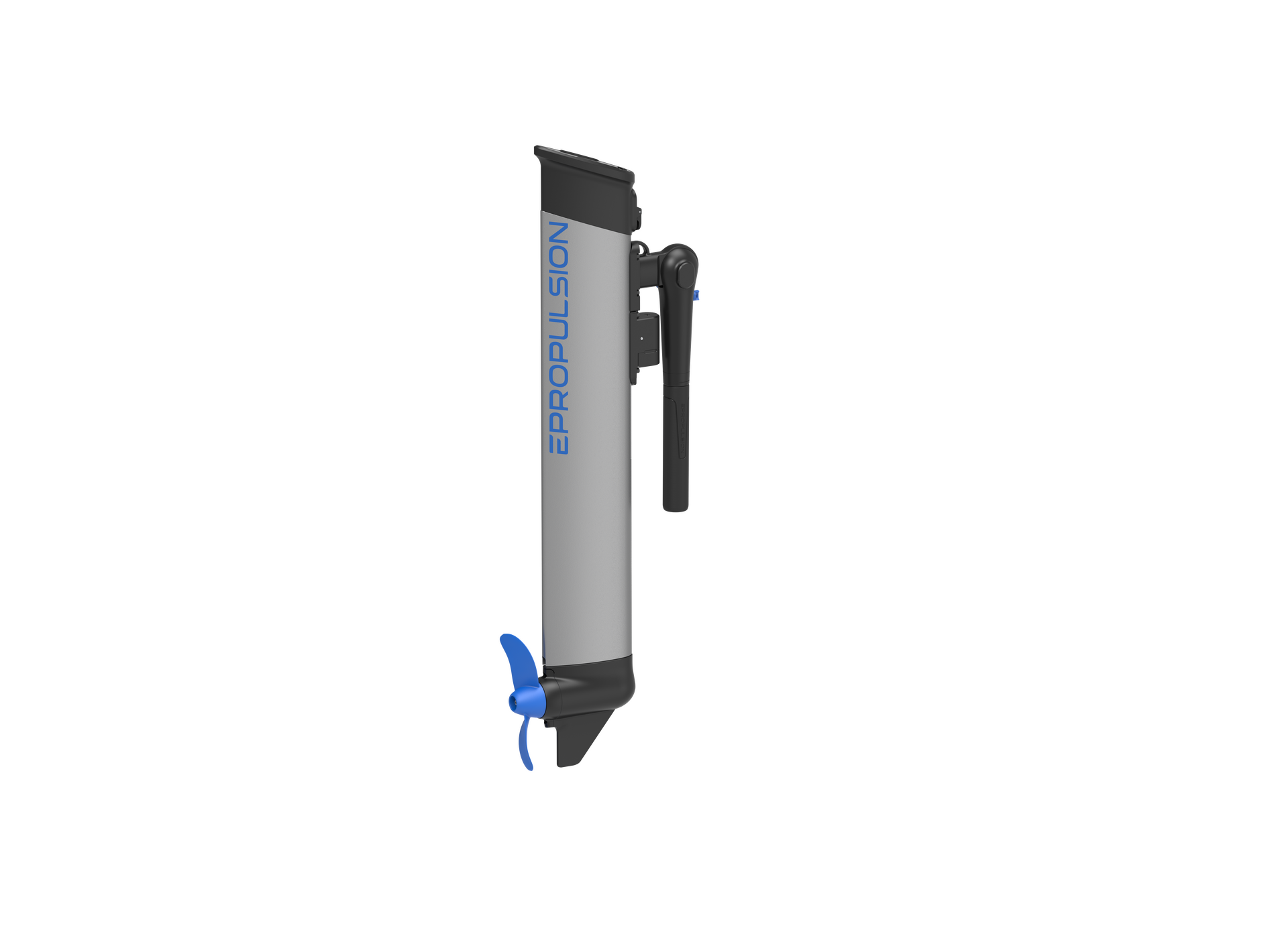

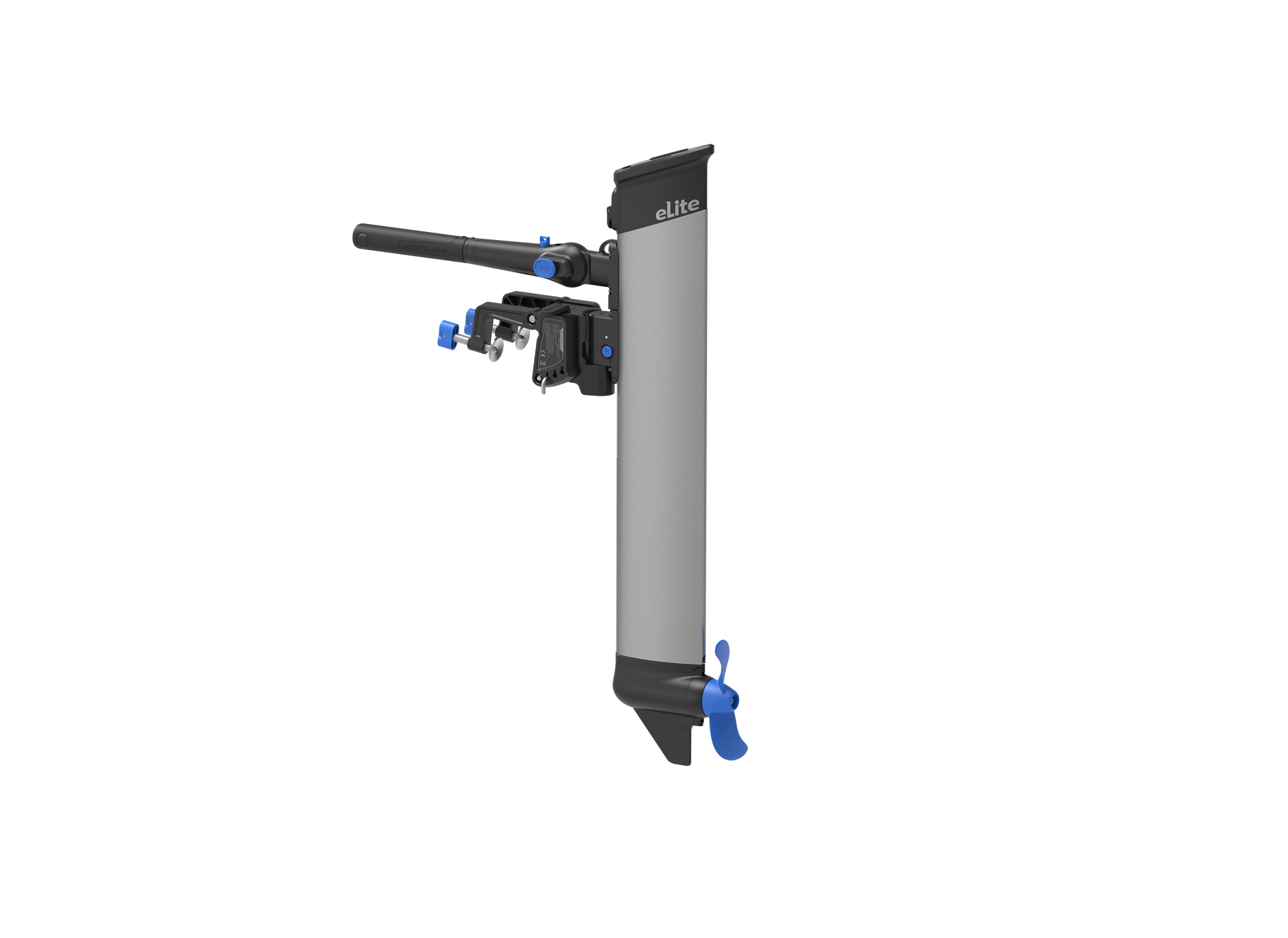

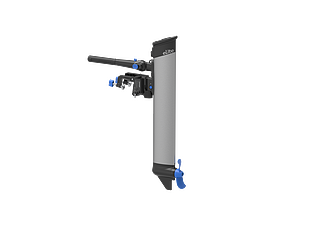

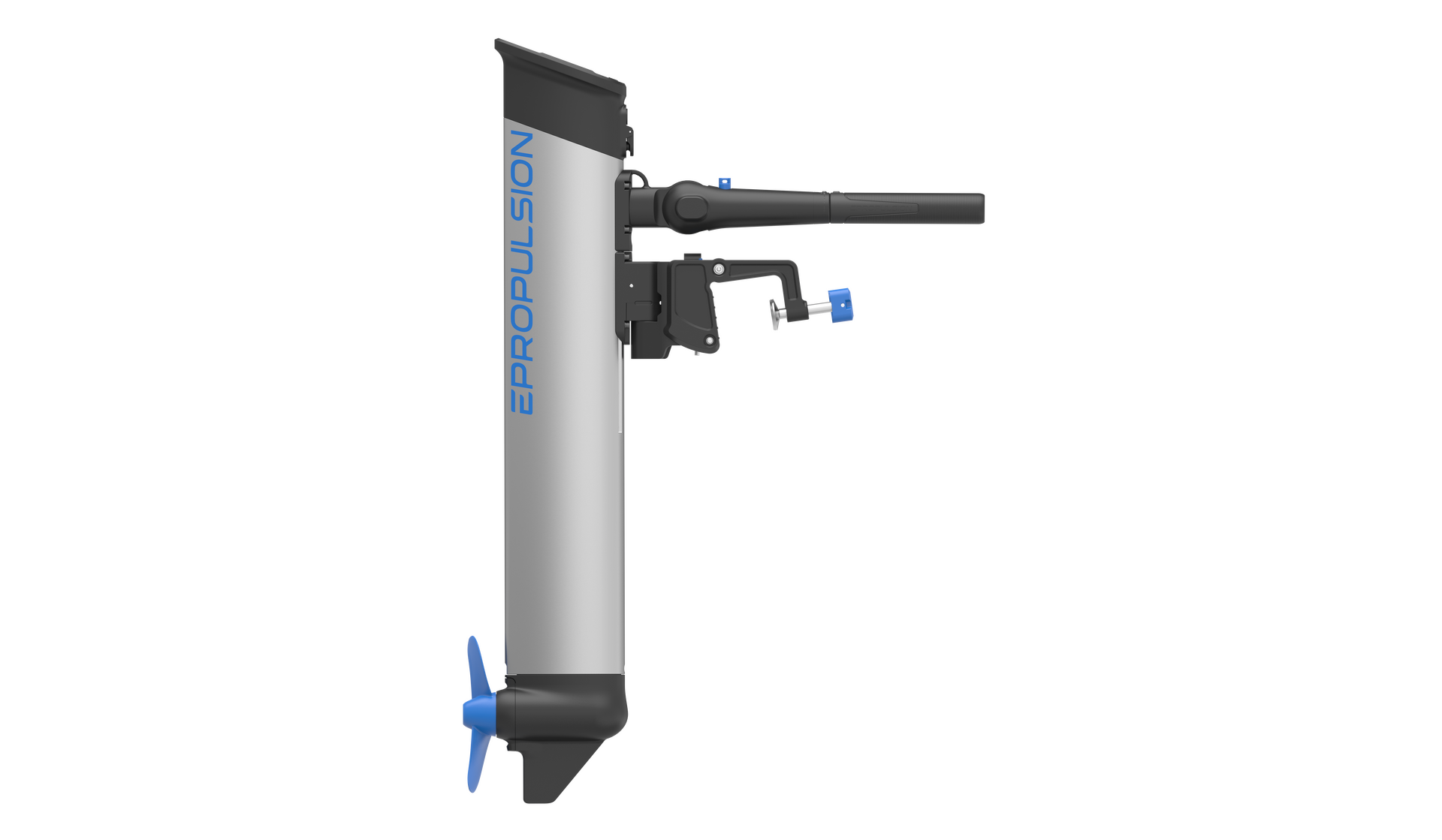

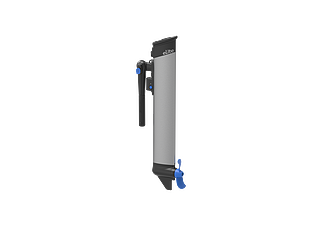

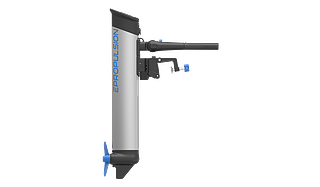

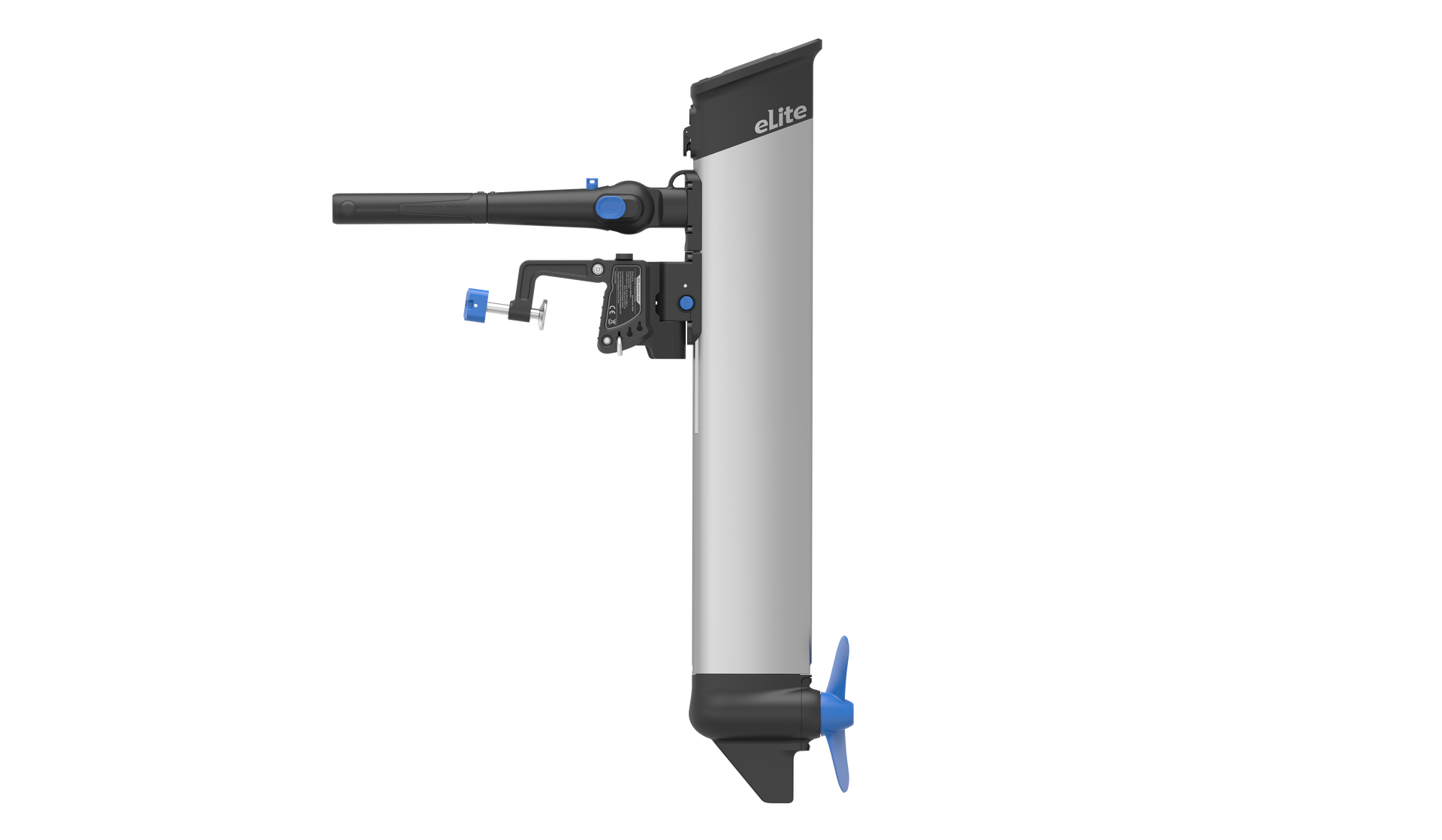

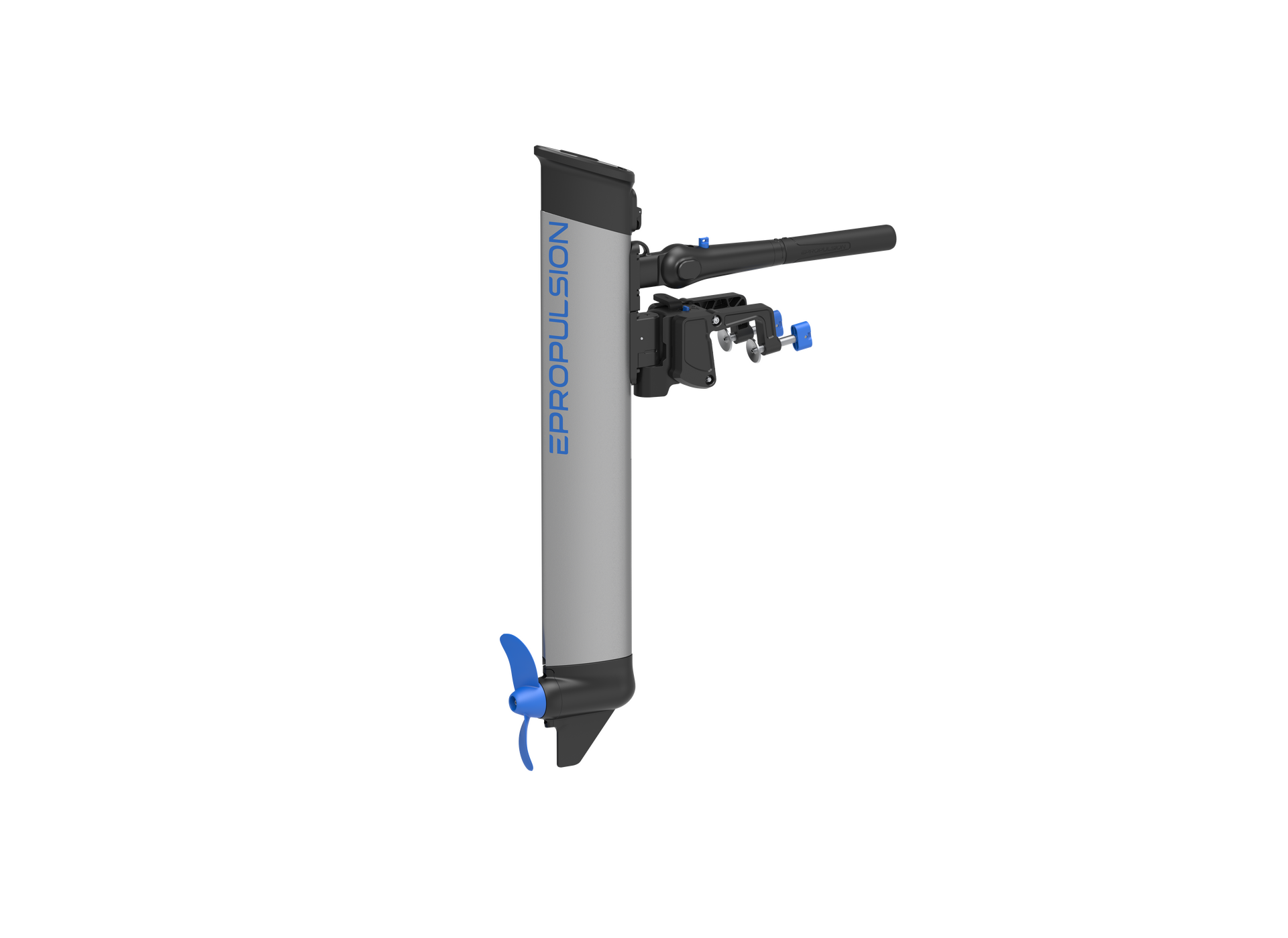

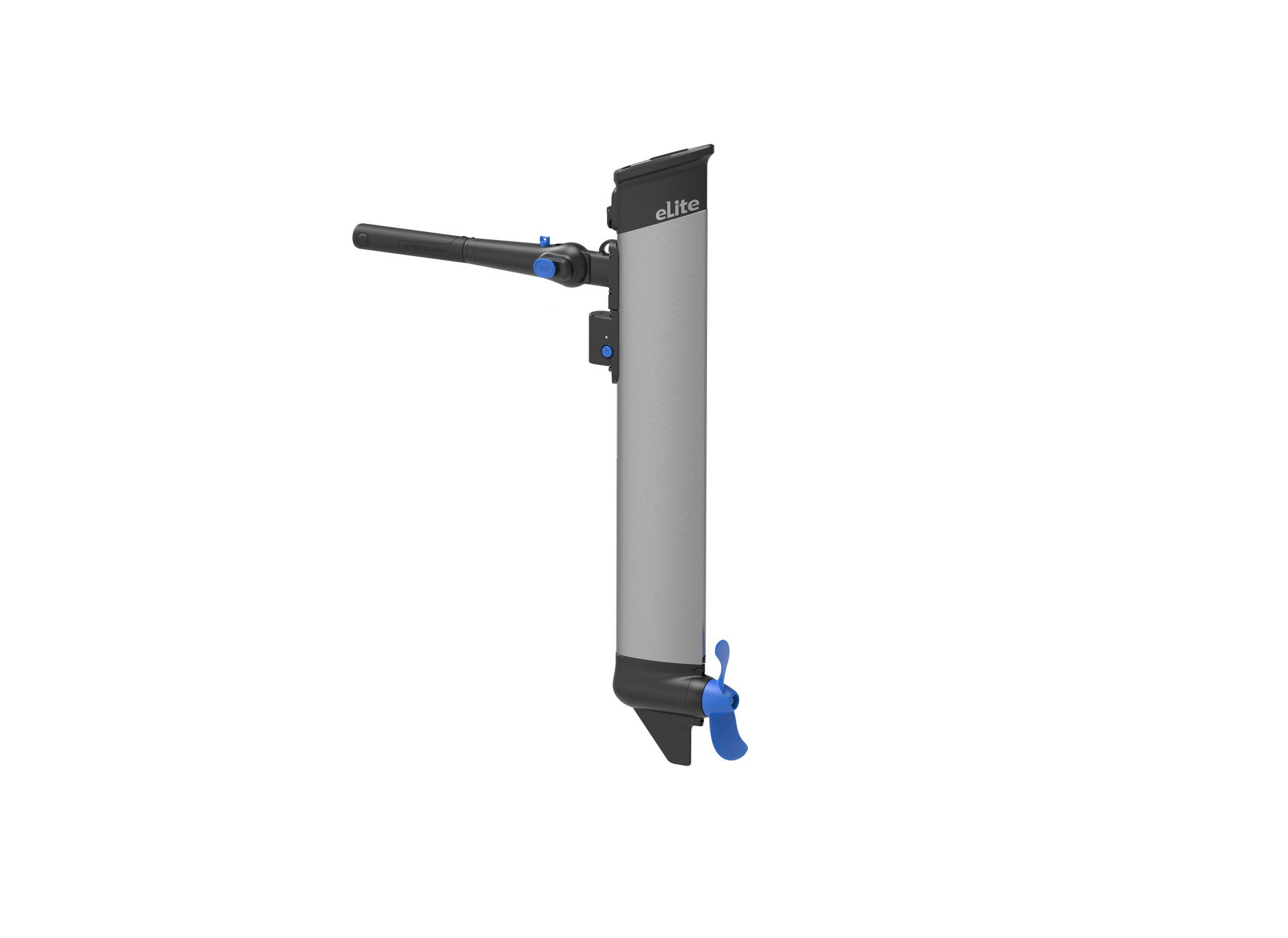

The ePropulsion eLite is a 500W electric outboard motor, offering a lightweight and efficient alternative to small petrol engines. Weighing just 6.7 kg (excluding bracket), it is the smallest and most compact motor in the ePropulsion range, making it ideal for small boats, kayaks, and dinghies.

Key Features:

  • Integrated 378 Wh Lithium Battery: Provides a range of up to 9 km, depending on operating conditions.

  • Compact Design: With dimensions of 297 x 75 x 890 mm, it is easy to transport and store.

  • Quiet Operation: Ensures a peaceful boating experience without the noise associated with traditional engines.

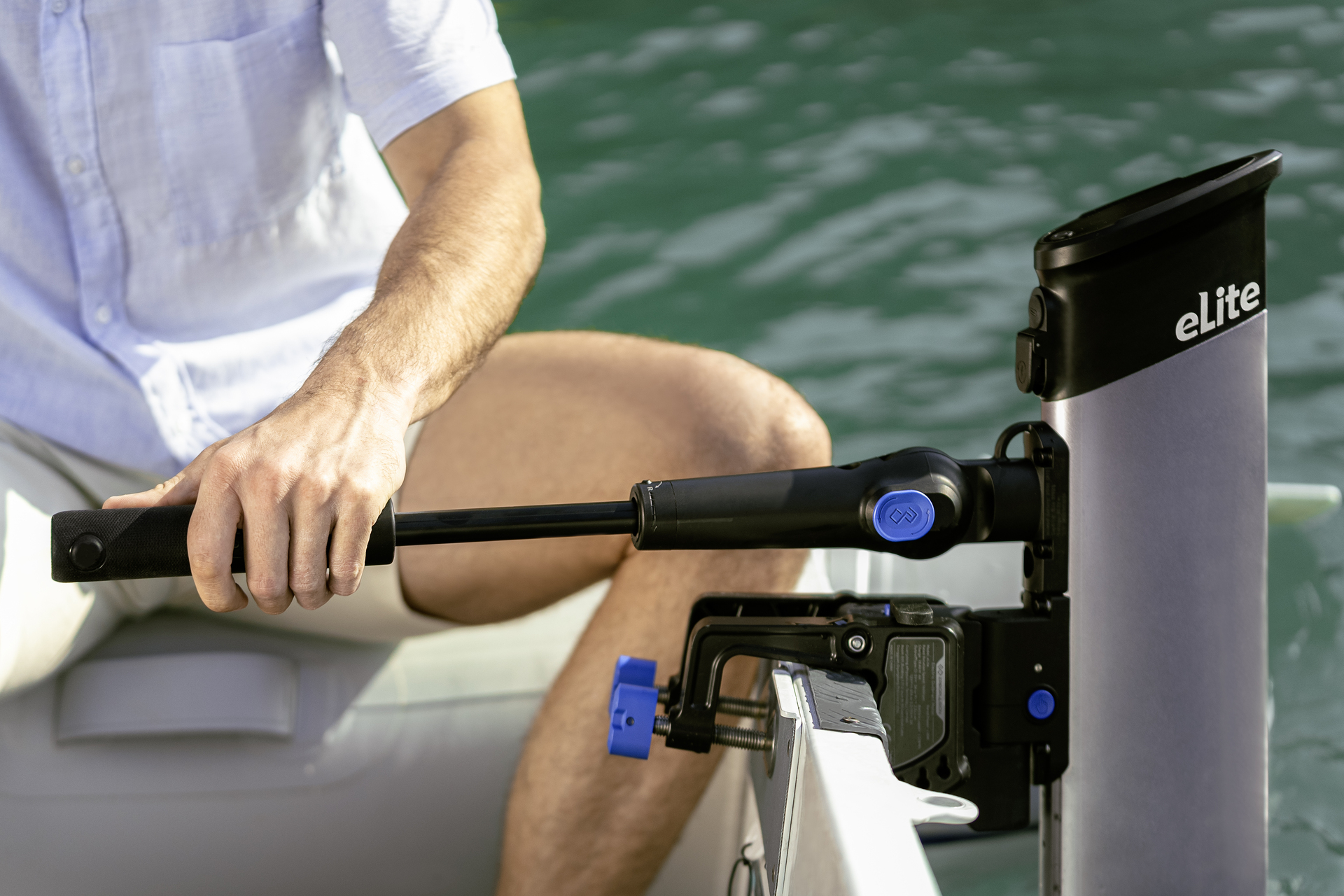

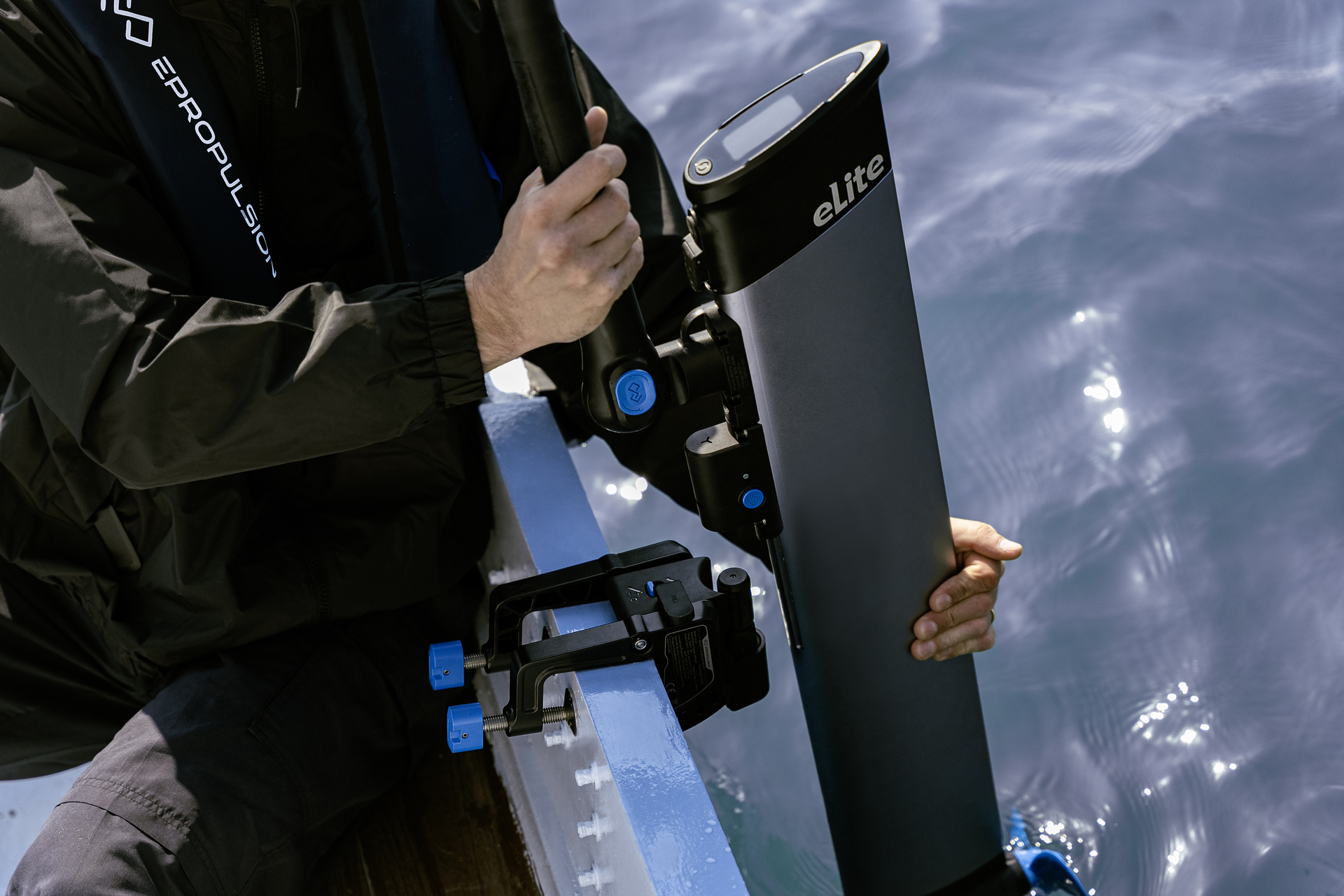

  • Easy Setup: Features a one-click installation and removal system for user convenience.

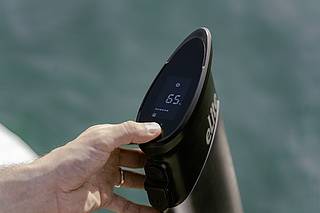

  • Smart Display: Integrated display provides real-time monitoring of power usage and battery status.

Performance:

  • Half Power (250W): Achieves speeds up to 3.7 mph (6.0 kph) with a runtime of approximately 1 hour and 30 minutes, covering a distance of about 5.6 miles (9.0 km).

  • Full Power (500W): Reaches speeds up to 4.7 mph (7.5 kph) with a runtime of around 45 minutes, covering approximately 3.5 miles (5.6 km).

  • Sport Mode (750W): Offers a burst of speed up to 5.2 mph (8.3 kph) for short durations, subject to battery state and temperature.

The eLite's streamlined design and user-friendly features make it a versatile choice for boating enthusiasts seeking an eco-friendly propulsion solution. Its portability and performance are well-suited for a variety of small watercraft applications.

Technical Specifications

Physical Dimensions

Length: 297.00 mm

Width: 75.00 mm

Height: 890.00 mm

Net Weight: 7.90 kg

Battery Specifications

Voltage: 25.20 V

Watt Hours: 378.00 Wh

Amp Hours: 15.00 Ah

Motor Specifications

Voltage: 25.20 V

Min Power: 10 W

Max Power: 500 W

Max Turbo Power: 750 W

Cooling: Natural cooling

Efficiency: 95%

Static Thrust: 125 N

Propeller Specifications

Diameter: 194.00 mm

Pitch: 120.50 mm

Rated RPM: 1600

Blades: 2

Material: Composite

Codes & Identifiers

EAN Code: 6971312632835

UPC Code: 770264106144

UN Code: UN3481

HS Code (EU): 8501310099

HS Code (US): 8501314000

Compatible Products
Comes With

Downloads

eLite 12v Charger User Manual

User Manual

eLite 12v Charger User Manual
Download
eLite User Manual

User Manual

eLite User Manual
Download

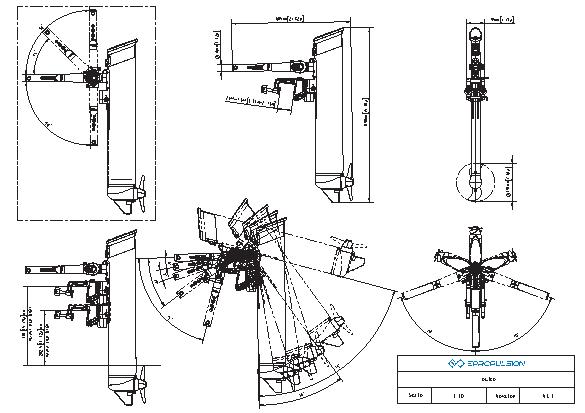

Technical Drawing eLite

Technical Drawing

Technical Drawing eLite
Download
