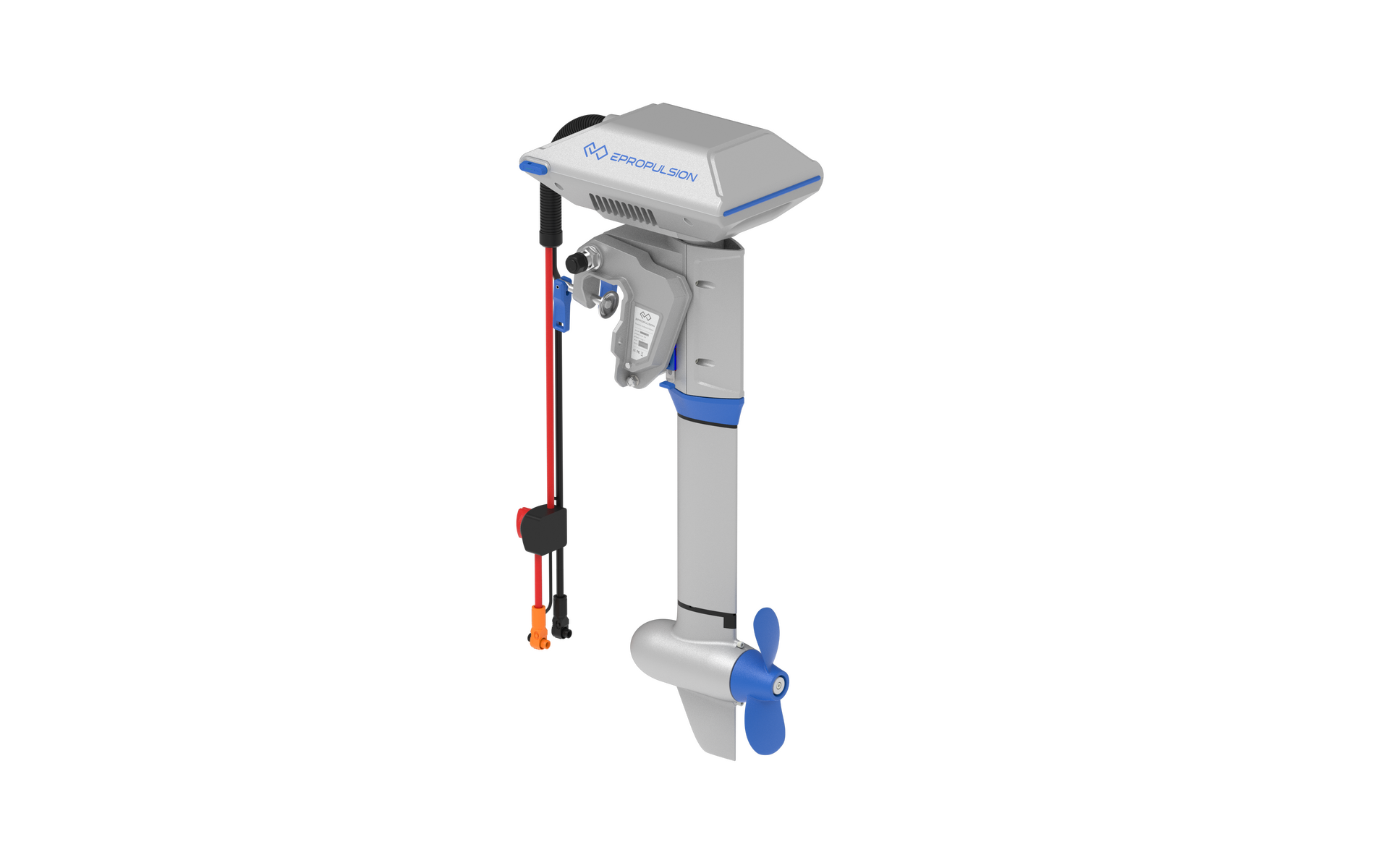

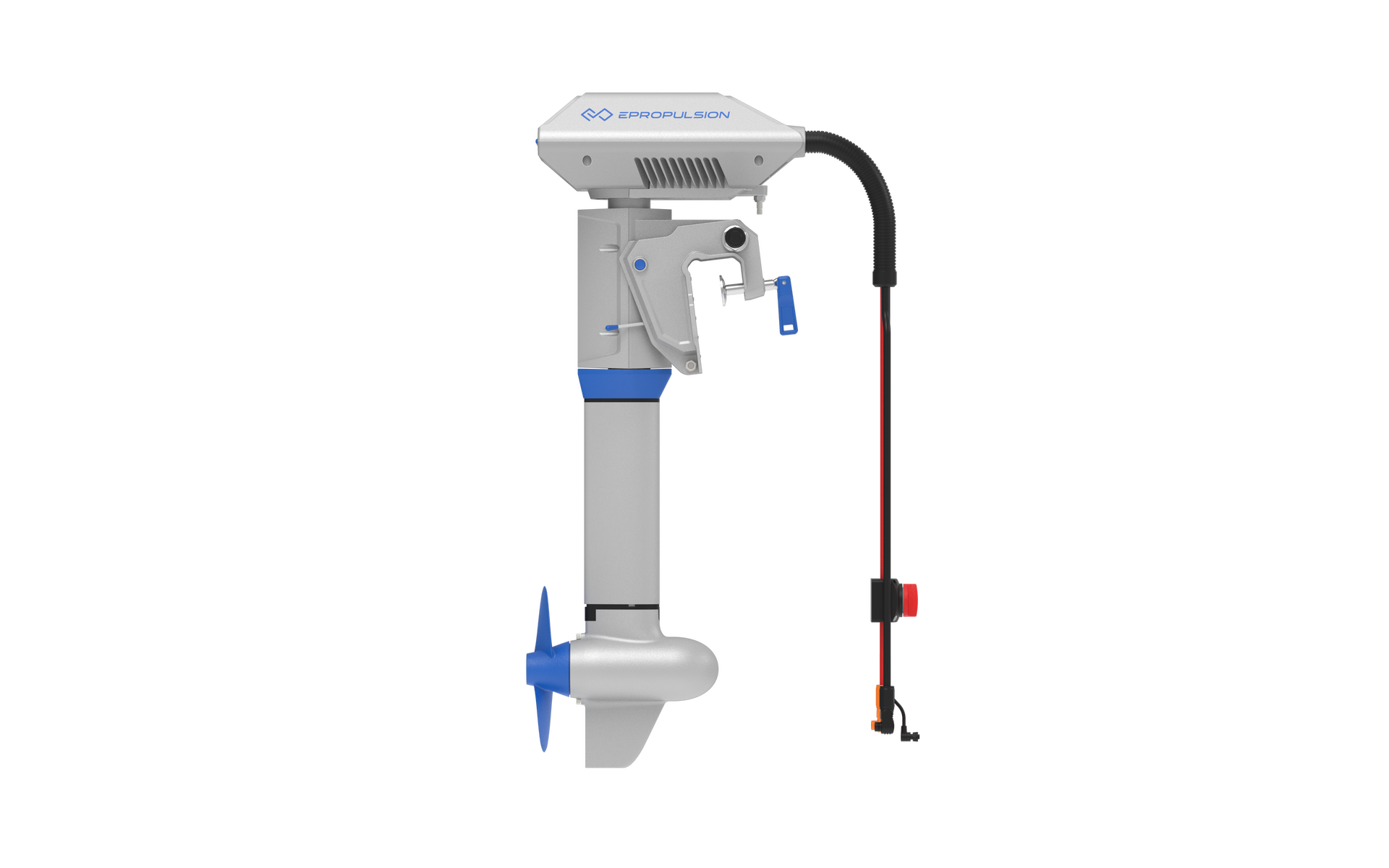

NAVY 3.0 Evo Shortshaft

Part Number: NE-3000-S1

Series: Navy

Type: motor

View the main Navy Evo product page

Description

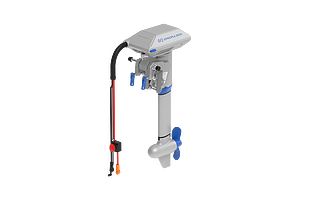

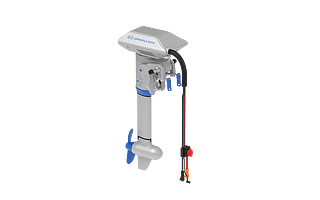

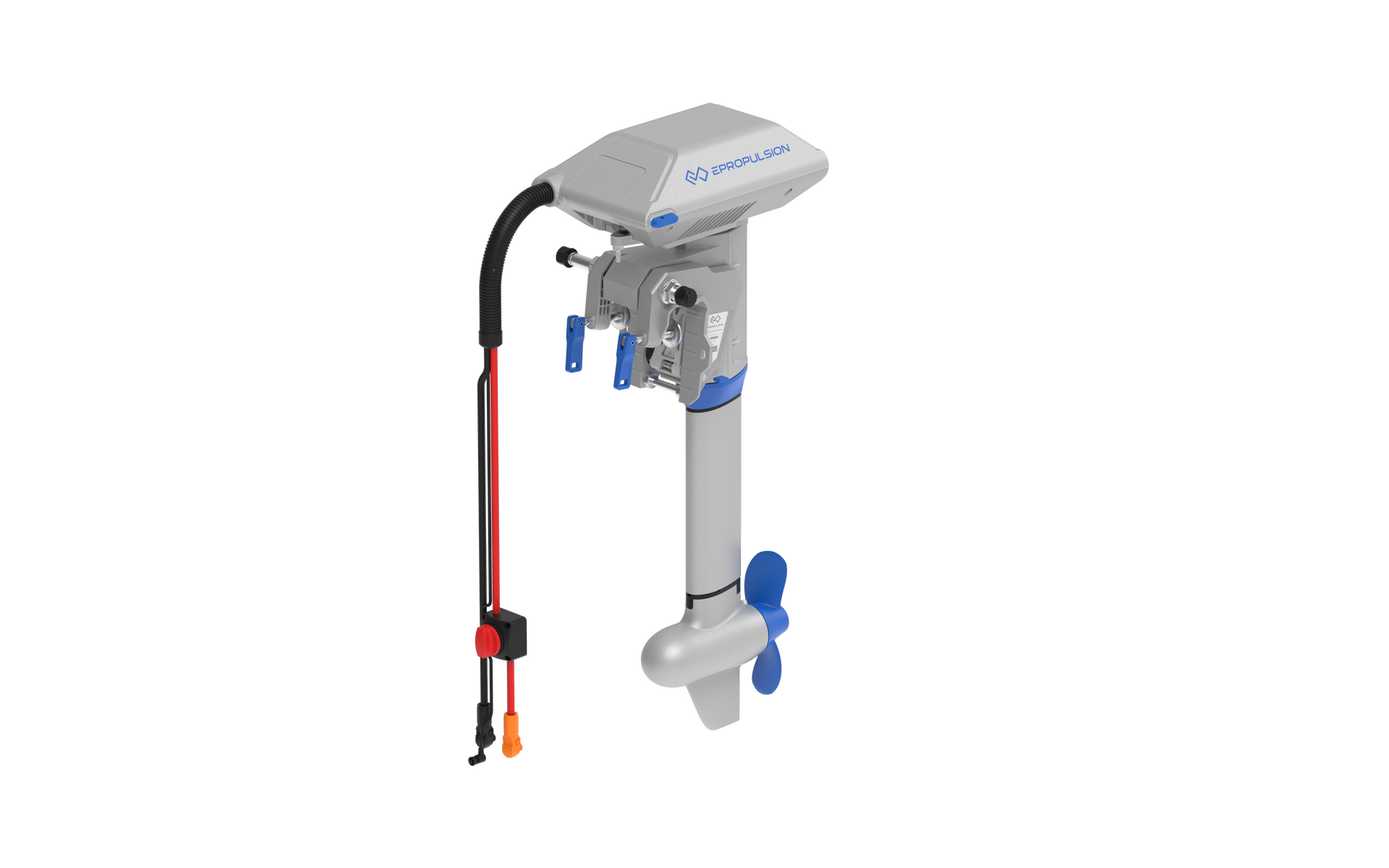

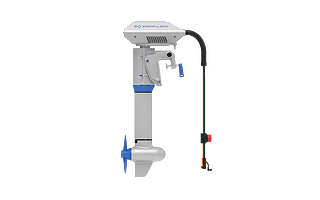

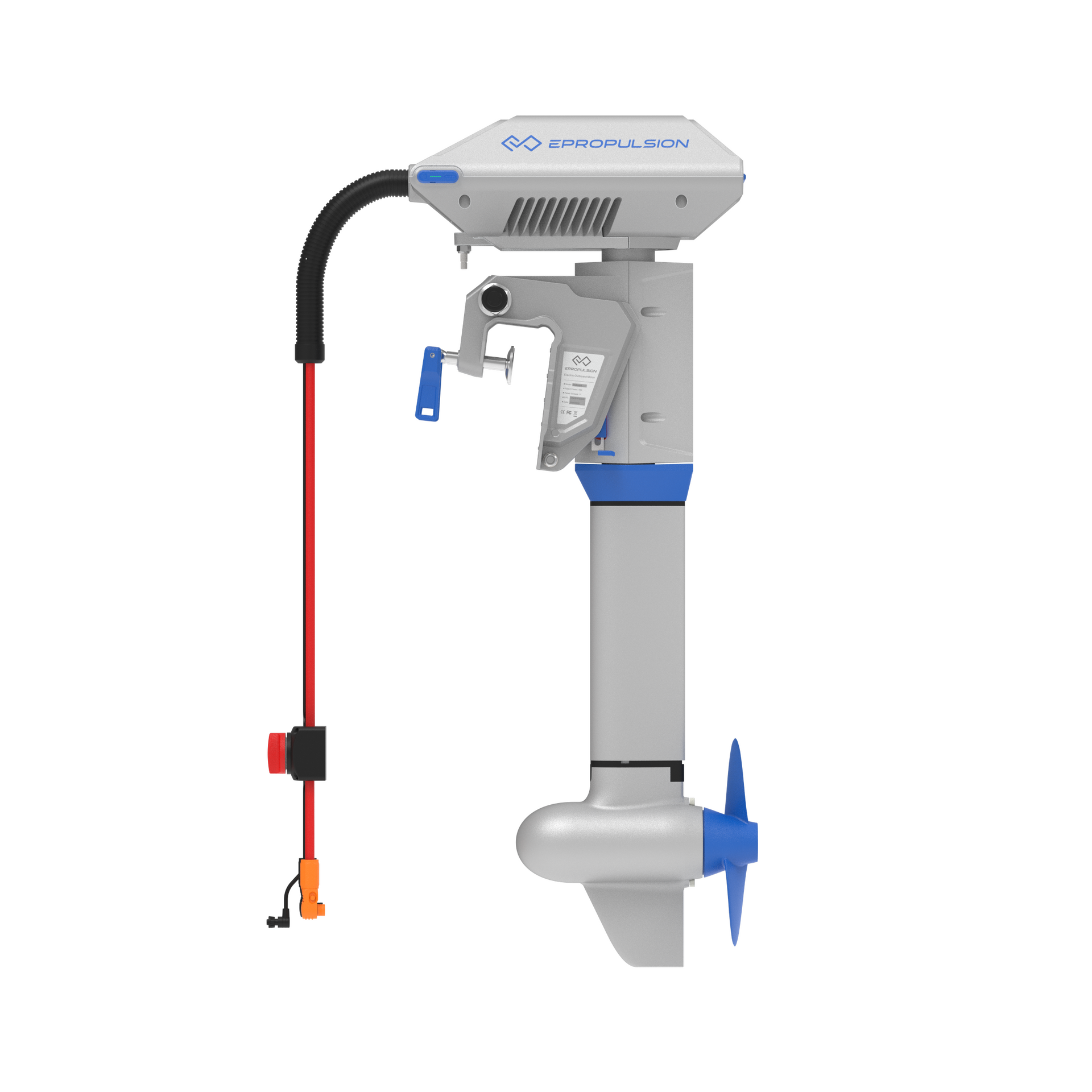

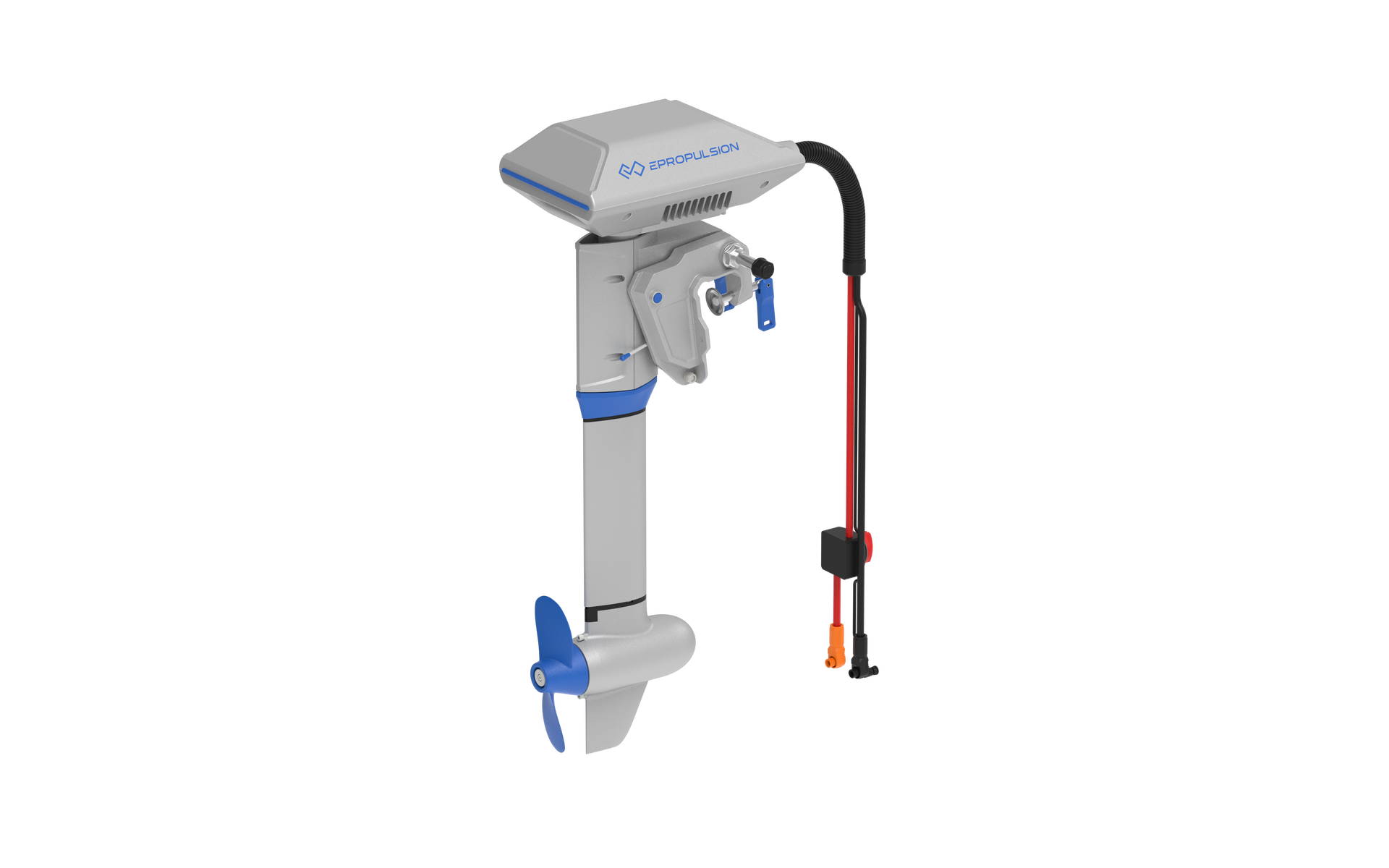

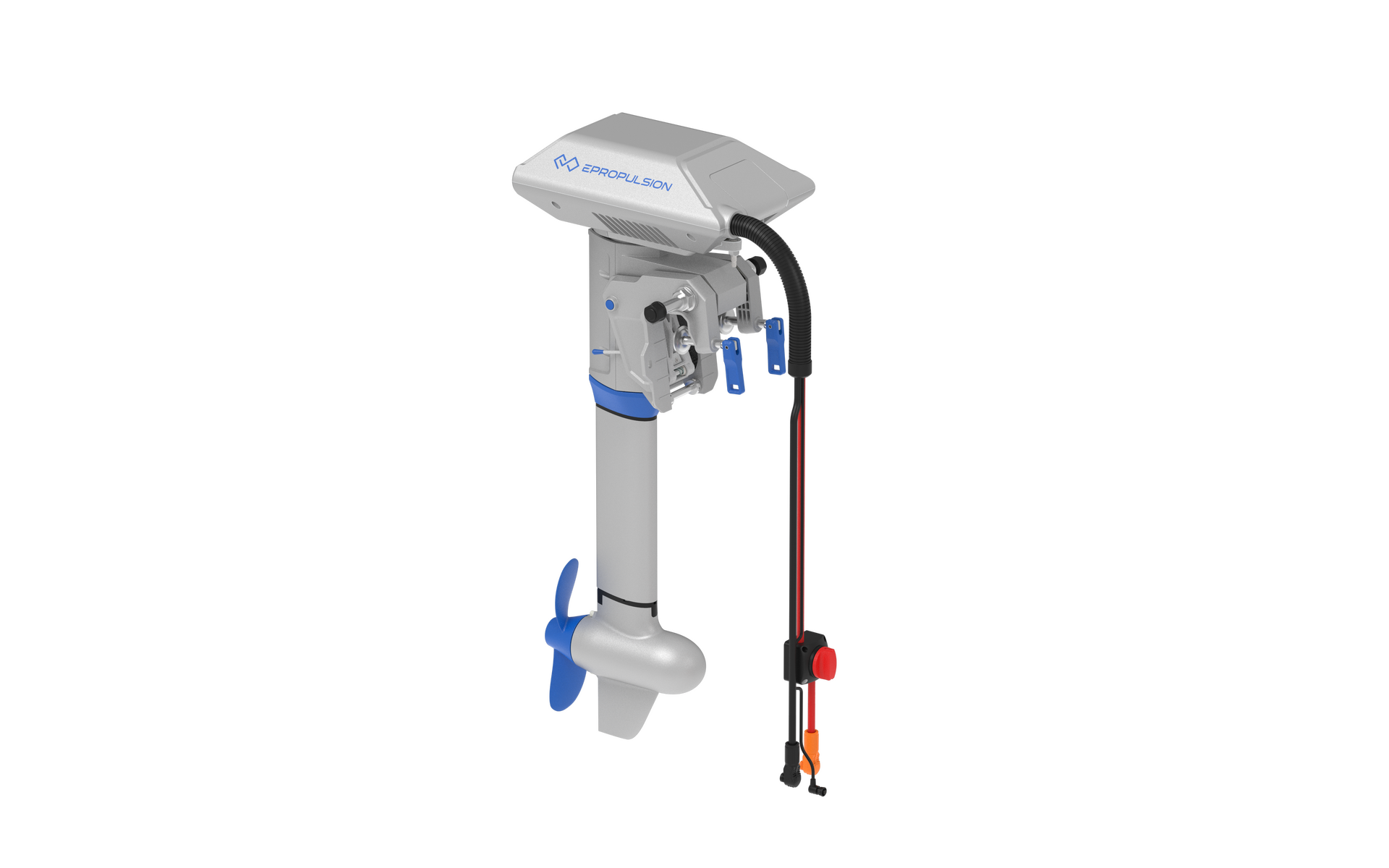

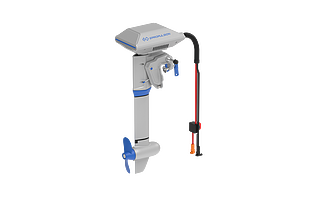

The Navy 3.0 Evo is a 3kW (6HP equivalent) electric outboard motor, ideal for a variety of vessels including yacht tenders, dinghies, aluminium fishing boats, and small inflatable boats. Its direct-drive system ensures quiet operation and minimal maintenance, enhancing your boating experience. The motor features hydrogeneration capabilities, allowing it to recharge batteries while sailing under suitable conditions, promoting sustainable energy use. Compatible with ePropulsion's E-Series batteries, the Navy 3.0 Evo offers efficient and eco-friendly propulsion for discerning boaters.

Updated Version - previous product was NE-3000-S0
This is the new version with an inline Main Switch and Aviation style connectors, not the blue Anderson connectors.
It also has a new transom bracket with updated tilt angles:

Installation position: 5°, 10°, 15°, 20°
Shallow water mode: 35°, 50°,65°
Tilt up position: 80°

Technical Specifications

Physical Dimensions

Length: 437.00 mm

Width: 314.00 mm

Height: 1049.00 mm

Net Weight: 24.30 kg

Motor Specifications

Voltage: 48.00 V

Min Power: 30 W

Max Power: 3000 W

Cooling: Natural cooling

Efficiency: 51%

Static Thrust: 590 N

Codes & Identifiers

EAN Code: 6971312632002

UPC Code: 770264105604

HS Code (EU): 8501320099

HS Code (US): 8501322000

Comes With

Downloads

User Manual EN/DE Navy 3.0 Evo V1.0

User Manual

User Manual EN/DE Navy 3.0 Evo V1.0
Download
Technical Drawing Navy 3.0 Evo

Technical Drawing

Technical Drawing Navy 3.0 Evo
Download
