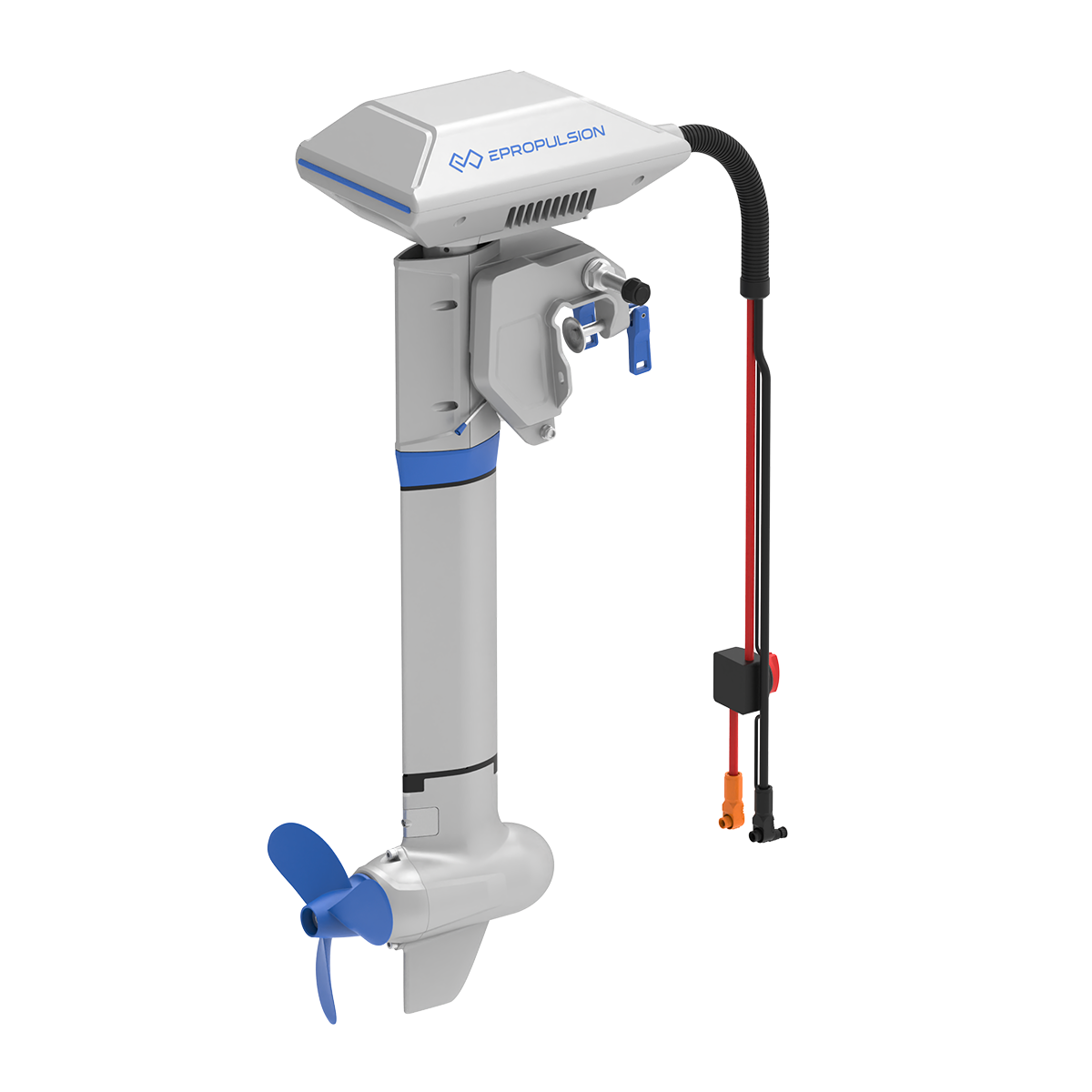

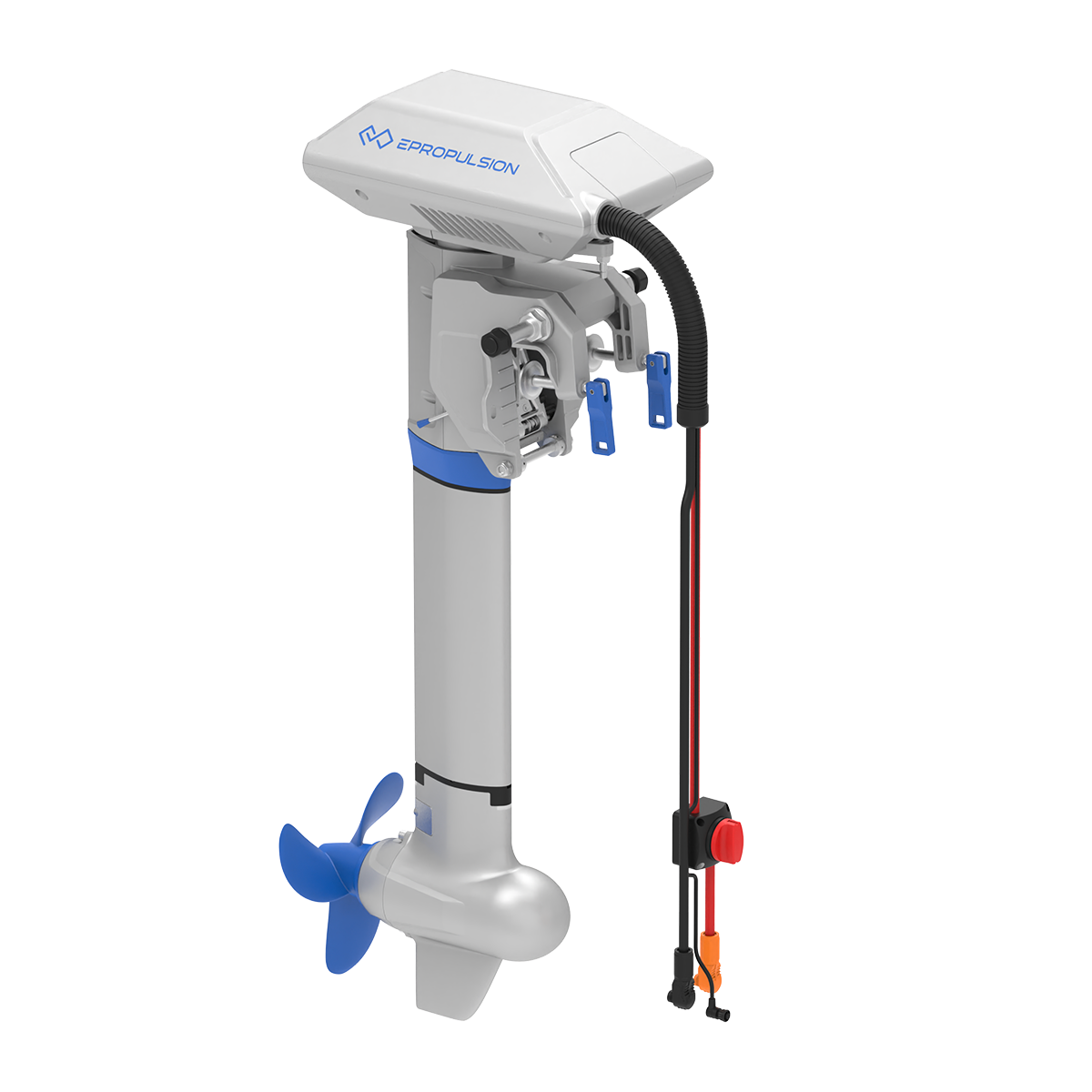

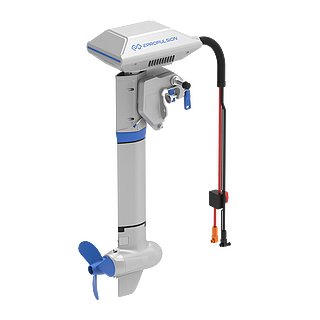

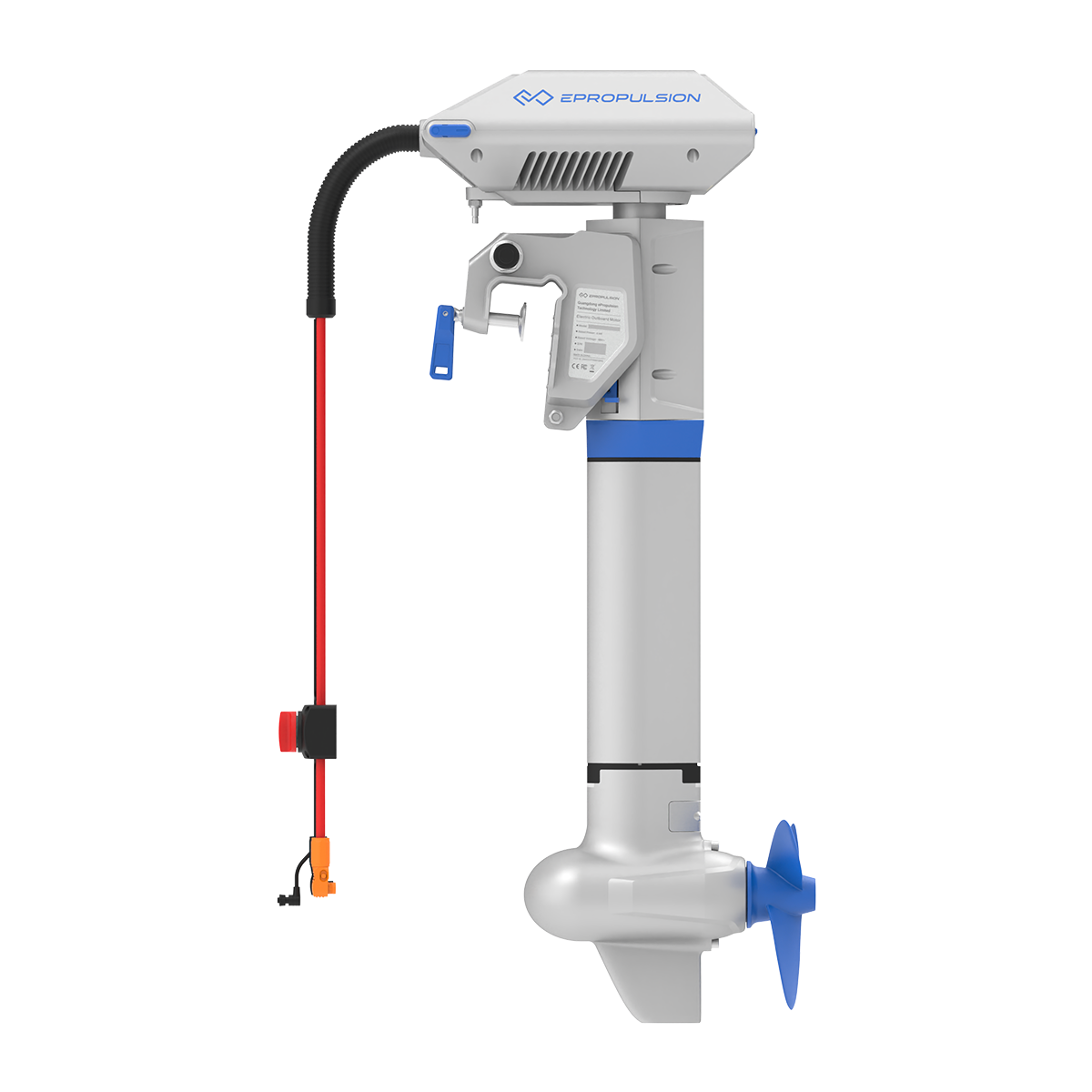

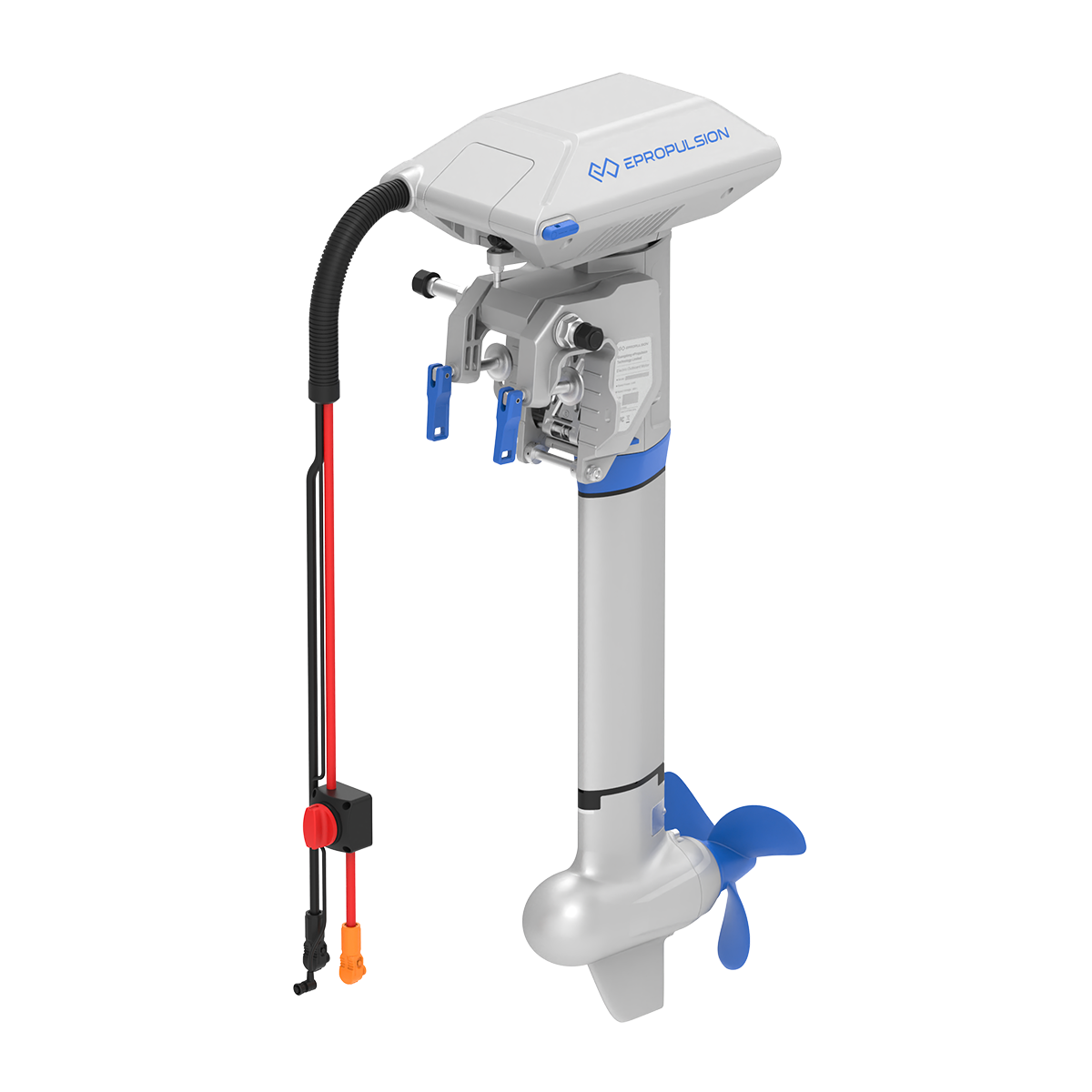

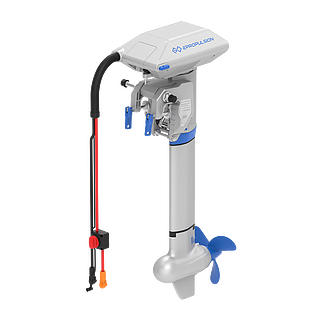

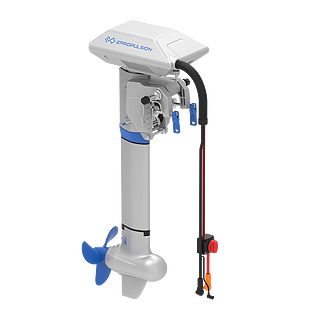

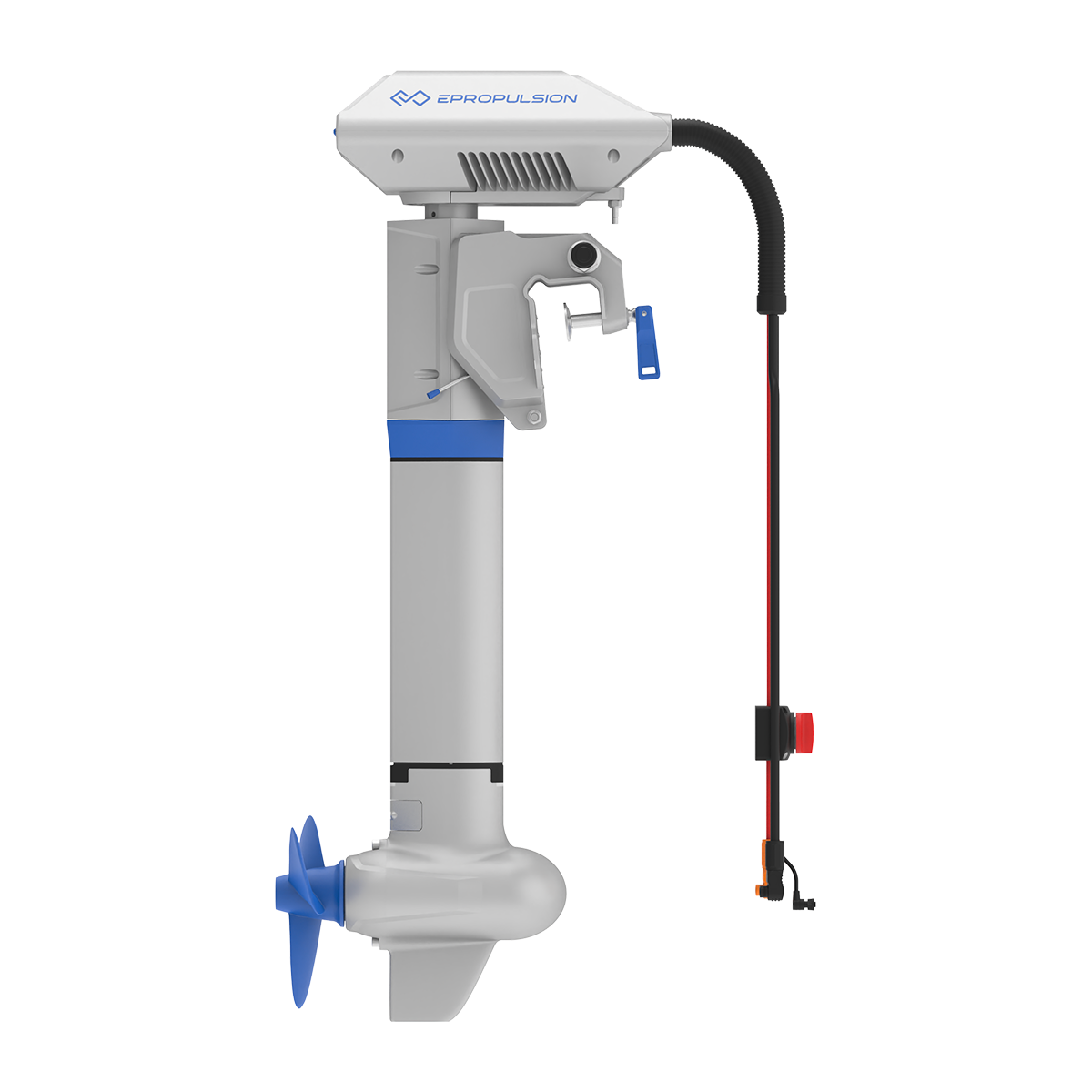

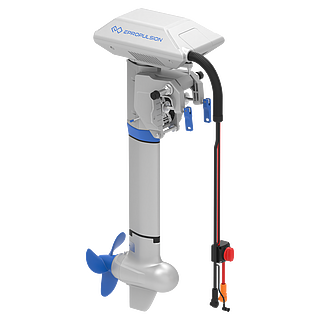

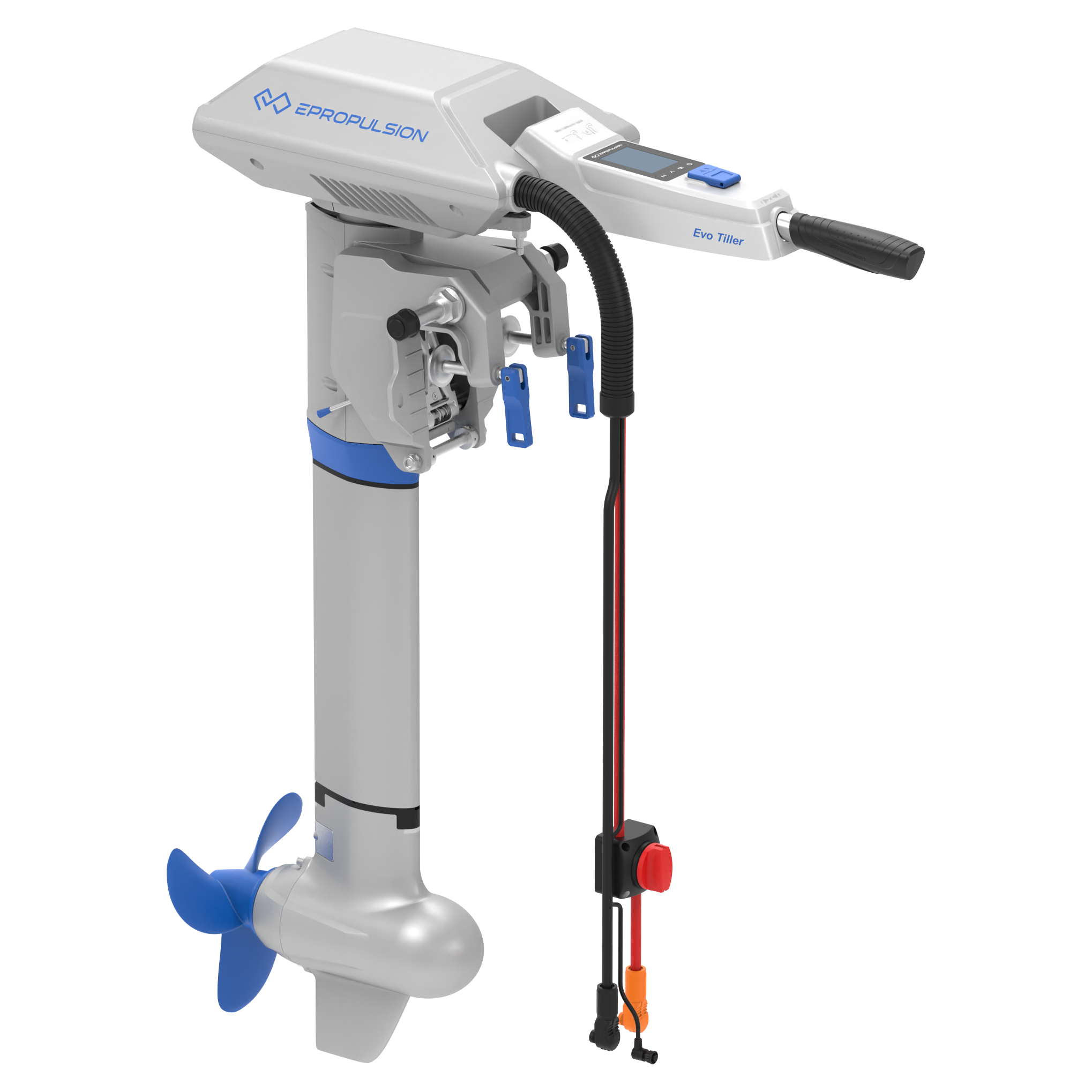

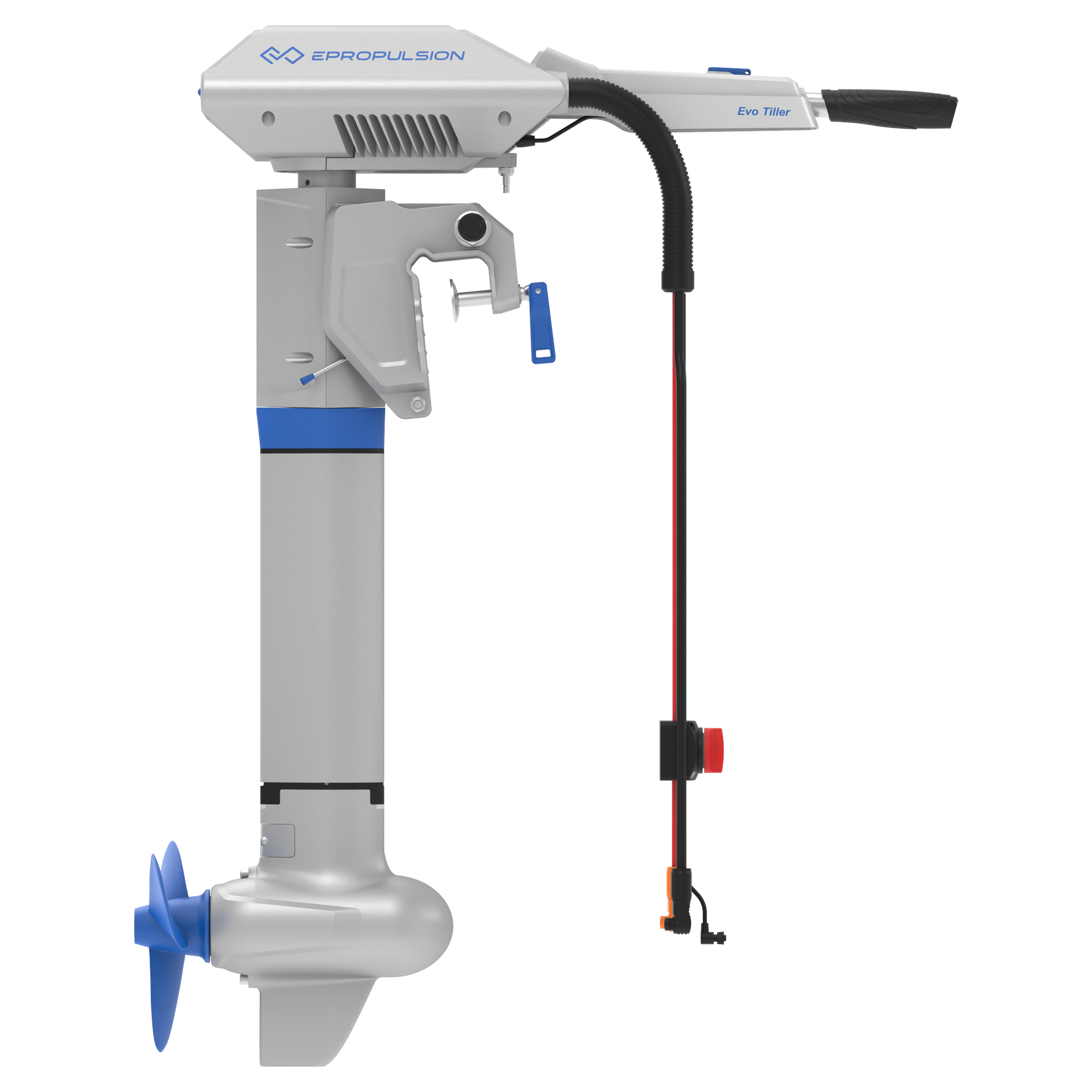

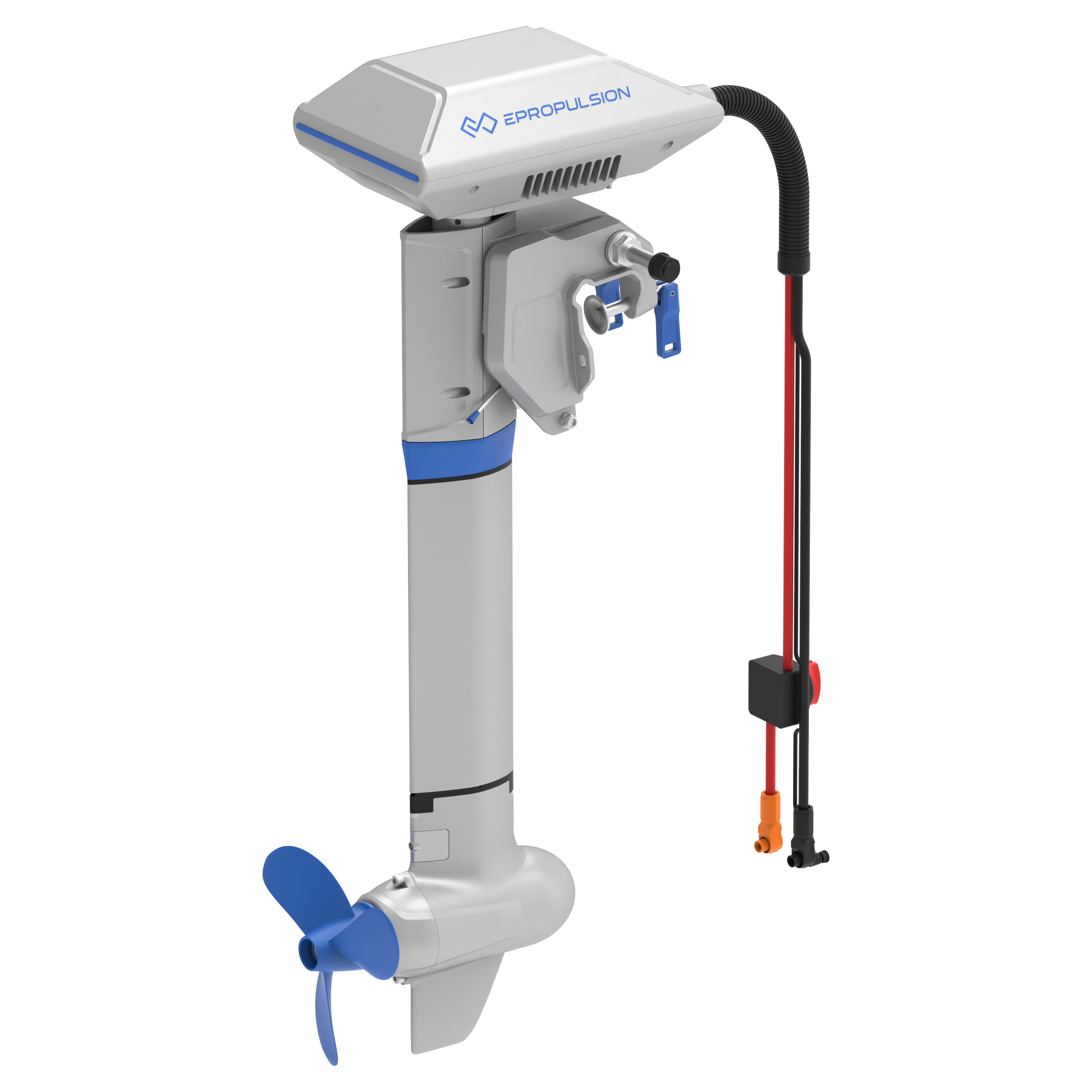

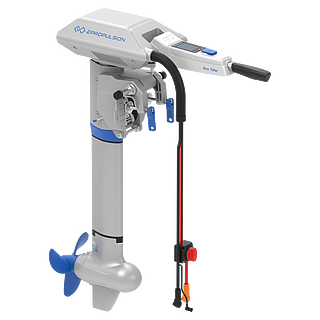

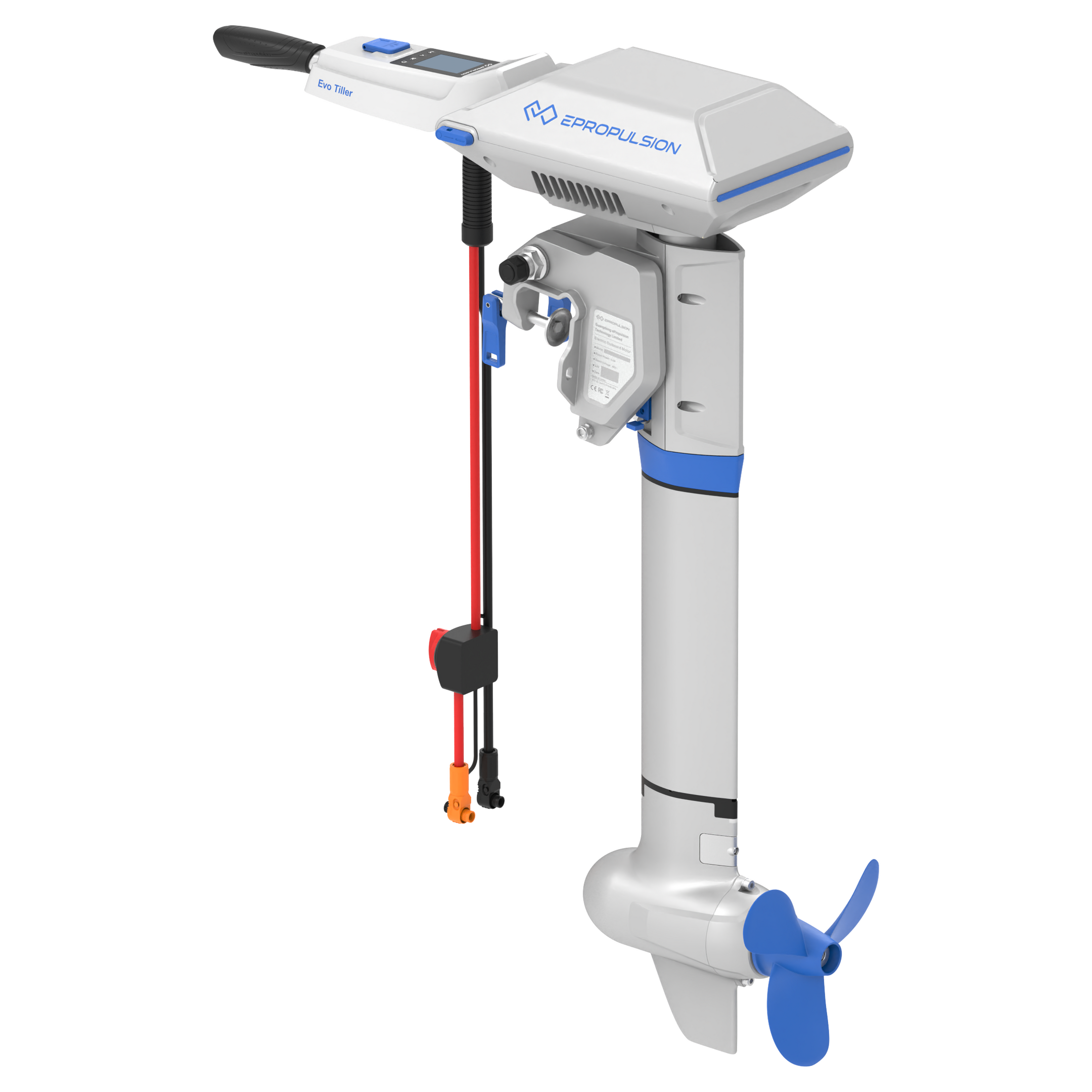

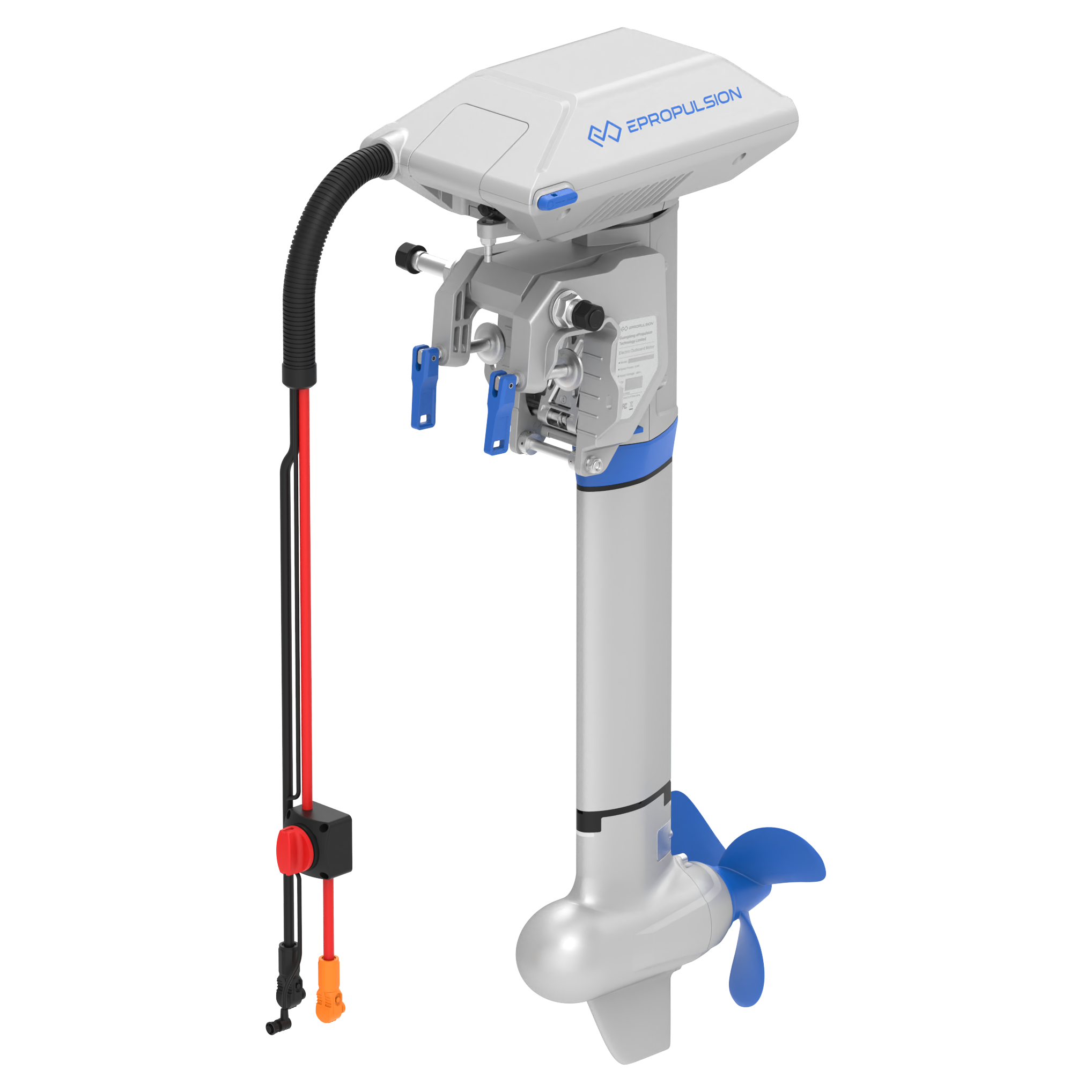

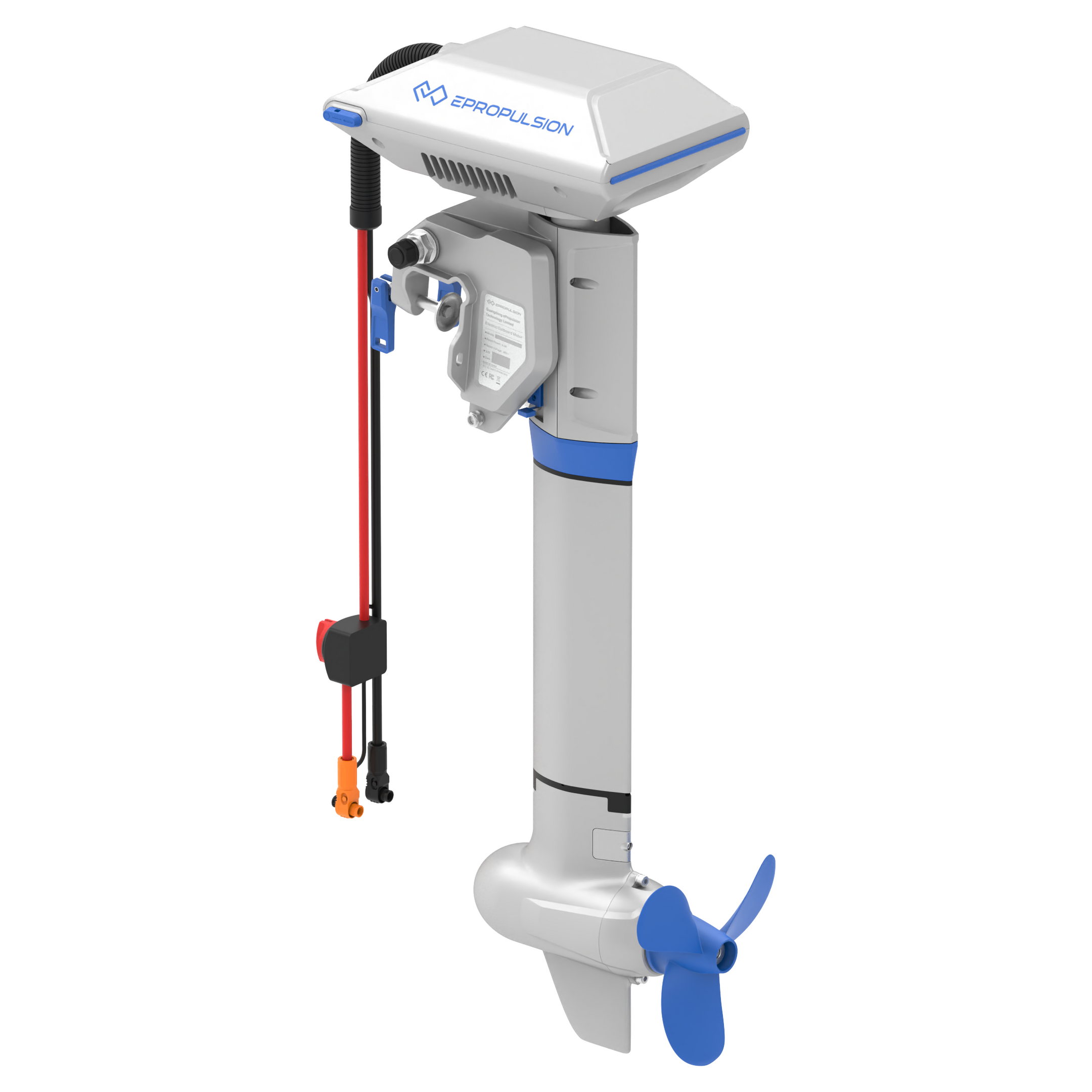

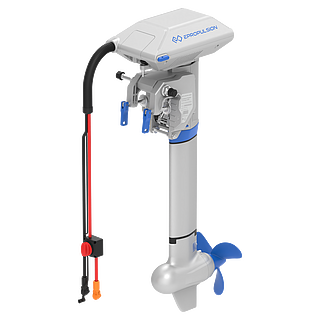

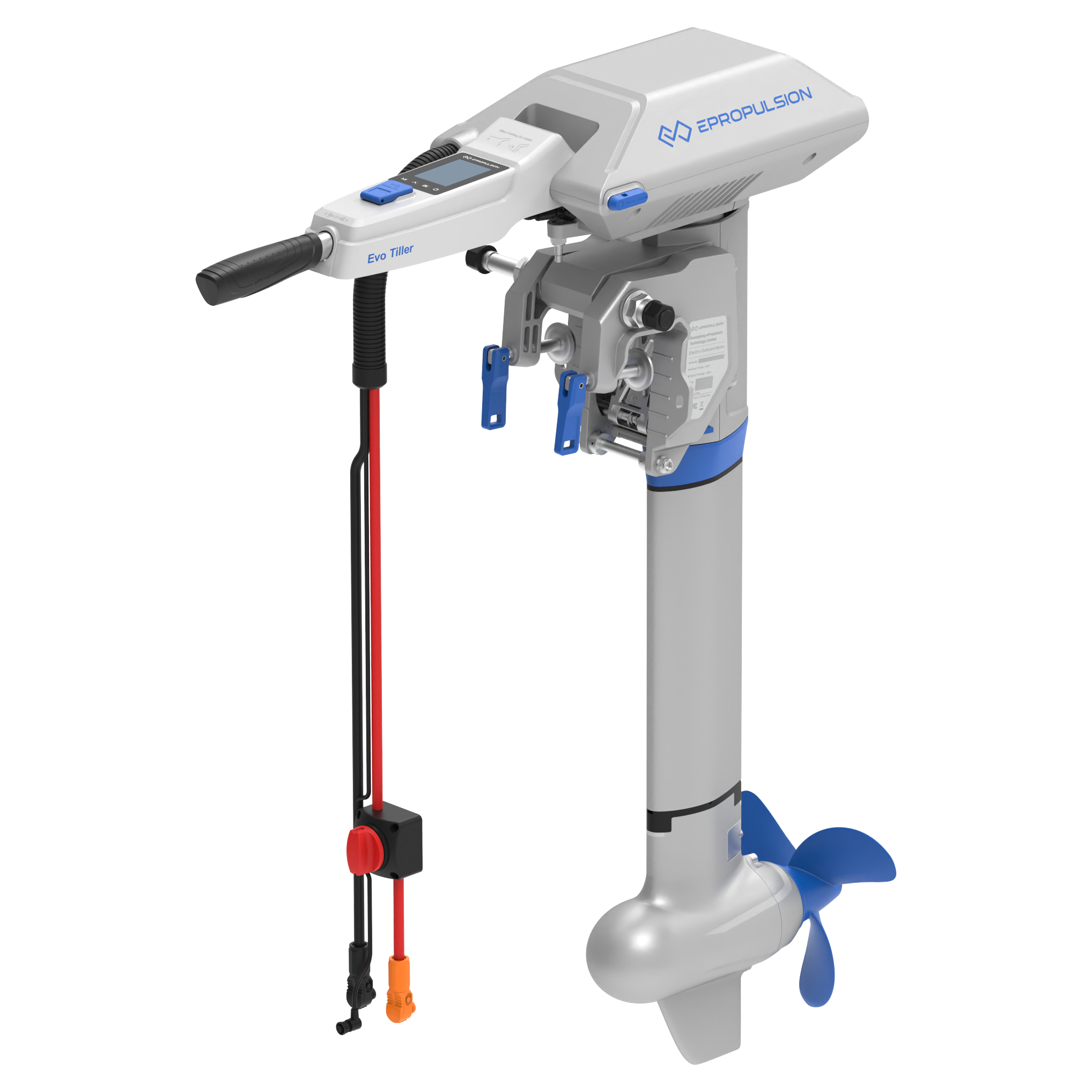

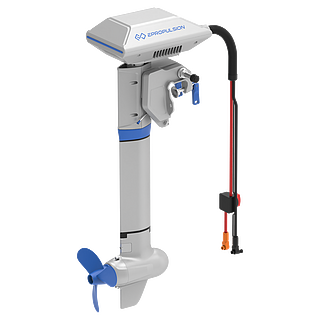

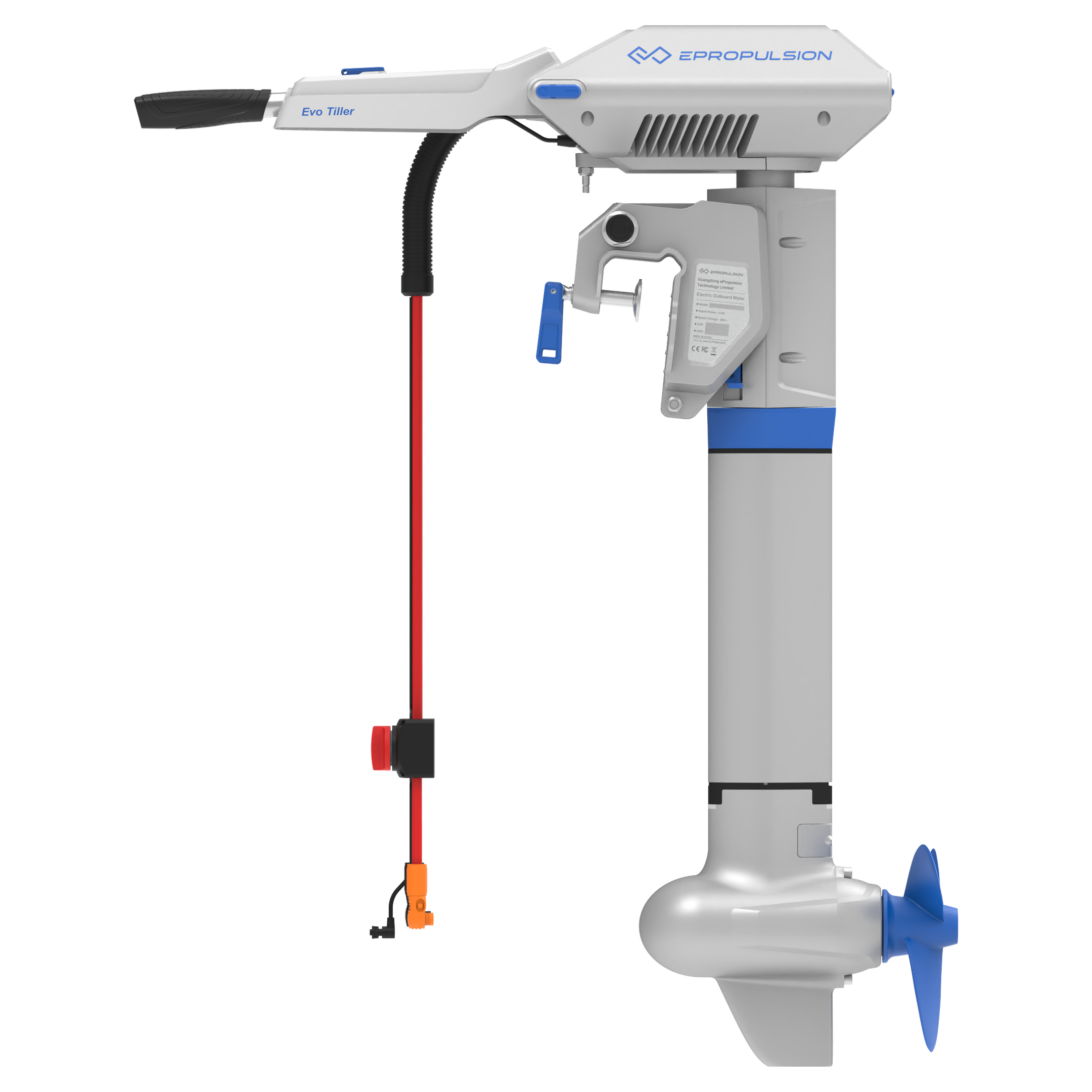

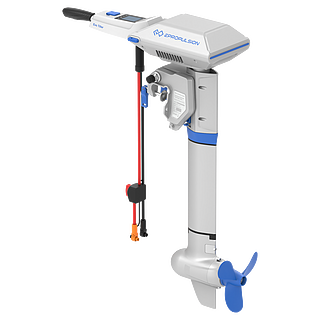

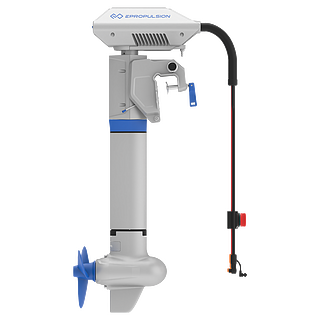

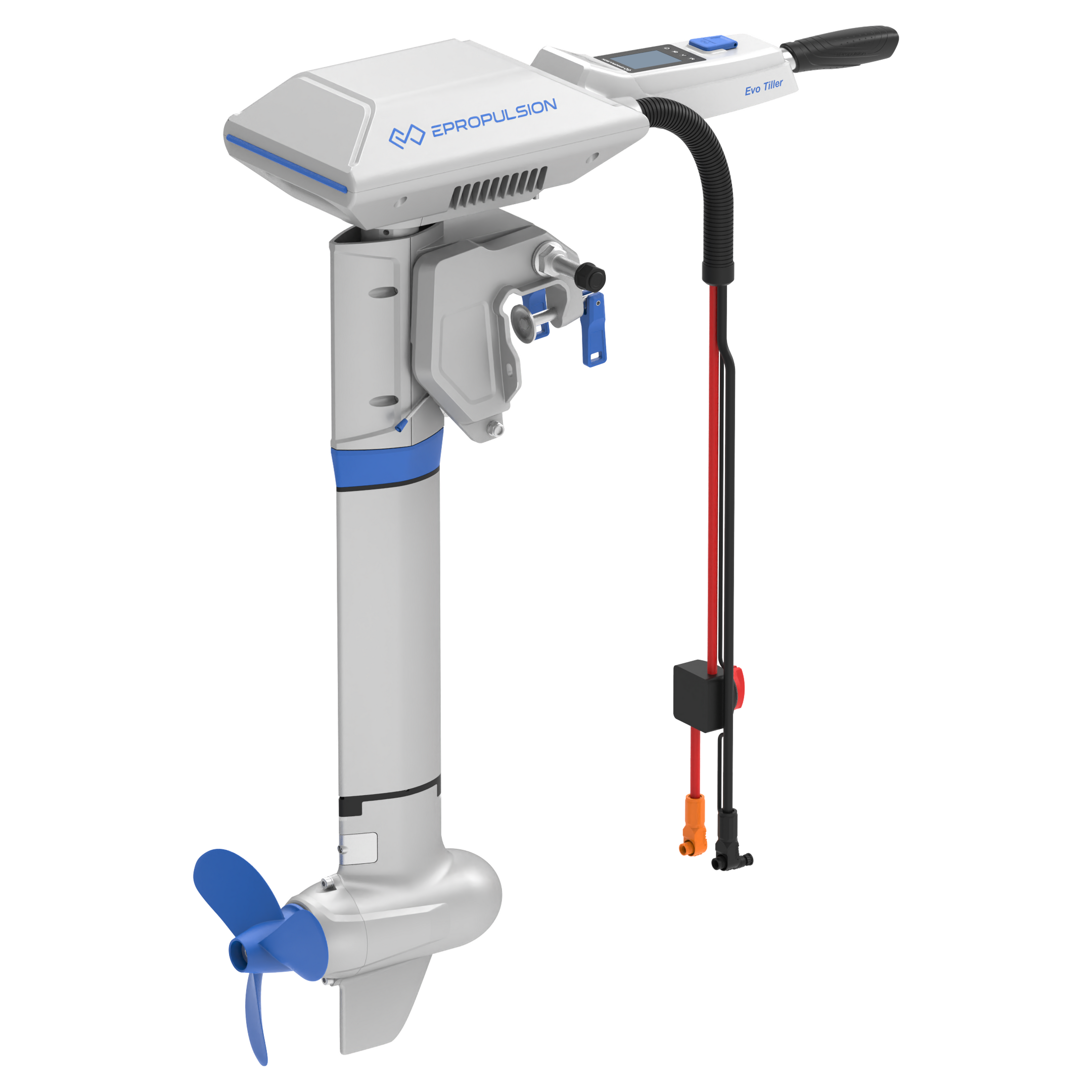

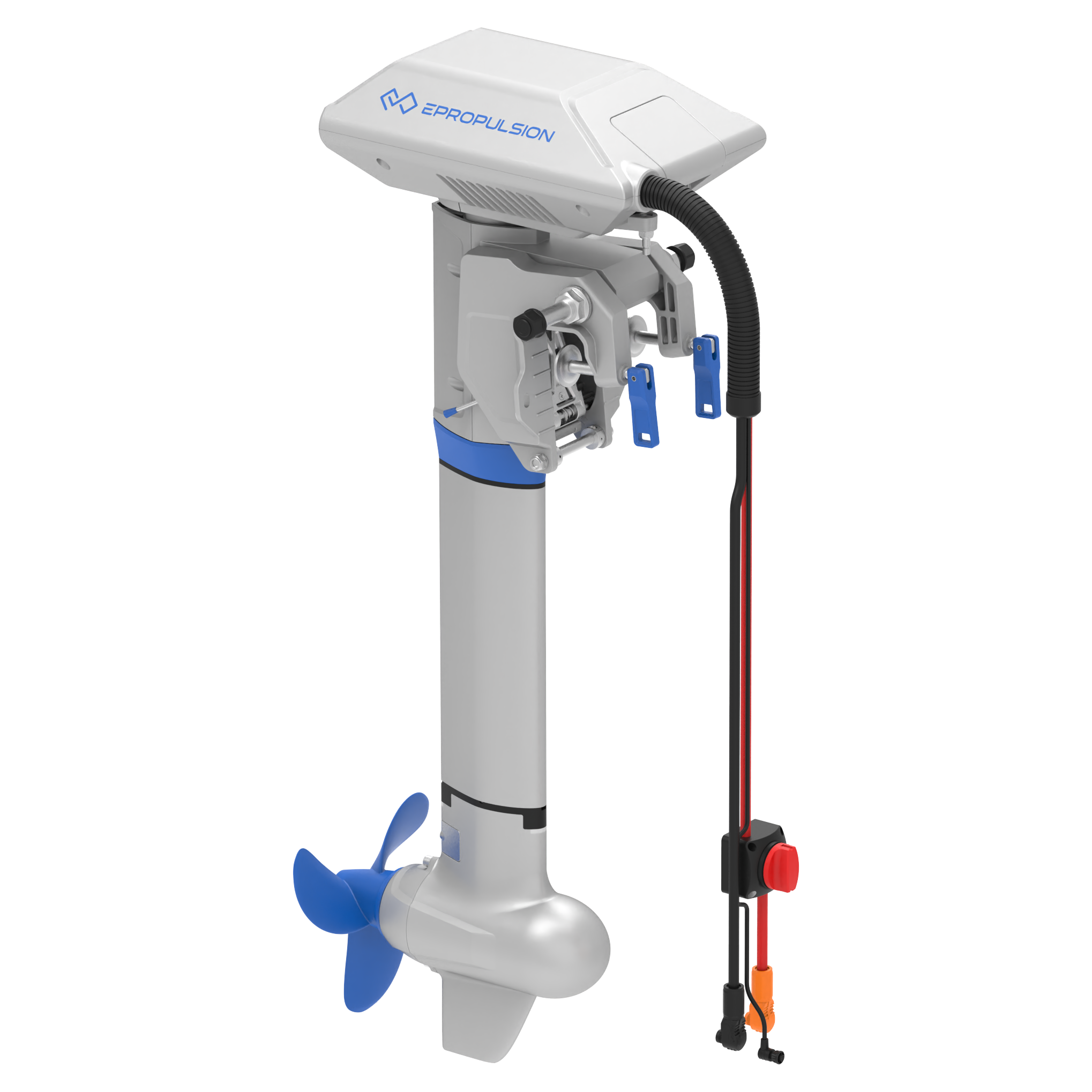

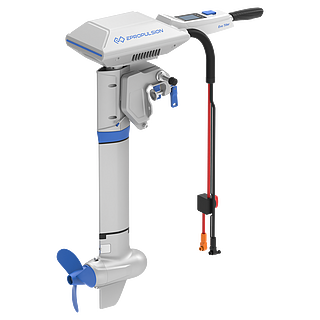

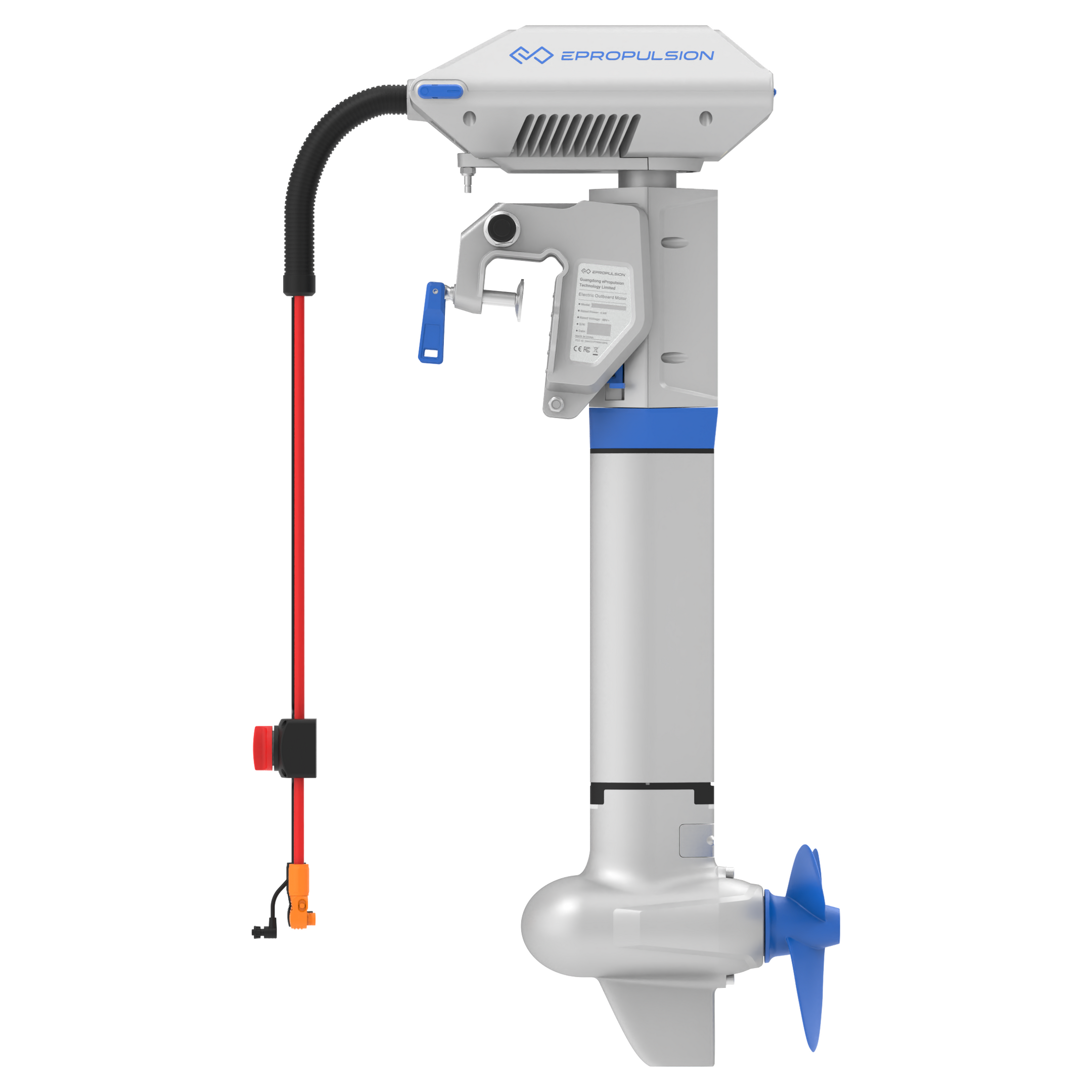

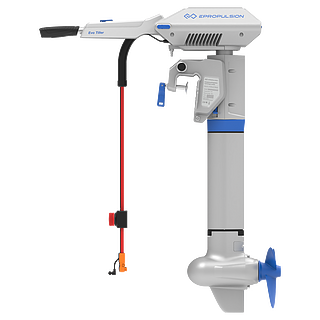

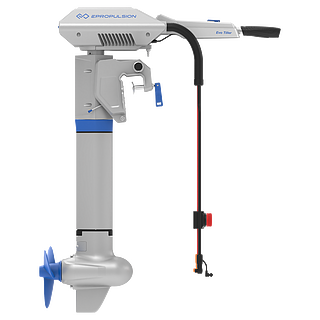

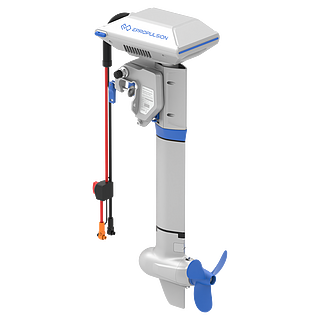

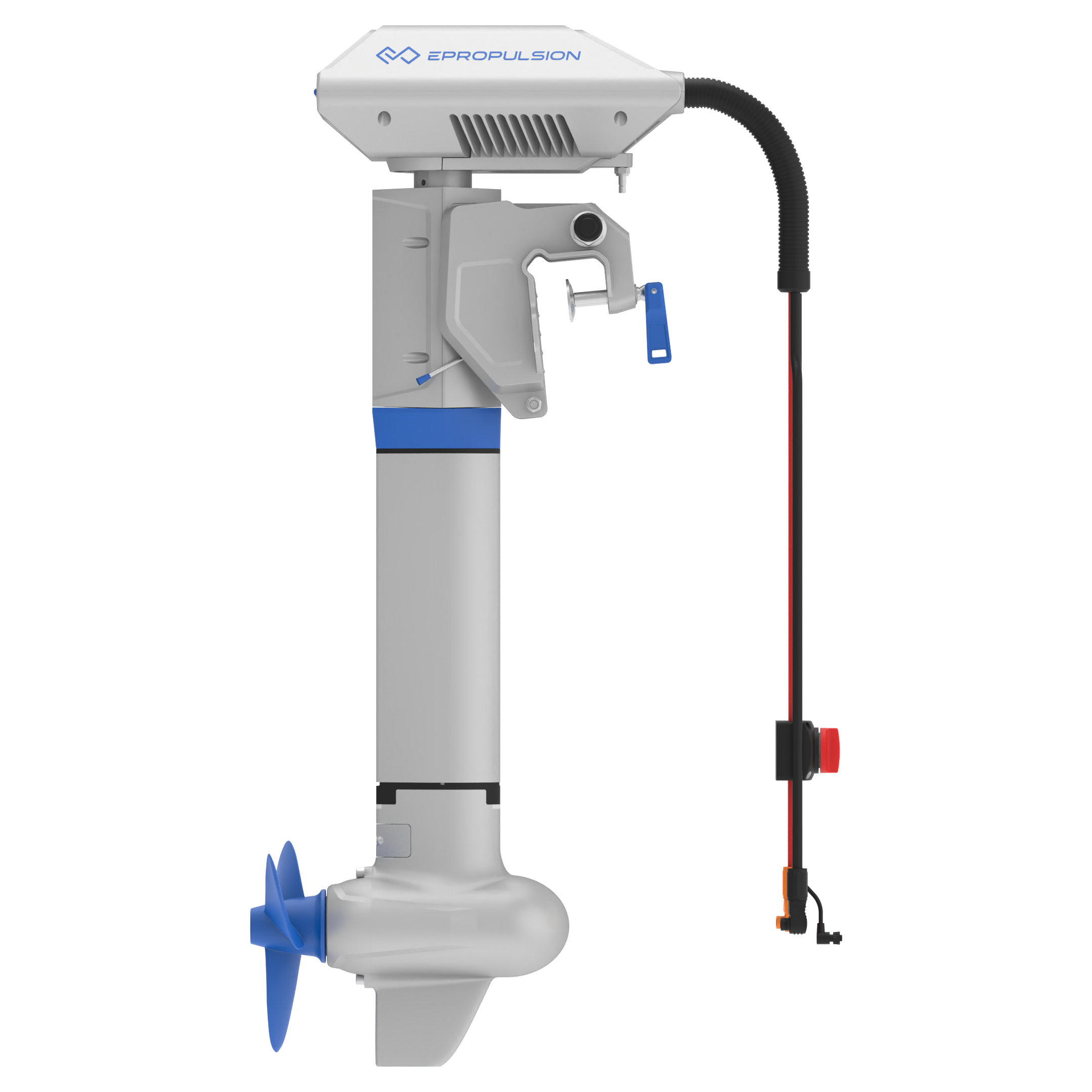

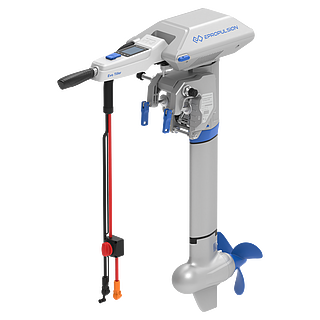

NAVY 6.0 Evo (2024) Longshaft

Part Number: NE-6000-L1

Series: Navy

Type: motor

View the main Navy Evo product page

Description

The Navy 6.0 Evo delivers 6kW of power (9.9HP equivalent), making it suitable for larger boats such as motorboats, RIBs, river boats, and sailing yachts up to 5 tons. Its direct-drive design provides a quiet and maintenance-free experience. Equipped with hydrogeneration technology, it can recharge batteries while sailing under appropriate conditions, supporting longer journeys. The Navy 6.0 Evo is compatible with ePropulsion's E-Series batteries, ensuring reliable and efficient electric propulsion for your maritime adventures.

Updated Version - previous product was NE-6000-L0
This is the new version with an inline Main Switch and Aviation style connectors, not the blue Anderson connectors.
It also has a new transom bracket with updated tilt angles:

Installation position: 5°, 10°, 15°, 20°
Shallow water mode: 35°, 50°,65°
Tilt up position: 80°

Technical Specifications

Physical Dimensions

Length: 475.00 mm

Width: 314.00 mm

Height: 1180.00 mm

Net Weight: 29.50 kg

Motor Specifications

Voltage: 48.00 V

Min Power: 60 W

Max Power: 6000 W

Codes & Identifiers

EAN Code: 6971312632422

UPC Code: 770264105758

HS Code (EU): 8501320099

HS Code (US): 8501322000

Comes With

Downloads

User Manual EN/DE Navy 6.0 Evo 2024 V1.0

User Manual

User Manual EN/DE Navy 6.0 Evo 2024 V1.0
Download
