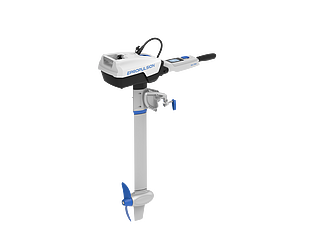

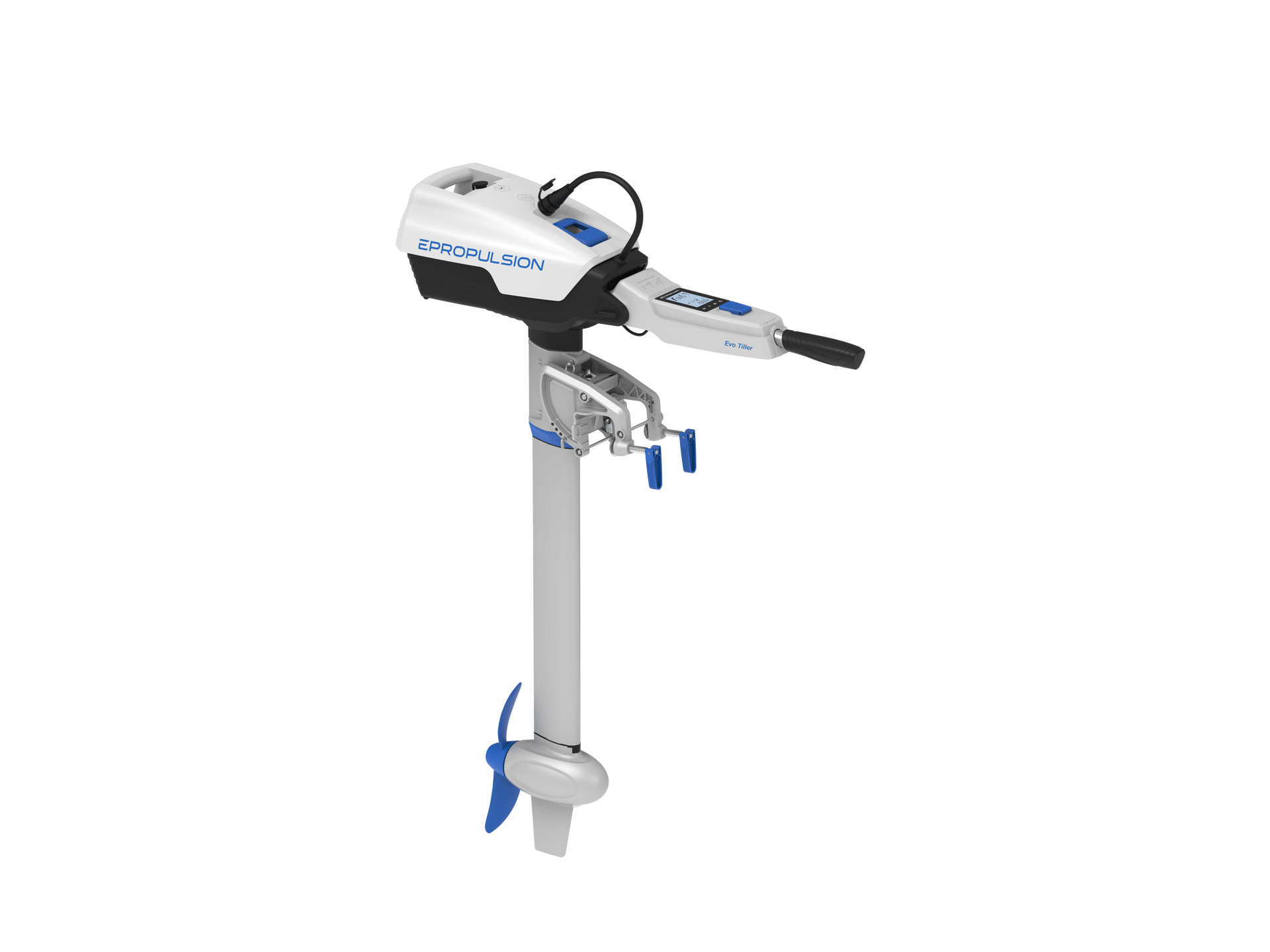

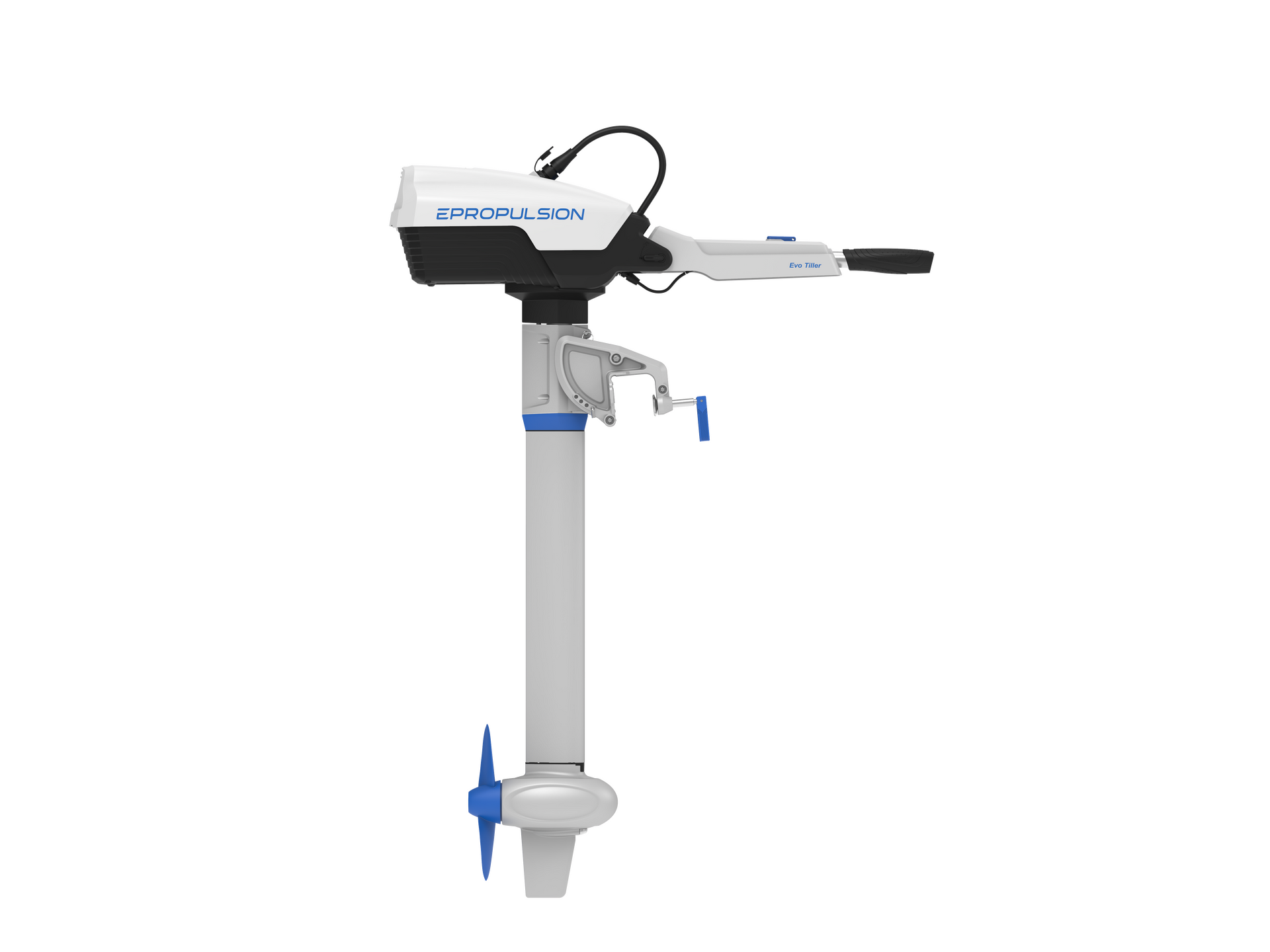

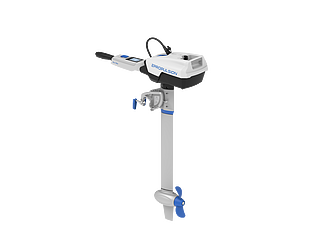

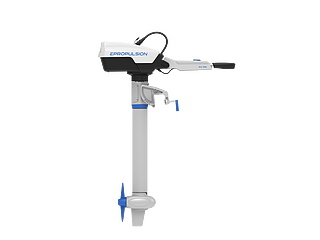

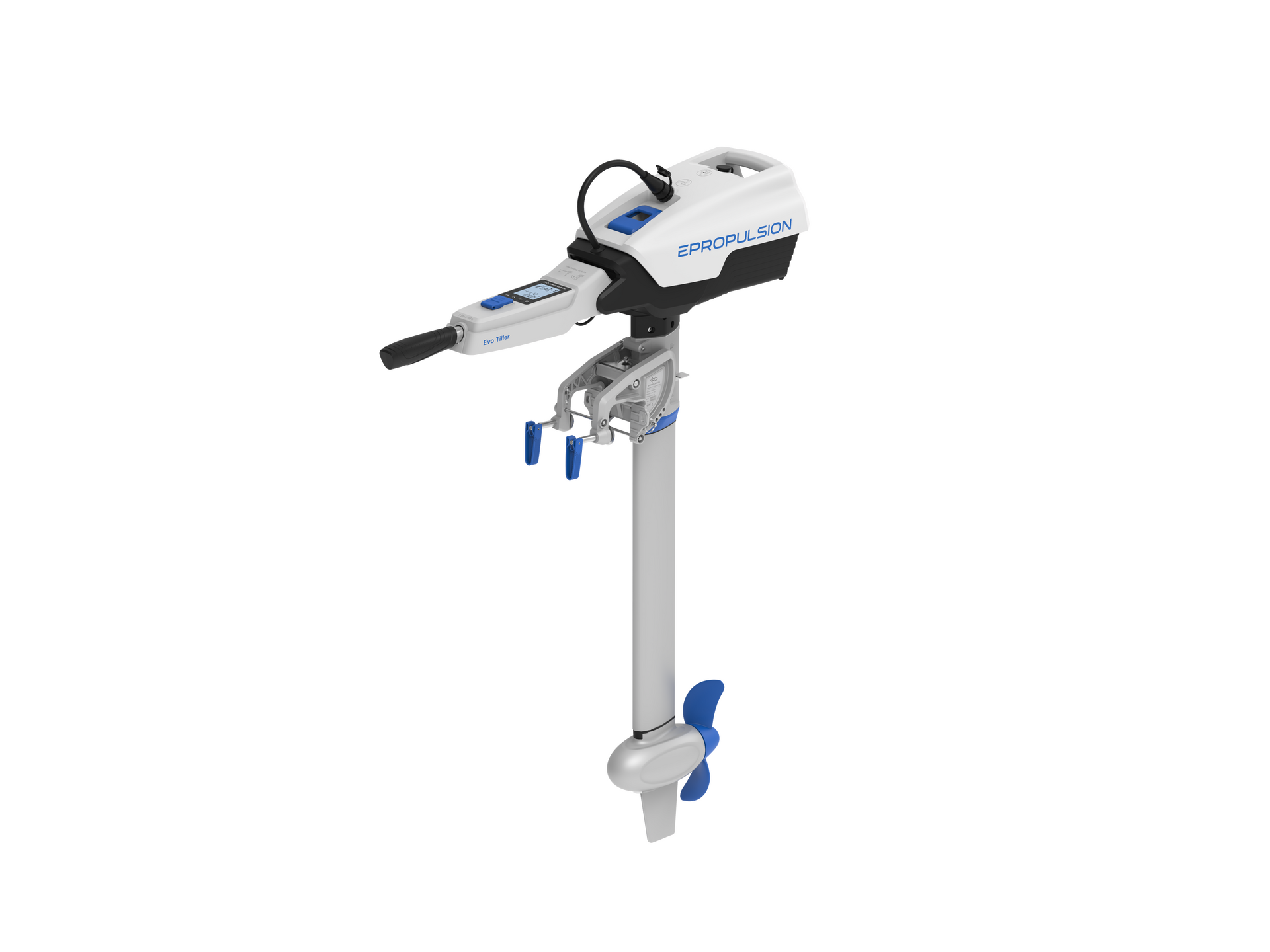

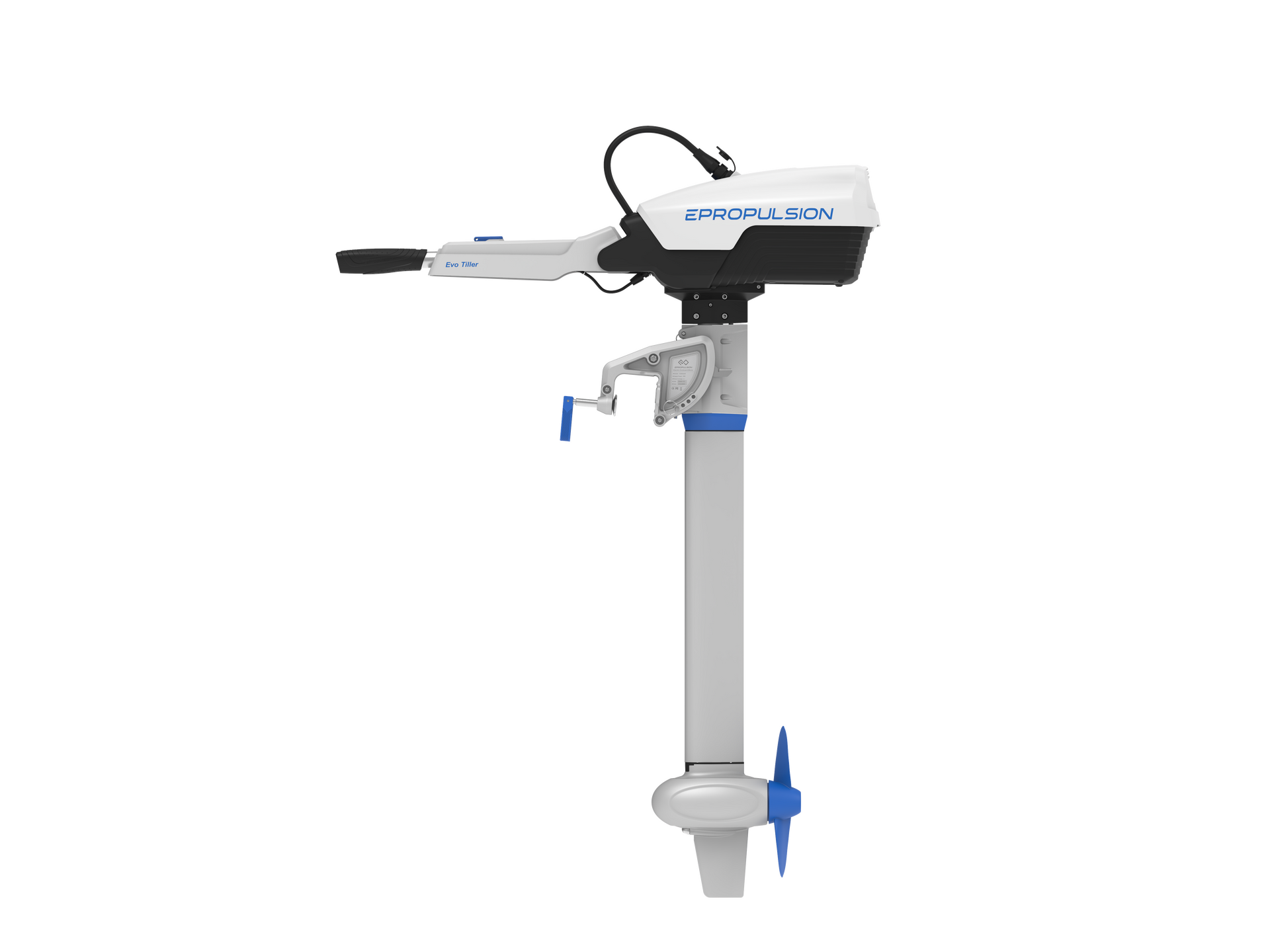

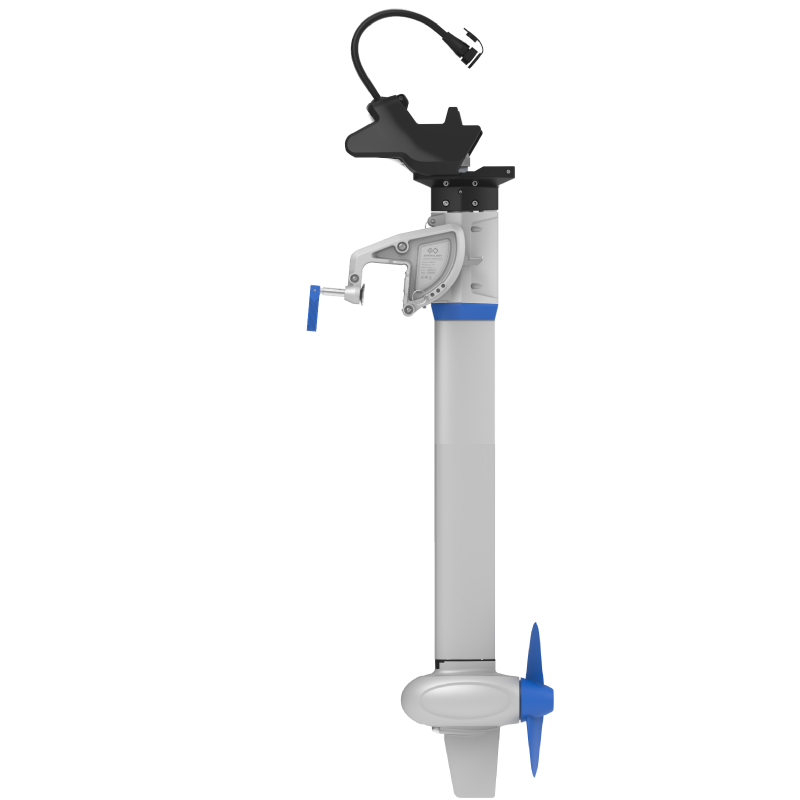

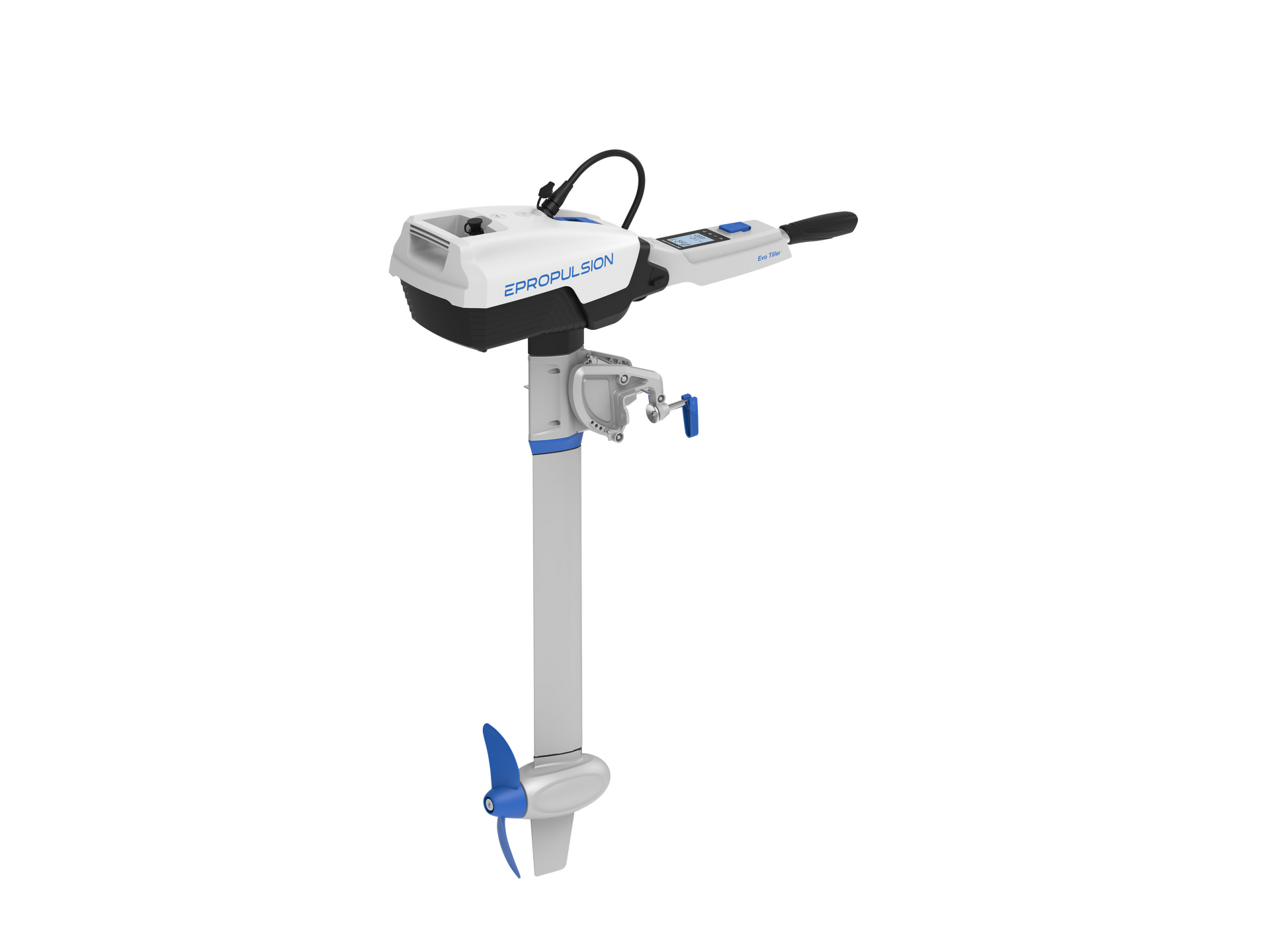

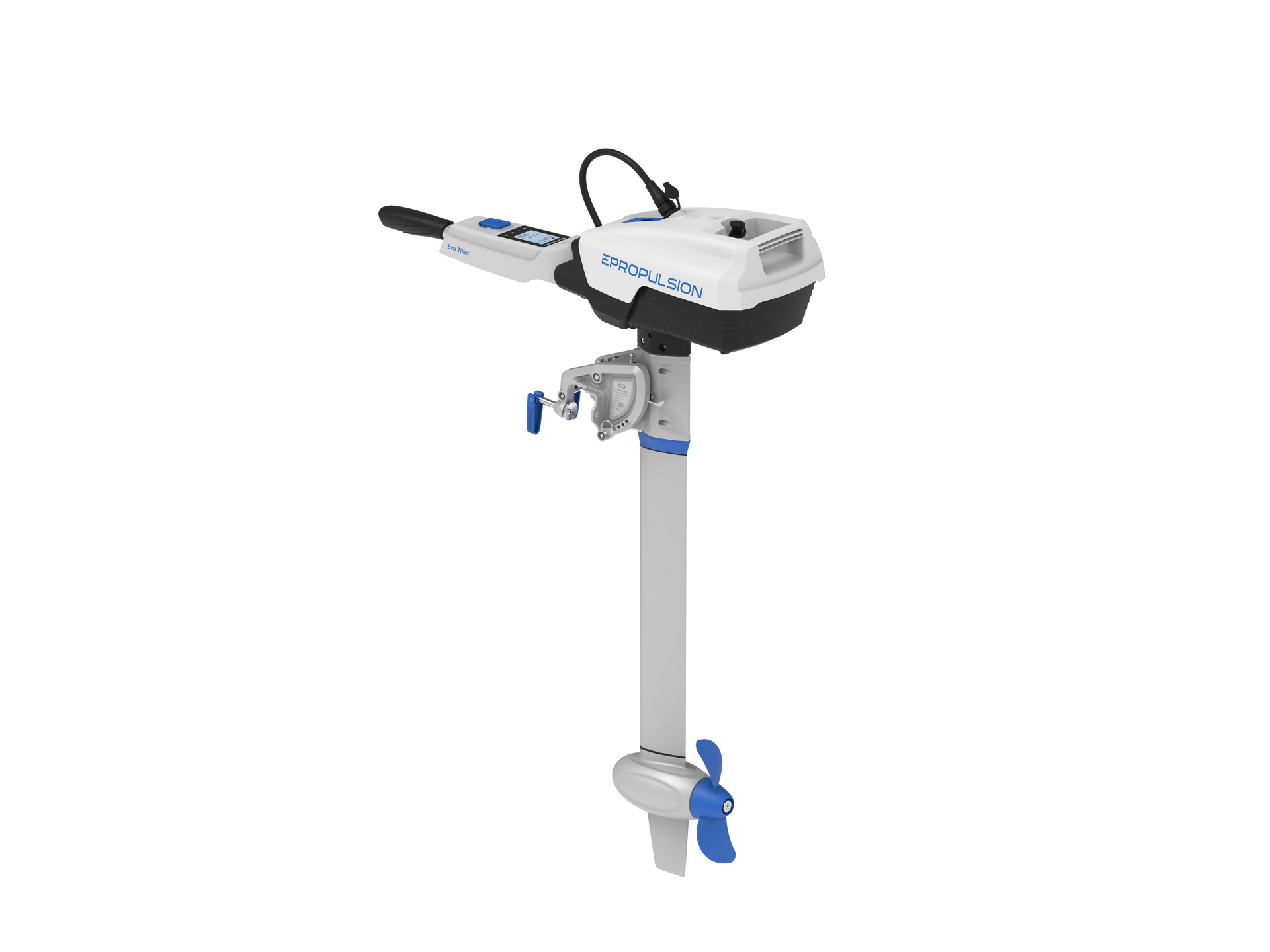

SPIRIT 1.0 Evo Longshaft (Motor only)

Part Number: SE-1111-L0

Series: Spirit

Type: motor

View the main Spirit 1.0 Plus / Evo product page

Description

The Spirit 1.0 Evo is a 1kW (3HP equivalent) electric outboard motor, designed for small boats such as dinghies, tenders, and sailboats. Featuring an integrated 1,276 Wh lithium battery, it provides impressive range and reliability for your adventures on the water.

The Evo stands out with its hydrogeneration capability, enabling the battery to recharge while sailing under the right conditions. This innovative feature enhances its appeal for eco-conscious sailors. Additionally, the Spirit 1.0 Evo supports remote control operation, offering flexibility for various steering setups and an enhanced boating experience.

Lightweight, quiet, and maintenance-free, the Spirit 1.0 Evo is an ideal solution for sustainable, efficient, and convenient electric propulsion.

This is the Short shaft version, most suitable for a transom height of above 50 cm / 19.7 inches.

Key Features:
  • Digital Operation: Real-time monitoring of power, remaining runtime, battery level, and operating voltage.
  • Electric Start: One-button start eliminates the need for pull starts.
  • Magnetic Kill Switch: Ensures safety by stopping the motor in emergencies.
  • Stepless Throttle Control: Smooth handling in both forward and reverse.
  • Ambidextrous Operation: Throttle can be operated from either the left or right side.

Both the Plus and Evo models are compatible with ePropulsion's E-Series batteries, allowing for extended runtime and flexibility. Optional solar charging accessories are available for on-the-go recharging, enhancing the sustainability of your boating adventures.

Technical Specifications

Physical Dimensions

Length: 550.00 mm

Width: 457.00 mm

Height: 1275.00 mm

Net Weight: 10.60 kg

Motor Specifications

Voltage: 48.00 V

Min Power: 30 W

Max Power: 1000 W

Cooling: Natural cooling

Efficiency: 55%

Static Thrust: 316 N

Propeller Specifications

Diameter: 280.00 mm

Pitch: 148.00 mm

Rated RPM: 1200

Blades: 2

Material: Composite

Codes & Identifiers

EAN Code: 6971312631982

UPC Code: 770264105581

HS Code (EU): 8501320099

HS Code (US): 8501322000

Comes With
