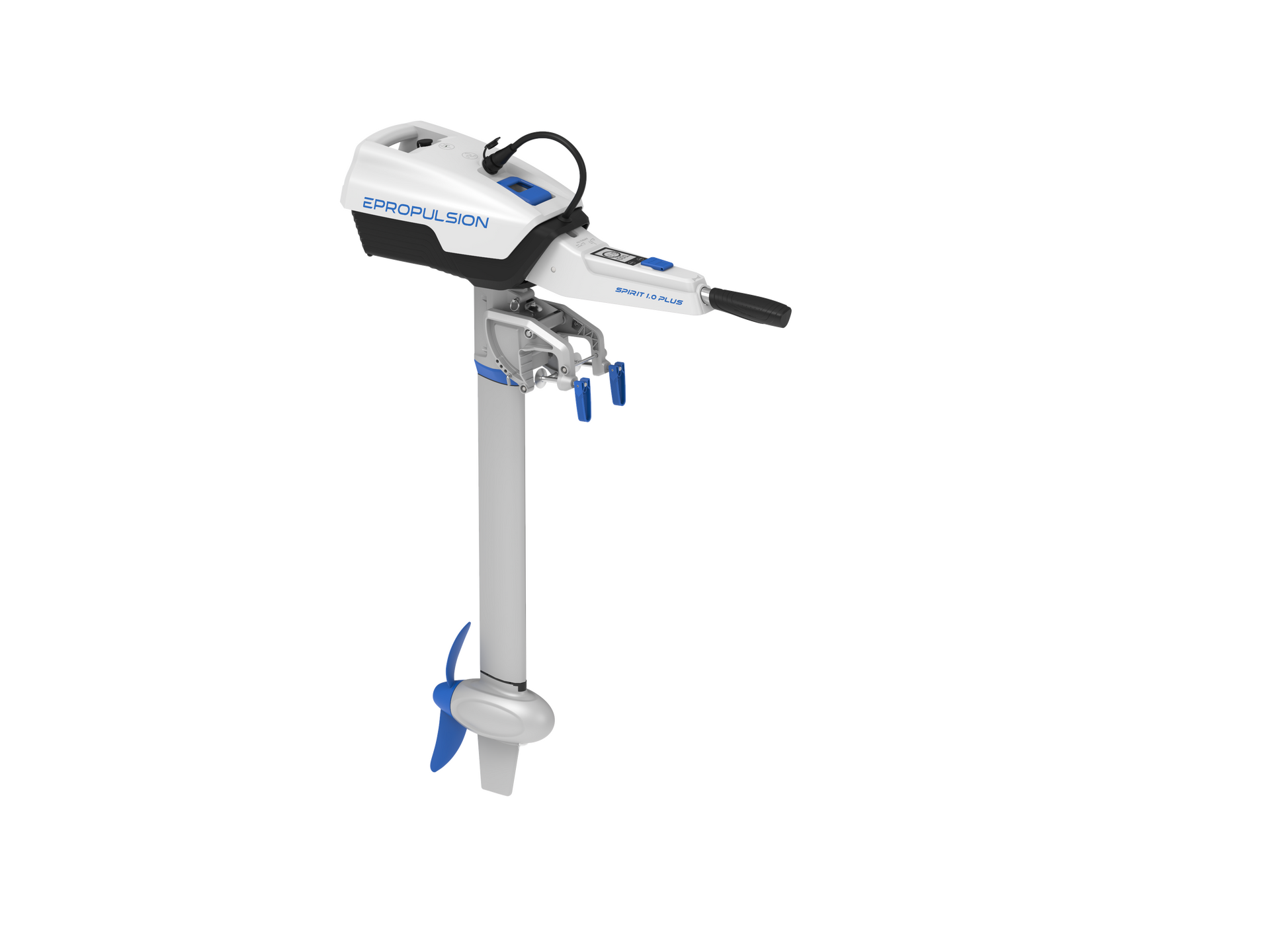

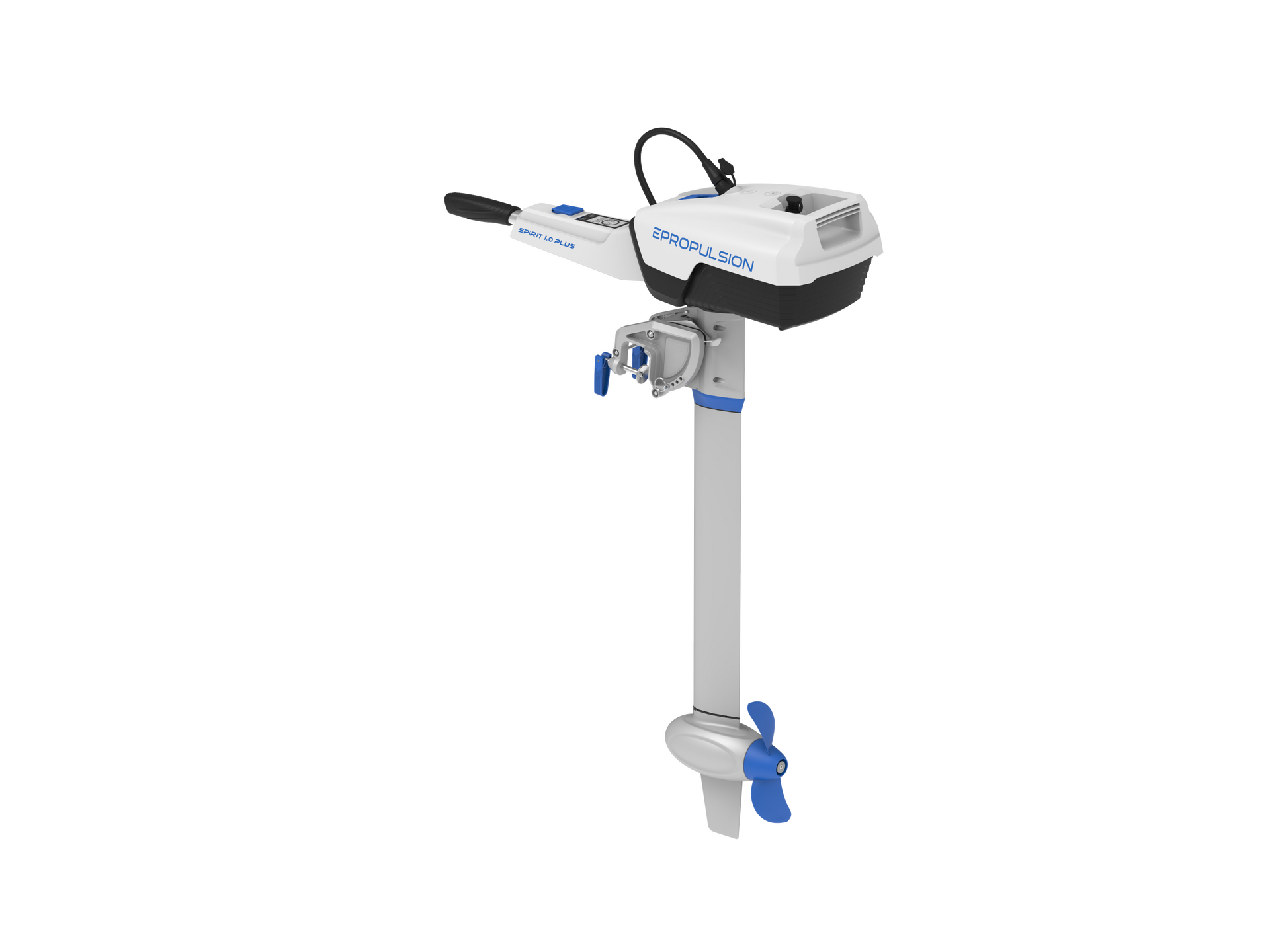

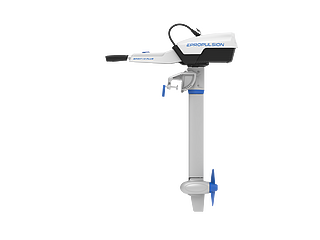

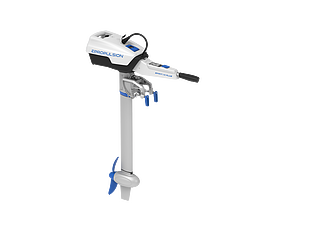

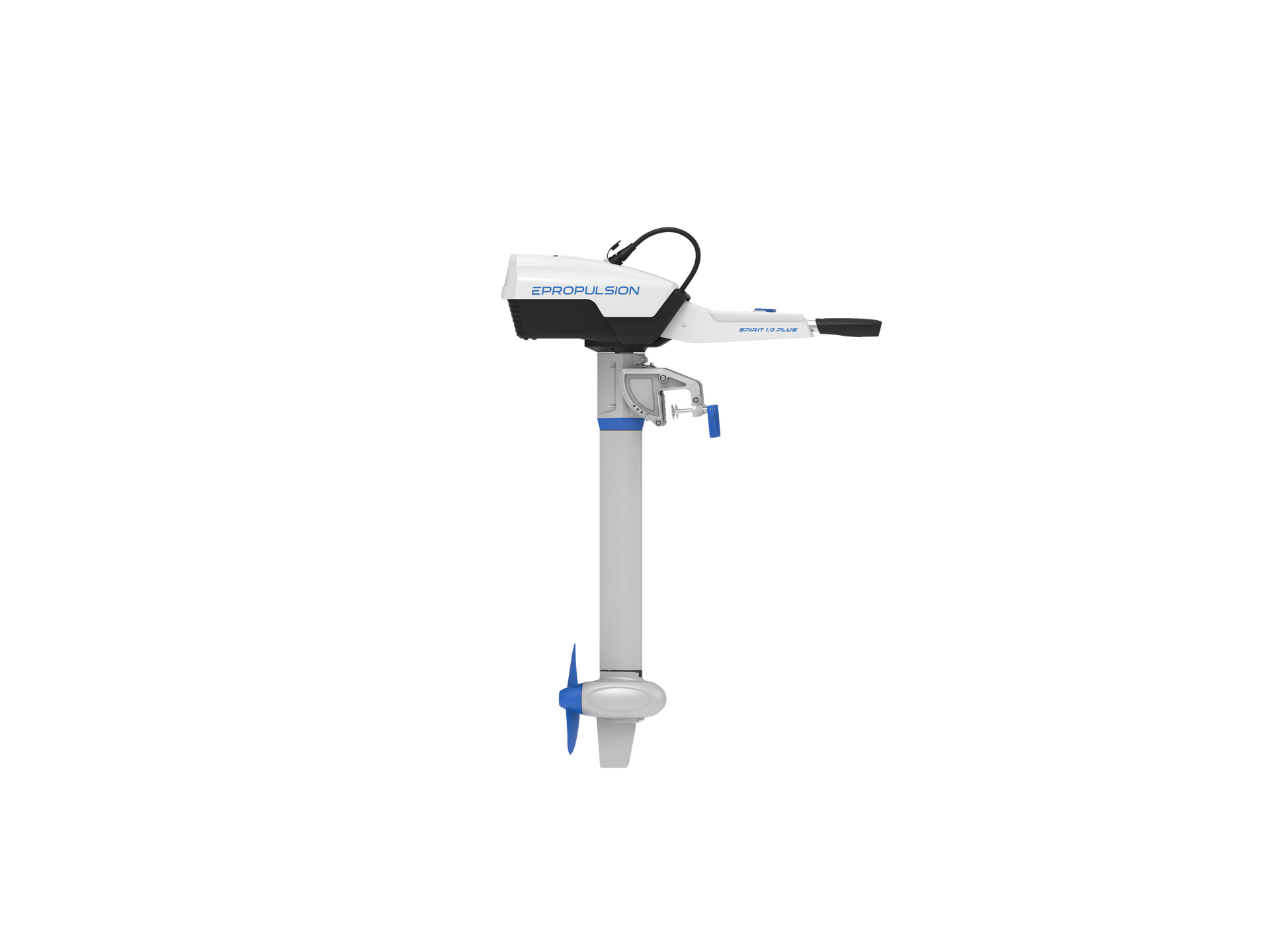

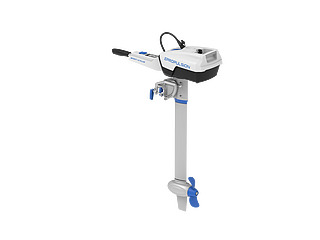

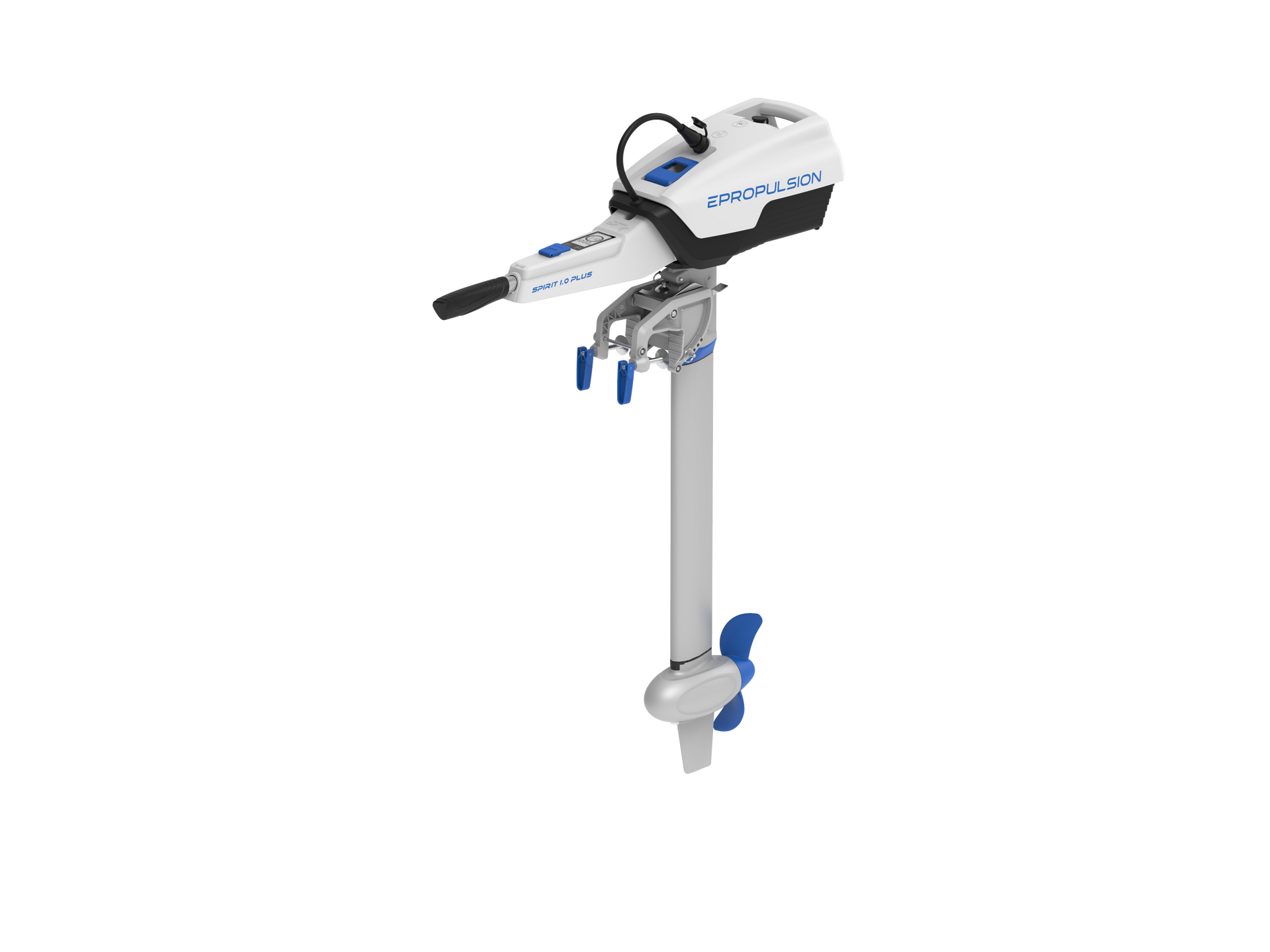

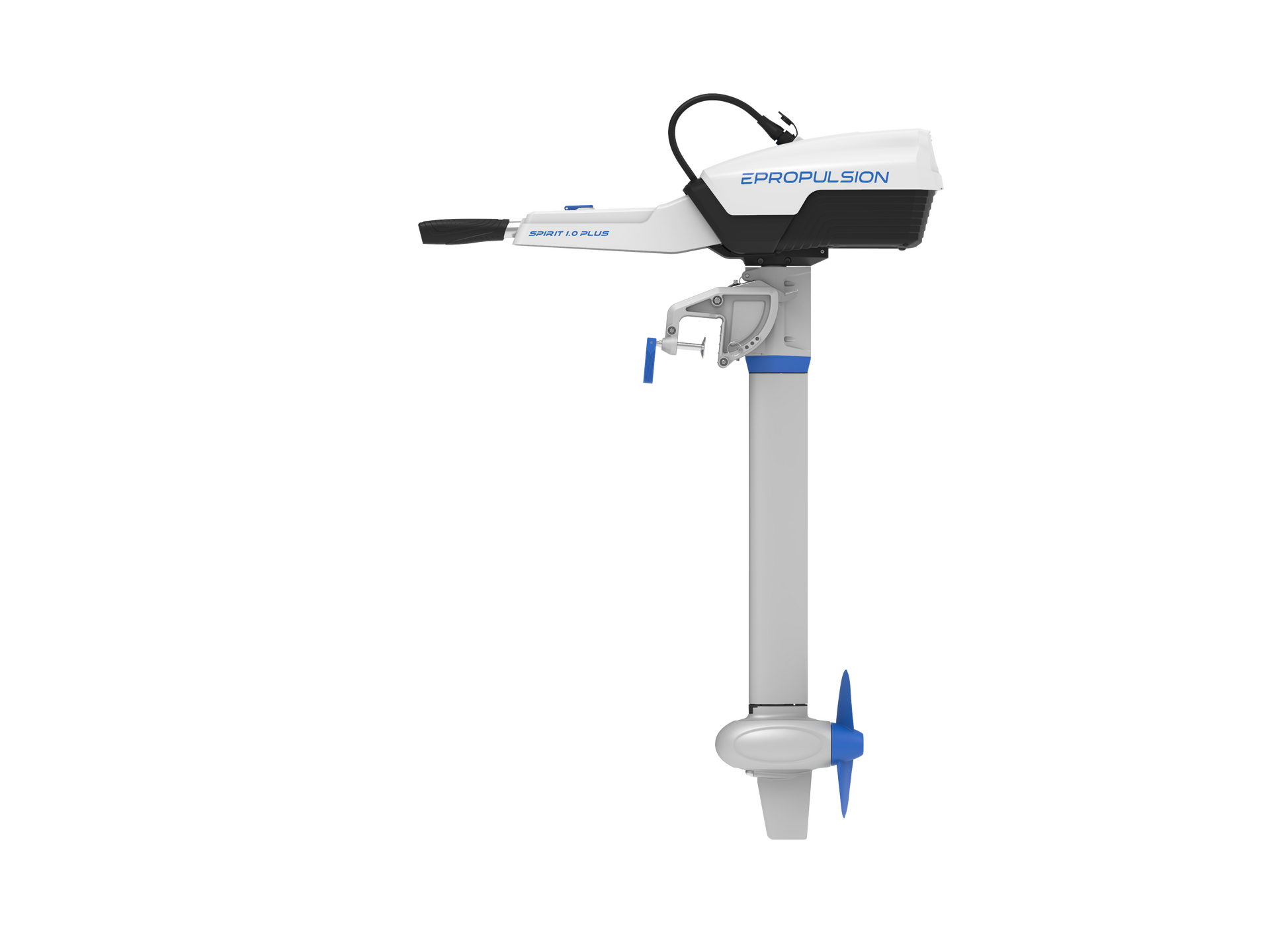

SPIRIT 1.0 Plus Longshaft (Motor only)
Part Number: SP-1111-L1
Series: Spirit
Type: motor
View the main Spirit 1.0 Plus / Evo product page
Description
The Spirit 1.0 Plus is a 1kW (3HP equivalent) electric outboard motor, ideal for dinghies, fishing vessels, sailboats, and tenders. It features a lightweight, integrated 1,276 Wh lithium battery, providing extended travel distances. Weighing only 11.3 kg (excluding the battery), it ensures easy transport and installation. The motor operates quietly and requires zero maintenance, offering a clean and efficient boating experience.
This is the Long shaft version, most suitable for a transom height of above 50 cm / 19.7 inches.
Key Features:
- Digital Operation: Real-time monitoring of power, remaining runtime, battery level, and operating voltage.
- Electric Start: One-button start eliminates the need for pull starts.
- Magnetic Kill Switch: Ensures safety by stopping the motor in emergencies.
- Stepless Throttle Control: Smooth handling in both forward and reverse.
- Ambidextrous Operation: Throttle can be operated from either the left or right side.
Both the Plus and Evo models are compatible with ePropulsion's E-Series batteries, allowing for extended runtime and flexibility. Optional solar charging accessories are available for on-the-go recharging, enhancing the sustainability of your boating adventures.
Technical Specifications
Physical Dimensions
Length: 880.00 mm
Width: 273.00 mm
Height: 1235.00 mm
Net Weight: 10.80 kg
Motor Specifications
Voltage: 48.00 V
Min Power: 30 W
Max Power: 1000 W
Cooling: Natural cooling
Efficiency: 55%
Static Thrust: 316 N
Propeller Specifications
Diameter: 280.00 mm
Pitch: 148.00 mm
Rated RPM: 1200
Blades: 2
Material: Composite
Codes & Identifiers
EAN Code: 6971312631517
UPC Code: 705419015354
HS Code (EU): 8501320099
HS Code (US): 8501322000
Comes With
-
SPIRIT 1.0 Plus Charger
Part #: SP-C001-00 -
Spirit 1.0 Plus/Evo Propeller
Part #: S1-M001-00 -
Spirit 1.0 Plus/Evo Kill Switch
2x
Part #: S1-TH02-00
