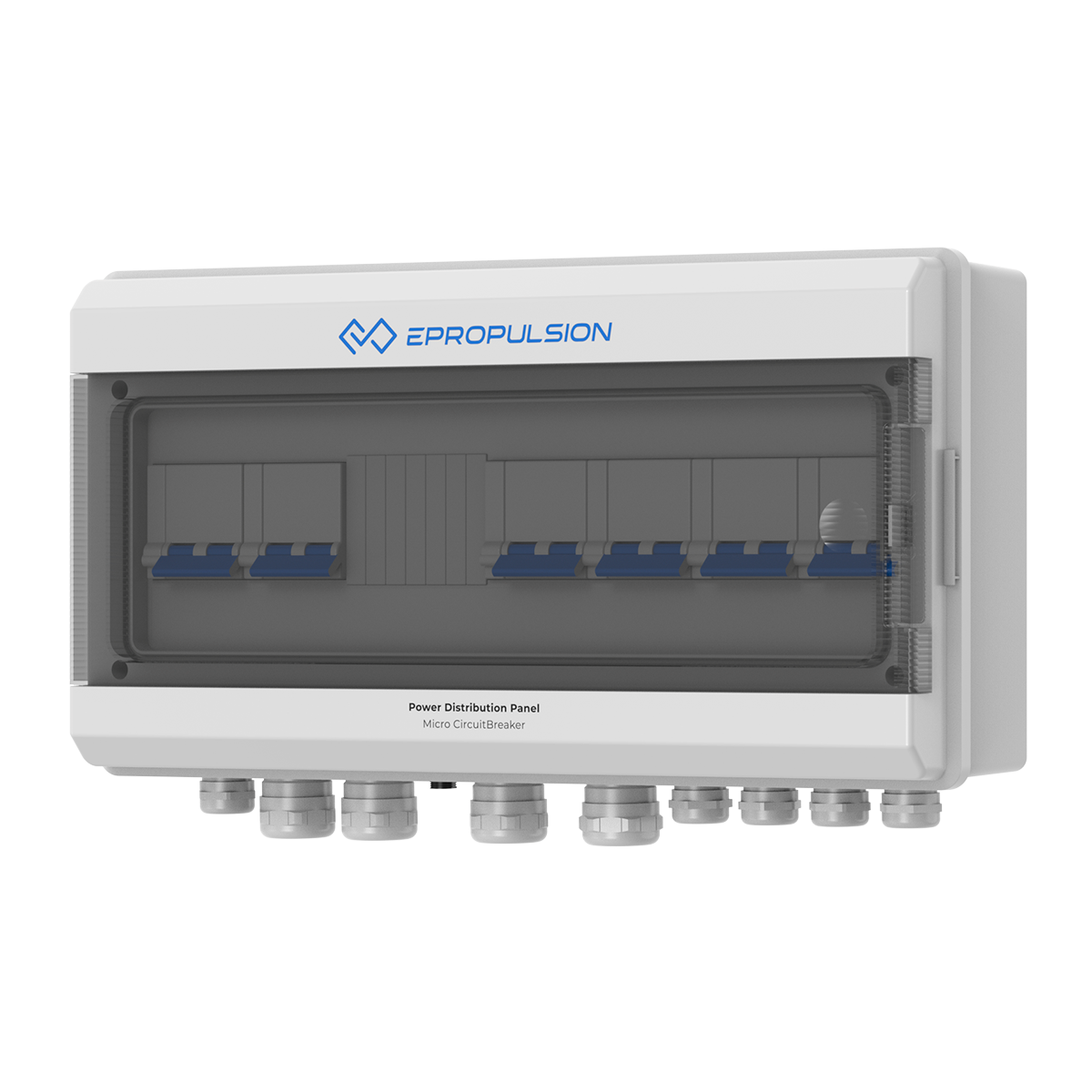

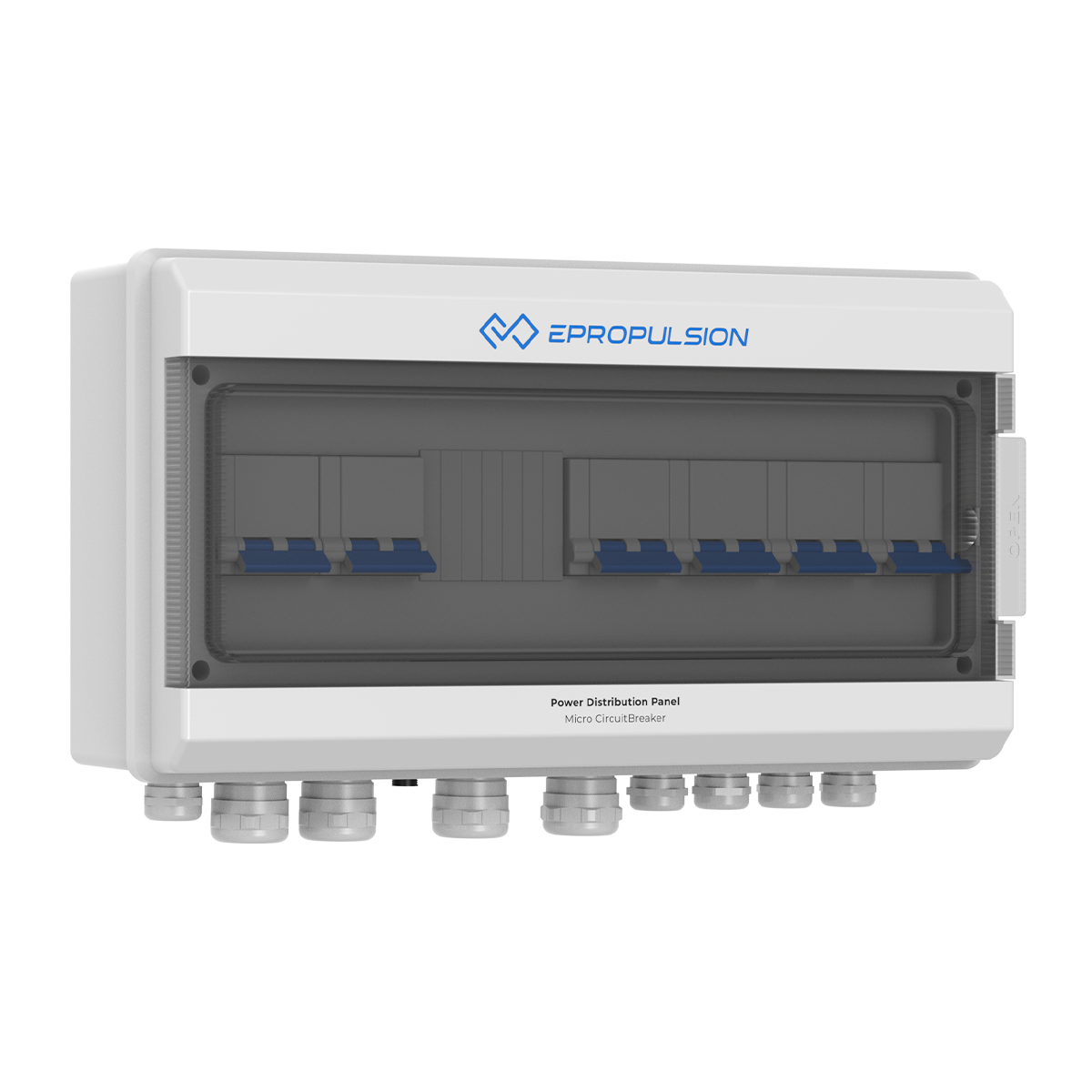

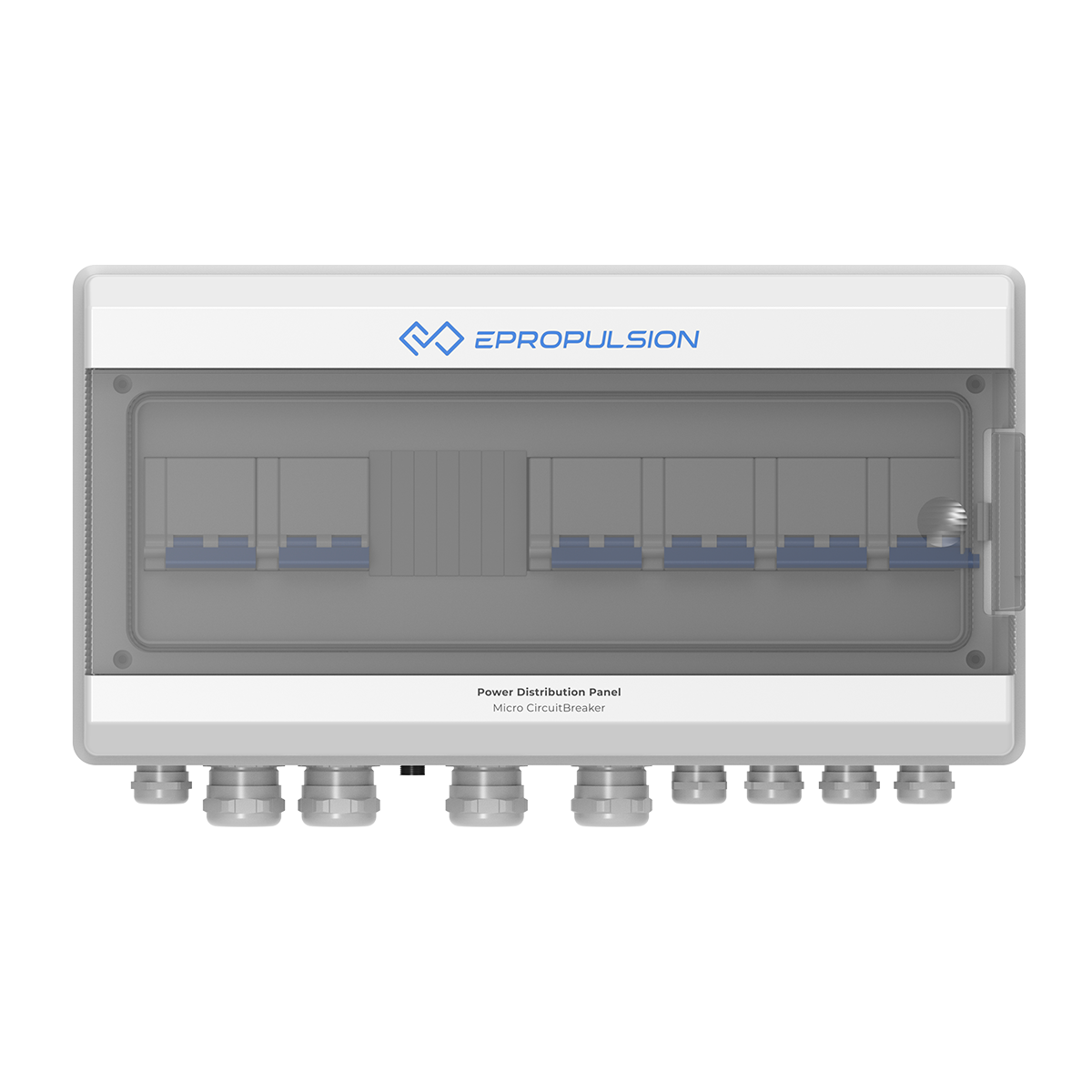

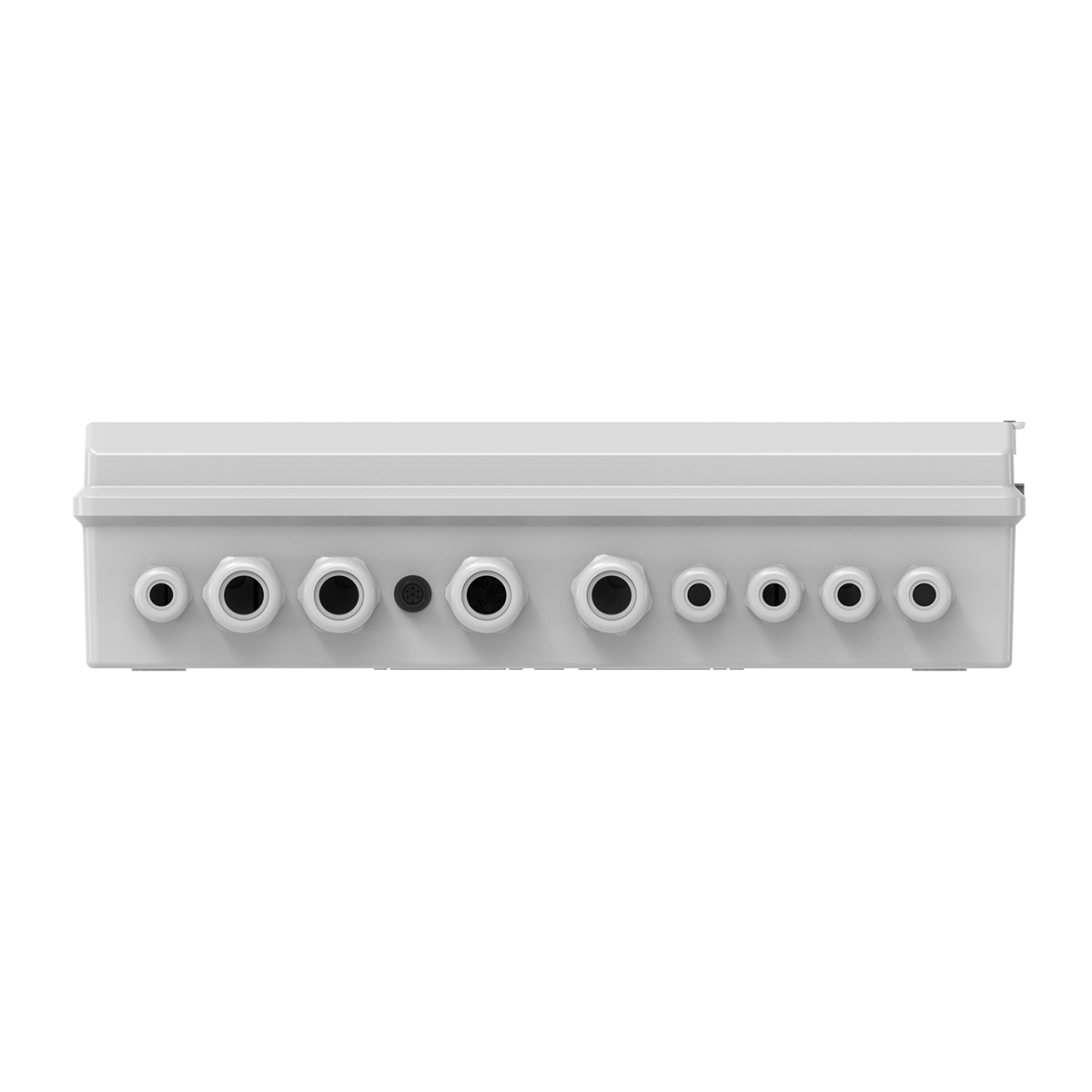

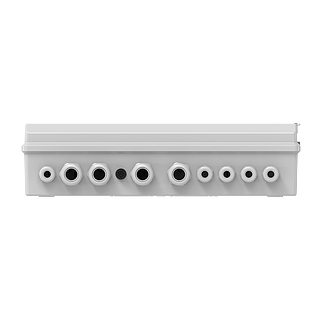

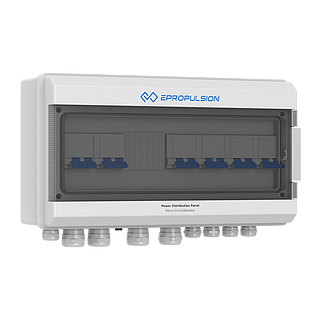

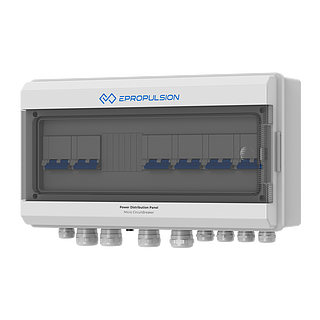

Distribution Box 96VDC

Part Number: PC-PP05-00

Series: I-Series X-Series P-Series EMS

Type: wiring

Distribute 96V power among the 96V battery bank, rectifier, DC-AC, and DC-DC, with a maximum of 18 panels.

Inside there are pre-wiring to connect 5 Circuit Breakers to distribute power from 96V in to be output from those 5 Circuit Breakers.

The Circuit Breakers Current Ratings are 25A, 125A, 63A, 10A and 32A.

Length: 381.00 mm

Width: 250.00 mm

Height: 113.50 mm

Net Weight: 3.00 kg

EAN Code: 6971312633498

UPC Code: 770264107790

HS Code (EU): 8537109899

HS Code (US): 8537109170
