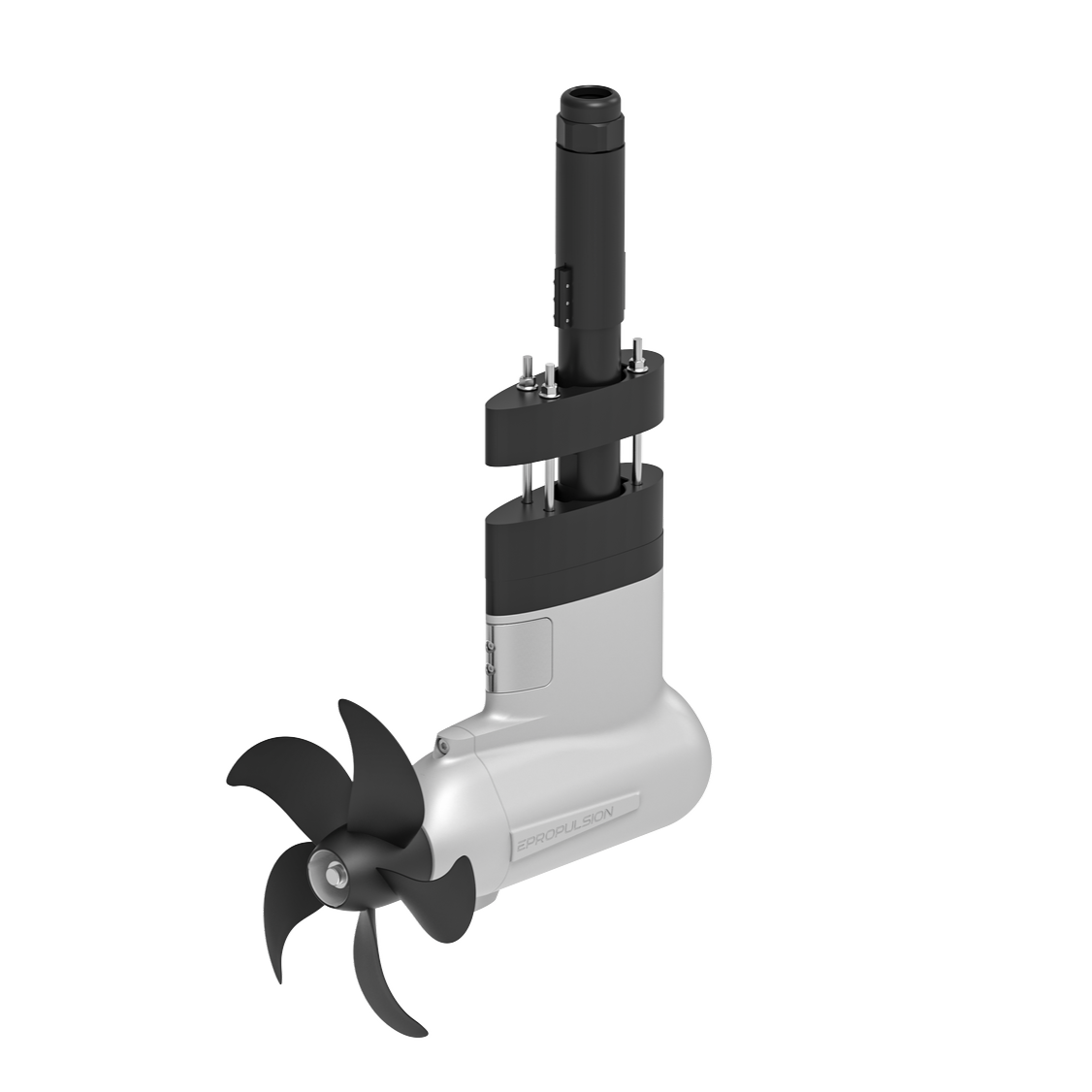

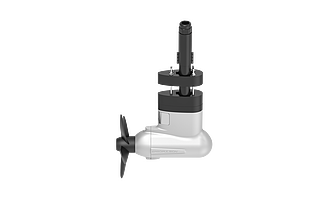

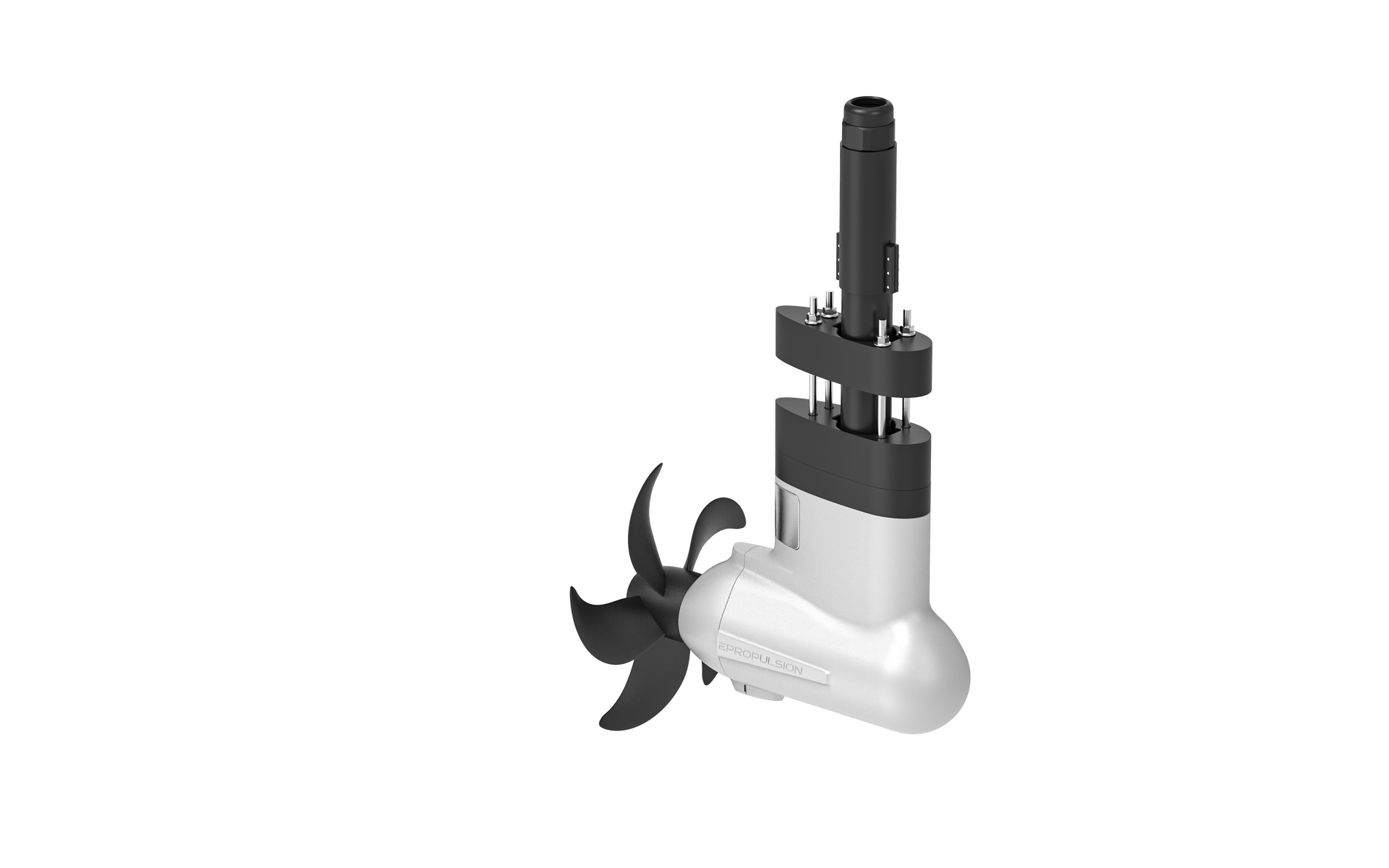

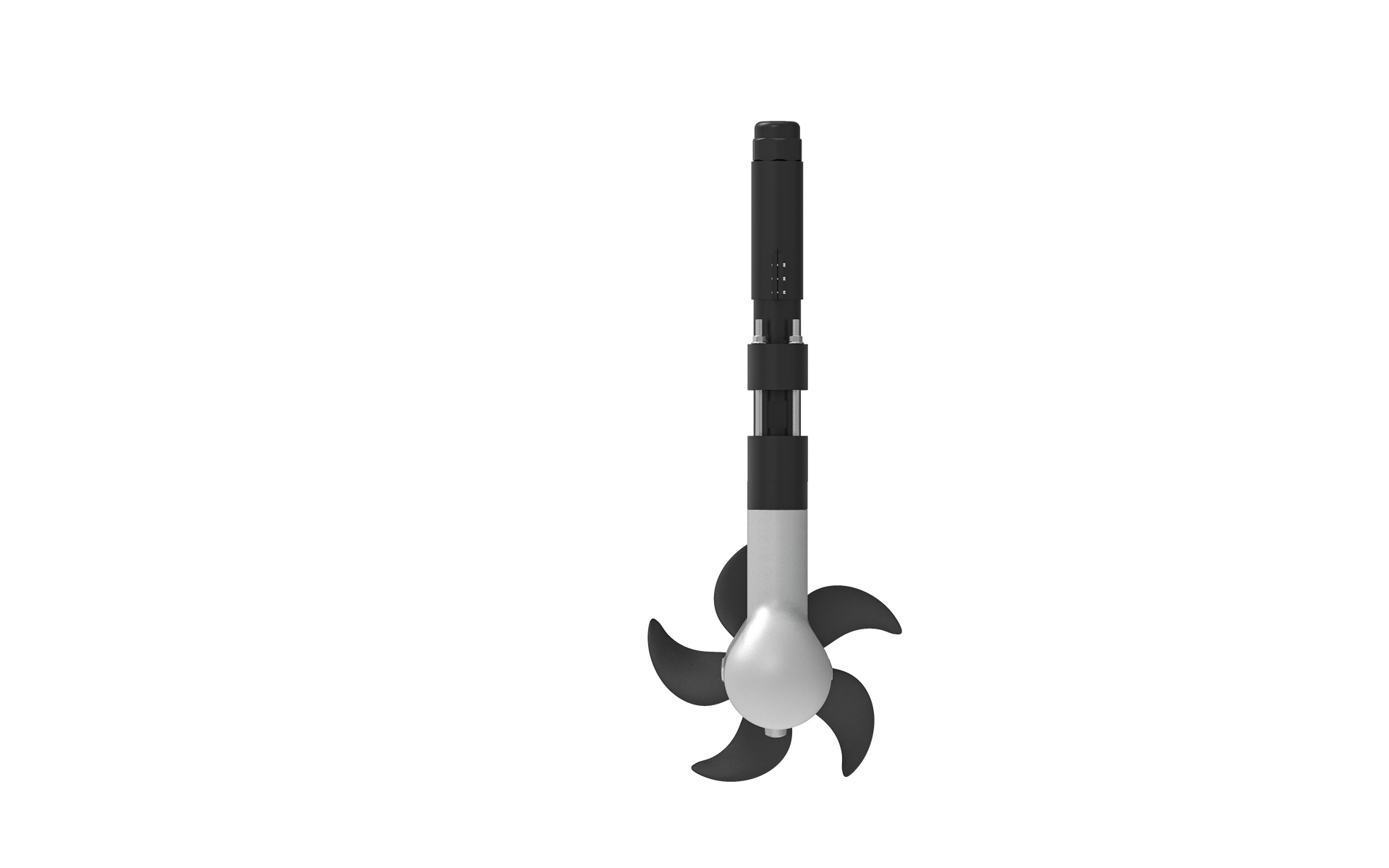

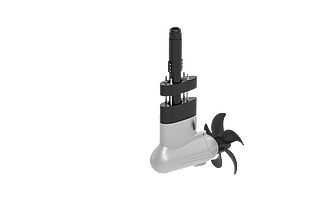

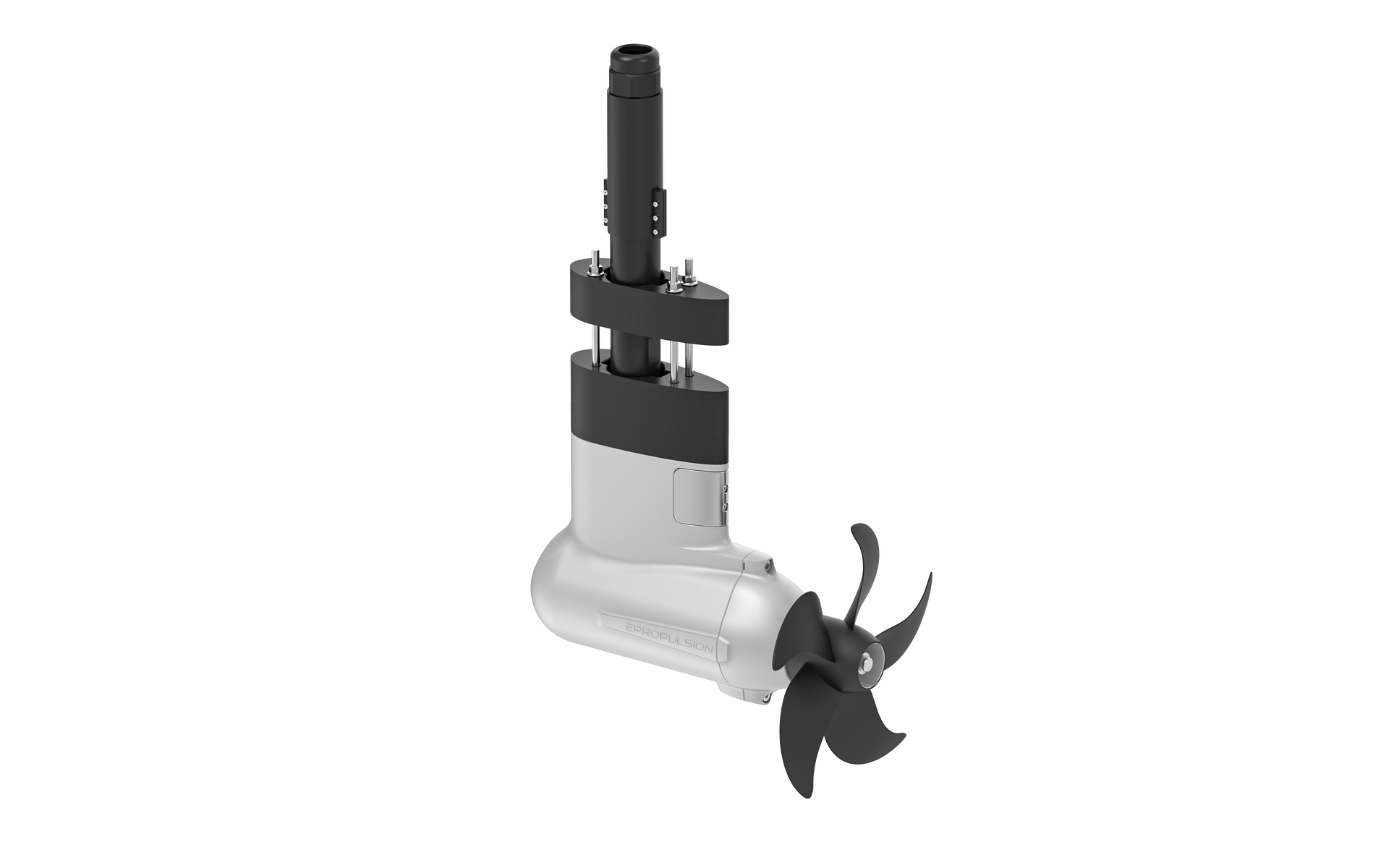

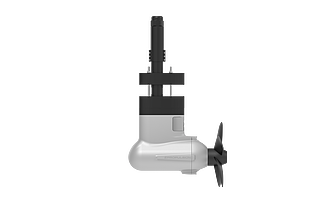

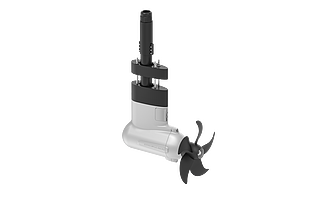

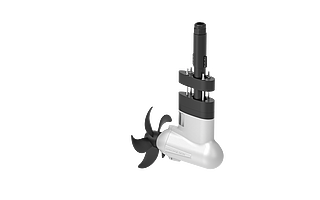

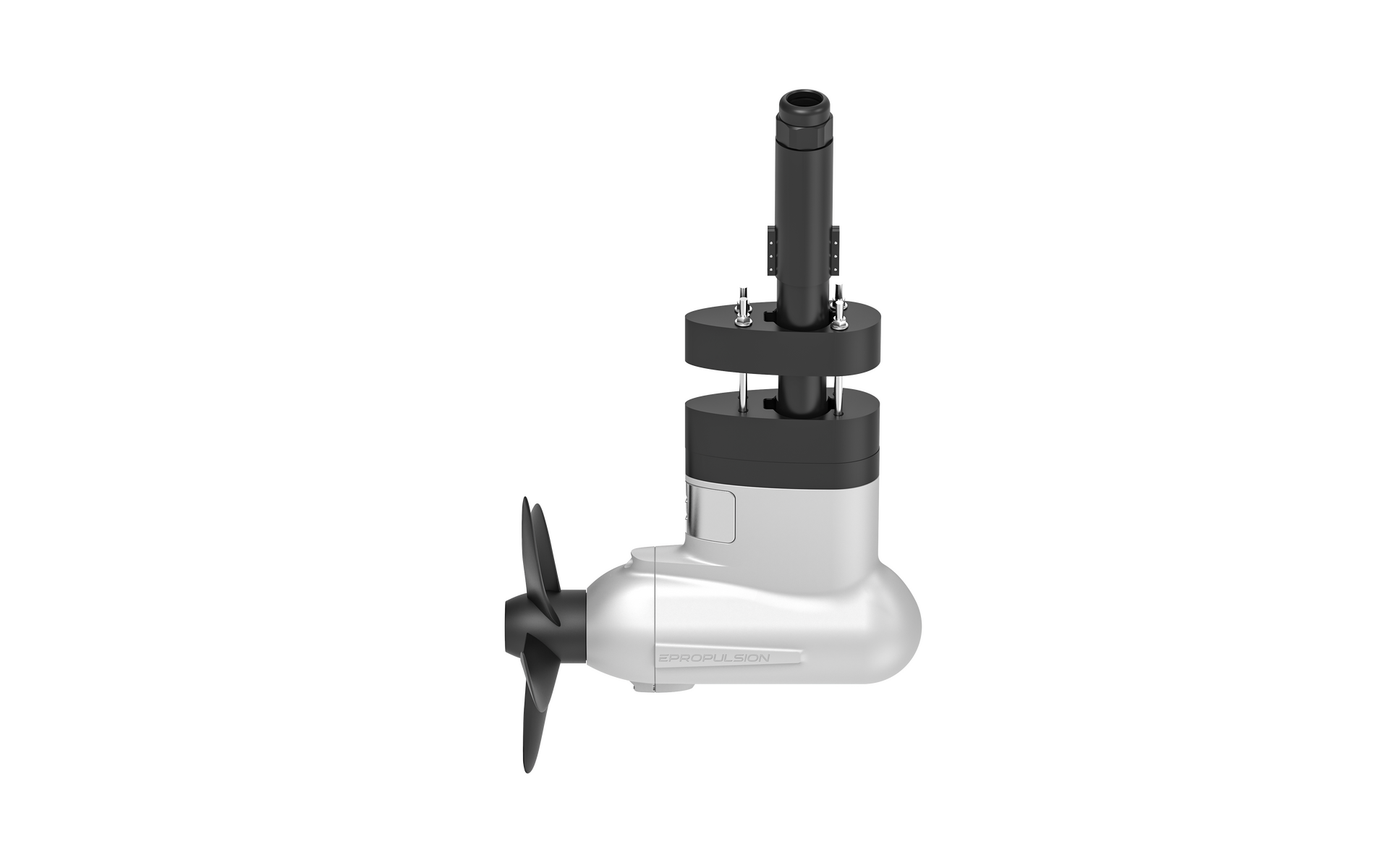

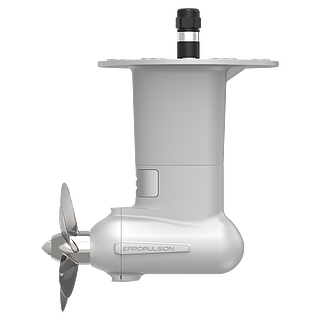

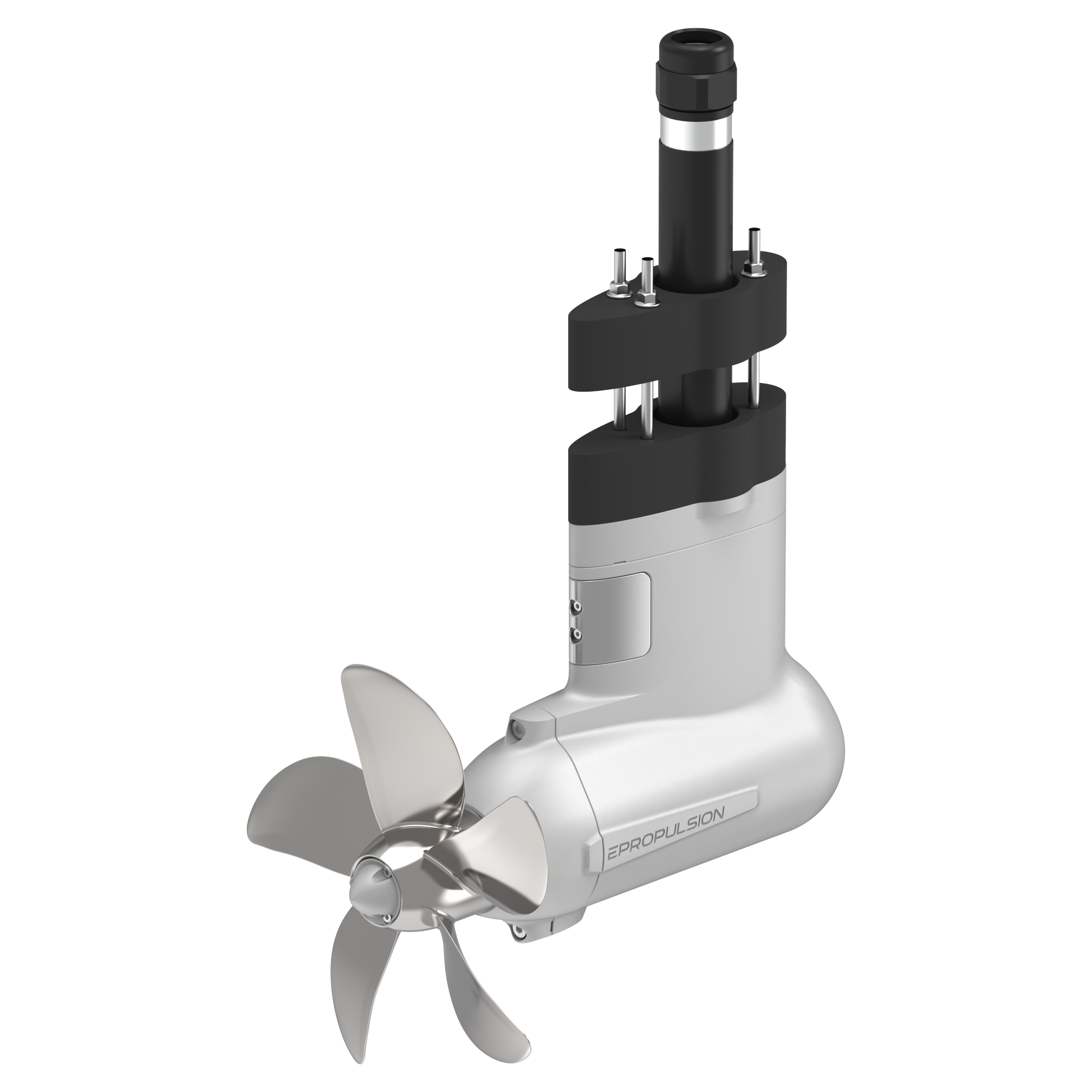

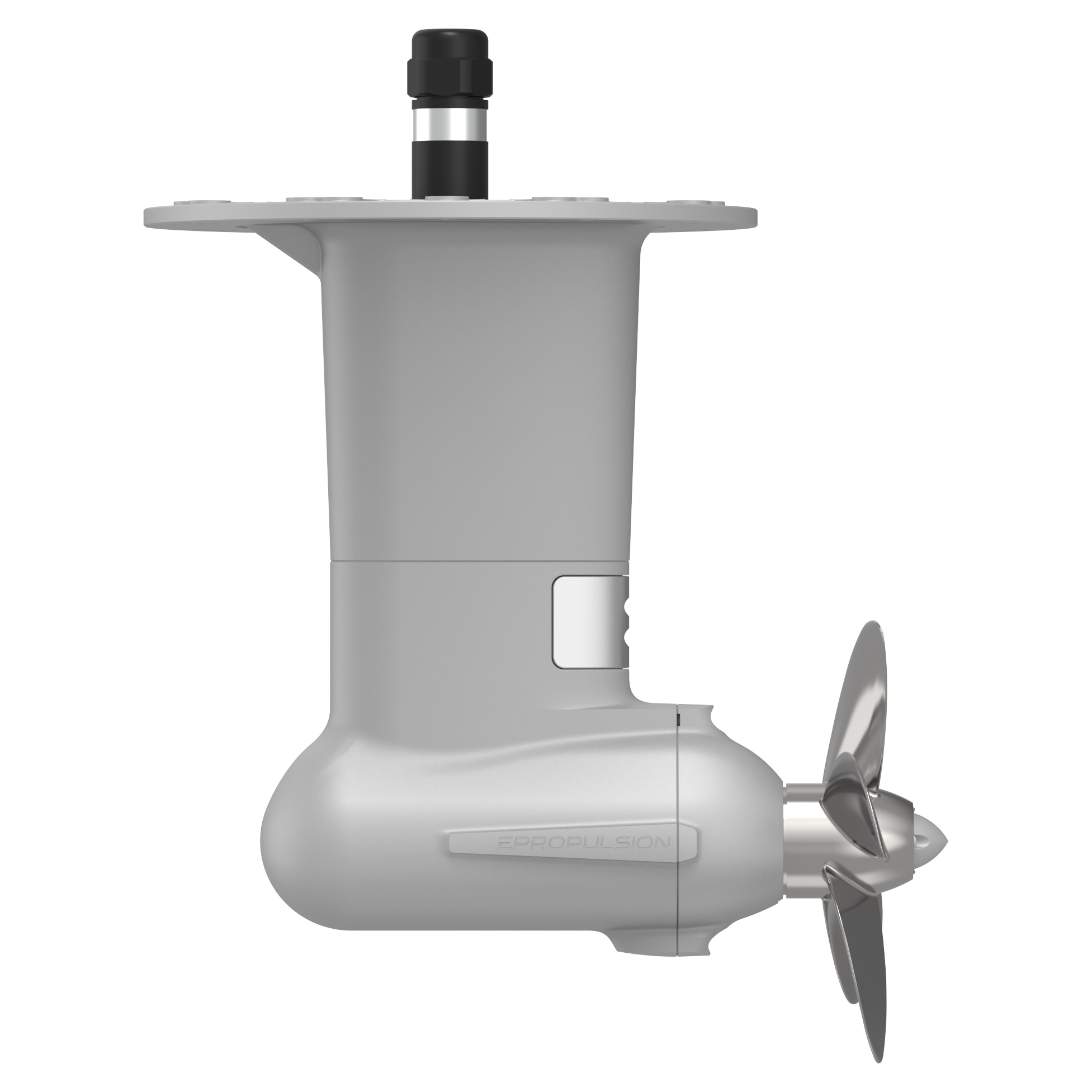

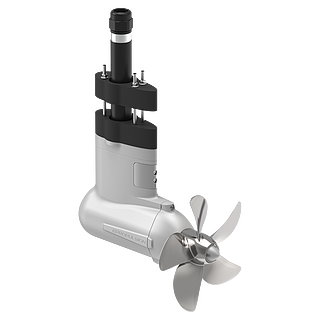

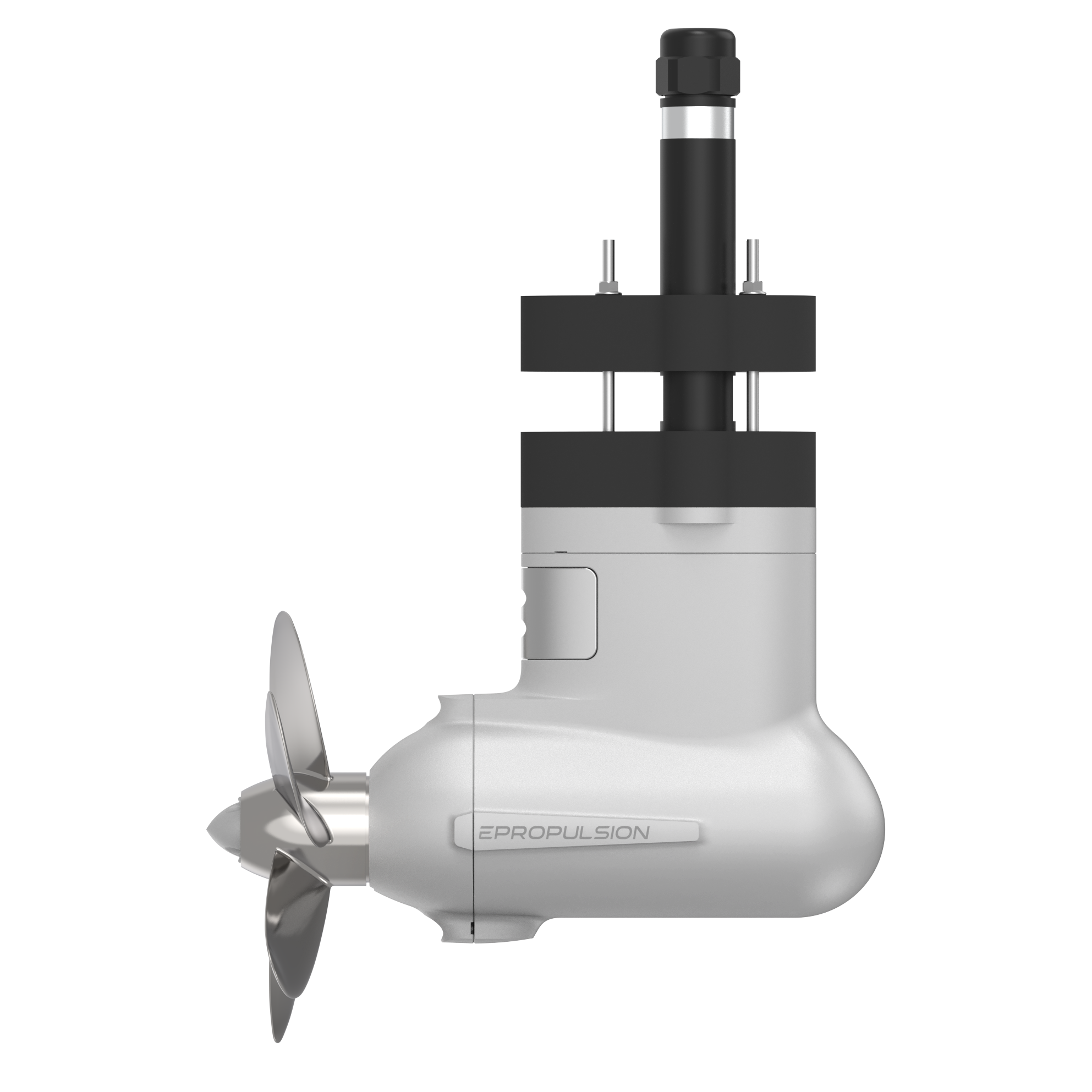

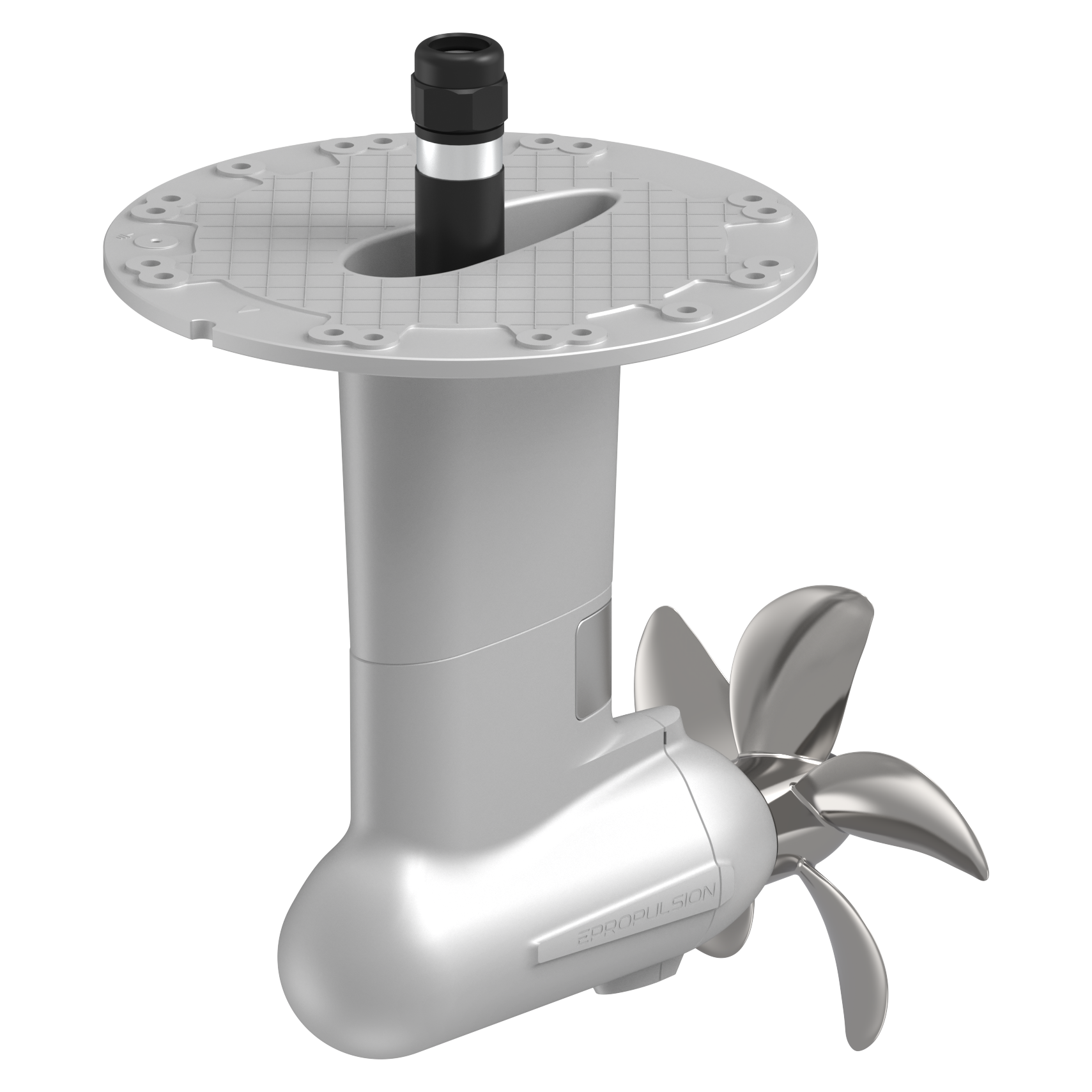

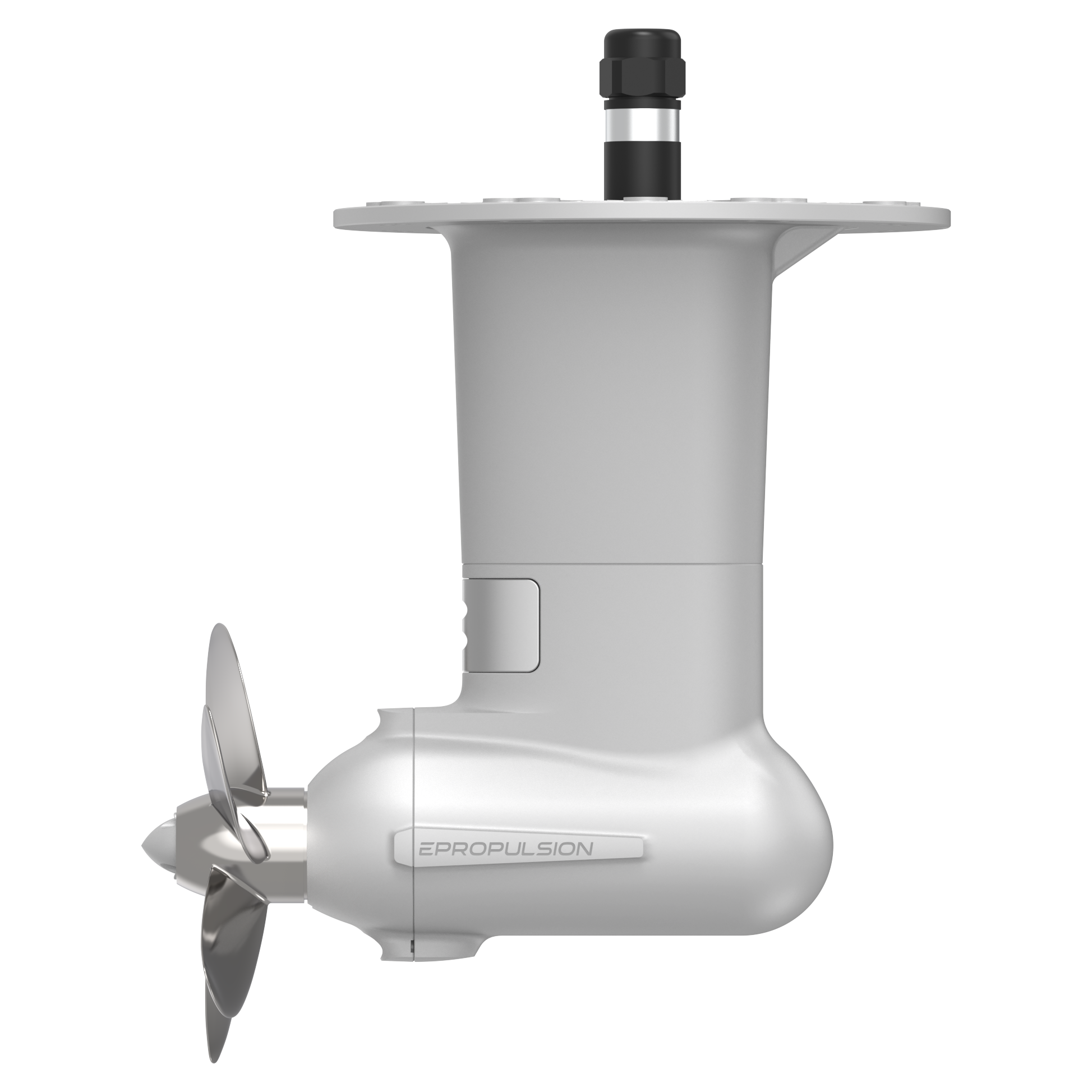

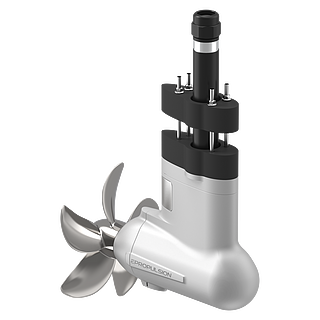

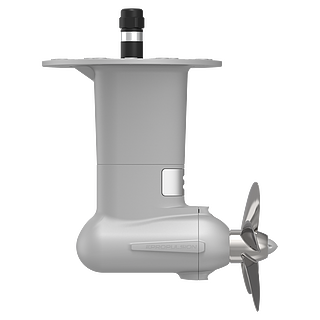

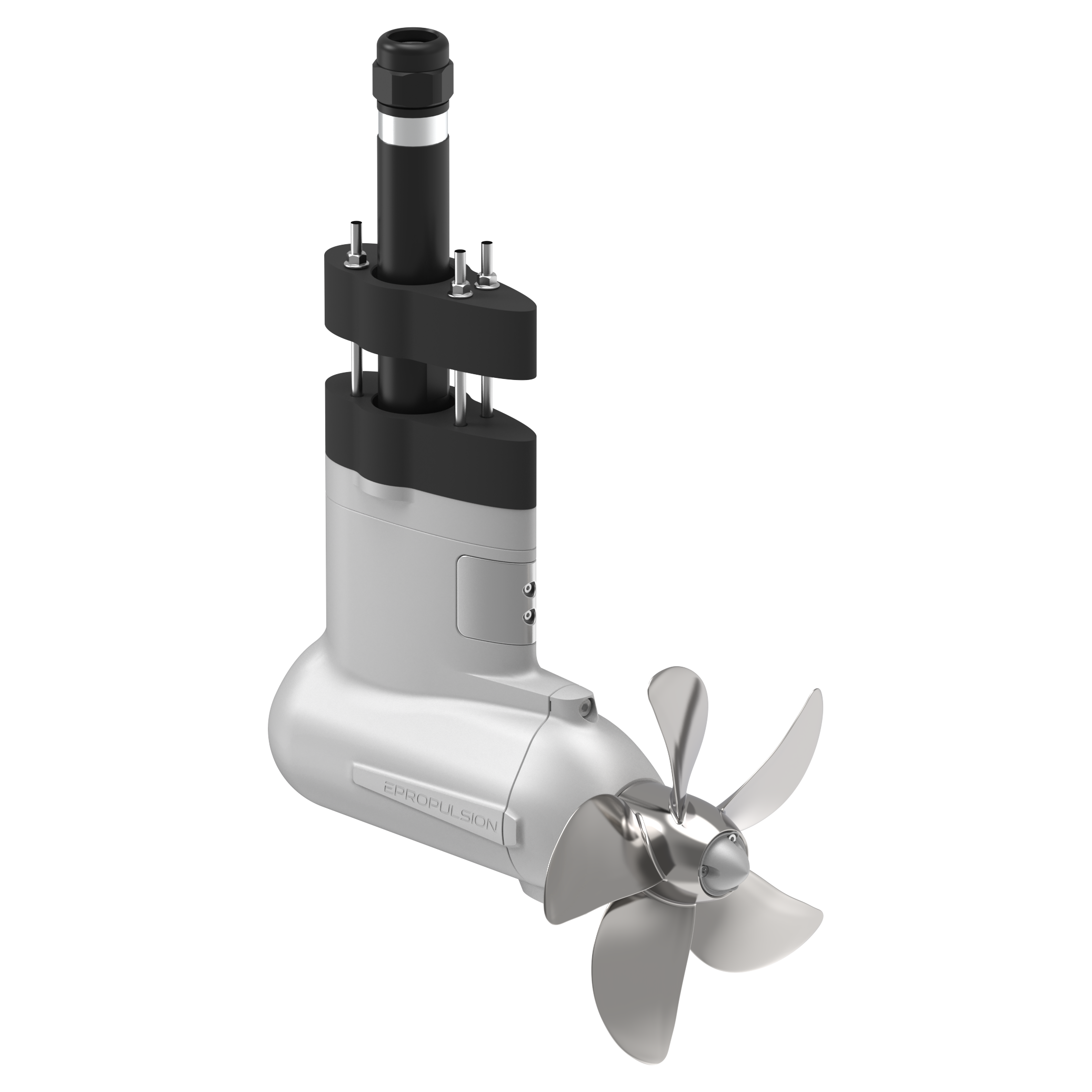

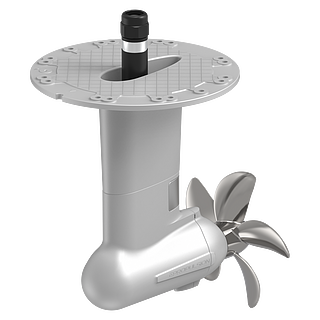

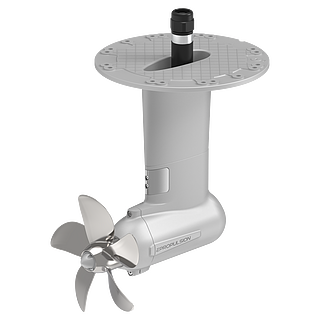

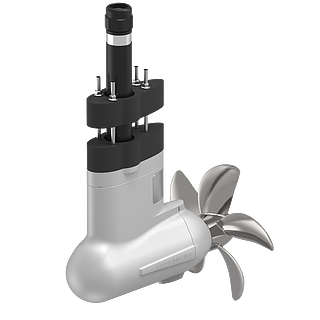

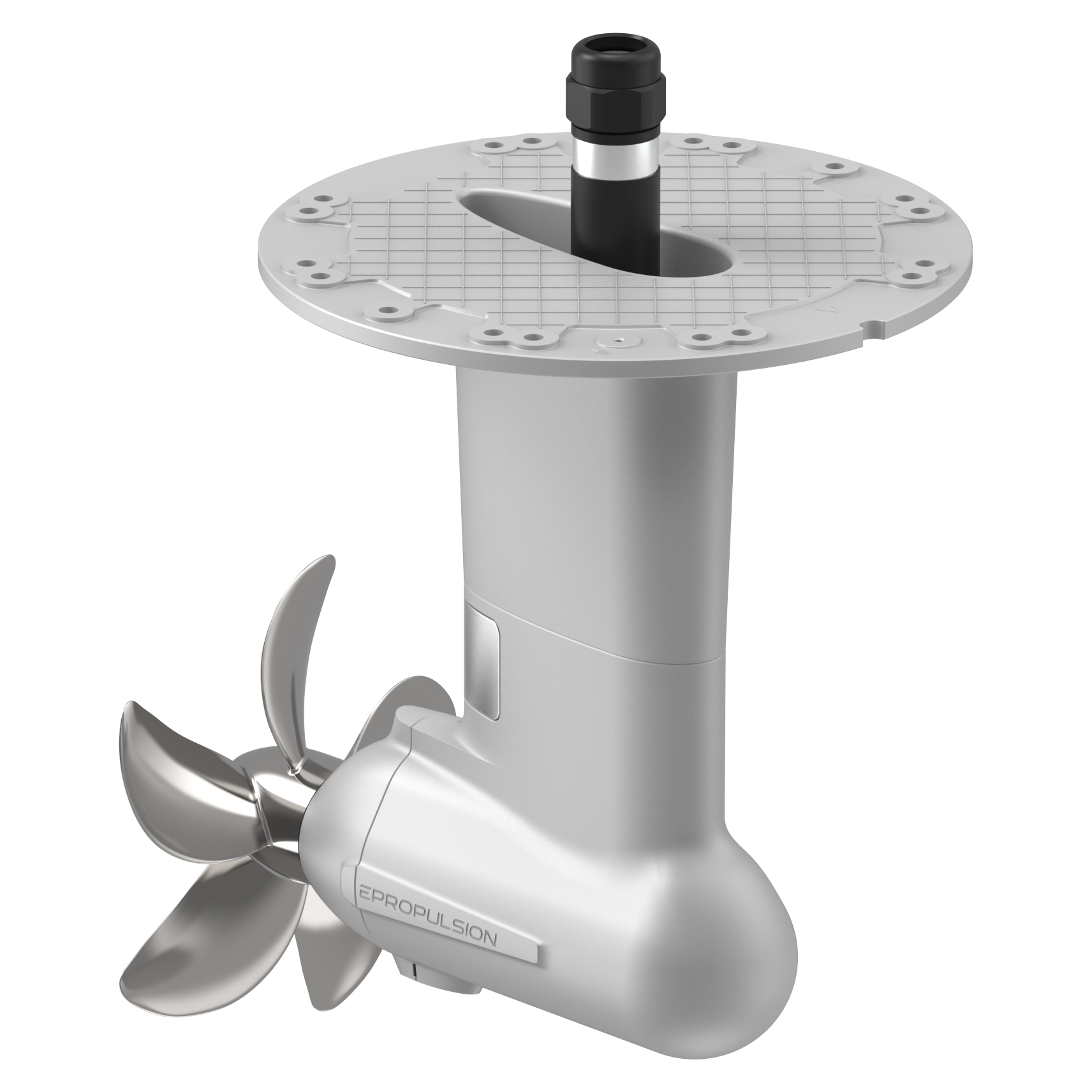

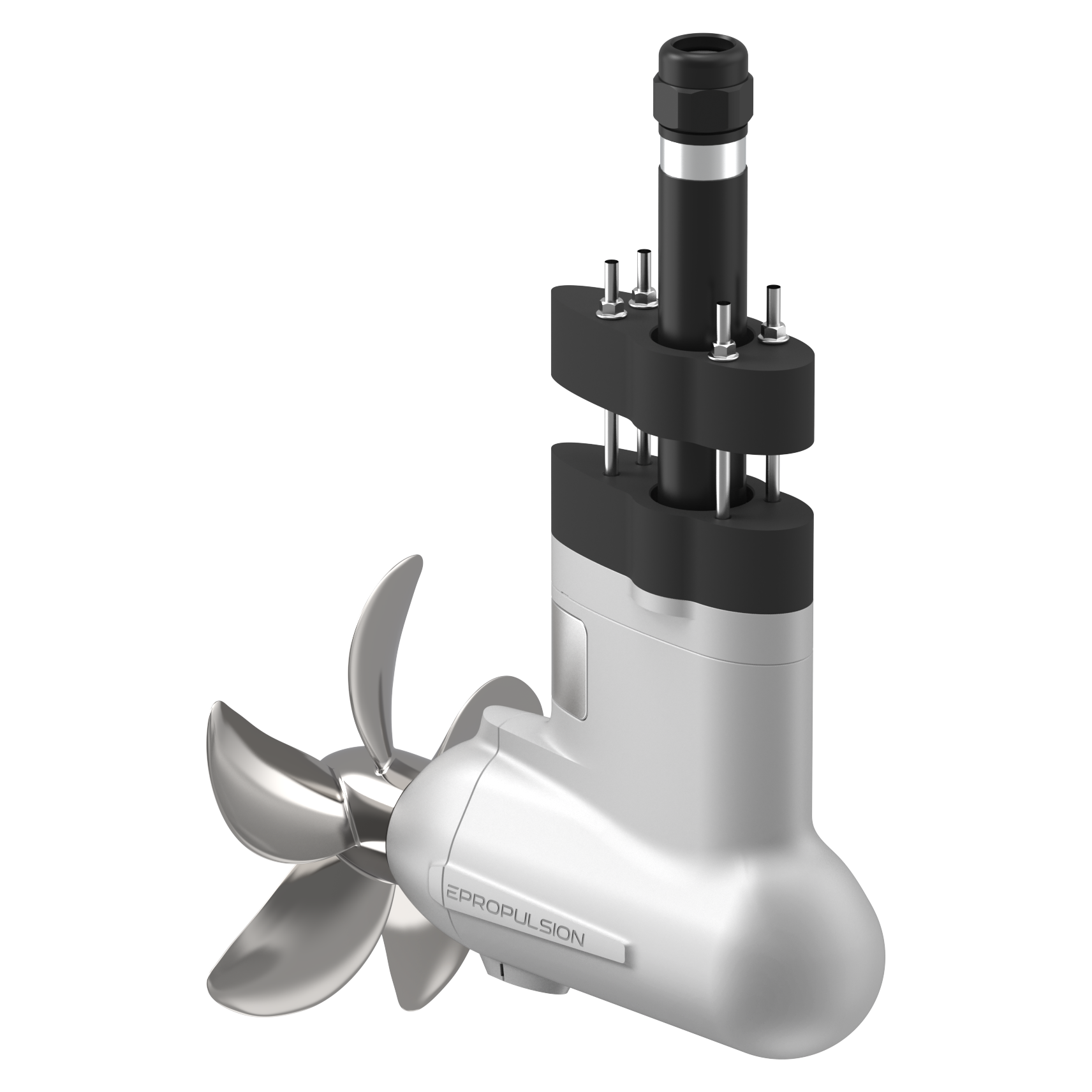

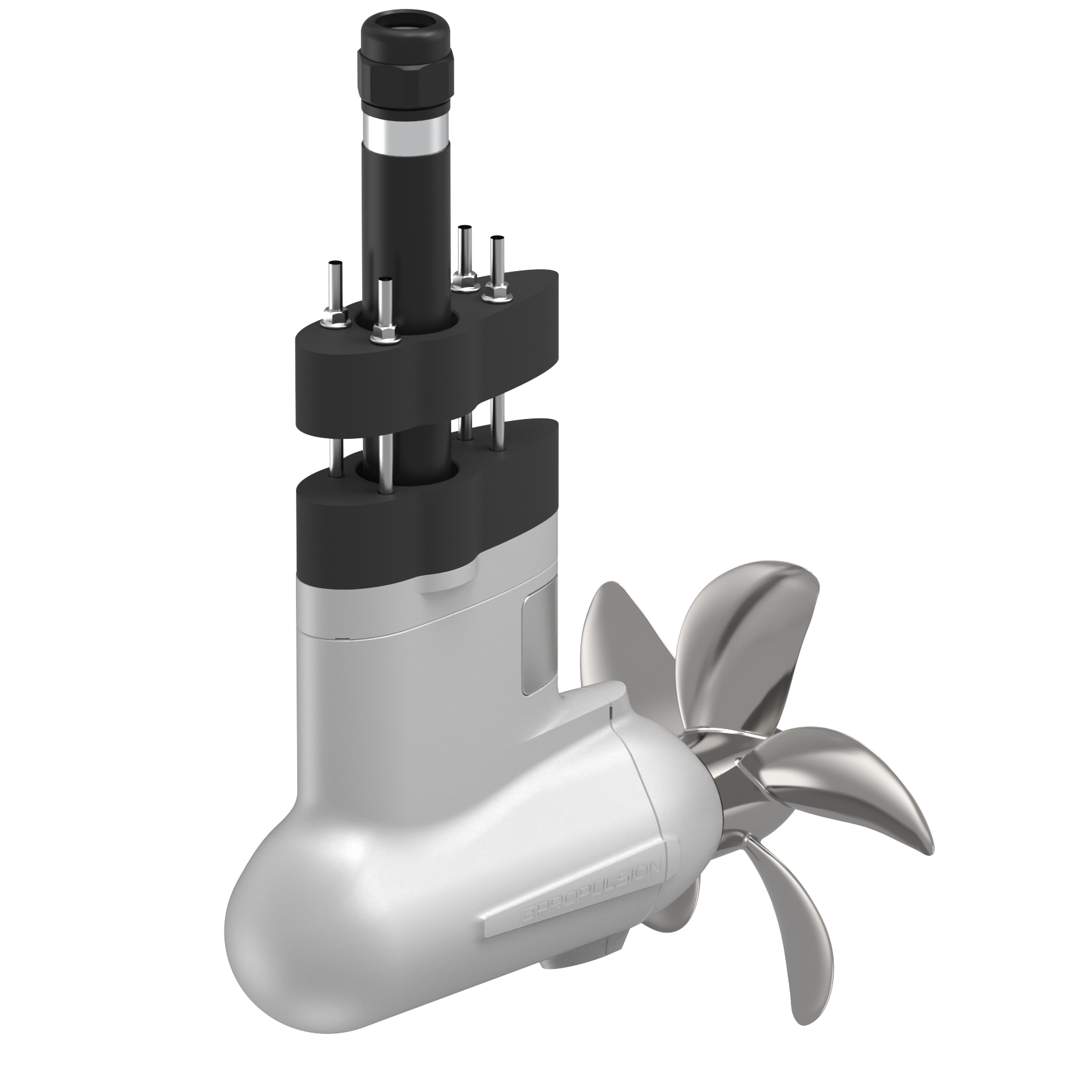

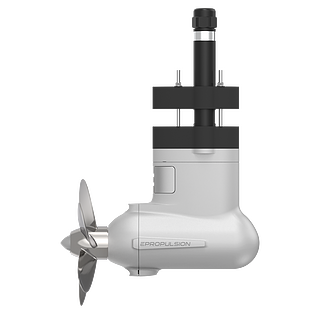

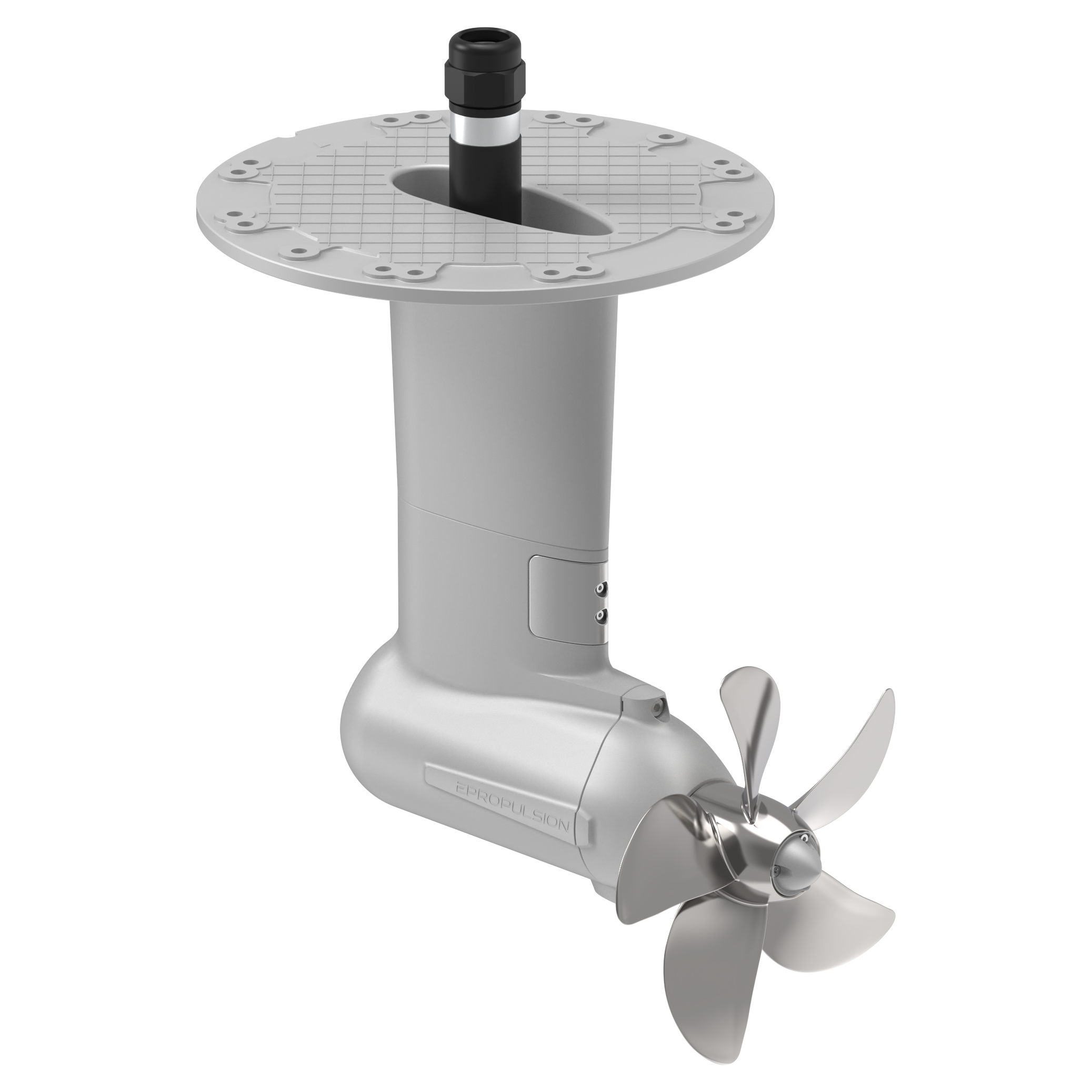

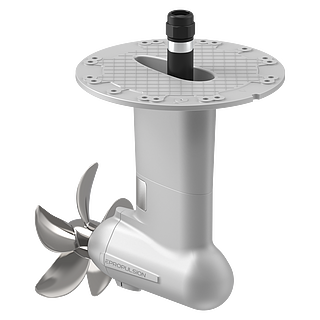

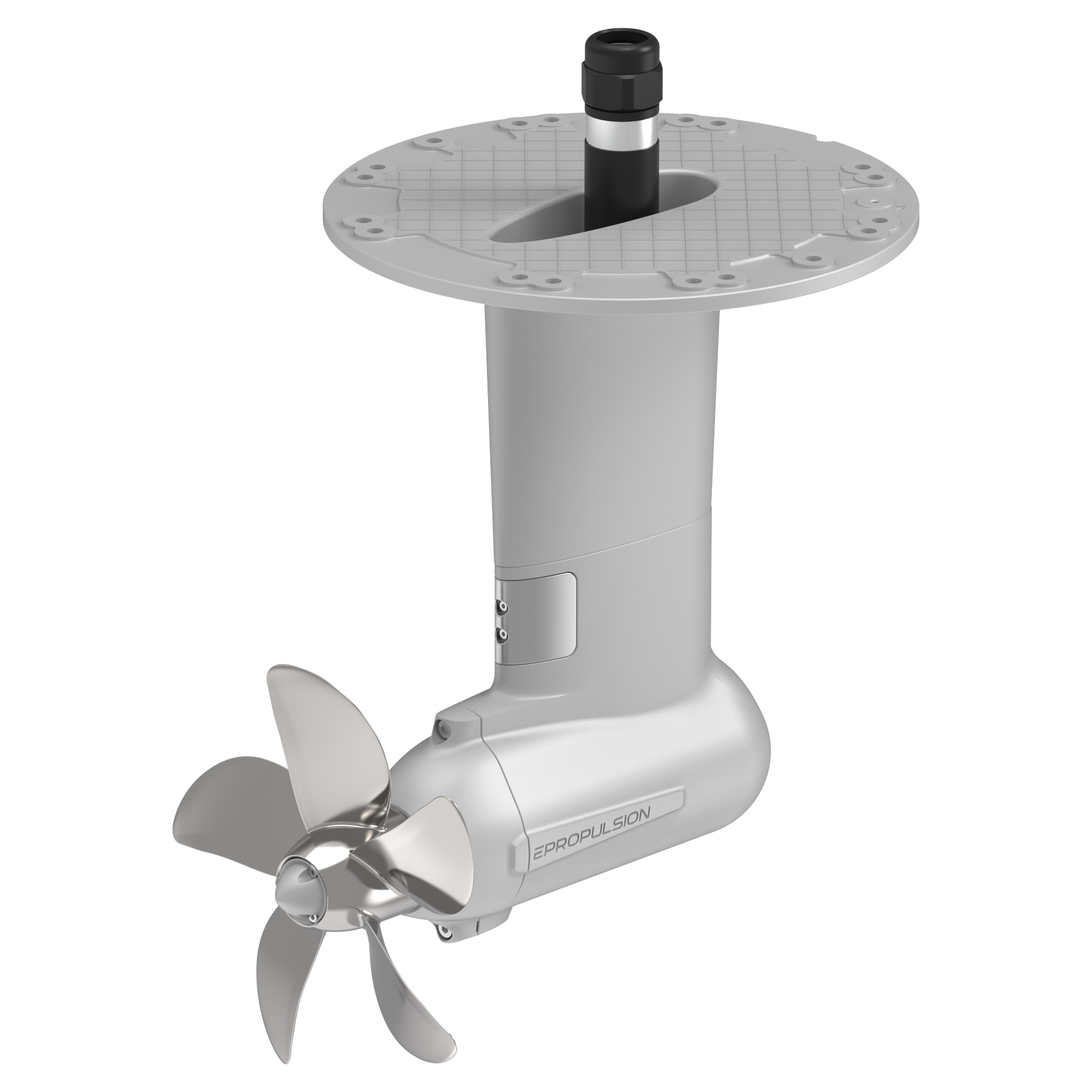

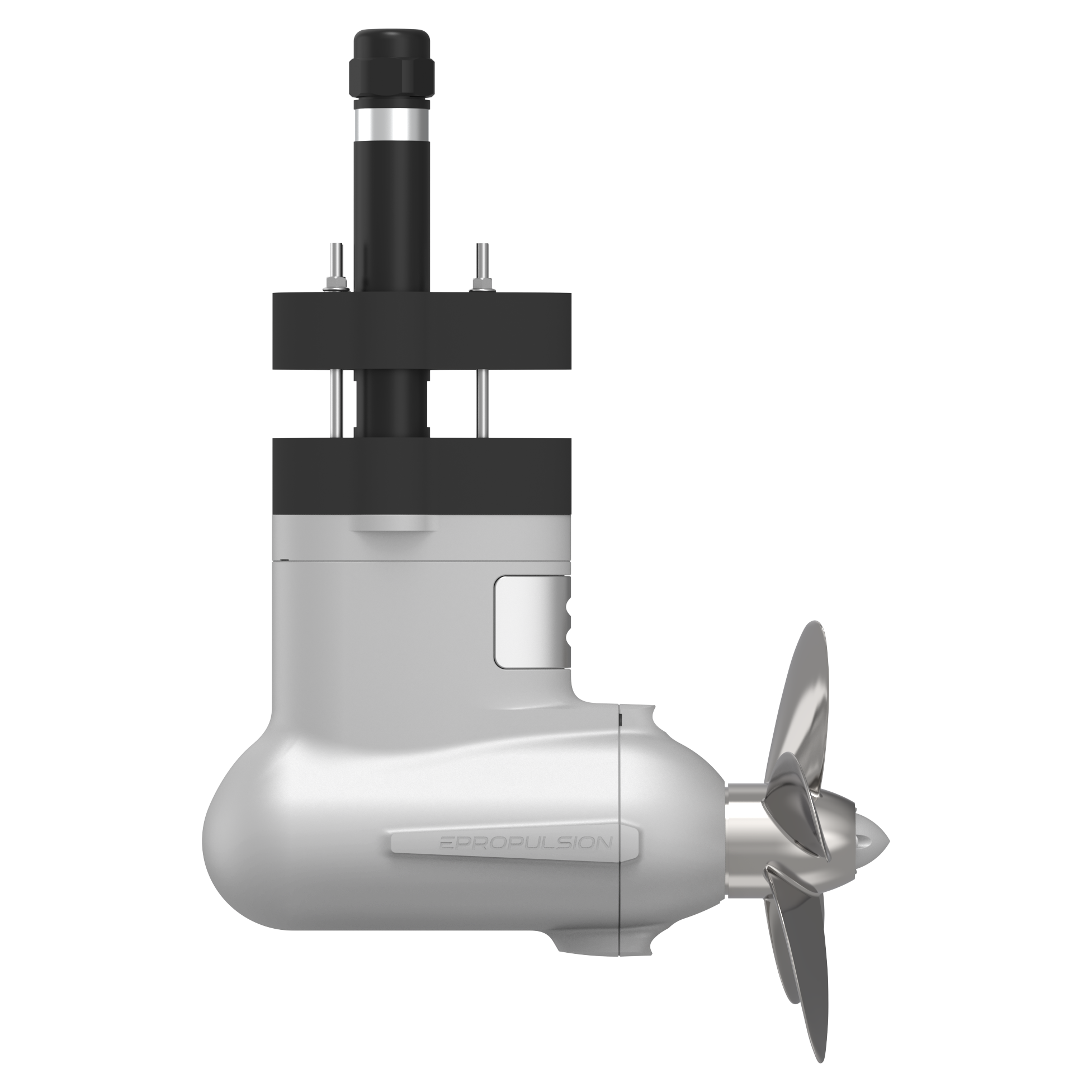

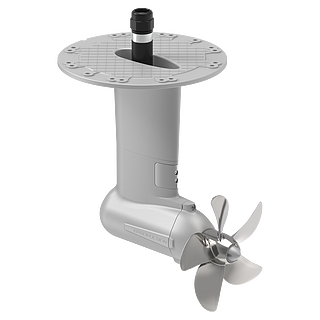

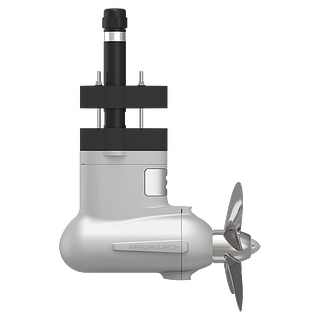

Pod Drive 12 eSSA
Part Number: PA-0000-00
Series: P-Series
Type: motor
View the main POD Drive eSSA product page
Description
The Pod Drive eSSA is ideal for both custom-designed new boat installation and for retrofitting old boats.
High Reliability
- Improved impact resistance: Crafted from high-strength aluminum alloy and subjected to rigorous collision tests.
- Effortless natural cooling: Pod Drive 12 eSSA cools itself by submerging in water, eliminating the need for cooling channels and the risk of blockages.
Hydrogeneration
Equipped with a hydrogeneration function as standard, Pod Drive 12 eSSA can charge your batteries when sailing. It will start charging from around 4 knots, and can generate up to 1400W.
Space Saving

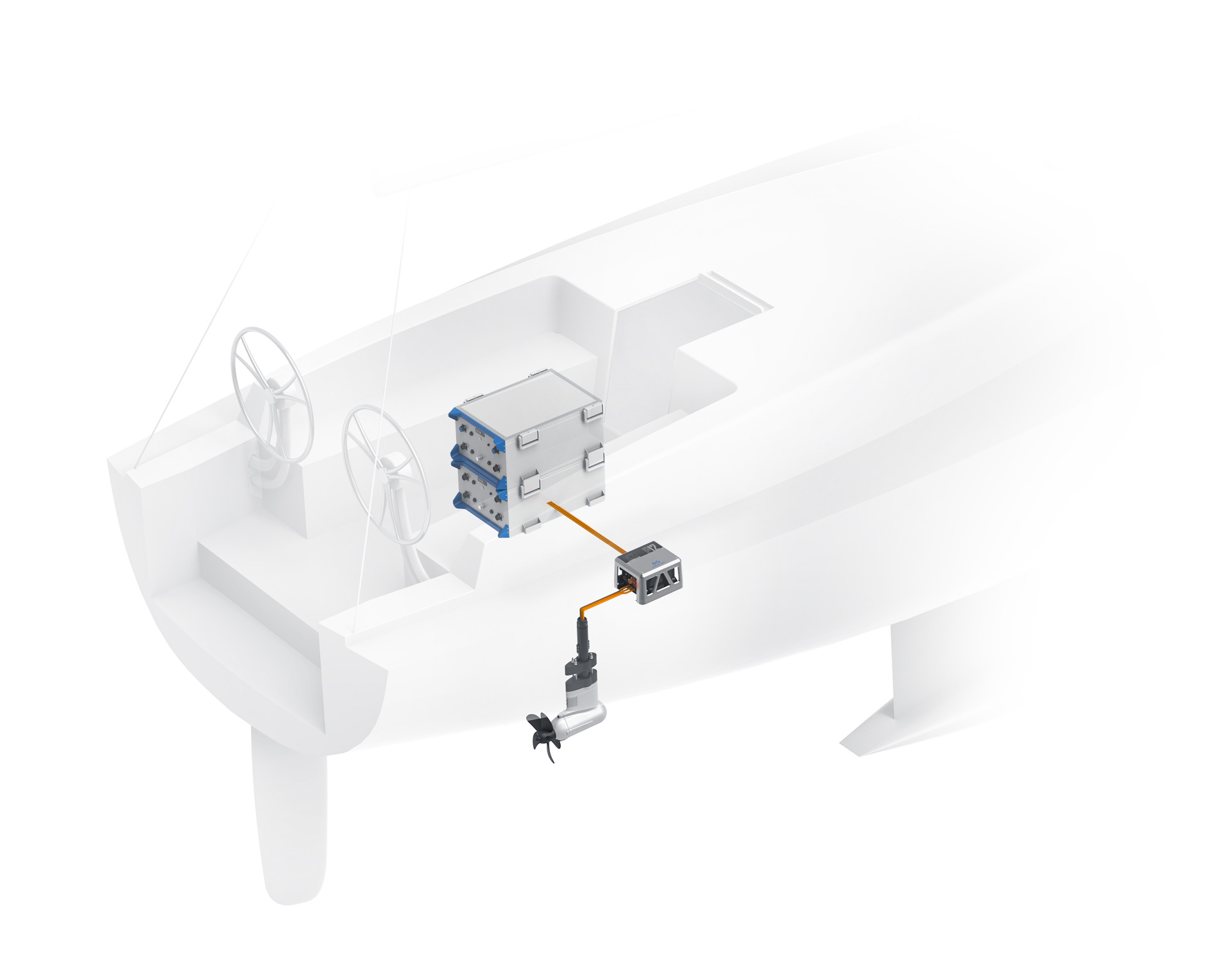

As it's an external pod drive, considerable space is saved where the diesel engine and tank(s) would normally be. Some of that is needed for the batteries and motor driver, but those components have more location options, giving designers the potential to include extra storage or larger cabins.
Easy to Install

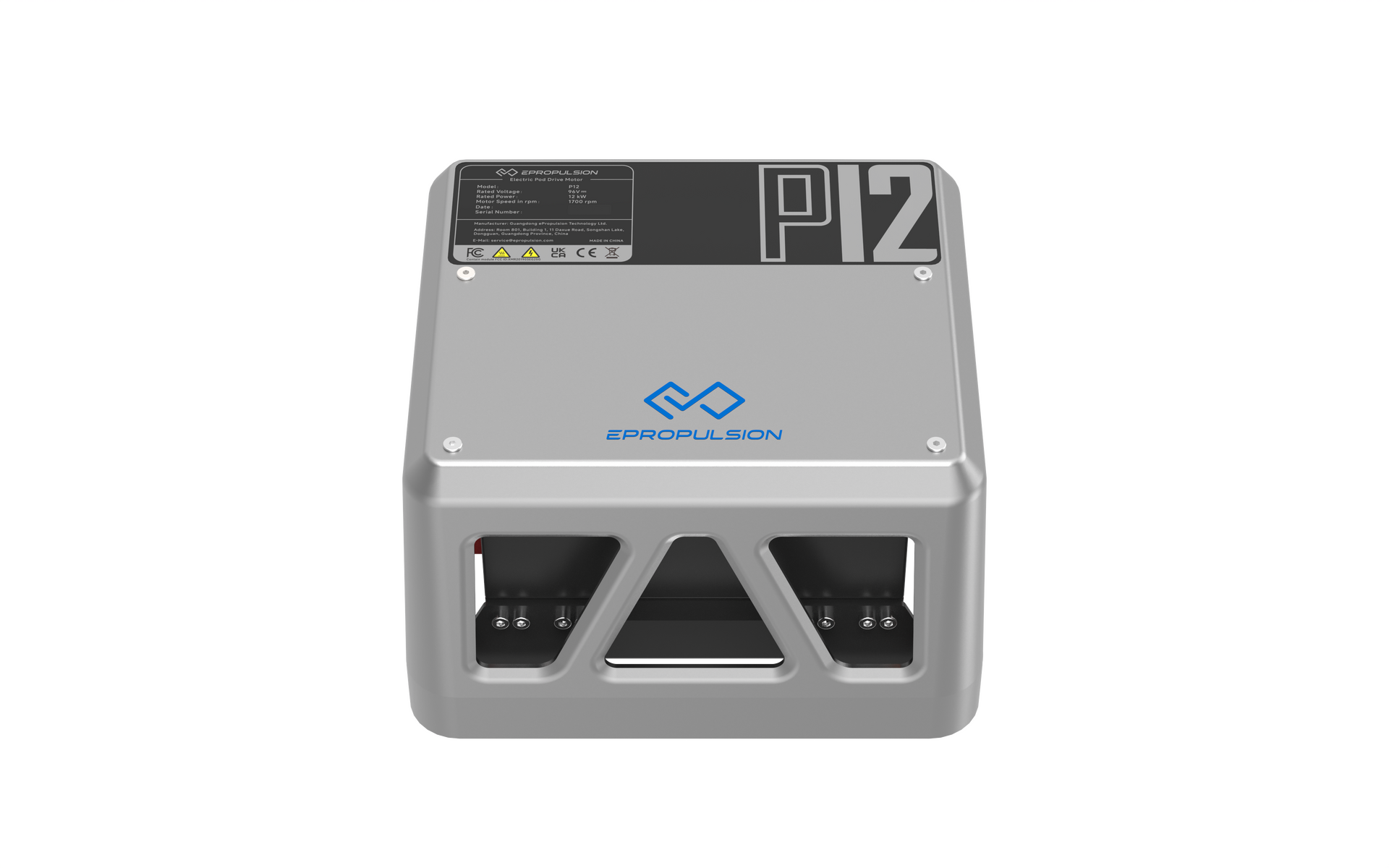

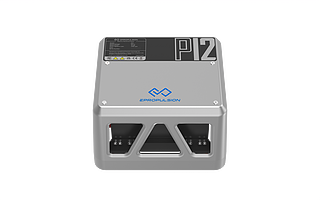

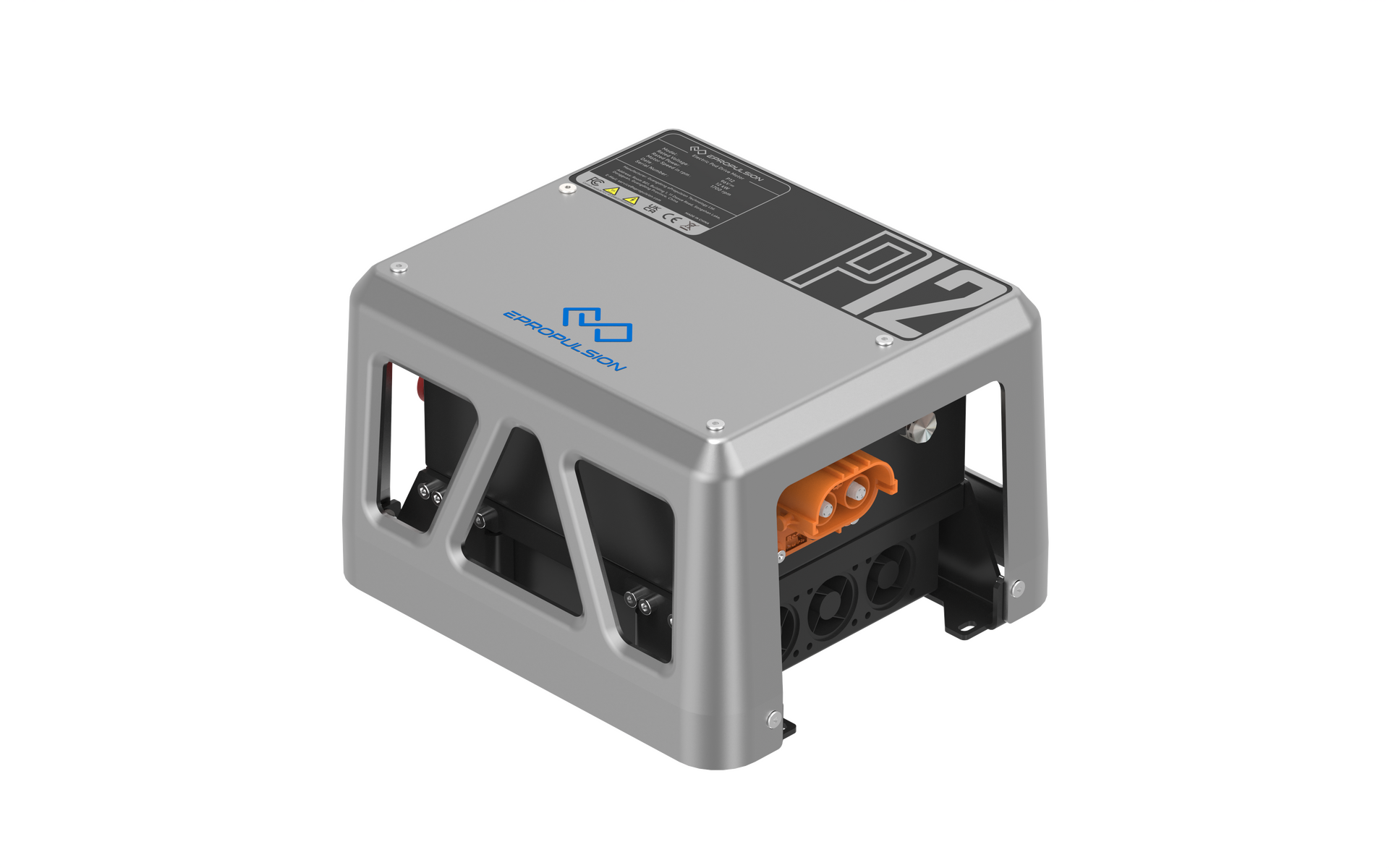

Pod Drive 12 eSSA is a modular system, with separate motor and driver units. This makes it easy to install, and easier to upgrade in the future if the user's requirements change.
Technical Specifications
Physical Dimensions
Length: 603.00 mm
Width: 420.00 mm
Height: 122.00 mm
Net Weight: 31.00 kg
Motor Specifications
Voltage: 96.00 V
Min Power: 100 W
Max Power: 12000 W
Cooling: Natural cooling
Static Thrust: 1750 N
Compatible Products
-
G102-100 Battery
Part #: GB-0100-01 -
Smart Throttle
Part #: XS-RC00-00 -
Smart Display 5''
Part #: XS-DP00-00 -
ESSA Communication 5-way T Connector
Part #: 00-0603-09 -
ESSA Communication 3-way T Connector
Part #: 00-0603-01 -
ESSA Communication Terminator 120Ω
Part #: 00-0603-10 -
ESSA Communication Terminator 360Ω
Part #: 00-0603-11 -
ESSA Communication Extension Cable 5m
Part #: 00-0603-08 -
ESSA Communication Extension Cable 10m
Part #: 00-0603-07 -
ESSA Communication Cable 1m
Part #: 00-0603-06 -
GPS and 4G Antenna Package
Part #: A1-CP00-00 -
Bus Box 250A
Part #: A1-M001-00
Comes With
-
ESSA Communication 5-way T Connector
Part #: 00-0603-09 -
ESSA Communication 3-way T Connector
Part #: 00-0603-01 -
ESSA Communication Terminator 120Ω
Part #: 00-0603-10 -
ESSA Communication Terminator 360Ω
Part #: 00-0603-11 -
ESSA Communication Extension Cable 10m
Part #: 00-0603-07 -
ESSA Communication Cable 1m
Part #: 00-0603-06 -
Bus Box 250A
Part #: A1-M001-00 -
G Battery Output Cable Kit 5m (Positive and Negative)
Part #: 00-0603-16
