System at a Glance
This Kaptan is an electric Passenger / Commercial from Miran, powered by a 20 kW ePropulsion motor and a 20 kWh battery pack, offering a quiet and eco-friendly boating experience.
| Length (LOA) | 16 m (52.5 ft) |
| Beam (BOA) | 4.4 m (14.4 ft) |
| Hull Draft | 0.6 m (2.0 ft) |
| Hull Config | Monohull |
| Hull Type | Displacement |
| Displacement | 7,000 kg (15,432 lbs) |
Gallery
Boat Specifications
Overview
- Make
- Miran
- Model
- Kaptan
- Year
- 0
- Hull type
- Displacement
- Configuration
- Monohull
Hull & Dimensions
- Length overall
- 16.00 m
- Beam overall
- 4.40 m
- Draft
- 0.60 m
Weights
- Displacement
- 7,000 kg
- Motor & battery
- 248 kg
- Total weight
- 7,248 kg
Electric Propulsion System

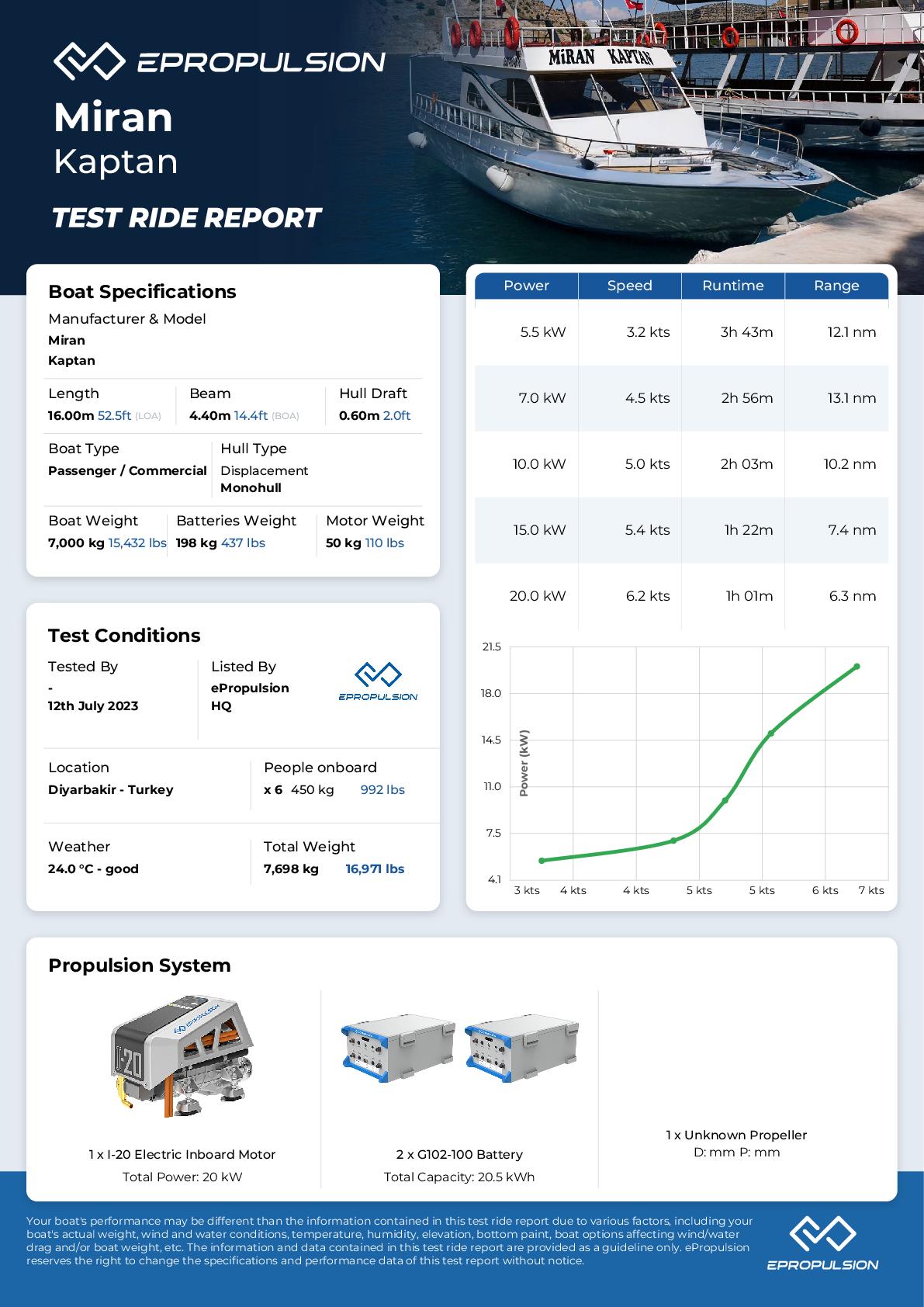

Performance Tests
Test details
- Test date
- 2023-07-12 18:30:00
- Testing personnel
- Unknown
- Persons onboard
- 6 (total 450 kg)
- Location
- Diyarbakır, Turkey
- Temperature
- 24 °C
- Weather
- good
Recorded speed
Test results
Top Speed6.2 knots
Cruising5 knots
Estimated Range6–13 nm
| Power | Actual speed | Runtime* | Range* | Energy use |
|---|---|---|---|---|
| 5.5 kW | 3.24 knots | 3h 43m | 12.1 nm | 1.7 kWh/nm |
| 7 kW | 4.48 knots | 2h 56m | 13.1 nm | 1.56 kWh/nm |
| 10 kW | 4.97 knots | 2h 03m | 10.2 nm | 2.01 kWh/nm |
| 15 kW | 5.4 knots | 1h 22m | 7.4 nm | 2.78 kWh/nm |
| 20 kW | 6.21 knots | 1h 01m | 6.4 nm | 3.22 kWh/nm |
