System at a Glance
This 1997 36 is an electric Sailboat (Monohull) from Elan, powered by a 20 kW ePropulsion motor and a 20 kWh battery pack, offering a quiet and eco-friendly boating experience.
| Length (LOA) | 11 m (36.1 ft) |
| Beam (BOA) | 3.59 m (11.8 ft) |
| Hull Draft | 1.4 m (4.6 ft) |
| Hull Config | Monohull |
| Hull Type | Displacement |
| Displacement | 2,495 kg (5,501 lbs) |
Gallery
Boat Specifications
Overview
- Make
- Elan
- Model
- 36
- Year
- 1997
- Hull type
- Displacement
- Configuration
- Monohull
Hull & Dimensions
- Length overall
- 11.00 m
- Beam overall
- 3.59 m
- Draft
- 1.40 m
Weights
- Displacement
- 2,495 kg
- Motor & battery
- 248 kg
- Total weight
- 2,743 kg
Electric Propulsion System

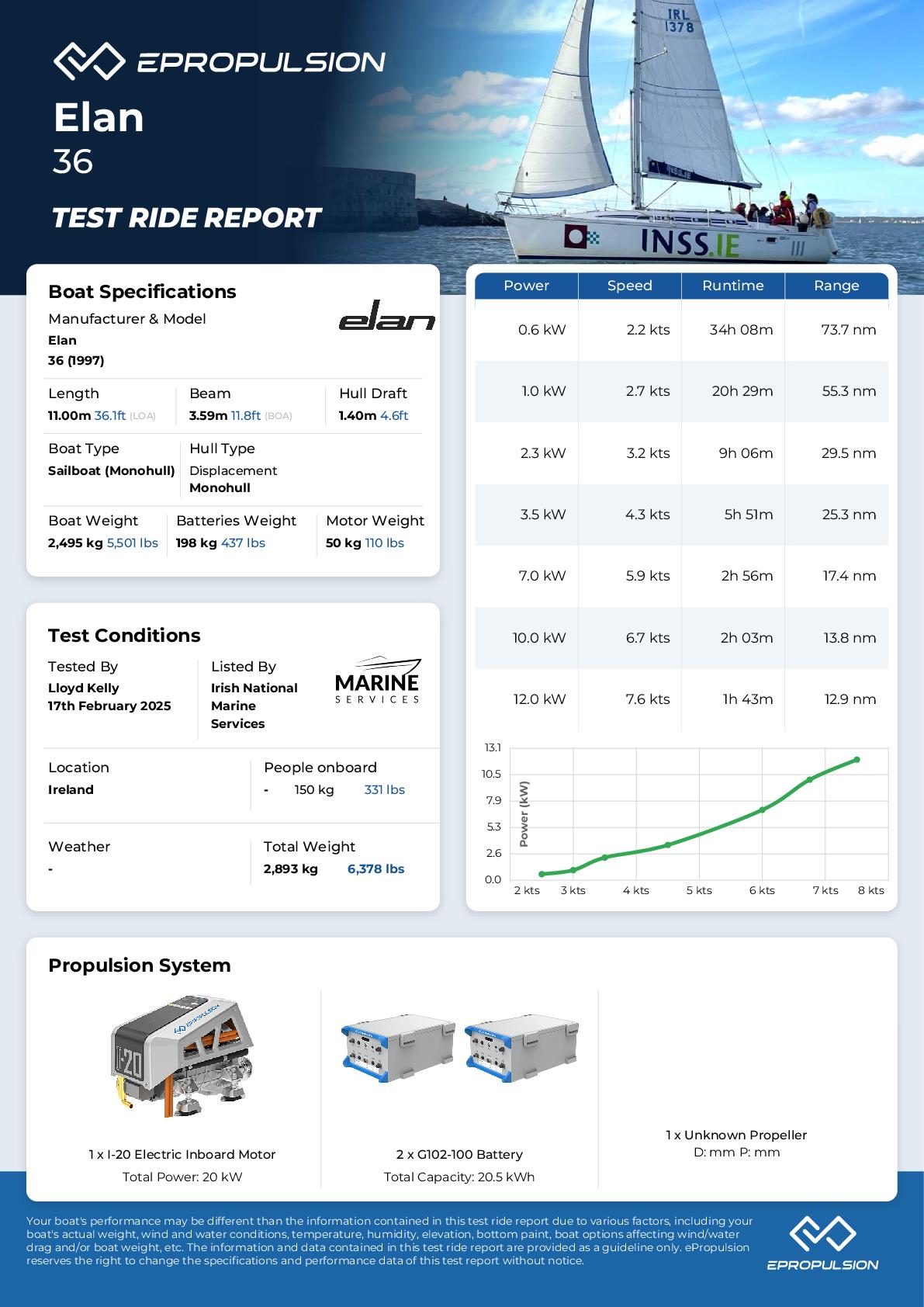

Performance Tests
Test details
- Test date
- 2025-02-17 09:47:00
- Testing personnel
- Lloyd Kelly
- Persons onboard
- 0 (total 150 kg)
- Location
- Ireland
- Temperature
- 0 °C
Recorded speed
Test results
Top Speed7.6 knots
Cruising5.9 knots
Estimated Range13–74 nm
| Power | Actual speed | Runtime* | Range* | Energy use |
|---|---|---|---|---|
| 0.6 kW | 2.16 knots | 34h 08m | 73.7 nm | 0.28 kWh/nm |
| 1 kW | 2.7 knots | 20h 29m | 55.3 nm | 0.37 kWh/nm |
| 2.25 kW | 3.24 knots | 9h 06m | 29.5 nm | 0.69 kWh/nm |
| 3.5 kW | 4.32 knots | 5h 51m | 25.3 nm | 0.81 kWh/nm |
| 7 kW | 5.94 knots | 2h 56m | 17.4 nm | 1.18 kWh/nm |
| 10 kW | 6.75 knots | 2h 03m | 13.8 nm | 1.48 kWh/nm |
| 12 kW | 7.56 knots | 1h 42m | 12.9 nm | 1.59 kWh/nm |
