System at a Glance
This 2025 Shenzhen Water Affairs Custom is an electric Powerboat (Open / Console) powered by a 20 kW ePropulsion motor and a 20 kWh battery pack, offering a quiet and eco-friendly boating experience.
| Length (LOA) | 5.5 m (18.0 ft) |
| Beam (BOA) | 1.65 m (5.4 ft) |
| Hull Draft | 0.45 m (1.5 ft) |
| Hull Config | Monohull |
| Hull Type | Displacement |
| Displacement | 1,500 kg (3,307 lbs) |

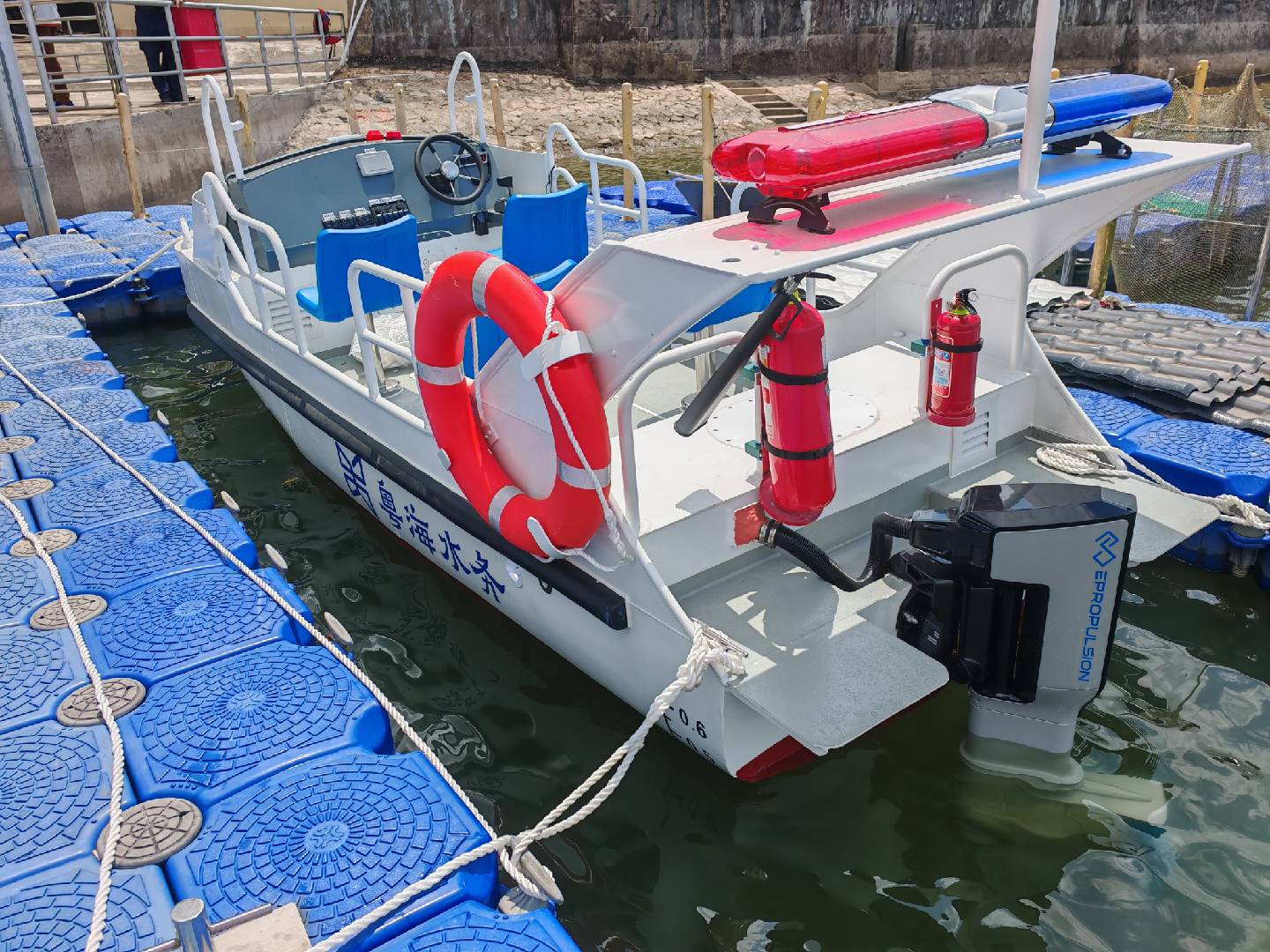

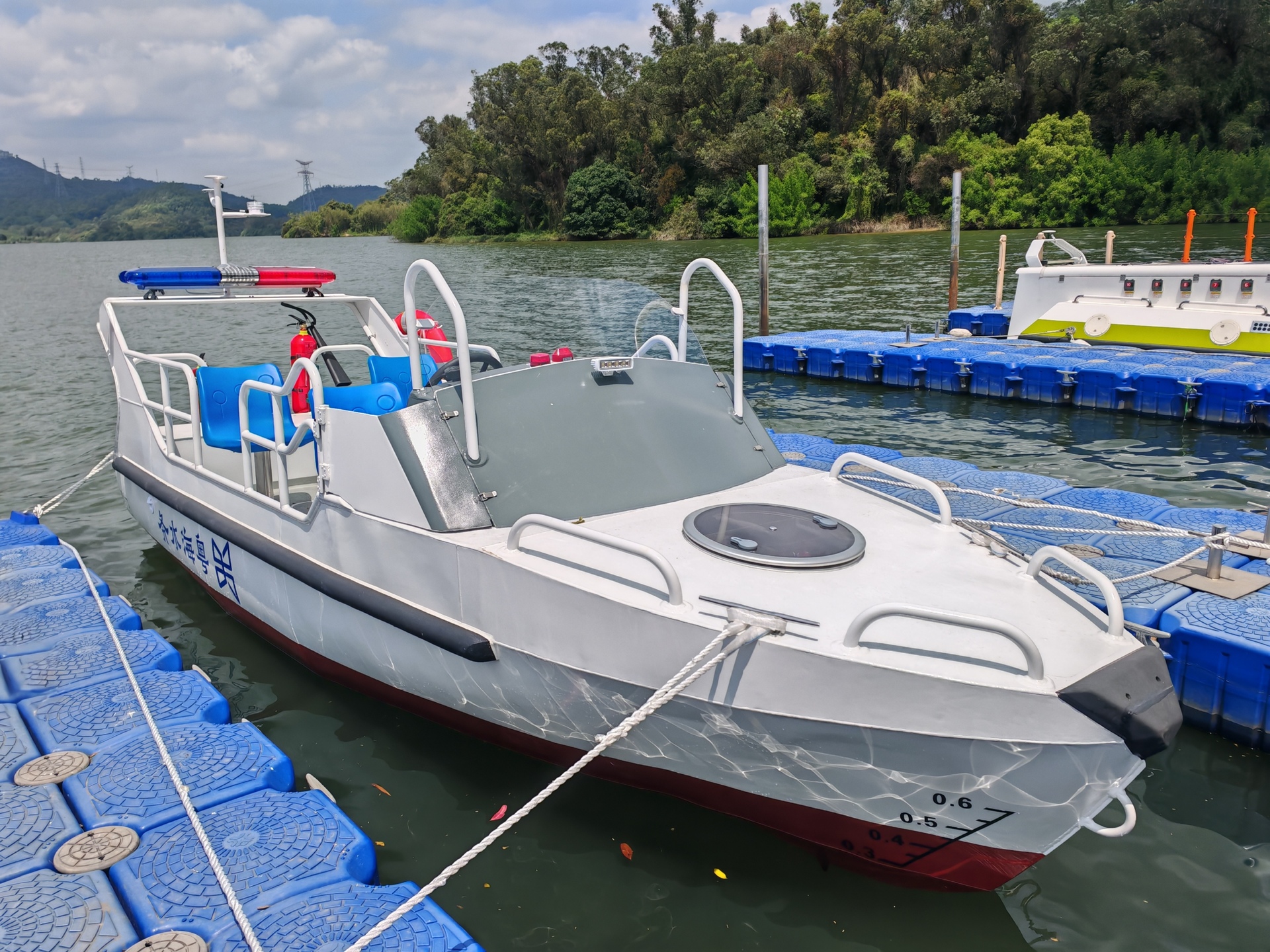

Gallery
Boat Specifications
Overview
- Make
- Unknown
- Model
- Shenzhen Water Affairs Custom
- Year
- 2025
- Hull type
- Displacement
- Configuration
- Monohull
Hull & Dimensions
- Length overall
- 5.50 m
- Beam overall
- 1.65 m
- Beam at waterline
- 5.10 m
- Draft
- 0.45 m
Weights
- Displacement
- 1,500 kg
- Motor & battery
- 277 kg
- Total weight
- 1,777 kg
Electric Propulsion System

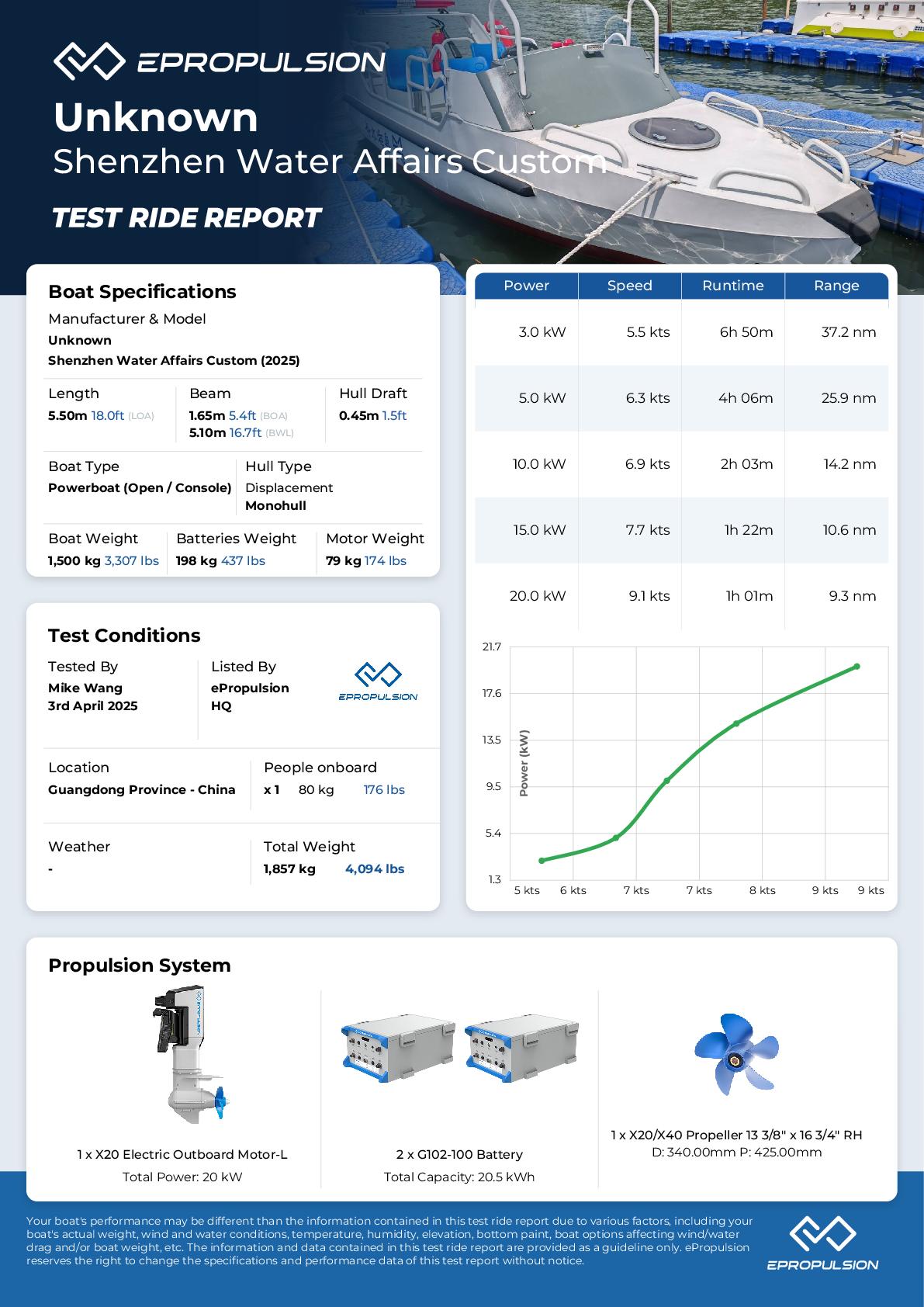

Performance Tests
Test details
- Test date
- 2025-04-03 08:47:00
- Testing personnel
- Mike Wang
- Persons onboard
- 1 (total 80 kg)
- Location
- Guangdong Province, China
- Temperature
- 0 °C
Recorded speed
Test results
Top Speed9.1 knots
Cruising6.9 knots
Estimated Range9–37 nm
| Power | Actual speed | Runtime* | Range* | Energy use |
|---|---|---|---|---|
| 3 kW | 5.45 knots | 6h 50m | 37.2 nm | 0.55 kWh/nm |
| 5 kW | 6.32 knots | 4h 06m | 25.9 nm | 0.79 kWh/nm |
| 10 kW | 6.91 knots | 2h 03m | 14.2 nm | 1.45 kWh/nm |
| 15 kW | 7.72 knots | 1h 22m | 10.5 nm | 1.94 kWh/nm |
| 20 kW | 9.13 knots | 1h 01m | 9.3 nm | 2.19 kWh/nm |
