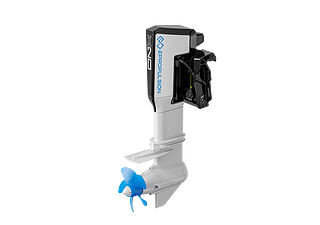

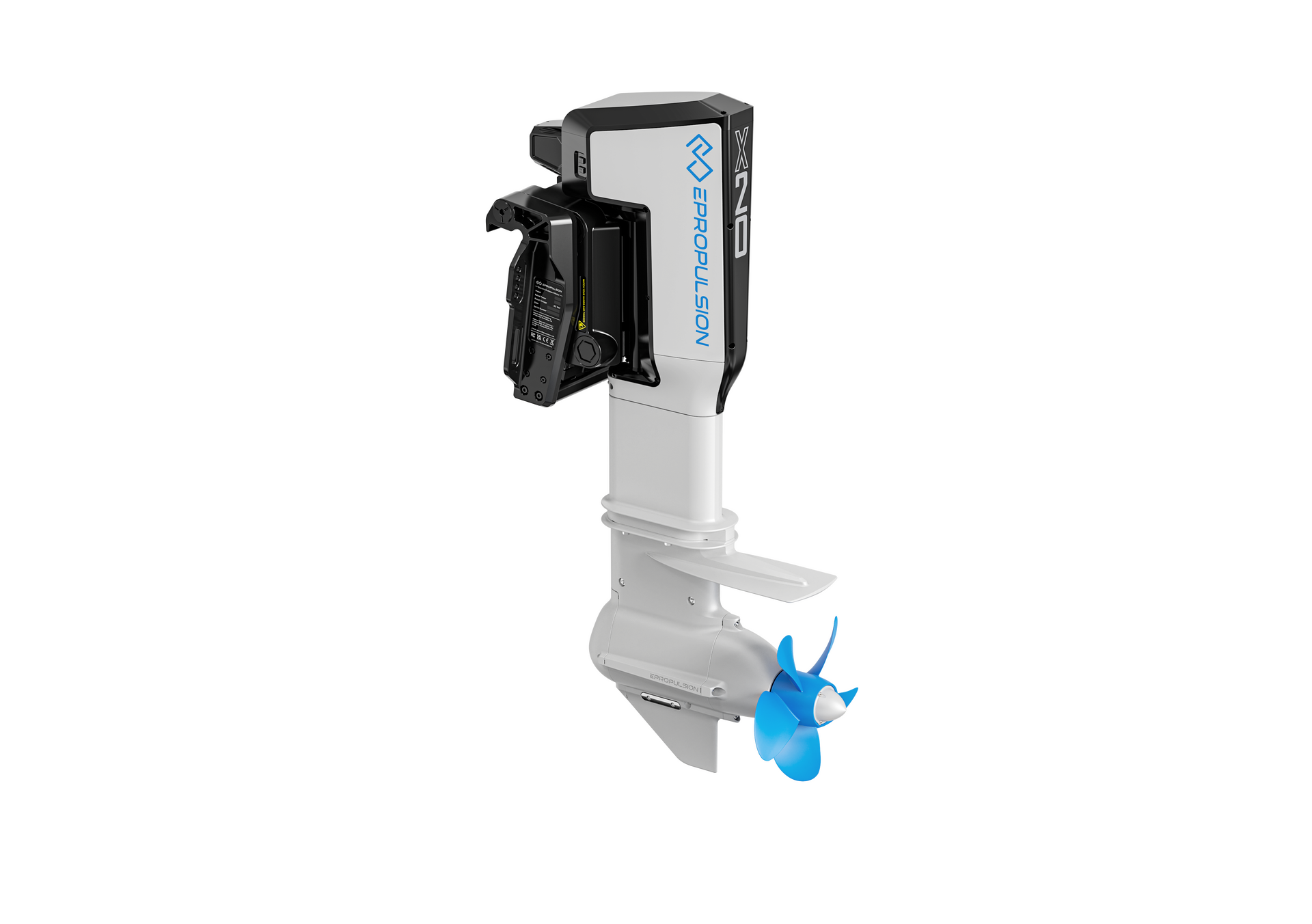

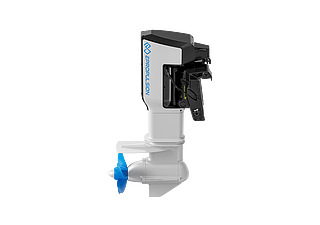

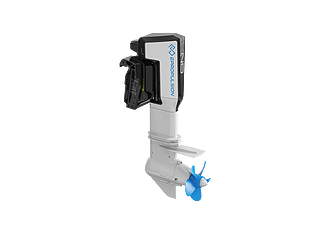

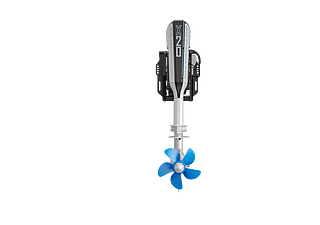

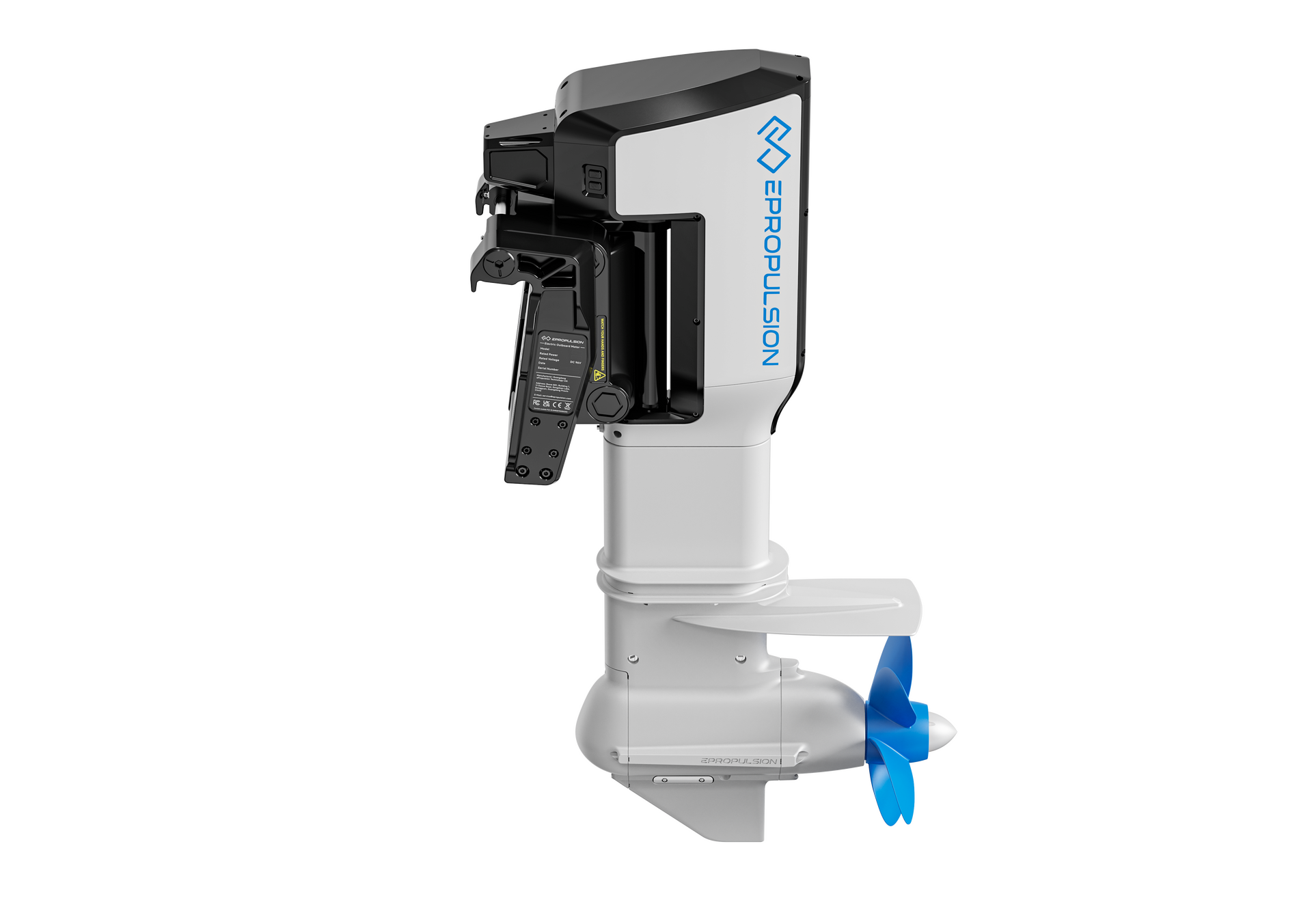

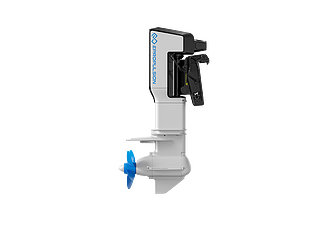

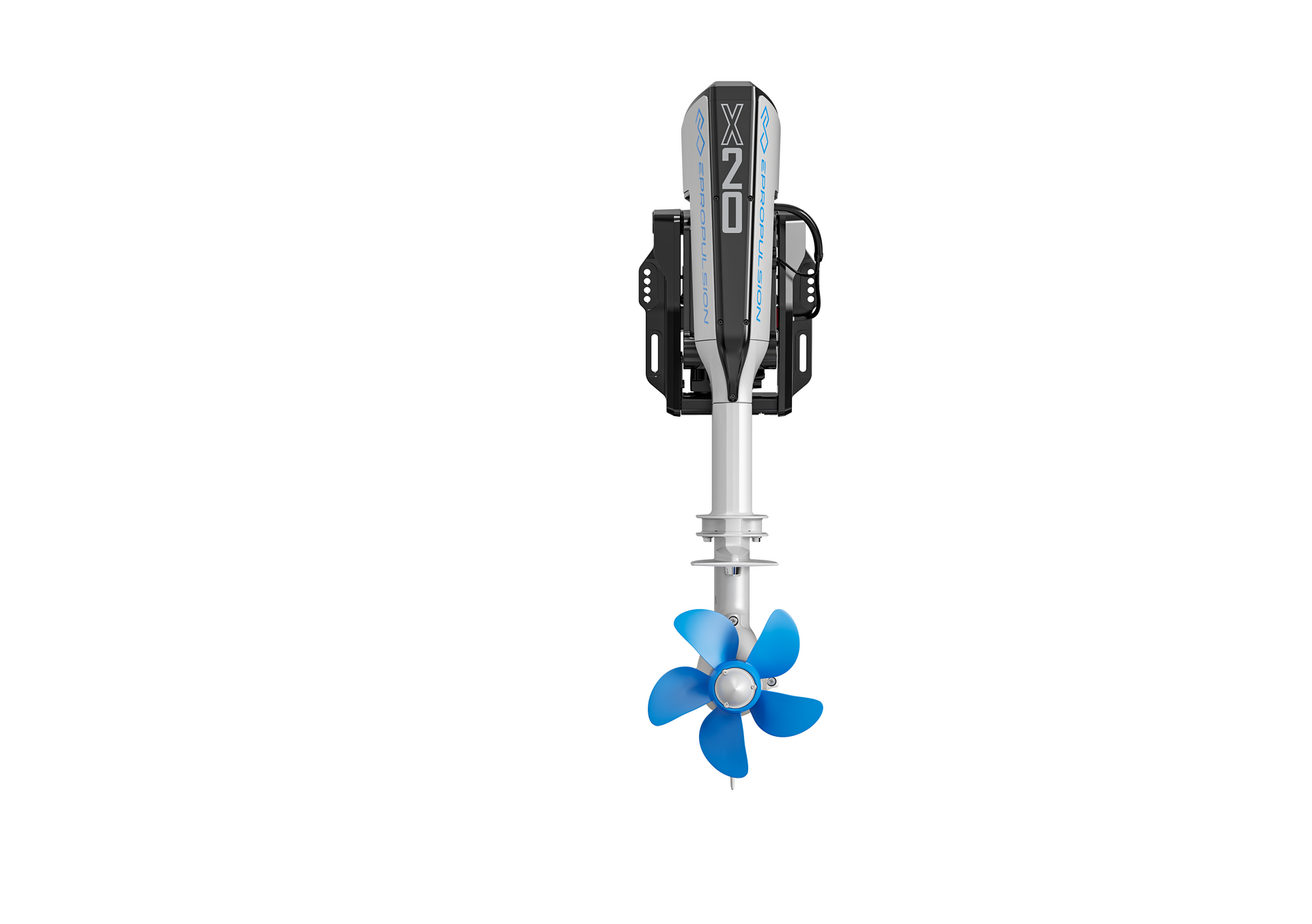

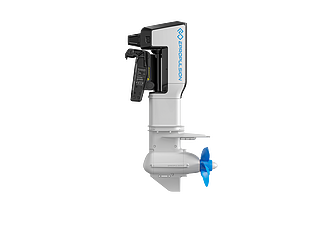

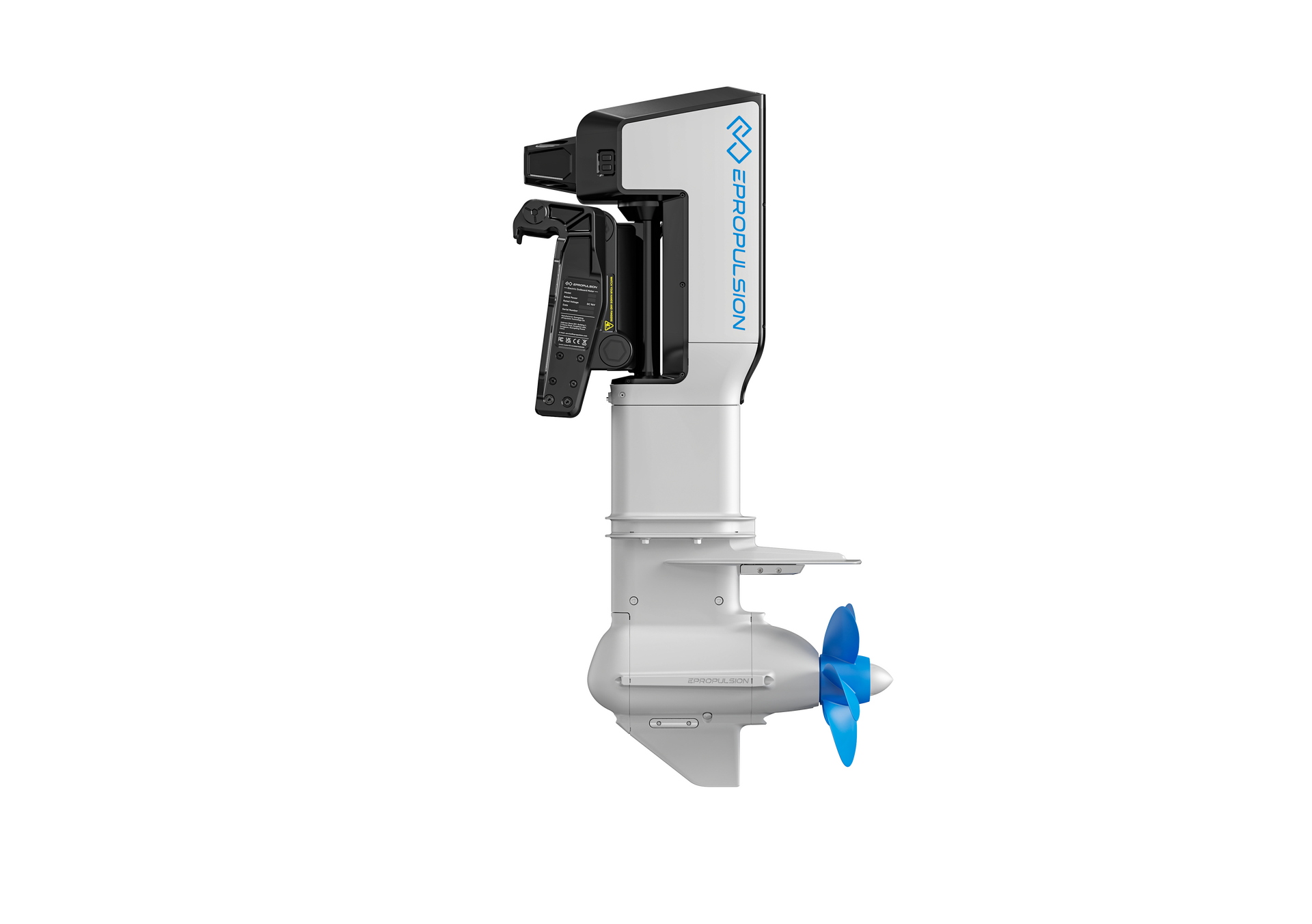

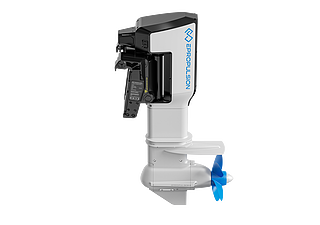

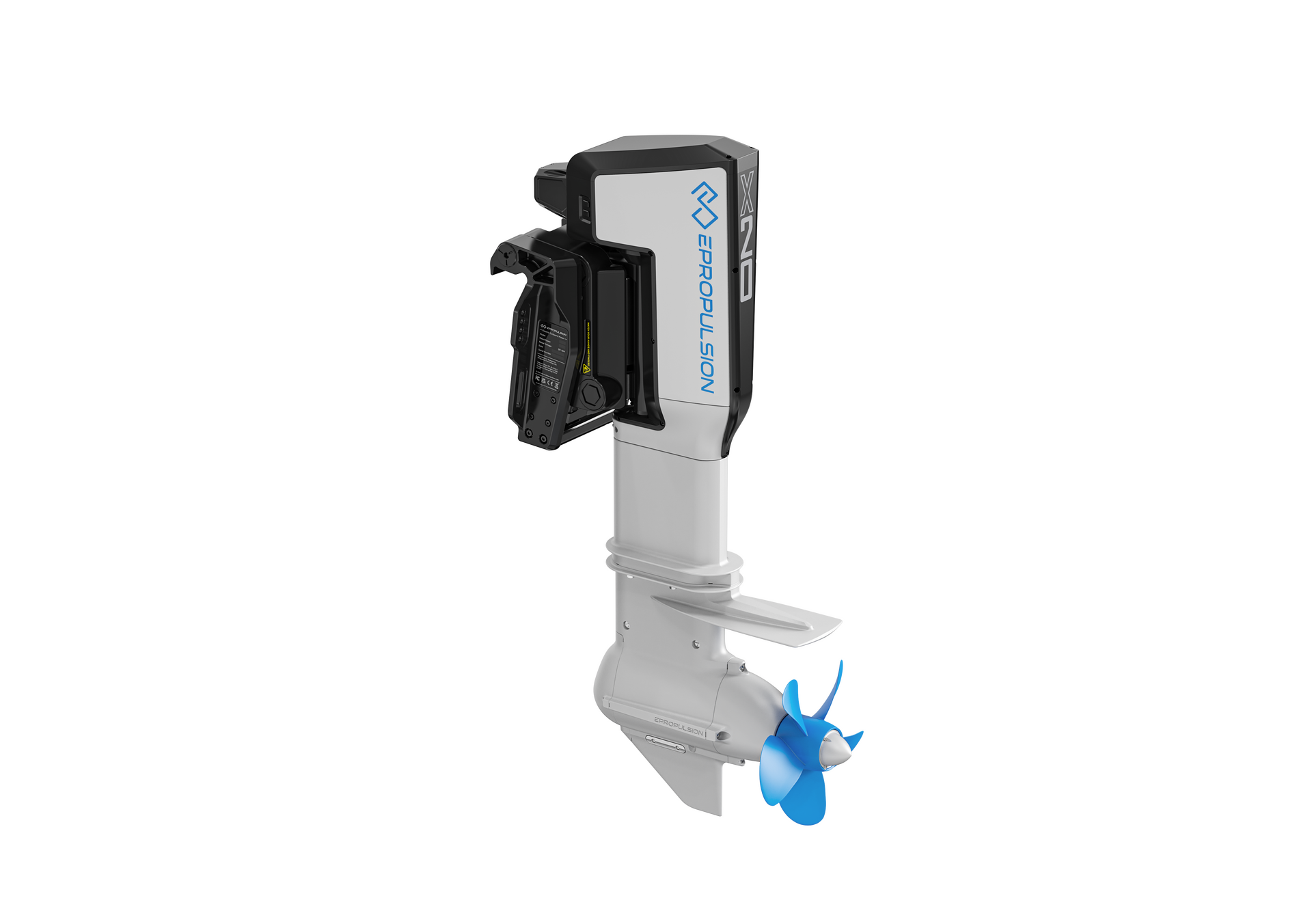

X20 Electric Outboard Motor-L
Part Number: X2-0000-L0
Series: X-Series
Type: motor
View the main X-Series product page
Description
eSSA, 96V platform, 20kW, L-Shaft,Compact & Fully integrated design, Electric Steering System, Advanced Driving Assistance Functions and ePropulsion Link Connectivity Service
Technical Specifications
Physical Dimensions
Length: 674.00 mm
Width: 360.00 mm
Height: 1229.00 mm
Net Weight: 79.00 kg
Motor Specifications
Voltage: 96.00 V
Min Power: 100 W
Max Power: 20000 W
Max Turbo Power: 30000 W
Cooling: Natural cooling
Efficiency: 90%
Static Thrust: 2800 N
Codes & Identifiers
EAN Code: 6971312632866
UPC Code: 770264106175
HS Code (EU): 8501320099
Comes With
-
ESSA Communication 5-way T Connector
Part #: 00-0603-09 -
ESSA Communication 3-way T Connector
Part #: 00-0603-01 -
ESSA Communication Terminator 120Ω
Part #: 00-0603-10 -
ESSA Communication Terminator 360Ω
Part #: 00-0603-11 -
ESSA Communication Extension Cable 10m
Part #: 00-0603-07 -
ESSA Communication Cable 1m
Part #: 00-0603-06 -
Bus Box 250A
Part #: A1-M001-00 -
G Battery Output Cable Kit 5m (Positive and Negative)
Part #: 00-0603-16
