Arcona - 36

Arcona - 36

1992
Sweden
Arcona

System at a Glance

This 1992 36 is an electric Sailboat (Monohull) from Arcona, powered by a 12 kW ePropulsion motor and a 20 kWh battery pack, offering a quiet and eco-friendly boating experience.

Length (LOA)10.85 m (35.6 ft)
Beam (BOA)3.5 m (11.5 ft)
Hull Draft1.82 m (6.0 ft)
Hull ConfigMonohull
Hull TypeDisplacement
Displacement6,000 kg (13,228 lbs)
View Photos Talk to a Dealer

Boat Specifications

Overview

Make
Arcona
Model
36
Year
1992
Hull type
Displacement
Configuration
Monohull

Hull & Dimensions

Length overall
10.85 m
Waterline length
8.90 m
Beam overall
3.50 m
Draft
1.82 m

Weights

Displacement
6,000 kg
Motor & battery
229 kg
Total weight
6,229 kg

Electric Propulsion System

Motor

1 × Pod Drive 12 eSSA

Total Power: 12 kW
Pod Drive 12 eSSA

Batteries

2 × G102-100 Battery

Capacity: 20 kWh
G102-100 Battery 1
G102-100 Battery 2

Propeller

1 × P12 Folding Propeller

Rated RPM: 1700
Propeller

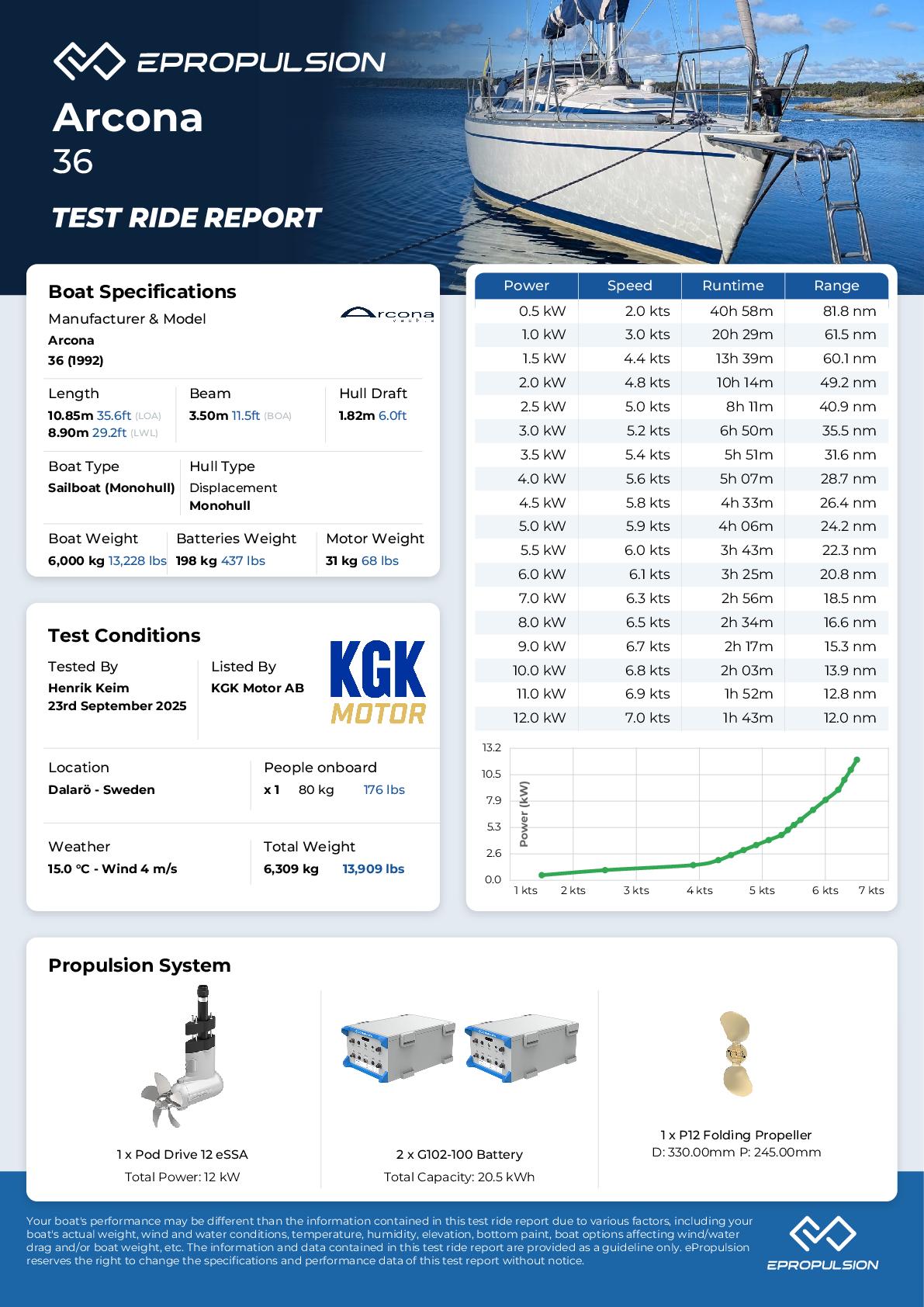

Performance Tests

Test details

Test date
2025-09-23 07:40:00
Testing personnel
Henrik Keim
Persons onboard
1 (total 80 kg)
Location
Dalarö, Sweden
Temperature
15 °C
Weather
Wind 4 m/s

Recorded speed

Actual speed versus power for test 1 Recorded measurements are listed in the test results table. 0 0 3.8 2 7.5 4 11.3 6 15 8 Speed (knots) Power (kW)

Test results

Top Speed7 knots
Cruising5.9 knots
Estimated Range12–82 nm
PowerActual speedRuntime*Range*Energy use
0.5 kW 2 knots 40h 58m 81.8 nm 0.25 kWh/nm
1 kW 3 knots 20h 29m 61.5 nm 0.33 kWh/nm
1.5 kW 4.4 knots 13h 39m 60.1 nm 0.34 kWh/nm
2 kW 4.8 knots 10h 14m 49.2 nm 0.42 kWh/nm
2.5 kW 5 knots 8h 12m 41 nm 0.5 kWh/nm
3 kW 5.2 knots 6h 50m 35.5 nm 0.58 kWh/nm
3.5 kW 5.4 knots 5h 51m 31.6 nm 0.65 kWh/nm
4 kW 5.6 knots 5h 07m 28.7 nm 0.71 kWh/nm
4.5 kW 5.8 knots 4h 33m 26.4 nm 0.78 kWh/nm
5 kW 5.9 knots 4h 06m 24.2 nm 0.85 kWh/nm
5.5 kW 6 knots 3h 43m 22.3 nm 0.92 kWh/nm
6 kW 6.1 knots 3h 25m 20.8 nm 0.98 kWh/nm
7 kW 6.3 knots 2h 56m 18.4 nm 1.11 kWh/nm
8 kW 6.5 knots 2h 34m 16.6 nm 1.23 kWh/nm
9 kW 6.7 knots 2h 17m 15.2 nm 1.34 kWh/nm
10 kW 6.8 knots 2h 03m 13.9 nm 1.47 kWh/nm
11 kW 6.9 knots 1h 52m 12.8 nm 1.59 kWh/nm
12 kW 7 knots 1h 42m 11.9 nm 1.71 kWh/nm

Actual speed is recorded during the test. Energy use, runtime and range* are calculated from the readings and nominal battery capacity; runtime and range do not account for reserve capacity.
