Maxima Boats - 630

Maxima Boats - 630

2024
United States
Maxima Boats

System at a Glance

This 2024 630 is an electric Fishing Boat / Jon Boat from Maxima Boats, powered by a 20 kW ePropulsion motor and a 20 kWh battery pack, offering a quiet and eco-friendly boating experience.

Length (LOA)6.1 m (20.0 ft)
Beam (BOA)2.3 m (7.5 ft)
Hull Draft0.4 m (1.3 ft)
Hull ConfigMonohull
Hull TypeDisplacement
Displacement840 kg (1,852 lbs)
View Photos Talk to a Dealer

Boat Specifications

Overview

Make
Maxima Boats
Model
630
Year
2024
Hull type
Displacement
Configuration
Monohull

Hull & Dimensions

Length overall
6.10 m
Beam overall
2.30 m
Draft
0.40 m

Weights

Displacement
840 kg
Motor & battery
277 kg
Total weight
1,117 kg

Electric Propulsion System

Motor

1 × X20 Electric Outboard Motor-L

Total Power: 20 kW
X20 Electric Outboard Motor-L

Batteries

2 × G102-100 Battery

Capacity: 20 kWh
G102-100 Battery 1
G102-100 Battery 2

Propeller

1 × X20/X40 Propeller 13 3/8'' x 16 3/4"

Rated RPM: 1500
Propeller

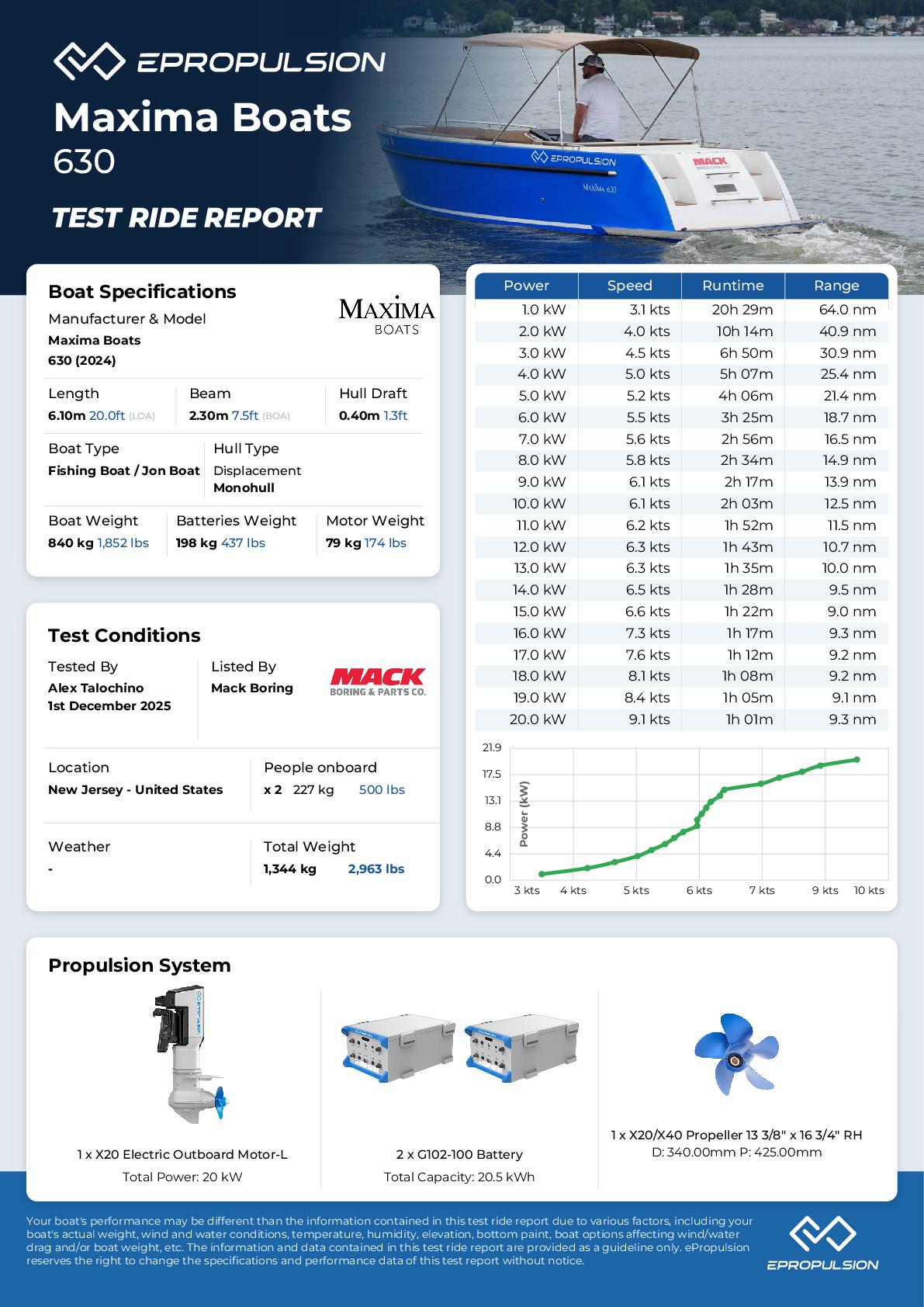

Performance Tests

Test details

Test date
2025-12-01 18:50:00
Testing personnel
Alex Talochino
Persons onboard
2 (total 226.8 kg)
Location
New Jersey, United States
Temperature
0 °C

Recorded speed

Actual speed versus power for test 1 Recorded measurements are listed in the test results table. 0 0 5 2.5 10 5 15 7.5 20 10 Speed (knots) Power (kW)

Test results

Top Speed9.1 knots
Cruising5.8 knots
Estimated Range9–64 nm
PowerActual speedRuntime*Range*Energy use
1 kW 3.13 knots 20h 29m 64 nm 0.32 kWh/nm
2 kW 4 knots 10h 14m 40.9 nm 0.5 kWh/nm
3 kW 4.52 knots 6h 50m 30.9 nm 0.66 kWh/nm
4 kW 4.95 knots 5h 07m 25.4 nm 0.81 kWh/nm
5 kW 5.22 knots 4h 06m 21.4 nm 0.96 kWh/nm
6 kW 5.48 knots 3h 25m 18.7 nm 1.1 kWh/nm
7 kW 5.65 knots 2h 56m 16.5 nm 1.24 kWh/nm
8 kW 5.82 knots 2h 34m 14.9 nm 1.37 kWh/nm
9 kW 6.09 knots 2h 17m 13.8 nm 1.48 kWh/nm
10 kW 6.09 knots 2h 03m 12.5 nm 1.64 kWh/nm
11 kW 6.17 knots 1h 52m 11.5 nm 1.78 kWh/nm
12 kW 6.26 knots 1h 42m 10.7 nm 1.92 kWh/nm
13 kW 6.34 knots 1h 35m 10 nm 2.05 kWh/nm
14 kW 6.52 knots 1h 28m 9.5 nm 2.15 kWh/nm
15 kW 6.6 knots 1h 22m 9 nm 2.27 kWh/nm
16 kW 7.3 knots 1h 17m 9.3 nm 2.19 kWh/nm
17 kW 7.65 knots 1h 12m 9.2 nm 2.22 kWh/nm
18 kW 8.08 knots 1h 08m 9.2 nm 2.23 kWh/nm
19 kW 8.43 knots 1h 05m 9.1 nm 2.25 kWh/nm
20 kW 9.13 knots 1h 01m 9.3 nm 2.19 kWh/nm

Actual speed is recorded during the test. Energy use, runtime and range* are calculated from the readings and nominal battery capacity; runtime and range do not account for reserve capacity.
