Whaly - 435

Whaly - 435

2024
United Kingdom
Whaly

System at a Glance

This 2024 435 is an electric Workboat / Utility from Whaly, powered by a 3 kW ePropulsion motor and a 3 kWh battery pack, offering a quiet and eco-friendly boating experience.

Length (LOA)4.35 m (14.3 ft)
Beam (BOA)1.73 m (5.7 ft)
Hull Draft0.25 m (0.8 ft)
Hull ConfigCatamaran
Hull TypeDisplacement
Displacement186 kg (410 lbs)
View Photos Talk to a Dealer

Boat Specifications

Overview

Make
Whaly
Model
435
Year
2024
Hull type
Displacement
Configuration
Catamaran

Hull & Dimensions

Length overall
4.35 m
Waterline length
3.90 m
Beam overall
1.73 m
Beam at waterline
1.70 m
Draft
0.25 m

Weights

Displacement
186 kg
Motor & battery
57 kg
Total weight
243 kg

Electric Propulsion System

Motor

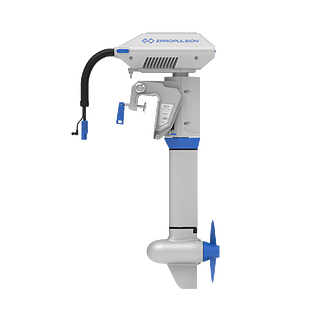

1 × NAVY 3.0 Evo Shortshaft

Total Power: 3 kW
NAVY 3.0 Evo Shortshaft

Battery

1 × E60 Battery

Capacity: 3 kWh
E60 Battery

Propeller

1 × NAVY 3.0 Propeller

Rated RPM: 1400
Propeller

Performance Tests

Test details

Test date
2024-01-26 12:00:00
Testing personnel
Gareth Pullen
Persons onboard
2 (total 160 kg)
Location
Shepperton, United Kingdom
Temperature
9 °C
Weather
Sunny, calm

Recorded speed

Actual speed versus power for test 1 Recorded measurements are listed in the test results table. 0 0 1.3 1.5 2.5 3 3.8 4.5 5 6 Speed (knots) Power (kW)

Test results

Top Speed4.9 knots
Cruising3.9 knots
Estimated Range5–19 nm
PowerActual speedRuntime*Range*Energy use
0.5 kW 3.02 knots 6h 09m 18.6 nm 0.17 kWh/nm
0.6 kW 3.08 knots 5h 07m 15.8 nm 0.19 kWh/nm
0.7 kW 3.19 knots 4h 23m 14 nm 0.22 kWh/nm
0.8 kW 3.35 knots 3h 50m 12.9 nm 0.24 kWh/nm
0.9 kW 3.4 knots 3h 25m 11.6 nm 0.26 kWh/nm
1 kW 3.67 knots 3h 04m 11.3 nm 0.27 kWh/nm
1.25 kW 3.89 knots 2h 27m 9.6 nm 0.32 kWh/nm
1.5 kW 4.16 knots 2h 03m 8.5 nm 0.36 kWh/nm
1.75 kW 4.21 knots 1h 45m 7.4 nm 0.42 kWh/nm
2 kW 4.37 knots 1h 32m 6.7 nm 0.46 kWh/nm
2.25 kW 4.43 knots 1h 22m 6 nm 0.51 kWh/nm
2.5 kW 4.59 knots 1h 14m 5.6 nm 0.54 kWh/nm
2.75 kW 4.81 knots 1h 07m 5.4 nm 0.57 kWh/nm
3 kW 4.91 knots 1h 01m 5 nm 0.61 kWh/nm

Actual speed is recorded during the test. Energy use, runtime and range* are calculated from the readings and nominal battery capacity; runtime and range do not account for reserve capacity.
