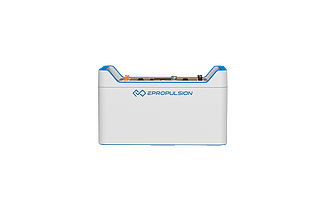

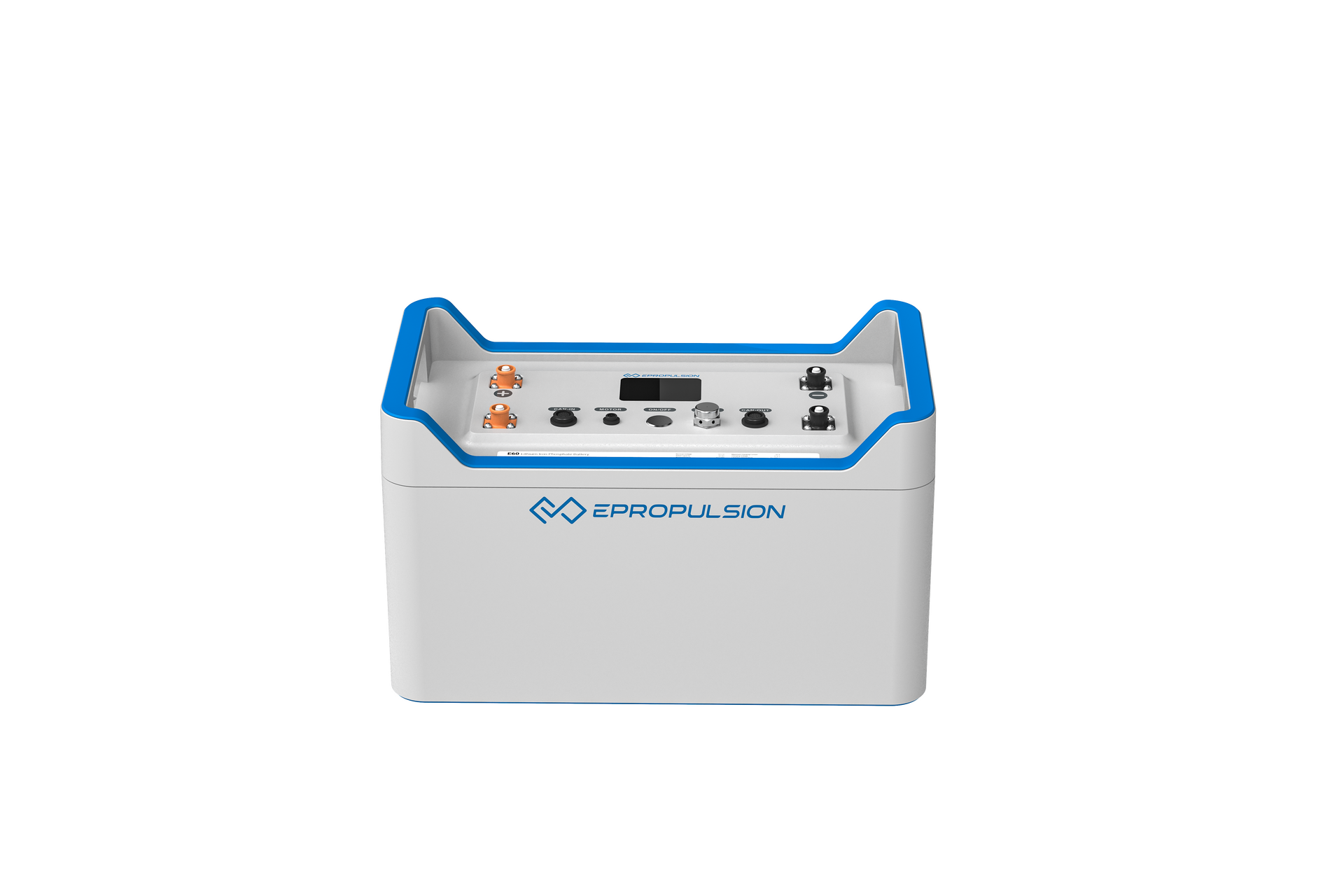

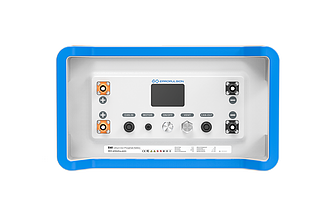

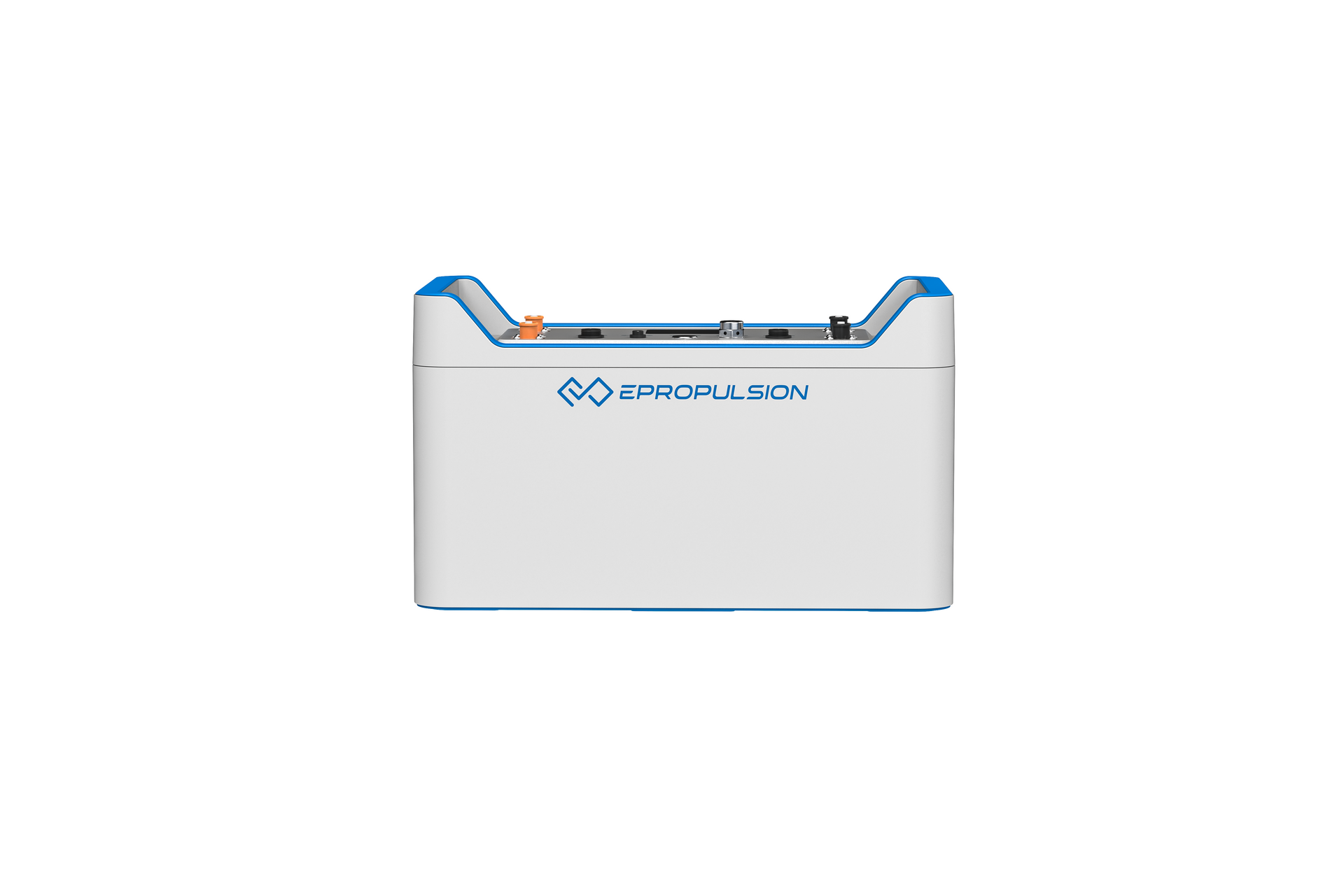

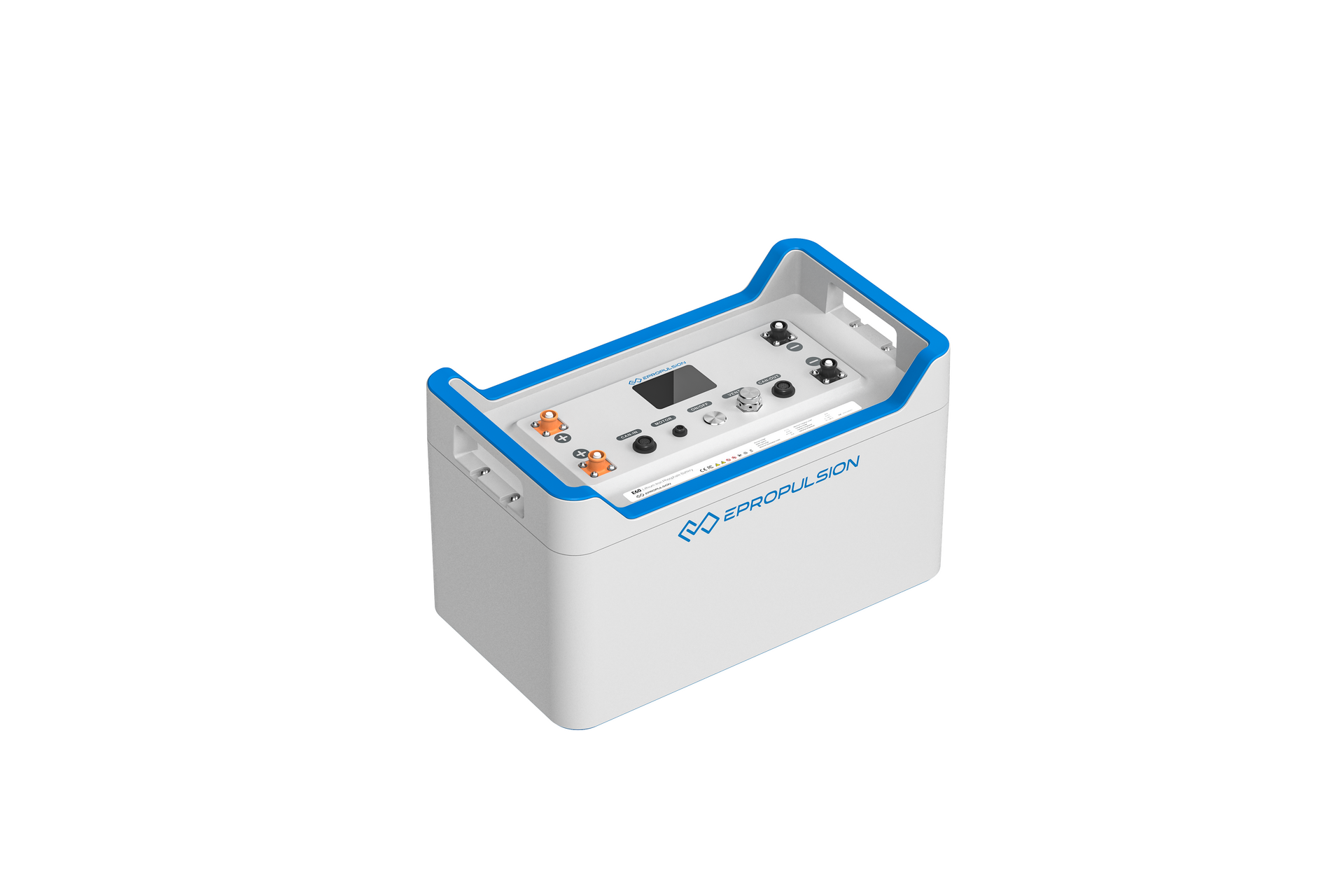

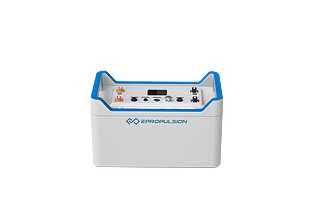

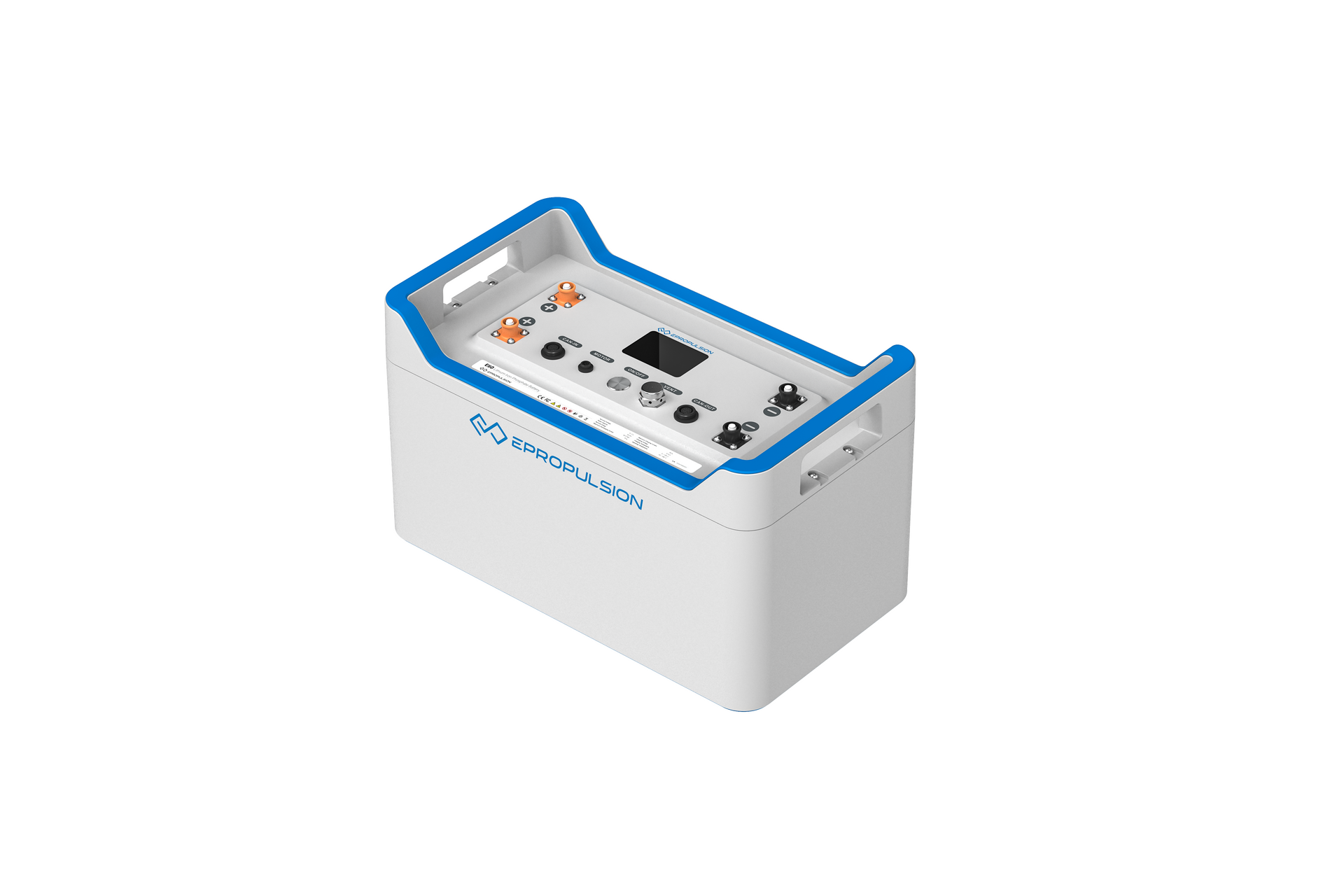

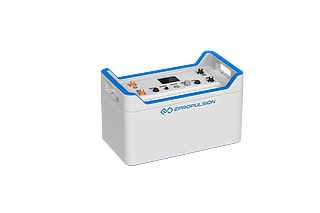

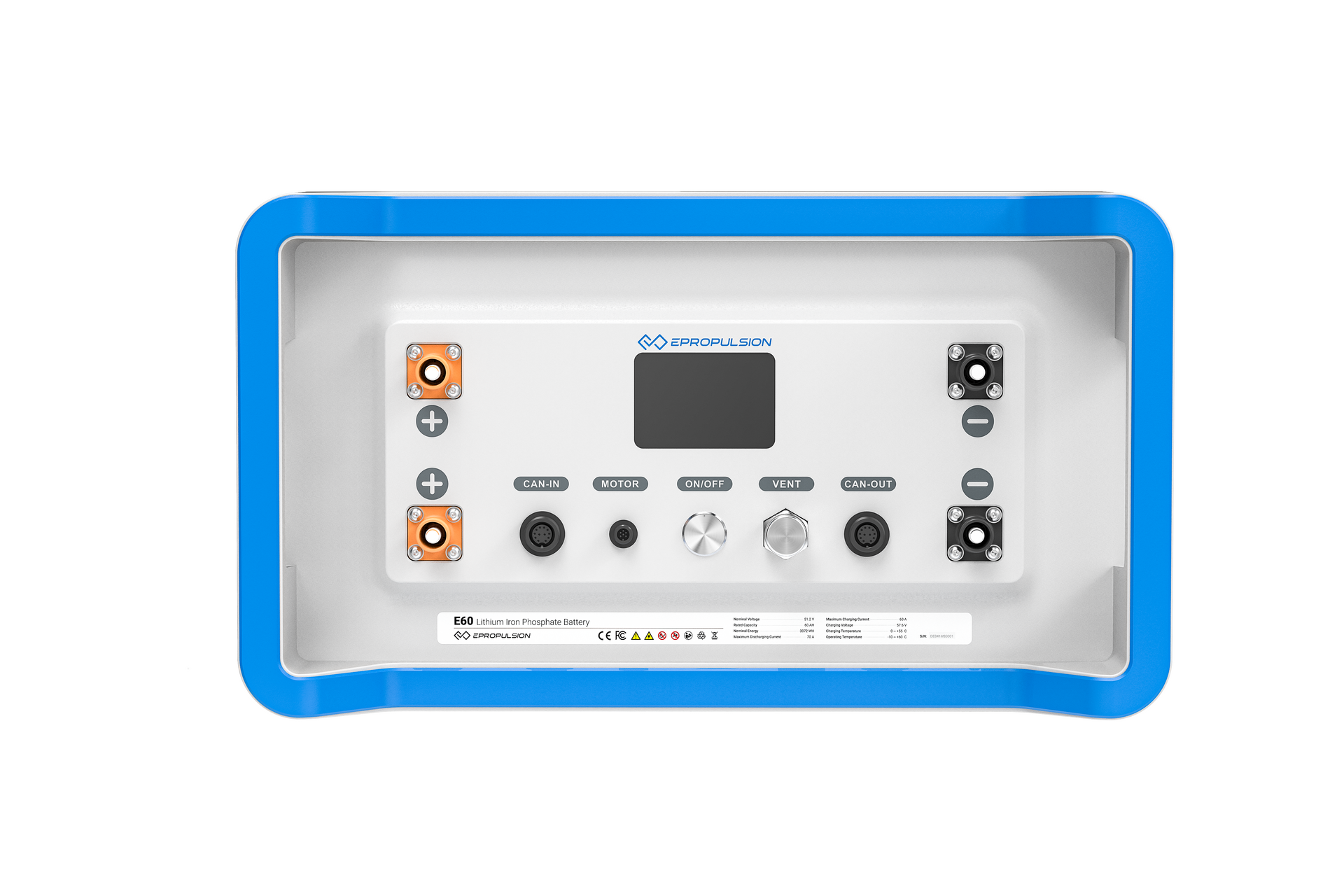

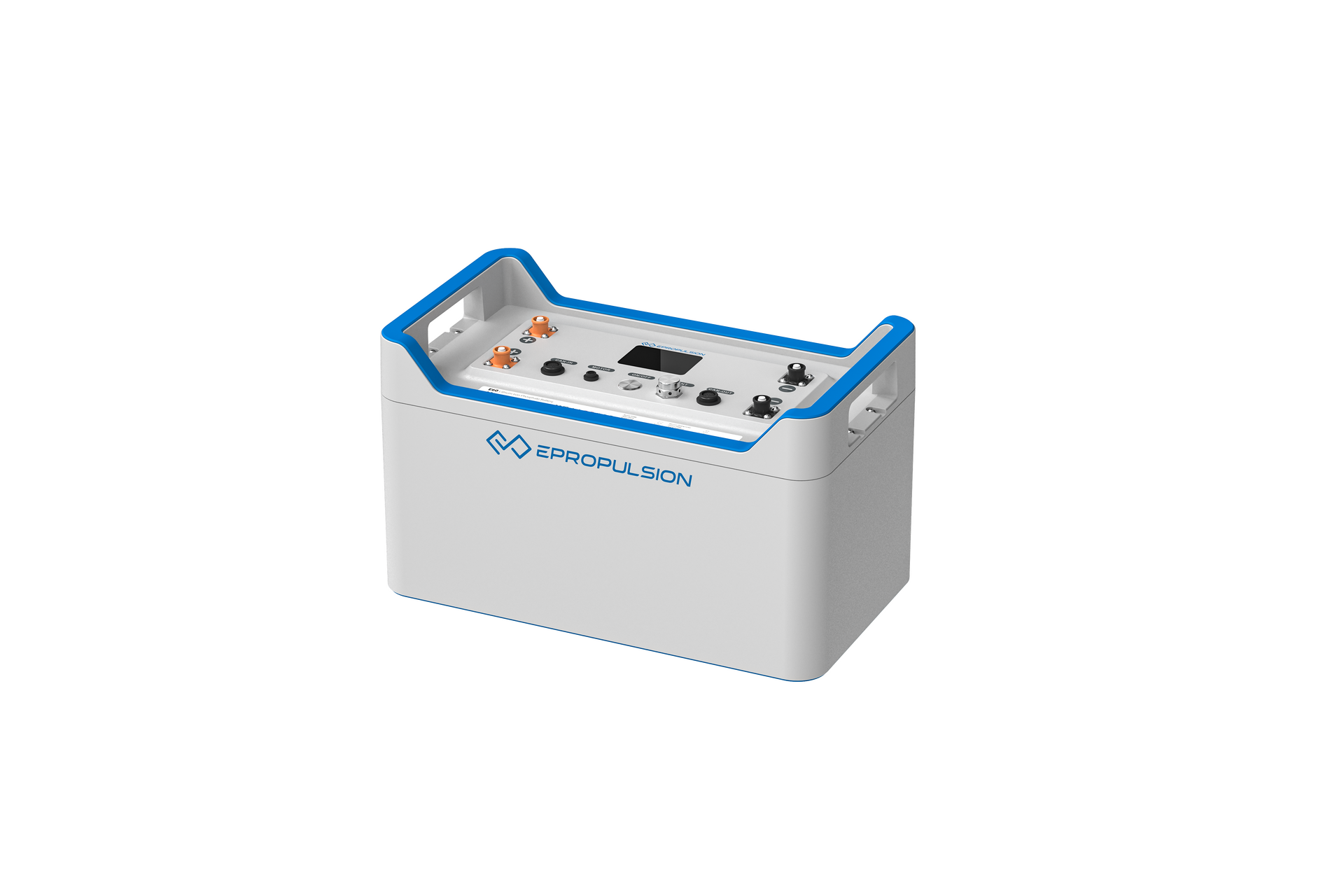

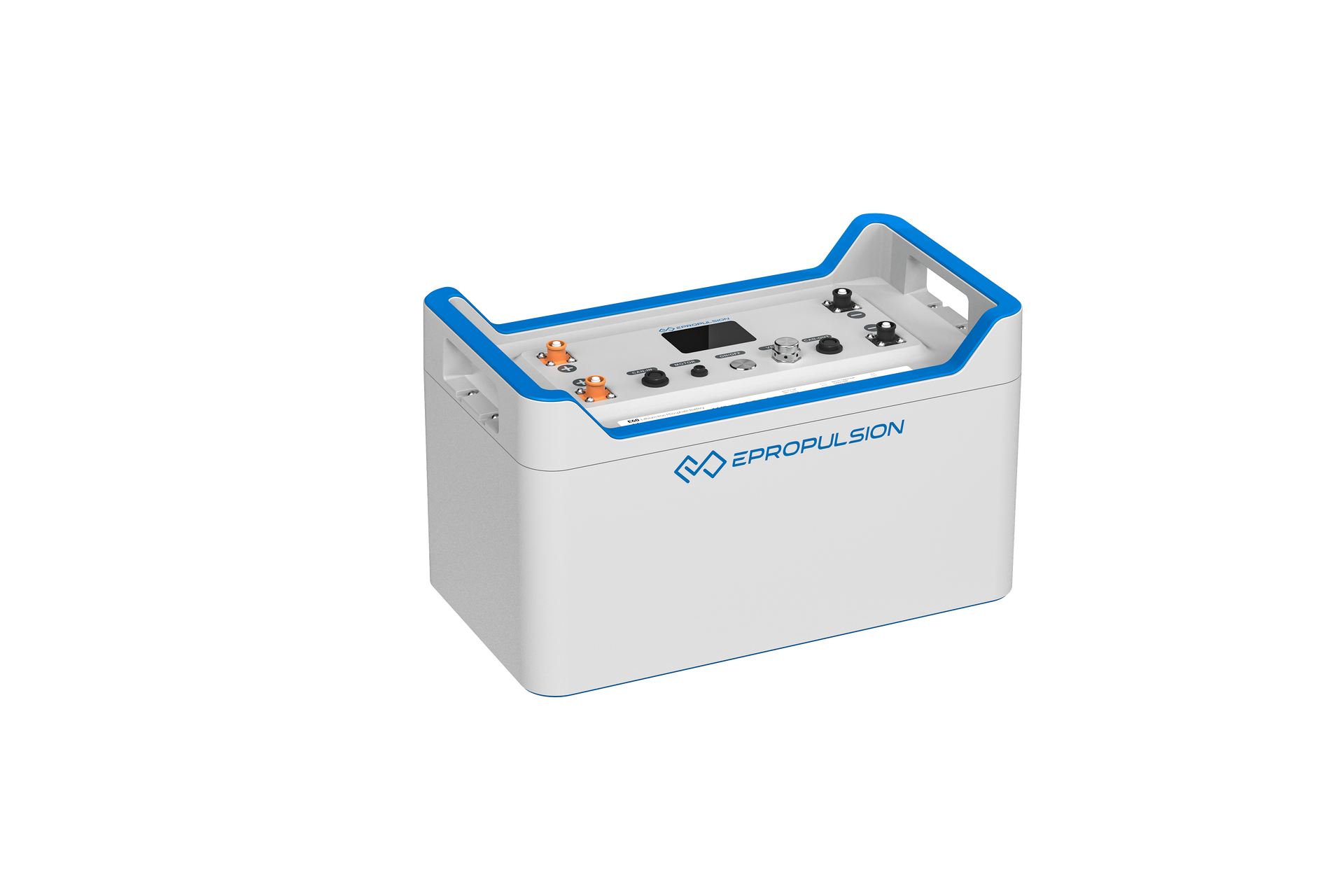

E60 Battery

Part Number: EB-0060-00

Series: Spirit Navy POD Drive Batteries

Type: battery

View the main E-Series Batteries product page

Description

3072 Wh / 48V LiFePO4 battery with 3000 cycles of battery life. High energy density in a compact size. Affordable, safe and durable

Technical Specifications

Physical Dimensions

Length: 512.00 mm

Width: 290.00 mm

Height: 300.00 mm

Net Weight: 33.00 kg

Battery Specifications

Voltage: 48.00 V

Watt Hours: 3072.00 Wh

Amp Hours: 60.00 Ah

Codes & Identifiers

EAN Code: 6971312632477

UPC Code: 770264105826

UN Code: UN3480

HS Code (EU): 8507600090

HS Code (US): 8507600020

Compatible Products

Downloads

E Series E60 E163 User Manual EN/DE V1.3

User Manual

E Series E60 E163 User Manual EN/DE V1.3
Download
E60 Technical Drawing

Technical Drawing

E60 Technical Drawing
Download
