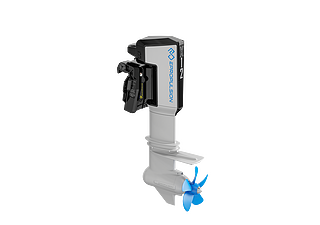

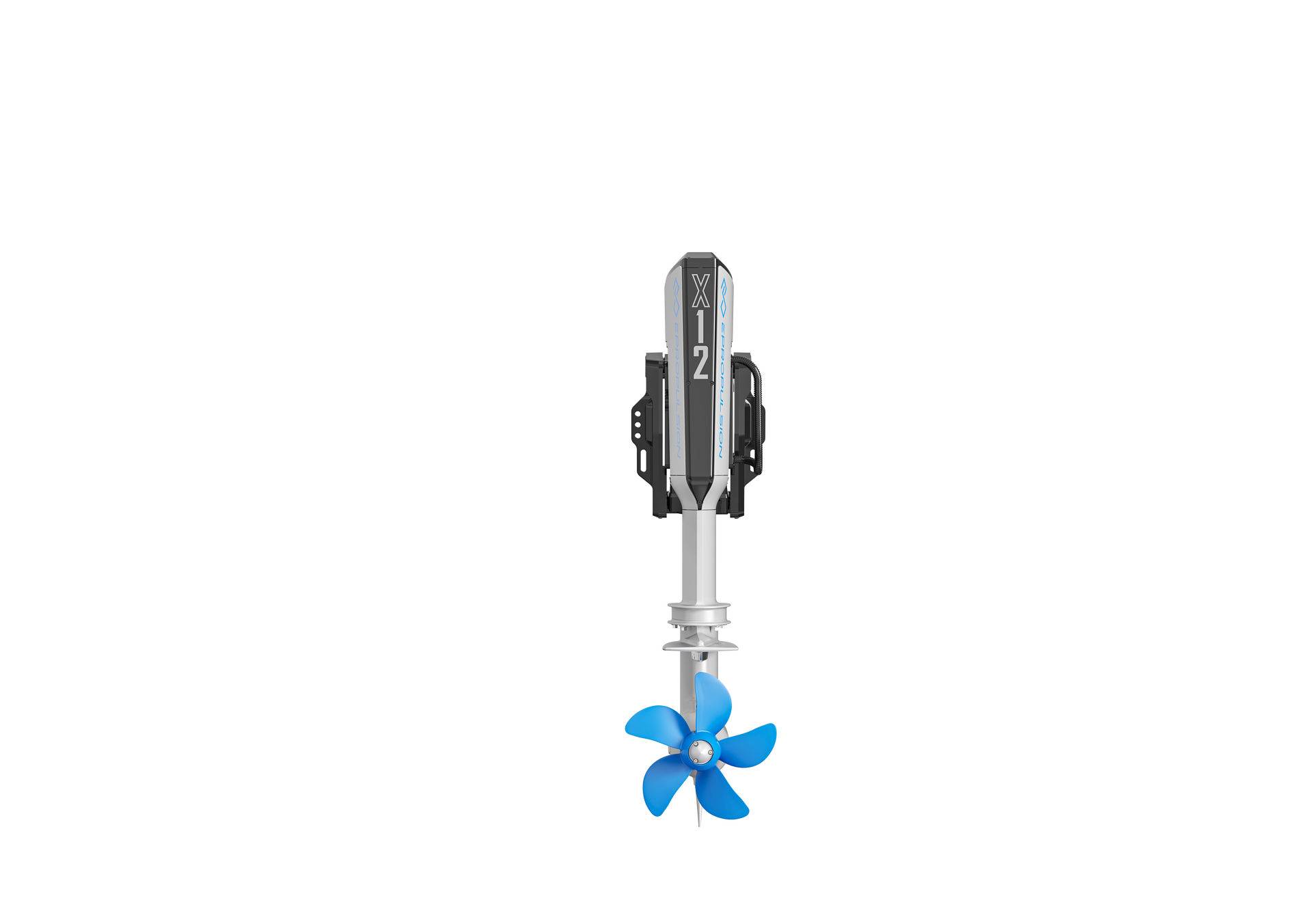

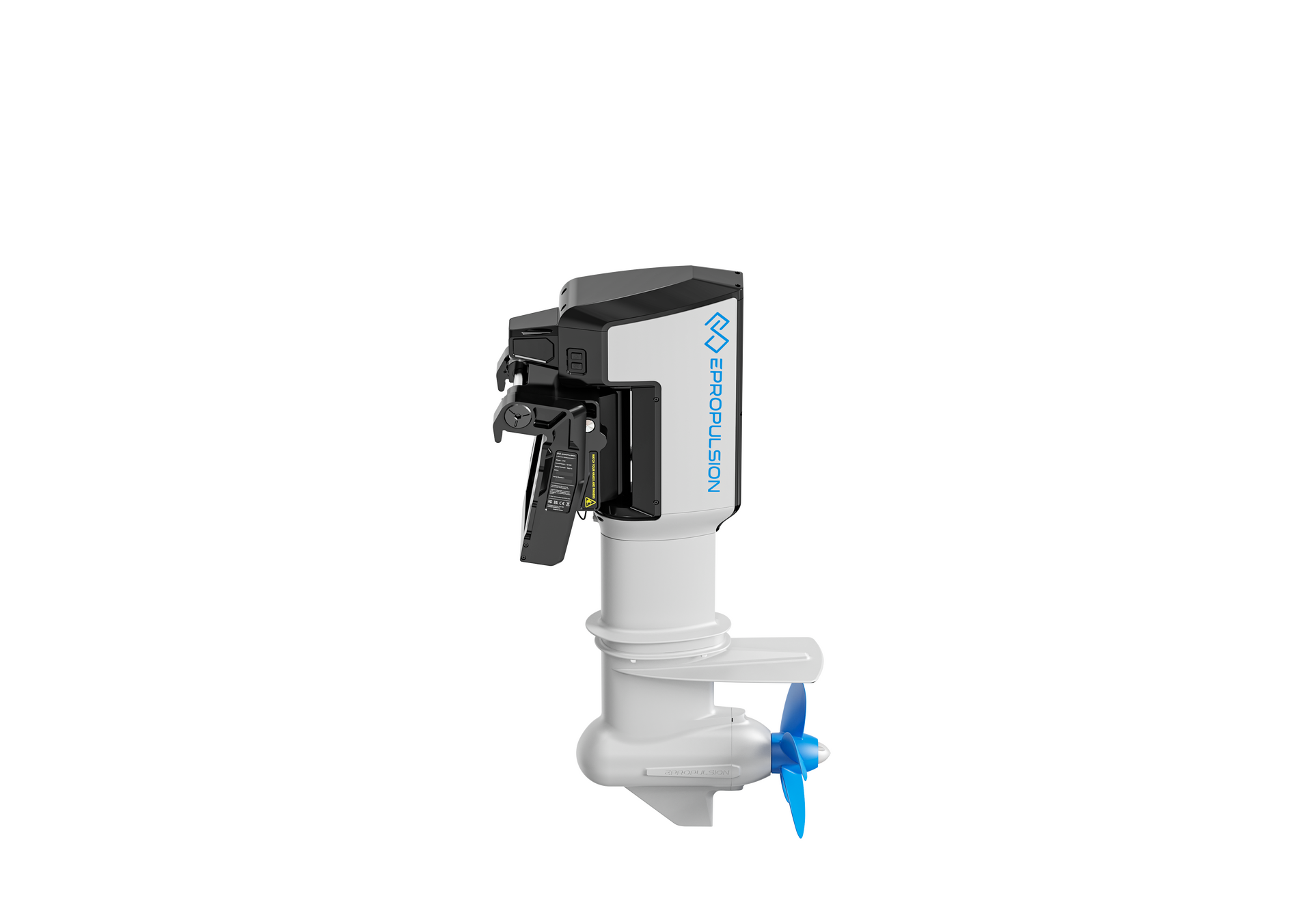

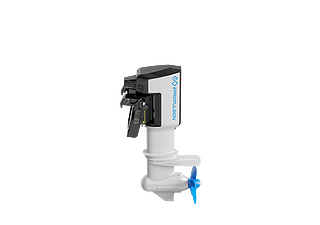

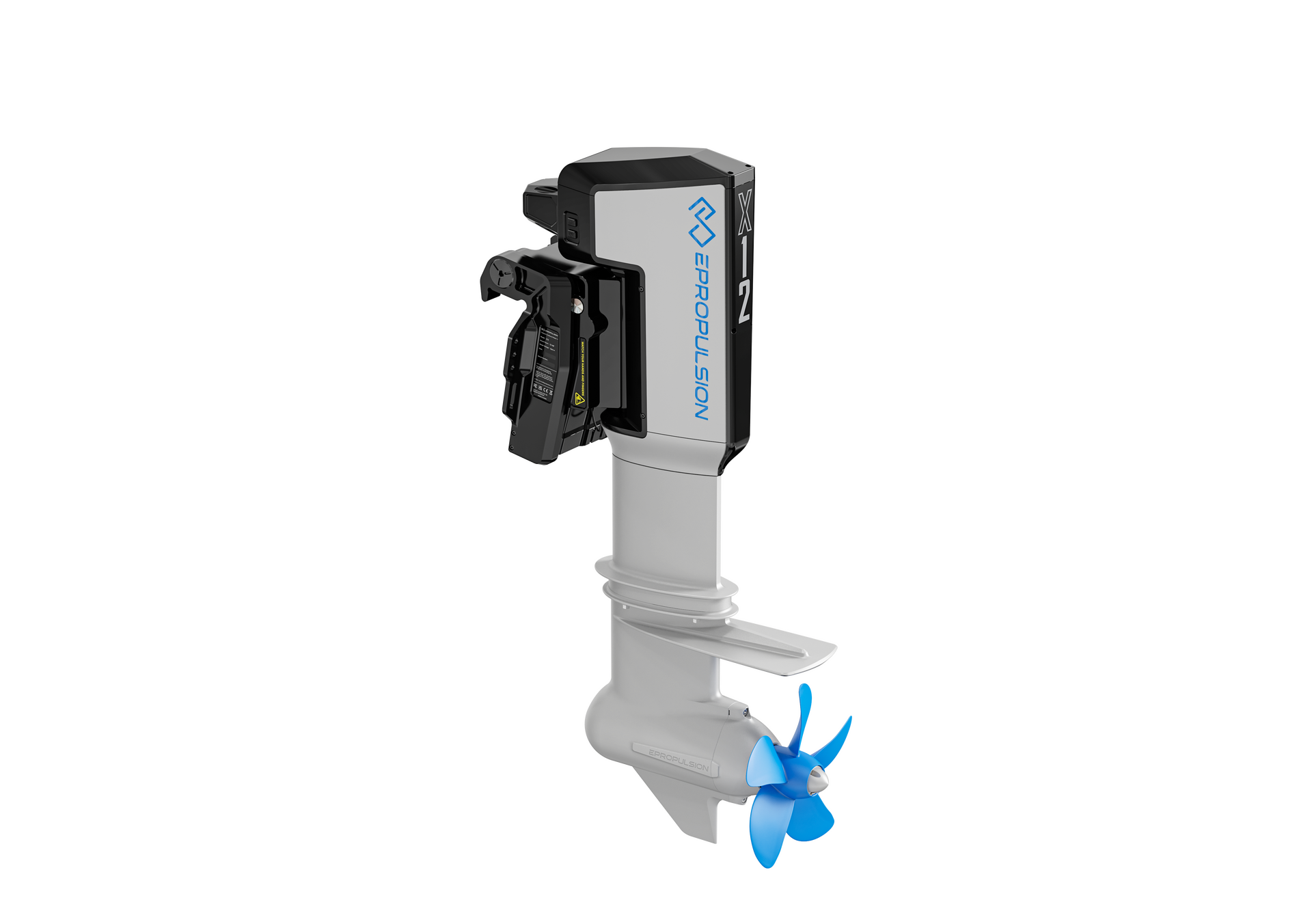

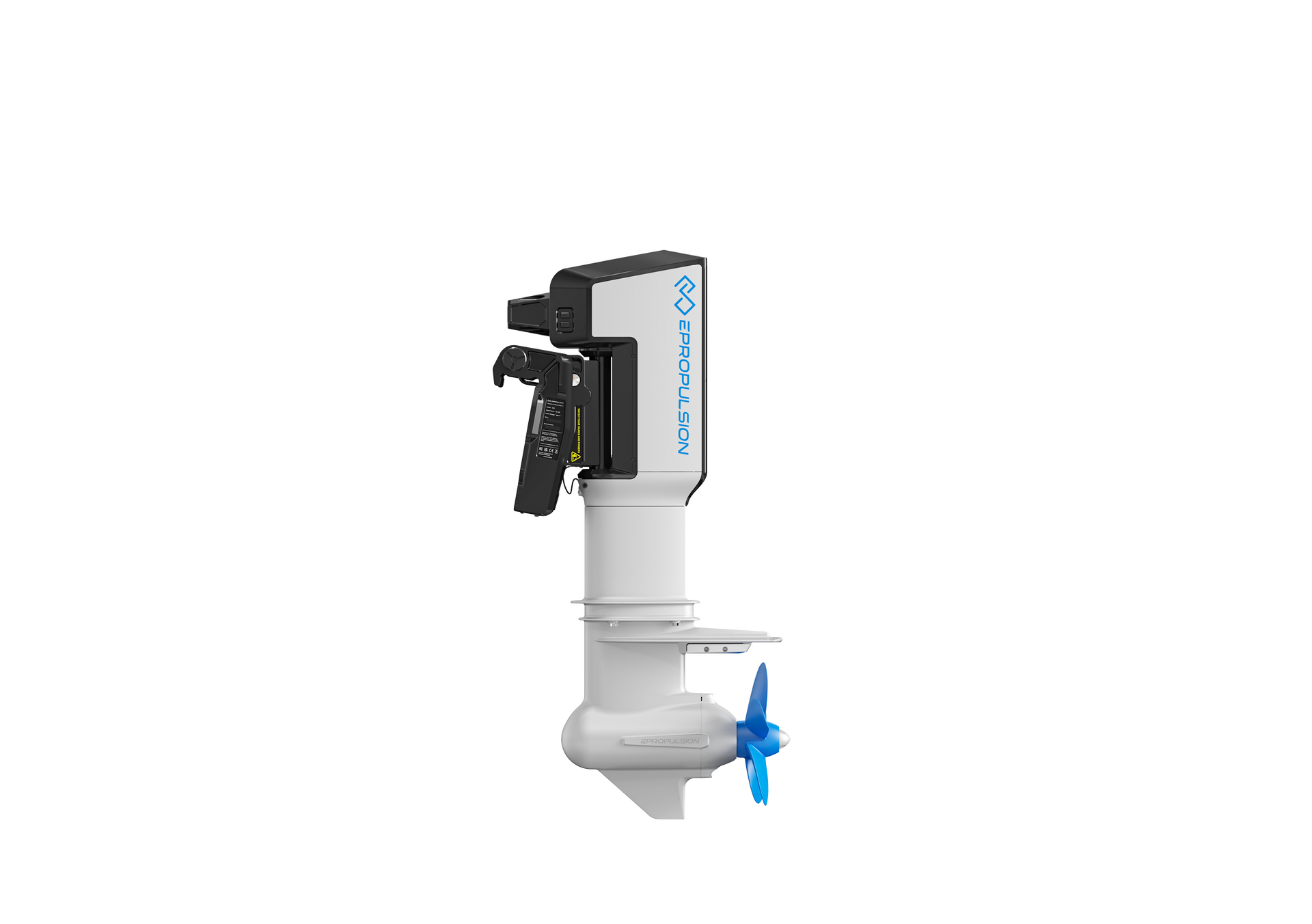

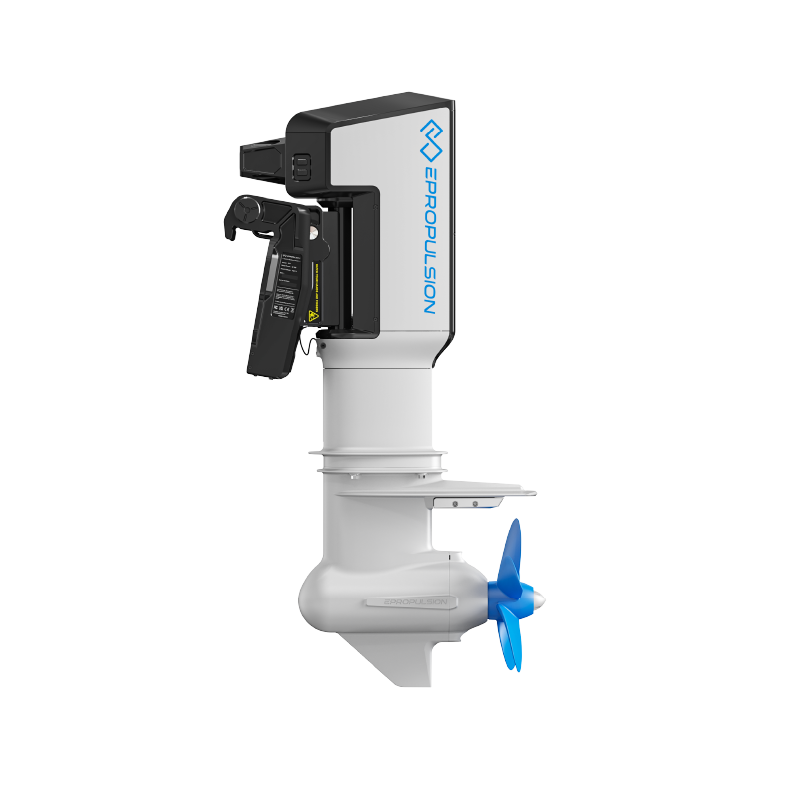

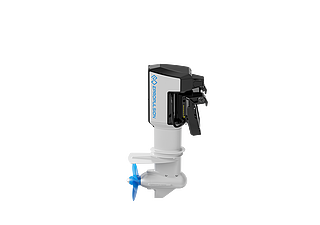

X12 Electric Outboard Motor-S

Part Number: X1-0000-S0

Series: X-Series

Type: motor

View the main X-Series product page

Description

eSSA, 96V platform, 12KW, S-Shaft,Compact & Fully integrated design, Electric Steering System, Advanced Driving Sssistance Functions and ePropulsion Link Connectivity Service

Technical Specifications

Physical Dimensions

Length: 560.00 mm

Width: 266.00 mm

Height: 978.00 mm

Net Weight: 48.00 kg

Motor Specifications

Voltage: 96.00 V

Min Power: 100 W

Max Power: 12000 W

Max Turbo Power: 16000 W

Cooling: Closed loop liquid cooling

Efficiency: 86%

Static Thrust: 1750 N

Codes & Identifiers

EAN Code: 6971312632880

UPC Code: 770264106670

HS Code (EU): 8501320099

HS Code (US): 8501322000

Downloads

X12 User Manual

User Manual

X12 User Manual
Download
X12 Quick Start

User Manual

X12 Quick Start
Download
X12 Mounting Template

Technical Drawing

X12 Mounting Template
Download
