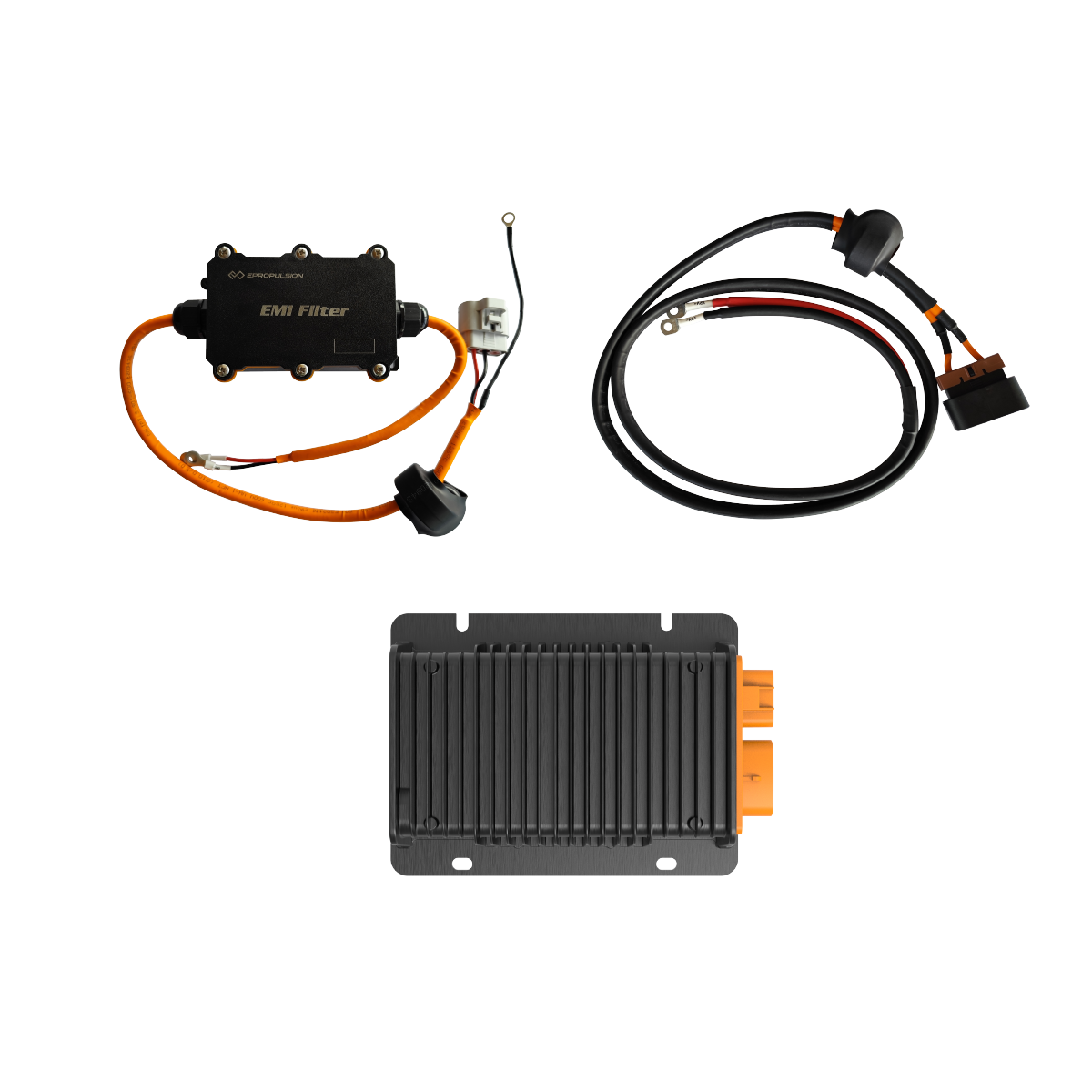

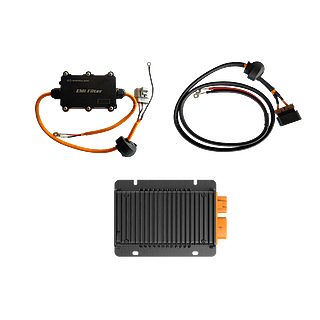

DC-DC Converter 96V-12V 500W
Part Number: A1-DC00-02
Series: I-Series X-Series P-Series
Type: wiring
Description
96v to 12v DC-DC Converter
Input voltage range: 72VDC to 120VDC.
Rated output voltage: 13.6VDC.
This is a constant voltage nominal DC 96 V to 12 V Converter, it does not have communication interface with EP-CAN and will turned on once input is given.
Technical Specifications
Physical Dimensions
Length: 204.00 mm
Width: 154.00 mm
Height: 64.00 mm
Net Weight: 2.10 kg
Codes & Identifiers
EAN Code: 6971312633115
UPC Code: 770264106236
HS Code (EU): 8504408390
HS Code (US): 8504407012
Compatible Products
-
I-10 Electric Inboard Motor
Part #: A1-0000-01 -
I-20 Electric Inboard Motor
Part #: A2-0000-01 -
I-40 Electric Inboard Motor
Part #: A4-0000-00 -
X12 Electric Outboard Motor-S
Part #: X1-0000-S0 -
X12 Electric Outboard Motor-L
Part #: X1-0000-L0 -
X20 Electric Outboard Motor-L
Part #: X2-0000-L0 -
X20 Electric Outboard Motor-XL
Part #: X2-0000-X0 -
X40 Electric Outboard Motor-L
Part #: X4-0000-L0 -
X40 Electric Outboard Motor-XL
Part #: X4-0000-X0 -
G102-100 Battery
Part #: GB-0100-01 -
Pod Drive 12 eSSA
Part #: PA-0000-00 -
Pod Drive 20 eSSA
Part #: PB-0000-00
