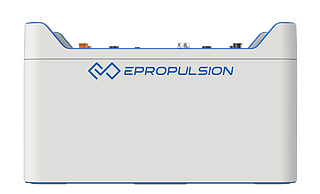

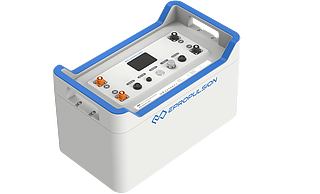

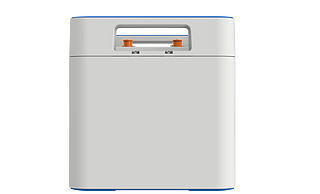

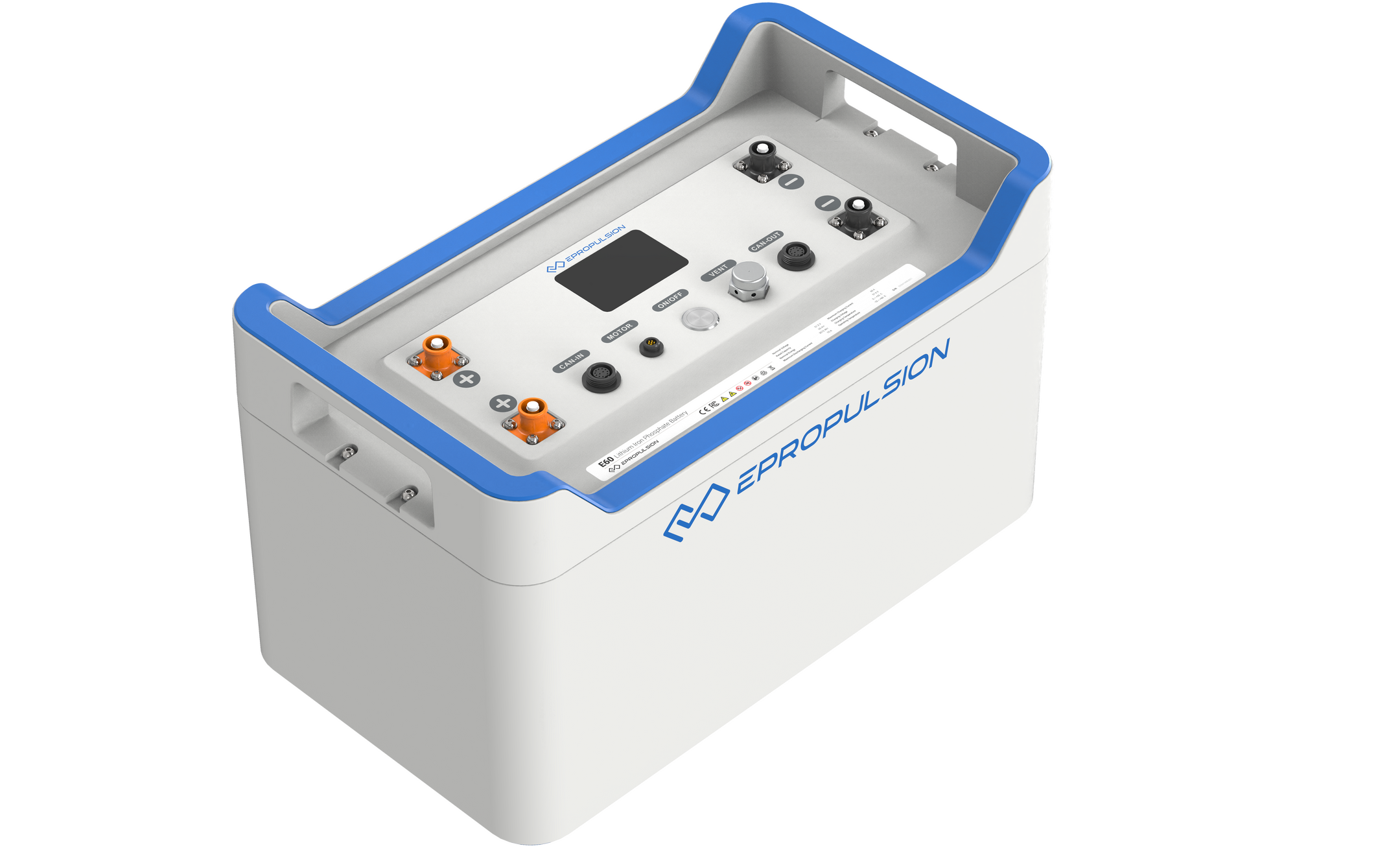

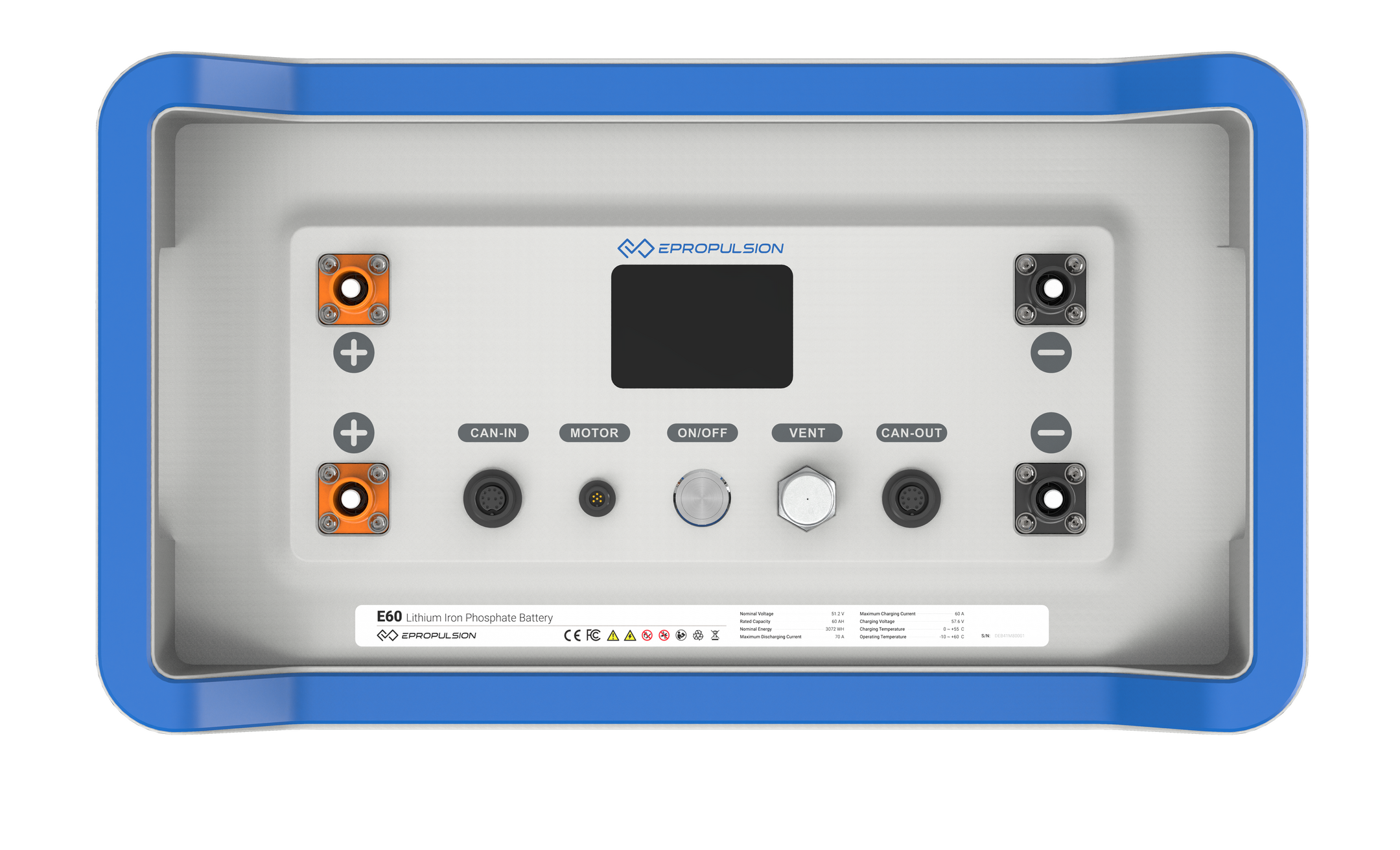

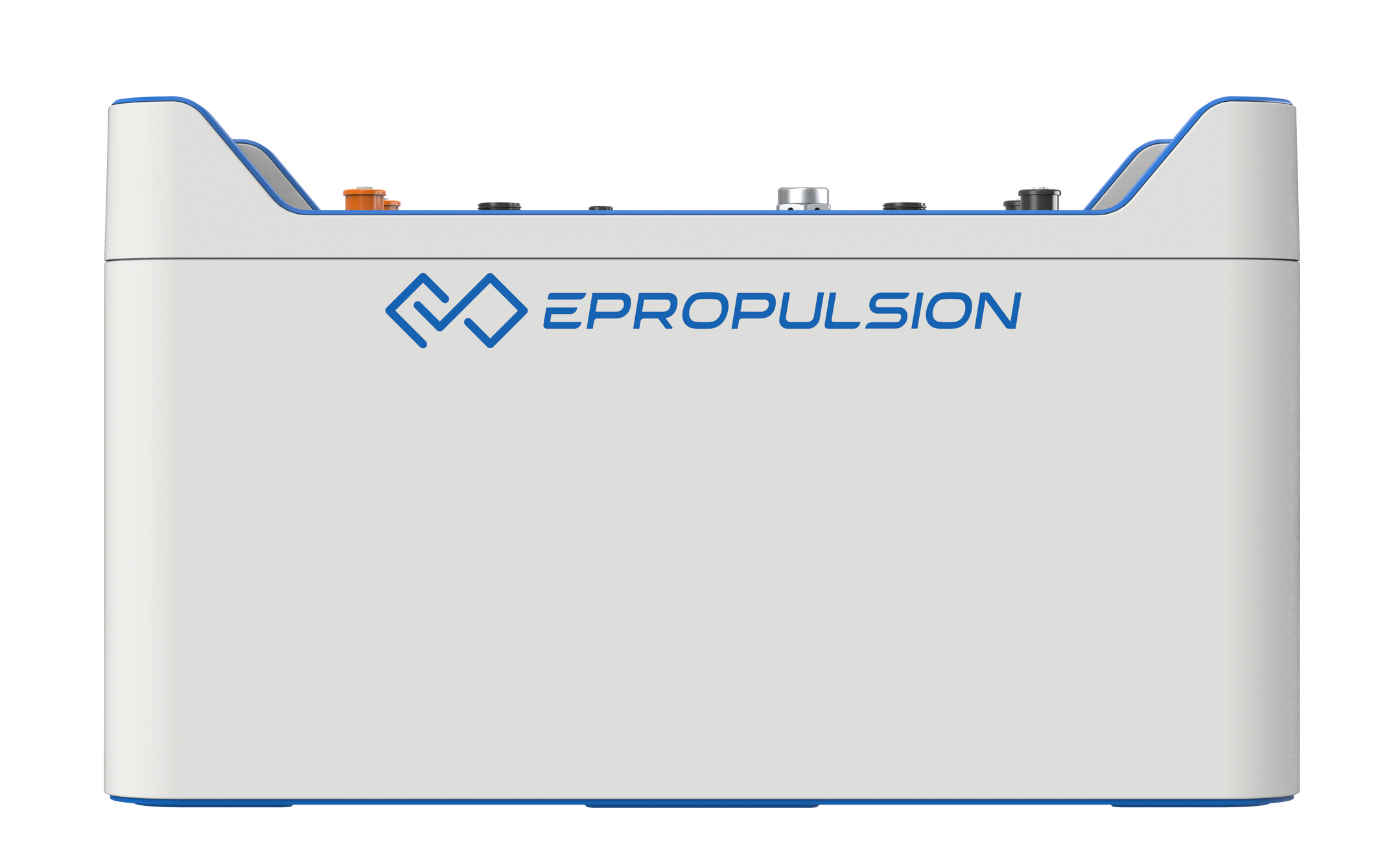

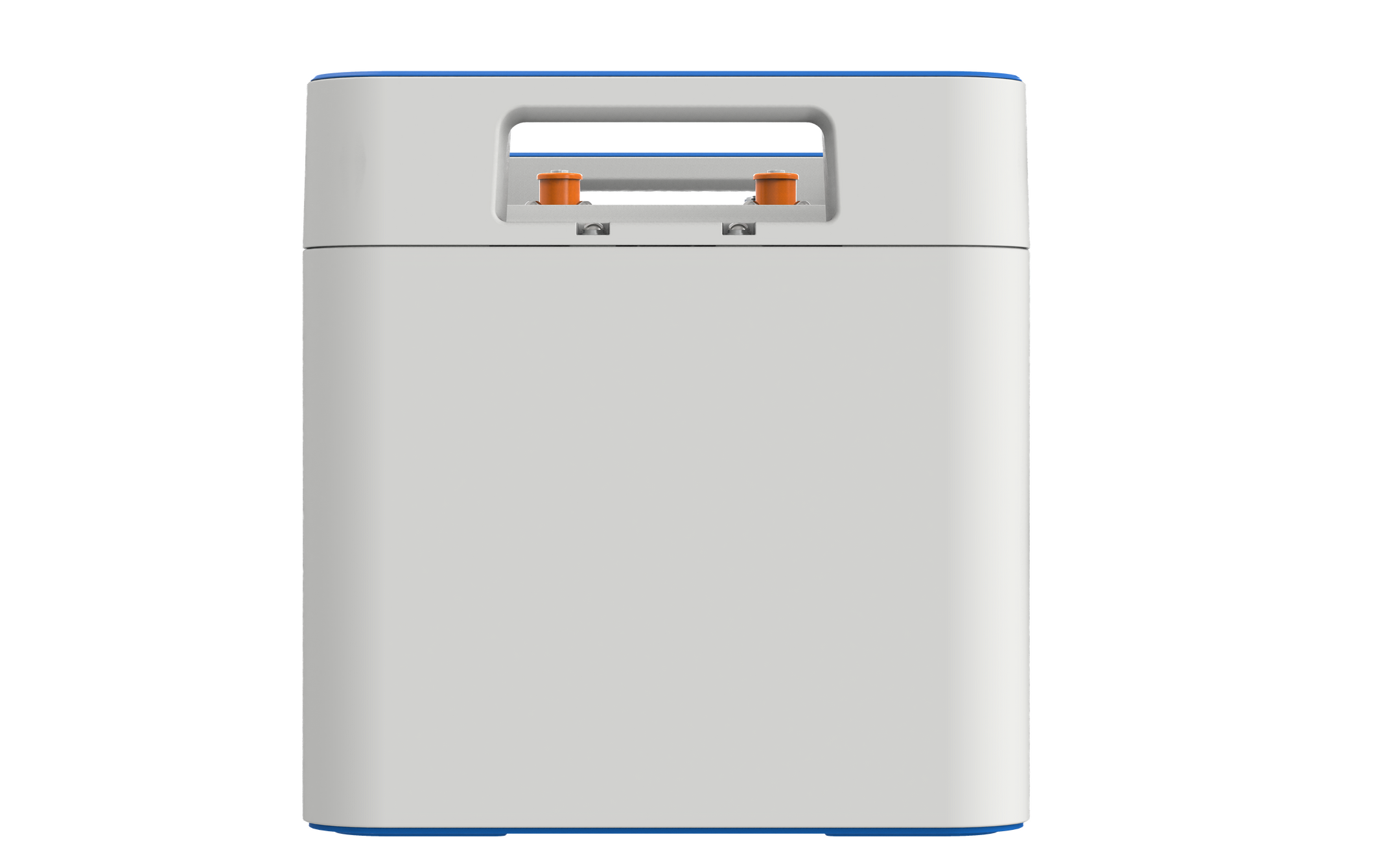

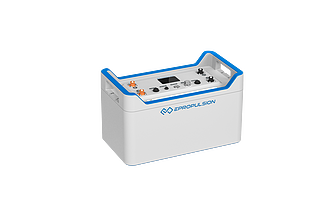

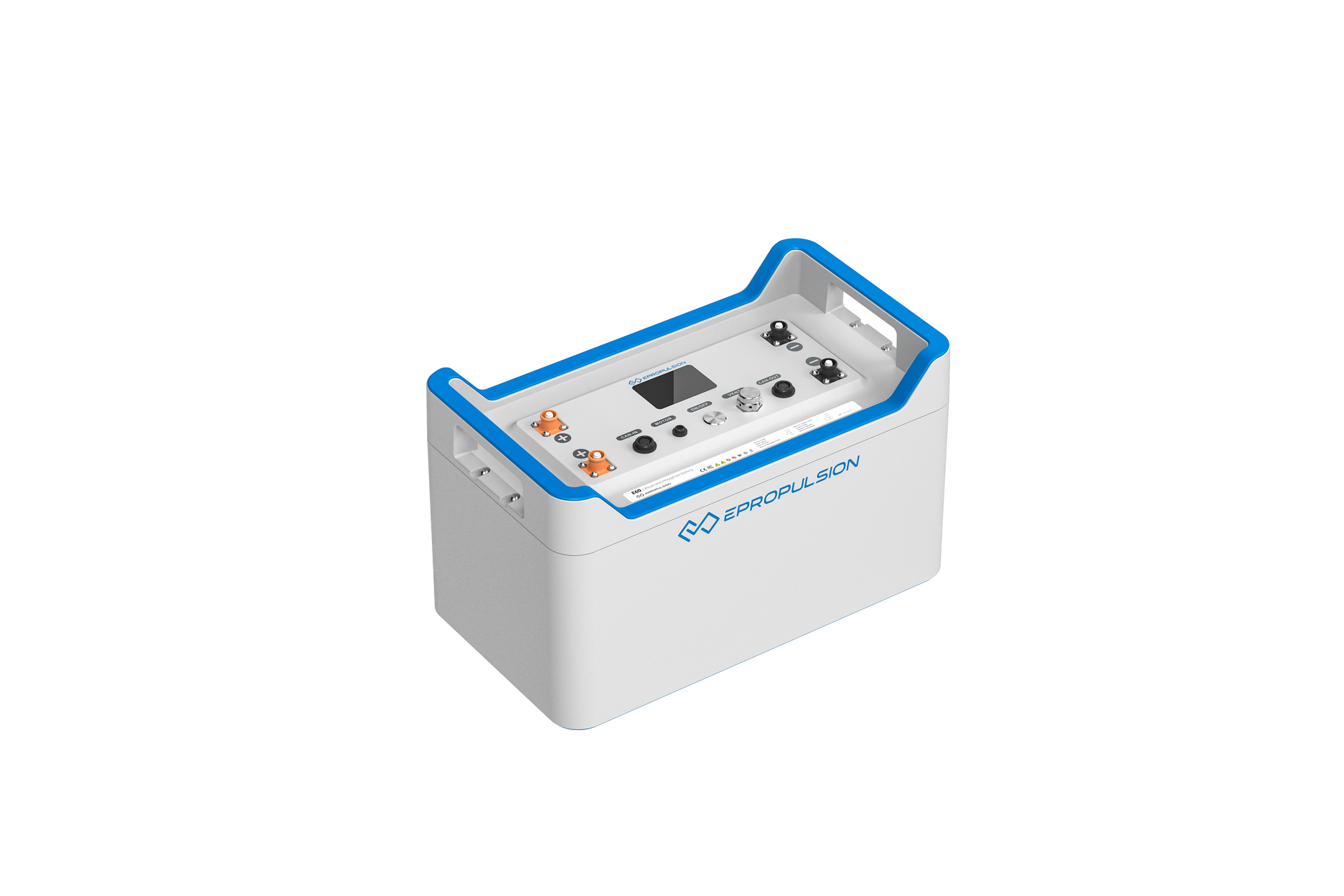

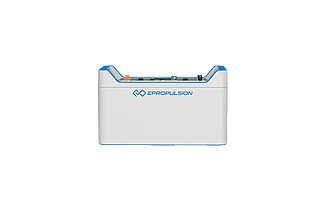

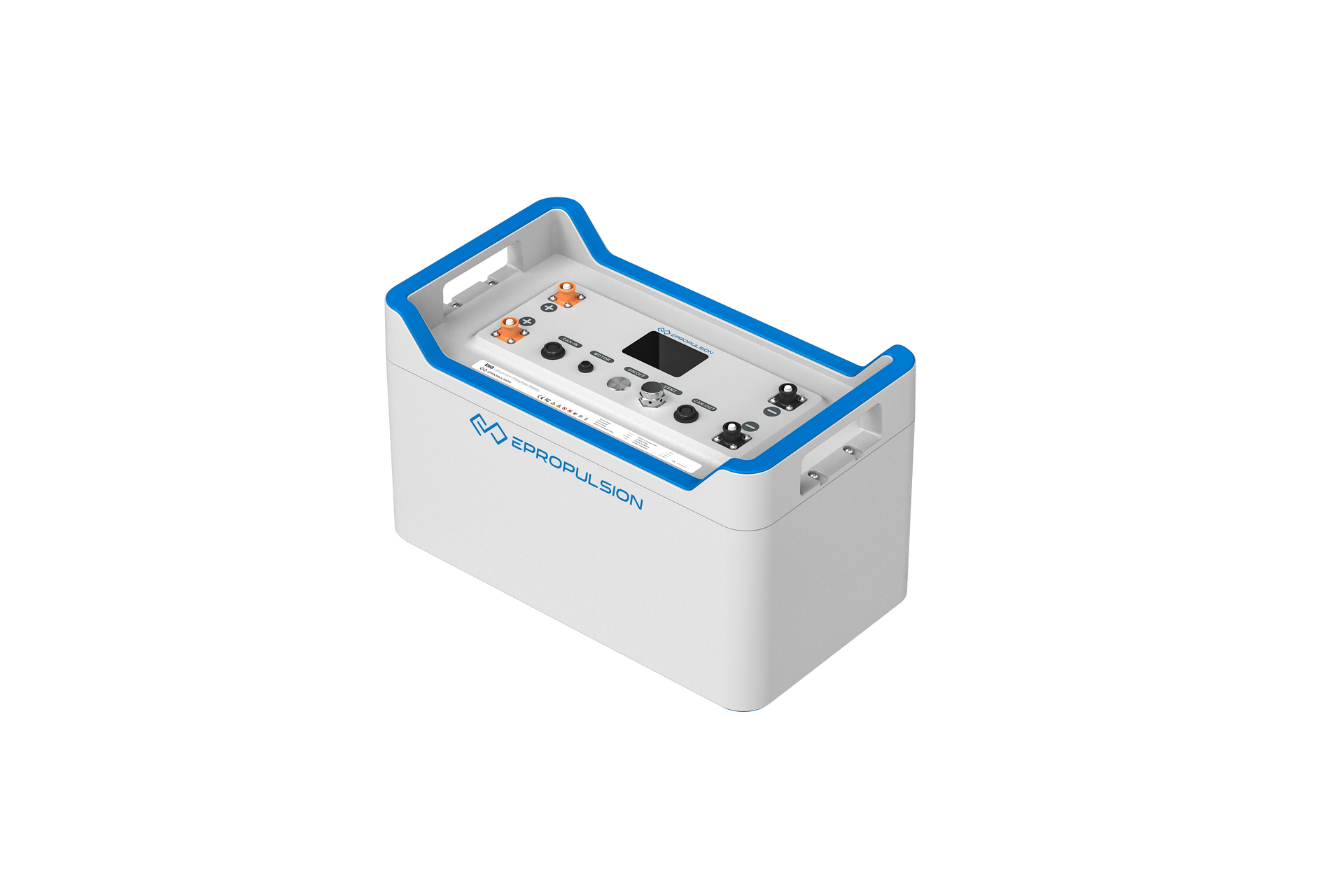

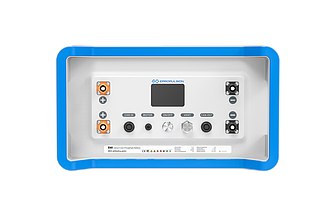

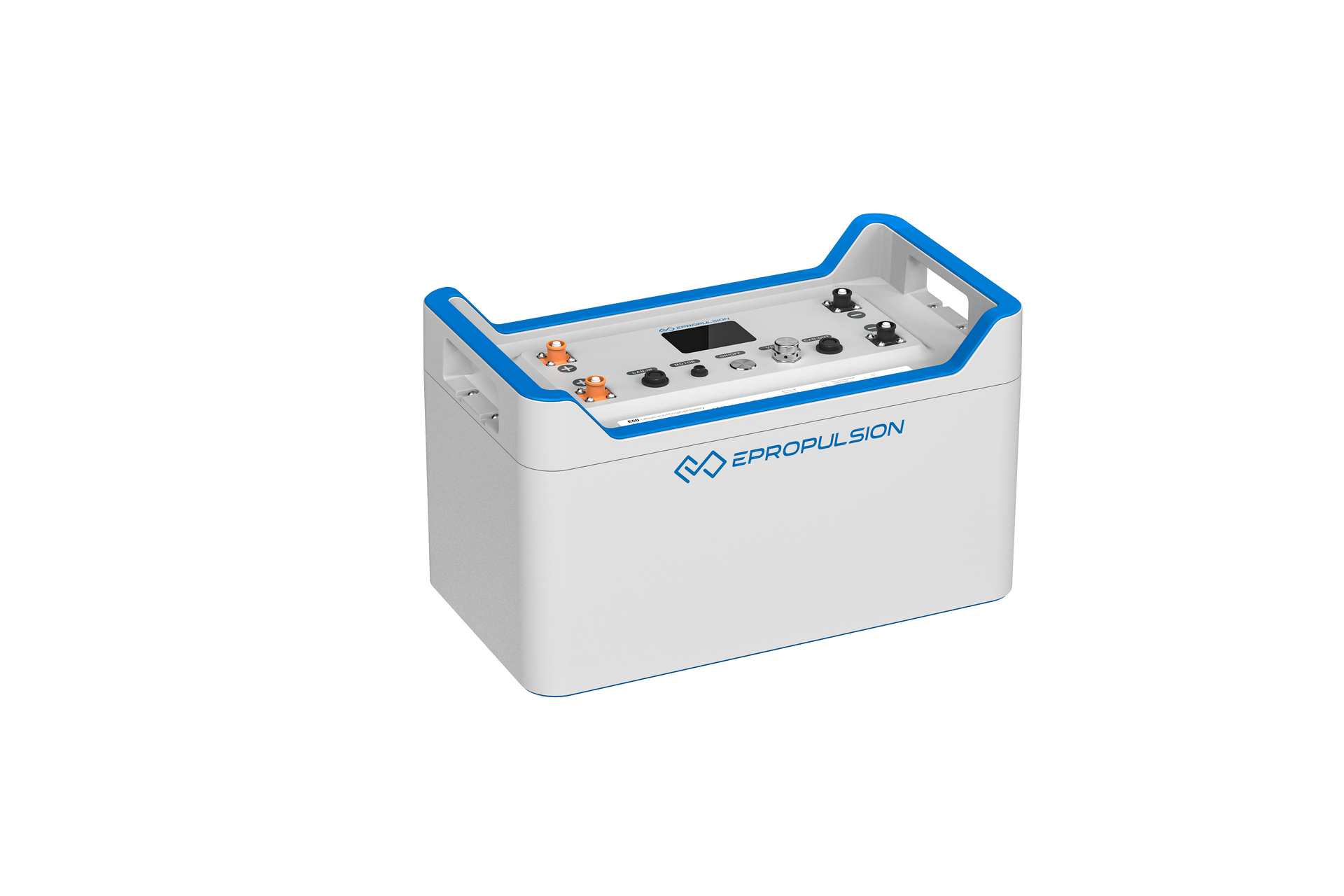

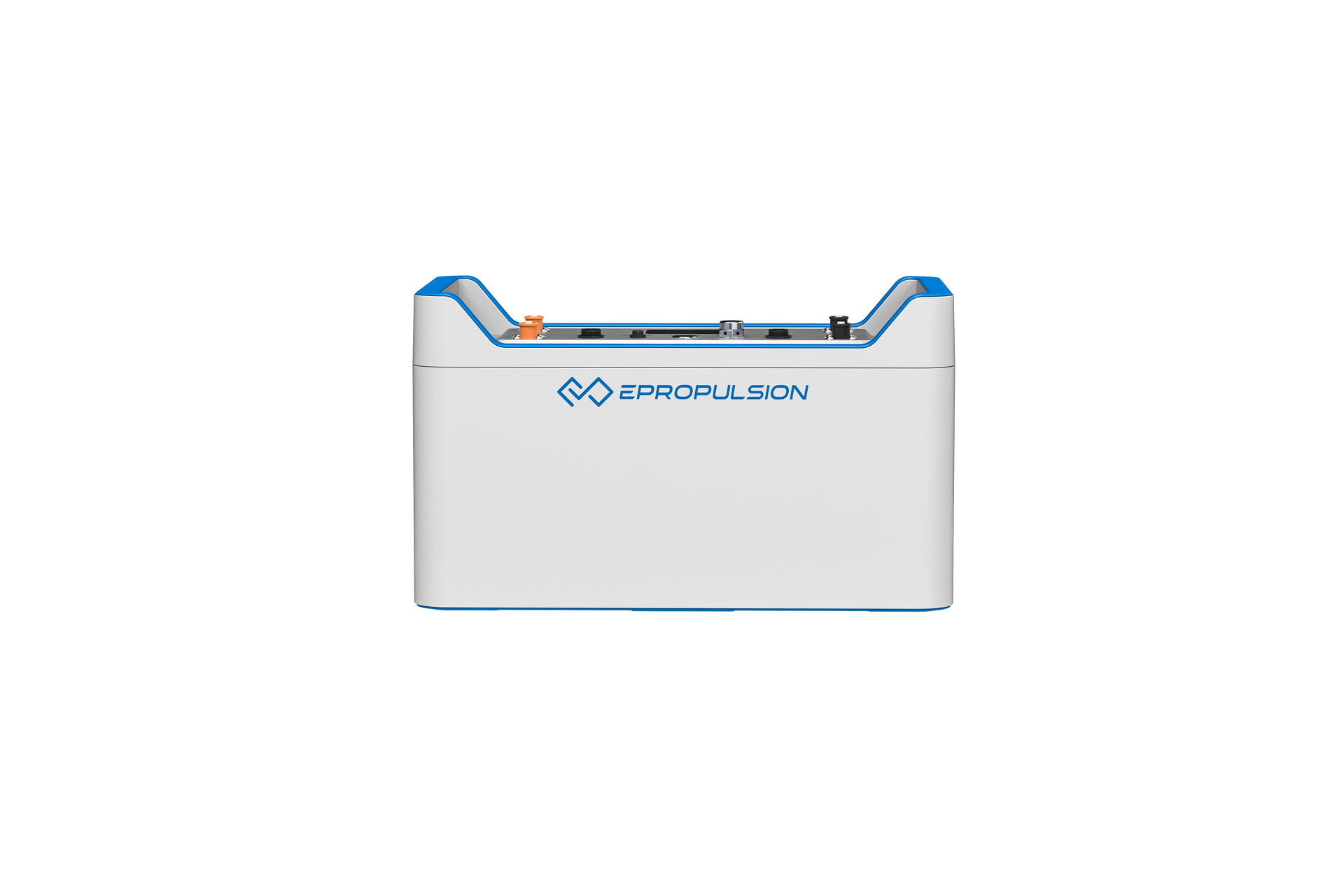

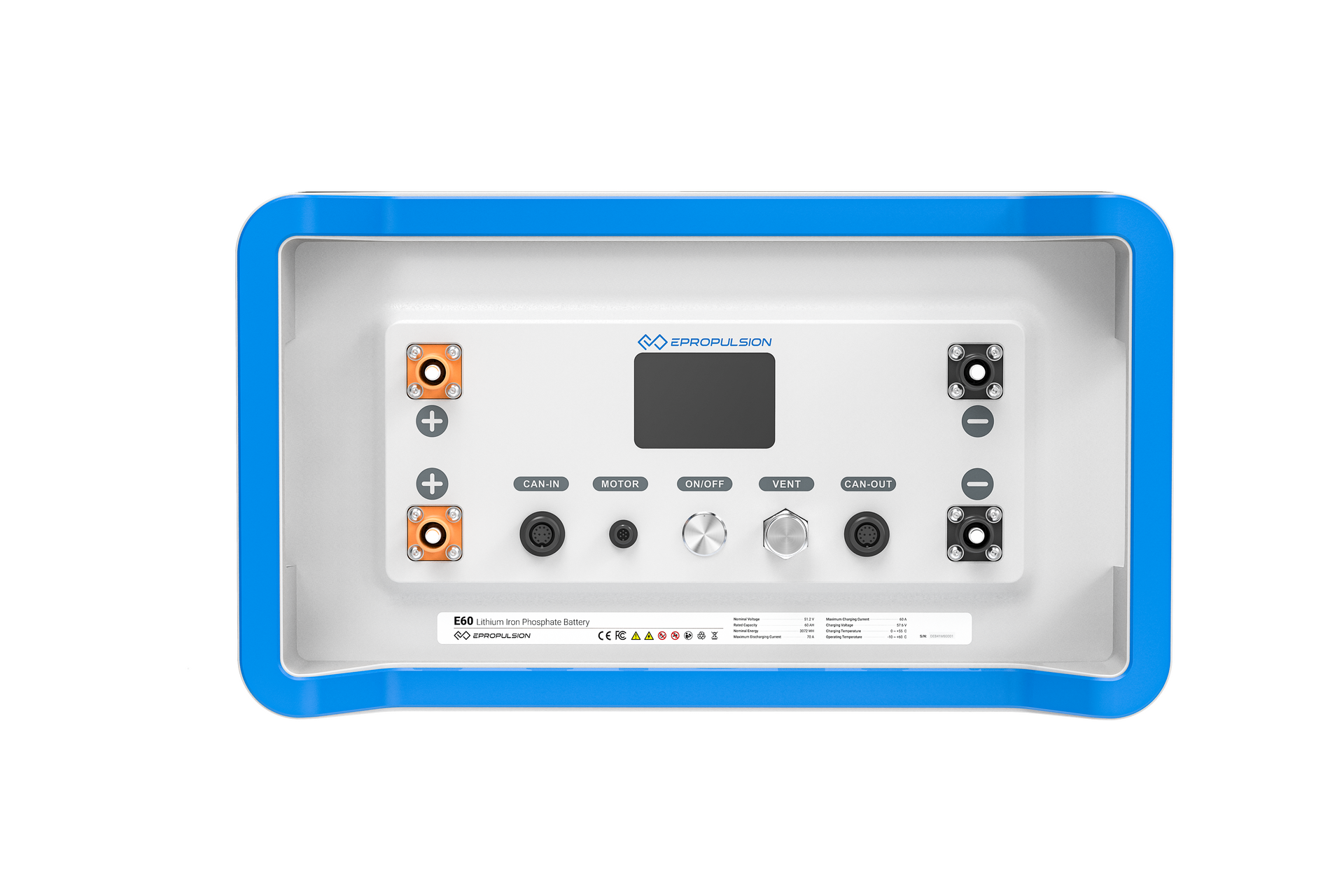

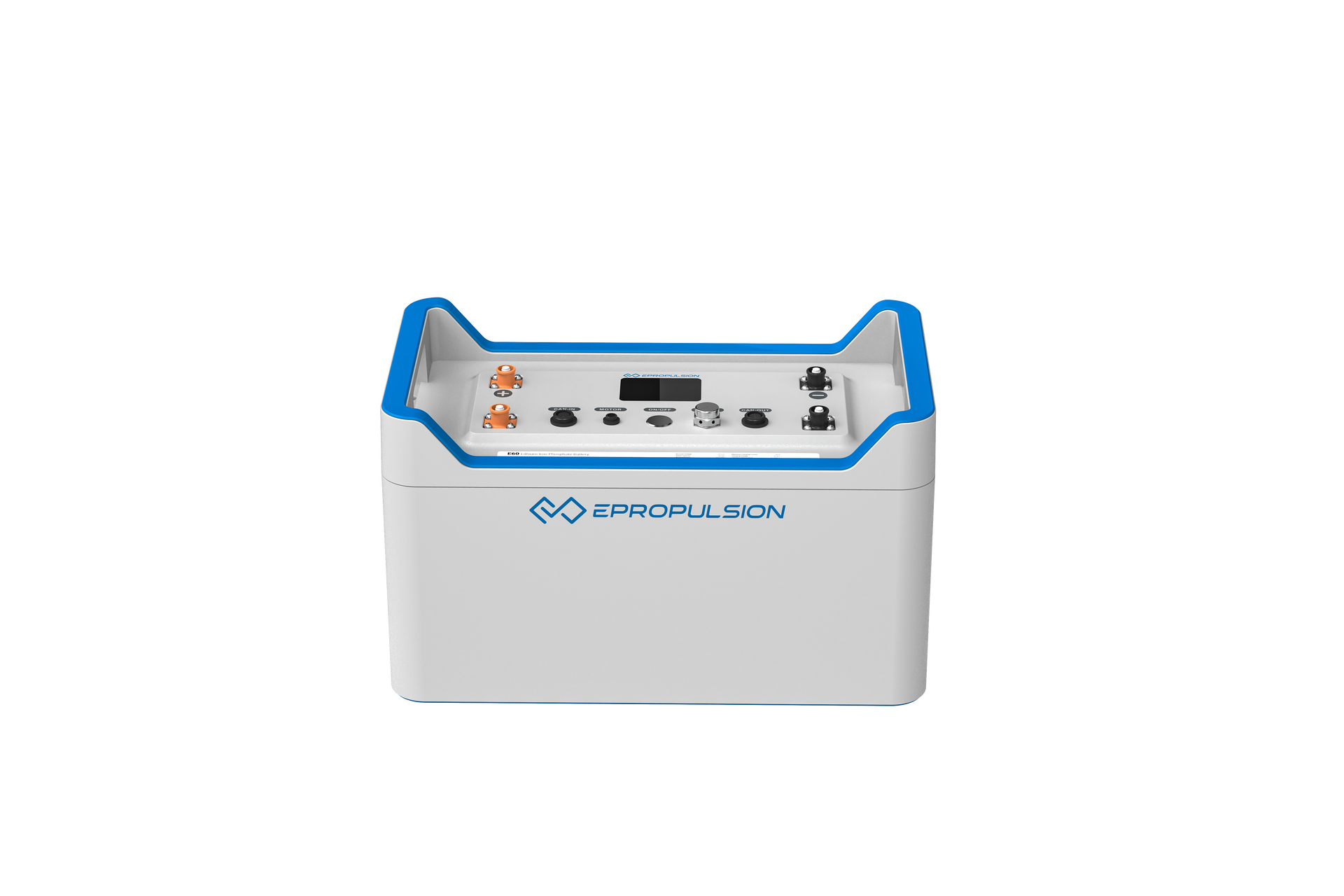

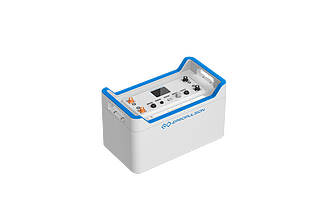

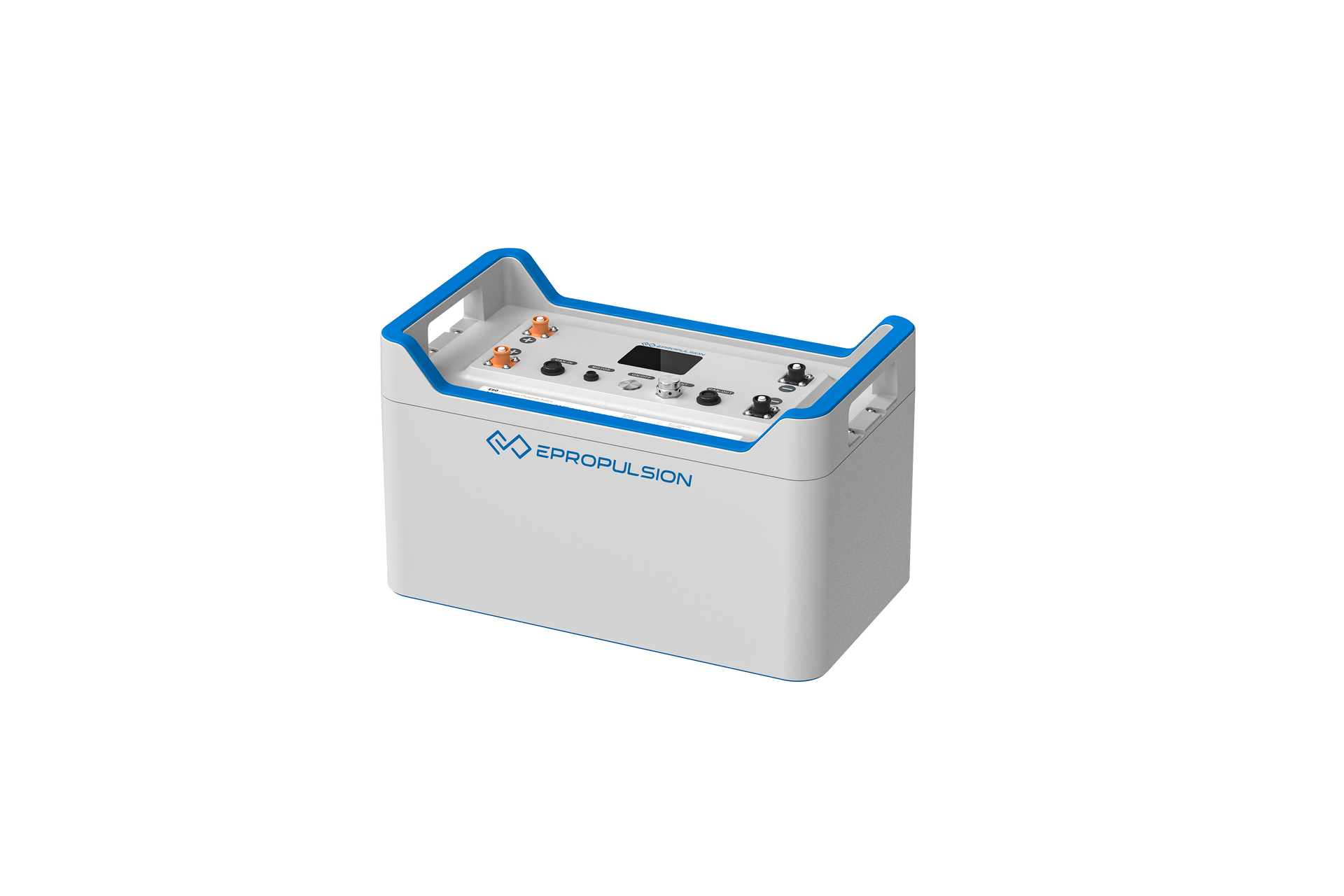

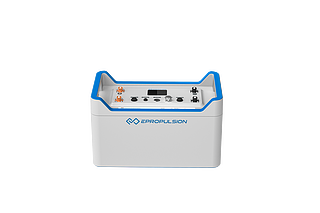

E60 Battery

Part Number: EB-0060-01

Series: Spirit Navy Pod Batteries Spirit 2

Type: battery

Description

3072 Wh / 48V LiFePO4 Battery – 3,000-cycle lifespan with high energy density in a compact size. Equipped with an upgraded intelligent BMS that delivers significantly lower standby power consumption, preserving battery charge during extended idle periods.

Important Compatibility Note: This new-generation battery is not compatible with the previous model (Part Number: EB-0060-00). Do not connect or use in parallel with EB-0060-00 batteries.

Technical Specifications

Physical Dimensions

Length: 512.00 mm

Width: 290.00 mm

Height: 300.00 mm

Net Weight: 33.00 kg

Battery Specifications

Voltage: 48.00 V

Watt Hours: 3072.00 Wh

Amp Hours: 60.00 Ah

Codes & Identifiers

EAN Code: 6971312633894

UPC Code: 770264108100

UN Code: UN3480

HS Code (EU): 8507600090

HS Code (US): 8507600020

Compatible Products

Downloads

E Series E60 E163 User Manual EN/DE V1.3

User Manual

E Series E60 E163 User Manual EN/DE V1.3
Download
E60 Technical Drawing

Technical Drawing

E60 Technical Drawing
Download
