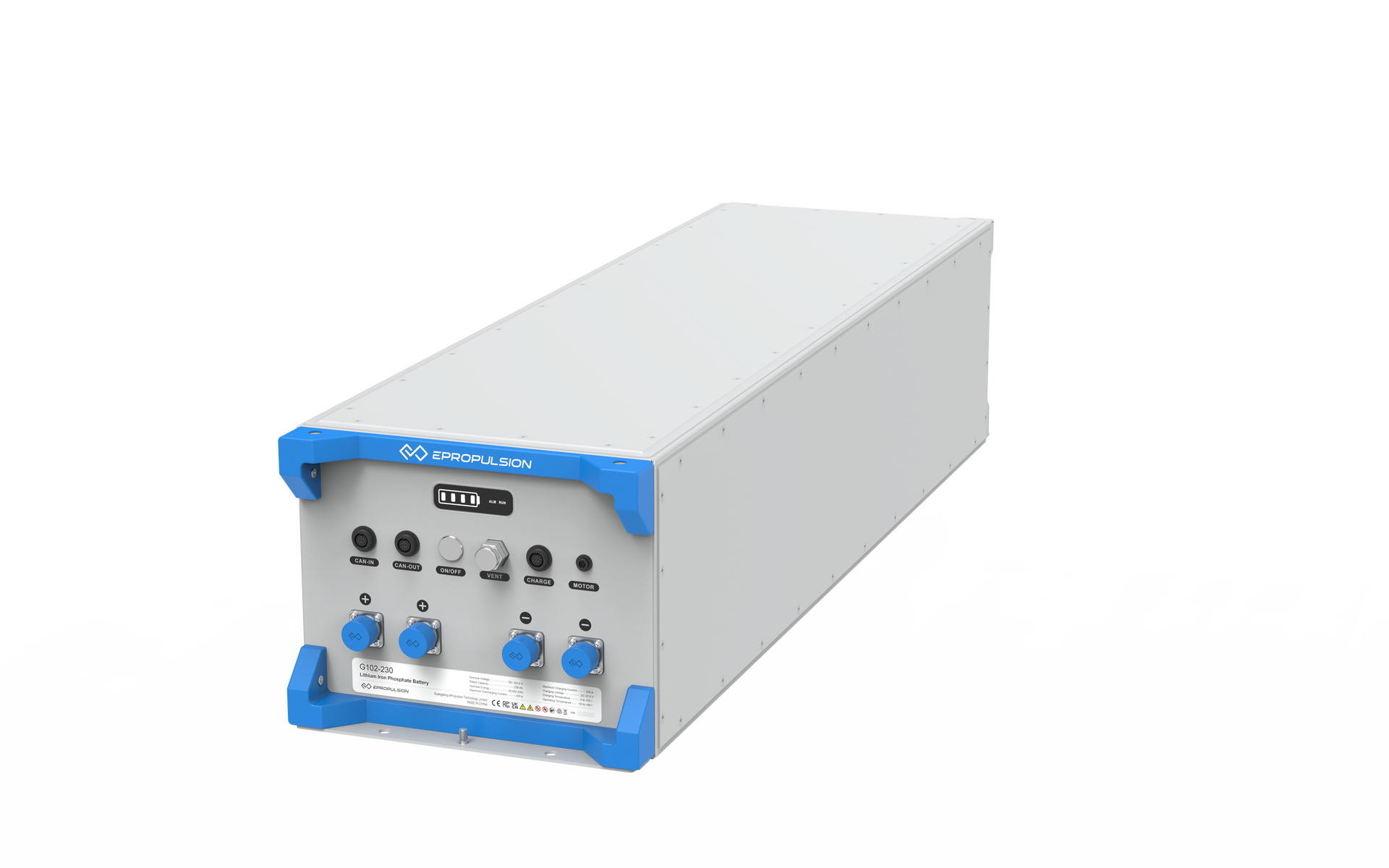

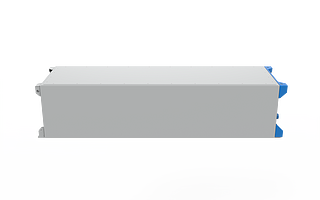

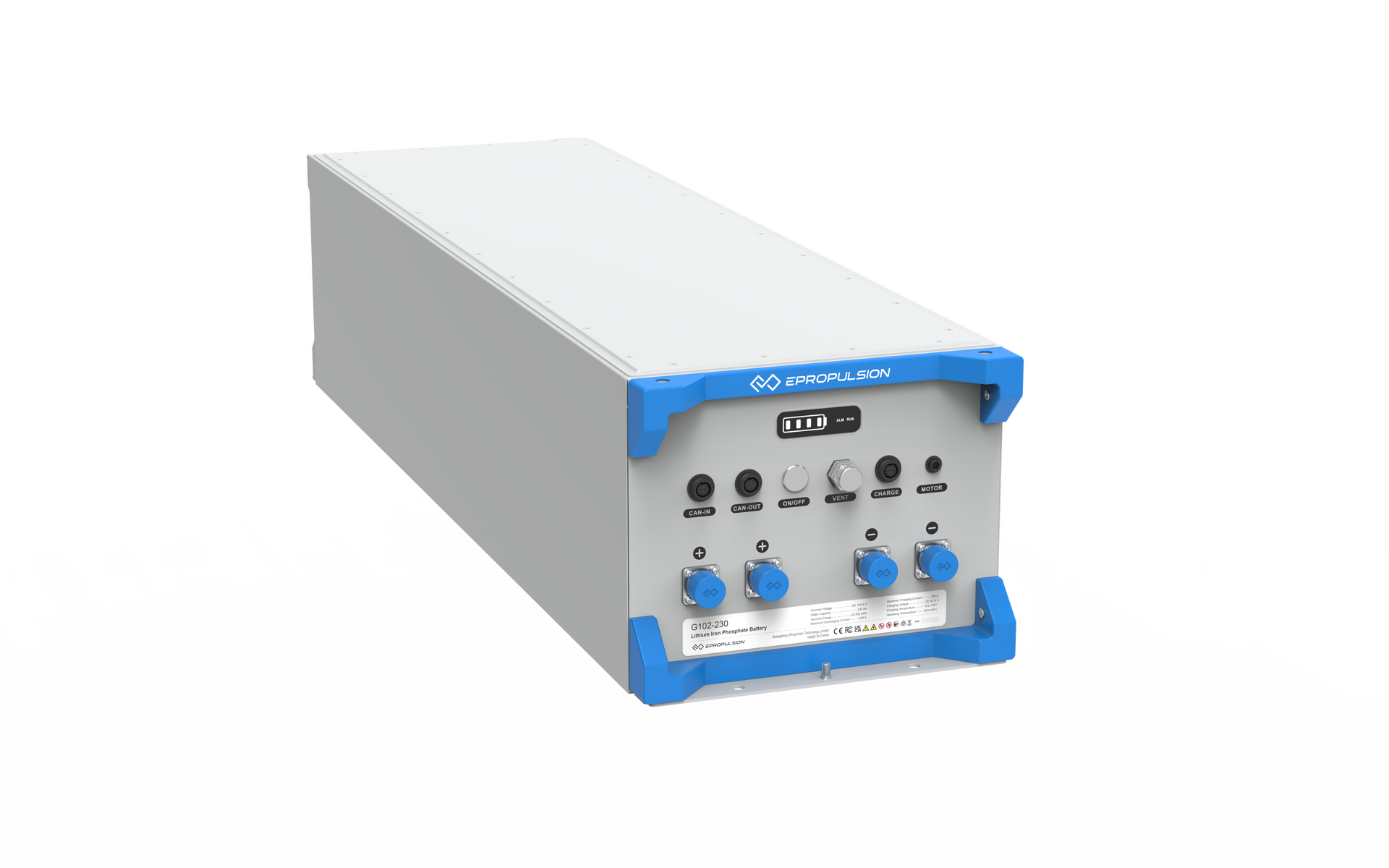

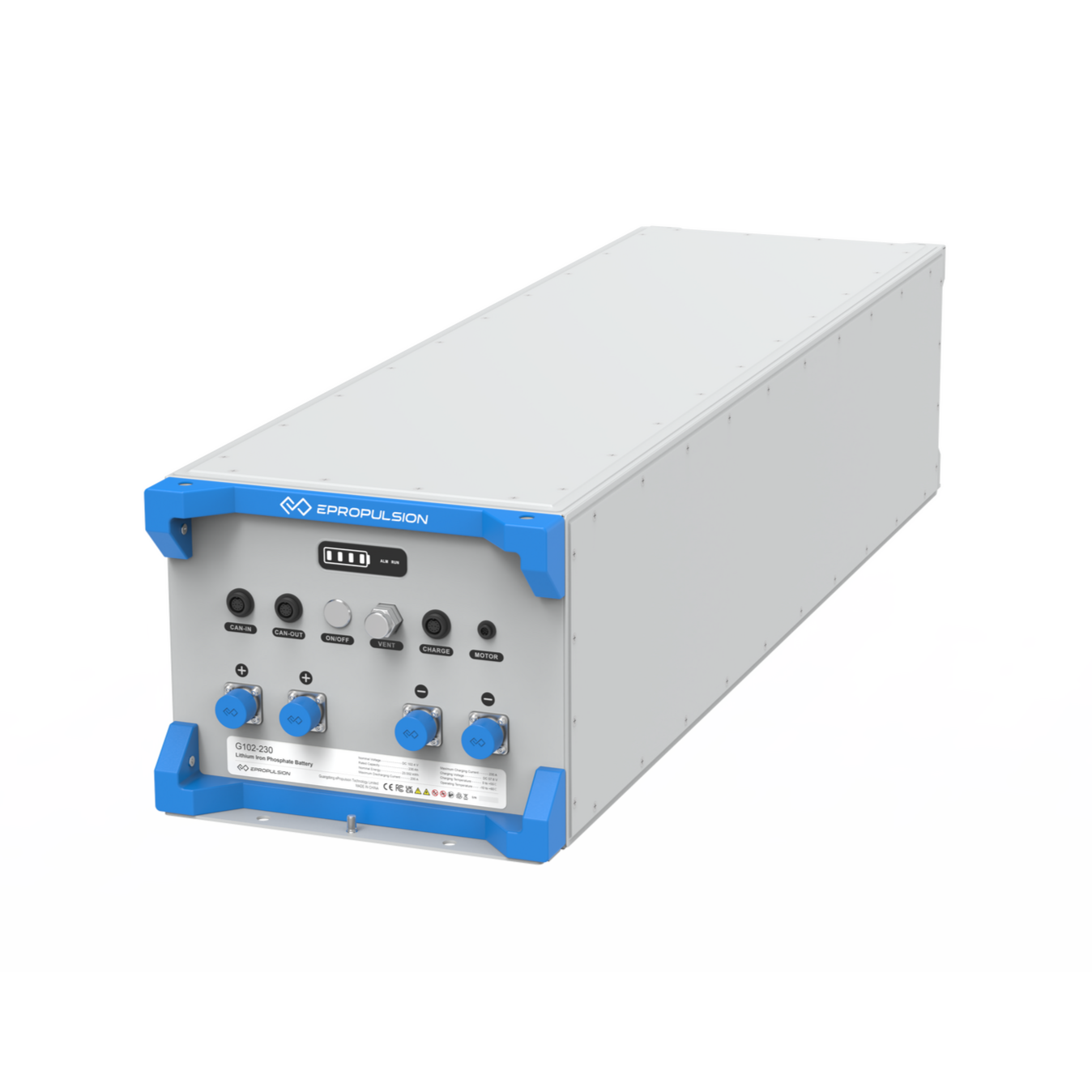

G102-230 Battery

Part Number: GB-0230-00

Series: I-Series X-Series Batteries P-Series

Type: battery

View the main G-Series Batteries product page

Description

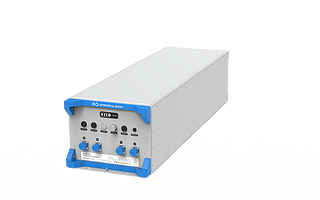

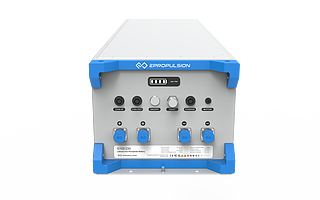

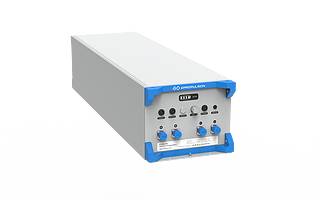

G-Series - Lithium Iron Phosphate Battery (LiFePO4)
23552 Wh / 96V LiFePO4 battery with 3500 cycles of battery life New connector to ensure 360° rotation is possible.

High-performance and durable lithium battery for electric boating

  • 1C Rate Fast Charging
  • Certification Waterproof to IP67
  • CE, UKCA, FCC, and UN38.3 Certification

Features

  • Fully Compatible with ePropulsion Motors
    Power the 96V 10kW to 40kW ePropulsion motors including the X/I/P Series motors.*
  • High Energy Density
    3 times higher energy density and 70% less weight than lead acid batteries.**
  • Maximum Safety
    The built-in intelligent battery management system (BMS) is applied to provide maximum safety for the users.
  • Easy to Install

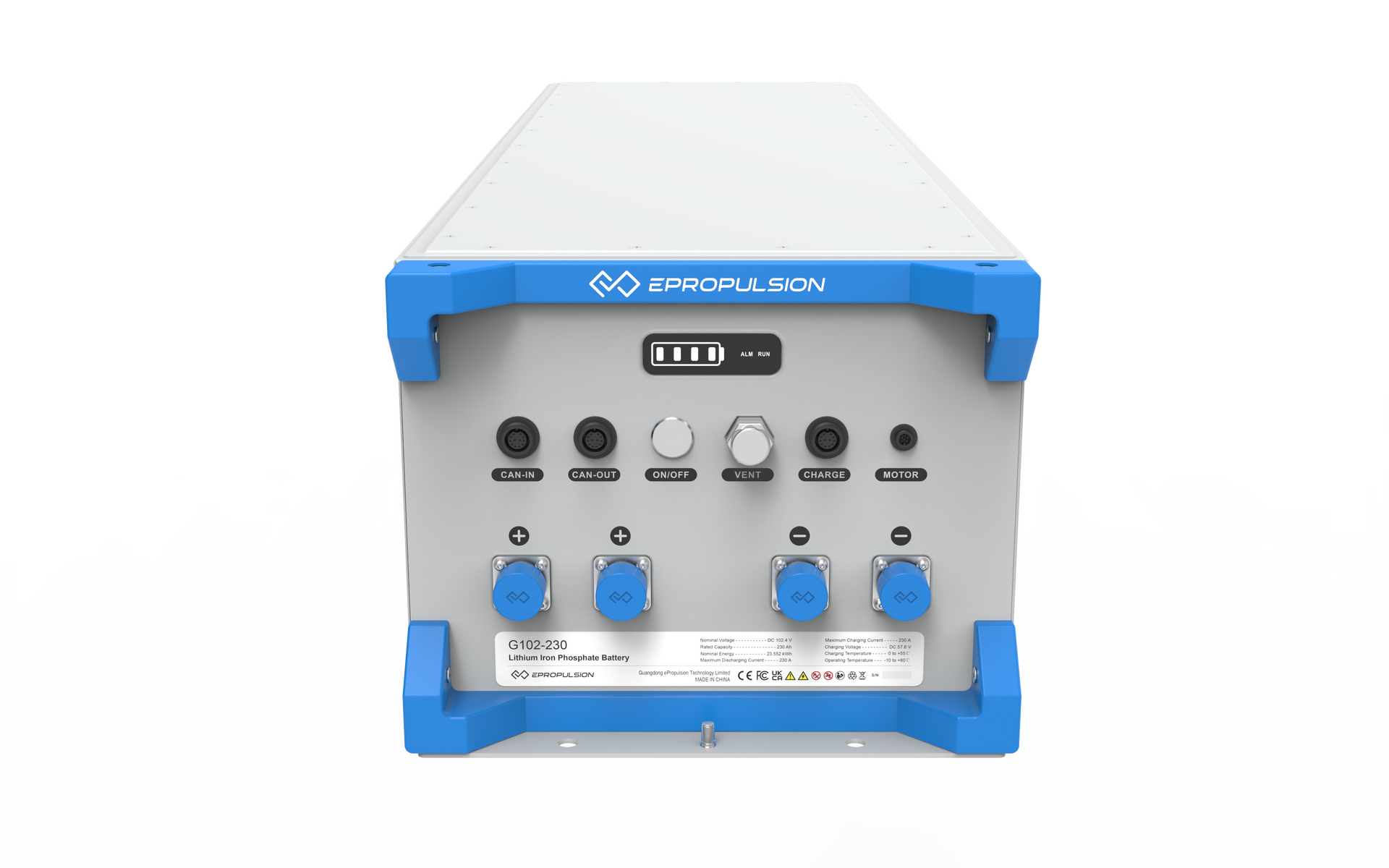

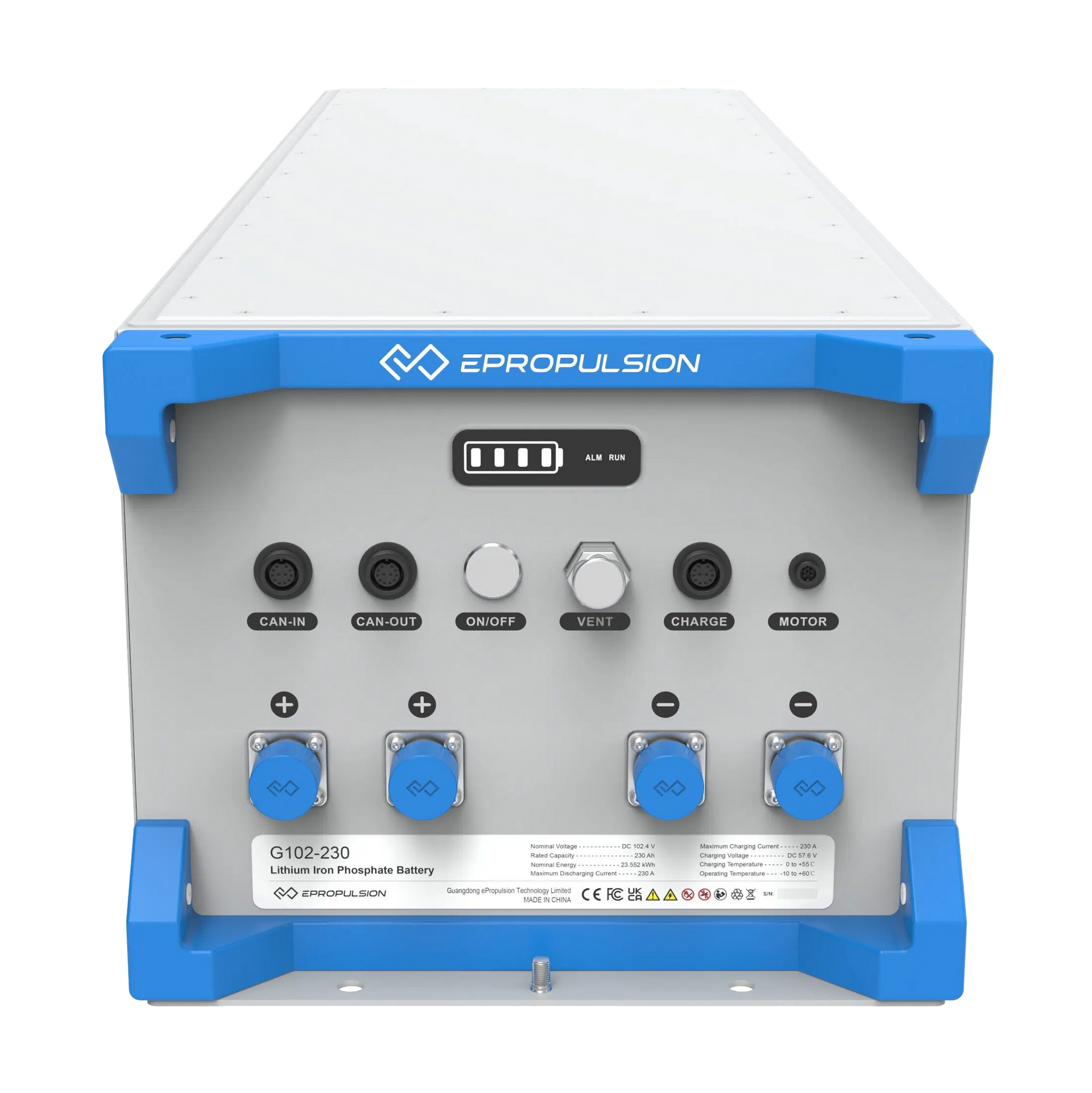

    Connectors can be installed with only ONE hand, and the battery saves wiring harness connection compared to series-parallel connection of battery.
  • Space Saving
    The slim battery design optimizes under-boat or seat storage, ideal for space-saving on RIBs and pontoon boats.
  • Long Life Cycle
    The G102-230 (3,500 cycles at 80% DOD) and G102-100 (3,000 cycles at 80% DOD) both last longer than lead-acid batteries.**
  • High Reliability
    All-metal housing is more reliable, weather resistant, impact resistant and drop proof.

* G-Series batteries can be connected in parallel to power different ePropulsion motors.
** Under equal capacity.

Technical Specifications

Physical Dimensions

Length: 1287.00 mm

Width: 366.00 mm

Height: 295.00 mm

Net Weight: 180.00 kg

Battery Specifications

Voltage: 96.00 V

Watt Hours: 23552.00 Wh

Amp Hours: 230.00 Ah

Codes & Identifiers

EAN Code: 6971312633603

UPC Code: 770264107899

UN Code: UN3480

HS Code (EU): 8507600090

HS Code (US): 8507600020

Compatible Products

Downloads

G Series Battery User Manual

User Manual

G Series Battery User Manual
Download
2D Technical Drawing - G102-230

Technical Drawing

2D Technical Drawing - G102-230
Download
