Hydrogeneration
Direct-Drive

Electric Pod Drive

Space-saving and efficient. Popular with sailboats and small watercrafts

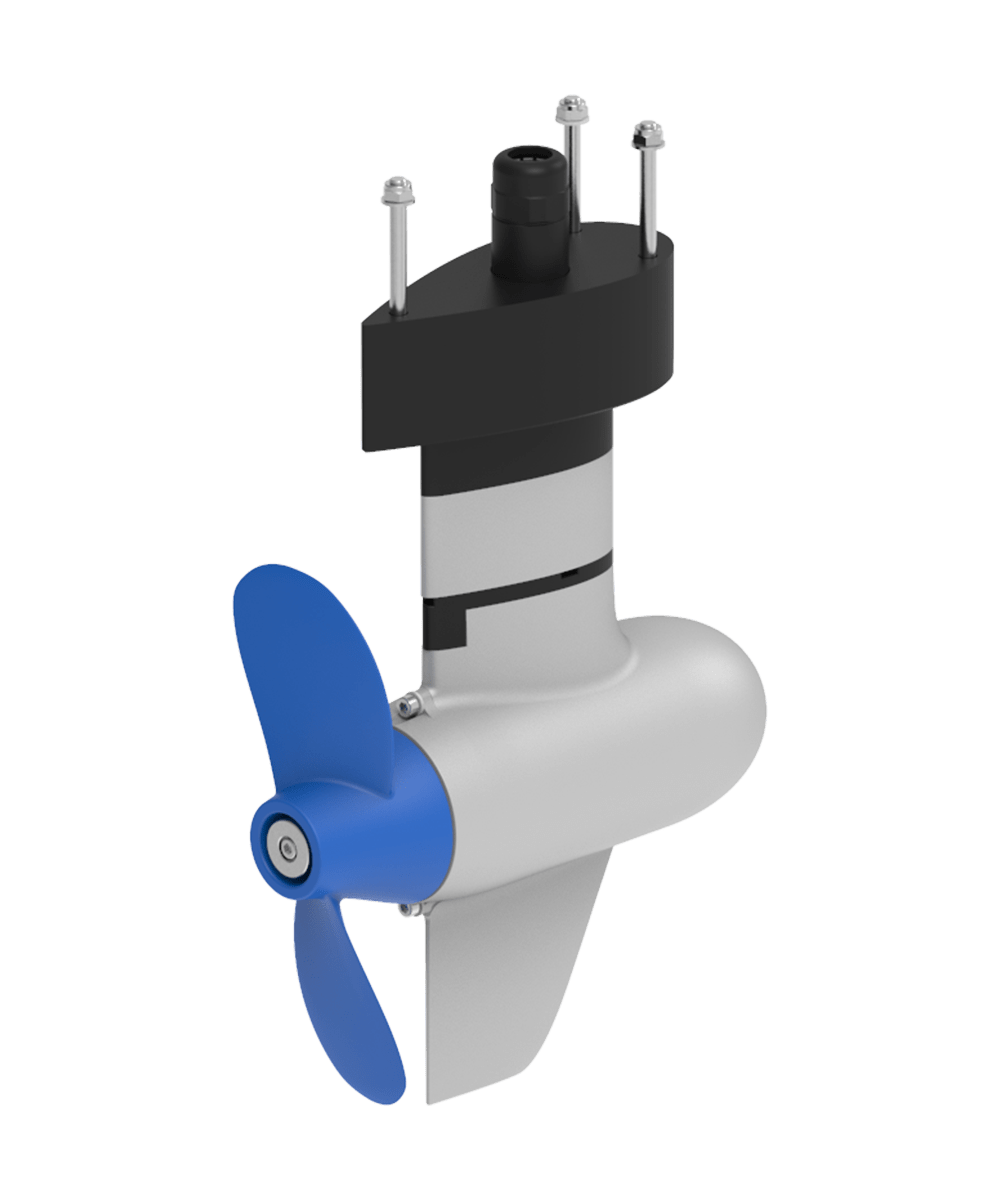

Pod Drive 1.0 Evo

Pod Drive 1.0 Evo

1kW / 3HP

Pod Drive 3.0 Evo

Pod Drive 3.0 Evo

3kW / 6HP

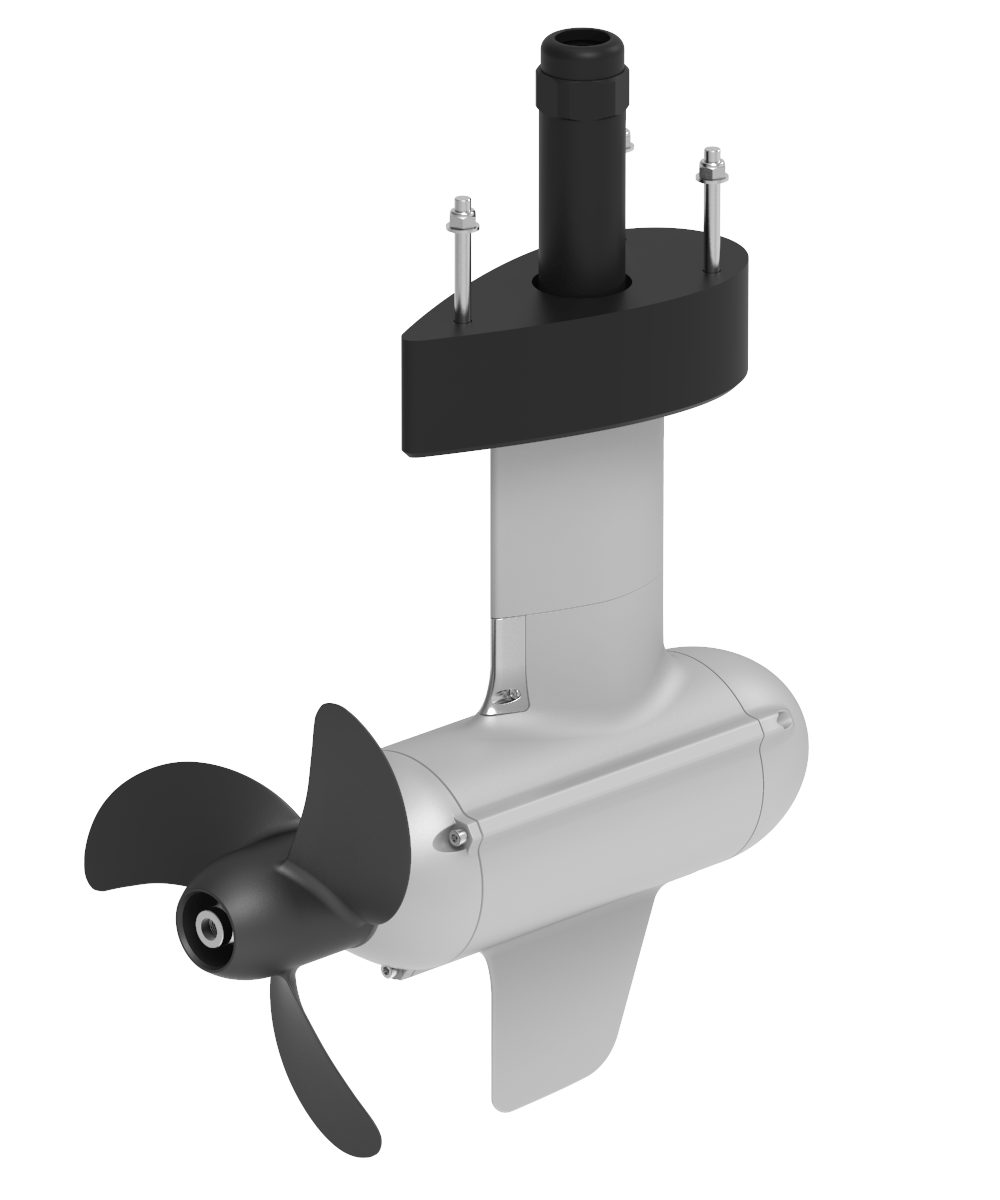

Pod Drive 6.0 Evo

Pod Drive 6.0 Evo

6kW / 9.9HP

box icon
Space-Saving
house icon
Easy to Install
sound icon
Quiet
gear icon
Maintenance-Free

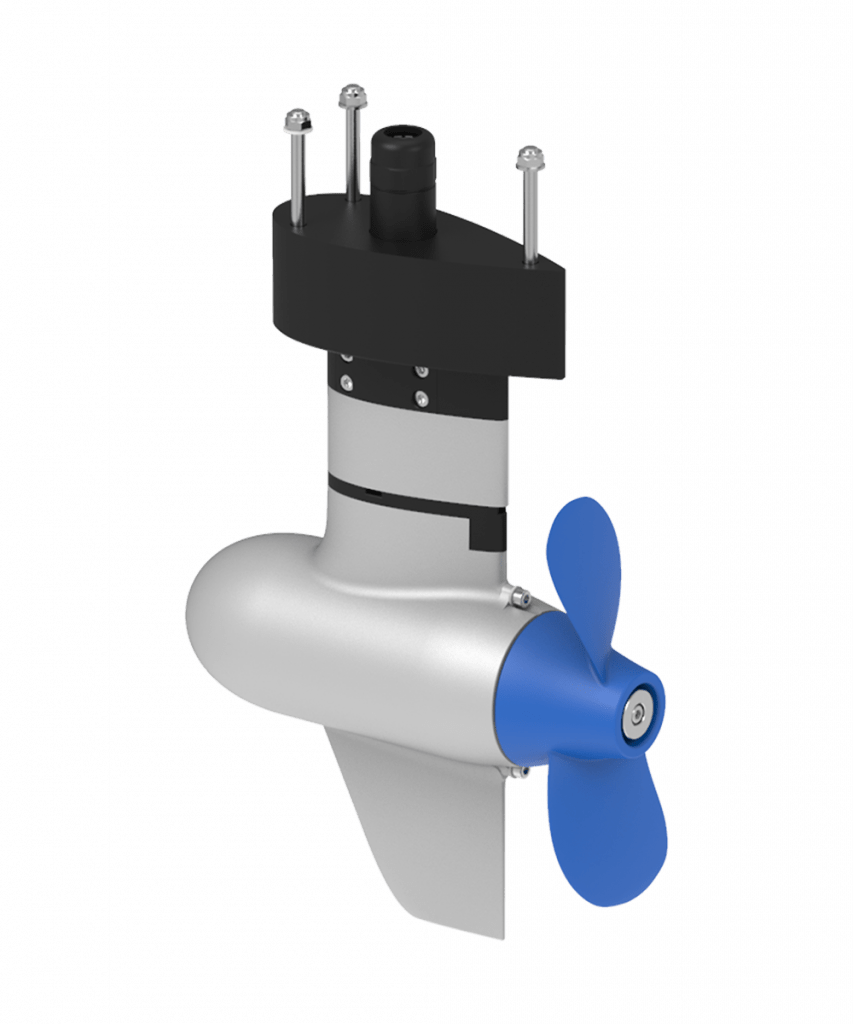

Introducing Pod Drives

ePropulsion pod drives are direc-drive and maintenance-free electric motors for sailboats and small crafts. They’re space-saving and maximize your cabin space.You hear no noise onboard. Under 10HP, it’s a market gap of diesel saildrive, and ePropulsion pod drives can satisfy the demand and offer a new option other than outboard.

Hydrogeneration Empowers Sailboats

ePropulsion pod drive motors allow you to generate electricity from wind and water with hydrogeneration function.
Pod Drive

Build a Pod Drive System

It’s easy and flexible to build a Pod Drive system that satisfies different needs.
Step 1

Choose Your Motor

Pod Drive 1.0 Evo
Pod Drive 1.0
Pod Drive 3.0 Evo
Pod Drive 3.0
Pod Drive 6.0 Evo
Pod Drive 6.0
Step 2

Choose Your Control

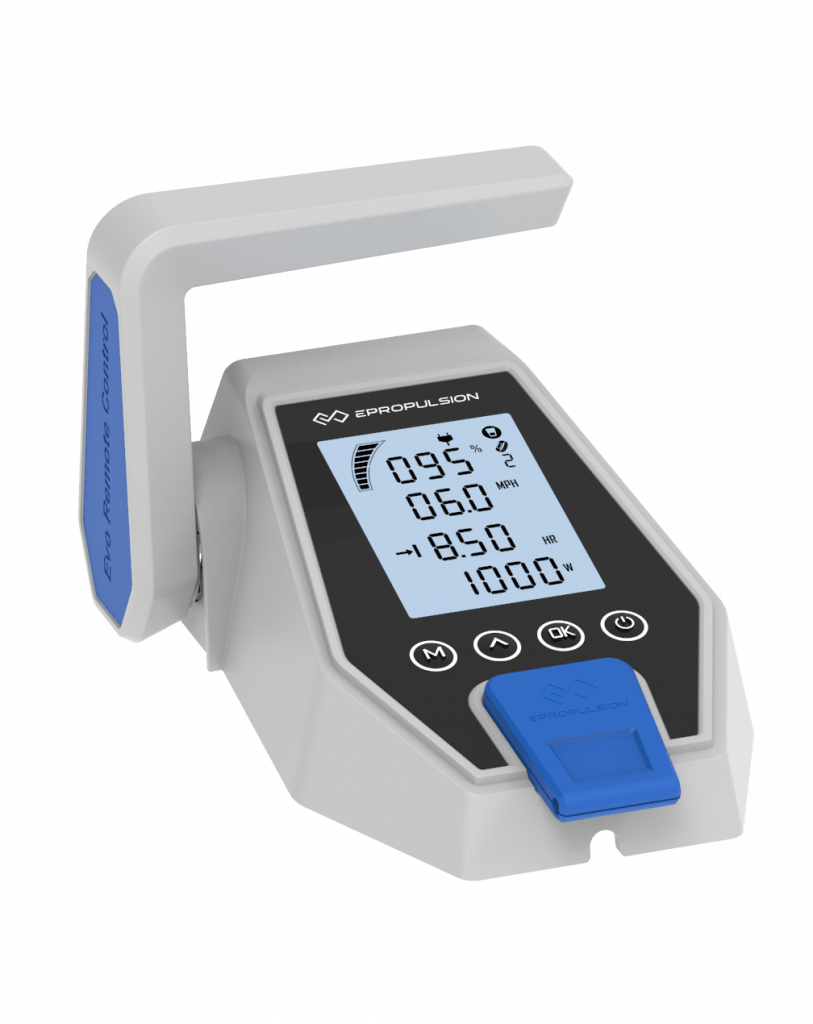

Evo Remote Control
Evo Top Mount Control
Digital Display
Evo Side Mount Control
digital display and remote
Dual Control
Step 3

Choose Your Battery

E40 E-Series Battery
E40 / 2kWh
E80 E-Series Battery
E80 / 4kWh
E175 E-Series Battery
E175 / 9kWh
* The standard charger of the E-Series battery is purchased separately. It’s a unified charger that works with E40, E80 and E175. For fast charging, you could use two or more chargers in parallel connection.

E-Series Lithium Battery

We recommend you choosing ePropulsion original battery. 48V E-Series lithium iron phosphate battery is the perfect match for your Pod Drive.

E-Series Lithium Battery
E40 2048 Wh
E80 4096 Wh
E175 8960 Wh
Dollar Icon
Competitive pricing

Unit price is as low as $0.5 per watt-hour.

Squares Icon
High energy density
70% less weight and space than standard lead-acid batteries.
Thunder Icon
Longer life cycles
3000 cycles at 80% DOD.
Logo Icon
Made for ePropulsion Motors
Data synced with ePropulsion motors to apply smart operation strategy.

Incredible Range

Pod Drive Series electric boat motors are impressively efficient to go further.
Pod Drive 1.0 Evo
Pod Drive 1.0
+
E40 48V E-Series Lithium Battery
E40 / 2 kWh
Half Speed Runtime / 8 Hrs
Full Speed Runtime / 2 Hrs
Pod Drive 3.0 Evo
Pod Drive 3.0
+
E80 48V E-Series Lithium Battery
E80 / 4 kWh
Half Speed Runtime / 5 Hrs 20 Min
Full Speed Runtime / 1 Hrs 20 Min
Pod Drive 6.0 Evo
Pod Drive 6.0
+
E175 48V E-Series Lithium Battery
E175 / 9 kWh
Half Speed Runtime / 6 Hrs
Full Speed Runtime / 1 Hrs 30 Min

Four Evo Controls

With four controllers available, you can always find a controller that well satisfies your needs.

Evo Top Mount Control
Evo Top Mount Control
Evo Side Mount Control
Evo Side Mount Control

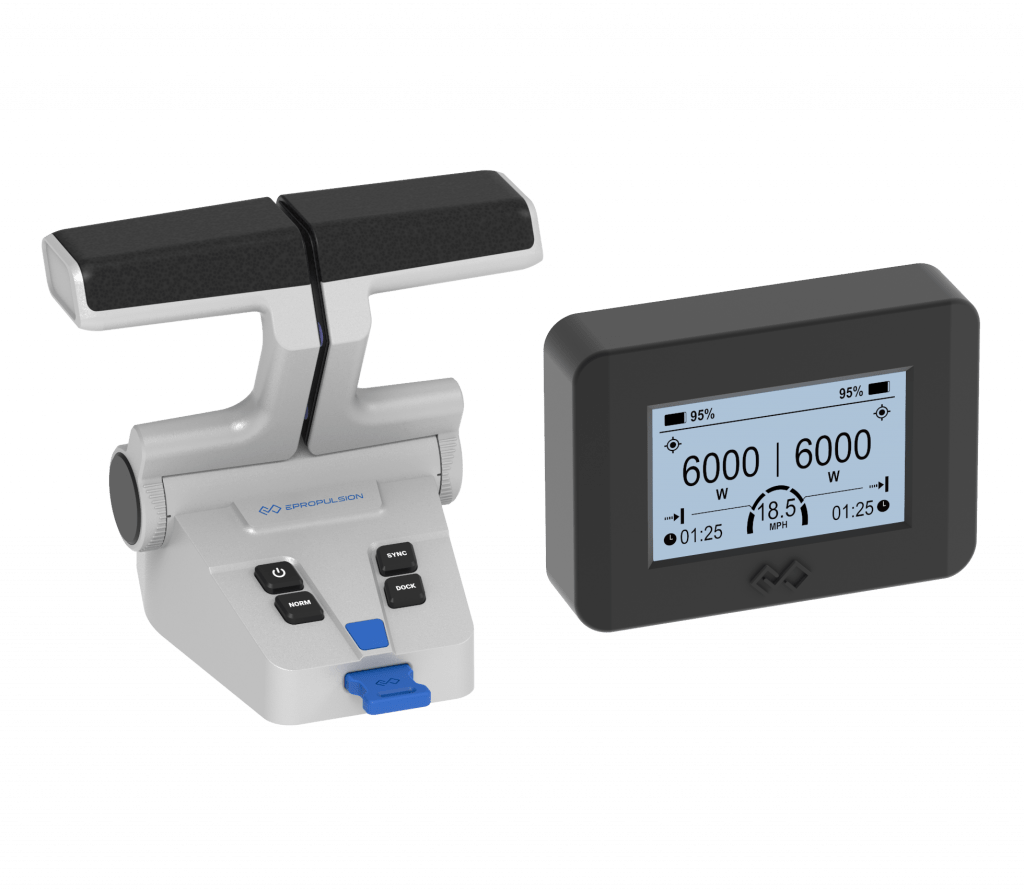

Evo Dual Control
Evo Dual Control

Digital Display

Offers real-time monitoring of the power, remaining runtime, battery level, voltage, etc.

Electric Start

Press the button and you’re ready to go. Saves your trouble pulling the cord to start.

Magnetic Kill Switch

Works as an emergency stop key for ePropulsion electric outboards. Keeps you safe on the boat.

Smooth Throttle Changing

Designed with excellent throttle response and clear throttle hand feel.

Adjustable Max Power Output

Adjustable full throttle power makes the ePropulsion electric boat motors kids-friendly and suitable for rental boats.

2021 NEW

Safety Wristband

Easy-to-use and additional safety.

  • Man overboard protection

  • Wireless connection

  • Waterproof IP67

  • Max connection up to 8 wristbands per motor

Safety wristband works with Evo Tiller and Evo top mount control only, not compatible with Evo side mount control or Evo dual control.

Safety Wristband

Specs

 Pod Drive 1.0 EvoPod Drive 3.0 EvoPod Drive 6.0 Evo
Input Power1 kW3 kW6 kW
Equivalent Power3 HP6 HP9.9 HP
Input Voltage39 V – 60 V39 V – 60 V39 V – 60 V
Recommended BatteryePropulsion E-Series BatteryePropulsion E-Series BatteryePropulsion E-Series Battery
Weight6.2 kg / 13.7 lbs15.3 kg / 33.7 lbs31kg / 68.3lbs
Propeller11″ × 5.8″ 2-blade composite propeller10.2″ × 6.7″ 2-blade composite propeller12.6″ × 8.7″ 3-blade aluminum propeller
HydrogenerationYesYesYes
MotorBrushless DC motorBrushless DC motorBrushless DC motor
Direct DriveYesYesYes
Maintenance-FreeYesYesYes

What's in the Box

Pod Drive 1.0 Evo Motor

Pod Drive 1.0 Evo
Motor

ePropulsion electric pod drive

Communication
Module

Power Switch

Power
Switch

Communication Cable 5m

Communication
Cable 5m

Pot Drive Fixing Guide

Fixing
Guide

Invitation card

Invitation
Card

Warranty card ePropulsion motor

Warranty

Card

Product Quality Certificate

Quality

Certificate

Pod Drive Evo User Manual

User
Manual

Pod Drive 3.0 Evo Motor

Pod Drive 3.0 Evo
Motor

Driver Module

Driver

Module

Main Switch Cable

Main Switch

Cable

Communication Cable 5m

Communication
Cable 5m

Wrench Set

Wrench Set

Invitation card

Invitation
Card

Warranty card ePropulsion motor

Warranty

Card

Product Quality Certificate

Quality

Certificate

Pod Drive Evo User Manual

User
Manual

Fixing Guide for Remote Control

Fixing

Guide

Pod Drive 6.0 Evo Motor

Pod Drive 6.0 Evo
Motor

Driver Module

Driver
Module

Main Switch Cable

Main Switch
Cable

Communication Cable 5m

Communication
Cable 5m

Wrench Set

Wrench Set

Invitation card

Invitation

Card

Warranty card ePropulsion motor

Warranty

Card

Product Quality Certificate

Quality

Certificate

Pod Drive Evo User Manual

User
Manual

Fixing Guide for Remote Control

Fixing
Guide

Accessories

Read More
Kill Switch
Read More
Spirit Propeller
Read More
Safety Wristband

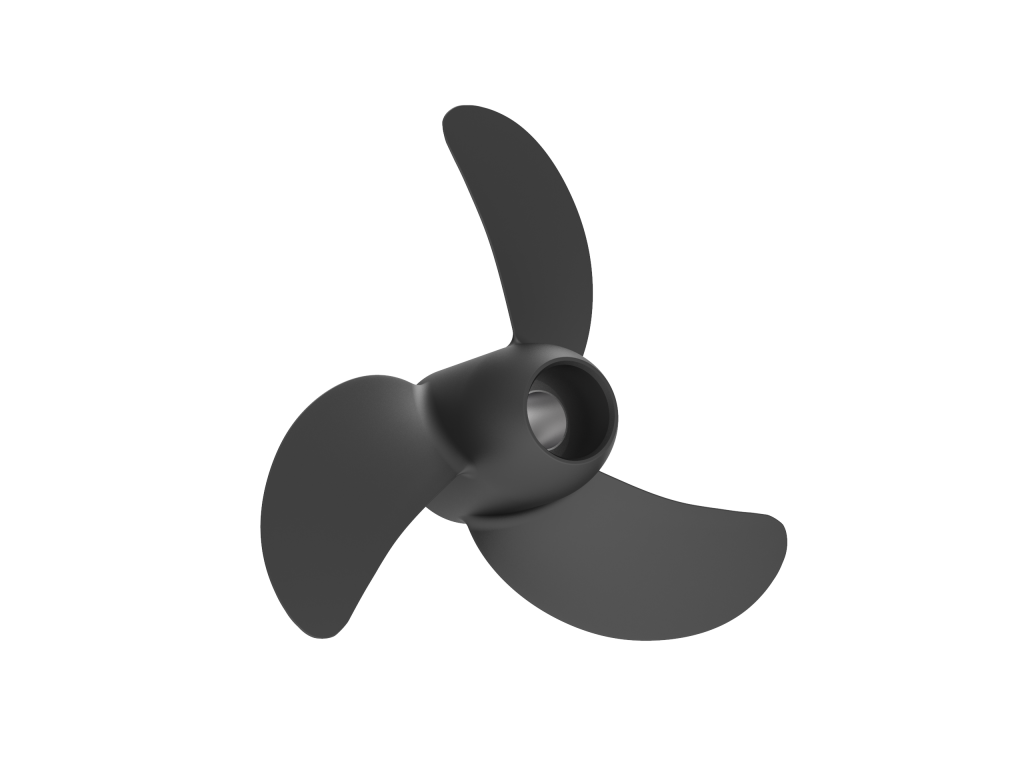

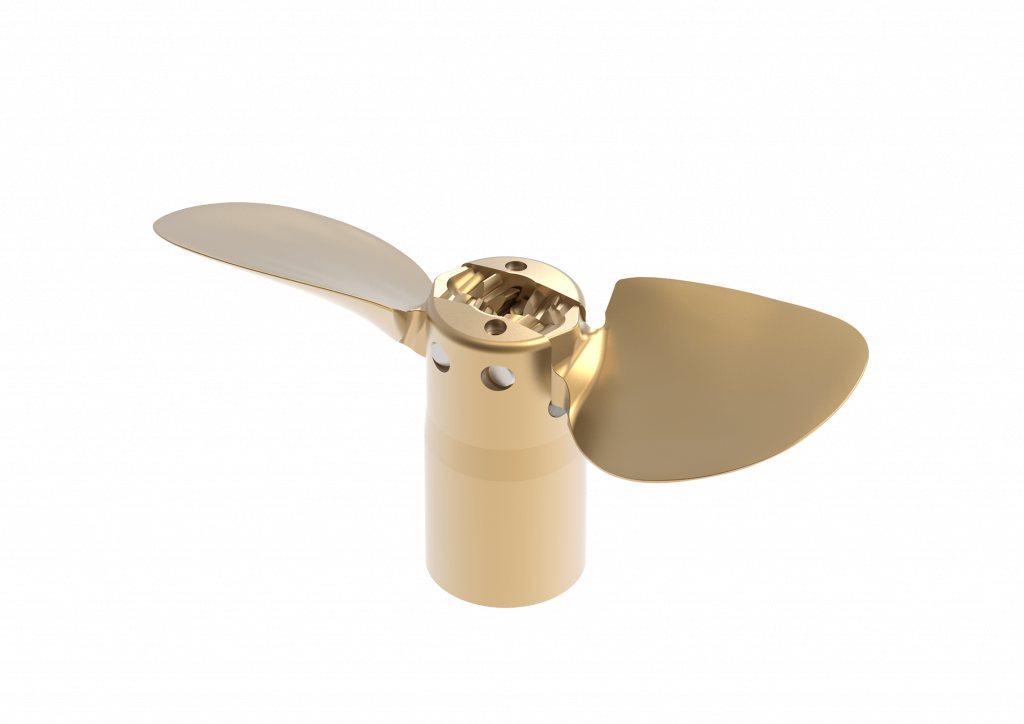

Pod 6.0 Evo Propeller
Read More
Pod 6.0 Evo Propeller
Read More
Evo Side Mount Control
Read More
Evo Remote Control
Read More
Communication Extension Cable 5m
Read More
Communication Cable 0.5 m
Read More
Communication Cable 5 m
Read More
Pod 6.0 Evo Folding Propeller
Read More

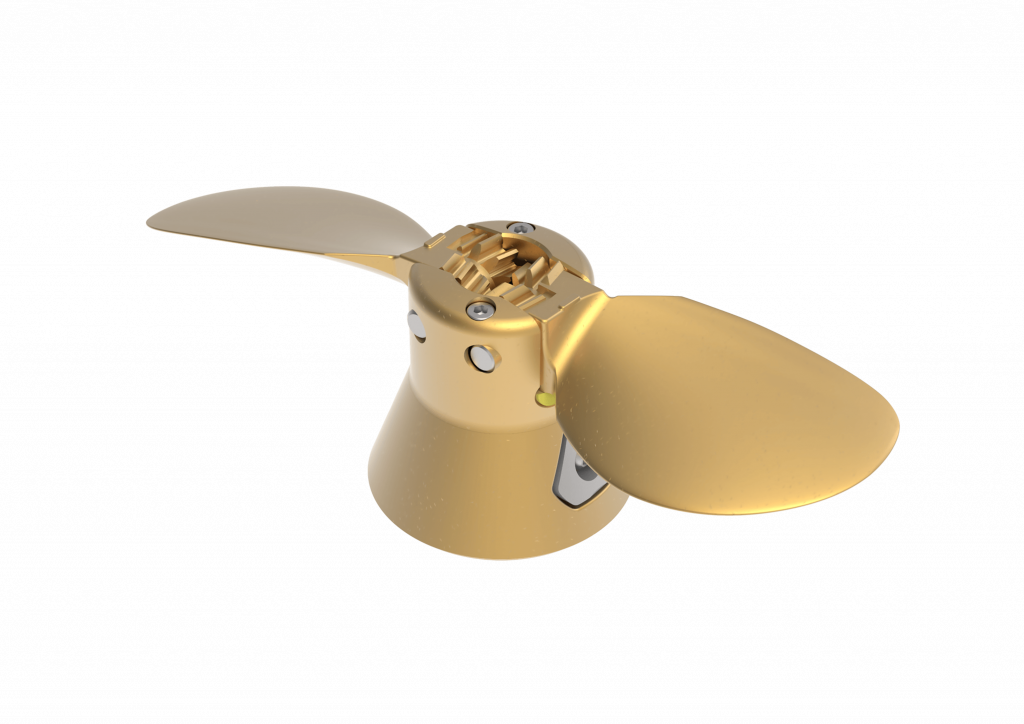

Pod 3.0 Evo Folding Propeller
Read More
Pod 1.0 Evo Folding Propeller
