E100 Battery

Part Number: EB-0100-00

Series: Spirit Navy POD Drive I-Series X-Series Batteries P-Series

Type: battery

View the main E-Series Batteries product page

Description

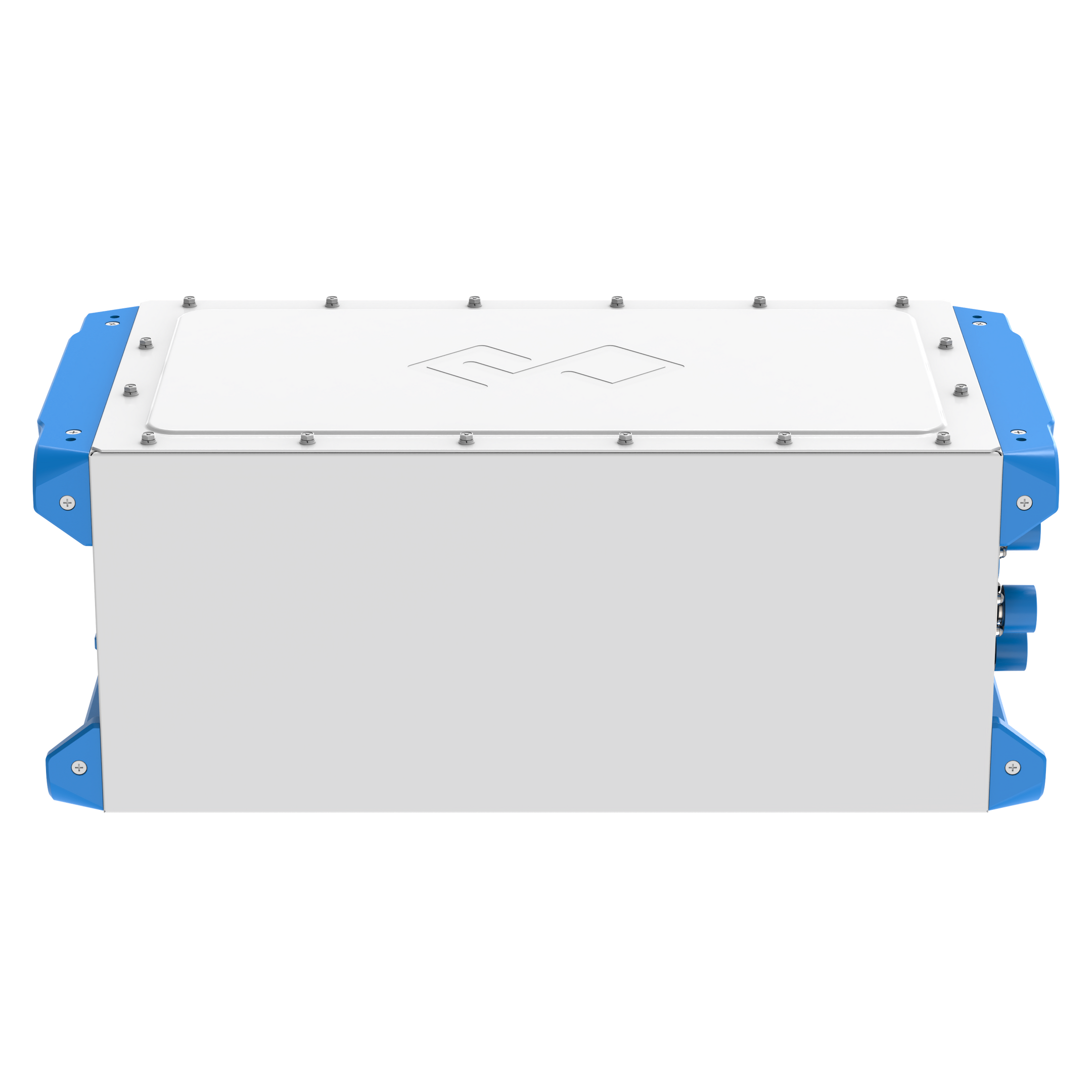

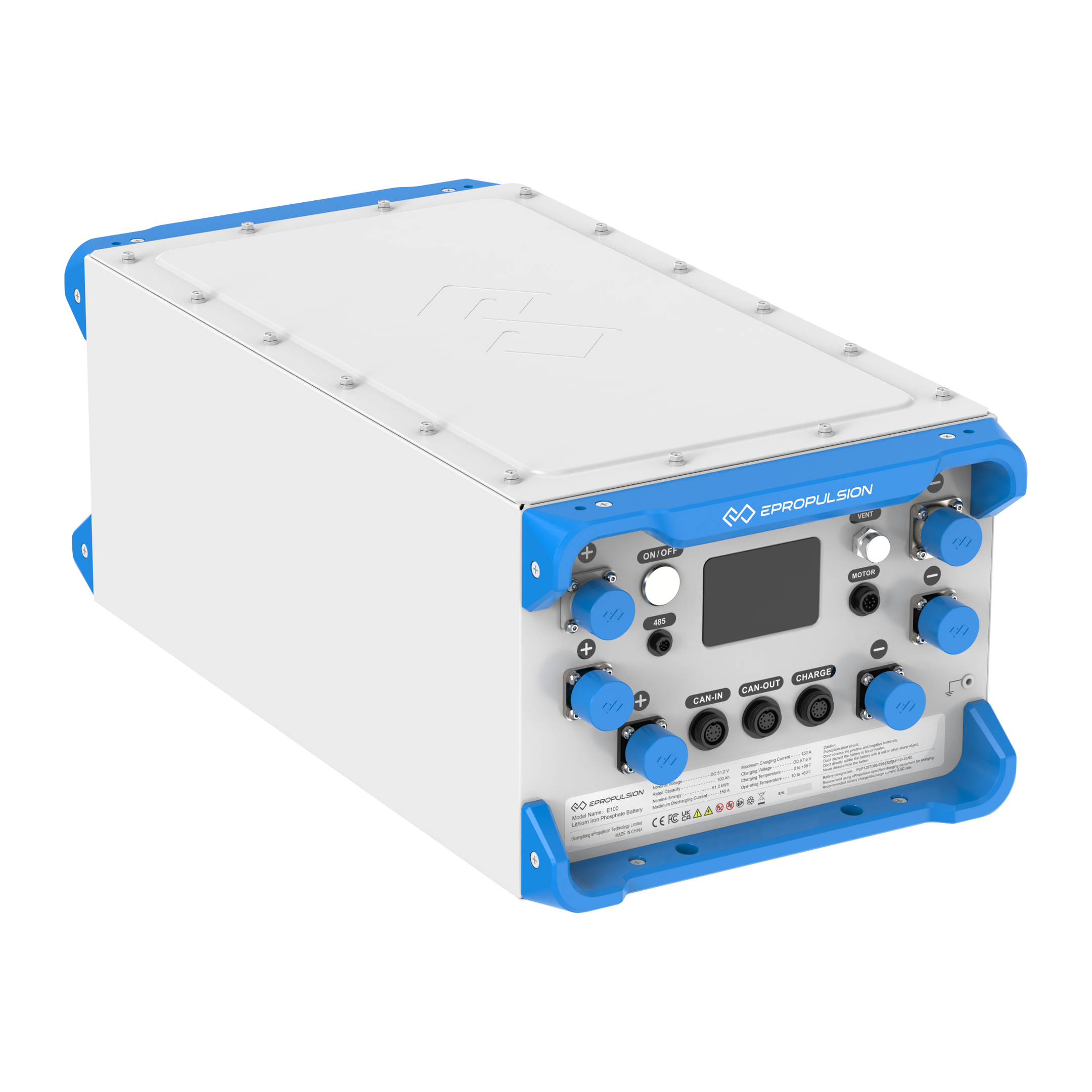

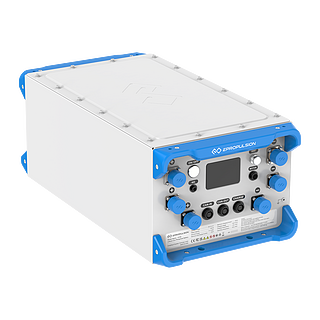

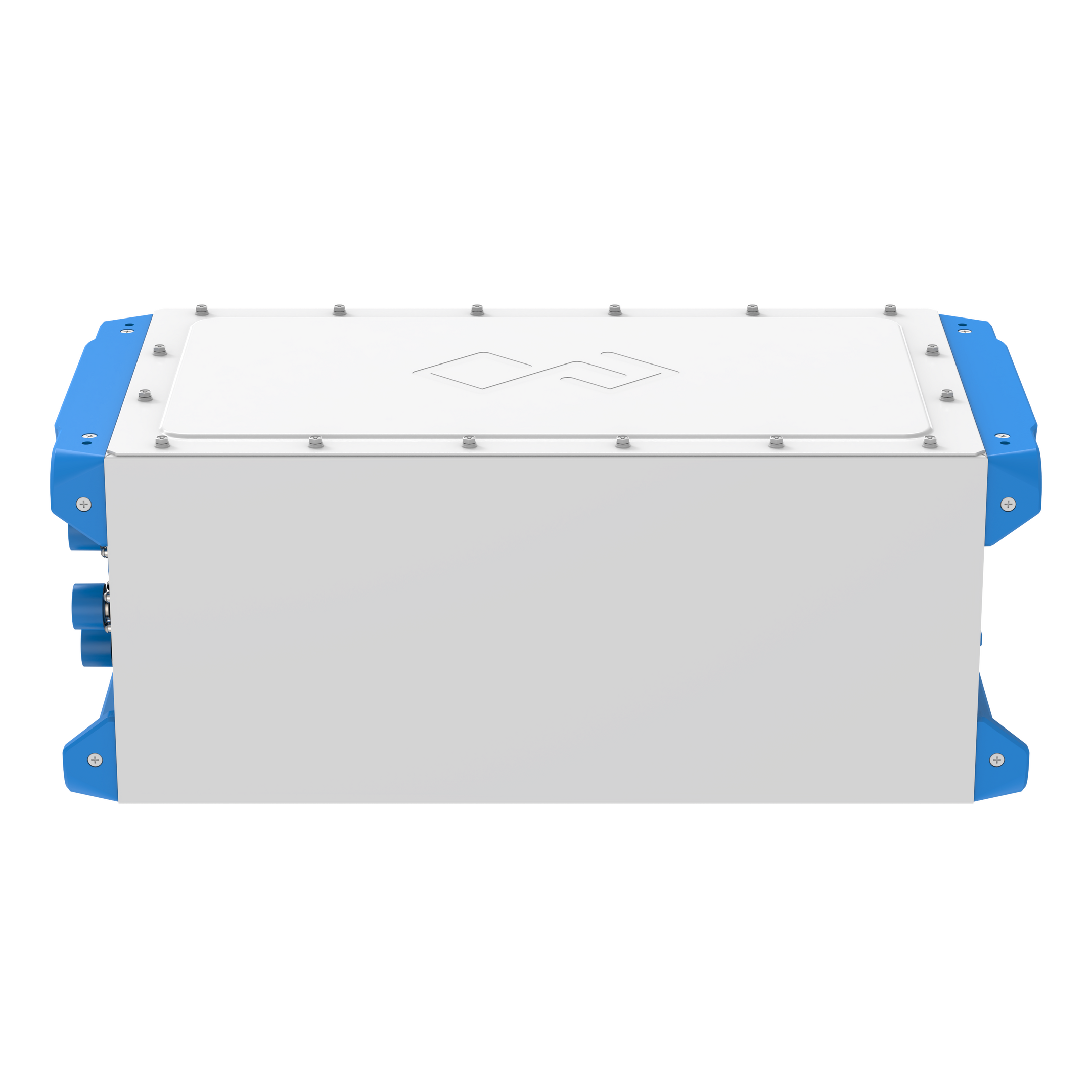

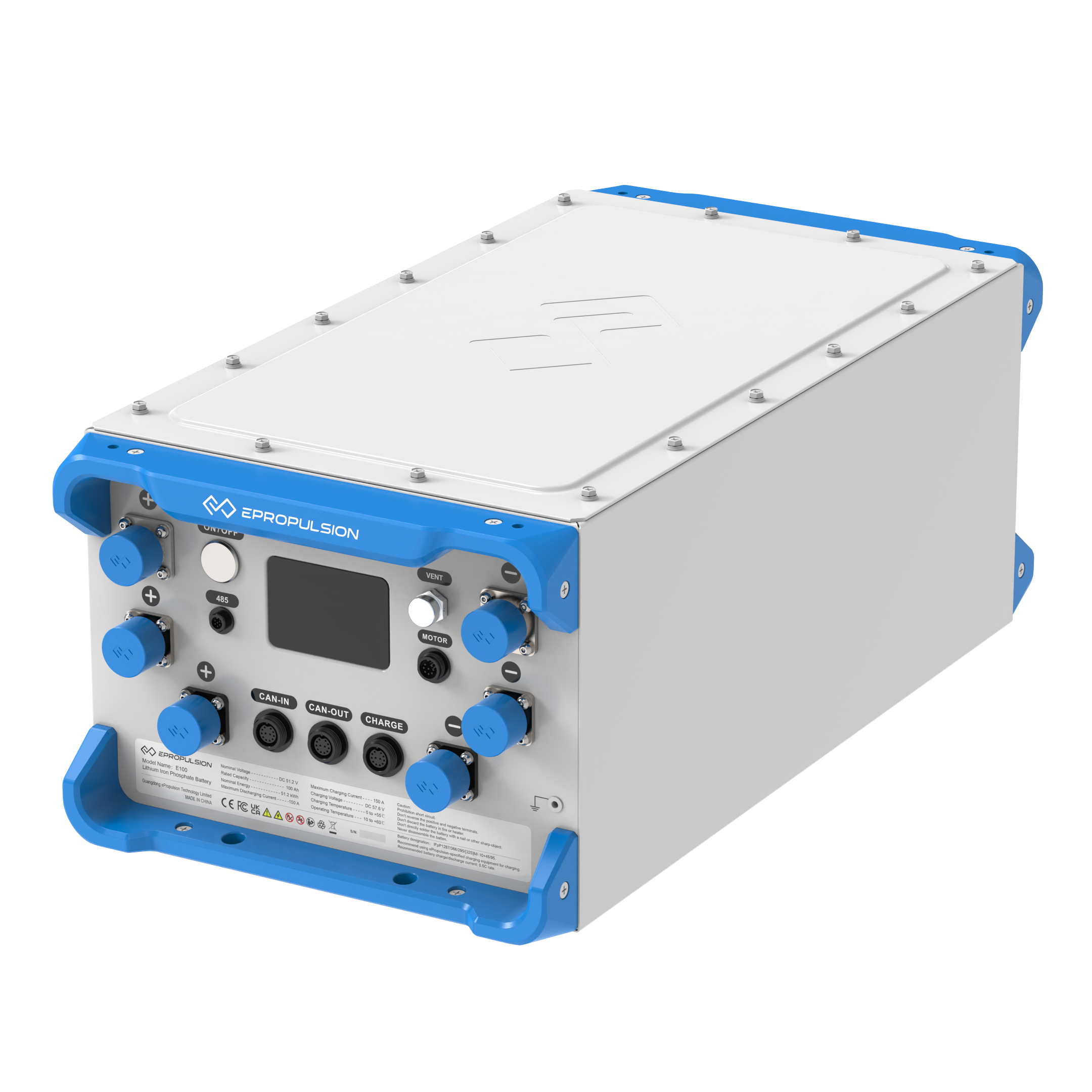

The E100 is a high-performance, durable Lithium Iron Phosphate (LiFePO4) battery engineered specifically for electric boating.

 With a capacity of 5120Wh and support for the eSSA system, this battery offers a long life cycle - providing 3,000 cycles at 80% State of Health (SoH) - significantly outlasting traditional lead-acid batteries. Its compact, low-profile design allows for flexible installation, making it an ideal power source for a wide range of boat types3.

Key Features & Selling Points

  • Flexible Voltage Configuration:

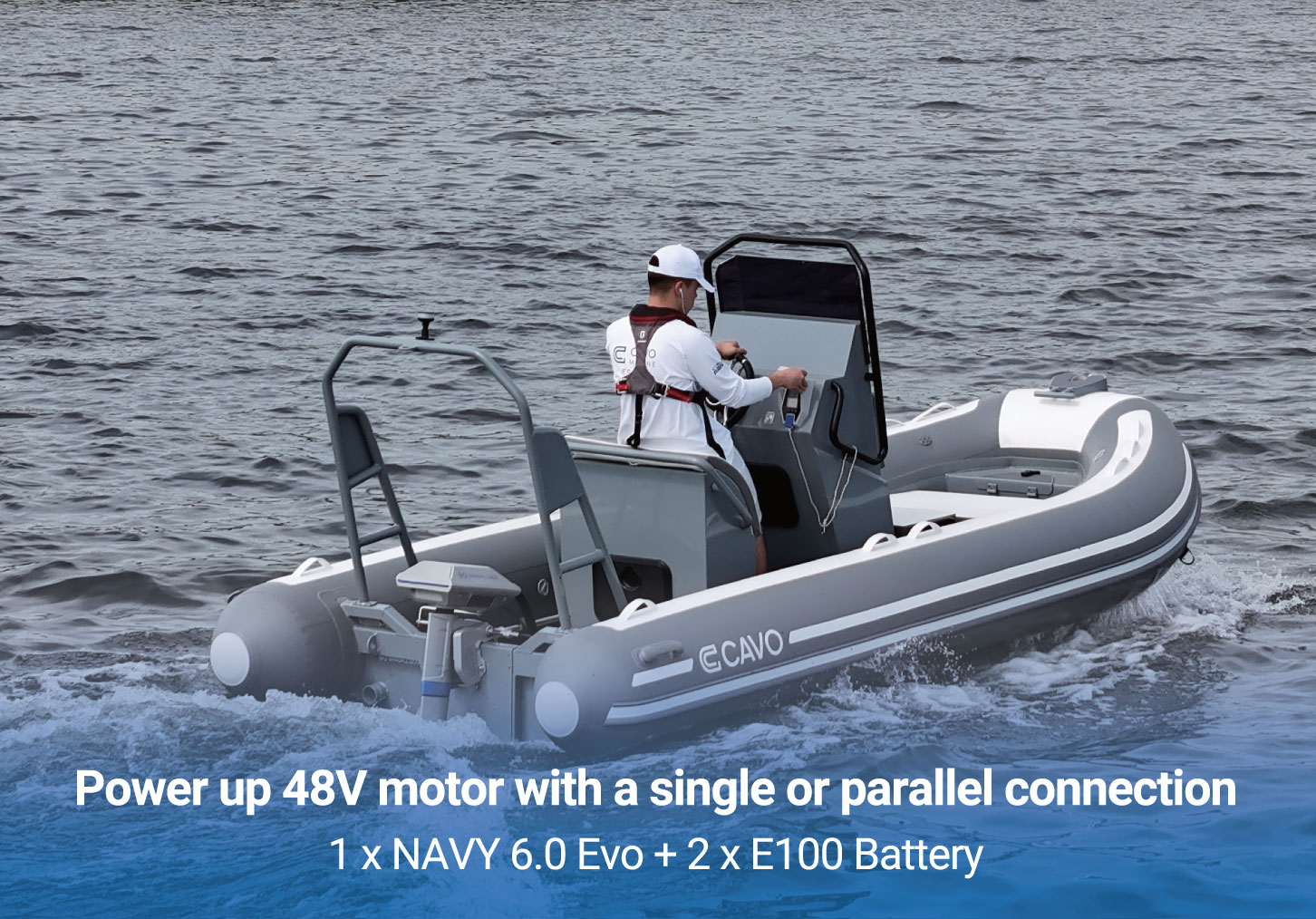

    The E100 powers 48V motors (1-6kW) including Spirit, Navy, and Pod Drive models. Uniquely, it is designed to support an upgrade to a 96V system by connecting two batteries in series, making it compatible with ePropulsion X12, P12, and 1-10 motors.
  • Smart Design & Durability:
    Featuring an all-metal housing, the E100 is impact-resistant, drop-proof, and weather-resistant with an IP67 waterproof rating.
  • Compact Footprint:

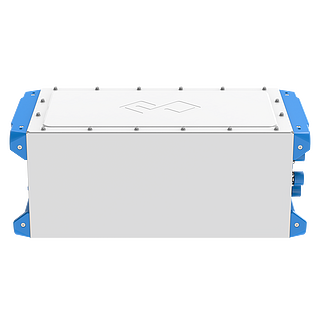

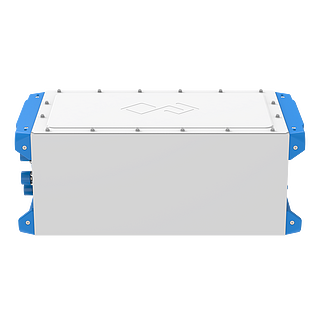

    With a height of just 240mm, the battery allows for flexible placement under seats or in tight storage spaces.
  • Intelligent Monitoring:

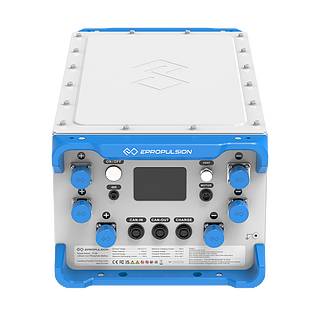

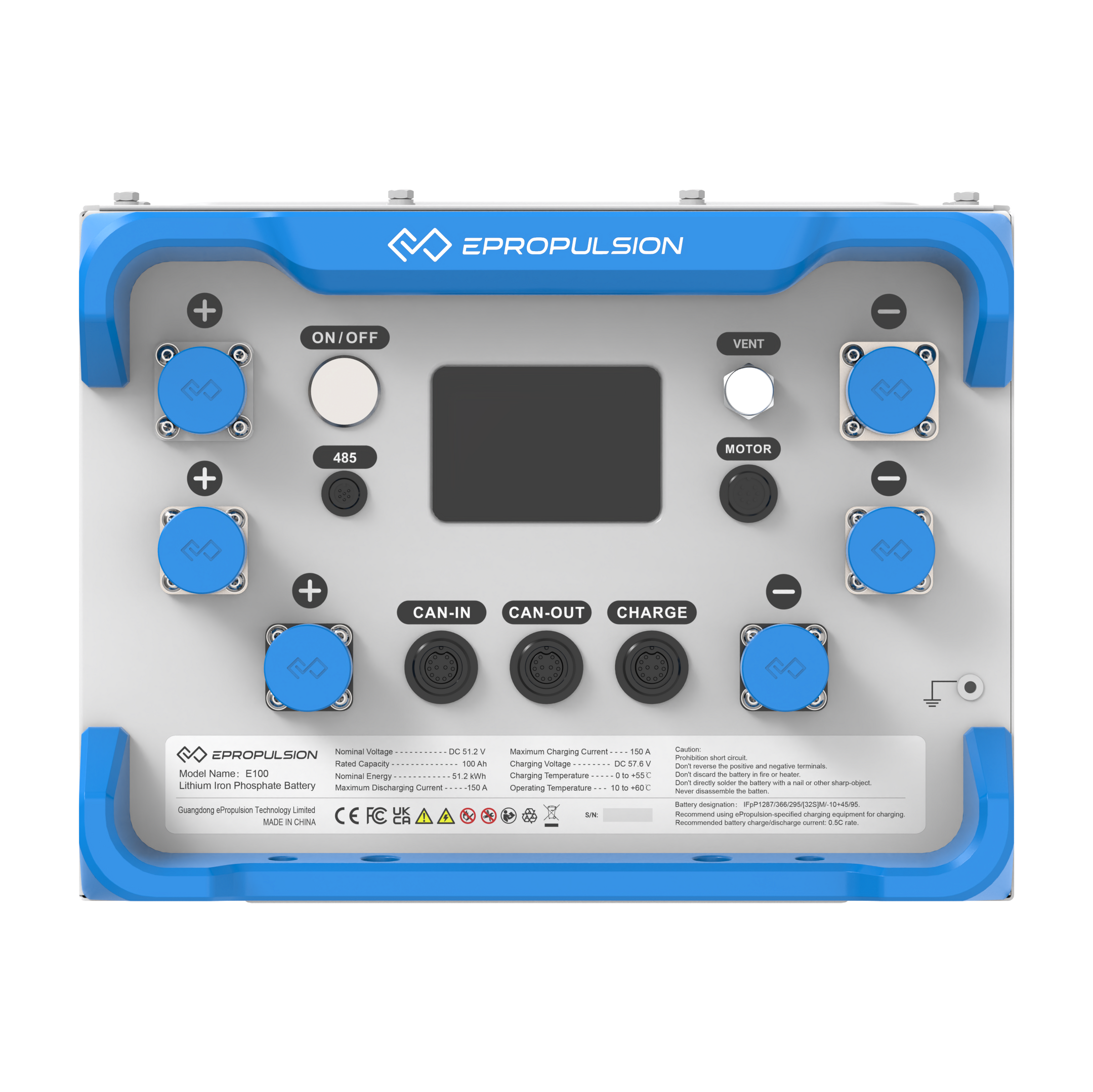

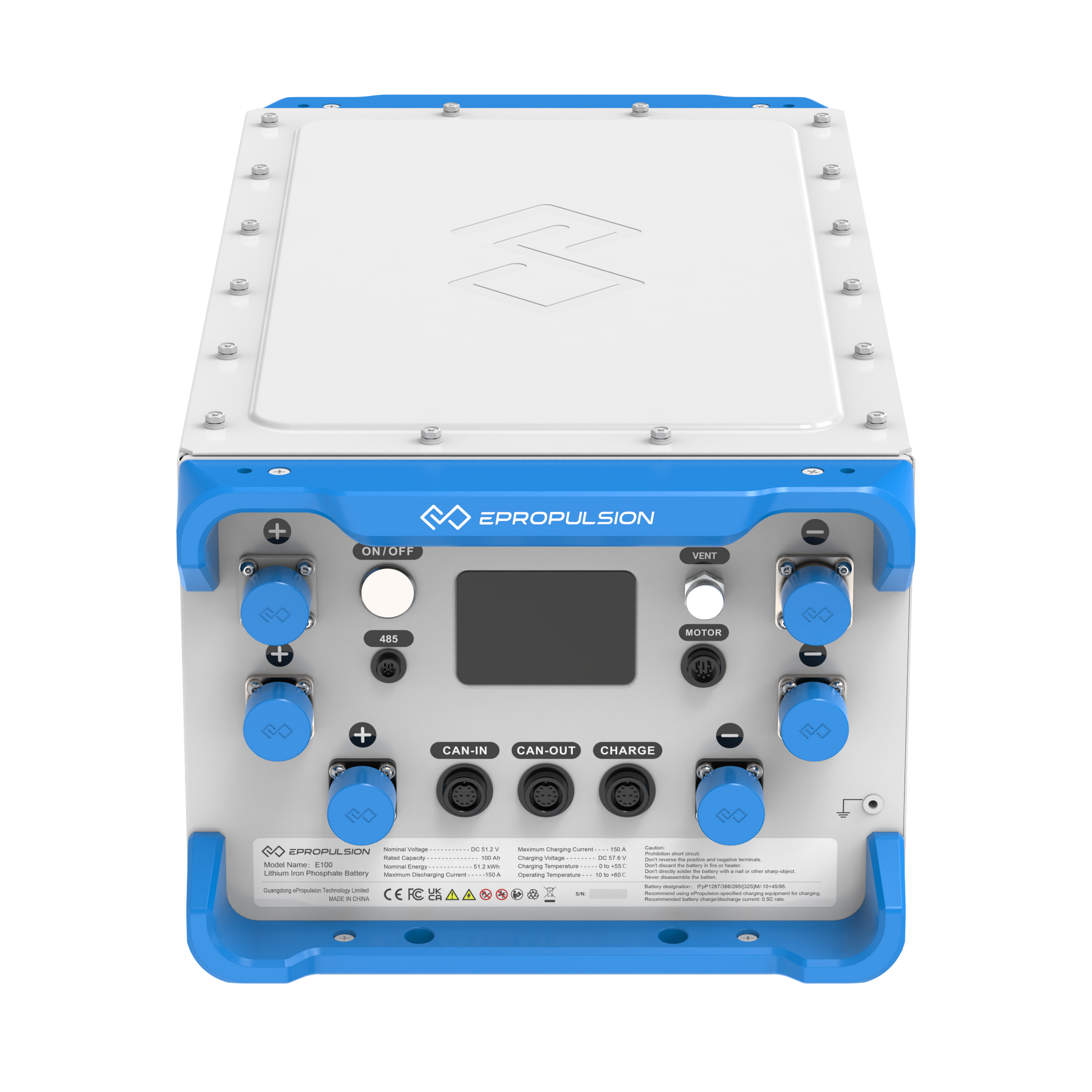

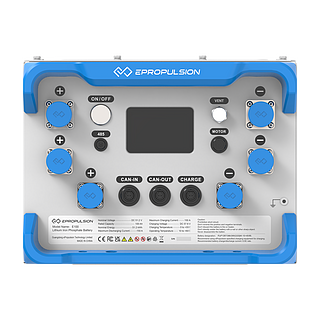

    A built-in display provides real-time monitoring of State of Charge (SOC), voltage, current, and alarm status. It also integrates with third-party gateways for enhanced connectivity.
  • Safety & Reliability:
    Equipped with a built-in intelligent BMS (Battery Management System) for maximum safety.

Technical Specifications

  • Chemistry: Lithium Iron Phosphate (LiFePO4)
  • Capacity: 5120Wh / 100Ah
  • Rated Voltage: 51.2 V
  • Cut-off / Final Charging Voltage: 41.6 V / 57.6 V
  • Max Continuous Discharge: 150 A
  • Weight: 48.5 kg (106.9 lbs) including trim and mounting bracket.
  • Dimensions: 630 x320 x2 40mm (24.8 x 12.6 x 9.5in).
  • Certifications: CE, UKCA, FCC, and UN38.3.

Charging & Scalability

  • Scalability: Supports parallel connections of up to 16 batteries for 48V systems. For 96V systems, 2 batteries can be connected in series (parallel connection is not available after series connection).
  • Fast Charging: Supports 1C rate fast charging.
    220V Example: One battery charges in approx. 2.6 hours with two E-Series chargers.
    110V Example: One battery charges in approx. 4.3 hours with two E-Series chargers.

Technical Specifications

Physical Dimensions

Length: 630.00 mm

Width: 320.00 mm

Height: 240.00 mm

Net Weight: 48.50 kg

Battery Specifications

Voltage: 48.00 V

Watt Hours: 5120.00 Wh

Amp Hours: 100.00 Ah
