Portable and long-range outboard motor
Spirit 1.0 Plus
3HP
1kW
Electric Outboard Motor
1276Wh
22 Miles Range
Direct-Drive
Spirit 1.0 Plus
Introducing Spirit 1.0 Plus

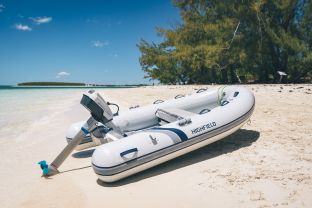

Spirit 1.0 Plus is a portable 3HP electric outboard made for dingies, fishing boats, sailboats and tenders. It features a 1276Wh large integrated lithium battery for long range. It’s nimble, lightweight, and clean power.
Performance
At the core of Spirit 1.0 Plus electric outboard motor, it’s a 1kW BLDC motor, equivalent to 3HP.
| Power (W) | Speed (mph / kph) | Runtime (hh:mm) | Range (mile / km) |
|---|---|---|---|
| 35 | 2.2 / 3.5 | 36:25 | 80 / 129 |
| 65 | 2.7 / 4.3 | 19:35 | 53 / 85.3 |
| 125 | 3.5 / 5.6 | 10:00 | 35 / 56 |
| 250 | 4.4 / 7.1 | 5:00 | 22 / 35.5 |
| 500 | 5.3 / 8.5 | 2:30 | 13.3 / 21.3 |
| 750 | 5.7 / 9.2 | 1:40 | 9.5 / 15.3 |
| 1000 | 6.2 / 10 | 1:15 | 7.8 / 12.5 |
* The performance data is based on a 12-foot aluminum boat with one person and one Spirit battery Plus in calm lake water. The actual speed, range and running time may vary because of different boats, load, weather, etc.
With one charge, you can go 22 miles at 4.5 mph, or go fishing all day long at trolling speed.
Battery
The integrated rechargeable battery is lightweight, only 19 lbs or 8.7 kg, and robust for tough conditions.

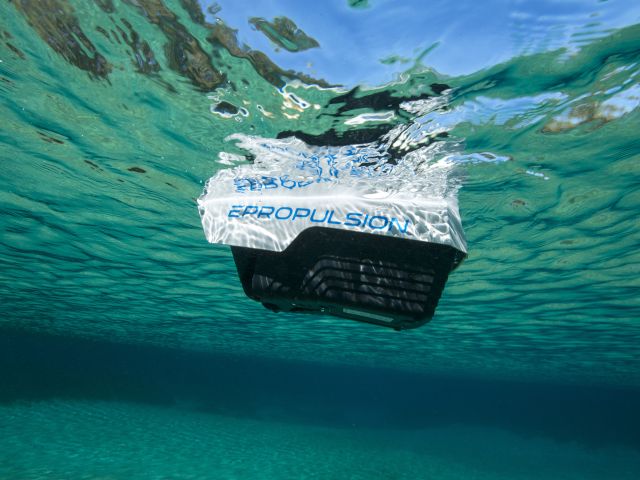

Positive Buoyancy
Never worry the battery drops into the water.
1276Wh Capacity
High energy density in a compact size to build large battery capacity.

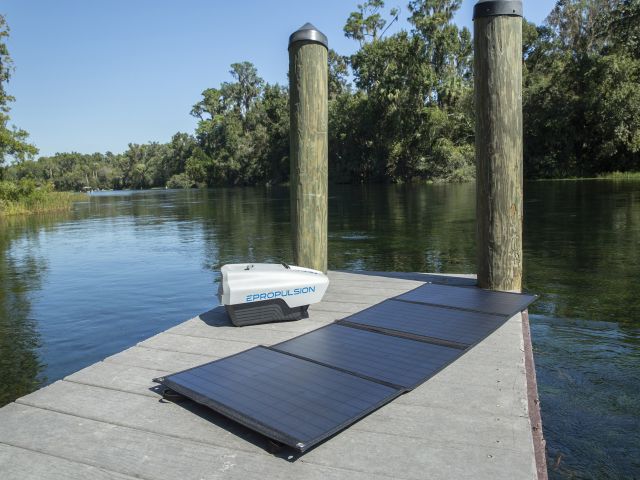

180W Solar Charging
Dual power ports allow solar charging when discharging.

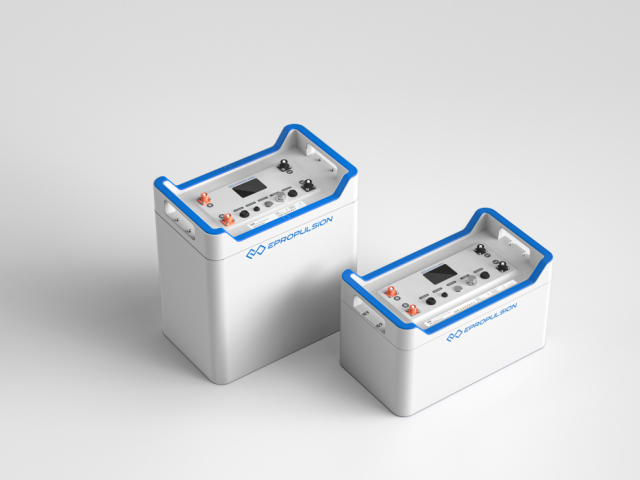

E-Series Battery
Extend the runtime to an entire day by replacing the integrated Spirit battery.

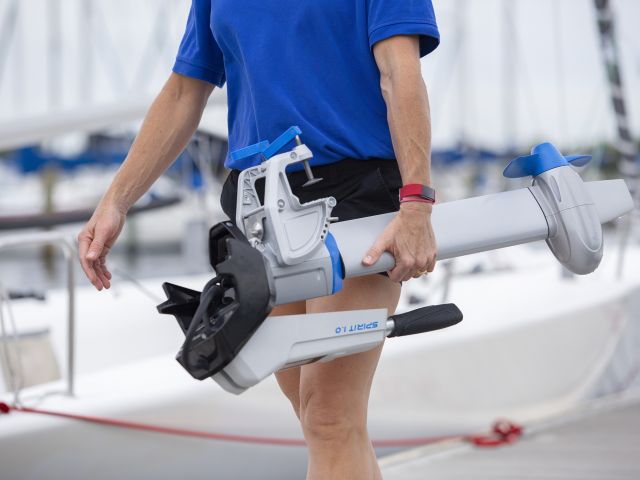

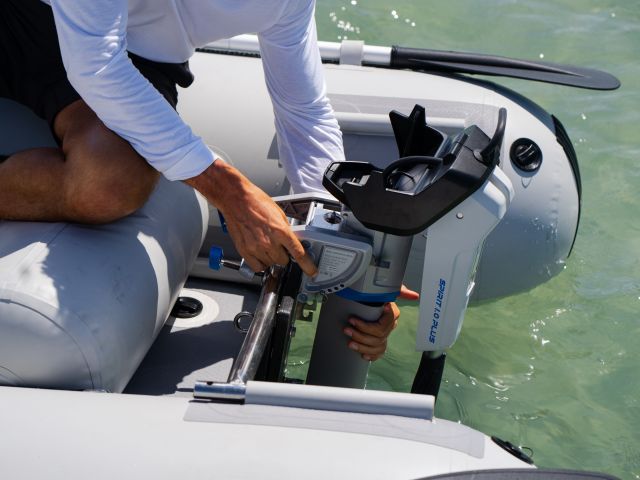

Designed for Portability
Spirit 1.0 Plus is easy to transport. It would be a pleasure to have it in your gear list when preparing a trip.
Digital Operation
Electric outboard motors are easy to operate and keep you informed of operation status.

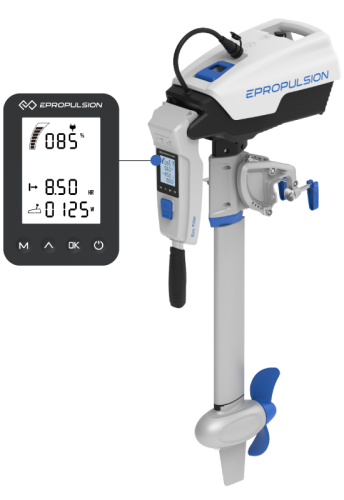

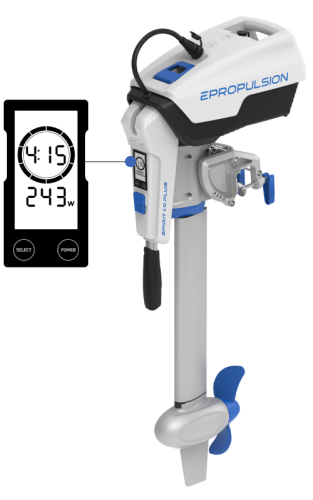

Digital Display
You have access to real-time power, remaining runtime, battery level, operating voltage, etc.
Electric Start
Press one button and you’re ready to go. No more tiring pull cord start.
Magnetic Kill Switch
Stop the motor in an emergency and keep you safe.
Stepless throttle changing
The throttle hand feel is clear, smooth and enjoyable.
Max Power Output Adjustment
With a smaller full throttle power, it’s safer for kids and rental boat
Ambidextrous Operation
Turning throttle easily either from the left-hand or right-hand side.
Spirit 1.0 Evo
Made for Sailing
Spirit 1.0 Evo Remote
Made for Remote Steering
Spirit 1.0 Evo
Two More Spirit 1.0 Models
Spirit 1.0 Evo is the high-end Spirit model with more innovative features. Spirit 1.0 Evo Remote is the remote control variant. Both models feature hydro generation function.
Specs
| Spirit 1.0 Plus | |
| Power | 1 kW (3HP equivalent) |
| Input Voltage | 39V – 60V |
| Standard Battery | Spirit Battery Plus, 1276 Wh li-ion polymer |
| Motor Weight* | 10.6 kg / 23.4 lbs |
| Battery Weight | 8.7 kg / 19.2 lbs |
| Charing Time | Standard charger: 8.5 Hrs Fast charger: 3.5 Hrs |
| External Battery | Yes, and E-Series Battery recommended |

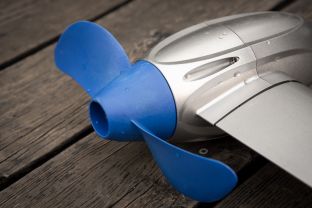

| Propeller | 11″ × 5.8″ 2-blade composite propeller |
| Trim / Tilt Angle | 0°, 7°, 14°, 21° / 70° |
| Shaft Length | Extra Short, Short, Long |
| Motor | Brushless DC motor |
| Direct Drive | Yes |
| Maintenance-Free | Yes |
* The weight is measured with the short shaft version.
What's in the Box
Main Part
Battery
Charger
Spirit Battery Plus
(Optional)
Pin x 2
Kill Switch x 2
Invitation
Card
Warranty
Card
Quality
Certificate
User
Manual
Main Part
Battery
Charger
Spirit Battery Plus(Optional)
Pin x 2
Kill Switch x 2
Invitation
Card
Warranty
Card
Quality
Certificate
User
Manual
Accessories
Read More
Spirit Clamp Base Anode
Read More
Spirit 1.0 Extension Power Cable
Read More
Kill Switch
Read More
Spirit Propeller
Read More
Spirit 1.0 Outboard Bag Plus
Read More
Foldable Solar Panel
Read More
Spirit 1.0 Battery Bag
Read More
Spirit Trapezoidal Anode
Read More
Spirit 1.0 Plus Extension Power Cable 2m
Read More
Evo Side Mount Control
Read More
Spirit External Battery Cable
Read More
Spirit Battery Plus
Read More
Spirit 1.0 Plus 12V Charger
Read More
Communication Extension Cable 5m
Read More
Communication Cable 0.5 m
Read More
Spirit 1.0 Bag Set Plus
Read More
Communication Cable 5 m
Read More
Spirit 1.0 Plus Shaft Anode
Read More
Spirit 1.0 Plus Extension Power Cable 2m
Read More
Evo Side Mount Control
Previous
Next
Have a Dealer Contact Me
Want to learn more about the product and get advice on purchase? Fill in the quick form within 3 minutes, and our local dealer near you will get in touch shortly.
FAQ
Can I power the Spirit 1.0 Plus series with an external battery?
Yes, and an external battery power cable is required.
Officially, we recommend the ePropulsion 48V E-Series battery to extend the range. We also recommend a cowling for looking good when you remove the original Spirit battery.
How to store the Spirit battery during the long term?
Store the battery in the dry environment and keep the battery charge level at 60% around, and charge the battery every 3 months.
How to find the right shaft length?
For more info, please check ePropulsion Blog: How to Find Your Shaft Length
Is Spirit 1.0 Plus series good for saltwater use?
Yes, it is designed for extensive use in the saltwater. We choose high-quality aluminum alloy as the base material, and apply anodizing coating and powder coating on top of it. For more info, please check ePropulsion Blog: How do we make an outboard corrosion-resistant?
Will the motor turn off automatically if I forget to power off after use?
Yes, Spirit 1.0 Plus will switch off after 30 mins without operation.
