Navy Series

Electric Outboard Motor
Hydrogeneration
Maintenance-Free
Direct-Drive
Navy 3.0 Electric Outboard Motor

Navy 3.0 Evo

3kW / 6HP
Navy 6.0 Electric Outboard Motor

Navy 6.0 Evo

6kW / 9.9HP

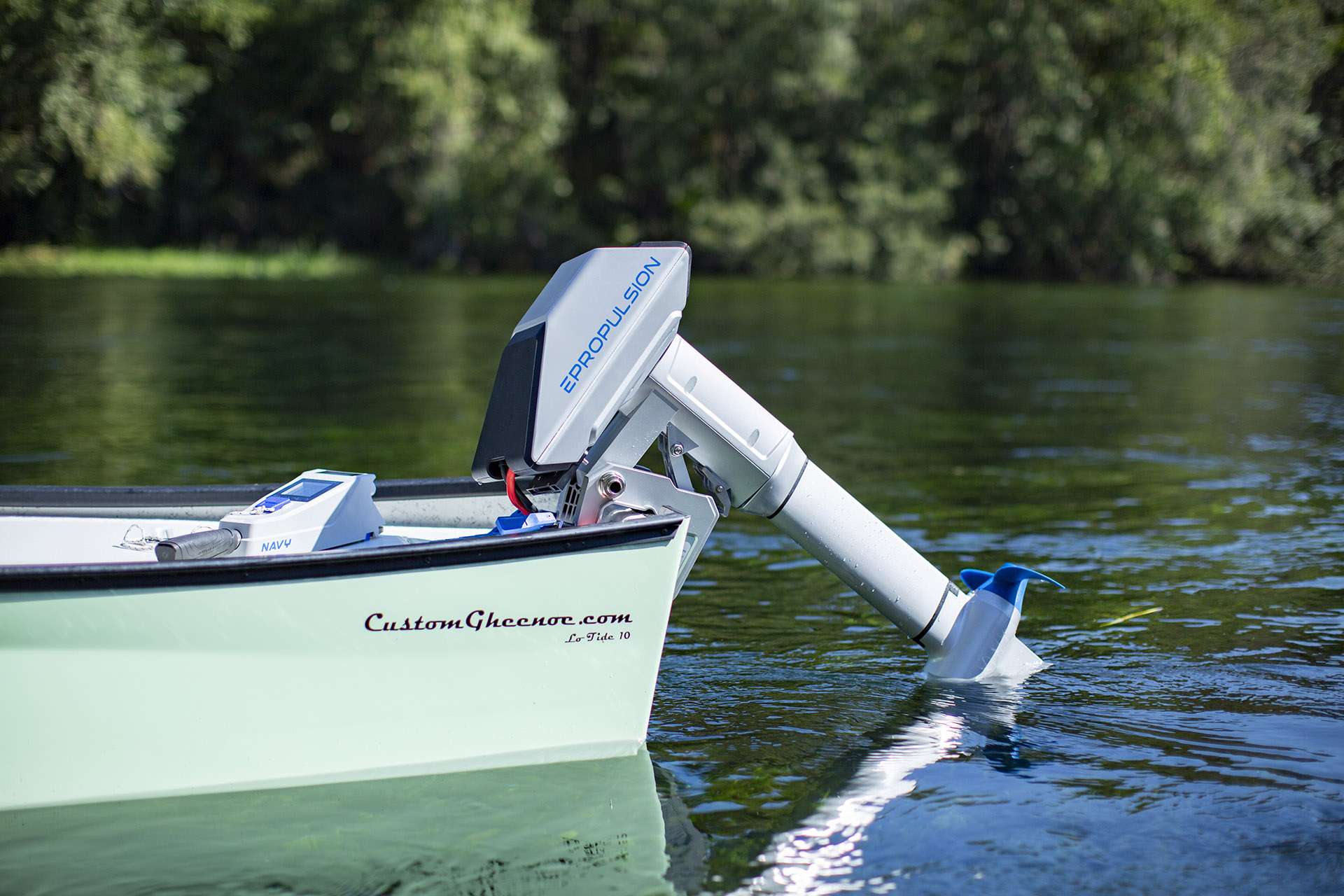

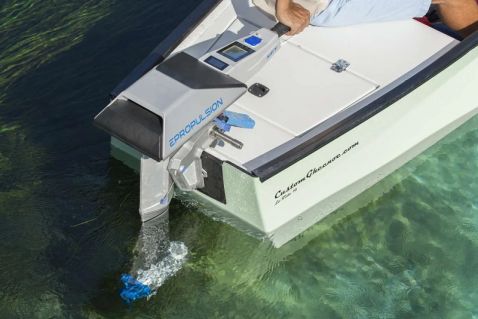

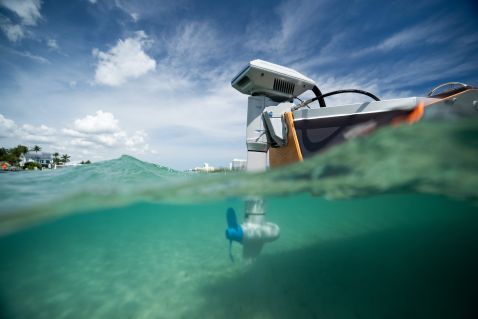

Introducing Navy

Navy Series is the backbone of ePropulsion electric outboard motors. It provides efficient and clean power for aluminum fishing boats, dinghies, daysailers and cruising sailboats, suitable for saltwater and freshwater. Thanks to the direct-drive technology, the Navy electric outboard boat motor is quiet, maintenance-free, and reliable.

Build Your Navy System

It’s easy and flexible to build a Navy electric outboard system that satisfies different needs.

Step 1

Choose Your Motor

Navy 3.0 Electric Outboard Motor
Navy 3.0 Evo​ / 6 HP
Navy 6.0 Electric Outboard Motor
Navy 6.0 Evo​ / 9.9 HP
Step 2

Choose Your Control

Evo Top Mount Control
Evo Top Mount Control
Evo Side Mount Control
Evo Side Mount Control
Dual Controller
Dual Controller
Evo Tiller
Evo Tiller
Step 3

Choose Your Battery

E40 E-Series Battery
E40 / 2kWh
E80 E-Series Battery
E80 / 4kWh
E175 E-Series Battery
E175 / 9kWh

* The standard charger of the E-Series battery is purchased separately. It’s a unified charger that works with E40, E80 and E175. For fast charging, you could use two or more chargers in parallel connection.

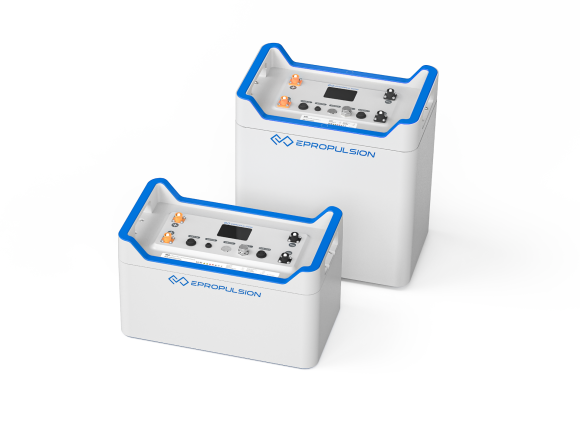

E-Series Lithium Battery

We recommend you choosing ePropulsion original battery. 48V E-Series lithium iron phosphate battery is the perfect match for your Navy electric outboards.

E-Series Lithium Battery
E40 2048 Wh
E80 4096 Wh
E175 8960 Wh
E-Series Lithium Battery
E40
2048 Wh
E80
4096 Wh
E175
8960 Wh
Dollar Icon
Competitive pricing

Unit price is as low as $0.5 per watt-hour.

Squares Icon
High energy density
70% less weight and space than standard lead-acid batteries.
Thunder Icon
Longer life cycles
3000 cycles at 80% DOD.
Logo Icon
Made for ePropulsion Motors
Data synced with ePropulsion motors to apply smart operation strategy.

Incredible Range

Navy Series electric outboard motors are impressively efficient to go further and faster.
Navy 3.0
Power (Watt) Speed (mph / kph) Running Time (hh:mm) Range (mile / km)
300 3.7 / 6 13:20 49.3 / 79.3
550 4.7 / 7.5 7:25 35 / 56.3
1000 5.3 / 8.6 4:00 21.2 / 34.1
1500 6 / 9.7 2:40 16 / 25.7
2000 6.3 / 10.2 2:00 12.6 / 20.4
2500 8 / 12.8 1:35 12.7 / 20.5
3000 10.2 / 16.4 1:20 13.6 / 21.9
Navy 6.0
Power (Watt) Speed (mph / kph) Running Time (hh:mm) Range (mile / km)
500 4 / 6.5 18:00 72 / 116
1000 5 / 8 9:00 45 / 72
2000 6.7 / 10.8 4:30 30.2 / 48.6
3000 8 / 13 3:00 24 / 39
4000 11.5 / 18.5 2:15 25.9 / 41.7
5000 13.5 / 21.8 1:50 24.7 / 39.8
6000 15 / 24.3 1:30 22.5 / 36.5

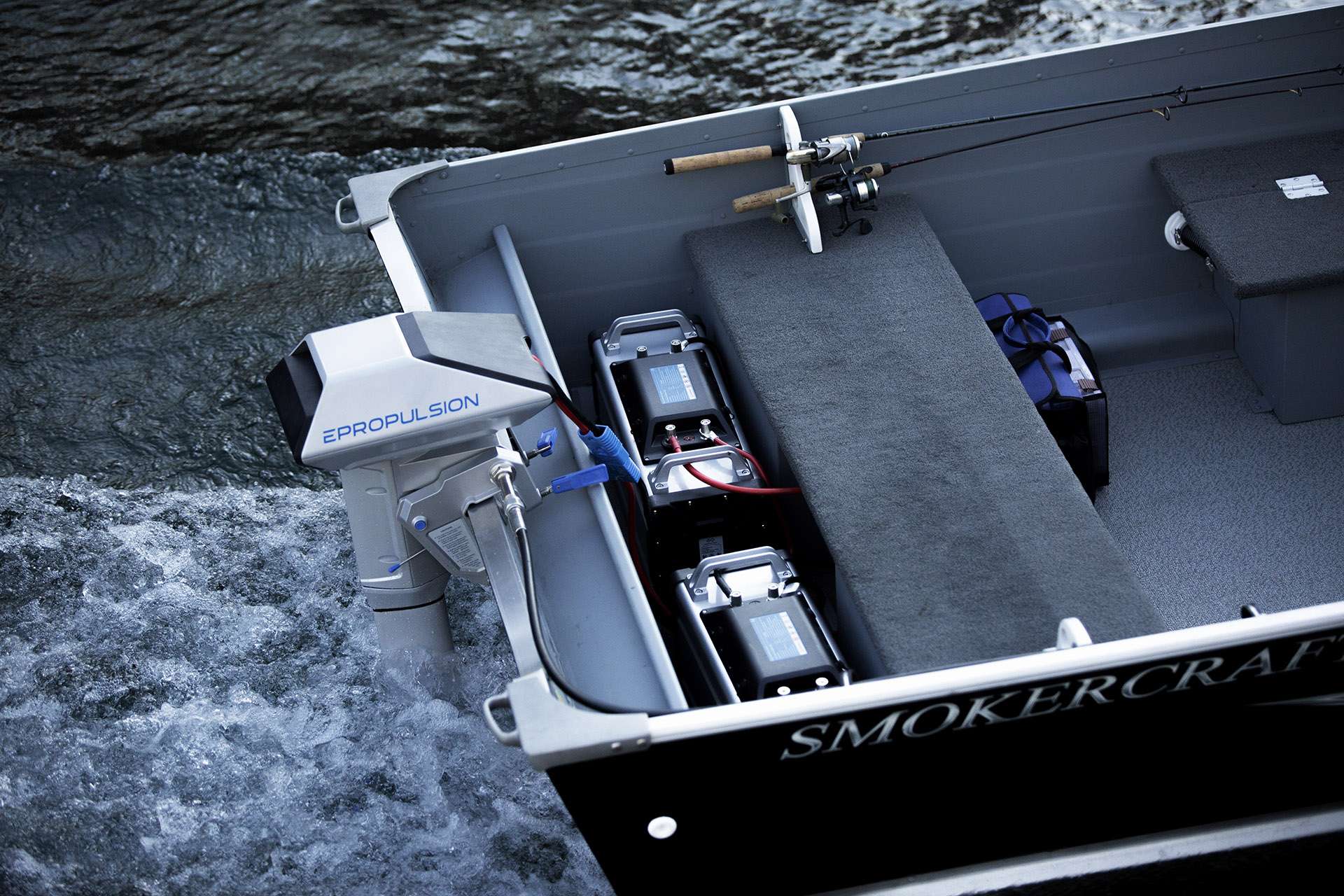

* The performance data is based on a 12-foot aluminum boat with one person, powered by one Navy 3.0 Evo with one E80 battery and one Navy 6.0 Evo with one E175 battery, in calm lake water.

With one charge, you can go 40 miles with Navy 6.0 Evo, or go fishing all day long at trolling speed.
Navy Series Electric Outboard Motor
Navy Series Electric Outboard Motor
Navy Series Electric Outboard Motor

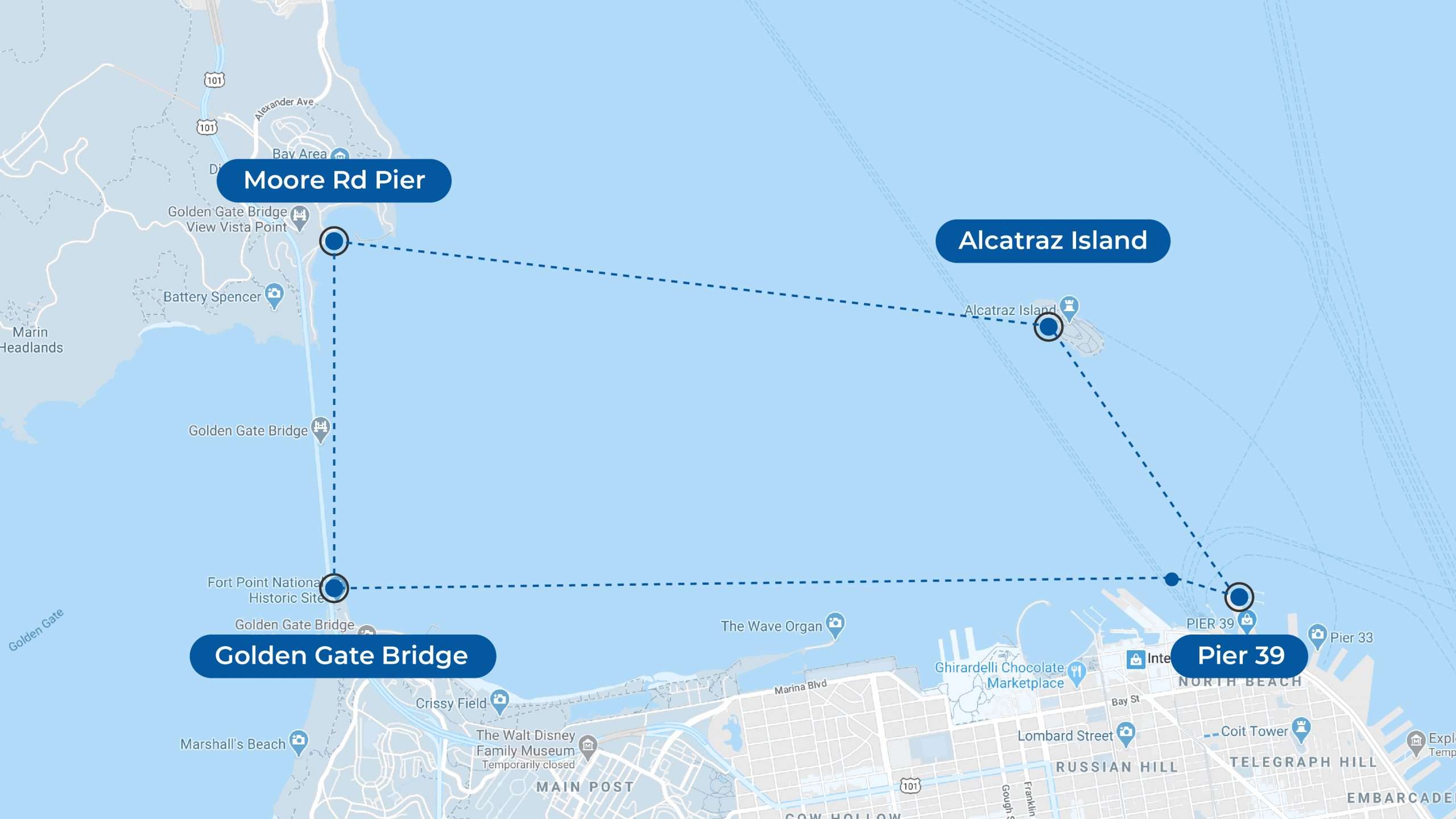

Navy Series Electric Outboard Motor Distance

Four Evo Controls

You could always find a control that best fits on your boat.

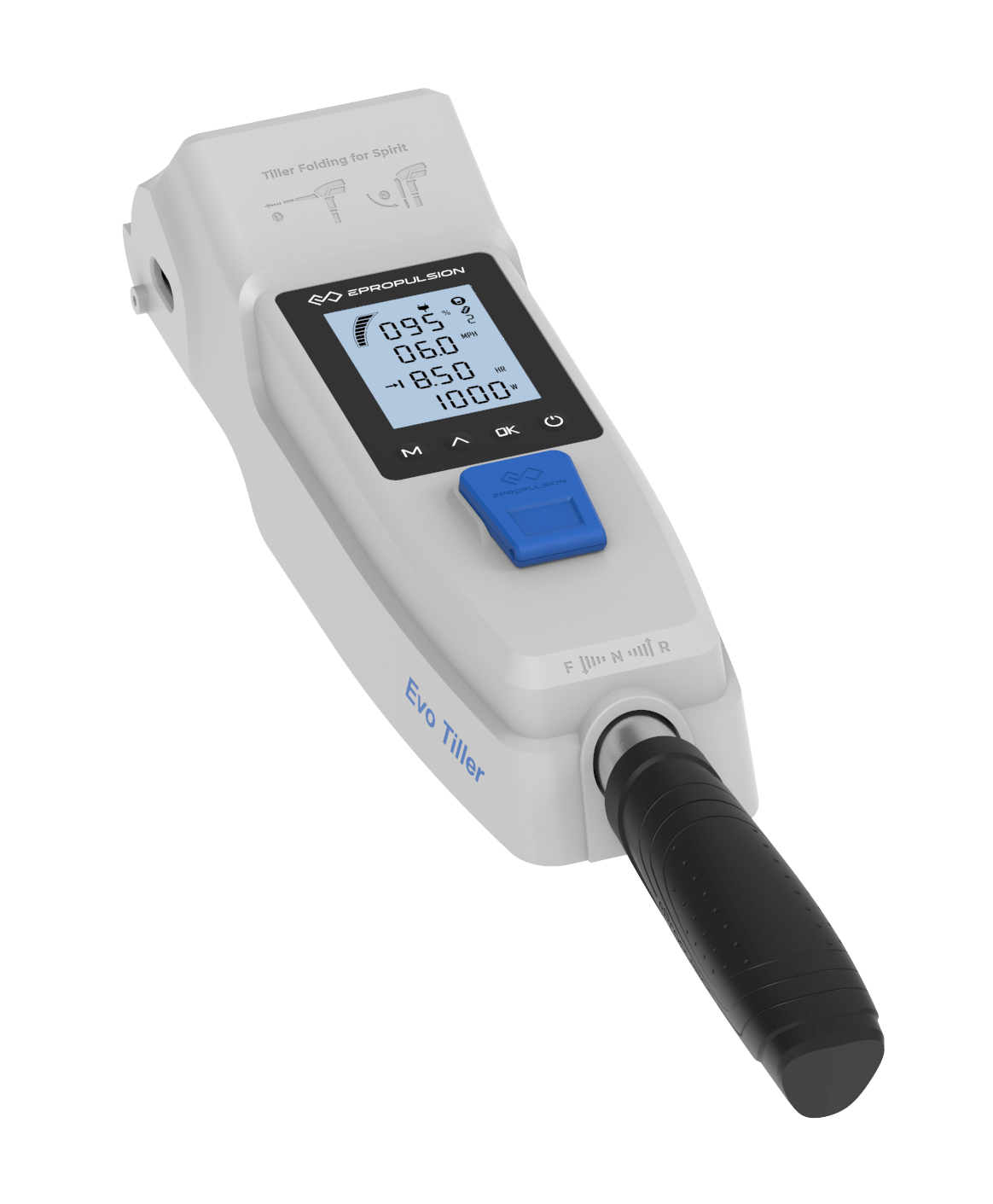

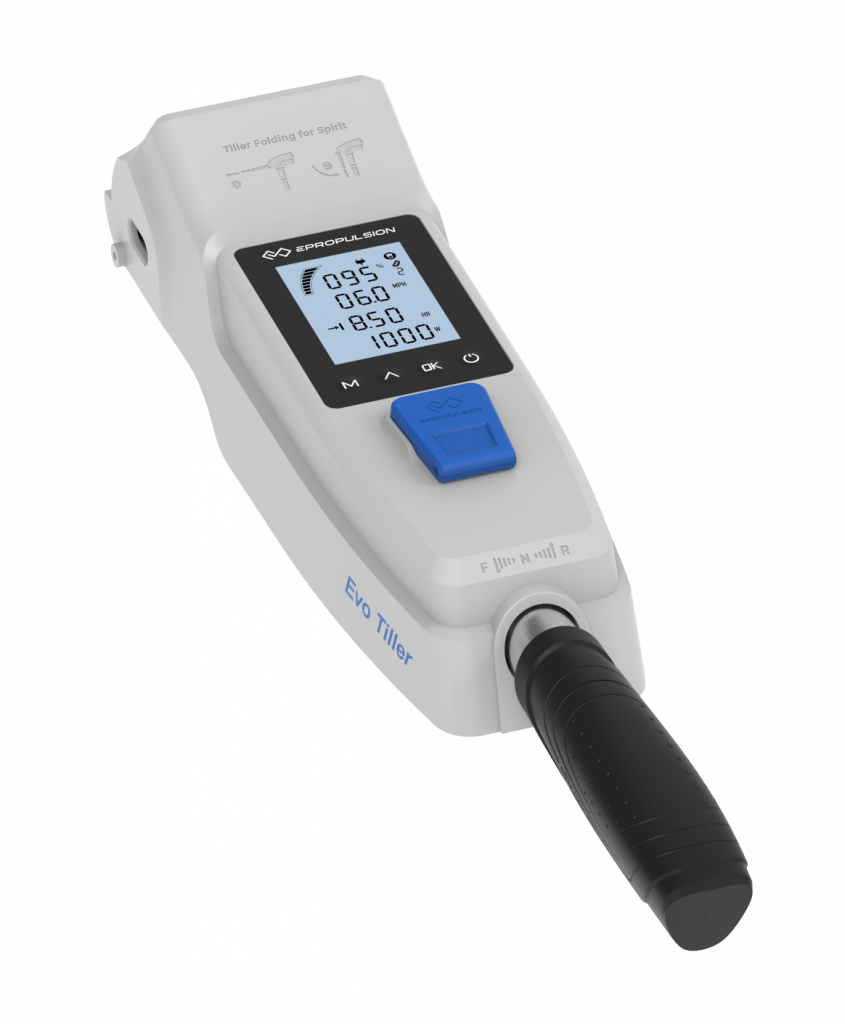

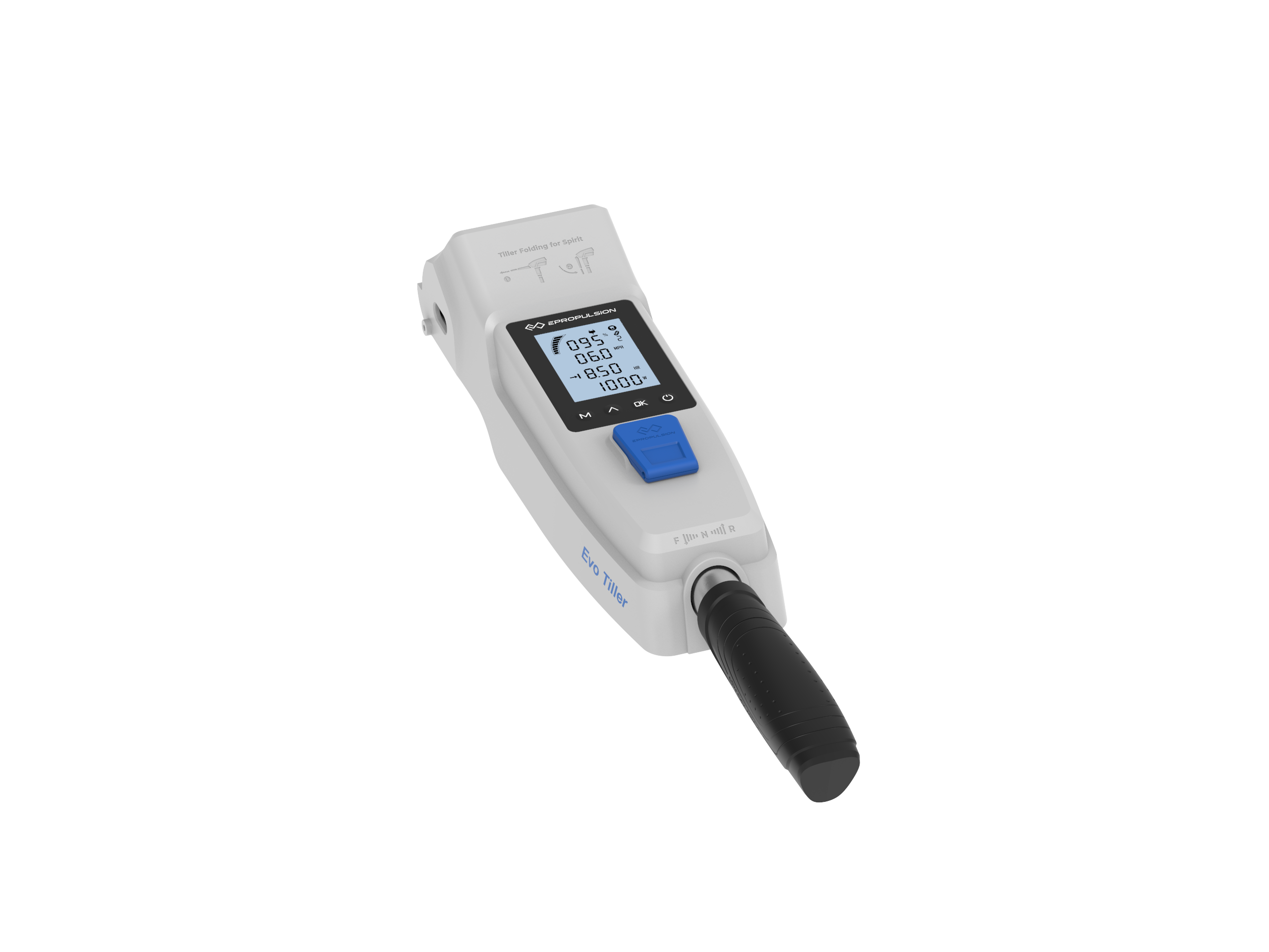

Evo Tiller

Evo Tiller

Evo Remote Control

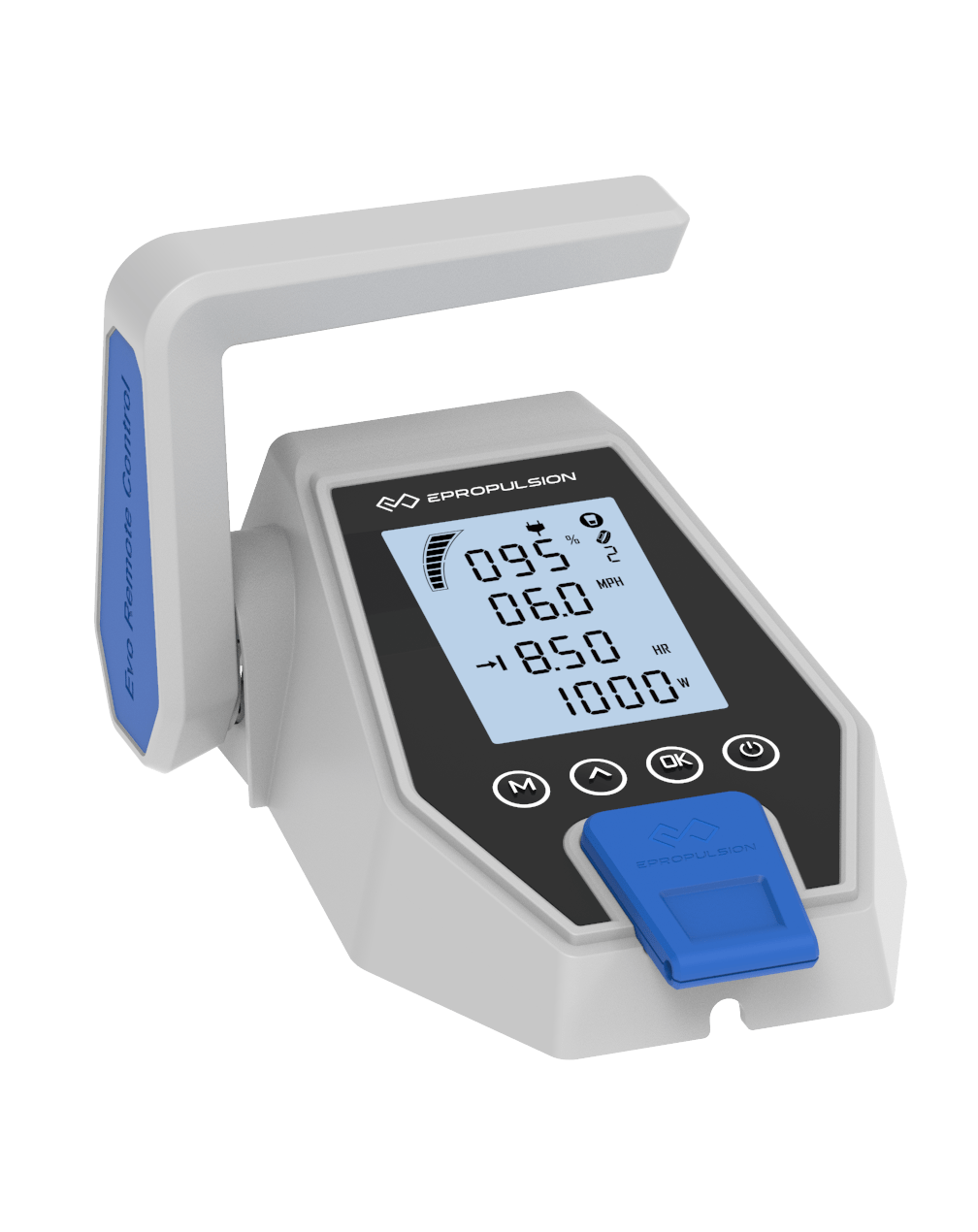

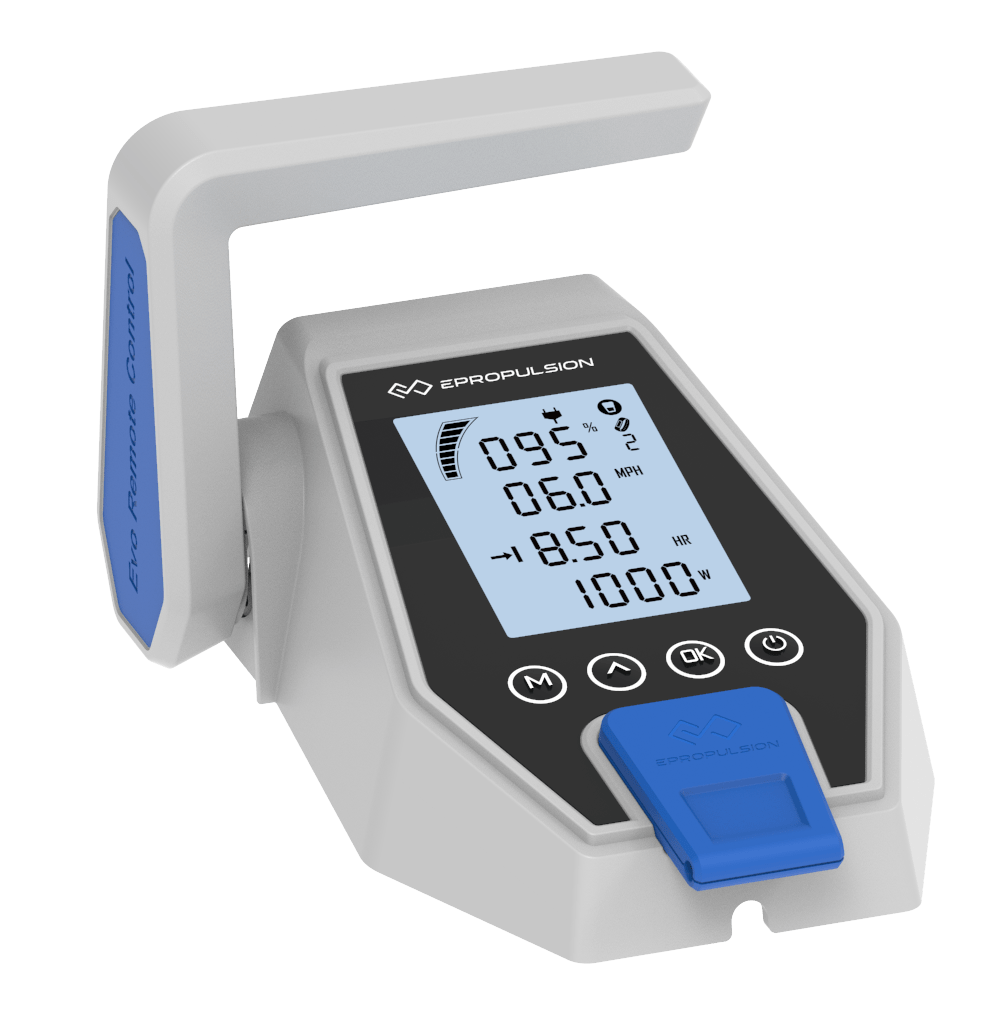

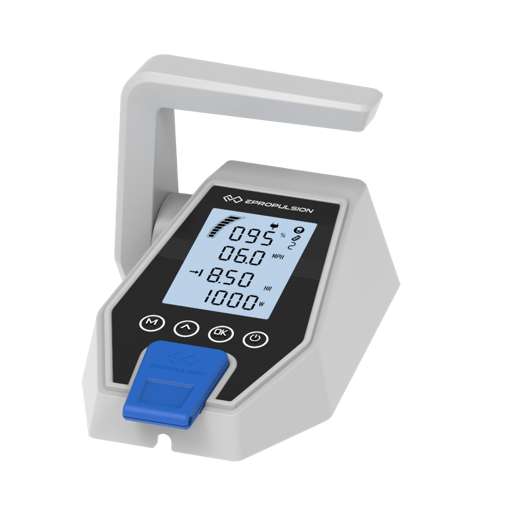

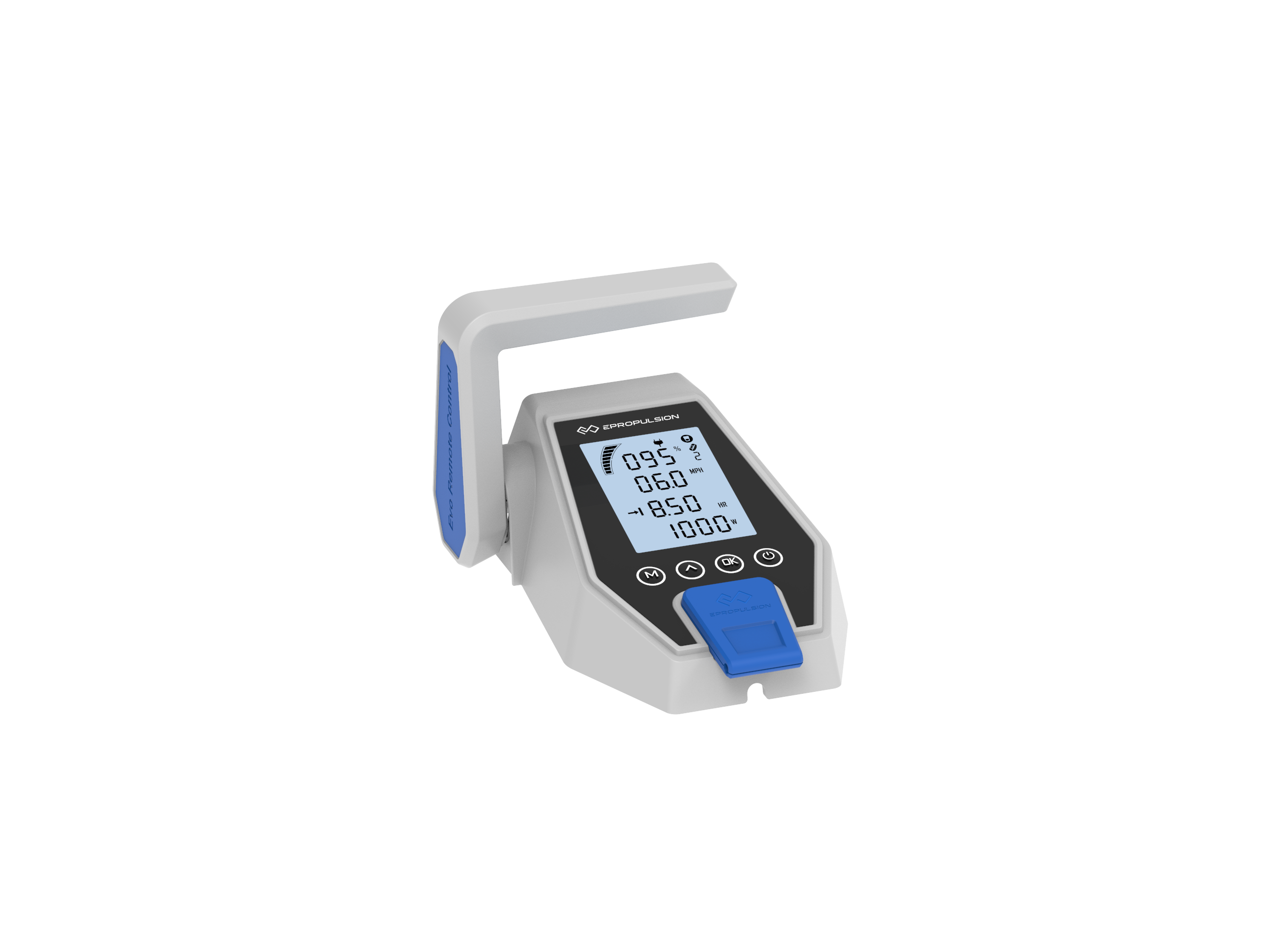

Evo Top Mount Control

Digital Display

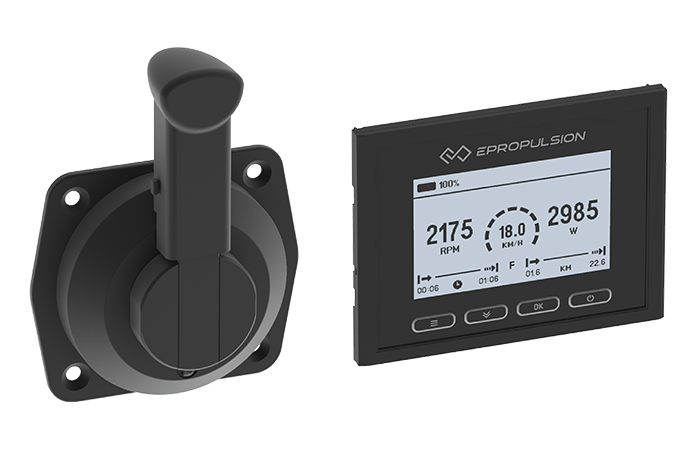

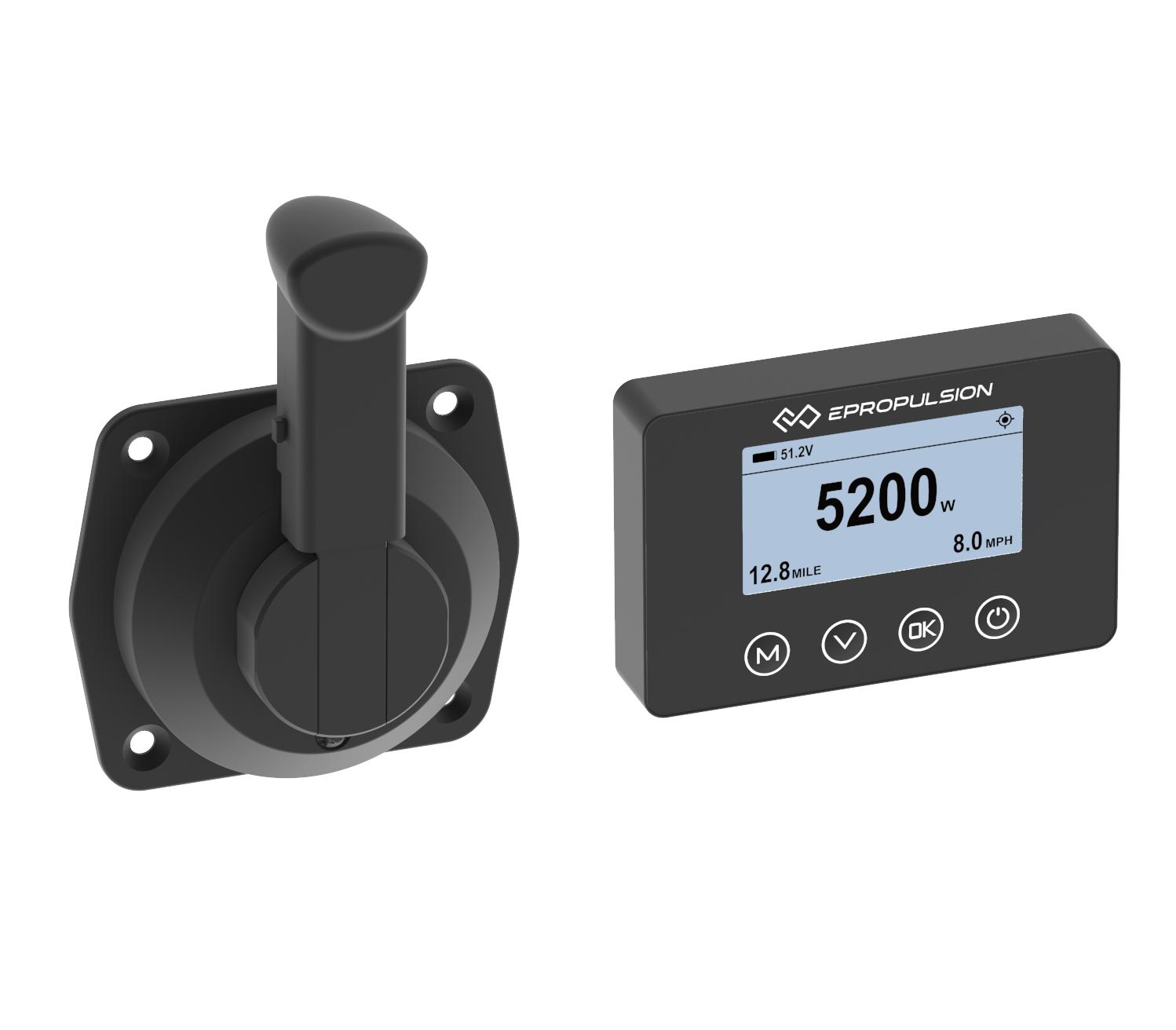

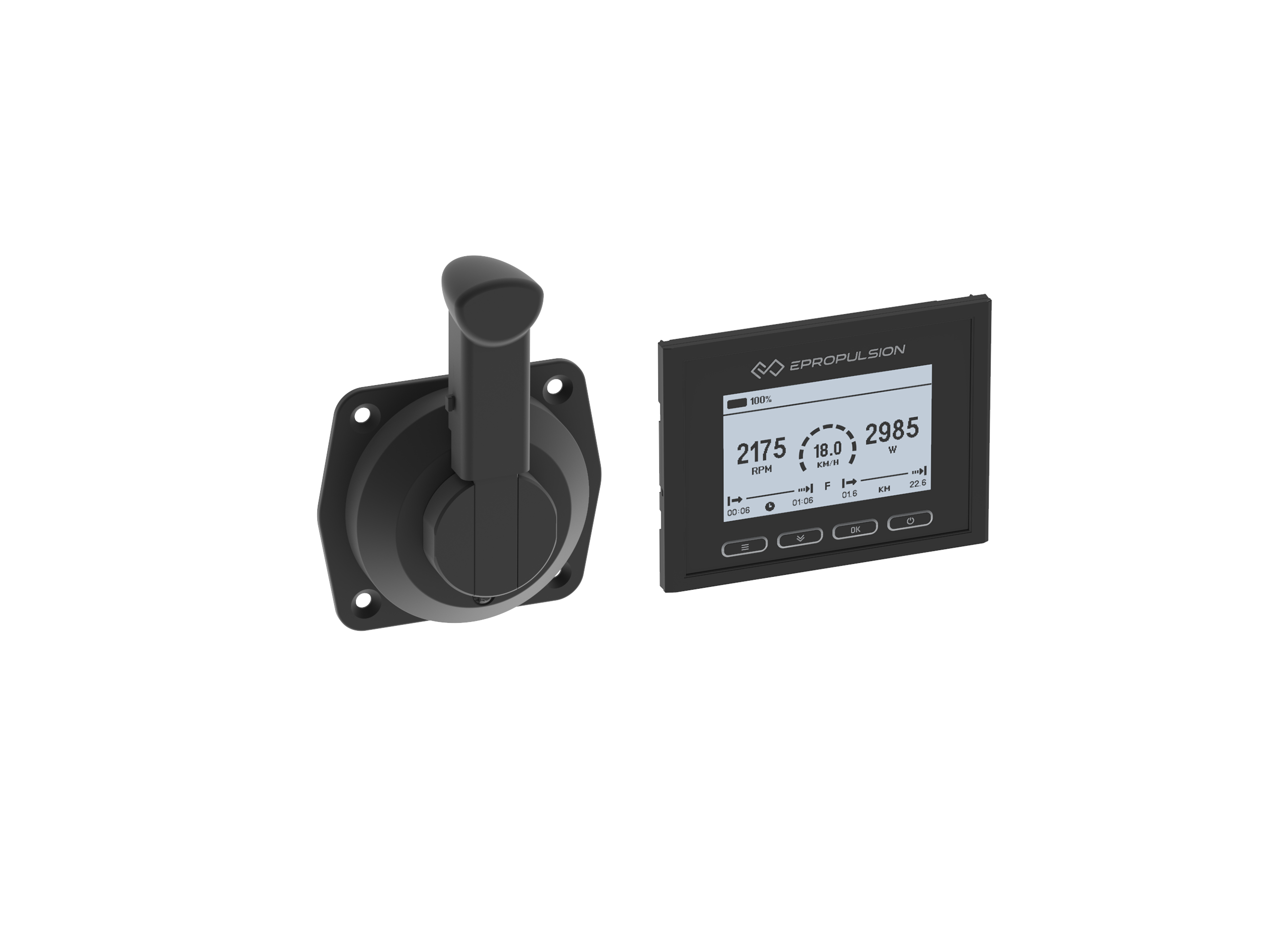

Evo Side Mount Control

digital display and remote

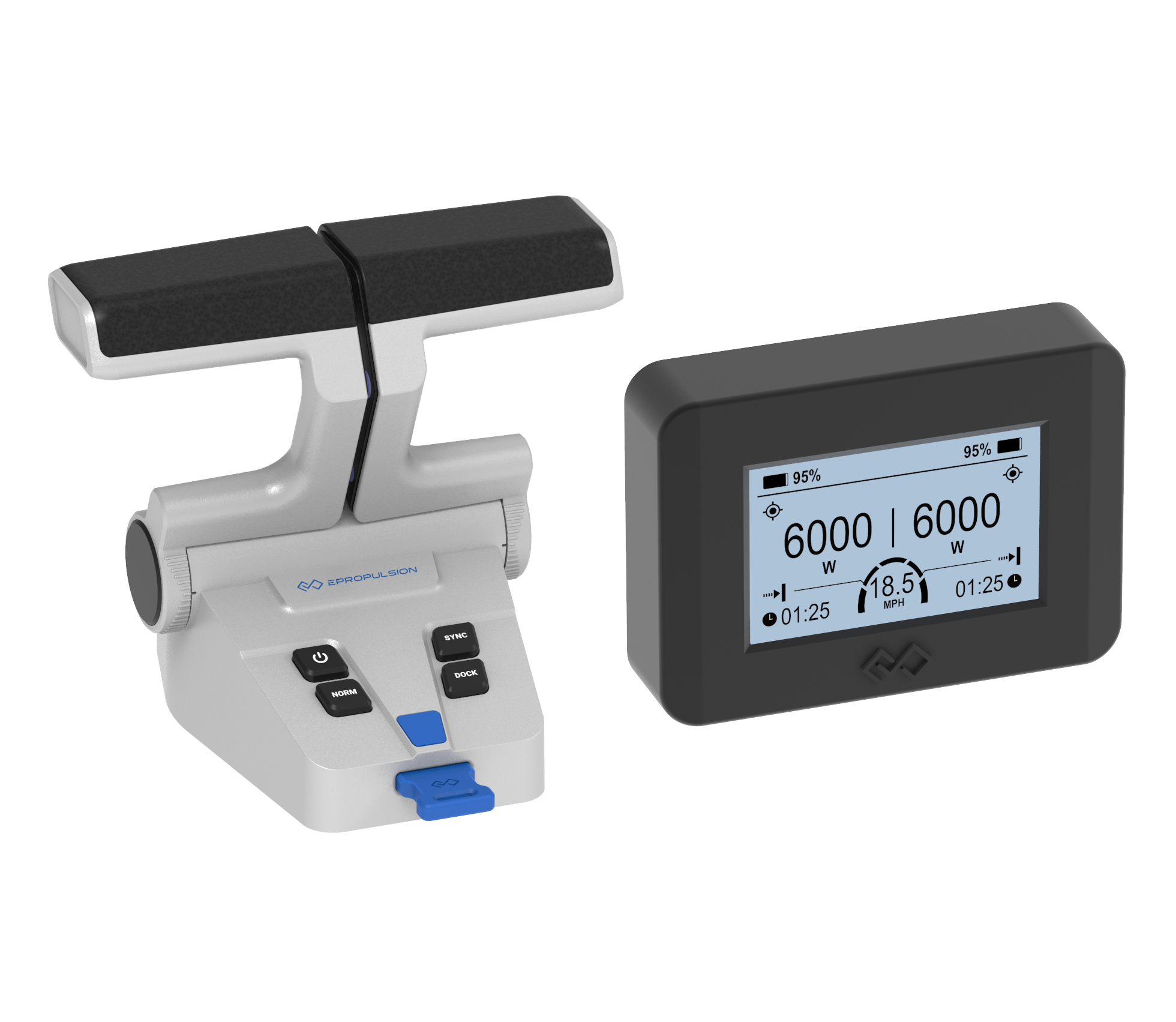

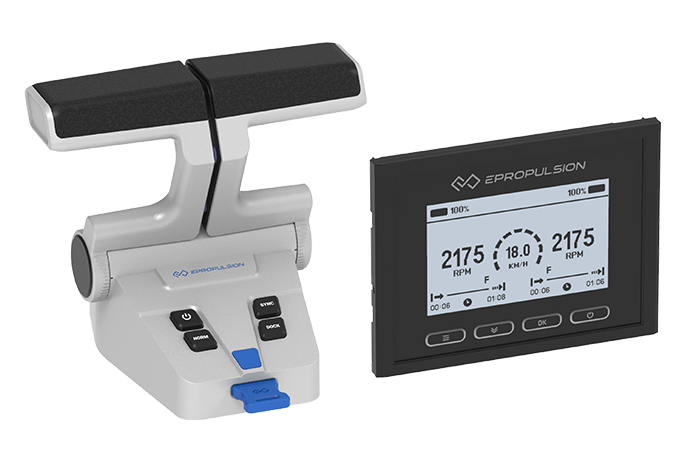

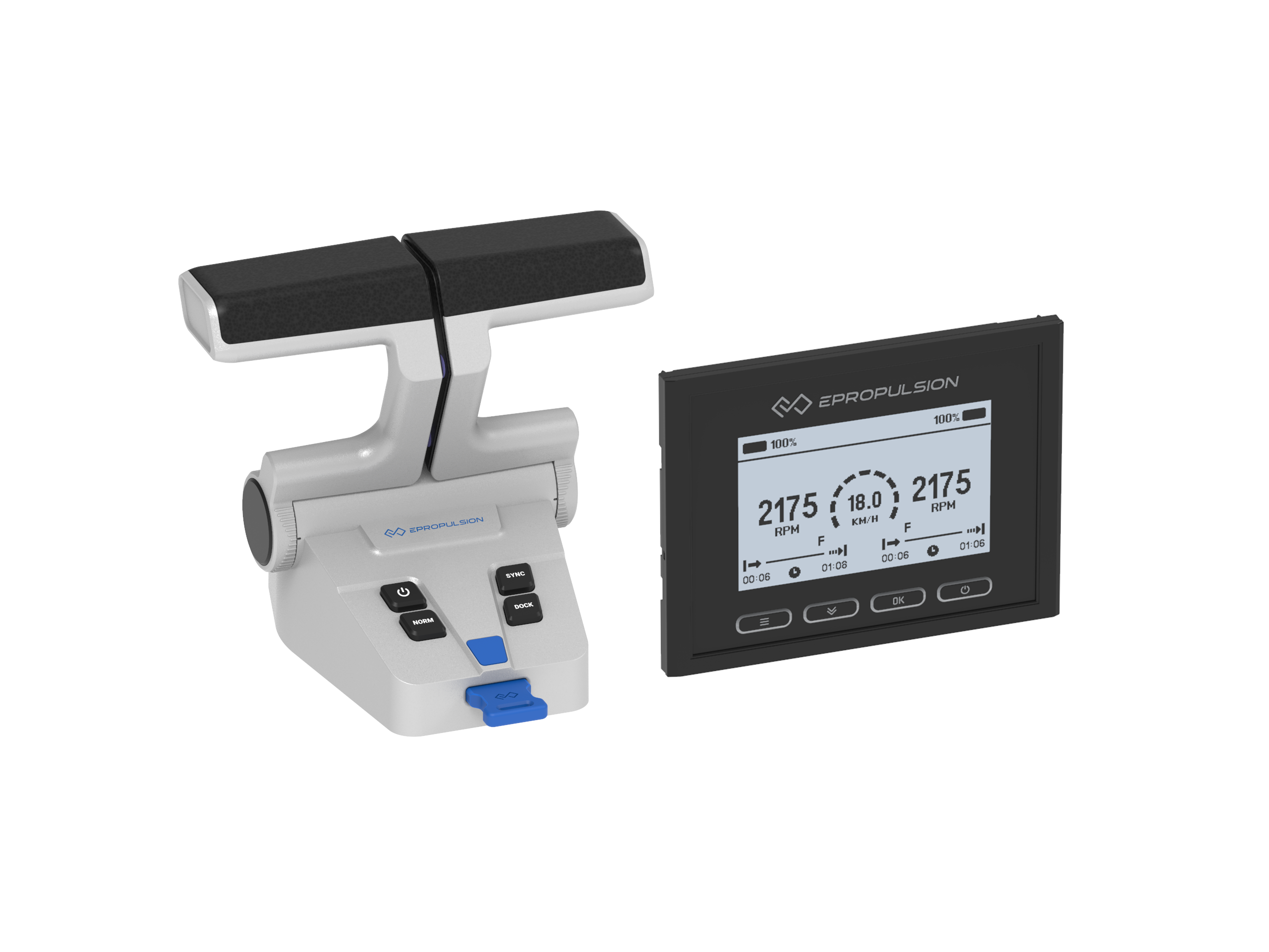

Evo Dual Control

Digital Display

Offers real-time monitoring of the power, remaining runtime, battery level, voltage, etc.

Electric Start

Press the button and you’re ready to go. Saves your trouble pulling the cord to start.

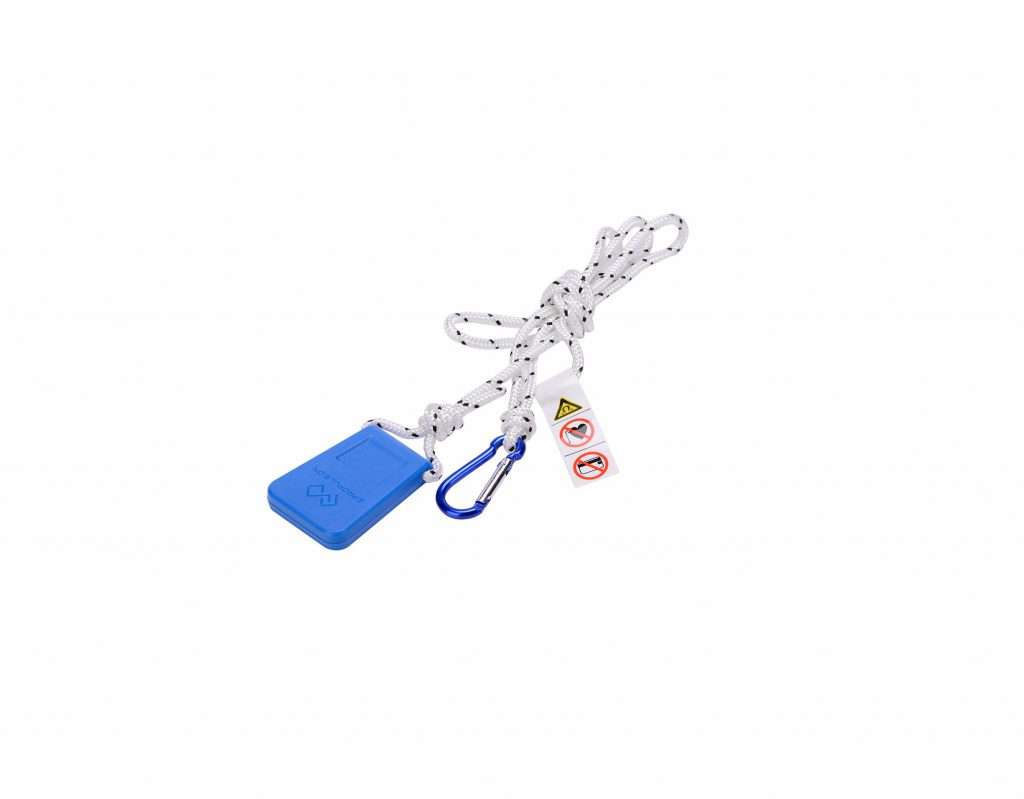

Magnetic Kill Switch

Works as an emergency stop key for ePropulsion electric outboards. Keeps you safe on the boat.

Smooth Throttle Changing

Designed with excellent throttle response and clear throttle hand feel.

Adjustable Max Power Output

Adjustable full throttle power makes the ePropulsion electric boat motors kids-friendly and suitable for rental boats.

Ambidextrous Operation

Turning throttle easily either from the left-hand or right-hand side.

2021 NEW

Safety Wristband

Easy-to-use and additional safety.

  • Man overboard protection

  • Wireless connection

  • Waterproof IP67

  • Max connection up to 8 wristbands per motor

Safety wristband works with Evo Tiller and Evo top mount control only, not compatible with Evo side mount control or Evo dual control.

Safety Wristband

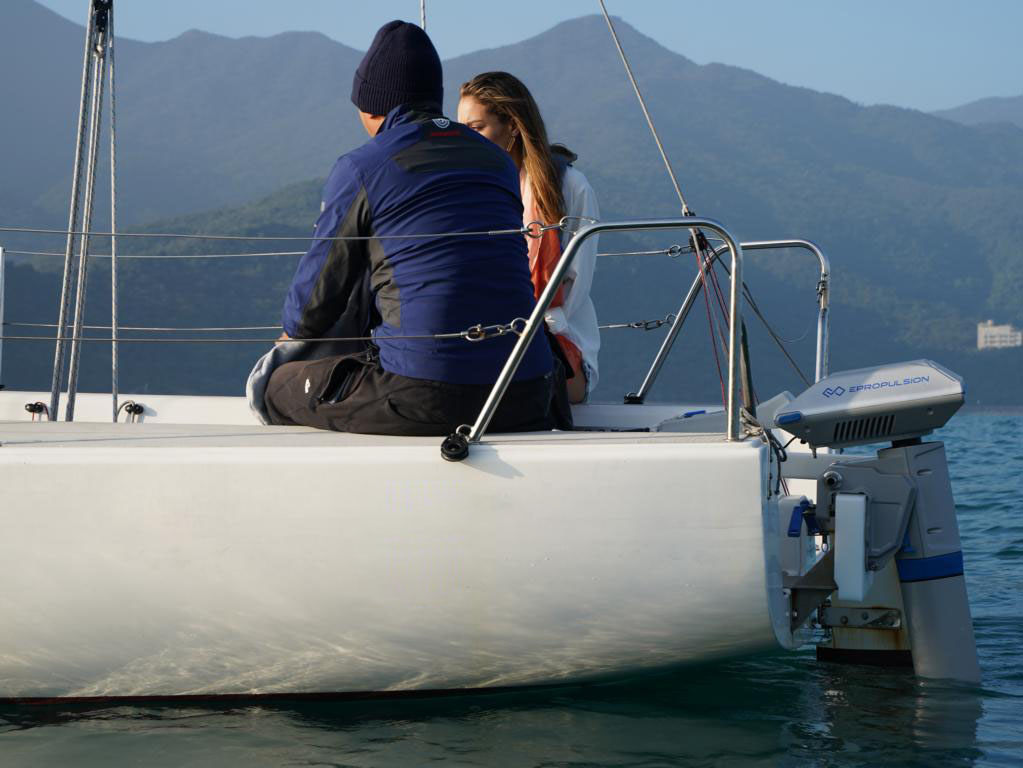

Hydrogenerator Empowers Sailors

Navy 3.0 / 6.0 Evo allows you to collect electricity from wind and water with hydrogeneration function. ePropulsion pioneers in the innovation of electric outboard motors.

Navy Series Electric Outboard Motor
  • The hydrogeneration data is based on real tests with the anti-ventilation plate installed.

  • Navy 6.0 Evo is tested with a 12.6″ x 8.7″ three-blade aluminium propeller that you could order separately.

Specs

Navy 3.0 Evo Navy 6.0 Evo
Power 3 kW (6HP equivalent) 6 kW (9.9HP equivalent)
Input voltage 39V – 60V 39 V – 60 V
Recommended Battery ePropulsion E-Series Battery ePropulsion E-Series Battery
Motor Weight* 24.3 kg / 53.6 lbs 36 kg / 79.4 lbs
Propeller 10.2″ × 6.7″ 2-blade composite propeller 12.6″ × 10.8″ 3-blade composite propeller / 13.4″ × 8.5″ 3-blade composite propeller / 12.6″ × 8.7″ 3-blade aluminum propeller (optional)
Trim / Tilt Angle 0°, 5°, 10°, 15° / 60° 0°, 5°, 10°, 15° / 60°
Shaft Length Short, Long Short, Long
Control Evo Tiller / Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control Evo Tiller / Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control
Hydrogeneration Yes Yes
Motor Brushless DC motor Brushless DC motor
Direct Drive Yes Yes
Maintenance-Free Yes Yes

* The weight is measured with the short shaft version.

What's in the Box

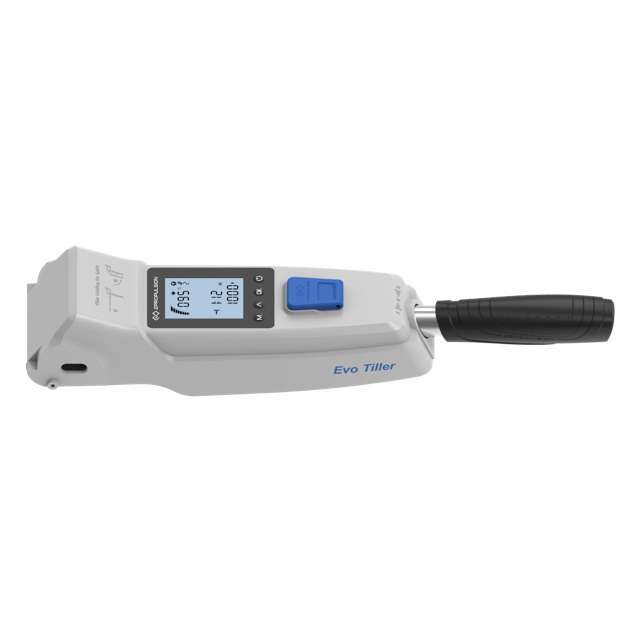

Evo Tiller

Evo Tiller

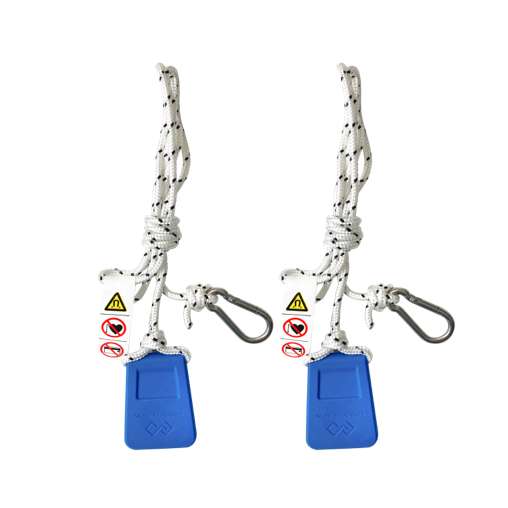

Kill Switch

Kill

Switch x 2

Invitation card

Invitation

Card

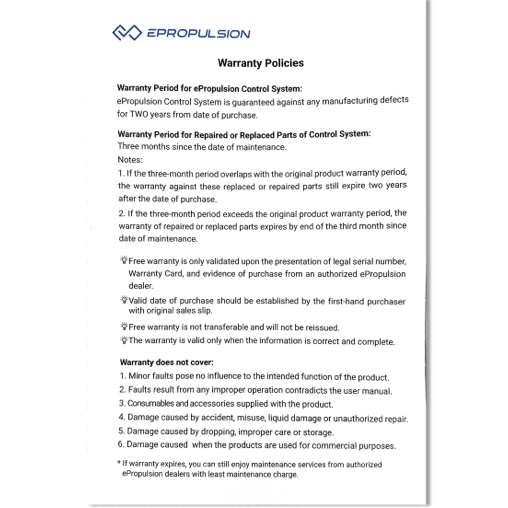

Warranty Card

Warranty

Card

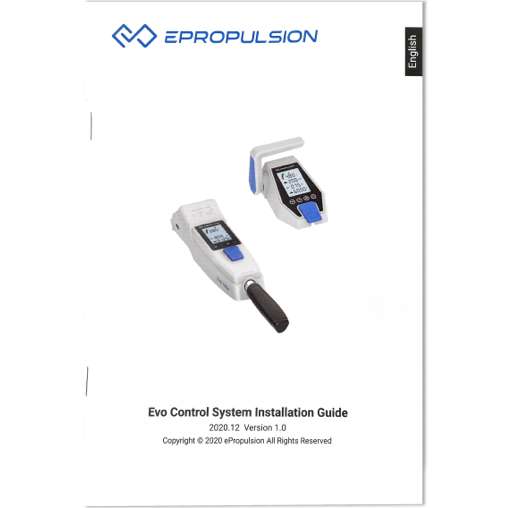

Evo Control System Installation Guide

User

Manual

Top Mount Control

Top Mount
Control

Kill Switch

Kill
Switch x 2

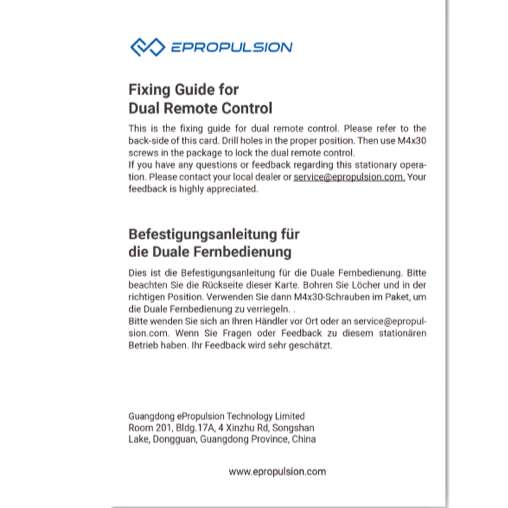

Fixing Guide for Remote Control

Fixing
Guide

Warranty Card

Warranty
Card

Evo Control System Installation Guide

User
Manual

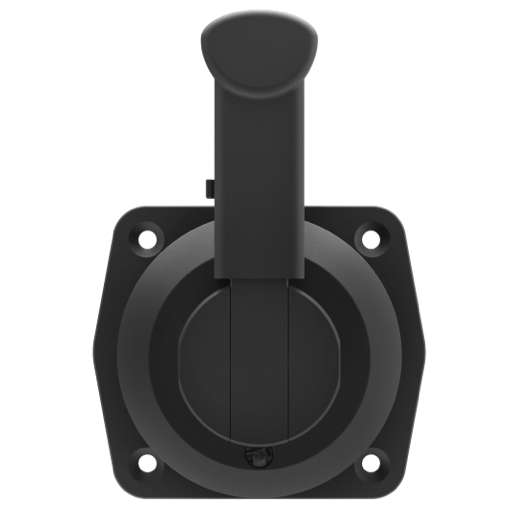

Throttle

Throttle

Display Panel

Display
Panel

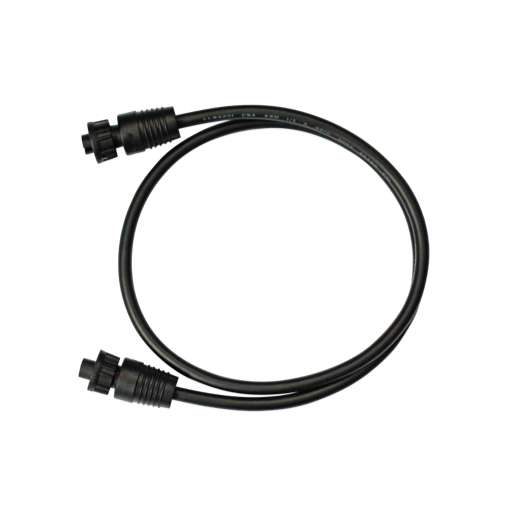

Communication Cable 0.5m

Communication
Cable 0.5m

Kill Switch

Kill
Switch x 2

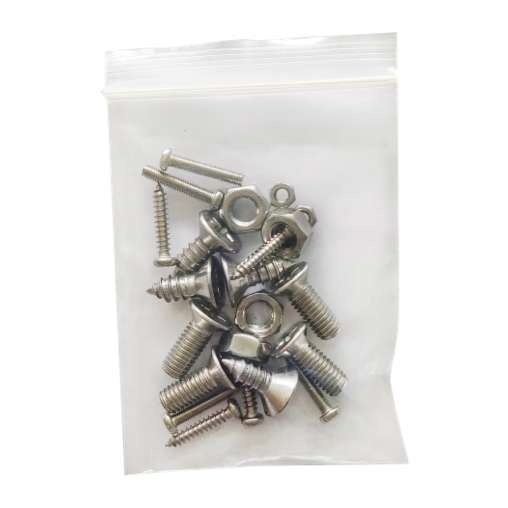

Screws and Nuts

Screws
and Nuts

Warranty card ePropulsion motor

Warranty
Card

Fixing Guide for Dual Remote Control

Fixing
Guide

Side Mount Control User Manual

User

Manual

Evo Side Mount Control Quick Start

Quick
Start

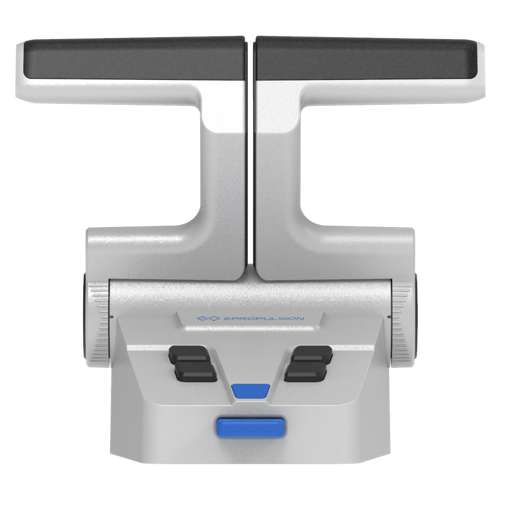

Dual Remote Control

Dual Remote
Control

Display Panel

Display
Panel

Communication Cable 0.5m

Communication
Cable 0.5m

Kill Switch

Kill
Switch x 2

Evo Side Mount Control Quick Start

Quick
Start

Warranty card ePropulsion motor

Warranty
Card

Fixing Guide for Dual Remote Control

Fixing
Guide

Evo Dual Remote Control User Manual

User
Manual

Accessories

Read More
Kill Switch
Read More
Navy 6.0 High Pitch Propeller
Read More

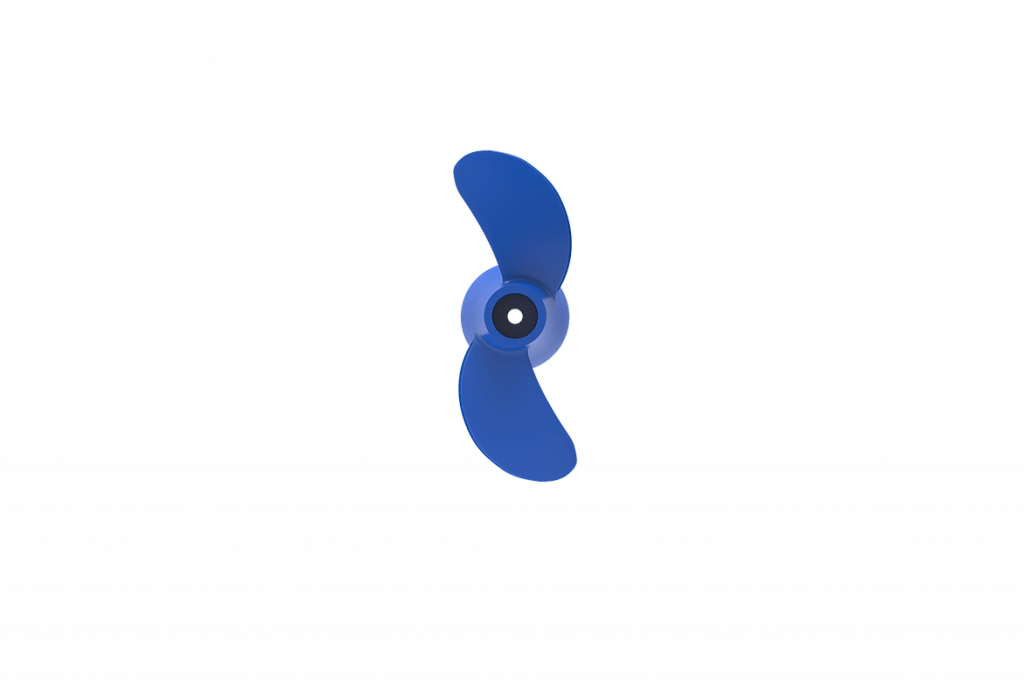

Navy 3.0 Propeller
Read More
Safety Wristband
Read More
Evo Side Mount Control
Read More
Evo Remote Control
Read More
Evo Tiller
Read More
Communication Extension Cable 5m
Read More
Communication Cable 0.5 m
Read More
Spirit 1.0 Plus Shaft Anode
Read More
Communication Cable 5 m
Read More
Navy Anticavitation Plate
Previous
Next

Have a Dealer Contact Me

Want to learn more about the product and get advice on purchase? Fill in the quick form within 3 minutes, and our local dealer near you will get in touch shortly.

FAQ

Can I use E40 to power Navy 3.0 Evo or E80 to power Navy 6.0 Evo?

  • Yes, but parallel connection is required. To power one Navy 3.0 Evo with E40, you need two E40 batteries in parallel. To power one Navy 6.0 Evo with E80, you need two E80 batteries in parallel.

Can I use third-party batteries to power Navy 3.0 / 6.0 Evo?

  • First, our original E-Series battery has the best unit price on the market, as low as $0.46 per WattHour.
  • Second, the E-Series battery weighs 70% less than the lead-acid battery with equivalent usable capacity, and costs 50% in five-year use.
  • Third, because of incompatible communication protocol, when powered by third-party batteries, the ePropulsion motor cannot access real-time battery status and apply the best operation strategy.
  • Despite all these, if you still prefer third party lithium or lead-acid batteries. The nominal battery voltage should be 48V. The continuous discharge current should be over 62.5A for Navy 3.0 Evo and 125A for Navy 6.0 Evo.

Do I need to charge the Evo top mount control?

The Evo top mount control has a built-in battery and it can be self-powered by its solar panel. When you use it with wireless connection and the control is at low battery level, you could charge the Evo top mount control with a communication cable.

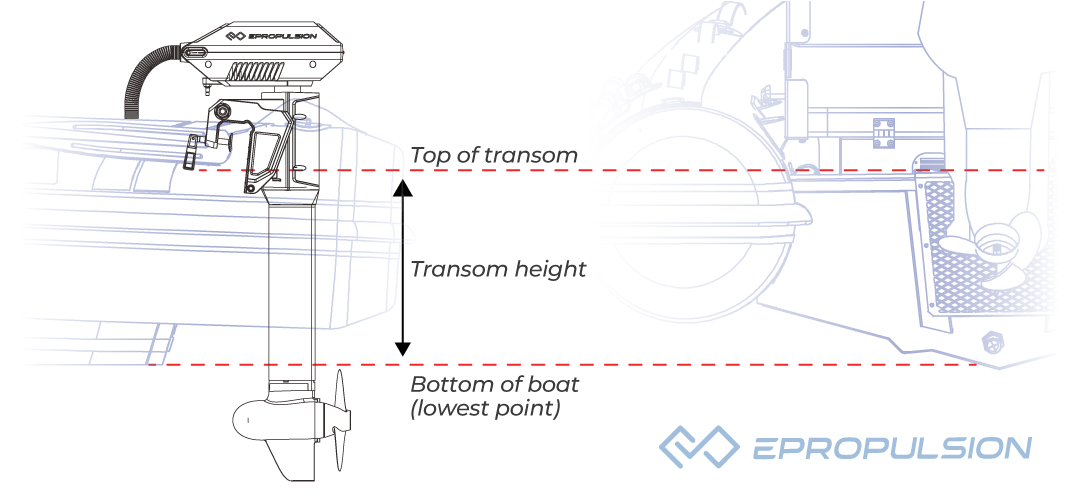

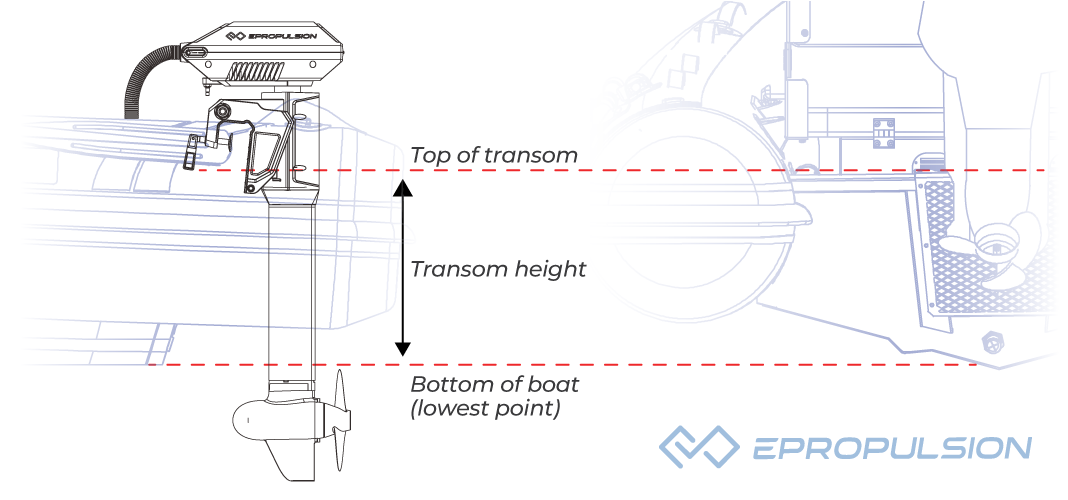

How to find the right shaft length?

For more info, please check ePropulsion Blog: How to Find Your Shaft Length

Will Navy 3.0 / 6.0 Evo work for saltwater use?

Yes, it is designed for extensive use in the saltwater. We choose high-quality aluminum alloy as the base material, and apply anodizing coating and powder coating on top of it. For more info, please check ePropulsion Blog: How do we make an outboard corrosion-resistant?
