I-Series
I-Series
Electric Inboard Motor
Highly-integrated
Compact
Smart
Connectivity
I-Series Electric Inboard Motor
ePropulsion I-Series is an environmental-friendly electric inboard motor series packed with innovative technology, smart features and human operation design. Underpinned by the highly integrated and modular ePropulsion Smart System Architecture (eSSA) and the IoT connectivity service, it provides users with an easy-to-use, intelligent, safe and reliable experience unlike any other.
Features

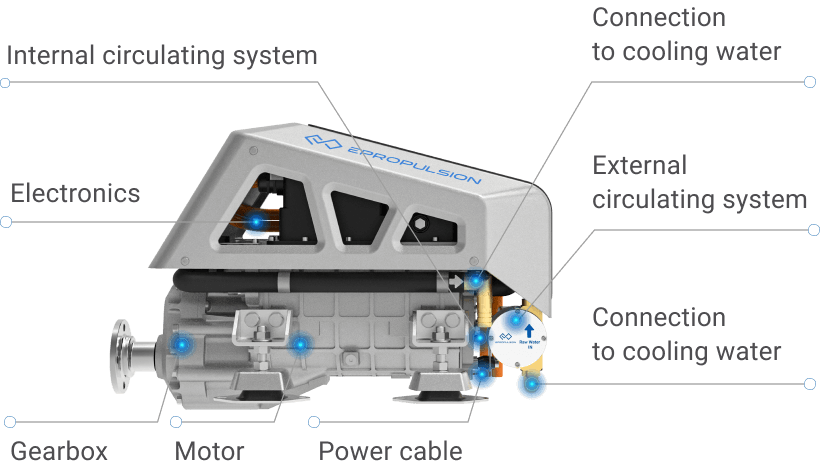

Compact and Integrated
A compact design that integrates five functional modules of motor, gearbox, motor controller, system control unit and cooling system into a very small space.
Space-saving
Take up 60% less space than typical combustion engines and greatly reduce the machine size*, providing installation flexibility and maximizing payload space for you.
Lighter weight
65% less weight than typical combustion engines and 30% lighter than electric inboard motors of similar range.*
Easy to install
Internal wiring has been connected before delivery, providing you with an out-of-the-box experience.
Easy to maintain
The technology and the design of the interfaces significantly lower the maintenance required than combustion engines.
* Under the same input power.

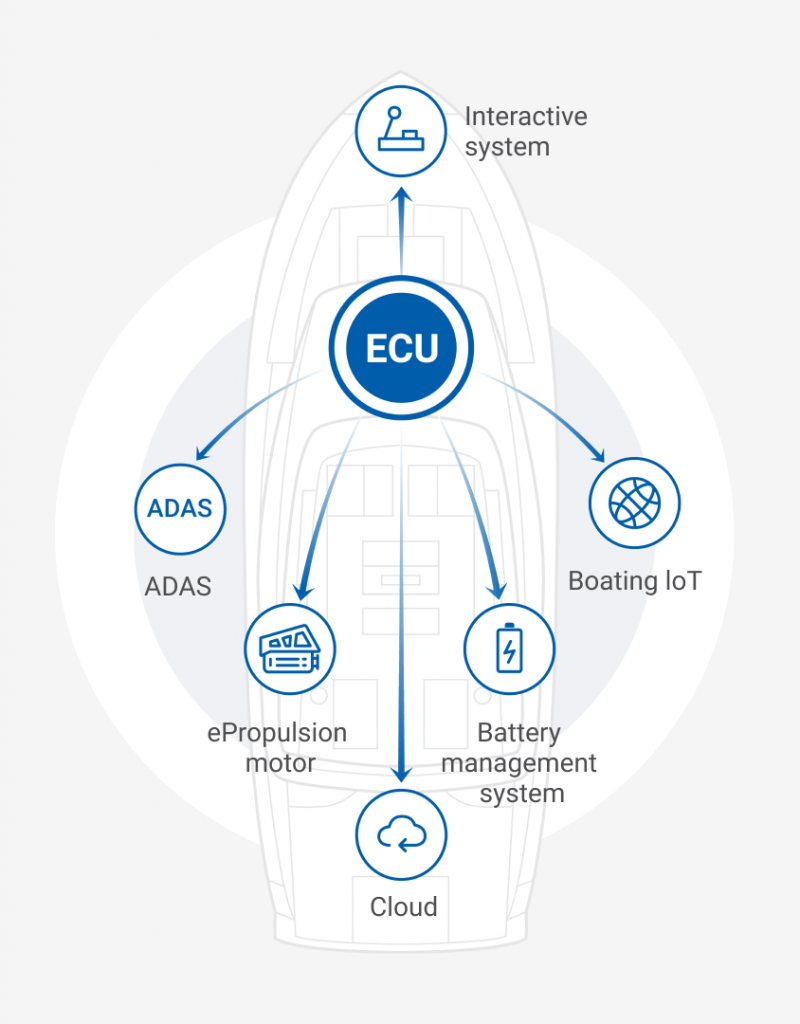

Build on
the state-of-art eSSA
Underpinned by the ePropulsion Smart System Architecture (eSSA), the I-Series inboard motor gives you a state-of-art solution. It features a smart and modular design to deliver you with safe and reliable performance and also supports the integration of ePropulsion Connectivity Service and ADAS.
Smart
Modular
Safe and Reliable
New Generation Controls under eSSA
The Smart Throttle and Smart Display 5″ provide excellent user experience in controlling and monitoring. The Smart Throttle supports 3 mounting options for flexible installation. You could always find a best fit for your boat.
Top or Side
Single or Dual
Portside or Starboard
* More control methods are coming...
Integrated with boating IoT
ePropulsion Connectivity Service is a value-added service enabling boat owners and fleet managers to communicate with their boats securely and reliably. It allows users to access cloud-based connectivity services without the need for additional accessories.
Remote data access
You can check all real-time data, such as location, speed, battery level, remaining charging time, etc.
Remote monitoring
Notify users when boats break geofences, exceed speed limits and have suspicious location changes.
Trip tracking
Automatically create boating trips with route playback and trip log.
Shared accounts
Invite other people to share access to real-time status, past activities and reports.
Guest authorization
Remotely authorize guests to power on and operate ePropulsion system with limited permissions.
Report generation
Automatically create boat reports and fleet reports to summarise all boating activities.
Battery
The G102-100 battery is designed to be fully compatible with your 96V 10kW to 40kW I-Series inboards.
Fully Compatible with I-Series Inboards
Safe and Reliable
High Energy Density
Long Life Cycle

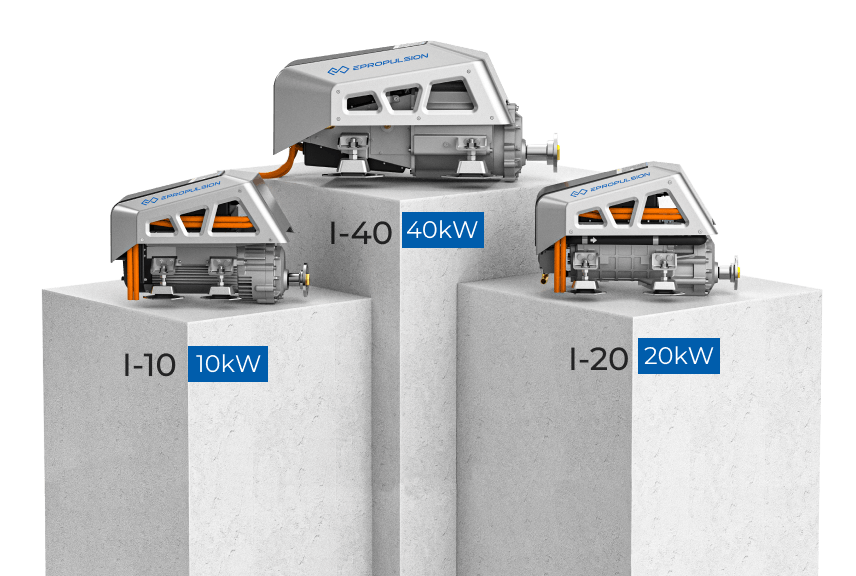

Specs
| Model | I-10 | I-20 | I-40 |
| Input power | 10 kW | 20 kW | 40 kW |
| Input voltage | 86 to 115 VDC | 86 to 115 VDC | 86 to 115 VDC |
| Weight | 45kg | 49.5kg | 85kg |
| Dimensions (L x W x H) | 565 x 295 x 380 mm | 580 x 330 x 380 mm | 790 x 450 x 410 mm |
| Cooling method | Air cooling | Water cooling (air cooling optional) | Water cooling (air cooling optional) |
| Rated rotational speed | 1500 rpm | 1500 rpm | 1000 rpm |
| Operation and interaction | Throttle & display (standard) | Throttle & display (standard) | Throttle & display (standard) |
| Connectivity service | Support | Support | Support |
Versatile Applications
Cruisers
Canal boats
Water buses
Water taxis
Fishing boats
Workboats
Monohull
sailboats
Catamaran
sailboats
What's in the Box
I-10 Inboard Motor x 1
ESSA Communication Extension Cable 10m x 1
ESSA Communication Cable 1m x 1
5-way T connector x 1
3-way T connector x 1
120Ω Communication Terminator x 1
360Ω Communication Terminator x 1
G Battery Output Cable Kit 5m (Positive & Negative) x 1
Bus Box 250A x 1
Warranty Card
Quality Certificate
User Manual
Invitation Card

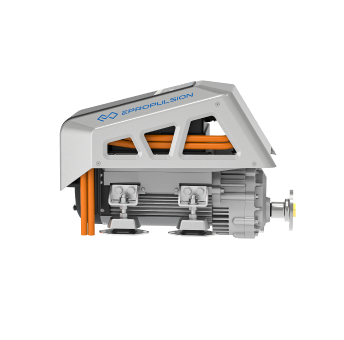

I-20 Inboard Motor x 1
ESSA Communication Extension Cable 10m x 1
ESSA Communication Cable 1m x 1
5-way T connector x 1
3-way T connector x 1
120Ω Communication Terminator x 1
360Ω Communication Terminator x 1
G Battery Output Cable Kit 5m (Positive & Negative) x 1
Bus Box 250A x 1
Warranty Card
Quality Certificate
User Manual
Invitation Card
I-40 Inboard Motor x 1
ESSA Communication Extension Cable 10m x 1
ESSA Communication Cable 1m x 1
5-way T connector x 1
3-way T connector x 1
120Ω Communication Terminator x 1
360Ω Communication Terminator x 1
G Battery Output Cable Kit 5m (Positive & Negative) x 1
Bus Box 250A x 1
Warranty Card
Quality Certificate
User Manual
Invitation Card
Download
Accessories
A wide range of accessories are provided to you. Optional modules are available to provide a complete and bespoke solution for boat electrification and customisation.
Read More
Smart Throttle
Read More
Smart Display 5"
Read More
G102-100 Battery
Read More

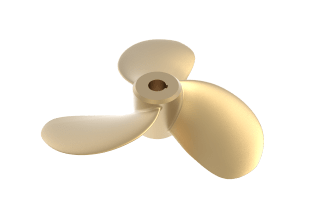

Propeller
Read More
Air-cooling
Read More
HVAC System
Read More
Shaft and Coupling
Read More
Charger
