X Series Electric Outboard Motor for Boat

X Series
Electric Outboard Motors

40kW

20kW

12kW

NEW

Clean · Quiet · Powerful · Easy-to-Use

X Series Electric
Outboard Motors

40kW

20kW

12kW

NEW

Clean · Quiet · Powerful · Easy-to-Use

X Series
Electric Outboard Motor

The ePropulsion X Series electric outboards are zero-emission electric propulsion system with an industry-leading powertrain efficiency of 88.2%. The X Series features a compact & fully integrated design, electric steering system, advanced driving assistance functions and connectivity service. The modular architecture not only simplifies installation but also allows for seamless integration with renewable energy sources.

Compact & Fully Integrated Space-Saving Design

The electric steering, power trim/tilt, ECU (electric control unit), and motor controller are all integrated into one unit.

40/20/12 kW

of continuous power.

88.2%

total powertrain efficiency
(excluding propeller).

Max.

36%

less weight than its conventional equivalent*.

* The weight includes the engine and the steering.

Narrow footprint, with no external steering gear, maximises valuable stern space…more room forboarding, swimming and socialising.

Advanced propeller design

Unparalleled hydrodynamic performance and higher efficiency.

Narrow footprint, with no external steering gear, maximises valuable stern space…more room forboarding, swimming and socialising.

The electric steering, power trim/tilt, ECU (electric control unit), and motor controller are all integrated into one unit.

Advanced propeller design

Unparalleled hydrodynamic performance and higher efficiency.

40/20/12 kW

of continuous power.

88.2%

total powertrain efficiency (excluding propeller).

Max. 36%

less weight than its conventional equivalent*.

* The weight includes the engine and the steering.

Performance and Range*

	X40			X20			X12
Output (kW)	10	20	40	5	10	20	3	6	12
Speed (kph / mph)	12.6 / 7.8	15.4 / 9.6	35.9 / 22.3	11 / 6.8	14 / 8.7	26 / 16.2	14.5 / 9	20.4 / 12.7	30.1 / 18.7
Runtime (hh:mm)	4:00	2:00	1:00	4:00	2:00	1:00	3:20	1:40	0:50
Range (km/ mile)	50.4 / 31.3	30.8 / 19.1	35.9 / 22.3	44 / 27.3	28 / 17.4	26 / 16.2	48.3 / 30	34 / 21.1	25.1 / 15.6

X40

Output (kW)	10	20	40
Speed (kph / mph)	12.6/7.8	15.4/9.6	35.9/22.3
Runtime (hh:mm)	4:00	2:00	1:00
Range (km / mile)	50.4/31.3	30.8/19.1	35.9/22.3

* The X40’s performance data is based on a 20-foot V hull aluminum boat with two persons (130kg), powered by one X40 with four G102-100 batteries (total boat weight 1030kg), in calm lake water.

X20

Output (kW)	5	10	20
Speed (kph / mph)	11/6.8	14/8.7	26/16.2
Runtime (hh:mm)	4:00	2:00	1:00
Range (km/ mile)	44/27.3	28/17.4	26/16.2

* The X20’s performance data is based on a 14-foot V hull aluminum boat with two persons, powered by one X20 with two G102-100 batteries (total boat weight 660kg), in calm lake water.

X12

Output (kW)	3	6	12
Speed (kph / mph)	14.5/9	20.4/12.7	30.1/18.7
Runtime (hh:mm)	3:20	1:40	0:50
Range (km/ mile)	48.3/30	34/21.1	25.1/15.6

* The X12’s performance data is based on a 11-foot aluminum hull inflatable boat with one person, powered by one X12 with one G102-100 battery (total boat weight 320kg), in calm lake water.

* The X40’s performance data is based on a 20-foot V hull aluminum boat with two persons (130kg), powered by one X40 with four G102-100 batteries (total boat weight 1030kg), in calm lake water.
The X20’s performance data is based on a 14-foot V hull aluminum boat with two persons, powered by one X20 with two G102-100 batteries (total boat weight 660kg), in calm lake water.
The X12’s performance data is based on a 11-foot aluminum hull inflatable boat with one person, powered by one X12 with one G102-100 battery (total boat weight 320kg), in calm lake water.

Enhanced User Experience

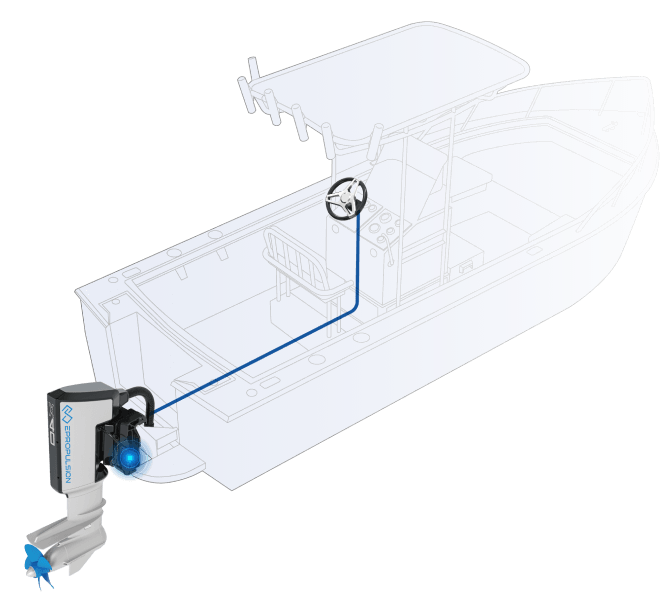

Integrated electric steering

The X Series’ electric steering eliminates the need for hydraulics, so it’s easier to install and maintain. It also serves as a gateway to our Advanced Driving Assistance Systems, with enhanced safety and control features that revolutionise the boating experience.

Power trim/tilt

Comfortable and intuitive control

X Series’ digital helm and smart throttles, with instant digital feedback, are responsive and easy to operate, even for boating novices.

Enhanced User Experience

Power trim/tilt

Comfortable and intuitive control

X Series’ digital helm and smart throttles, with instant digital feedback, are responsive and easy to operate, even for boating novices.

Streamlines installation.
Minimises complex wiring.

Integrated electric steering

Cutting-edge driving assistance features

Integrated electric steering enables automated features such as “Position Hold”, “Heading Hold”, and “360 Motions” for additional safety and easy control. More features to come in the future.

Position Hold

Heading Hold

360 Motions

ePropulsion Smart System Architecture (eSSA)

eSSA makes setting up an X Series system seamless and worry-free. The modular architecture supports simple and safe connection of multiple components and enables integration with renewable energy sources, enhancing the sustain ability of your boating experience.

A comprehensive range of accessories:

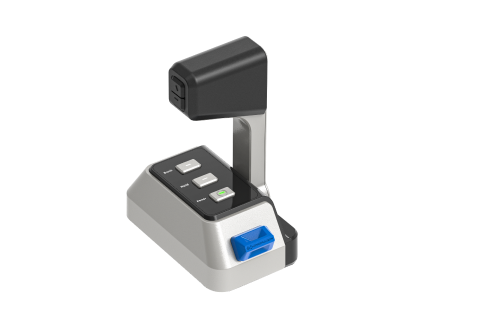

▪︎ Smart Throttle

▪︎ Digital Helm

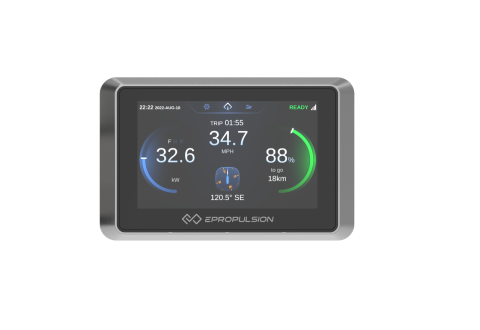

▪︎ Smart Display 5″

▪︎ Smart Display 10″

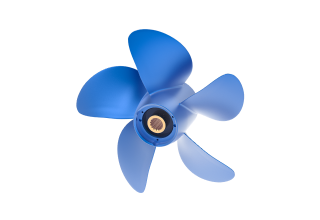

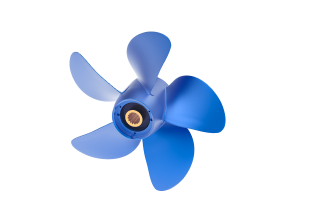

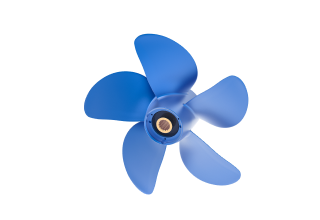

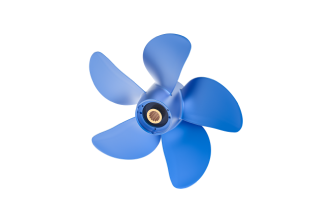

▪︎ Propellers

for different speeds
or conditions

▪︎ G102-100 Battery

▪︎ MPPT Solar Charge Controller

▪︎ DC-DC Converter

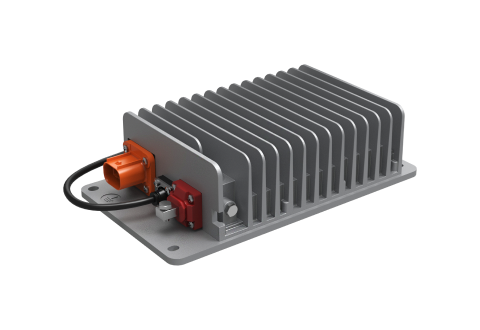

▪︎ Battery Chargers

with different power
capacities

▪︎ More coming soon…

ePropulsion Link

Connectivity

X Series motors have ePropulsion’s Connectivity Service built in. This keeps you in touch with your boat’s status in real time, including monitoring, reporting, and trip tracking functions.

Made to Last

Waterproof IP67.

Multi-collision protection

A safe and reliable 96V electrical platform complying with IEC standards.

Minimum 5,000 hours of service life**.

** Under experimental conditions.

Ultra-Low Noise, Vibration, and Harshness (NVH)

At their maximum noise level of 73 dBA, X Series outboards are quieter than most offices! Achieved through advanced damping technology and frequency resonance isolation, this means you can enjoy the water more, without shouting at each other or scaring away the wildlife.

Environmentally Friendly

X Series outboards are zero-emission. Compared to a 60 hp petrol outboard, operating at full power for 100 hours, an X40 would save 1900 litres of petrol and 4.3 tonnes of CO₂ pollution.

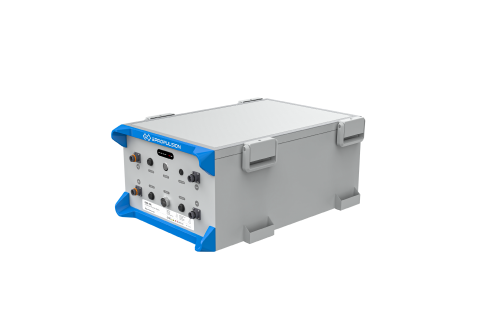

Battery

The G102-100 battery is designed to be fully compatible with your 96V X Series electric outboard motors

Fully Compatible with X Series electric outboard motors

Safe and Reliable

High Energy Density

Long Life Cycle

Specs

	L Shaft	XL Shaft
Motor Weight (excluding control)	104 kg (220.3 lbs)	106 kg (233.7 lbs)
Shaft Length	508 mm (20″)	635 mm (25″)
Dimensions (L x W x H)	757 x 350 x 1233 mm (29.8 x 14.2 x 48.5″)	757 x 360 x1360 mm (29.8 x 14.2 x 53.5″)
Input Power	40kW
Nominal Voltage	96 VDC
Cooling System	Closed loop liquid cooling
Rated RPM	1500 to 2000
Trim and Tilt	Power trim & tilt
Trim / Tilt Angle	-4° to 61°
Steering	Integrated electric steering
Steering Angle	±45°
Propeller	15” x 10 3/4” propeller (available in L&R rotation) 13 3/8” x 16 3/4″ propeller (available in L&R rotation)

	L Shaft	XL Shaft
Motor Weight (excluding control)	79 kg (174.2 lbs)	81 kg (178.6 lbs)
Shaft Length	508 mm (20″)	635 mm (25″)
Dimensions (L x W x H)	674 x 360 x 1229 mm (26.5 x 14.2 x 48.4”)	674 x 360 x 1356 mm (26.5 x 14.2 x 53.4”)
Input Power	20kW
Nominal Voltage	96 VDC
Cooling System	Natural cooling
Rated RPM	1200 to 1800
Trim and Tilt	Power trim & tilt
Trim / Tilt Angle	-4° to 61°
Steering	Integrated electric steering
Steering Angle	±45°
Propeller	15” x 10 3/4” propeller (available in L&R rotation) 13 3/8” x 16 3/4″ propeller (available in L&R rotation)

	S Shaft	L Shaft
Motor Weight (excluding control)	48 kg (105.8 lbs)	50 kg (110.2 lbs)
Shaft Length	381 mm (15”)	508 mm (20”)
Dimensions (L x W x H)	560 x 266 x 978 mm (22 x 10.5 x 38.5”)	560 x 266 x 1105 mm (22 x 10.5 x 43.5”)
Input Power	12kW
Nominal Voltage	96 VDC
Cooling System	Natural cooling
Rated RPM	1100 to 2000
Trim and Tilt	Power trim & tilt
Trim / Tilt Angle	-4° to 61°
Steering	Integrated electric steering
Steering Angle	±45°
Propeller	11 13/16” x 10 5/8” propeller (available in L&R rotation) 11 7/16” x 14 3/16” propeller (available in R rotation)

What's in the Box

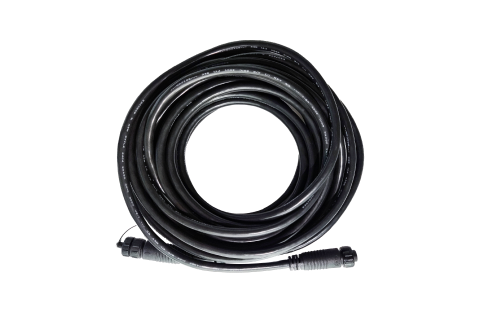

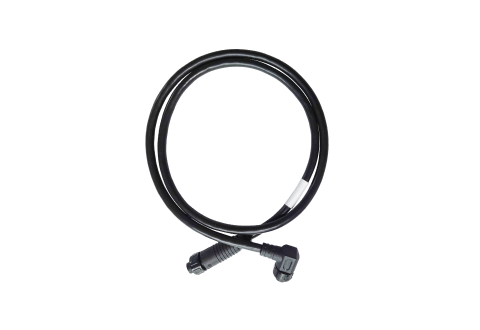

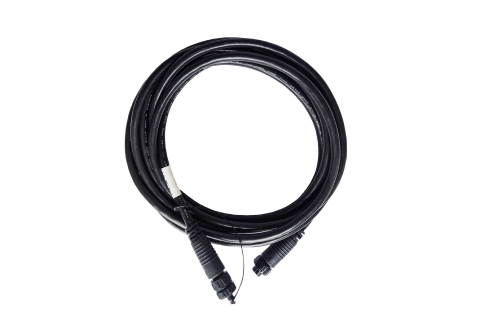

Accessories

A wide range of accessories are provided to you. Optional modules are available to provide a complete and bespoke solution for boat electrification and customisation.
