The industry-first hydrogeneration capability

Spirit 1.0 Evo

3HP
1kW
Electric Outboard Motor
1276Wh
Direct-Drive
Hydrogeneration

Spirit 1.0 Evo

Made for Sailing

Spirit 1.0 Evo Remote

Made for Remote Steering

Introducing Spirit 1.0 Evo

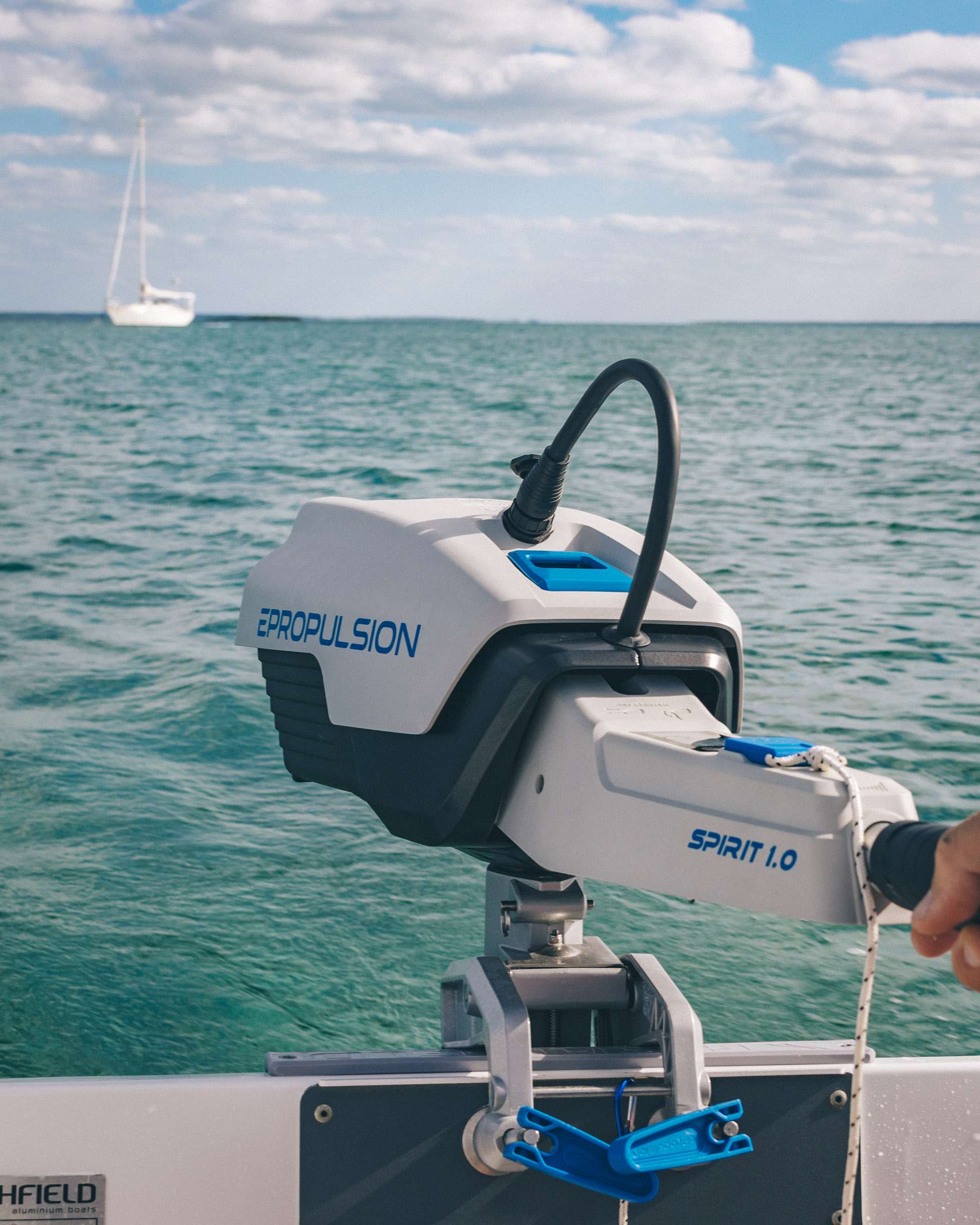

Spirit 1.0 Evo is a portable 3HP electric outboard made for dinghies, fishing boats, and sailboats. It features a 1276Wh large integrated lithium battery for long range. The hydrogeneration function is great for sustainable sailing experience. The safety wristband keeps you safe in case of MOB.

Hydrogeneration

Spirit 1.0 Evo is the first-ever electric outboard that features hydrogeneration. ePropulsion pioneers in the innovation of electric outboard motors and we dedicate ourselves to sustainable sailing.

The hydrogeneration data is based on real tests with the anti-ventilation plate installed.

Performance

At the core of Spirit 1.0 Evo electric outboard motor, it’s a 1kW BLDC motor, equivalent to 3HP.

Power (W)Speed (mph / kph)Runtime (hh:mm)Range (mile / km)
352.2 / 3.536:2580 / 129
652.7 / 4.319:3553 / 85.3
1253.5 / 5.610:0035 / 56
2504.4 / 7.15:0022 / 35.5
5005.3 / 8.52:3013.3 / 21.3
7505.7 / 9.21:409.5 / 15.3
10006.2 / 101:157.8 / 12.5

*The performance data is based on a 12-foot aluminum boat with one person and one Spirit battery Plus in calm lake water. The actual speed, range and running time may vary because of different boats, load, weather, etc.

With one charge, you can go 22 miles at 4.5 mph, or go fishing all day long at trolling speed.

Battery

The integrated rechargeable battery is lightweight, only 19 lbs or 8.7 kg, and robust for tough conditions.

Positive Buoyancy

Never worry the battery drops into the water.

1276Wh Capacity

High energy density in a compact size to build large battery capacity.

180W Solar Charging

Dual power ports allow solar charging when discharging.

E-Series Battery

Extend the runtime to an entire day by replacing the integrated Spirit battery.

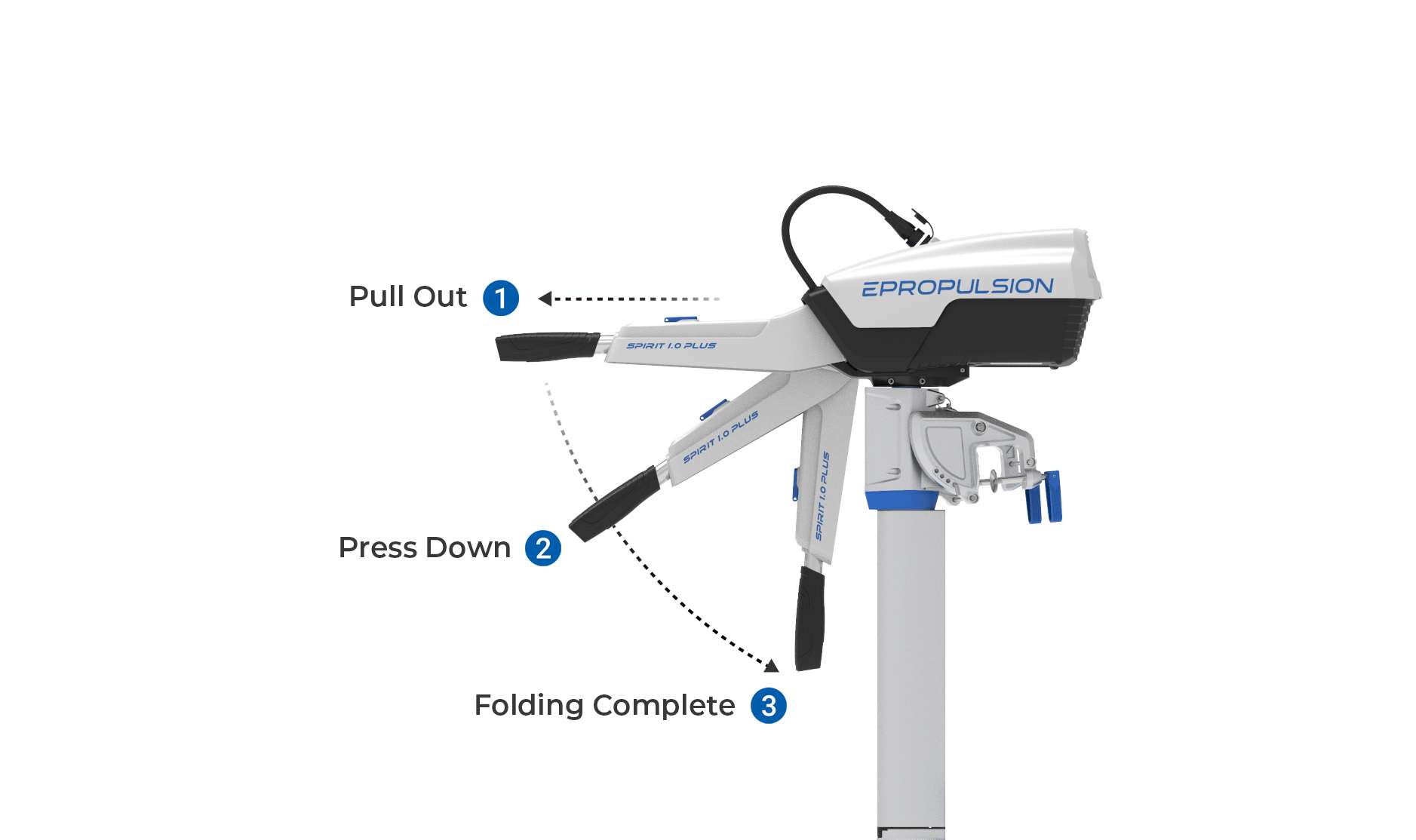

Designed for Portability

Spirit 1.0 Evo outboard with battery is portable & easy to transport. It would be a pleasure to have Spirit 1.0 Evo in your gear list when preparing a trip.

Digital Operation

Electric outboard motors are easy to operate and keep you informed of operation status.

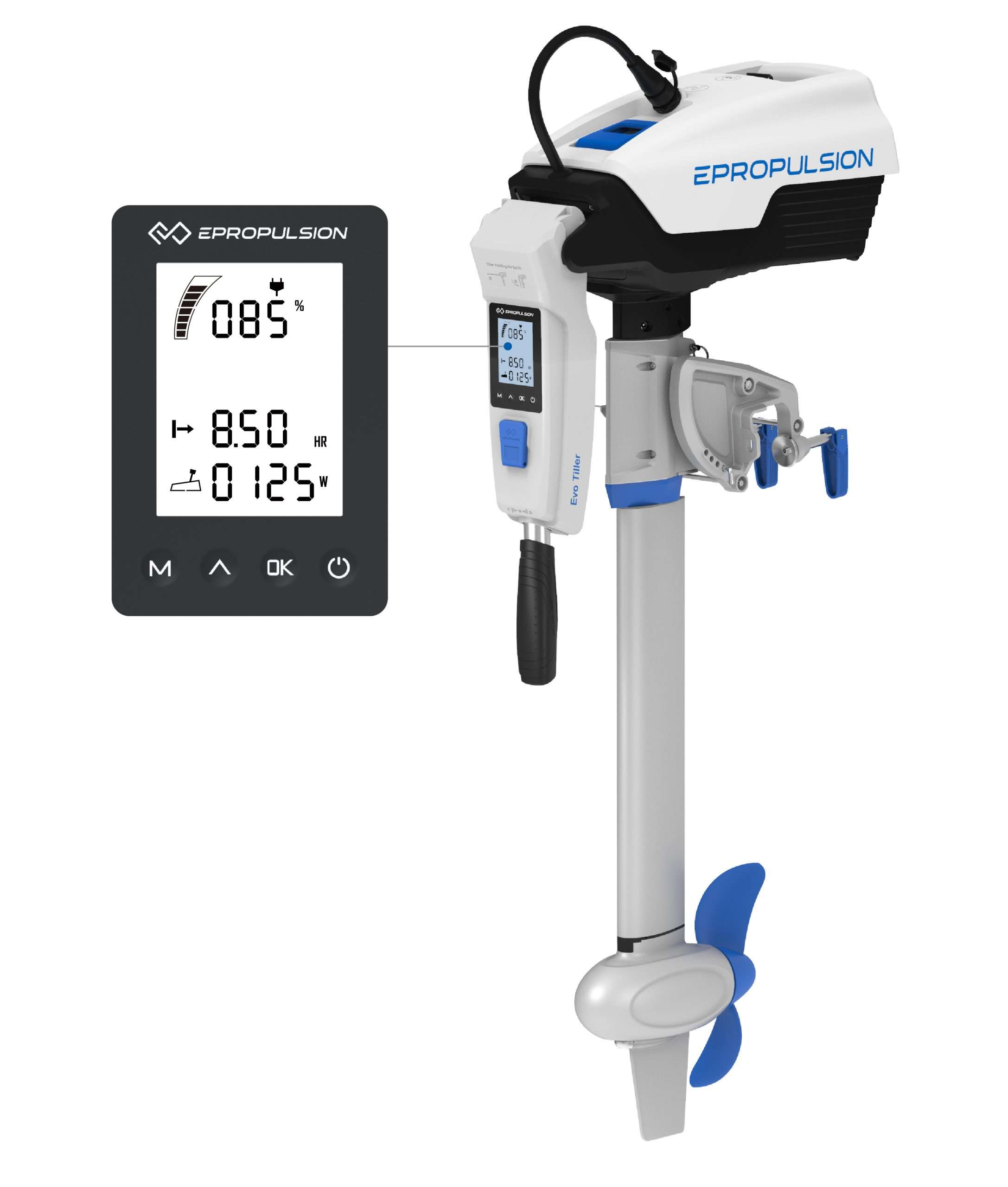

Digital Display

You have access to real-time power, remaining runtime, battery level, operating voltage, etc.

Electric Start

Press one button and you’re ready to go. No more tiring pull cord start.

Magnetic Kill Switch

Stop the motor in an emergency and keep you safe.

Stepless throttle changing

The throttle hand feel is clear, smooth and enjoyable.

Max Power Output Adjustment

With a smaller full throttle power, it’s safer for kids and rental boat

Friendly to the Left-handed

Swap propulsion between turning throttle clockwise and anticlockwise

2021 NEW

Safety Wristband

Easy-to-use and additional safety.

  • Man overboard protection

  • Wireless connection

  • Waterproof IP67

  • Max connection up to 8 wristbands per motor

Safety wristband works with Evo Tiller and Evo top mount control only, not compatible with Evo side mount control or Evo dual control.

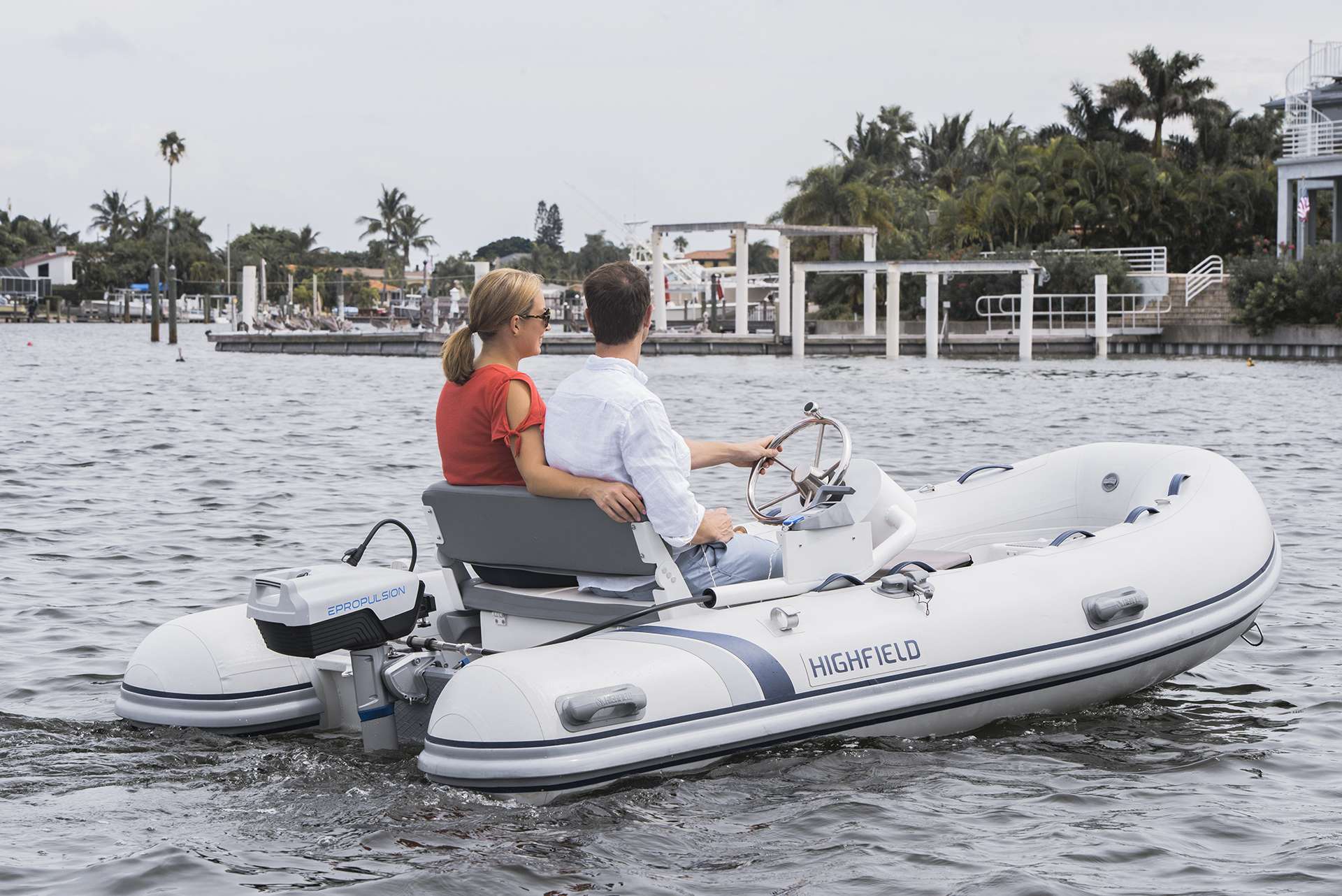

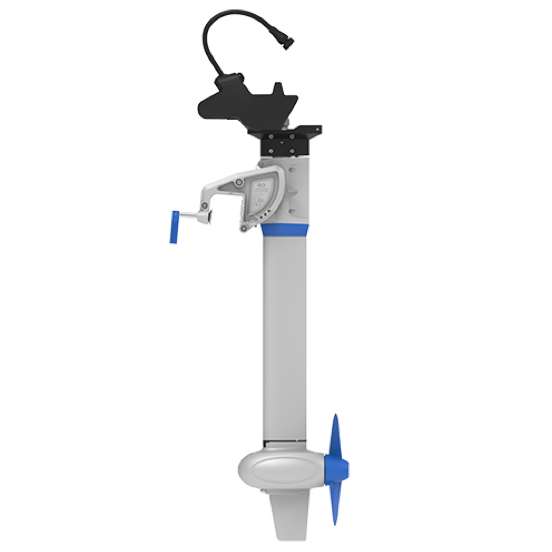

Remote Control Capability

Spirit 1.0 Evo Remote is the only electric outboard under 5HP on the market that allows remote helm steering. You could choose either Evo top mount control or Evo side mount control.

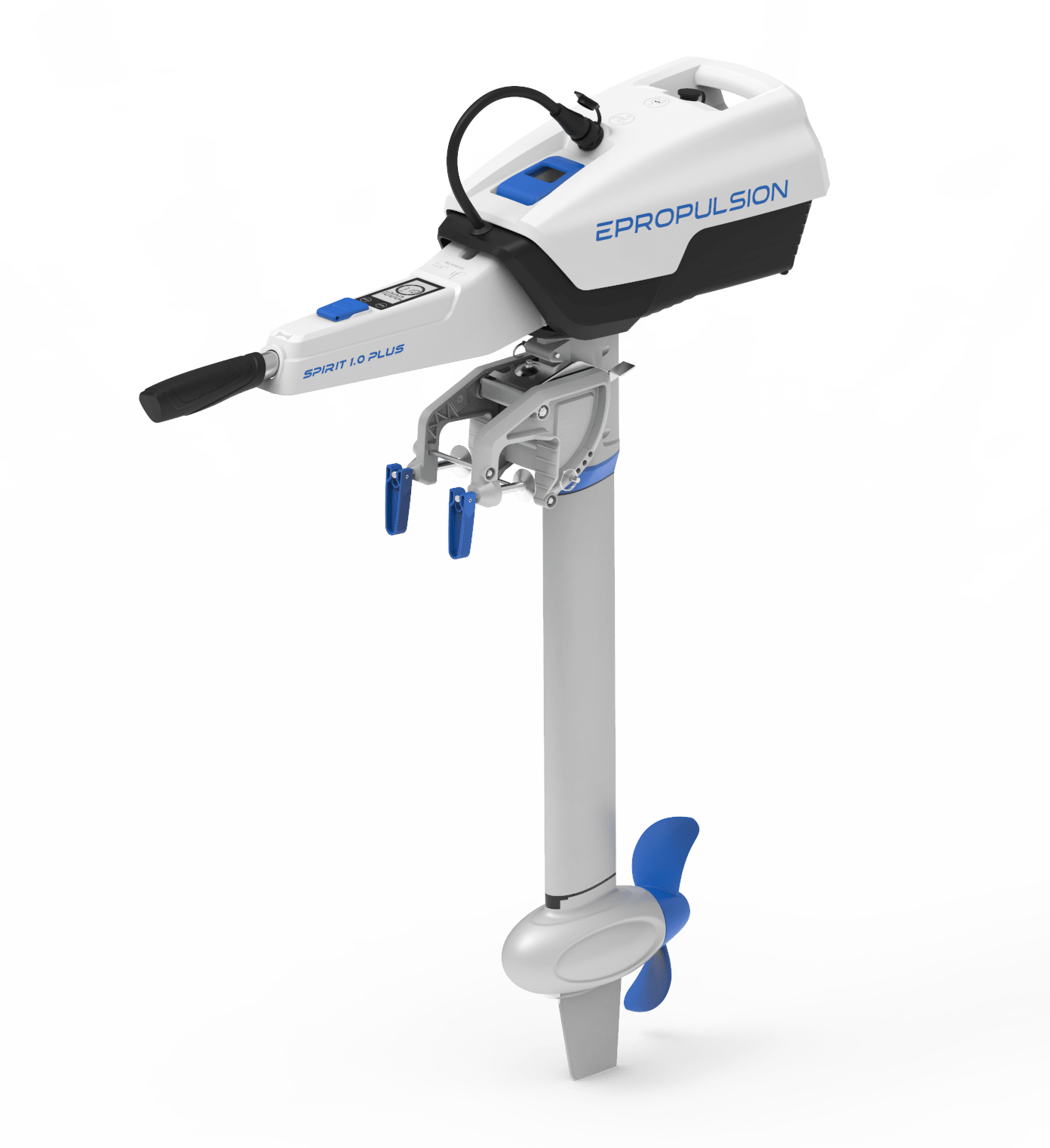

Spirit 1.0 Plus

The Entry-level Spirit Model

Spirit 1.0 Plus has the same performance and the same runtime as Spirit 1.0 Evo. As the entry-level Spirit model, it doesn’t feature hydrogeneration and the safety wristband.

Specs

Spirit 1.0 Evo Spirit 1.0 Evo Remote
Power 1 kW (3HP equivalent) 1 kW (3HP equivalent)
Standard Battery Spirit Battery Plus, 1276 Wh li-ion polymer Spirit Battery Plus, 1276 Wh li-ion polymer
Input Voltage 39V – 60V 39V – 60V
Motor Weight* 11.3 kg / 24.9 lbs 10.6 kg / 23.4 lbs
Battery Weight 8.7 kg / 19.2 lbs 8.7 kg / 19.2 lbs
Standard Charging 8.5 Hrs 8.5 Hrs
Fast Charging 3.5 Hrs 3.5 Hrs
External Battery Yes, and E-Series Battery recommended Yes, and E-Series Battery recommended
Propeller 11″ × 5.8″ 2-blade composite propeller 11″ × 5.8″ 2-blade composite propeller
Trim / Tilt Angle 0°, 7°, 14°, 21° / 85° 0°, 7°, 14°, 21° / 85°
Shaft Length Short, Long Short, Long
Control Evo Tiller Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control
Hydrogeneration Yes Yes
Motor Brushless DC motor Brushless DC motor
Direct Drive Yes Yes
Maintenance-Free Yes Yes
*The weight is measured with the short shaft version.

Free Test Ride

Want to try before you buy? Spirit 1.0 Evo electric outboard is available in over 30 countries and regions. Contact us to schedule a test ride.

FAQ

Can I power the Spirit 1.0 Evo series with an external battery?

Yes, and an external battery power cable is required. Officially, we recommend the ePropulsion 48V E-Series battery to extend the range. We also recommend a cowling for looking good when you remove the original Spirit battery.

How to store the Spirit battery during the long term?

Store the battery in the dry environment and keep the battery charge level at 60% around, and charge the battery every 3 months.

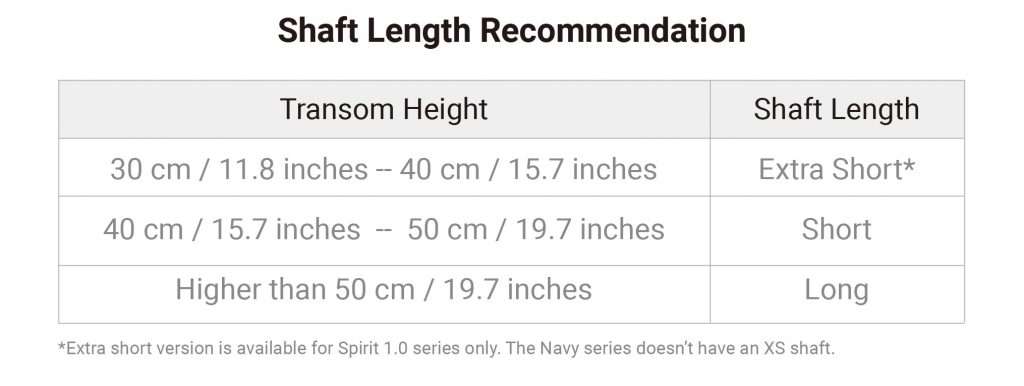

How to find the right shaft length?


For more info, please check ePropulsion Blog: How to Find Your Shaft Length

Is Spirit 1.0 Evo series good for saltwater use?

Yes, it is designed for extensive use in the saltwater. We choose high-quality aluminum alloy as the base material, and apply anodizing coating and powder coating on top of it. For more info, please check ePropulsion Blog: How do we make an outboard corrosion-resistant?

Will the motor turn off automatically if I forget to power off after use?

Yes, Spirit 1.0(R) Evo will switch off after 30 mins without operation.

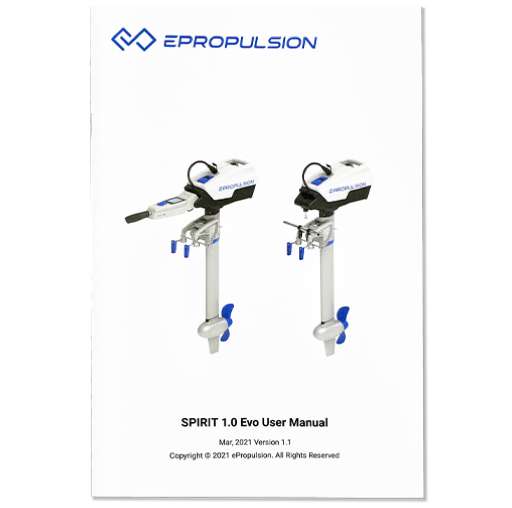

Download
